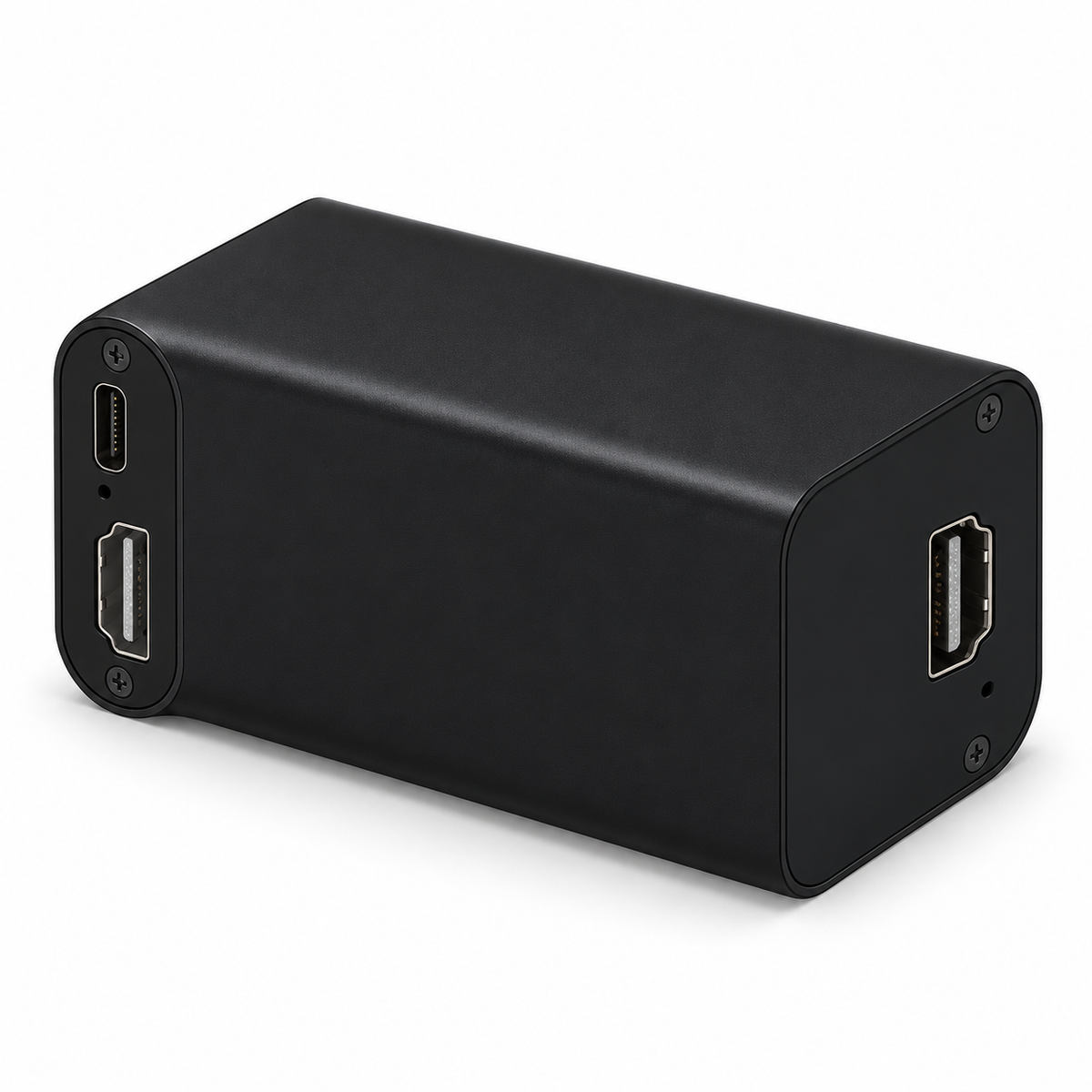

eARC/ARC-to-HDMI Audio Extractor

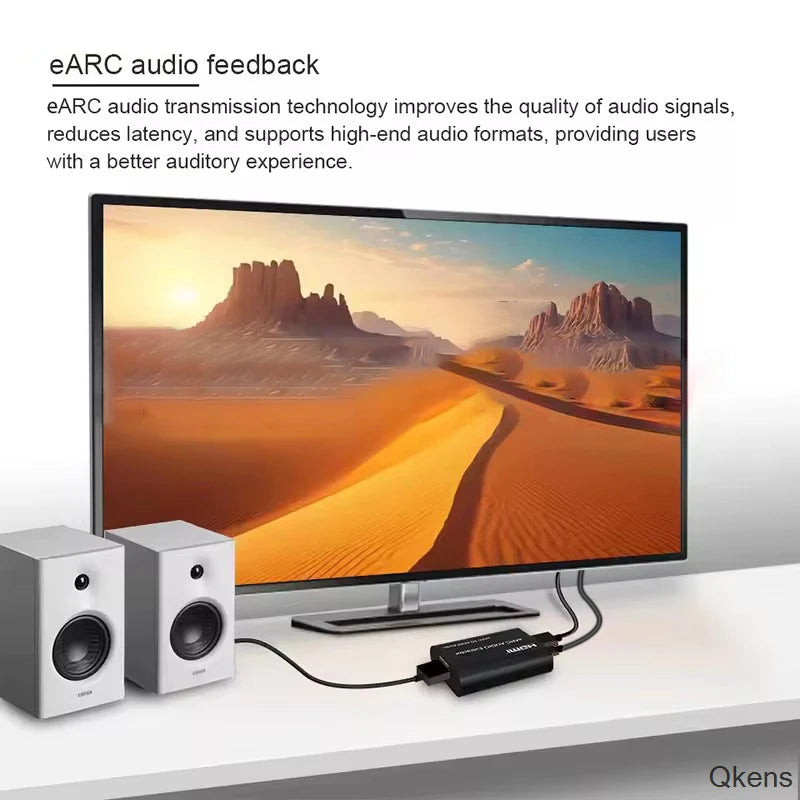

Send sound from a TV's eARC or ARC connection to a compatible HDMI-audio input. This compact extractor provides an audio-only HDMI output, offering a connection path for suitable older receivers that do not have their own eARC input.

✅ Connect TV-return audio to HDMI equipment - The extractor converts supported ARC/eARC input to an HDMI audio output.

✅ Keep supported surround formats available - Listed PCM and surround-format support accommodates a compatible TV and receiver chain.

✅ Use compatible CEC controls - CEC support can pass supported volume and power commands from the TV remote.

Keep a Compatible Receiver in the TV Setup

A receiver may still suit the speakers even when the TV connection has changed. An extractor can provide the missing audio path, letting you plan the system around the equipment already in use.

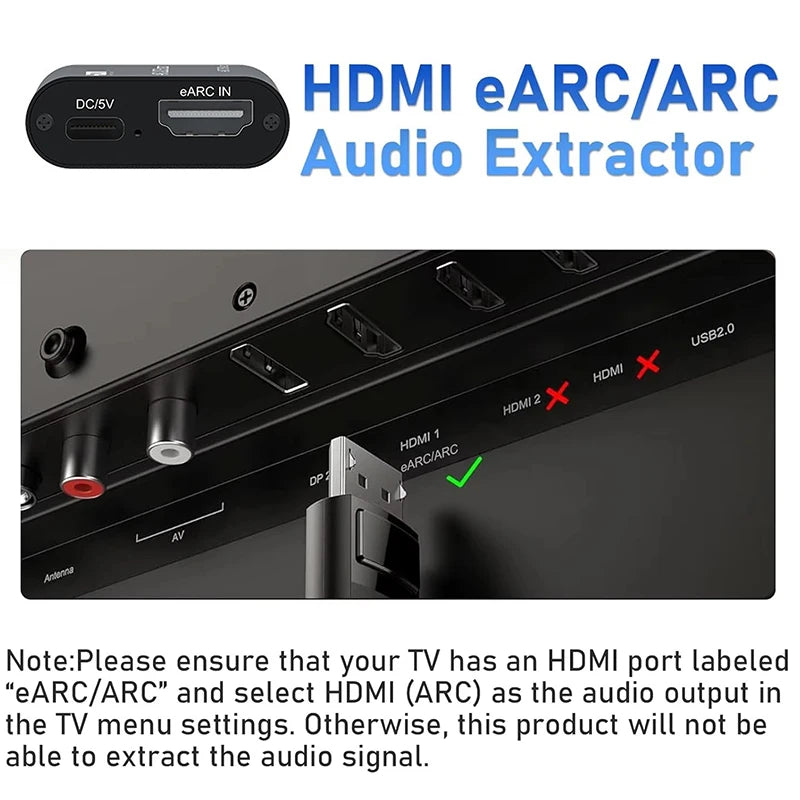

Check that the receiving device accepts the extractor's HDMI audio output; an ARC-only socket is not automatically interchangeable. Output carries audio rather than a viewable picture, and available formats and CEC behaviour depend on the TV, receiver and settings.

Technical details

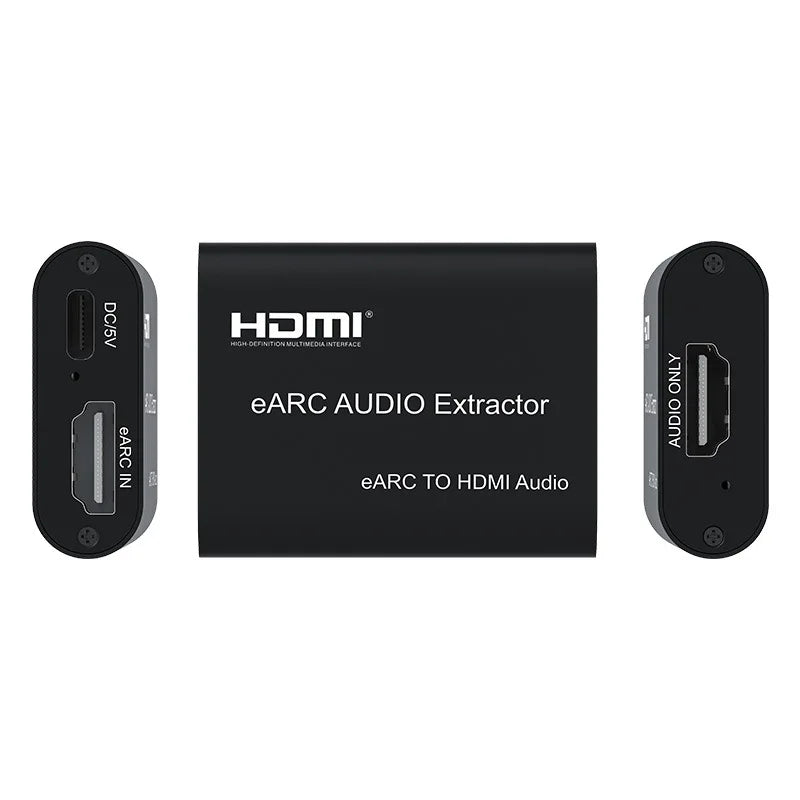

• Input: HDMI ARC/eARC
• Output: HDMI audio only
• Listed support includes: PCM 2.0/5.1/7.1 and compatible compressed/lossless formats
• Power: USB Type-C 5 V

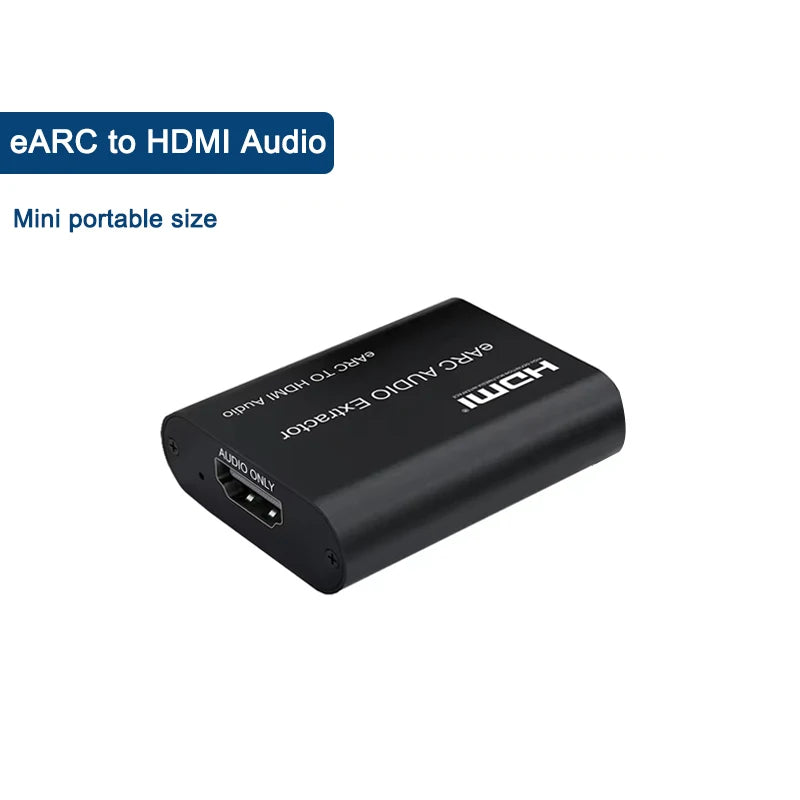

• Size: approximately 53 × 43 × 15 mm

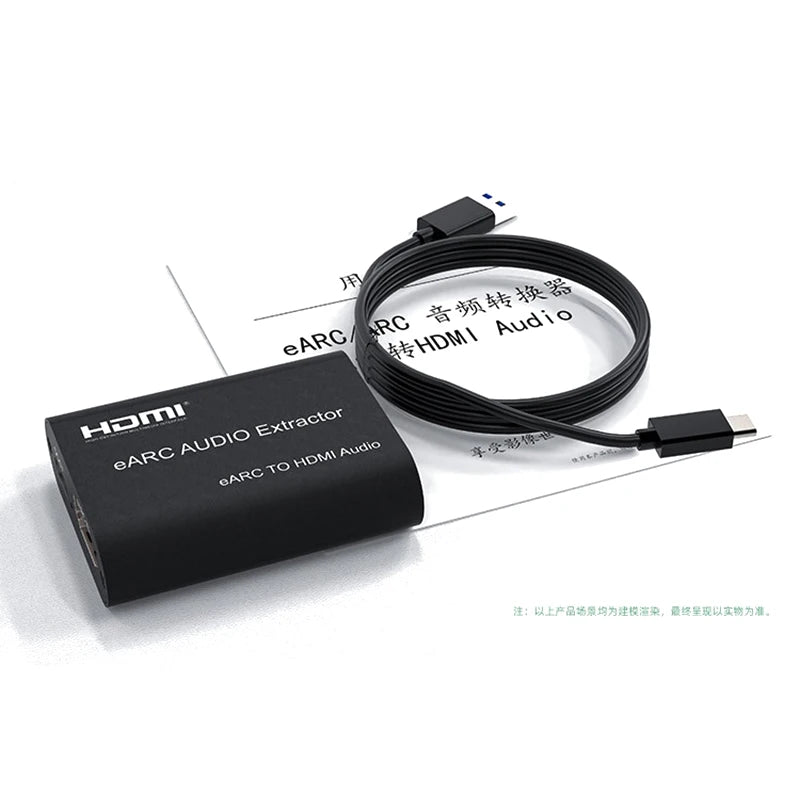

• Includes: extractor, USB-A-to-C power cable and manual

Verify the HDMI-audio connection, then add an extractor to keep a compatible receiver working with the TV.
