EBAZ4205 Adapter Board Kit, Unsoldered Connectors, SPI Display
✅ Keep interfaces together. Buttons, indicators and display connections sit on one dedicated adapter board.
✅ Add a small screen. The described 240 x 240 SPI colour display gives the project a local readout.
✅ Solder only what is left. Surface-mounted parts come fitted; the remaining connectors are for you to solder.
✅ Confirm your revision. Pinout and connections vary by board revision, so check yours before assembly.
Add interfaces to an EBAZ4205 project

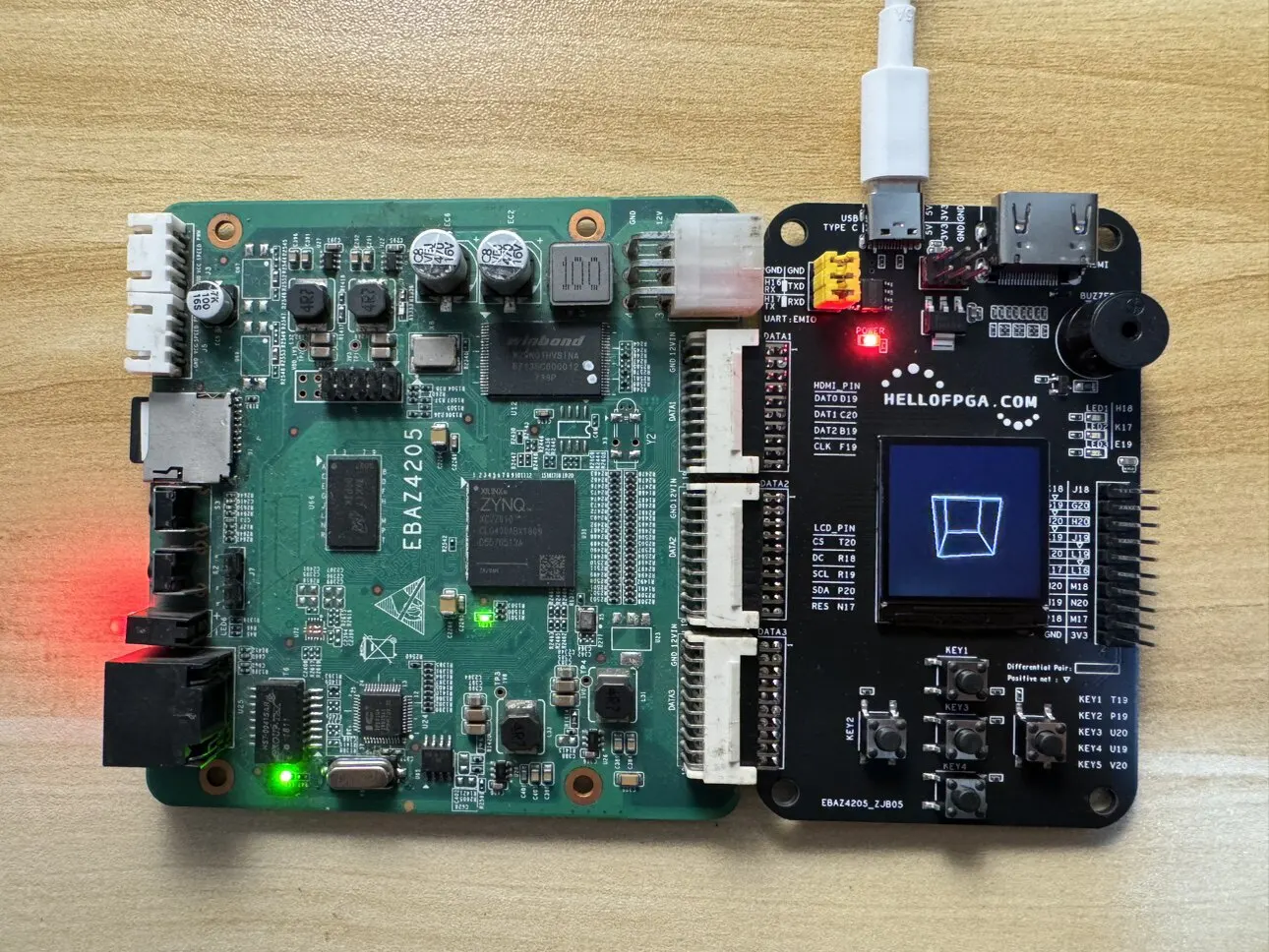

An adapter board kit for a compatible EBAZ4205 project, with connector soldering left to the builder. It groups buttons, indicators, display connections, USB-to-serial, HDMI and a buzzer on a separate board. A 240 x 240 SPI colour screen is described, and the mainboard is not included.
Technical details
- Product: adapter-board accessory kit.
- Assembly: connector soldering required.
- Display listed: SPI colour, 240 x 240.
- Interfaces described: USB-to-serial and HDMI, subject to revision.
- Package: selected adapter components; mainboard excluded.


Confirm the board revision and prepare your soldering setup first.
