Electric Fan Control Board with Infrared Remote

Replace or adapt the controls of a compatible electric fan with this control-board and infrared-remote kit. The board provides connections for a suitable fan motor, while the remote brings common fan controls together in one handset.

Bring compatible fan controls to one remote

• ✅ Adjust a compatible fan from the handset — the controls include on/off, speed and timer functions.
• ✅ Use oscillation control where supported — a separate connection operates a compatible oscillation motor.
• ✅ Plan the installation as a component replacement — the board, receiver lead and remote are supplied without another complete fan.

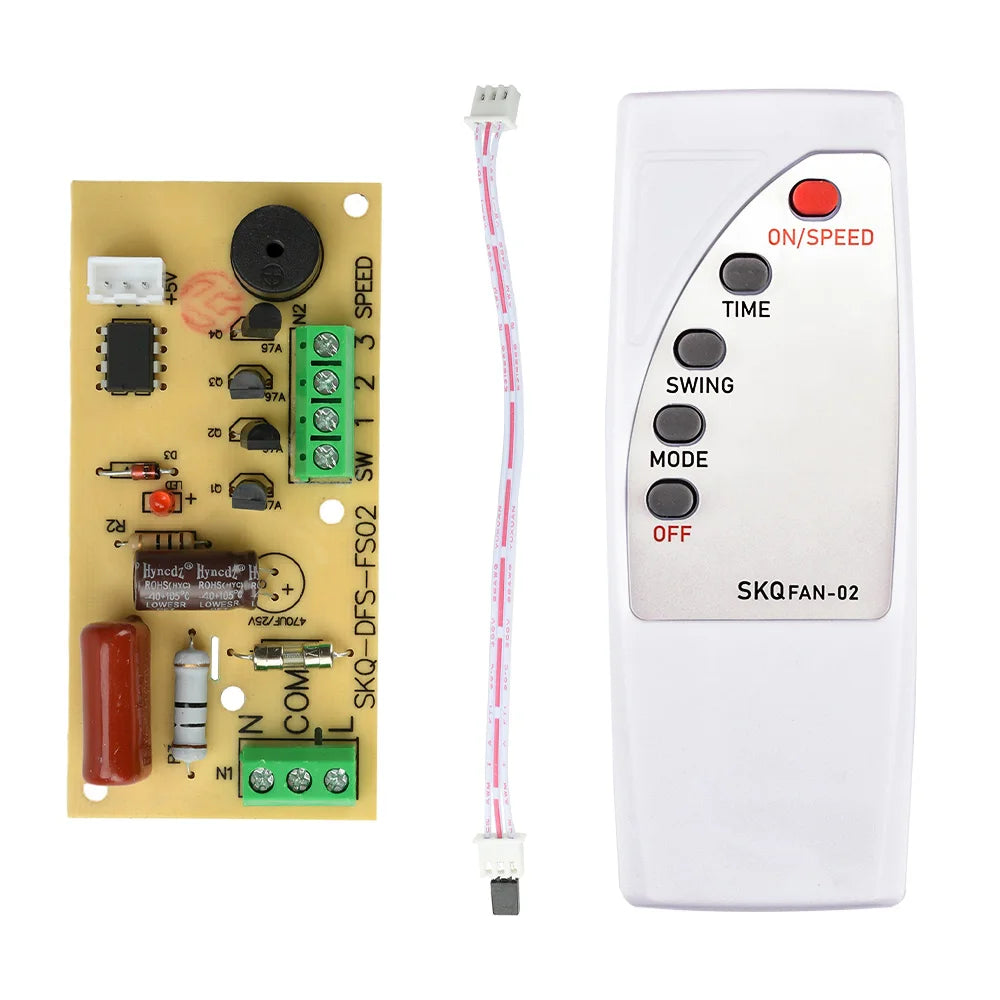

Includes one fan control board, infrared receiver lead and remote control. Remote batteries are not included. The board is for a compatible mains-powered fan with matching motor wiring and control requirements. Speed and oscillation functions depend on the motors and wiring fitted. Check the board markings, motor load, available space and electrical requirements before installation by a suitably qualified person. No fan, enclosure or power cable is supplied.

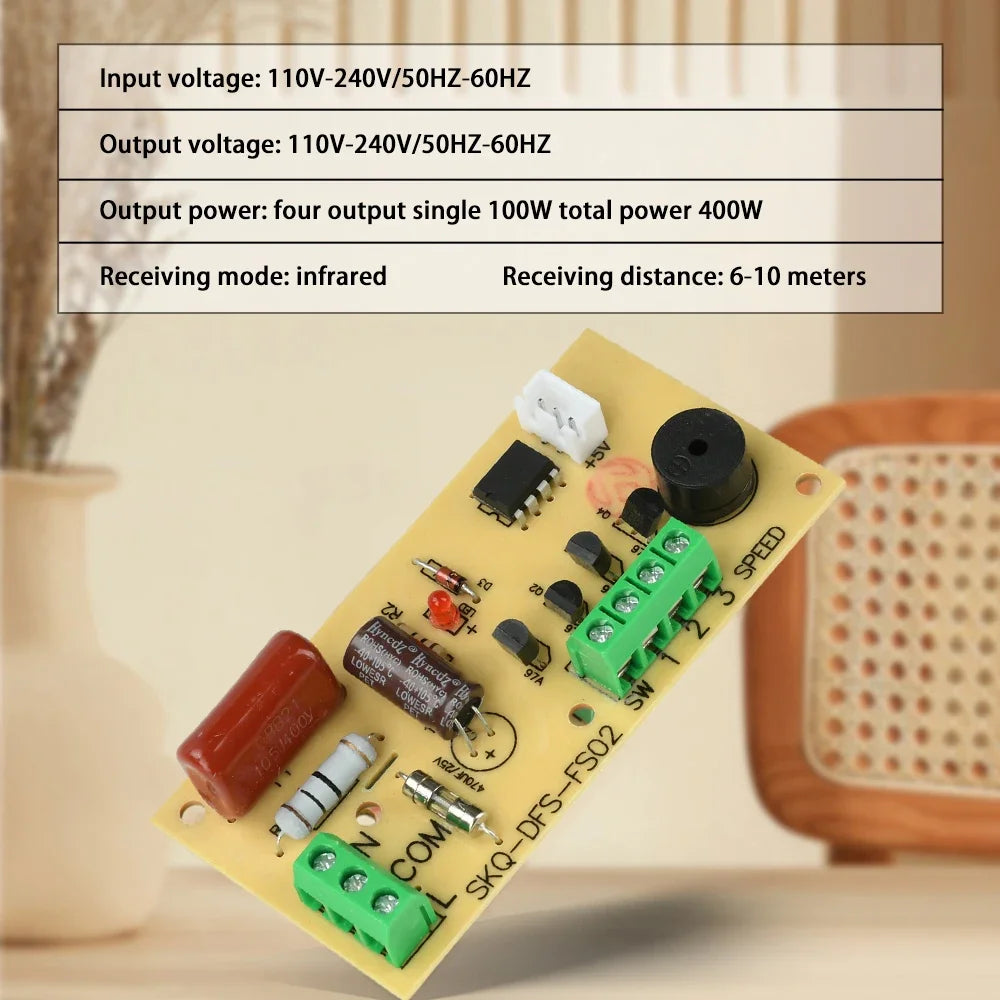

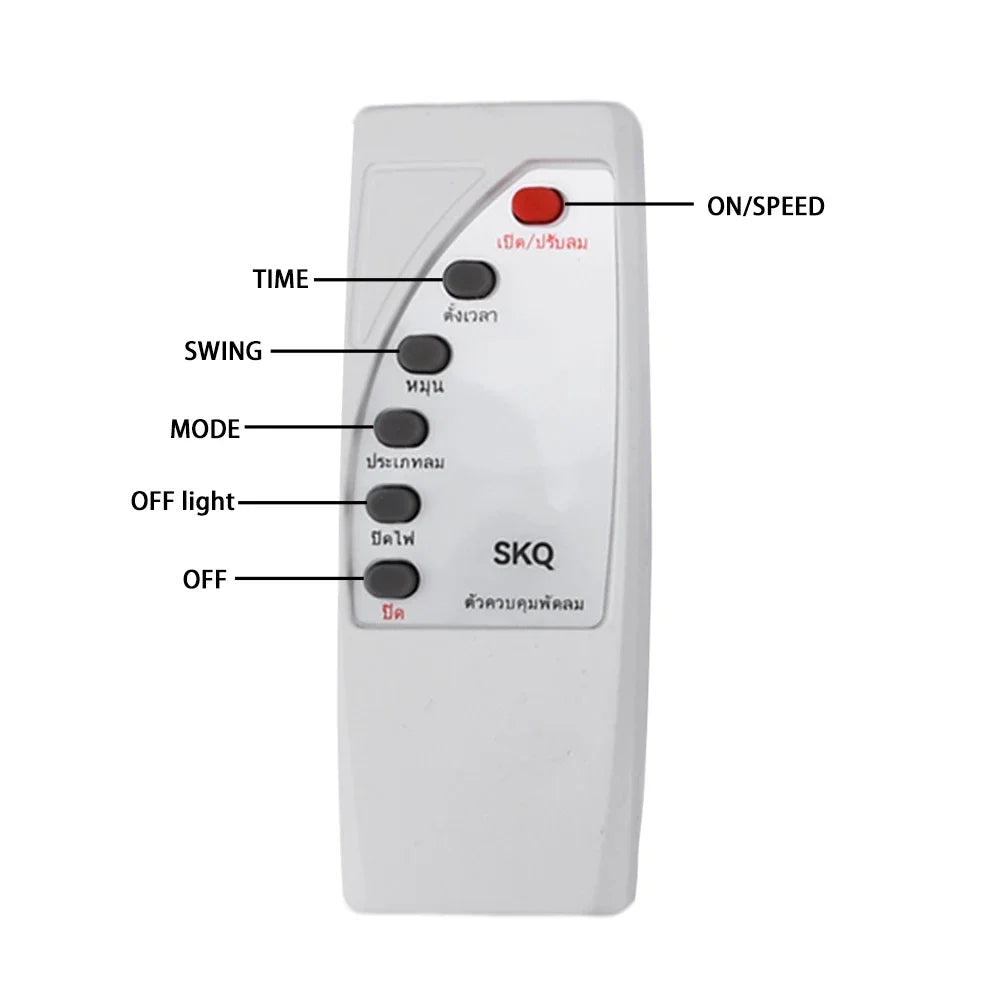

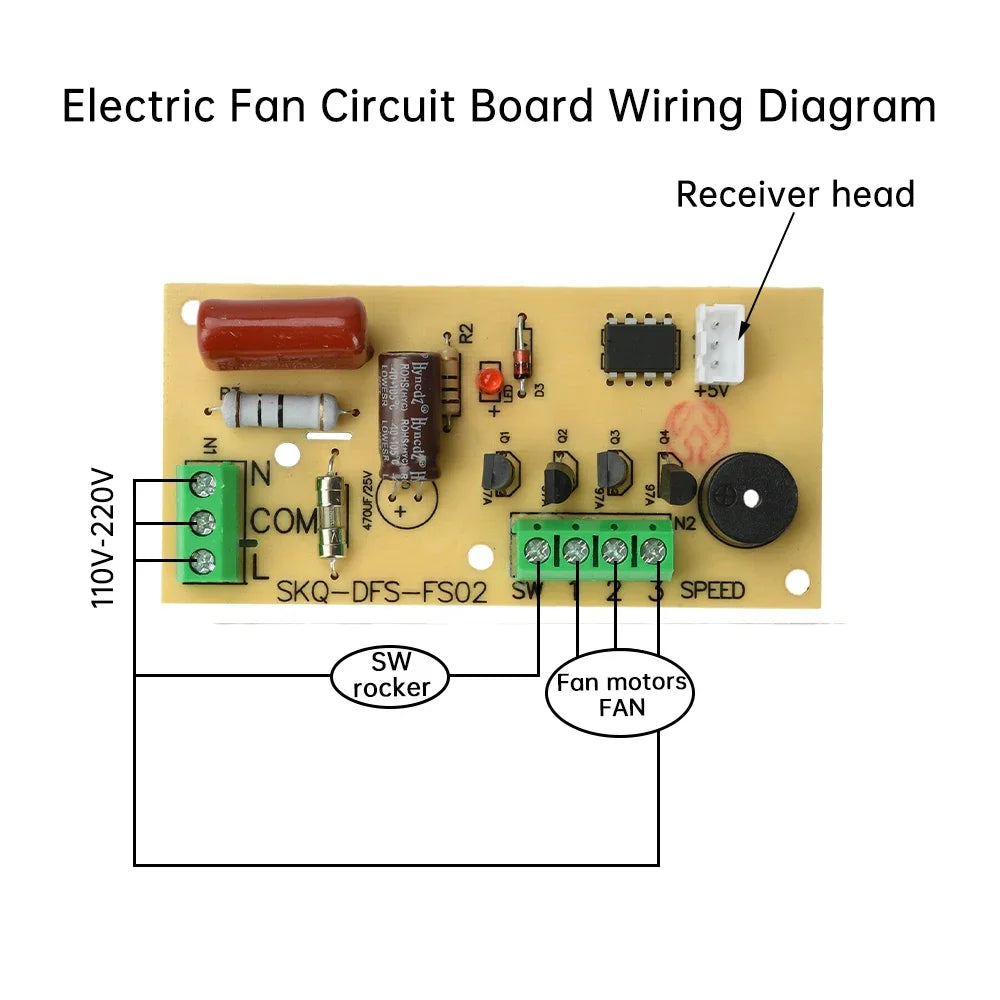

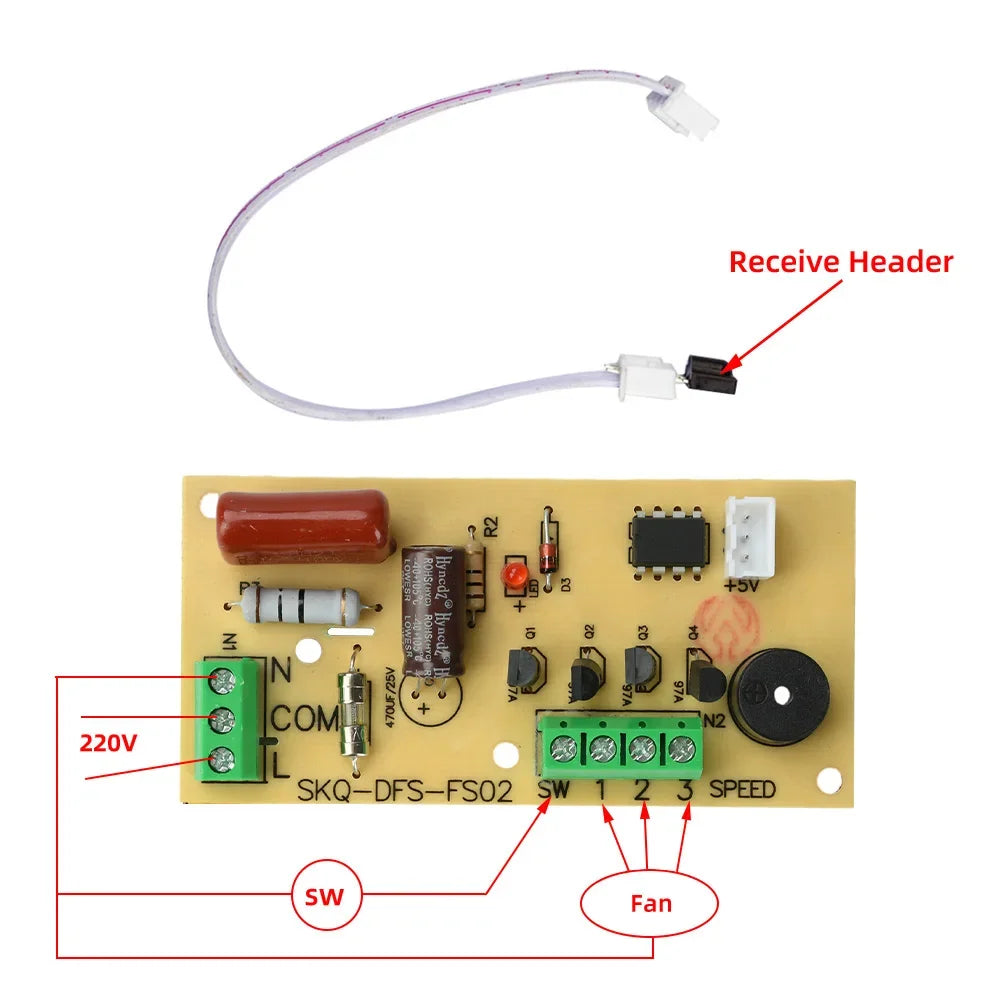

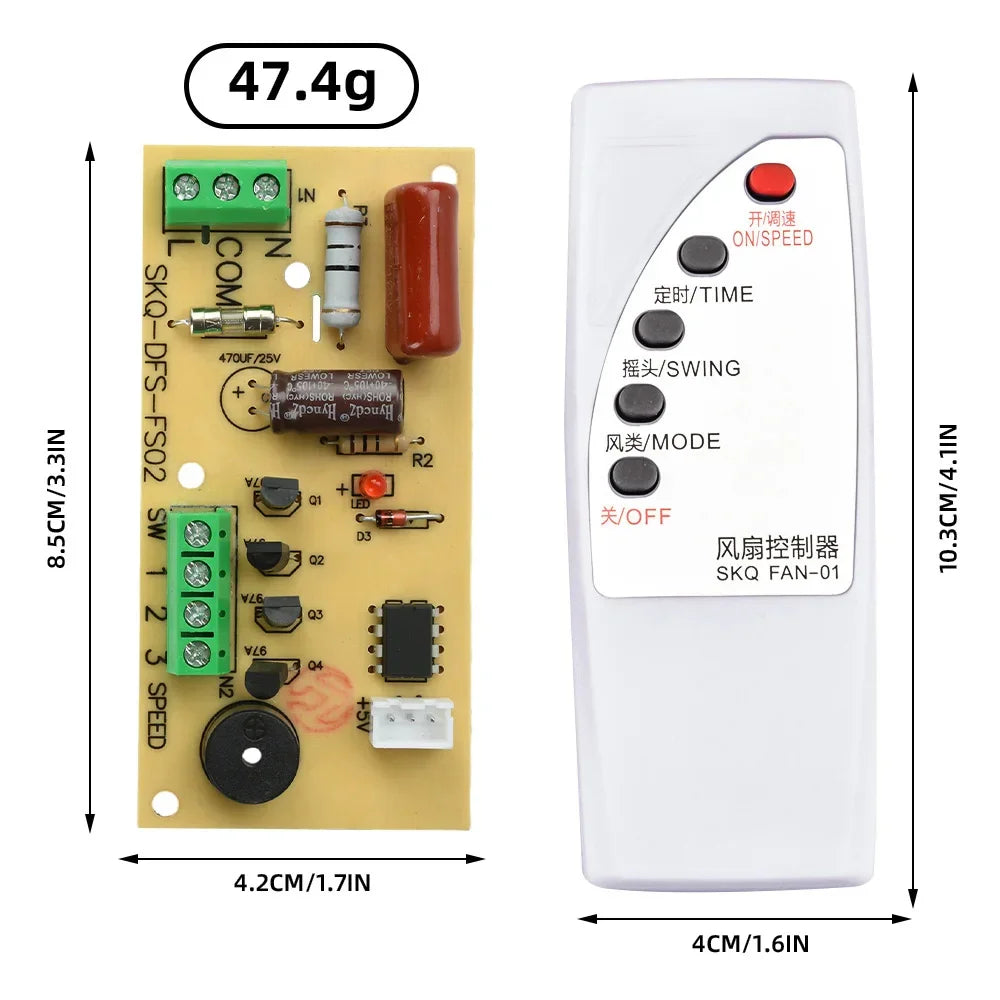

The images show the board, infrared receiver, remote and wiring diagrams.

Check your fan's motor and wiring requirements before choosing this control kit.
