G10 Optical Power Meter - Range Options

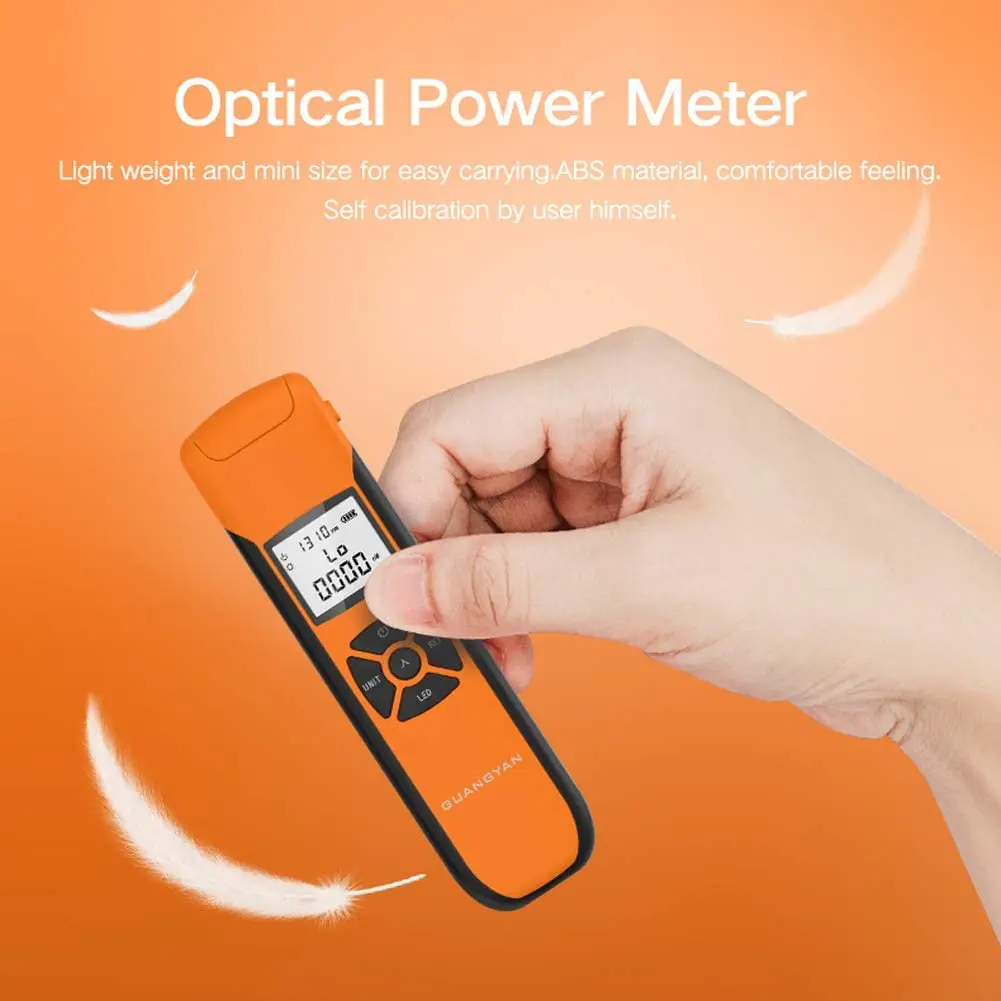

Take optical-power readings and a visual fibre check to the test point in one handheld unit. The G10 combines an OPM function with a VFL and work-light feature, with measurement-range options.

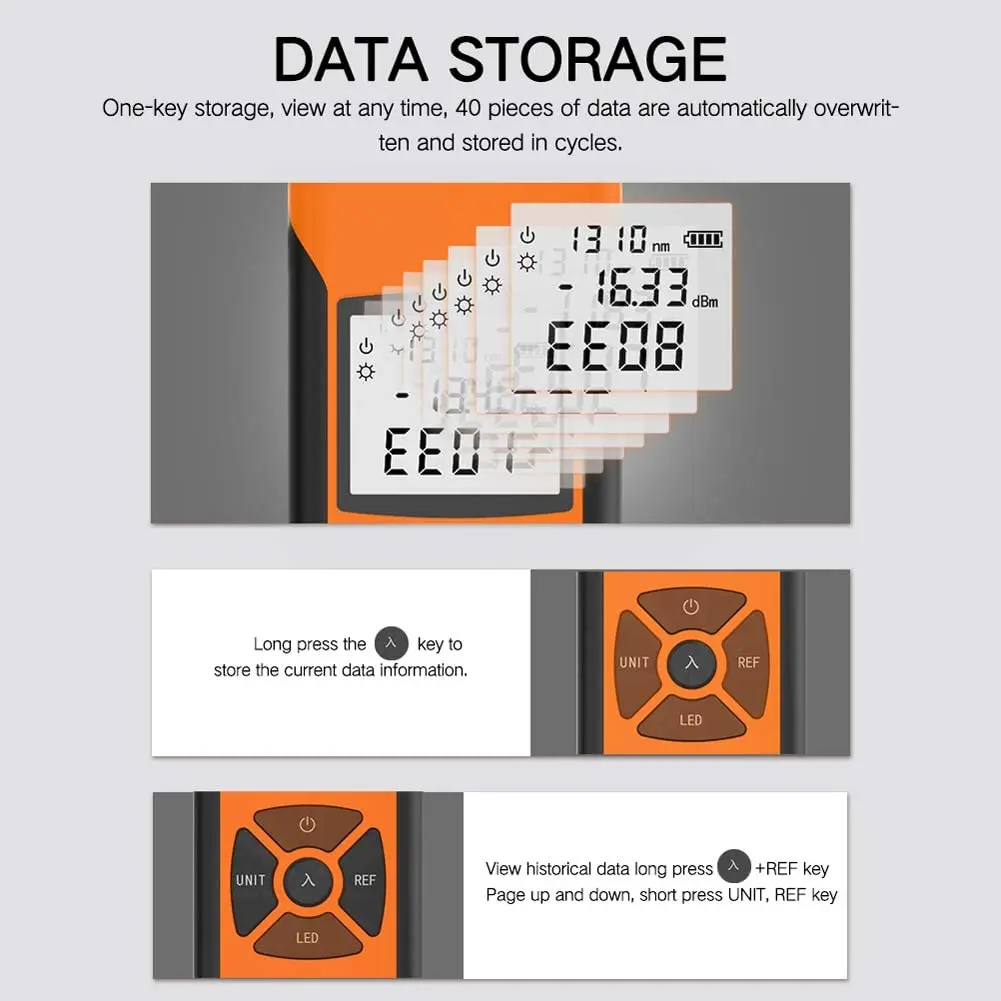

✅ Record the optical-power reading - The meter gives a reference to compare with the requirements of the fibre link.

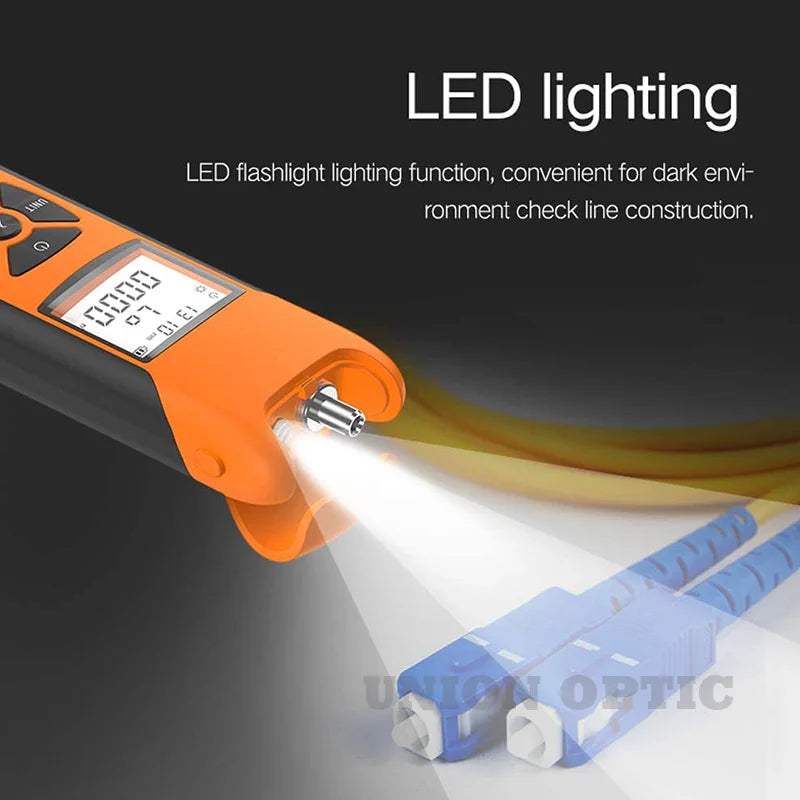

✅ Add a visual tracing check - The VFL function provides a separate aid for accessible fibre identification and faults.

✅ Choose the range for the link - Three selections let you match the power range your work requires.

Keep the Two Fibre Checks Distinct

Optical power and a visible-light inspection answer different questions. Select the correct wavelength and adapter for the meter reading, then use the visual function only within the permitted testing procedure.

Confirm which connector adapters are supplied and keep fibre ends clean. Treat the VFL as laser equipment: do not look into the output or connected fibre. The selected range does not establish a guaranteed fault-finding distance, and other link tests may still be required.

Technical details

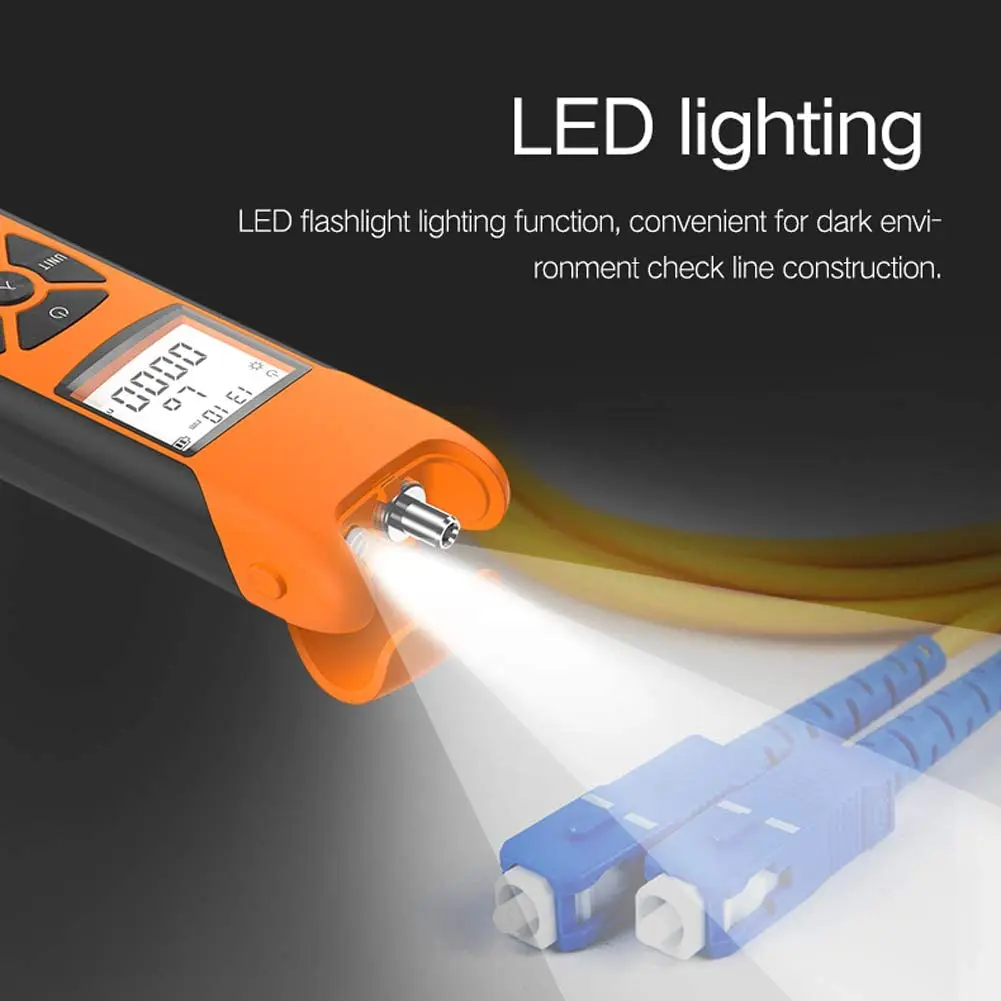

• G10 optical-power meter with VFL/work light

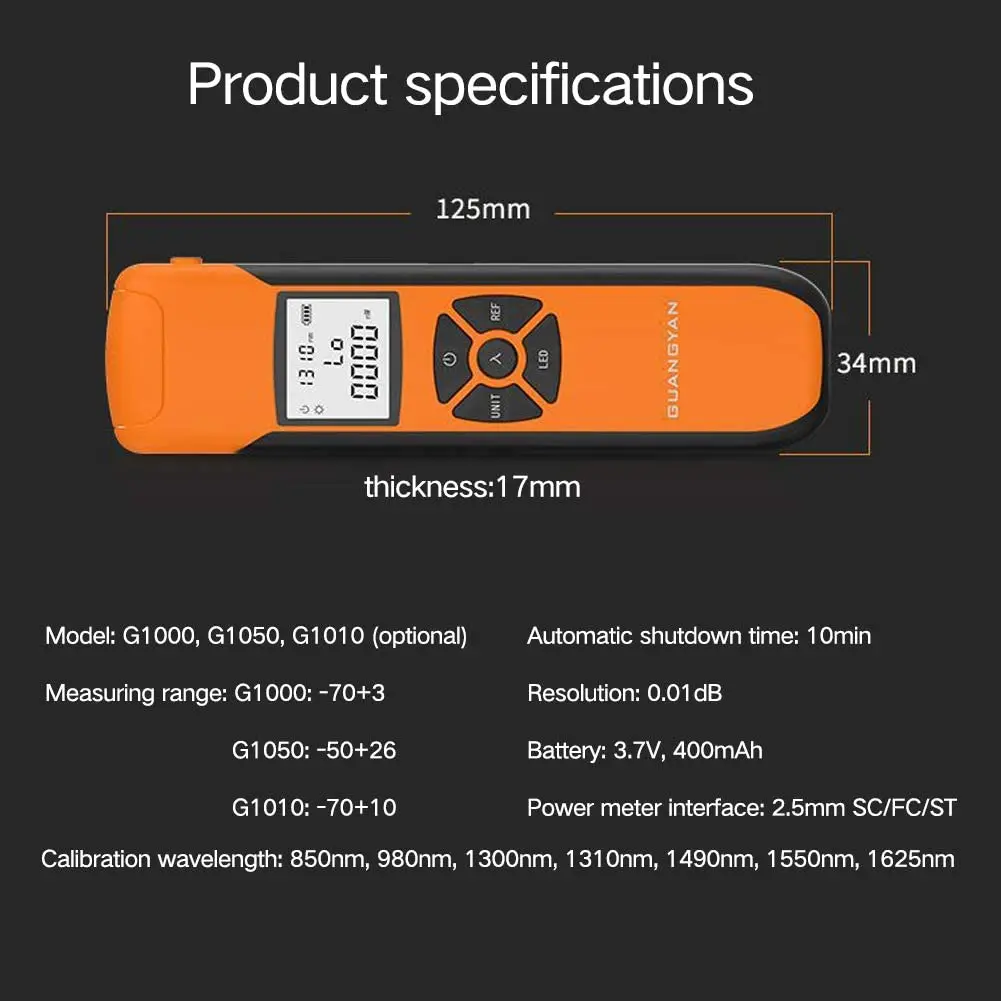

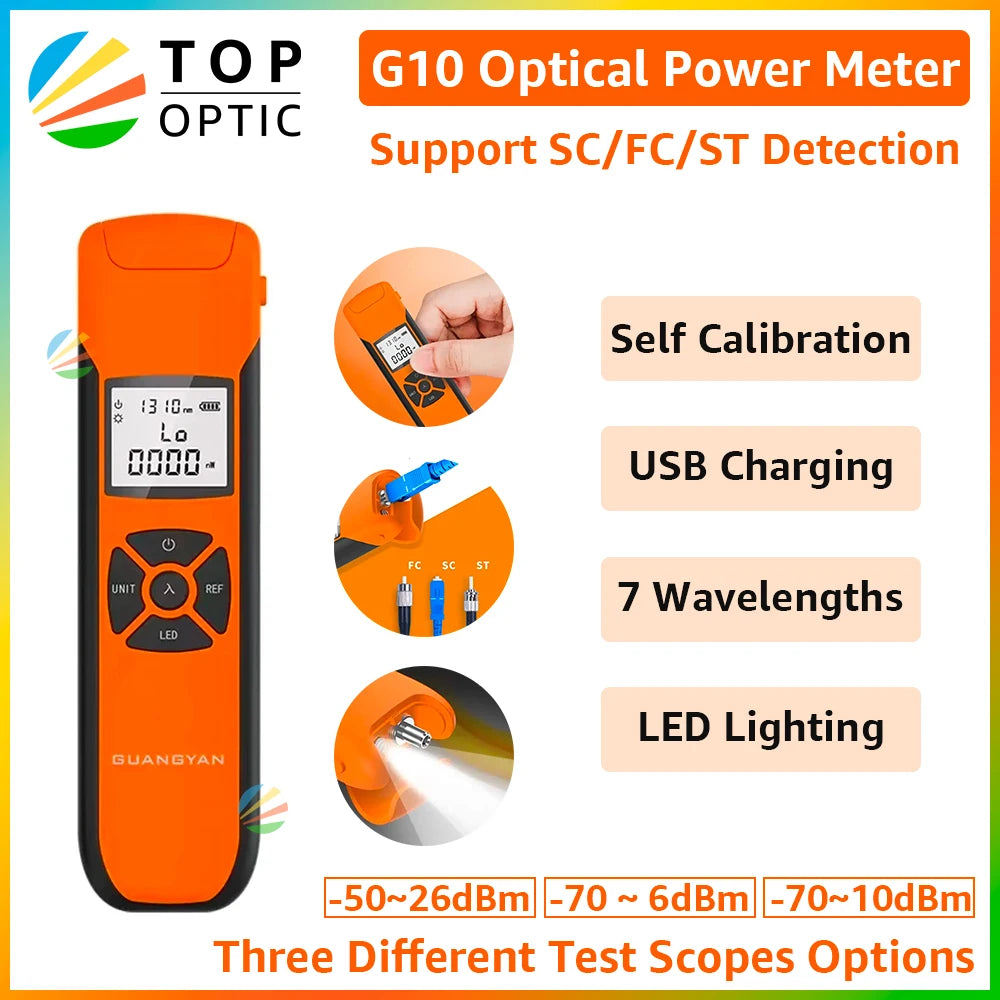

• Range selections: -70 to +6, -70 to +10 or -50 to +26dBm

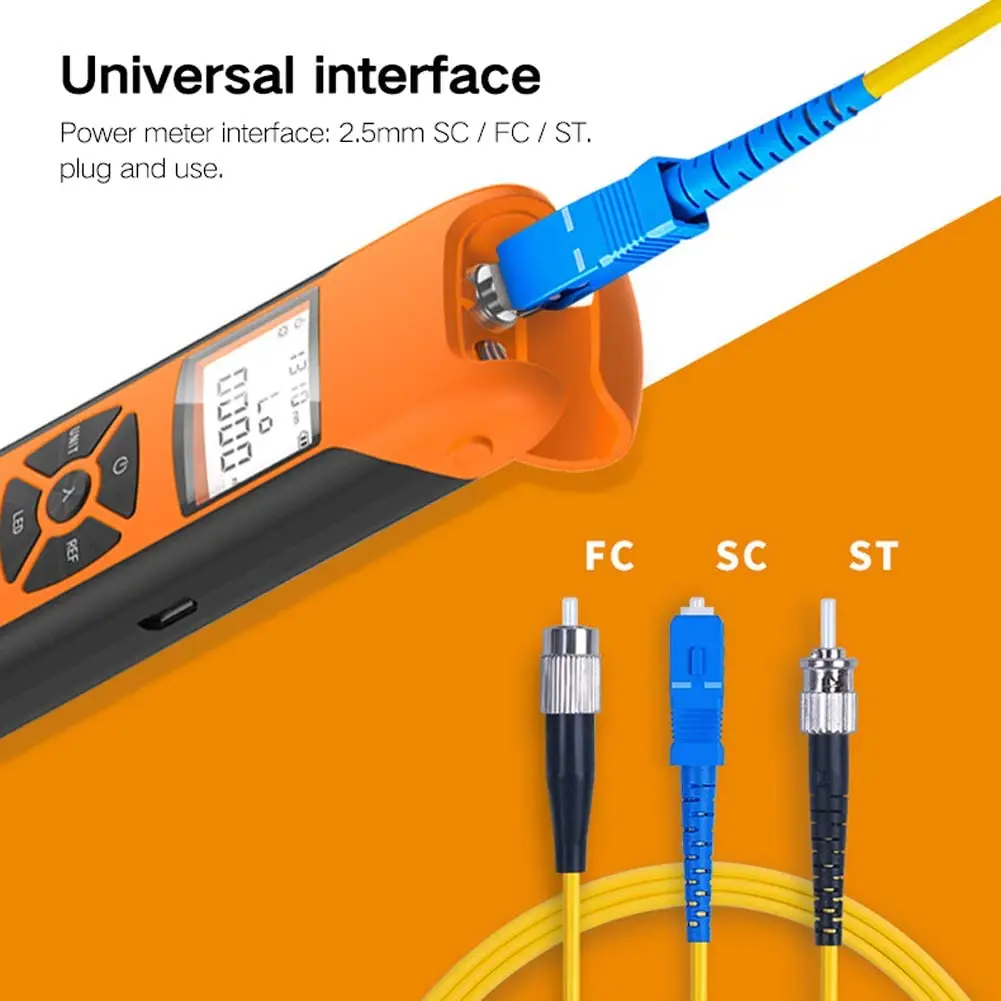

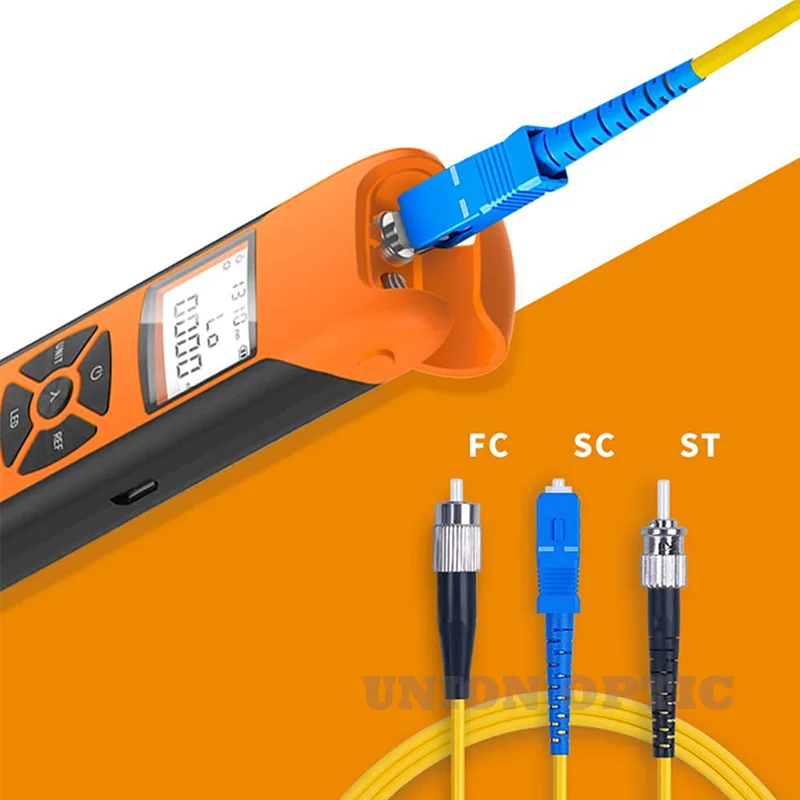

• SC/FC/ST connection support described

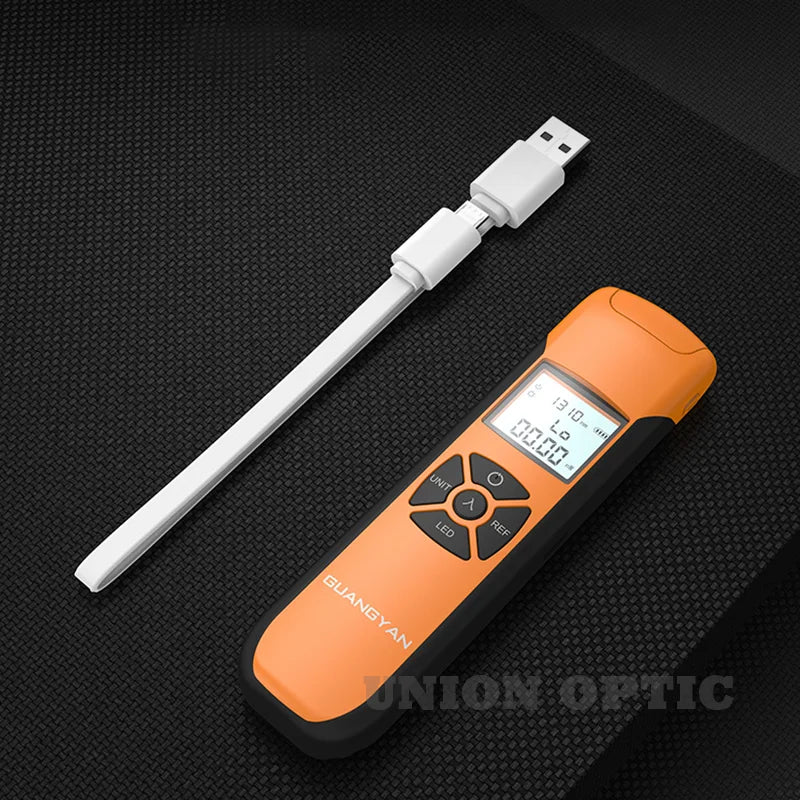

• USB charging
• 800-1700nm measurement-wavelength range specified
• Check adapters and package contents

Choose the measurement range and bring both checks into your fibre toolkit.
