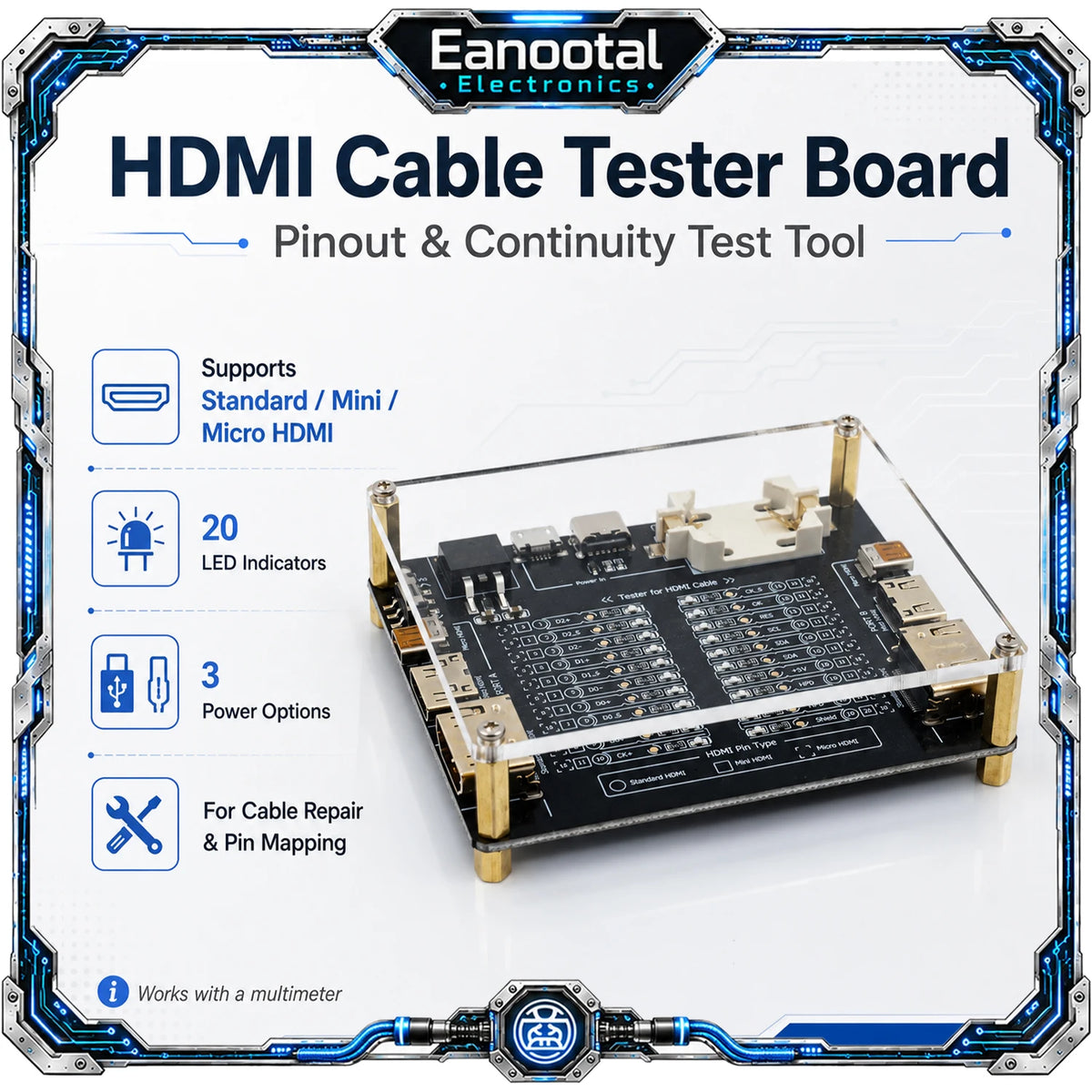

HDMI Cable Tester Board - Standard, Mini and Micro

Identify HDMI cable pins and check continuity using a labelled tester board with a suitable multimeter.

Trace HDMI wiring more clearly

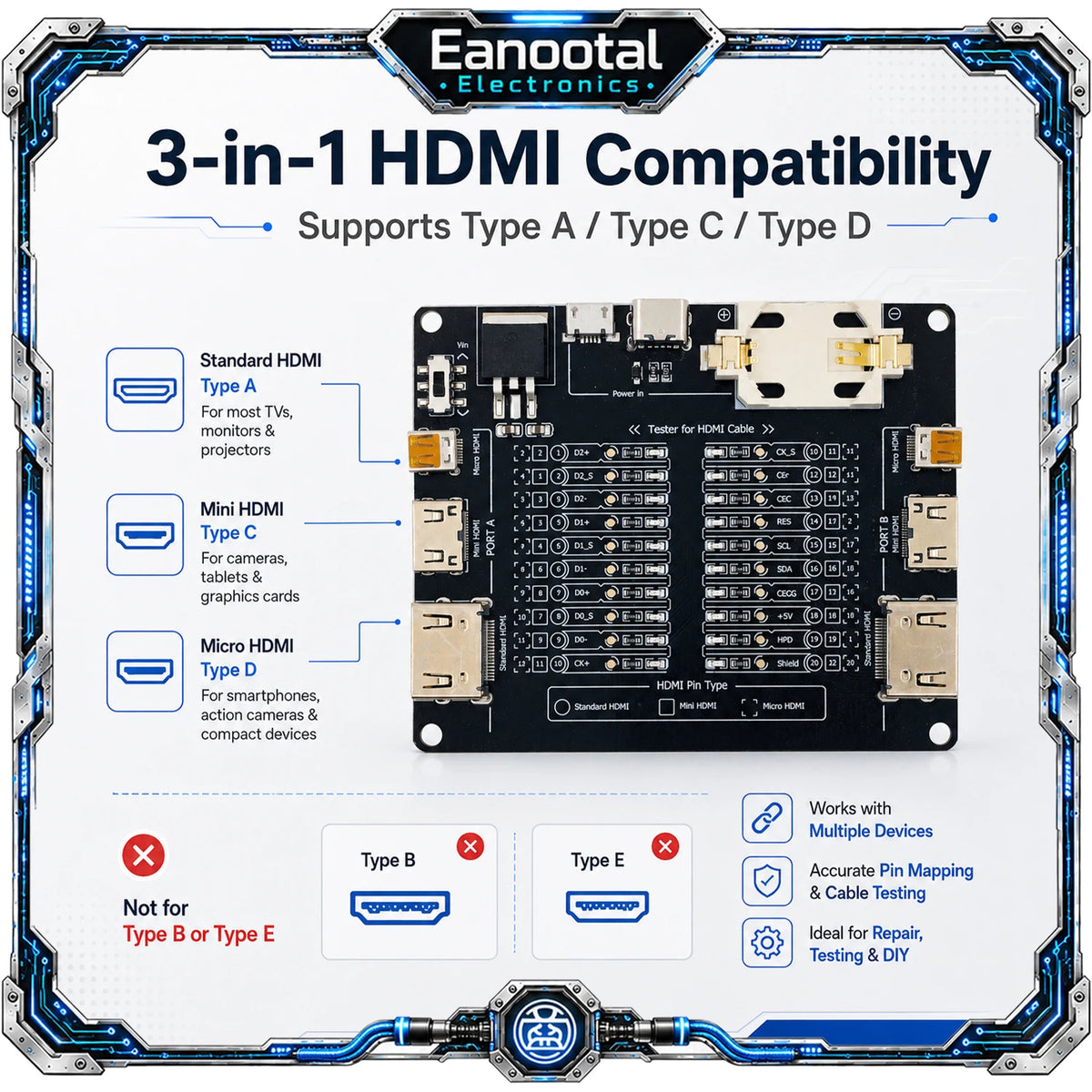

✅ Three connector sizes - Supports HDMI Type A, Mini Type C and Micro Type D.

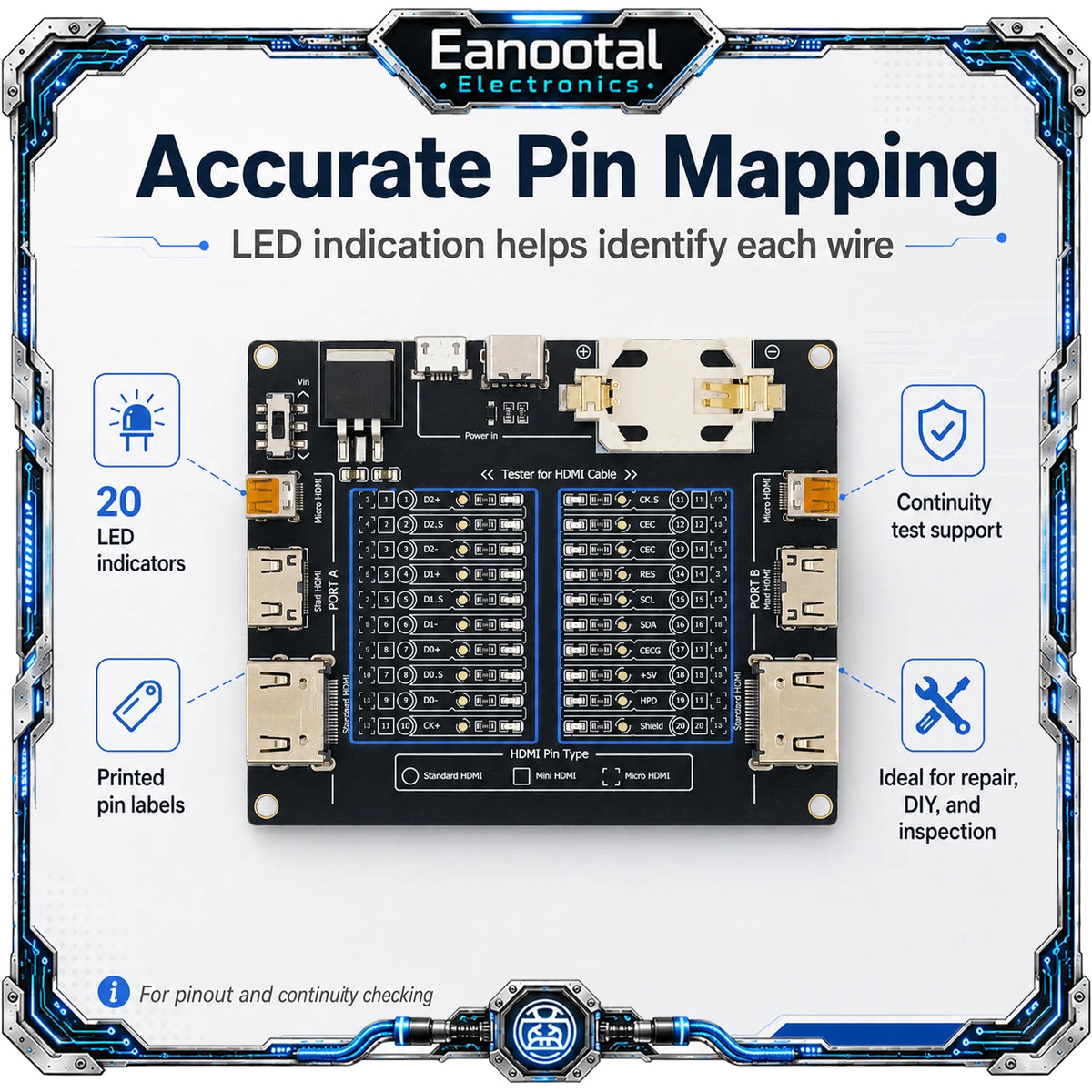

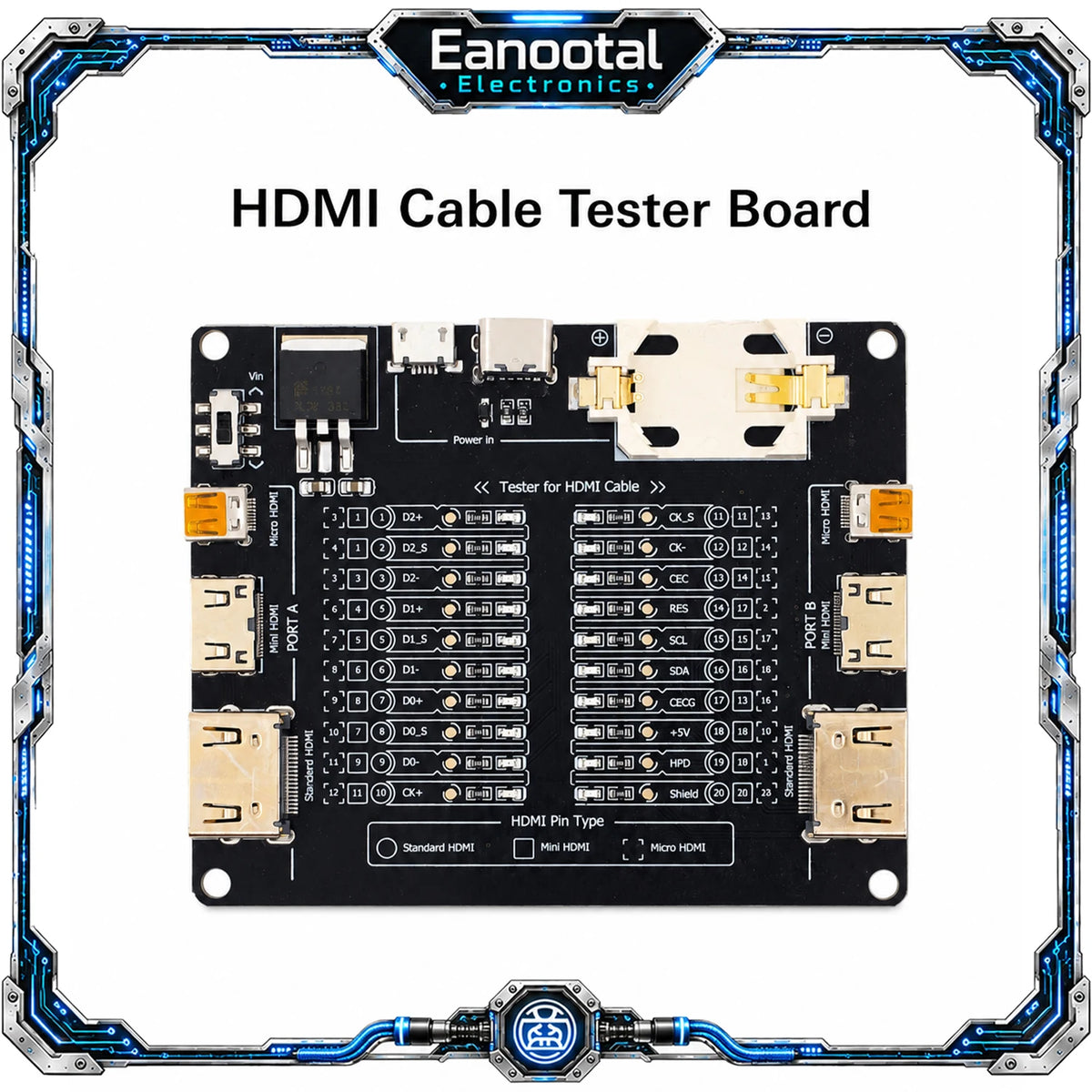

✅ Pin reference - LED indicators identify pins 1-19 and the connector shield.

Technical details

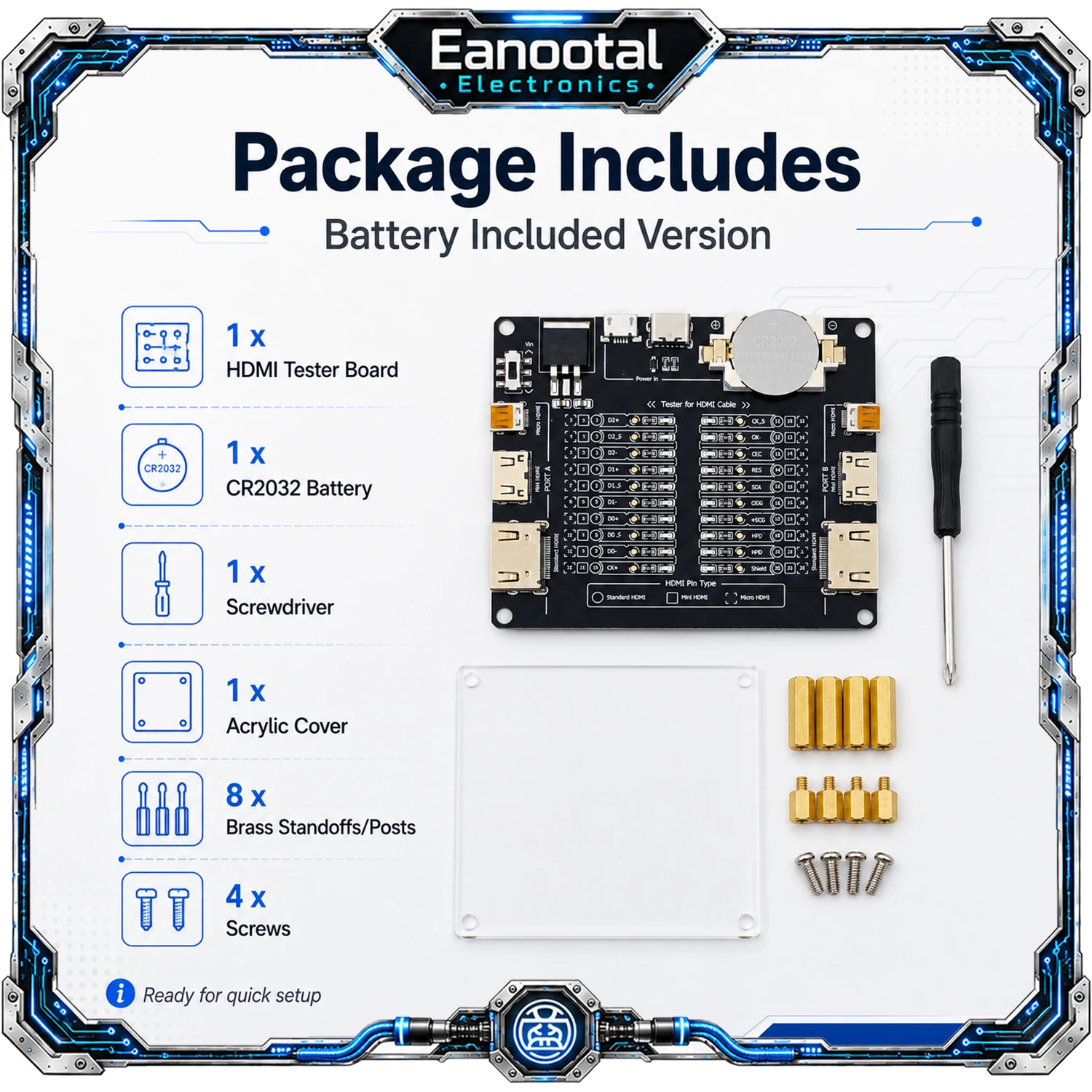

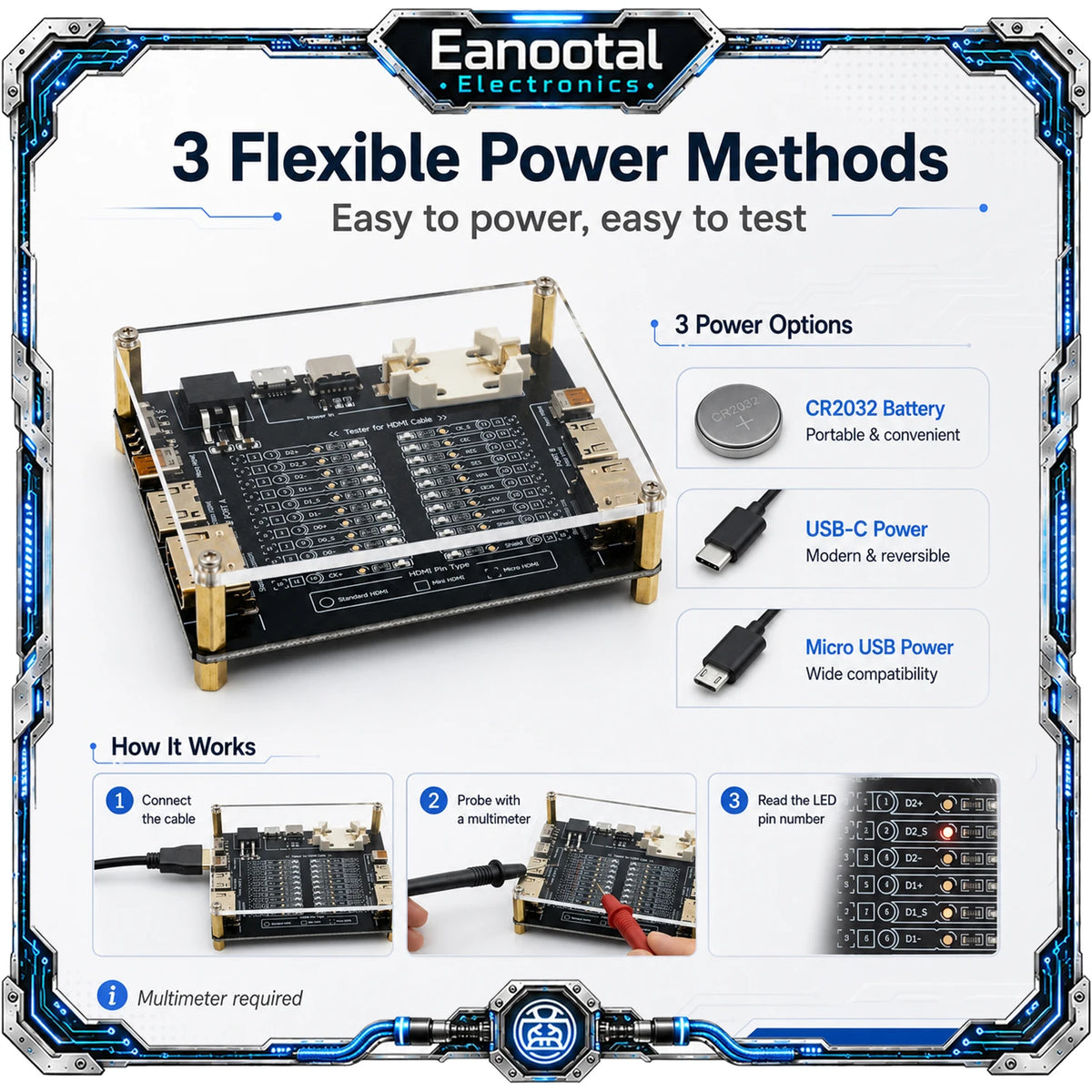

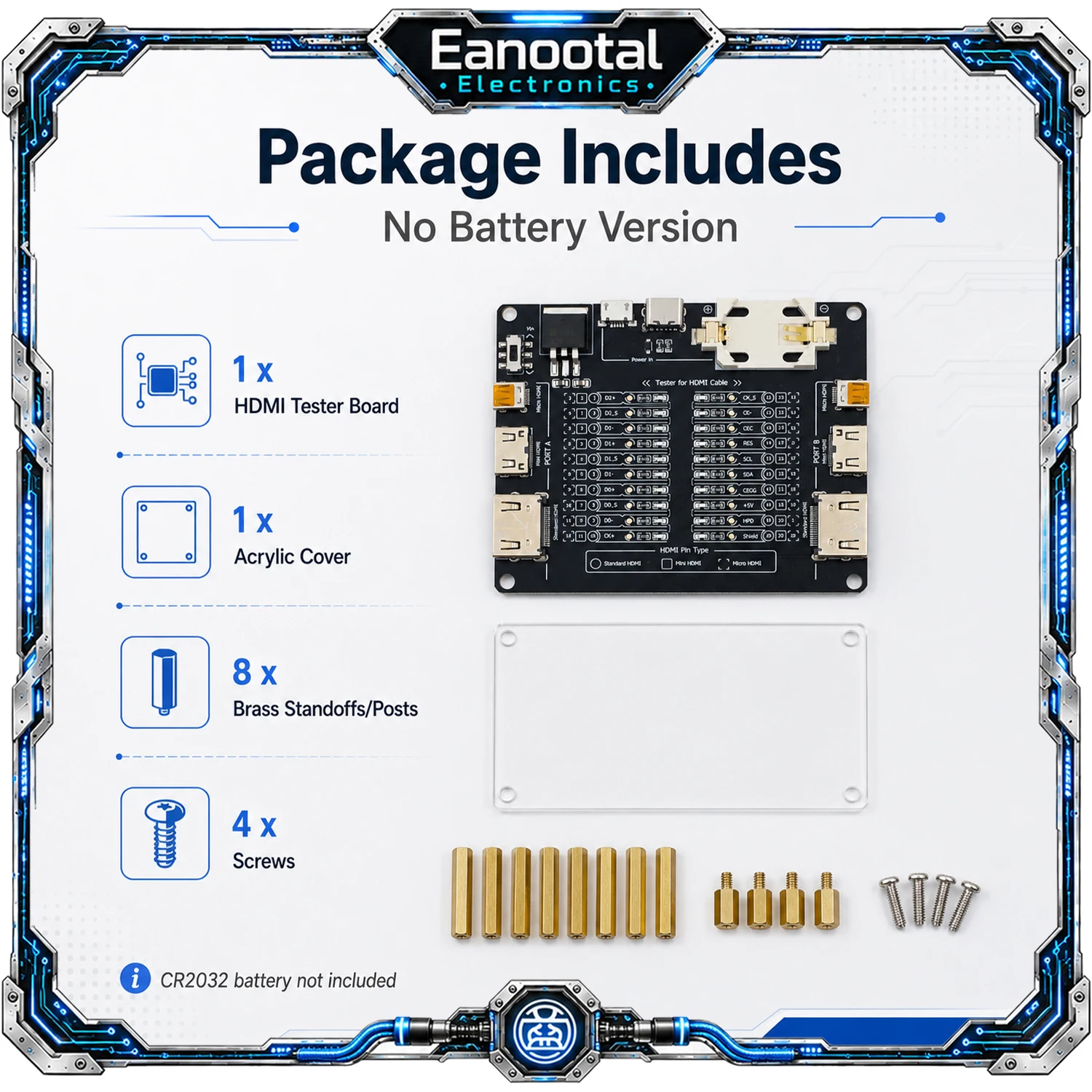

Multimeter-assisted tester, not a video-performance analyser. CR2032, USB-C or Micro USB power options. Battery-included and battery-free variants. Test disconnected, unpowered cables only.

Choose HDMI Cable Tester Board - Standard, Mini and Micro for your next project.
