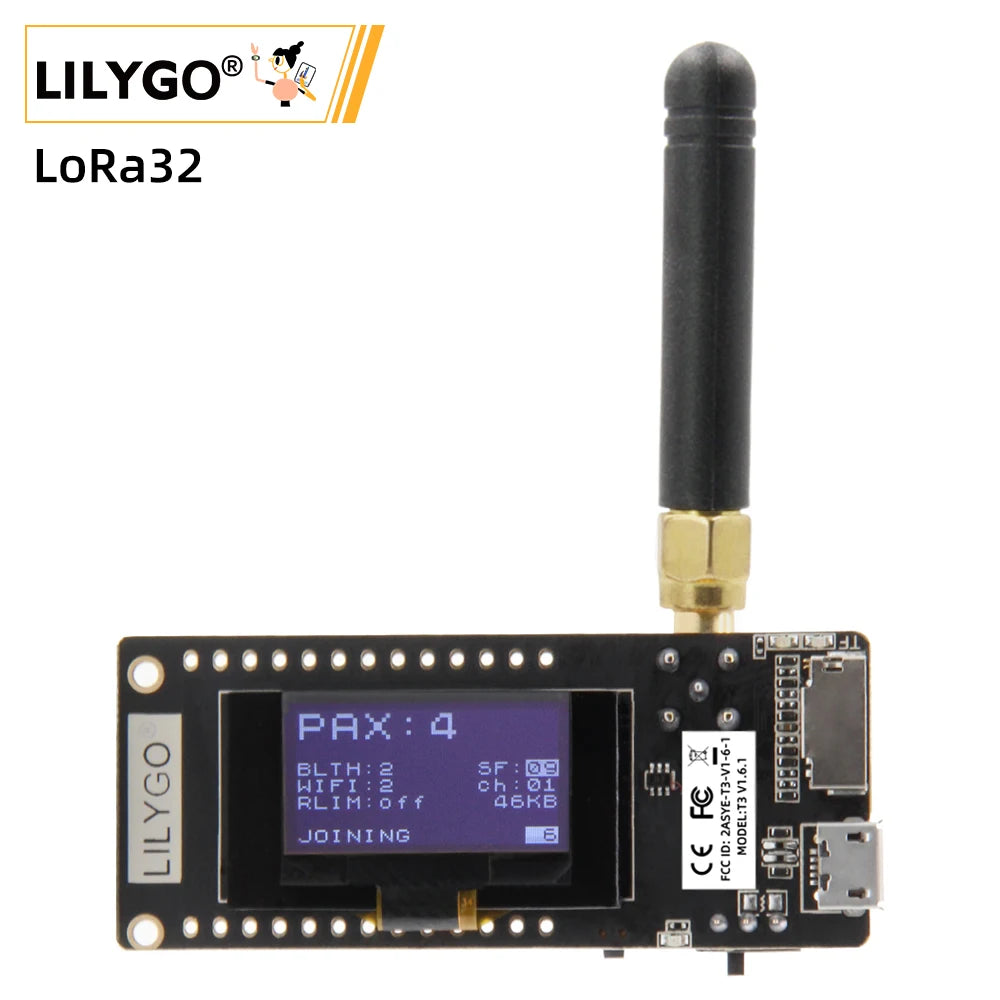

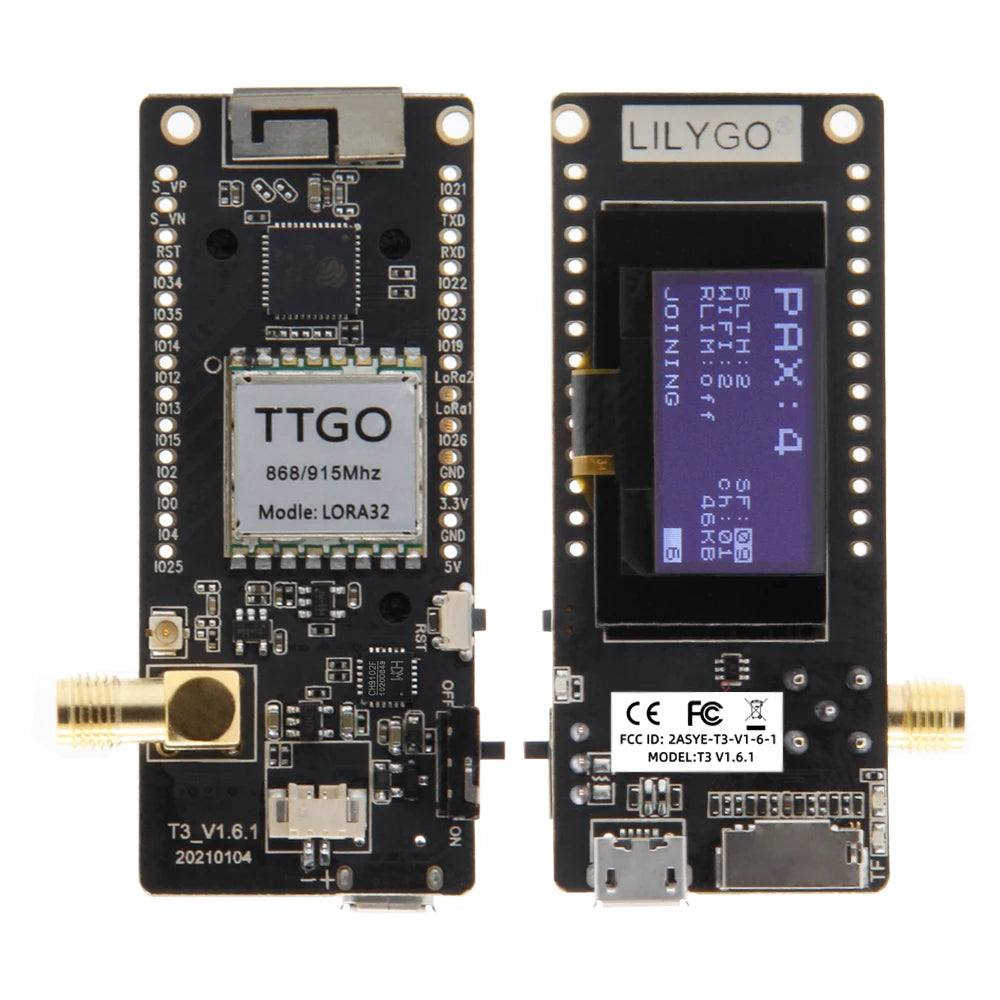

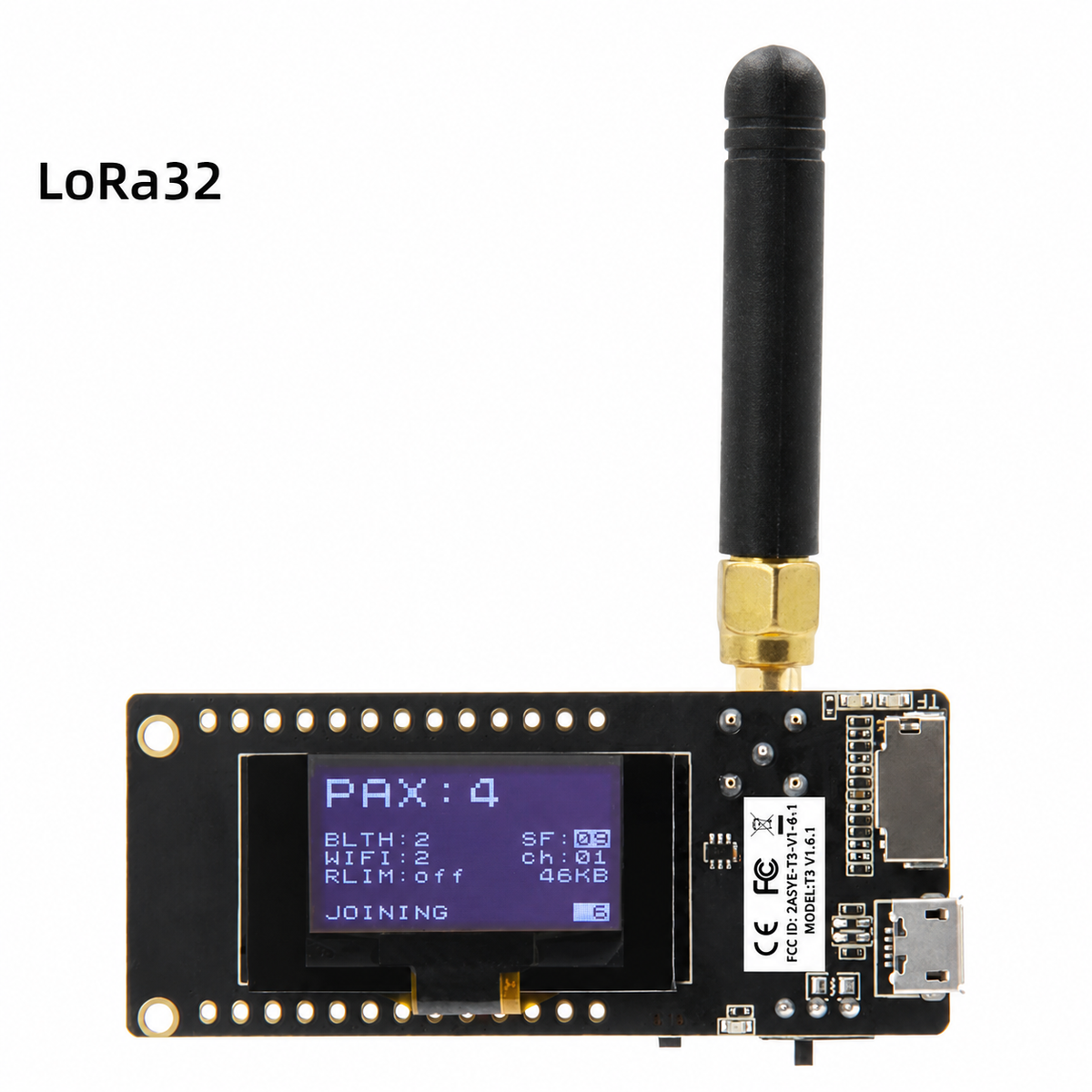

ESP32 LoRa32 Development Board with 0.96-Inch OLED

Build your next connected electronics project around an ESP32 board with LoRa radio and an onboard OLED screen. Select the frequency-band version required by your project.

Develop with a screen and wireless interfaces on the board

✅ See project information without adding a separate display - The onboard 0.96-inch OLED provides a 128 x 64 pixel screen.

✅ Explore different ways to connect your project - The board combines Wi-Fi, Bluetooth and a variant-specific LoRa transceiver.

✅ Use familiar development tools - Arduino IDE and MicroPython are supported programming platforms.

✅ Choose between bench and portable power - The board supports USB or a suitable 3.7 V LiPo battery supply; the battery is not included.

LoRa32 V2.1 and T3 V1.6.1 are names used for this board version. Frequency and transceiver type vary by option; select the band needed for your system. An SD card is not included.

Technical details

• MCU: ESP32; flash: 4 MB.
• Display: 0.96-inch OLED, 128 x 64 pixels, SSD1306, I2C.
• Bluetooth: 4.2 with Bluetooth LE.
• Available radio options include 144-148, 433, 868, 915 and 923 MHz.
• Onboard card slot, reset and boot buttons.

Choose the radio version for your project and start building around the ESP32 platform.
