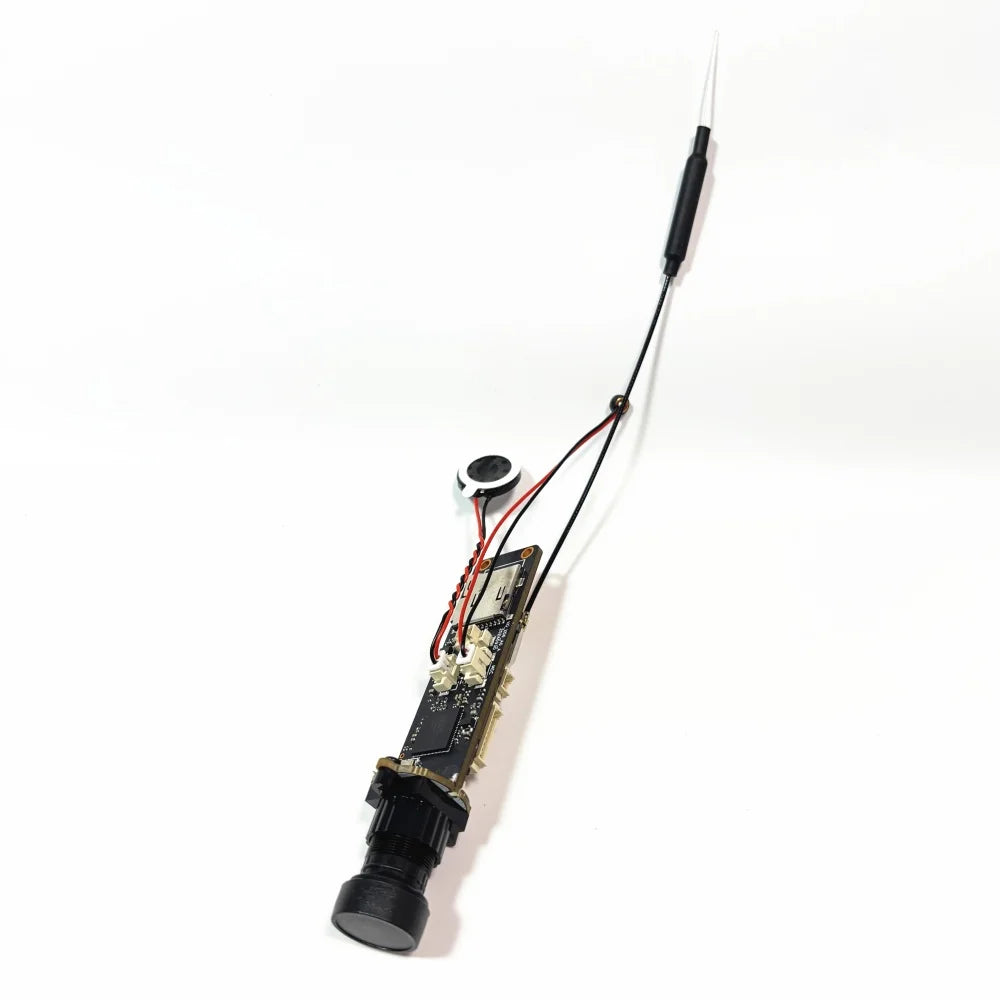

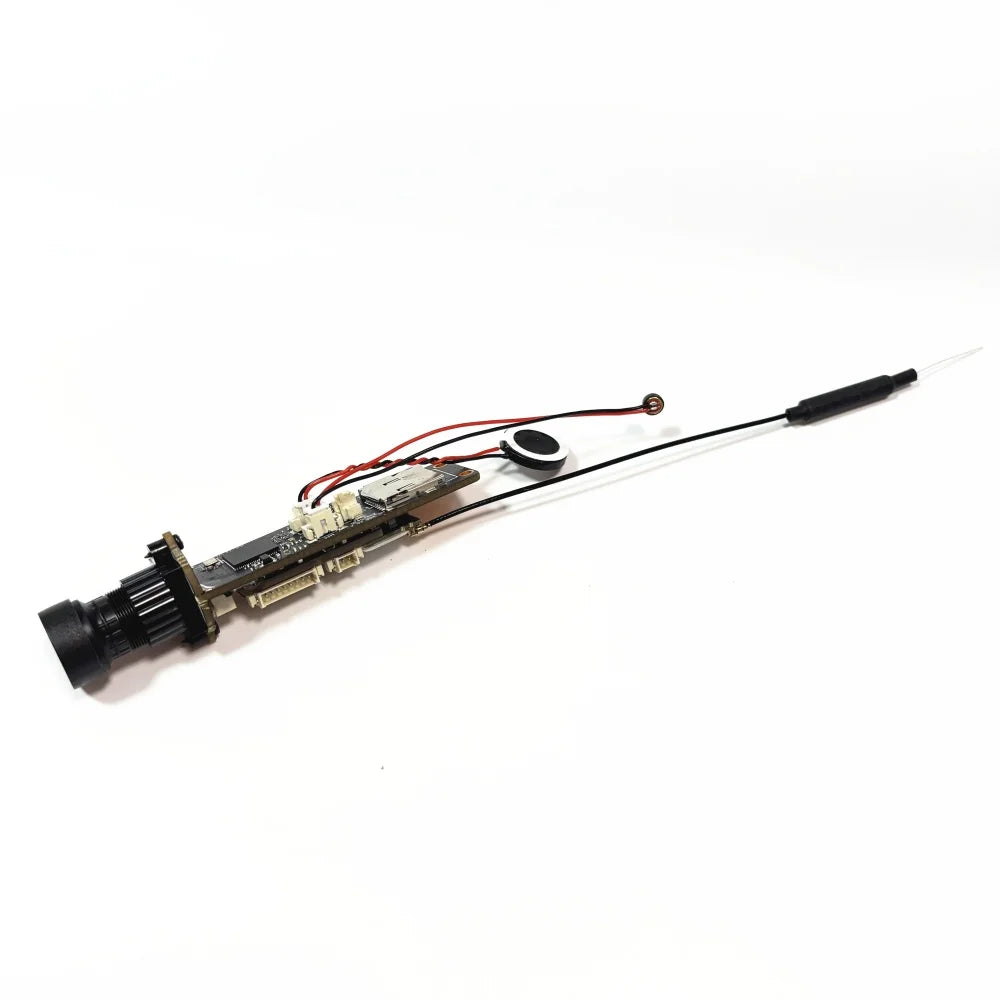

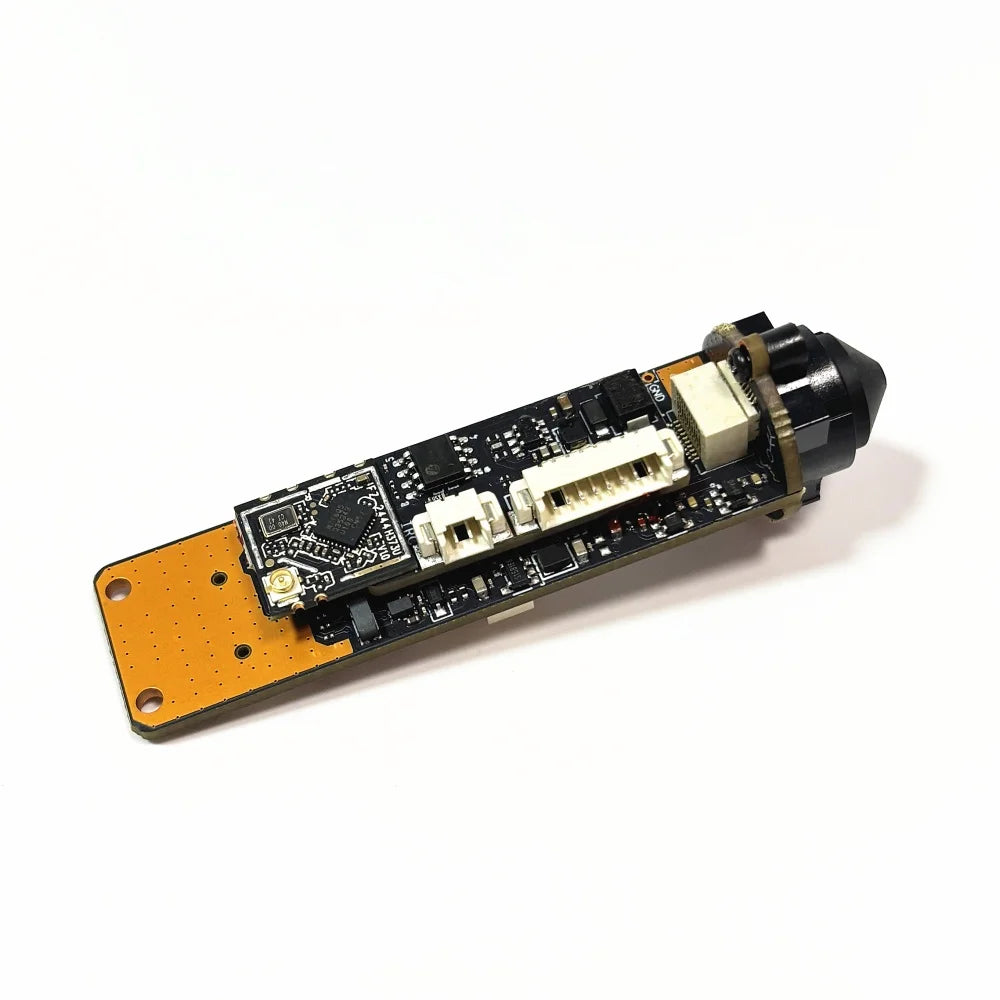

Mini 5mp Wifi Camera 5MP HD P2P Size 18mm Audio Wireless IP Camera Module PCB SD Card Slot for Home CCTV Camera System Hieasy

Variant

€95,99

€128,31

SPECIFICATIONS

AI Functions: Vehicle Detection

App name: Other

Audio Output: None

Brand Name: HQCAM

CPU: Hisilicon HI3516C

Camera Stabilization: None

Certification: CE

Color: black

Color Night Vision: Yes

Connectivity: WIFI(2.4GHz)

Dimensions (L x W x D)(mm): 18mm

High Definition: 5.0 Megapixels

High-concerned chemical: None

IP Rating: Other

IR Distance(m): No infrared lights

Installation: Normal

Internal Storage: None

Lens (mm): 3.6mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Memory card maximum support: 512G (not included)

Minimum Illumination(Lux): 0.01

Model Number: HQ-X06

Movement Range(Pan): Other

Movement Range(Tilt): Other

Onvif: Support

Operating Temperature: -35°-60°

Origin: Mainland China

Power Consumption(W): <3w

Power Mode: Mains Electricity

Power Source: Normal

Power Supply: Normal

Power Supply(V): 12V

Rechargeable Battery: None

Rechargeable Battery Capability: Other

Scene: Indoor

Sensor: CMOS

Sensor Brand: Omnivision

Shell Material: Plastic

Smart home platform: Other

Special Features: Vandal-proof

Style: Mini Camera

Support: IE/Chrome/Firefox and safari browser

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows XP,Windows Vista

TF Card: None

Video Compression Format: H.264,H.265

Viewing Angle : 90°

WI FI: wifi 6

Zoom: None

Zoom type: None

is_customized: Yes

lens: 3.7mm 2.8mm

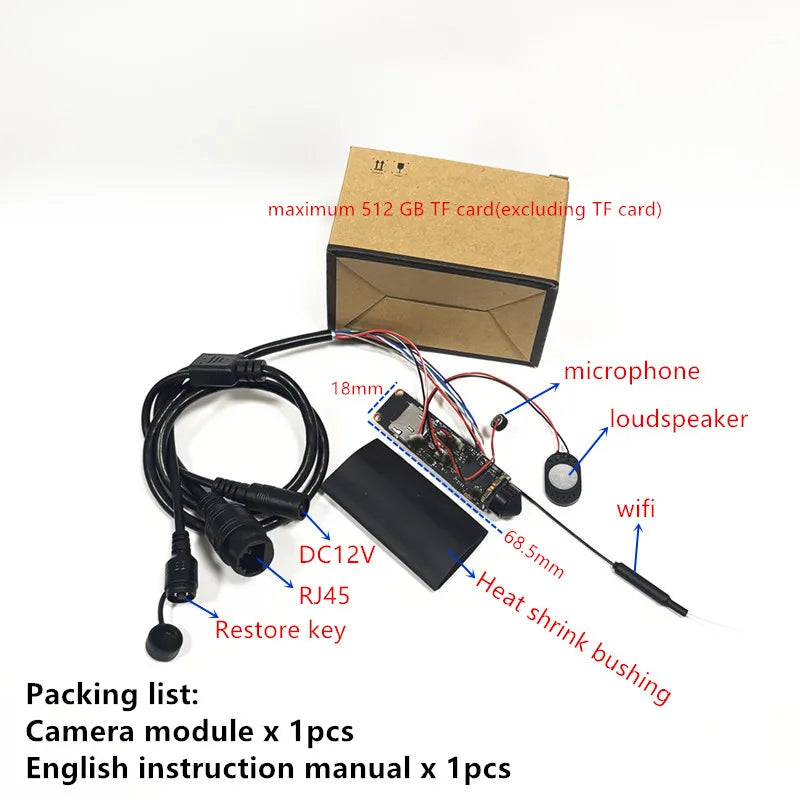

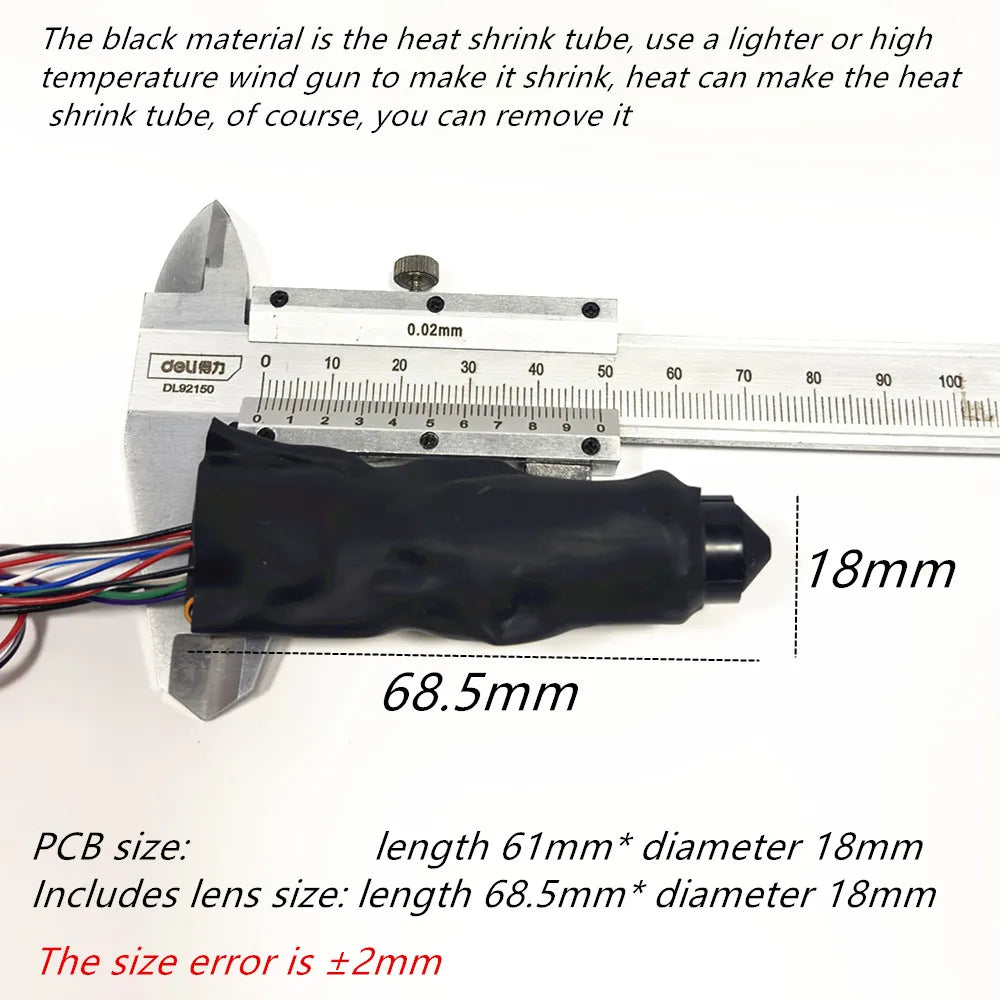

SIZE:

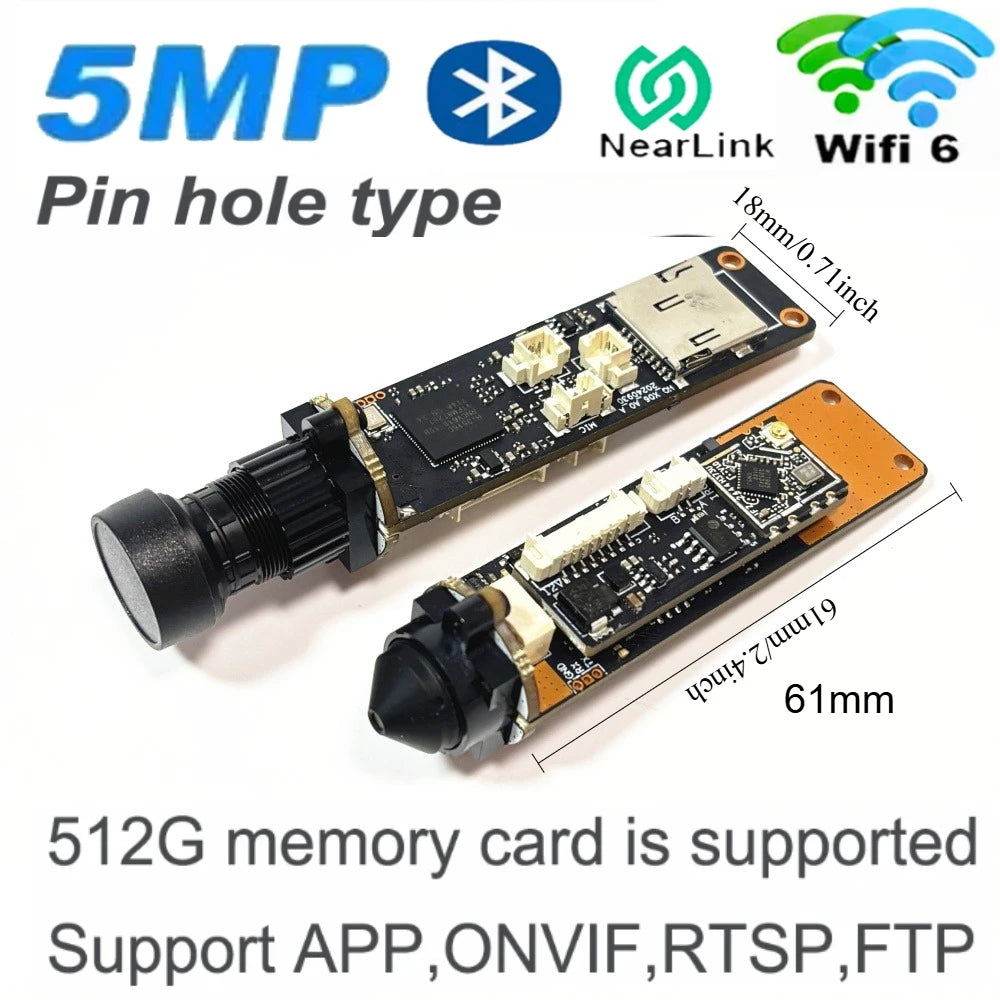

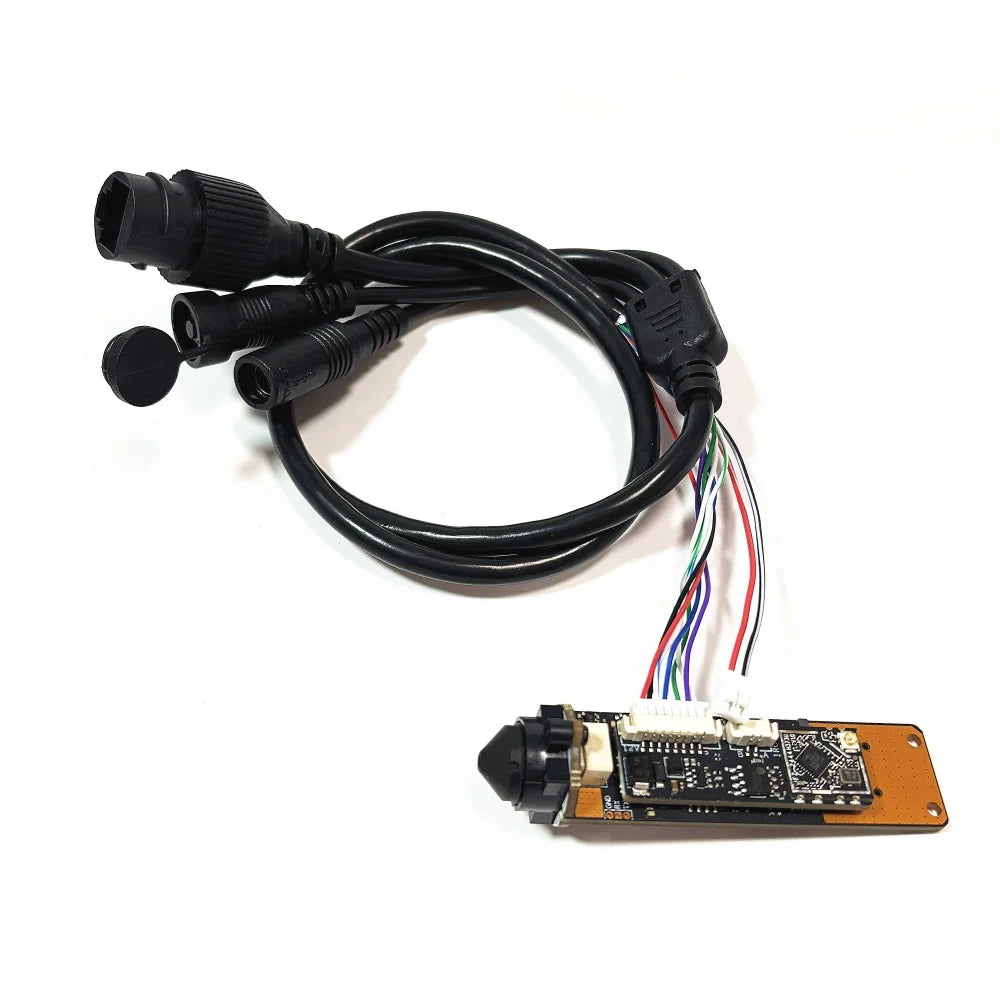

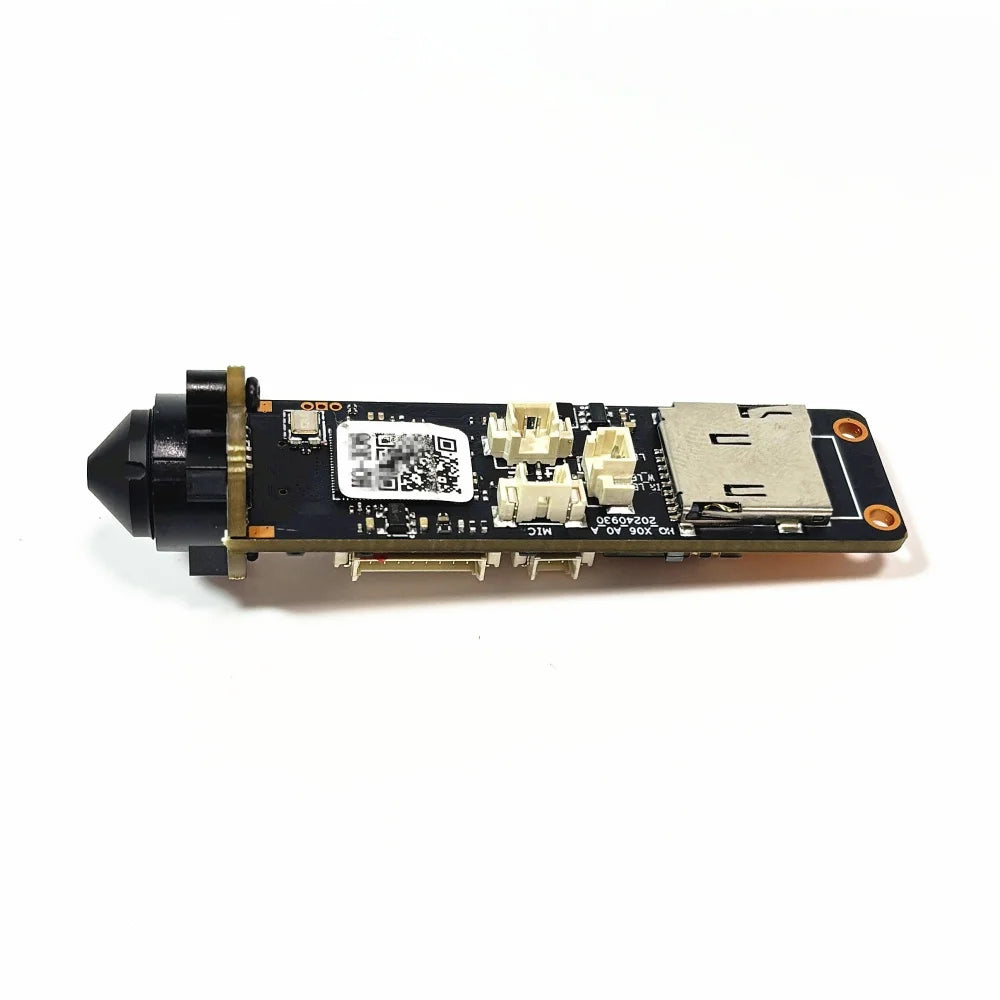

PCB module size: 61x18mm
PCB includes lens size:

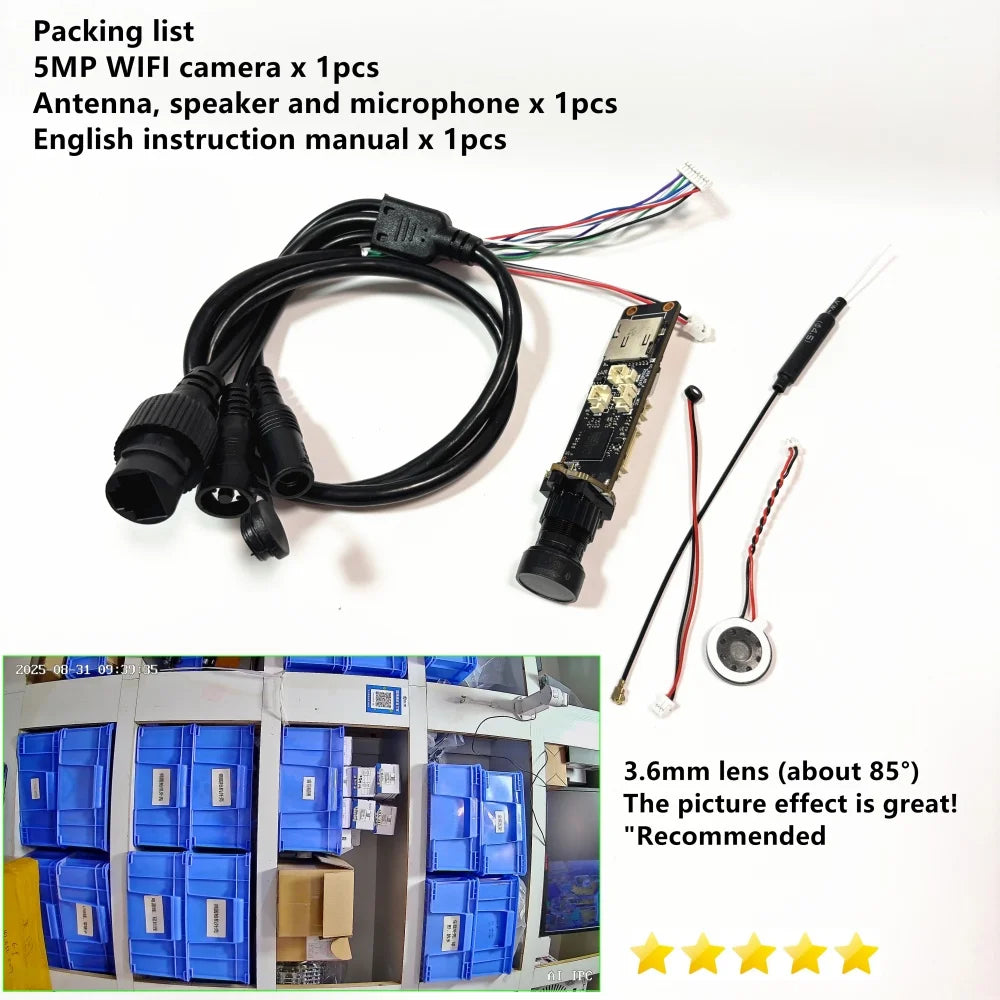

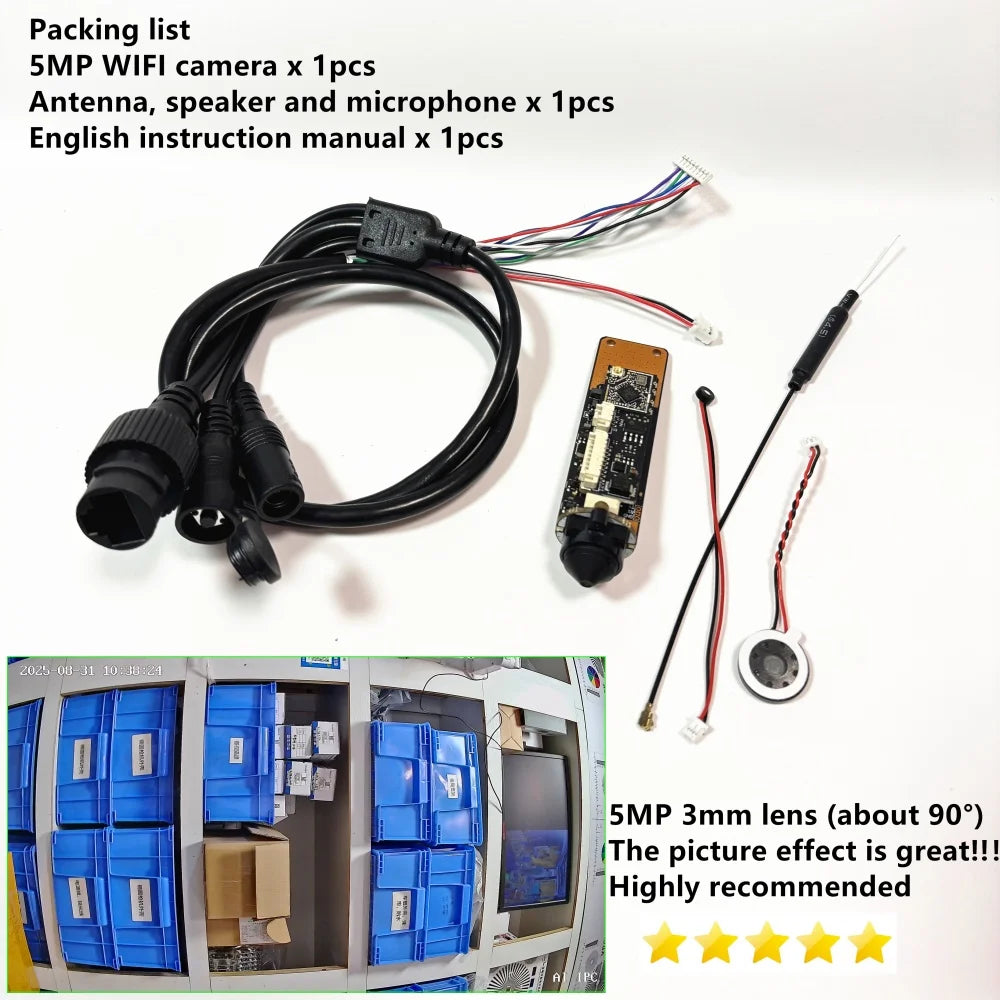

Real shot (without potoshop treatment)

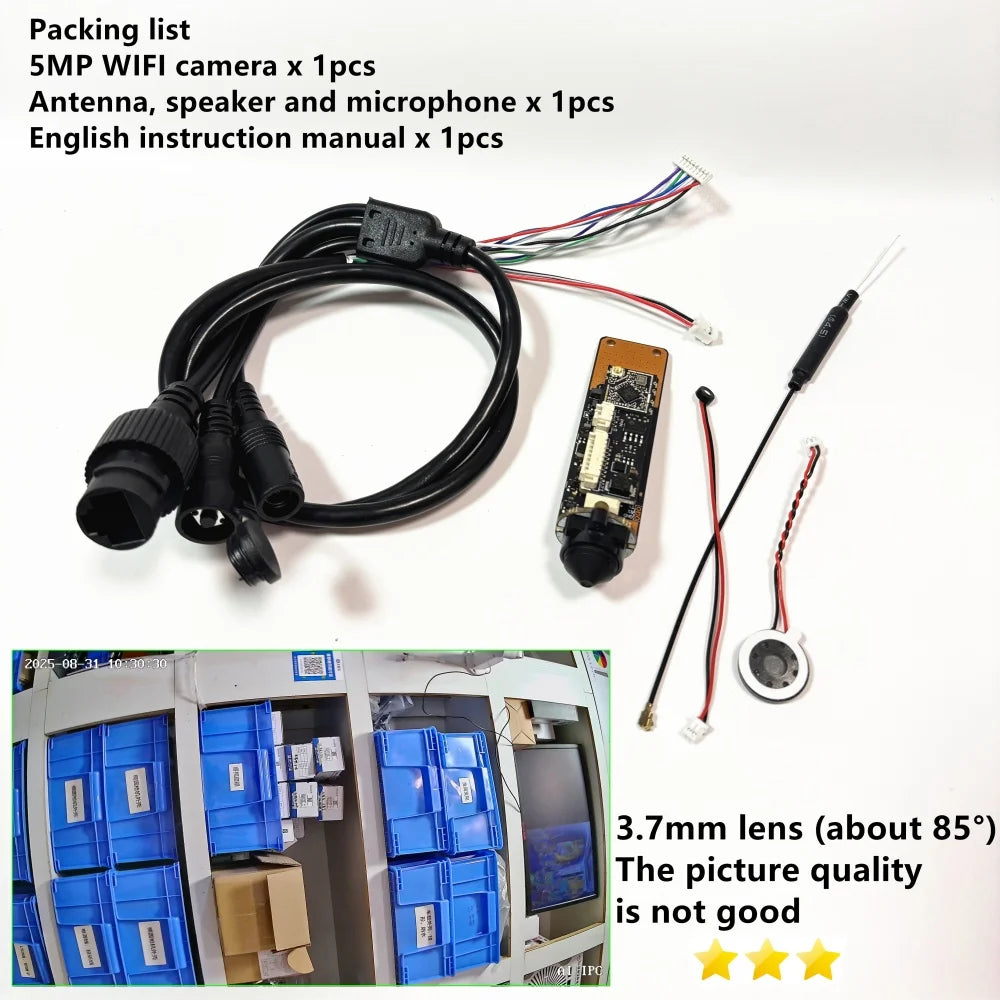

3.7mm regular lens, about 90 degrees
This shot is not very effective and the sharpness is not very good

Real shot (without potoshop treatment)

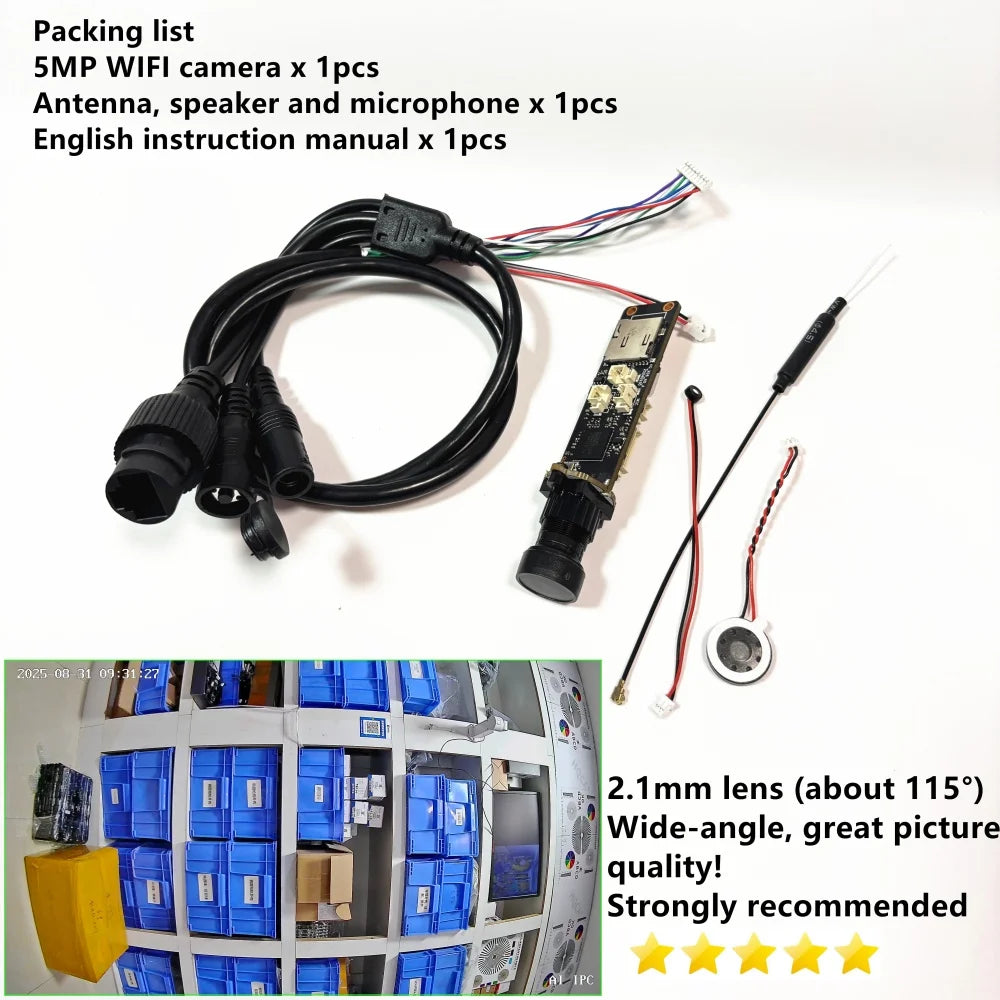

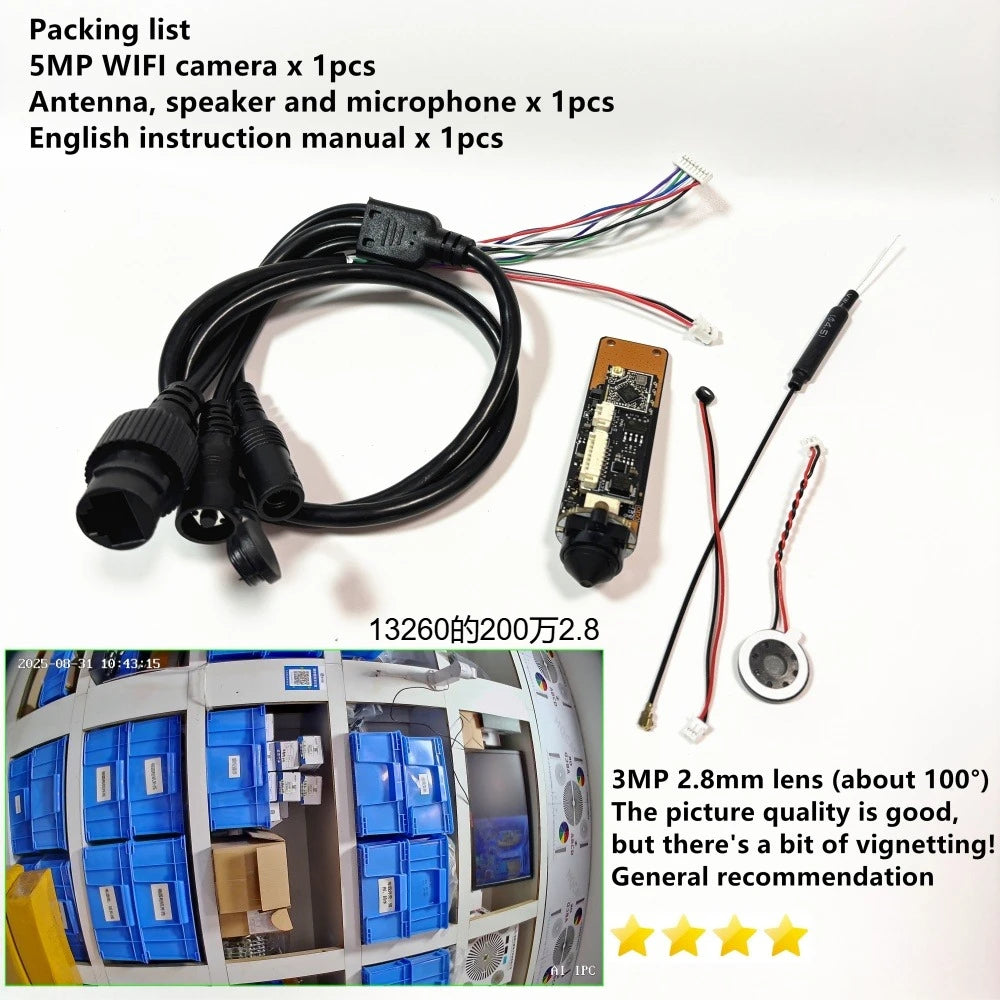

2.8mm HD lens, about 100 degrees
This lens is good, high definition and highly recommended!

· Built-in 1T computing power NPU, built-in AI algorithm large model;

· Support wired and wireless connections; Wireless connection support Wi-Fi 6, more stable transmission;

· Come with WiFi hotspot, no network can also monitor; APP support Bluetooth network, WiFi connection is more convenient;

· Intelligent detection of light, see faces at night;

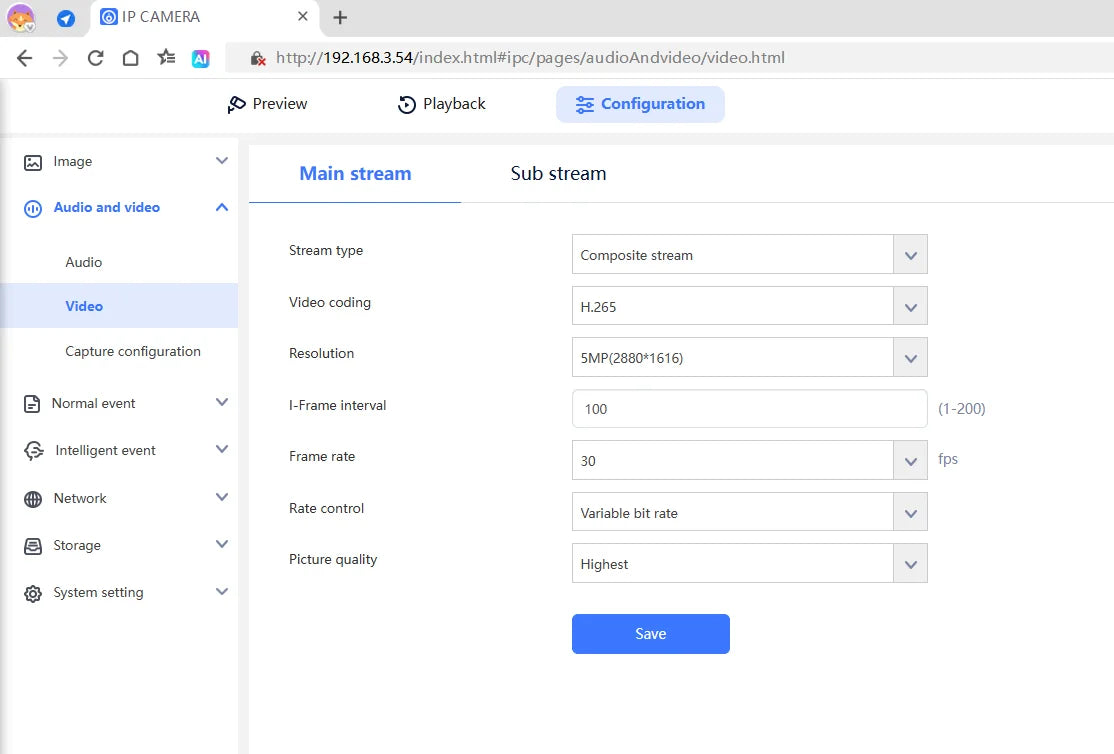

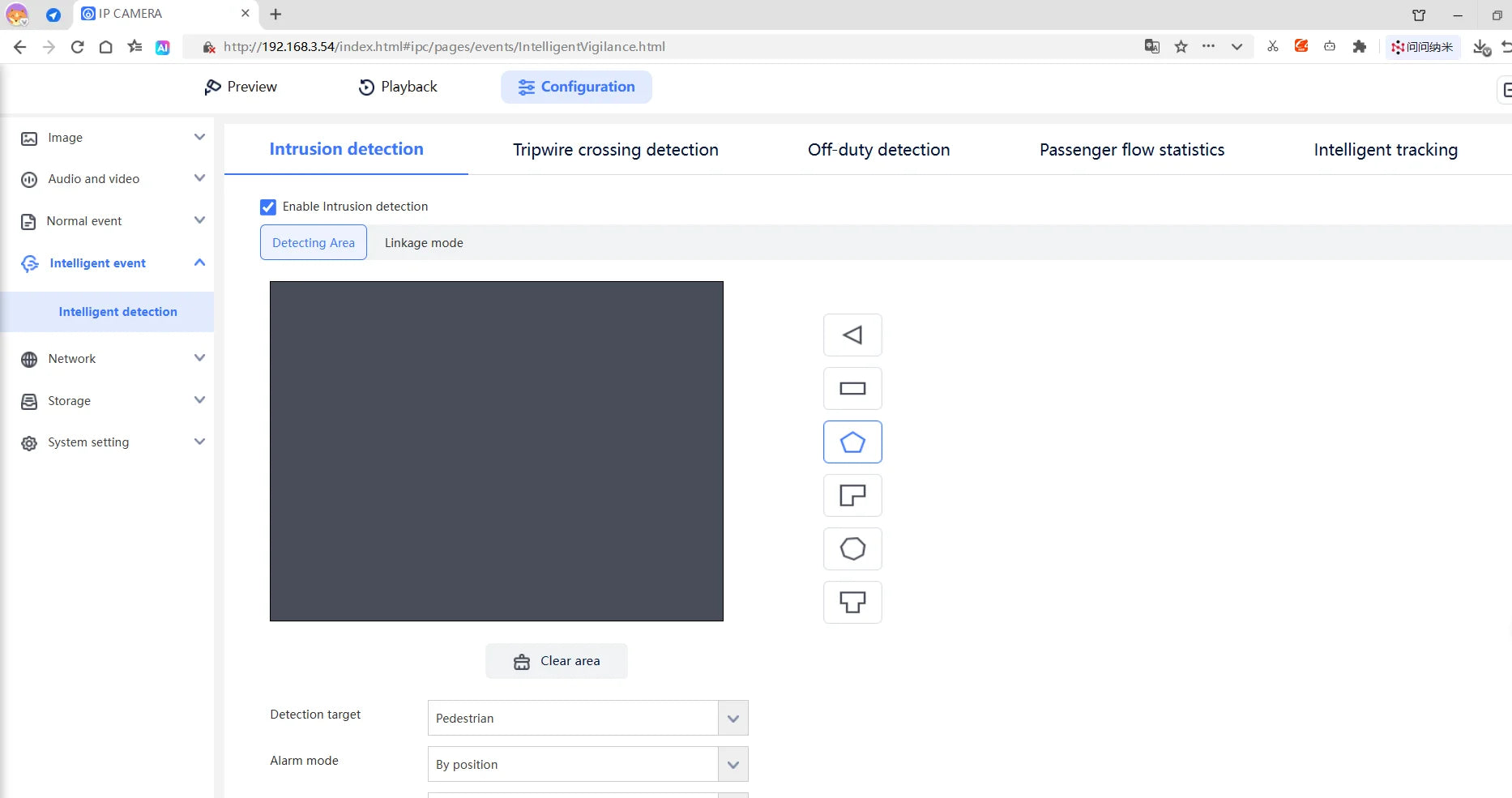

· Built-in WEB 2.0 page, support Edge, Chrome, Safari, Firefox and other non-IE kernel browsers;

· Support 512G TF card; Support intelligent video/ordinary video, save full automatic coverage;

·5MP HD resolution, support dual stream output;

· New APP page, easy to use, support APP alarm push;

· Support sharing function, the maximum share of the APP is 16 people;

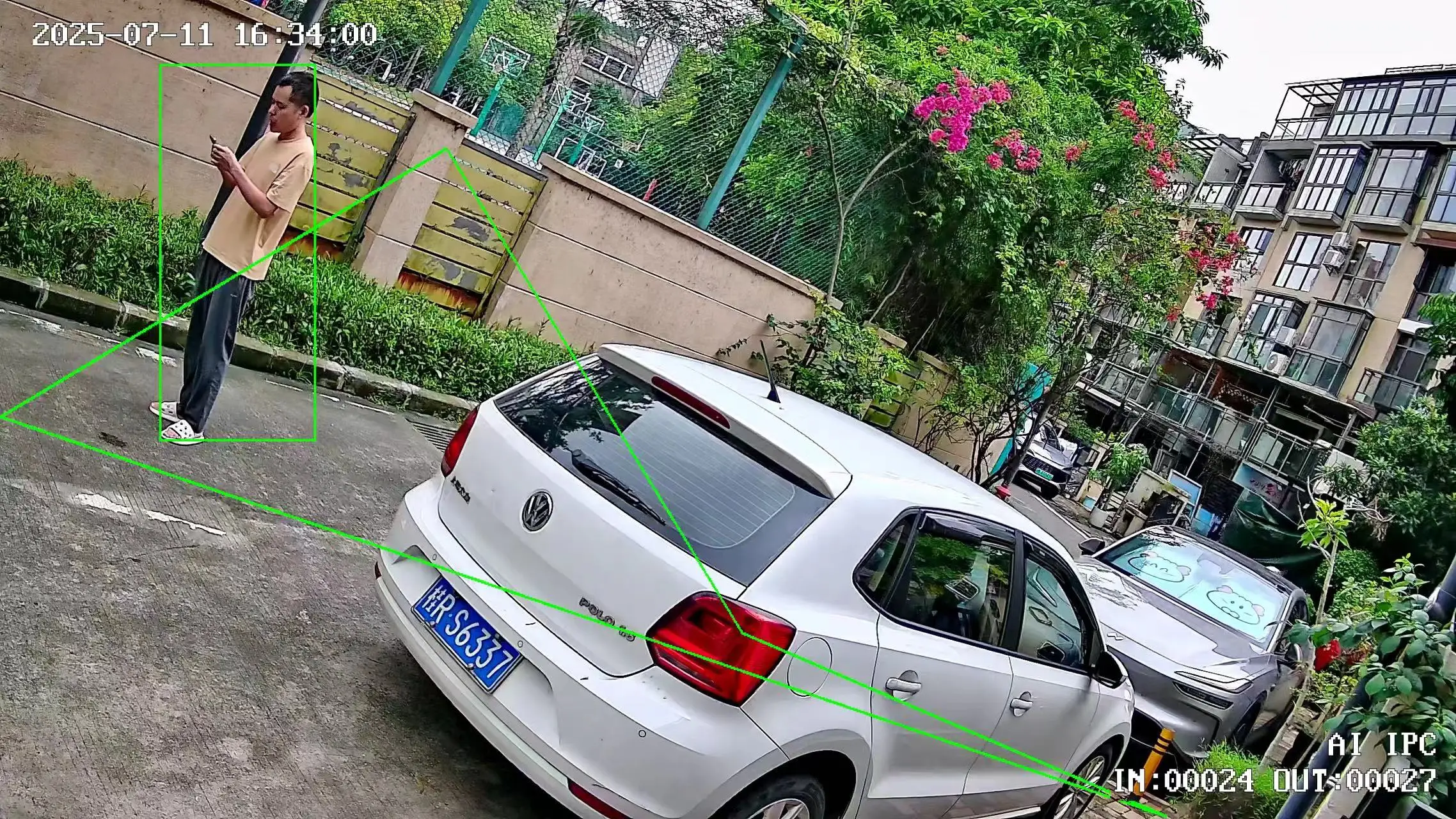

· Built-in humanoid and car shape detection function; Expand the application scenarios of electronic fence, cross-border detection, departure detection, and passenger flow statistics;

· Support humanoid tracking, automatic return after tracking (optional);

· Support linkage sound and light alarm; Alarm sound support custom recording and text to voice (optional);

· Support alarm output, can link red and blue lights and other alarms (optional);

· Support ONVIF protocol and access to third-party NVR;

· Support screen occlusion to protect the privacy area;

· Support OSD character overlay function, support network timing;

· Support audio input and output, two-way intercom, audio and video synchronization;

Product parameter description
Day and night mode	Black light full color (Requires a black light lens), intelligent dual light, infrared mode (Optional), intelligent light face but exposure
Image adjustment	Support automatic white balance, support digital width dynamic, support backlight compensation, brightness contrast color and other parameters adjustable;
Privacy block	The private occlusion area is supported
acoustic image	Support mirror image
OSD	Support OSD settings and support OSD drag

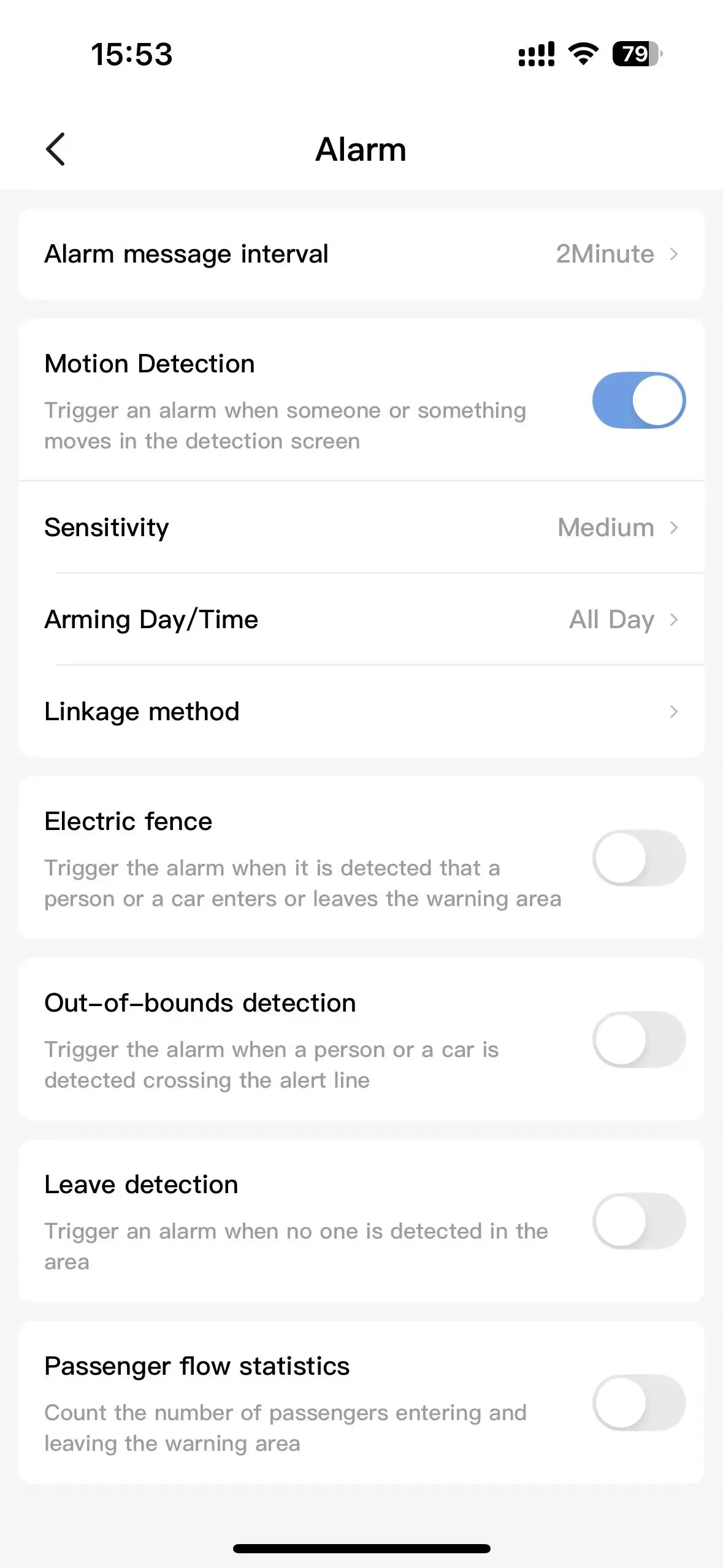

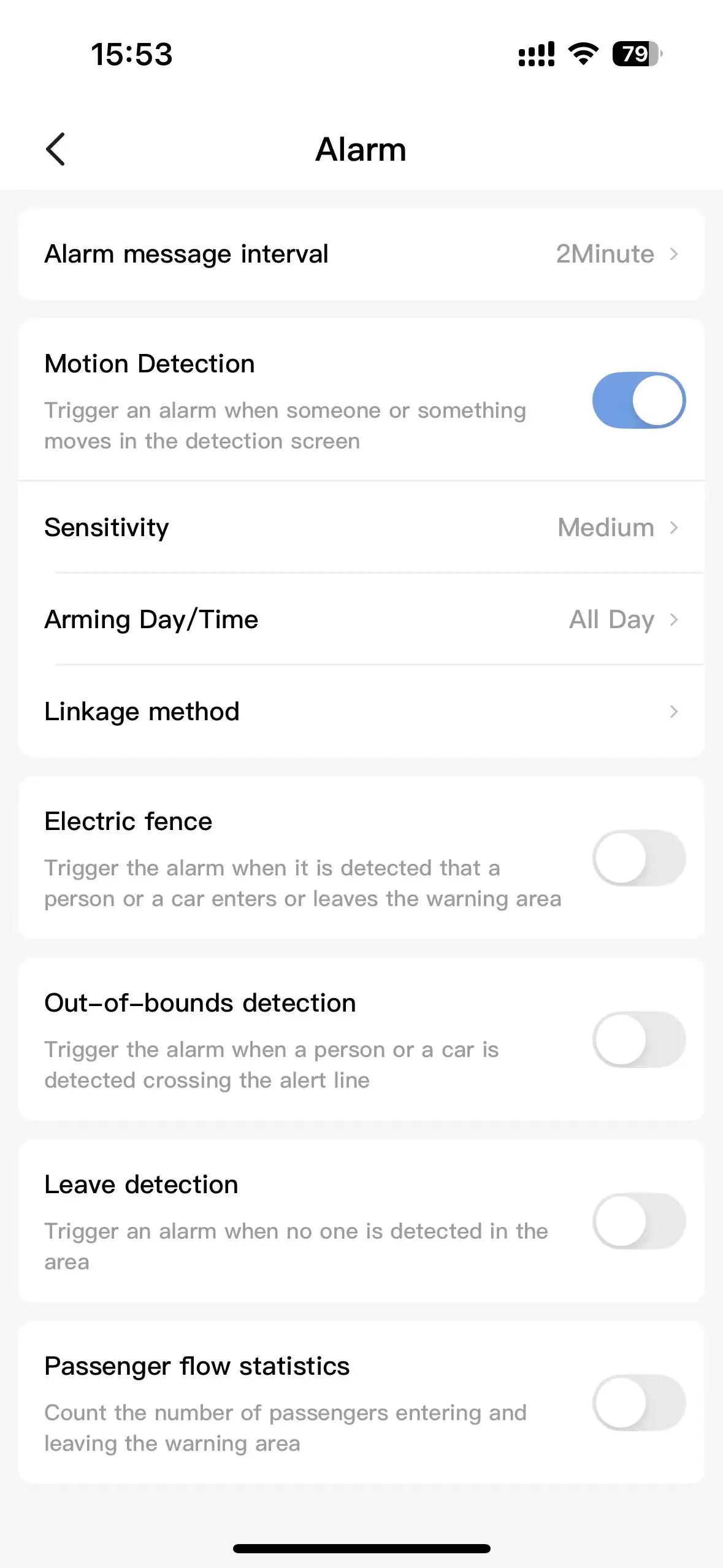

Intelligent application
Electronic fence	Support the detection of human shape / vehicle shape, and the equipment shall conduct the alarm after entering the warning area;
Transboundary detection	Support the detection of human shape, support the detection of A-> B, B-> A, A <-> B direction;
Deportation investigation	Support setting the detection area, the equipment will alarm after the personnel leave for a certain time, and the alarm stops after returning;
passenger flow statistics	Support the detection of entering and leaving number statistics, can stack OSD to the picture in real time; daily data can be checked;
Human tracking	Support the humanoid tracking function, automatic tracking after personnel detection;
Voice alarm	Support linkage voice broadcast, voice content can be customized recording;
IO report to the police	Support, can linkage red and blue light alarm; (Optional)
Video recorder linkage	Support linkage video recorder large screen, local voice, AI video, push and other functions
video frequency
compress	H.264 ,H.265

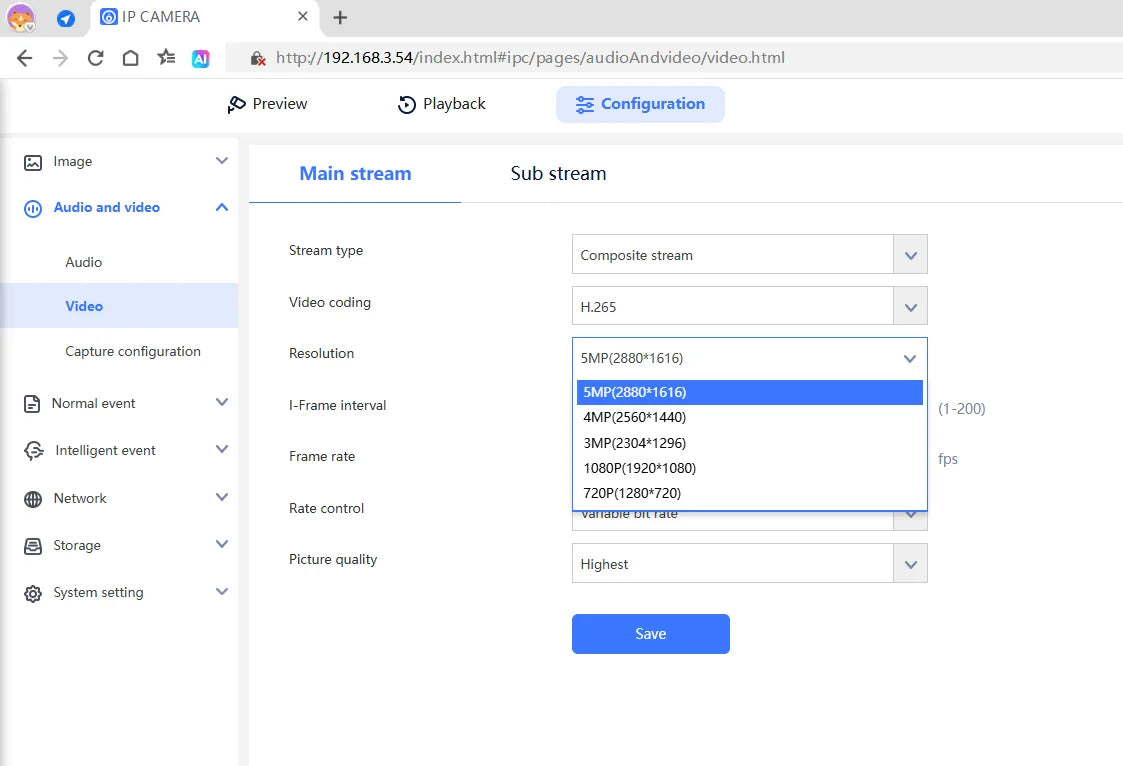

resolution ratio	Main code stream: 5MP (2880 * 1616) / 4MP (2560 * 1440) / 3MP (2304 * 1296) / 2MP (1920 * 1080) / 1MP (1280 * 720)
resolution ratio	Sub-stream: 448P (800 * 448) / 360P (640 * 360) / CIF (352 * 288)
memory	Support 512 GTF card storage, support NVR added storage;
network
Ethernet	RJ-45 10M / 100M Adaptive
protocol	ONVIF ,P2P ,CGI ,HTTP ,TCP/IP ,IPv4 ,RTSP ,UDP ,NTP ,DHCP ,DNS ,IP Filter
WI FI	WIFI-6,2.4G band, 802.11 b / g / n
BLE	Support Bluetooth distribution network
access protocol	ONVIF Agreement / private protocol / CGI
client	Mobile phone client: , computer client: VMS, NVR, centralized management
audio frequency
audio frequency	G.711U,G711A
Audio input	Support (Recommended-36DB MIC)
Audio output	Support, built-in power amplifier (recommended 8 Ω 2W)
General specification
size	18mm
work environment	-30℃ ~ +60℃
source	DC 12V

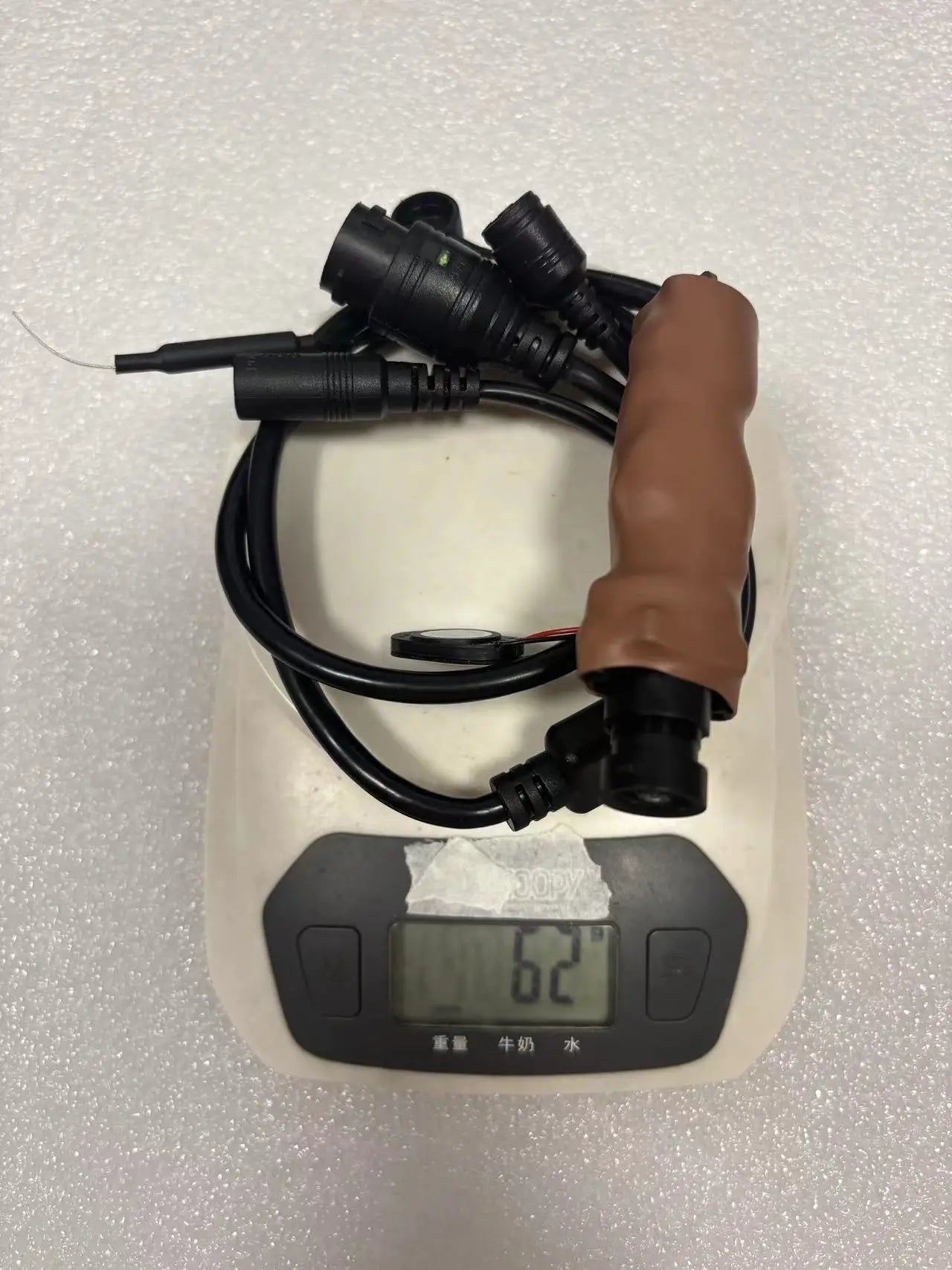

The weight including the wire is 62g

Support human shape detection and vehicle detection

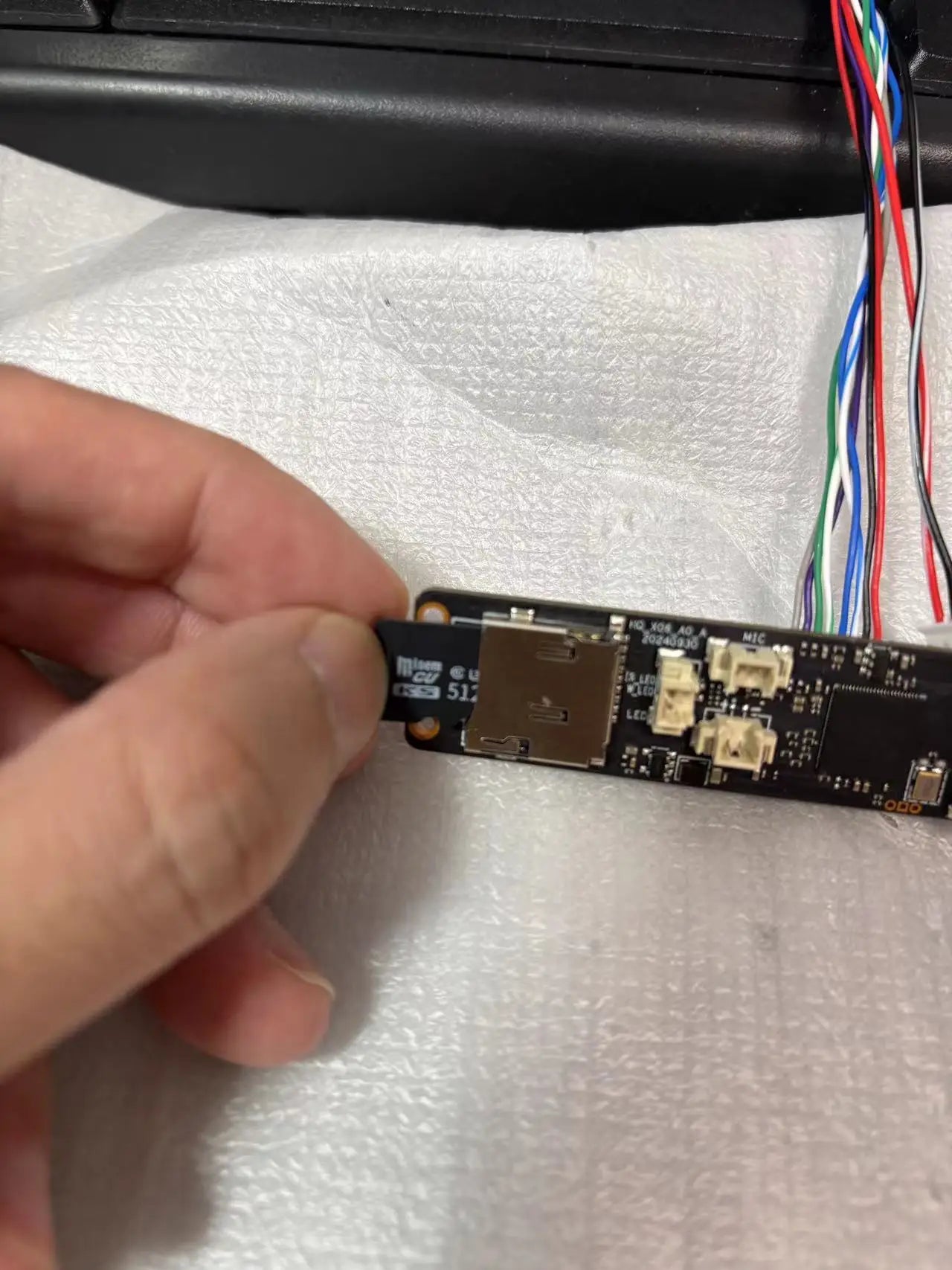

Supports up to 512G memory card (not included)

Camera configuration information

This module can be used for underwater cameras, drone cameras, industrial inspection cameras, etc., support SDK files and secondary development, if you need OEM and customization, please write to me, thank you!
