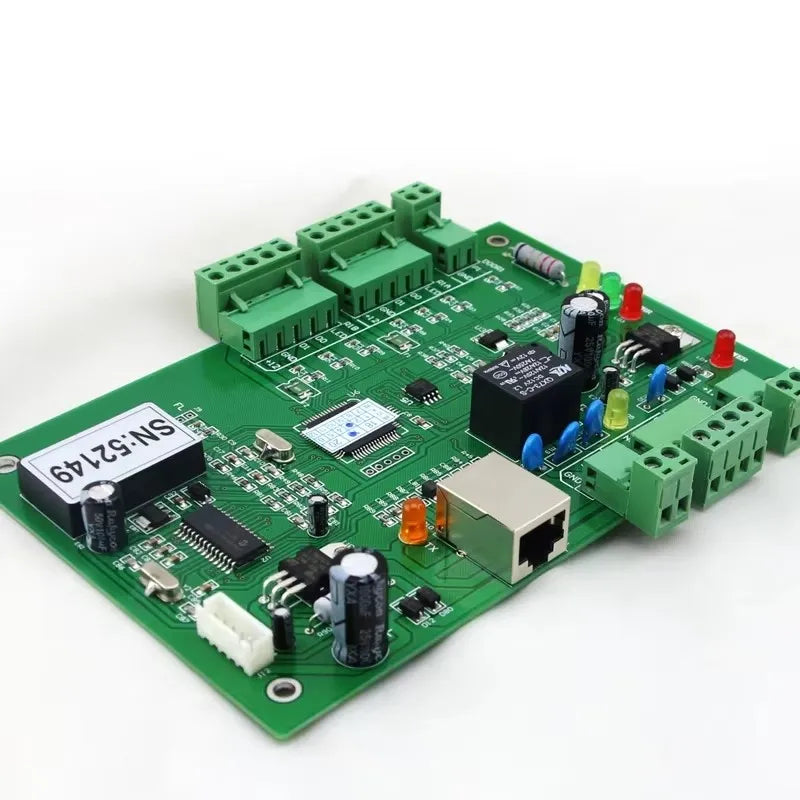

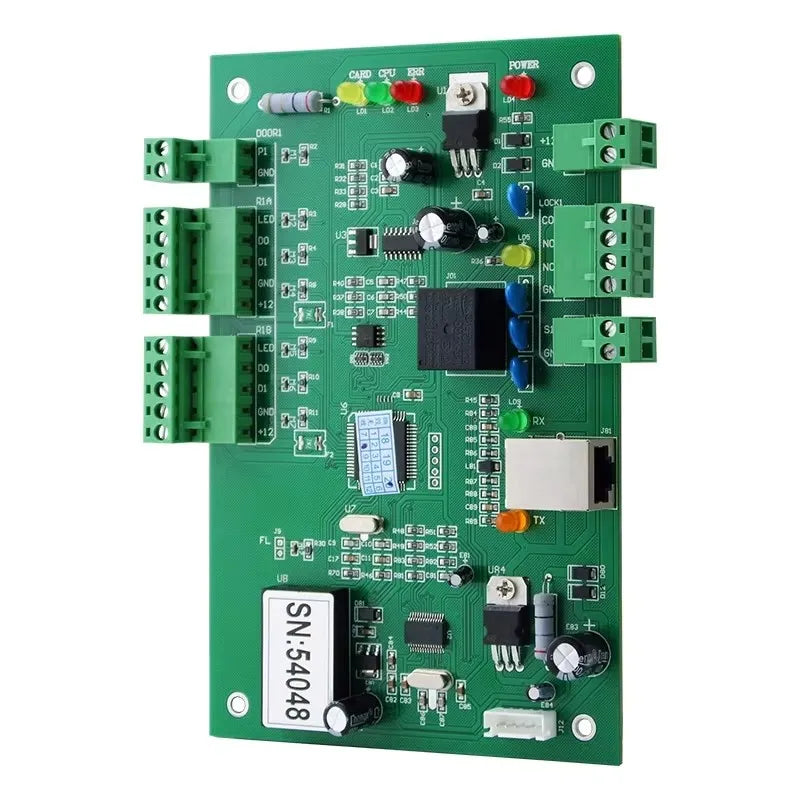

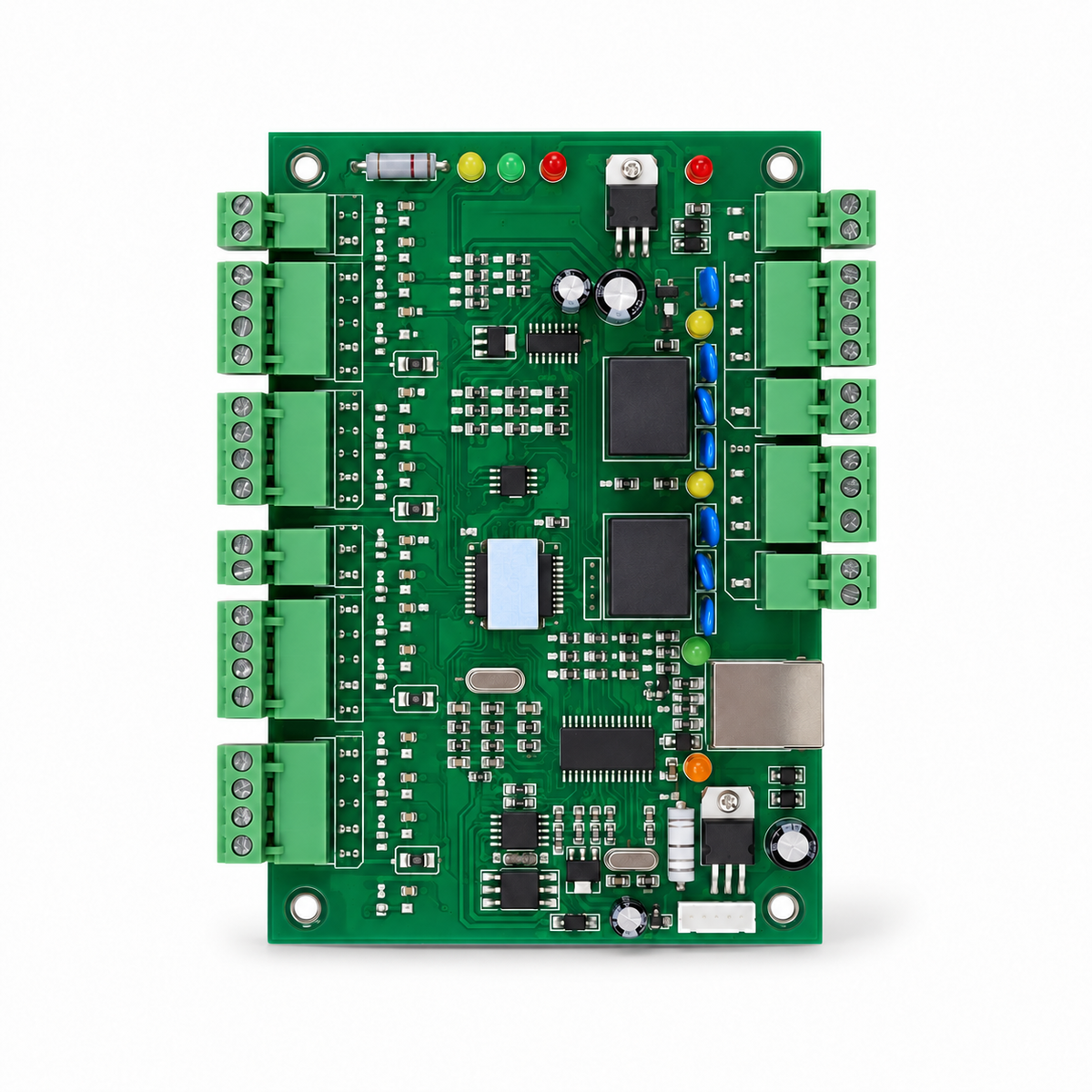

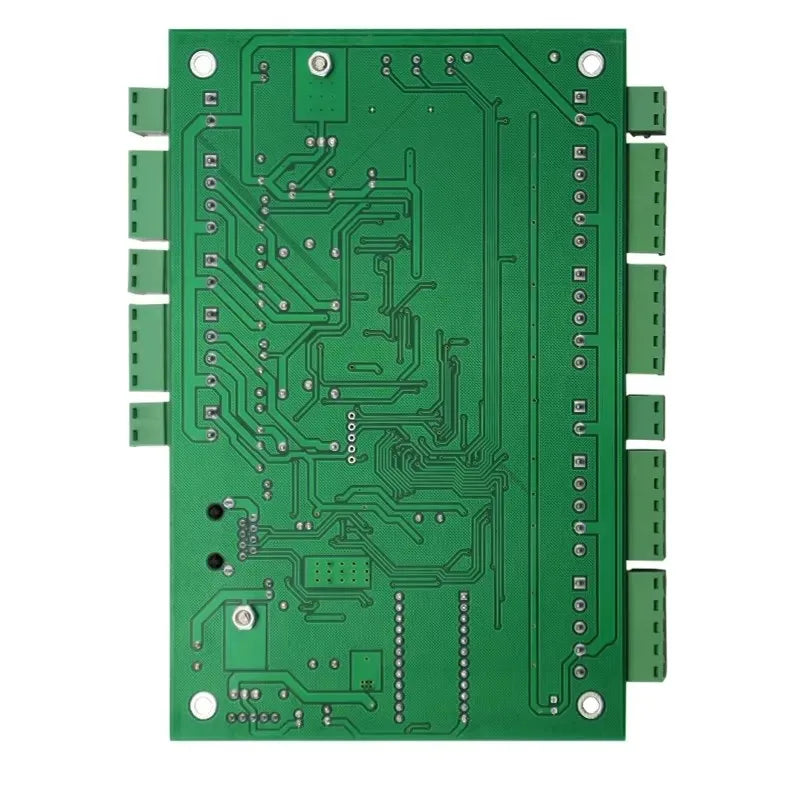

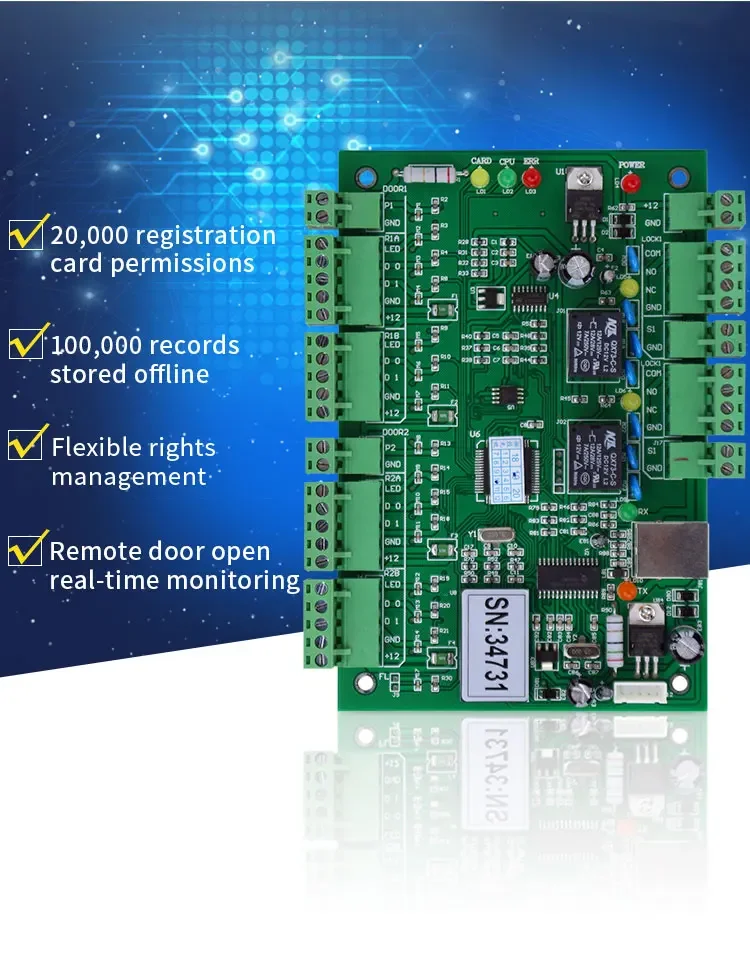

TCP/IP Access Control Board - One, Two or Four Doors
Manage compatible door-access hardware through a networked controller rather than separate standalone control points. This TCP/IP board range offers one-, two- or four-door selections with Wiegand reader connections and access-record storage.

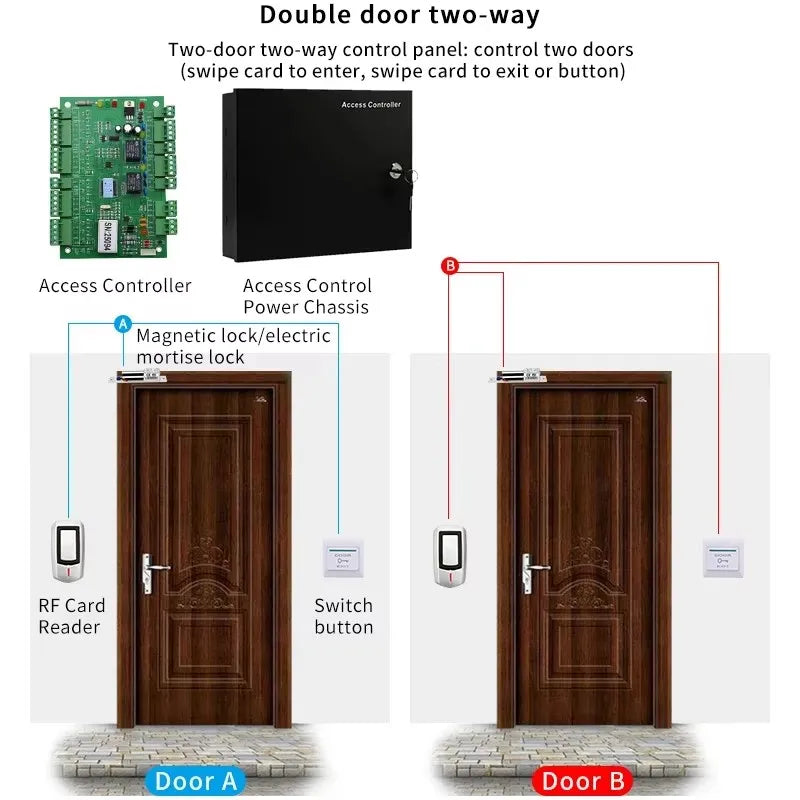

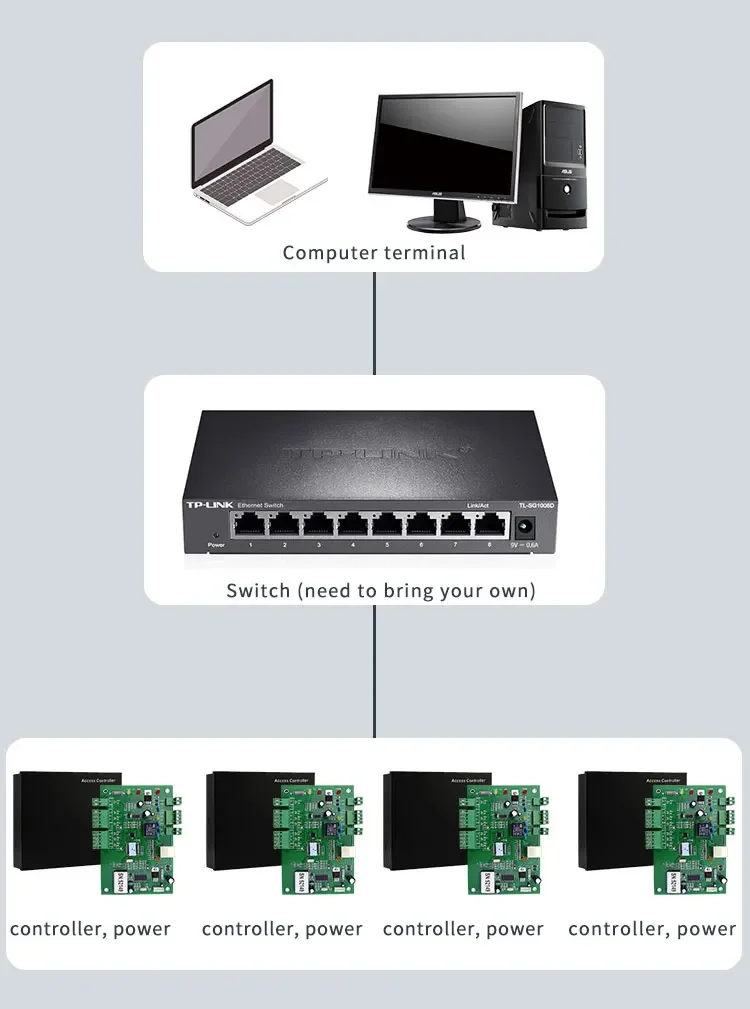

✅ Bring several doors into one management setup - Networked controllers can be connected for central administration of supported doors.

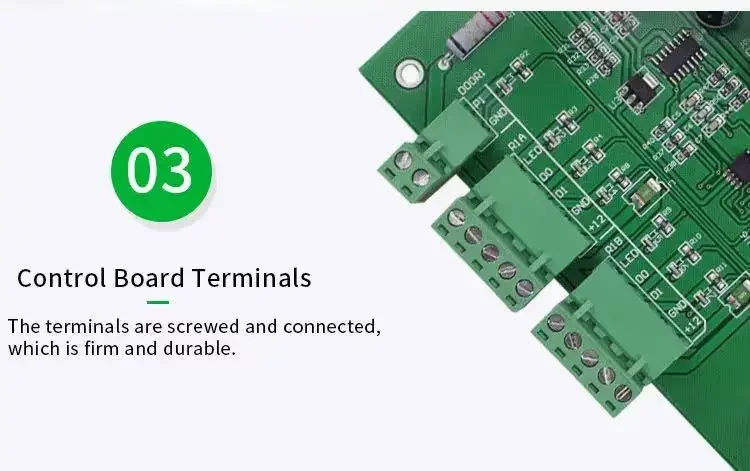

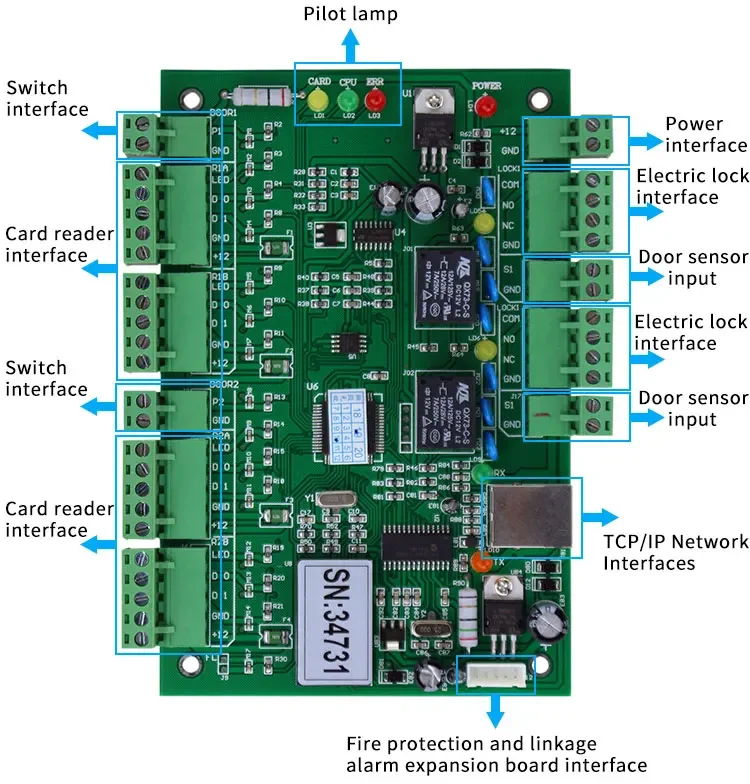

✅ Use compatible existing readers - Wiegand 26/34-bit inputs provide a connection for matching card readers.
✅ Keep access records - The board's listed storage supports reviewing recorded access activity.
✅ Set the release interval - An adjustable opening delay lets you configure the intended door-release time.
Build Access Management Around the Doors
A small building can need a different access arrangement as rooms and users change. Selecting the door count and linking controllers to the network gives you a planned control structure around the entrances.

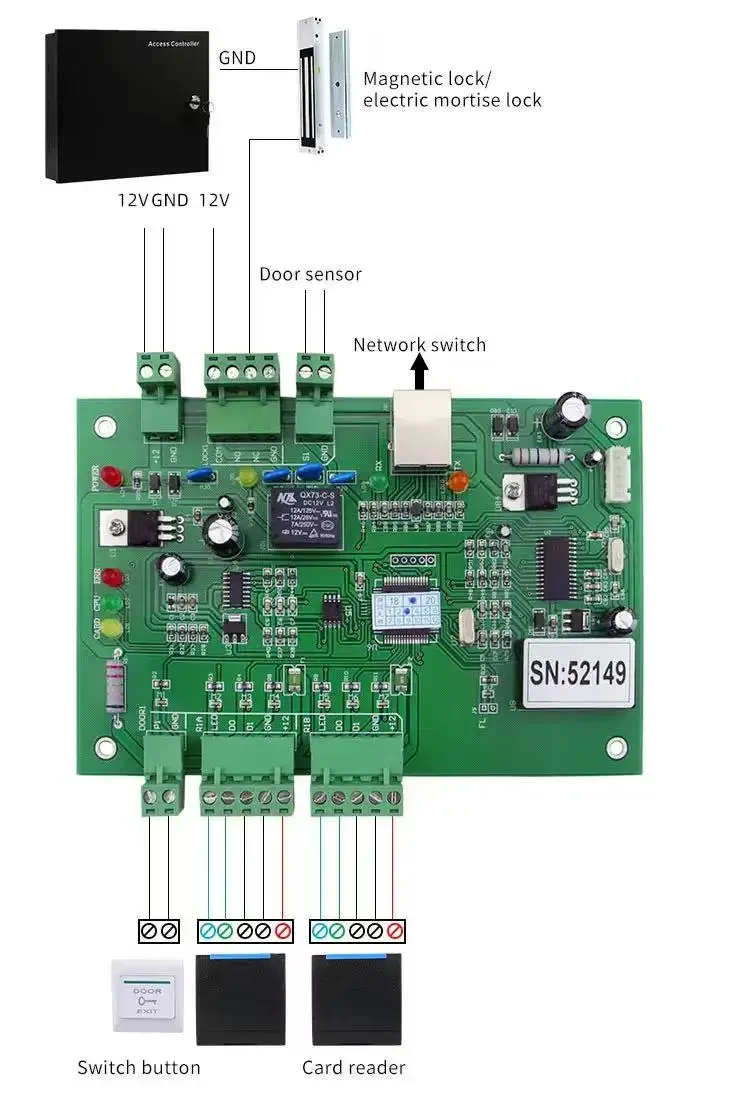

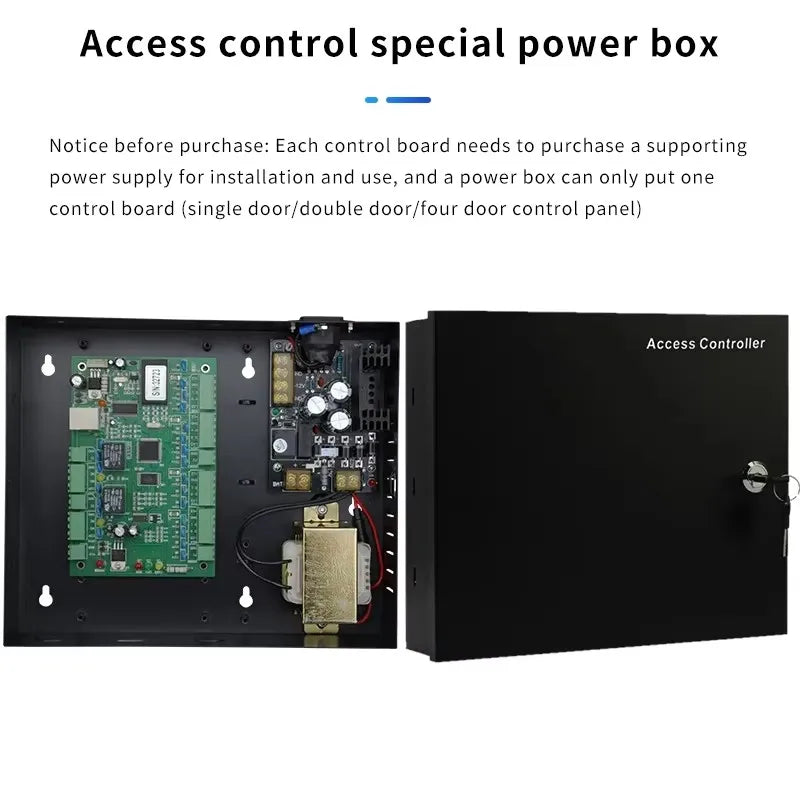

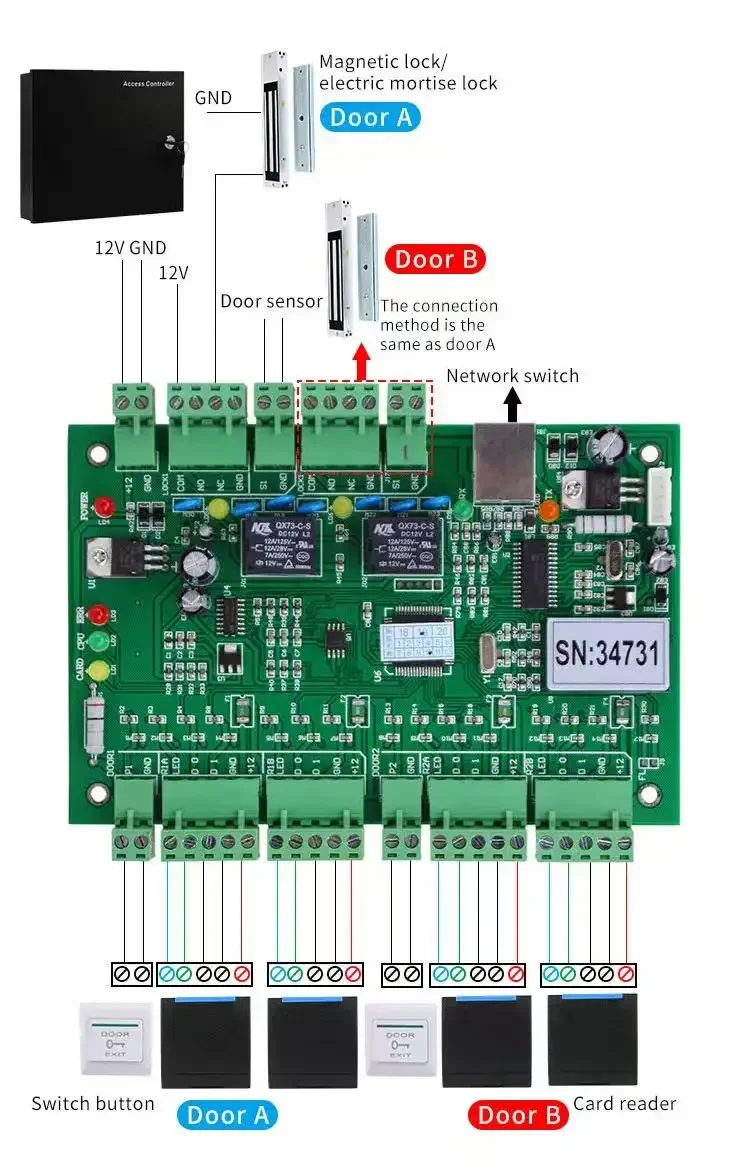

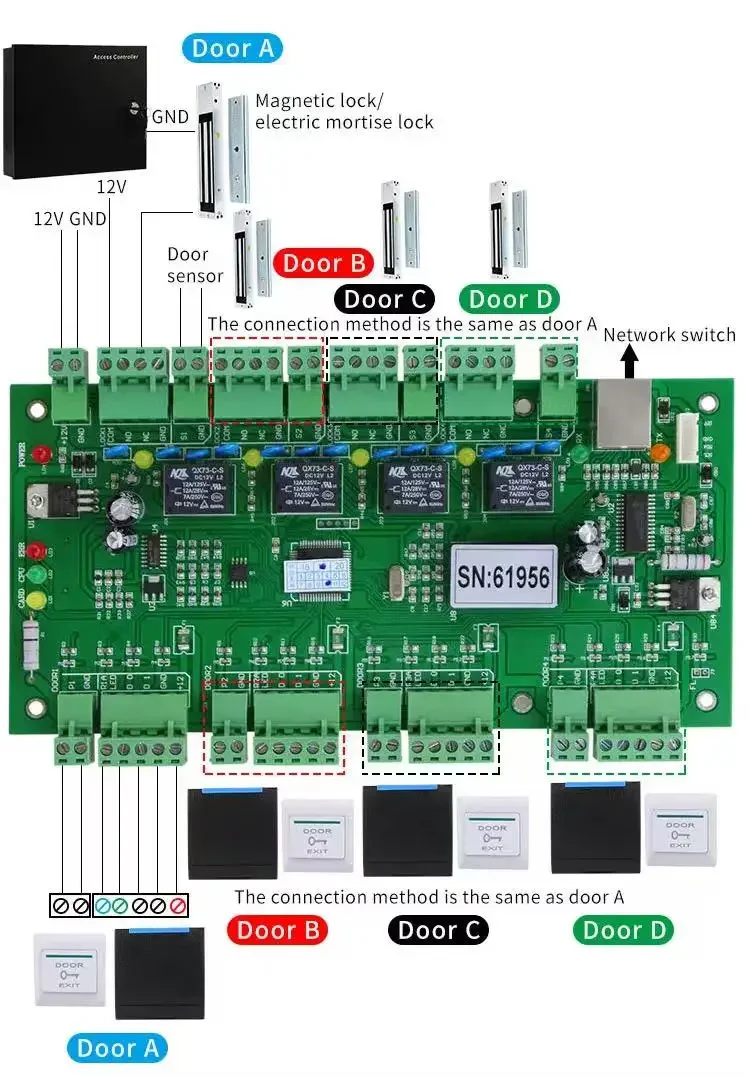

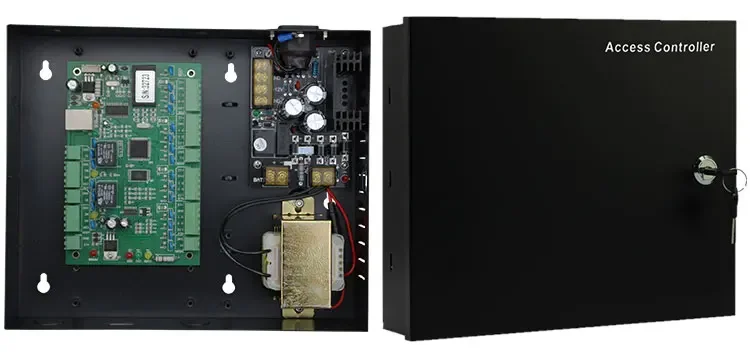

The board is one part of the installation. Match readers, locks, exit buttons, software and a suitable 12 V supply; the supporting power supply and enclosure are purchased separately. A reader frequency is a reader choice, not a built-in card-reading feature of the board.

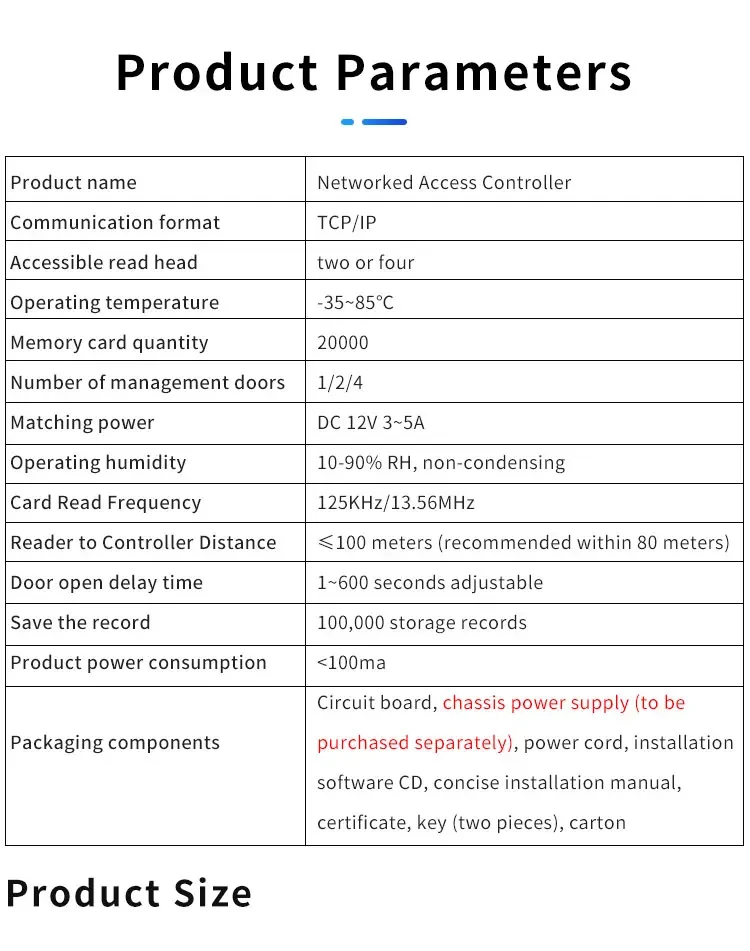

Technical details
- Communication: TCP/IP

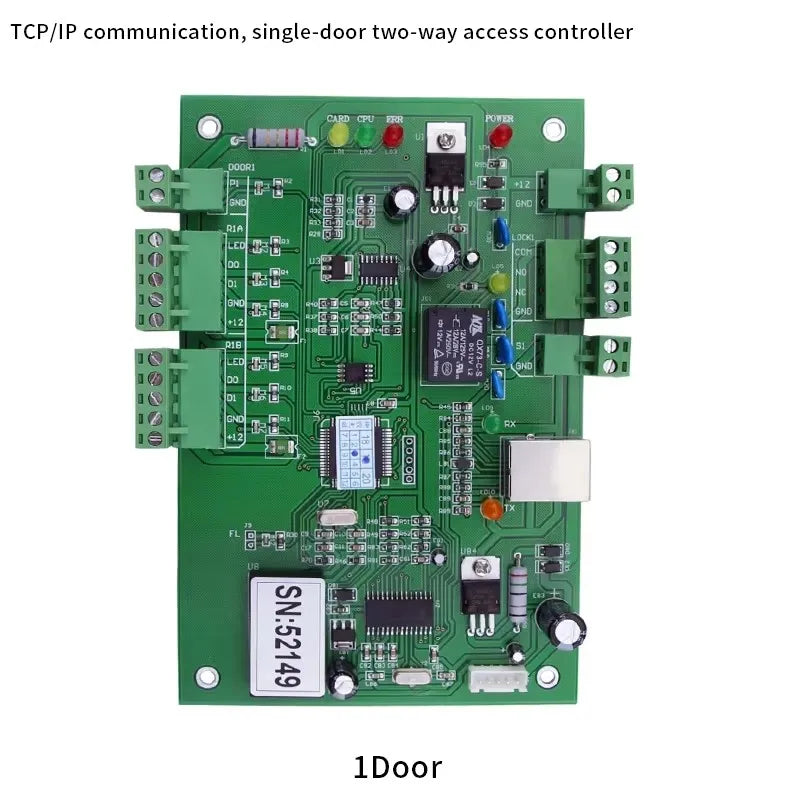

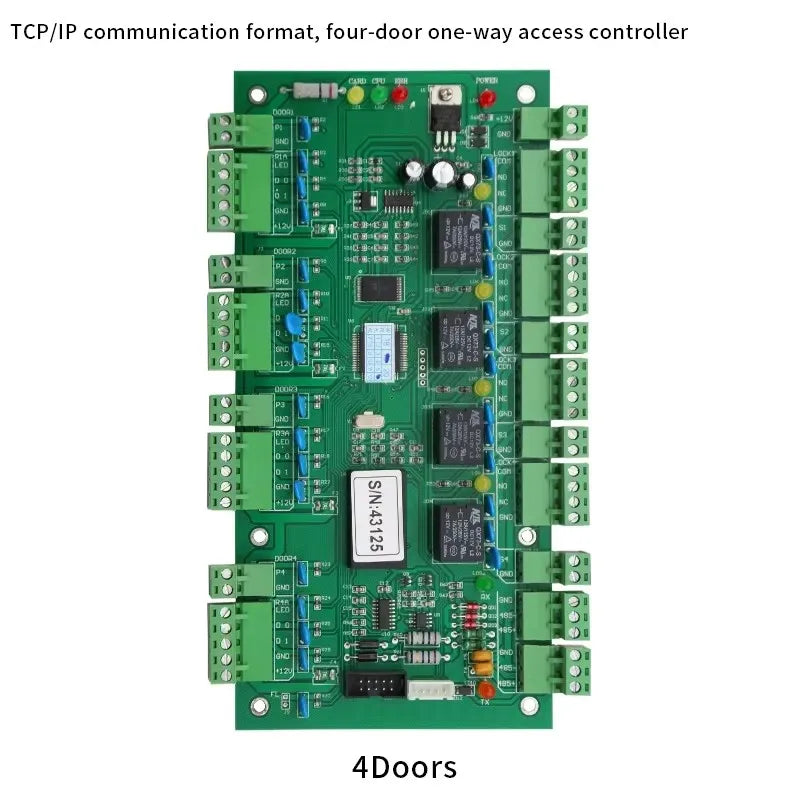

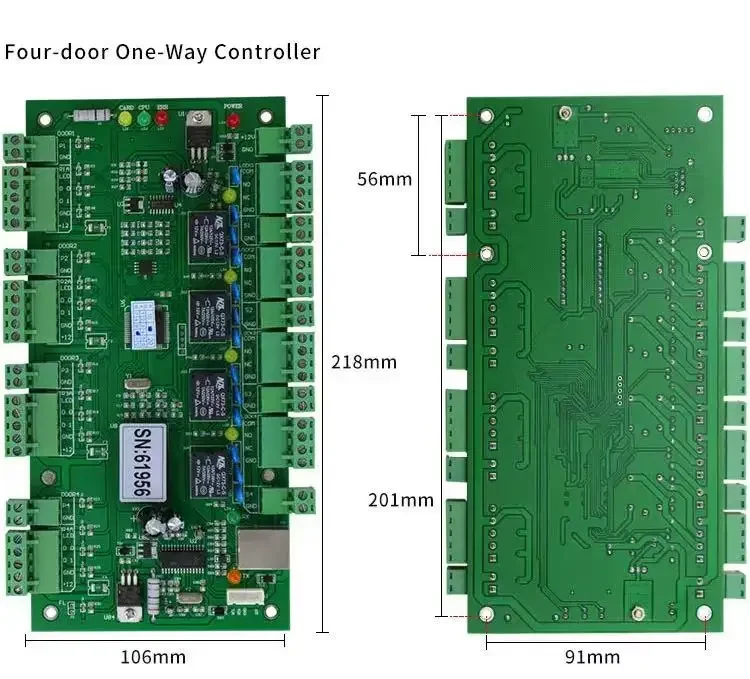

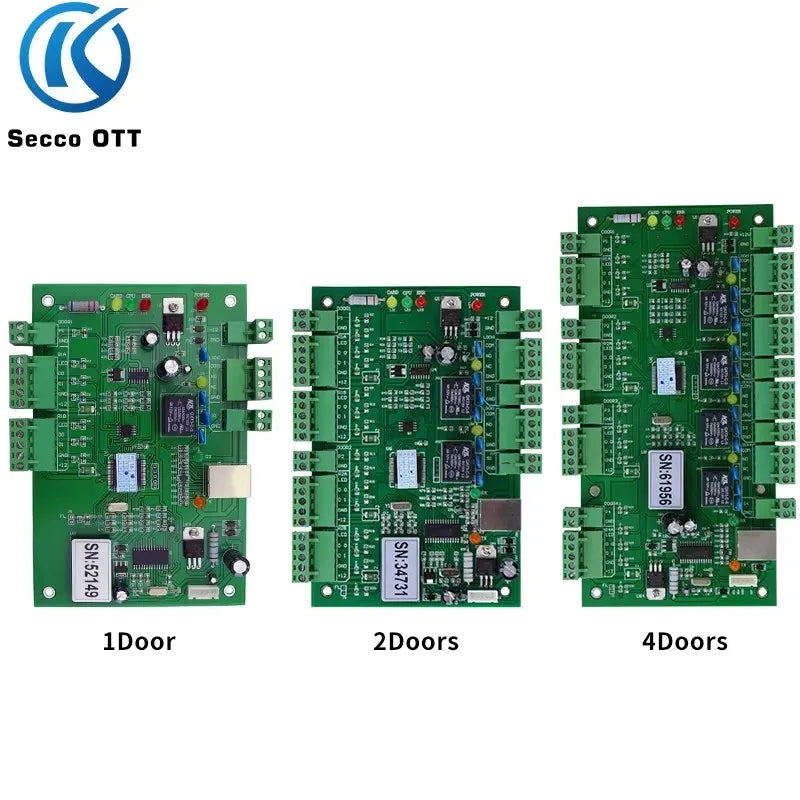

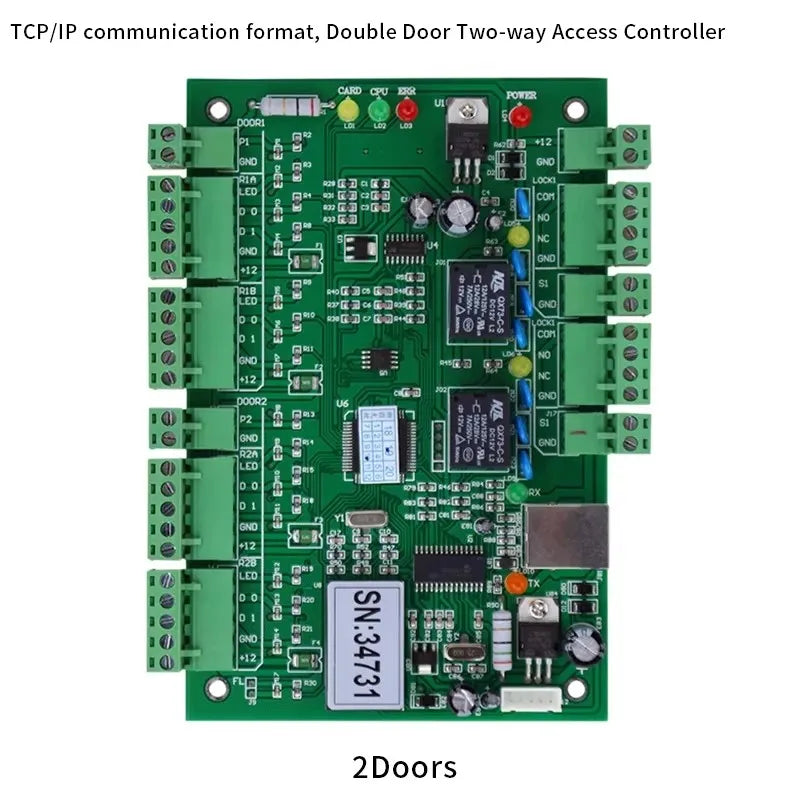

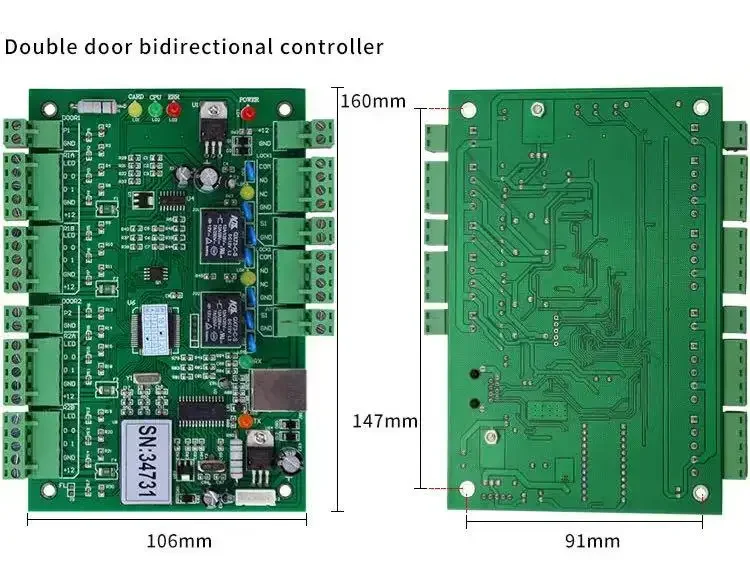

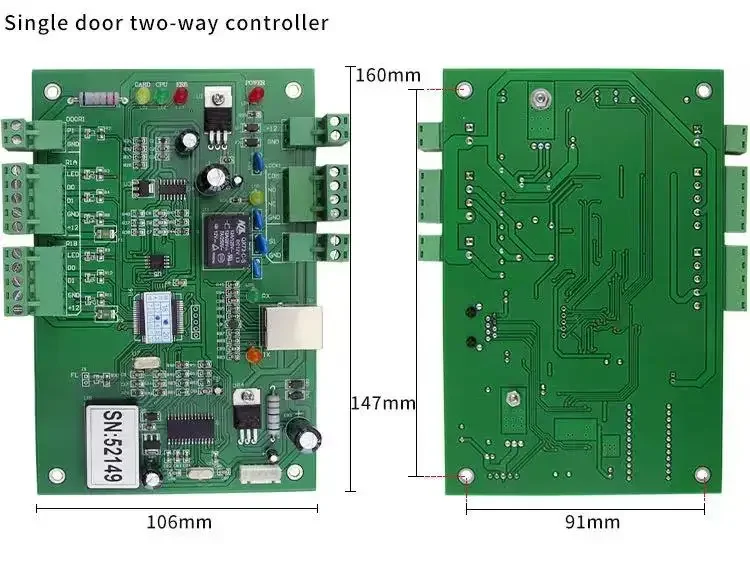

- Door options: one, two or four
- Reader format: Wiegand 26/34 bit
- Listed card capacity: 20,000
- Listed record storage: 100,000
- Release delay: 1-600 seconds
- Specified supply arrangement: DC 12 V, 3-5 A
Choose the door-count board and plan the complete access installation around compatible hardware.
