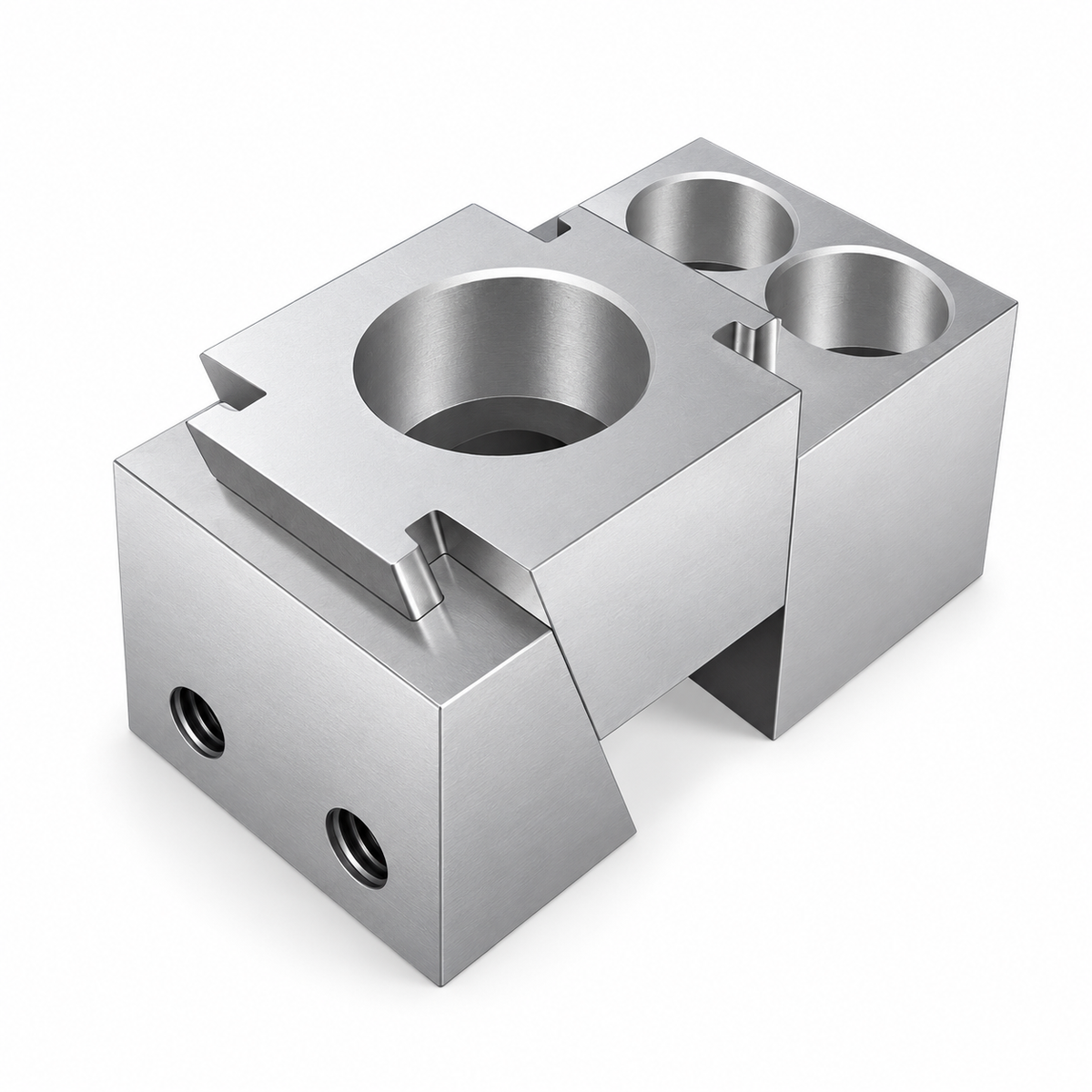

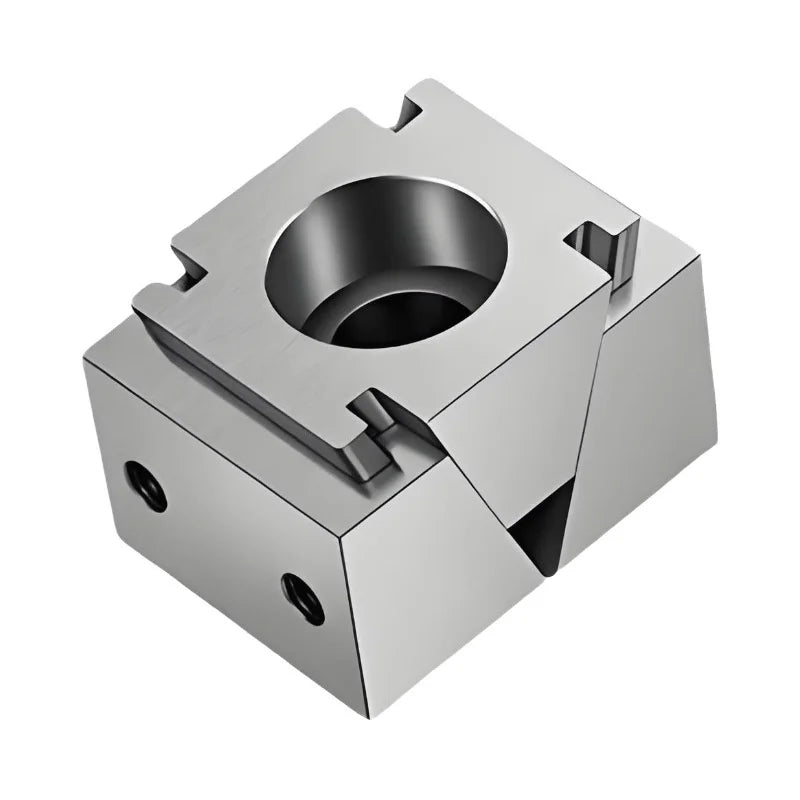

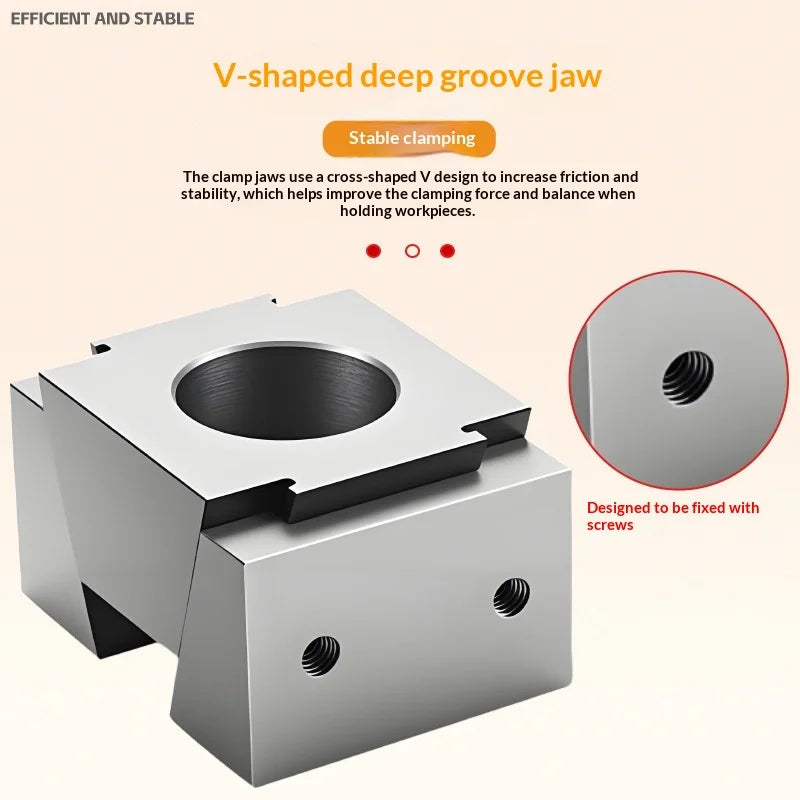

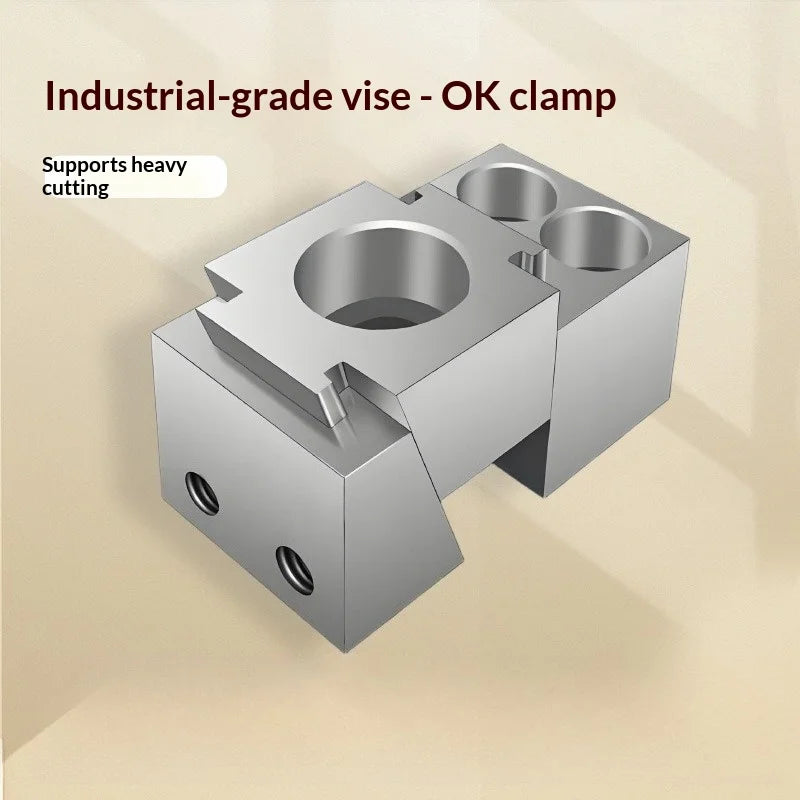

CNC Wedge Expansion Workholding Clamp

Hold a suitable workpiece from the side with a selected-size CNC wedge-expansion clamp.

✅ Keep top access available - Side clamping provides a holding arrangement outside the intended top machining area.

✅ Choose the mounting size - M6, M8 and M10 selections provide different fastening configurations.

Plan the fixture around the machining path

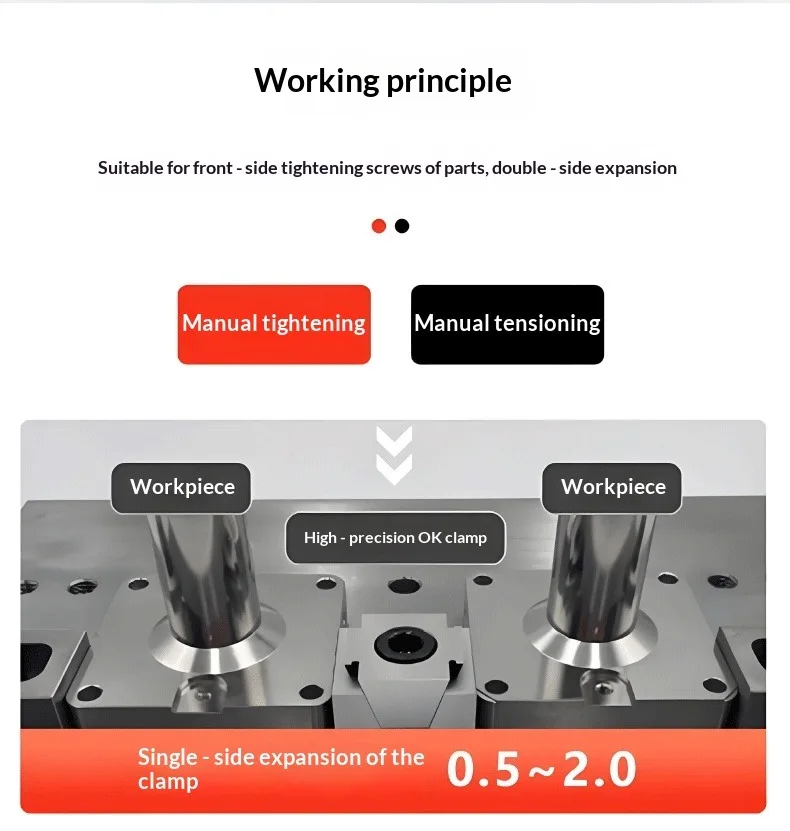

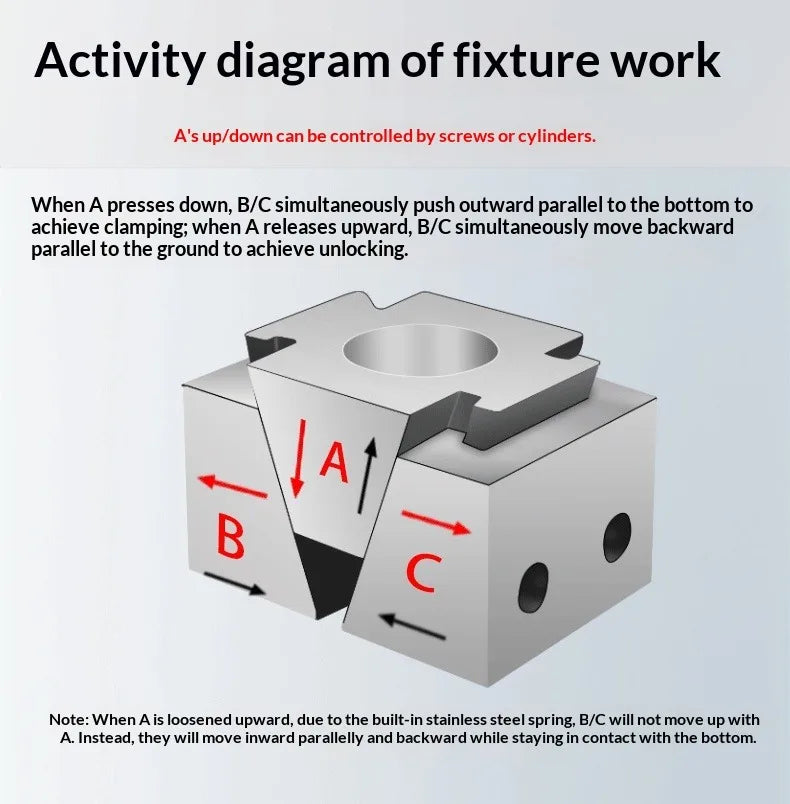

A side clamp can be useful when the tool needs access above the workpiece. The wedge arrangement provides the described expanding clamping action in a suitable fixture layout.

Select the mounting size and confirm the actual clamp dimensions and actuation requirements before ordering. The clamp is one workholding component, so the fixture, stops and safe cutting loads must be designed for the particular job.

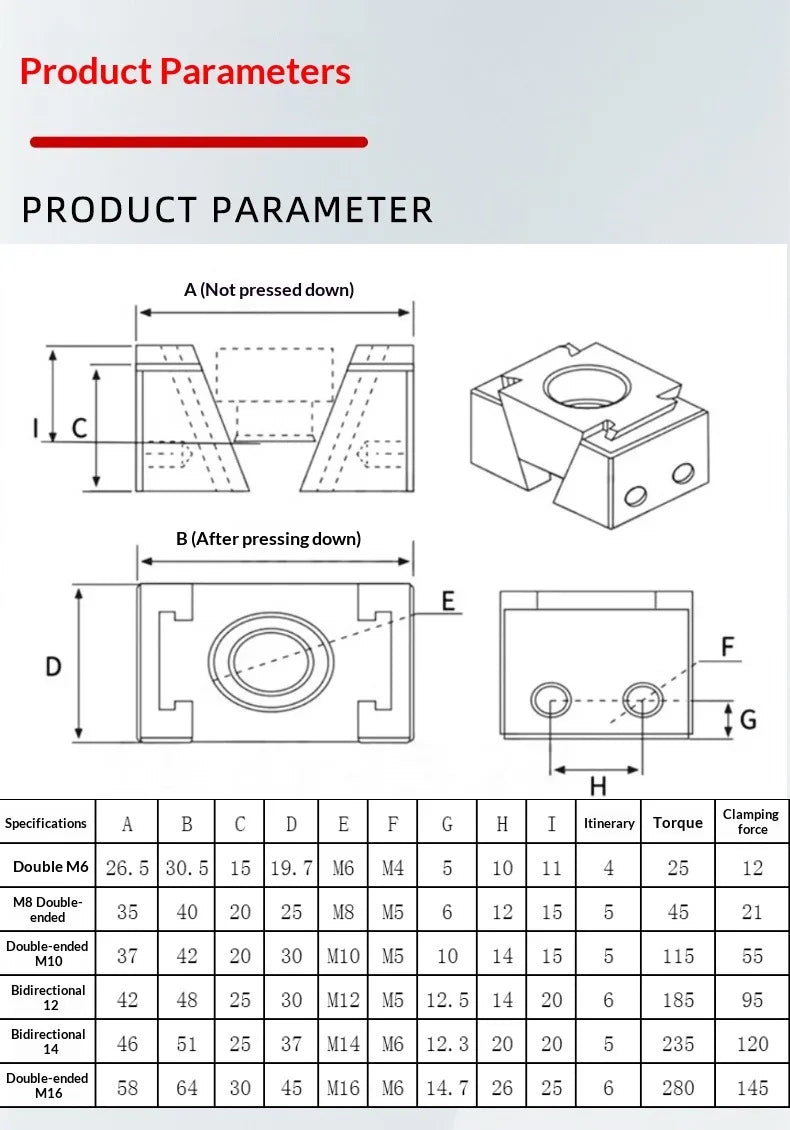

Technical details

• Type: CNC wedge-expansion side clamp

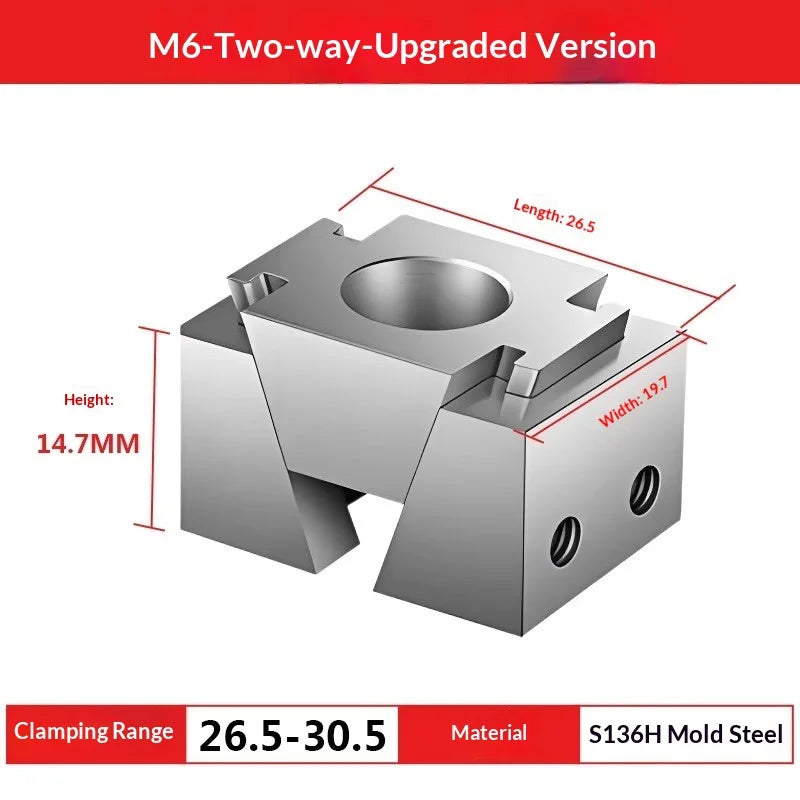

• Size selections: M6, M8 or M10

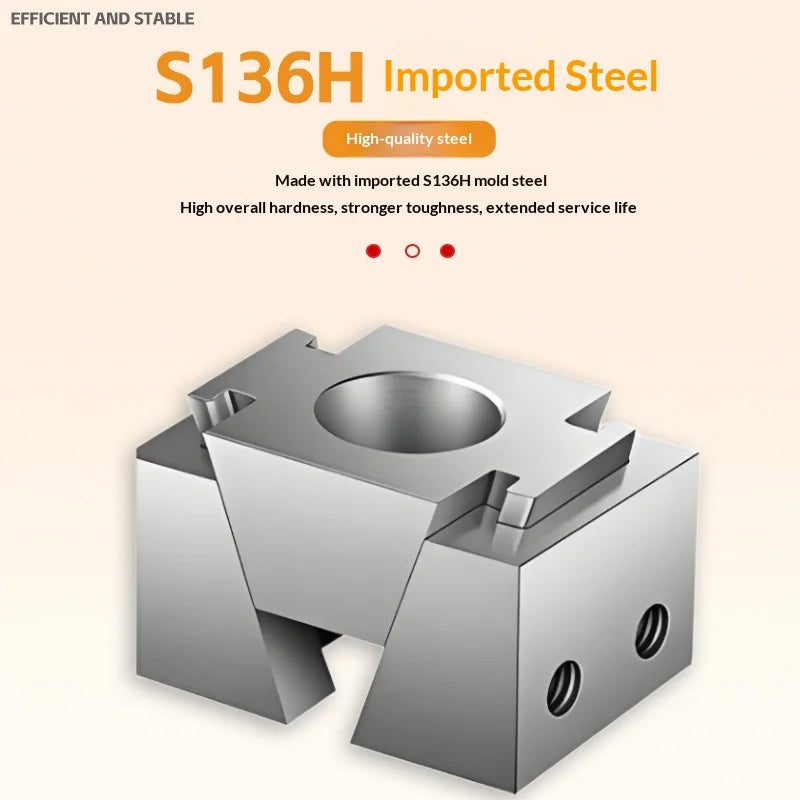

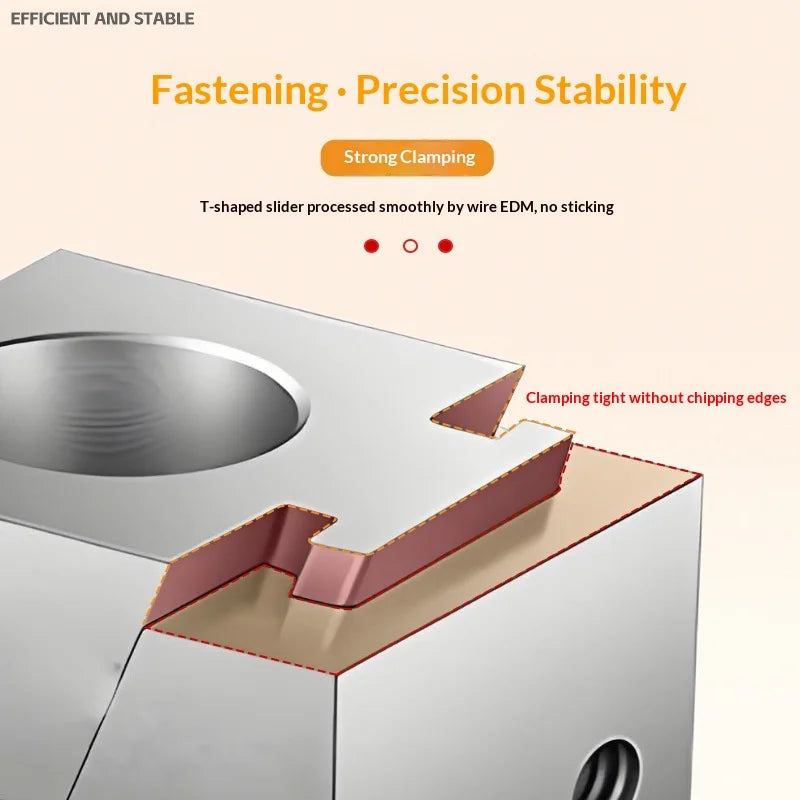

• Edge material described: S136H steel
• Use only in a compatible workholding arrangement

Add a matched side-clamping component to your next fixture design.
