H3Y-2 AC 220 V Time-Delay Relay with Base Socket

Add a power-on delay to a compatible control circuit with an H3Y-2 time-delay relay and matching base socket. Choose a timing range for your application, then use the front dial to set the delay within that range.

Set the interval before your circuit switches

• ✅ Control the start sequence — the relay introduces a set delay after power is applied, helping you time a switching step in a compatible circuit.
• ✅ Choose the range for the job — seconds and minutes options let you select a relay suited to a short pause or a longer interval.
• ✅ Connect through a separate base — the included 8-pin socket provides screw terminals and allows the relay body to plug into the base.

H3Y-2 power-on delay relay for AC 220 V supply, with 8-pin base socket. Available ranges: 0–3, 0–5, 0–10, 0–30 or 0–60 seconds; and 0–3, 0–5, 0–10, 0–30 or 0–60 minutes. One relay with base in the selected timing range. Match the actual relay label, terminal diagram and circuit ratings before wiring.

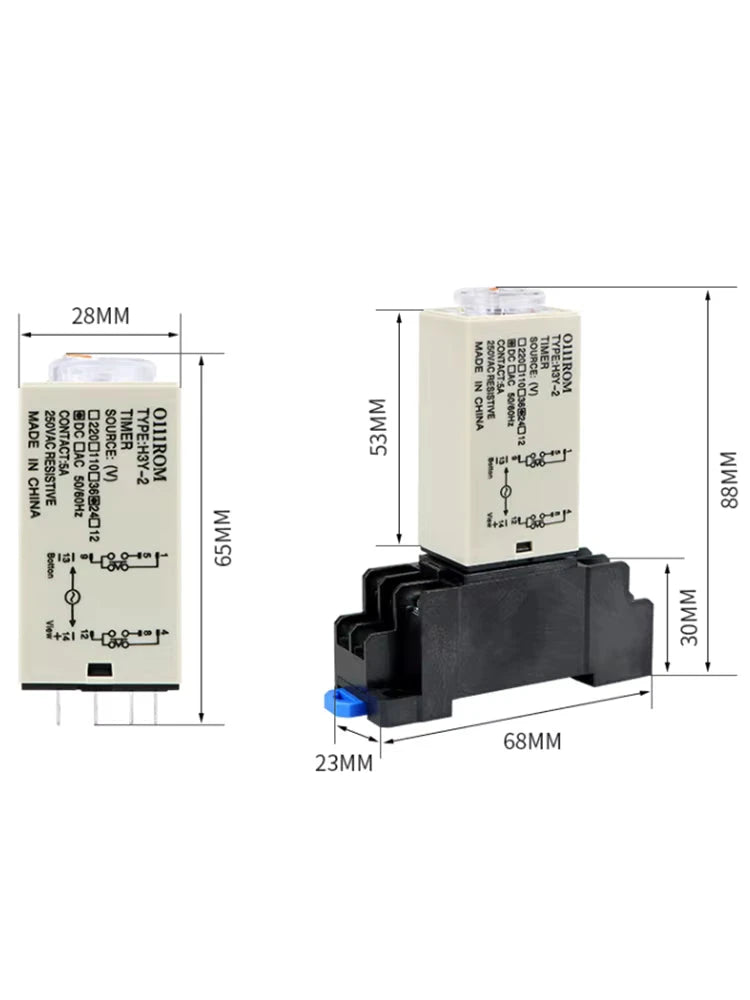

The reference views show the relay body and relay fitted to its base; each package contains one selected relay with one base.

Choose the timing range for your circuit and add the relay with its matching base.
