Sauna Room Controller Accessories for Control Panel, Optional Control Box

Color:

380V control box 220V control box Secondary panel Main panel

Variant

€182,45

€217,03

SPECIFICATIONS

Application: Sauna room,Khan steam room,light wave bath room

Brand Name: ThermoWise

Control load voltage: 440VAC/380VAC/220VAC/110VAC

Device power supply: 220VAC(110~240VAC)

Electric: No

High-concerned chemical: none

Model Number: 714

Origin: Mainland China

Panel material: Acrylic

Type: Electric Water Heater Parts

Sauna Room Controller Accessories for Control Panel,Optional Control Box Optional

Product Features

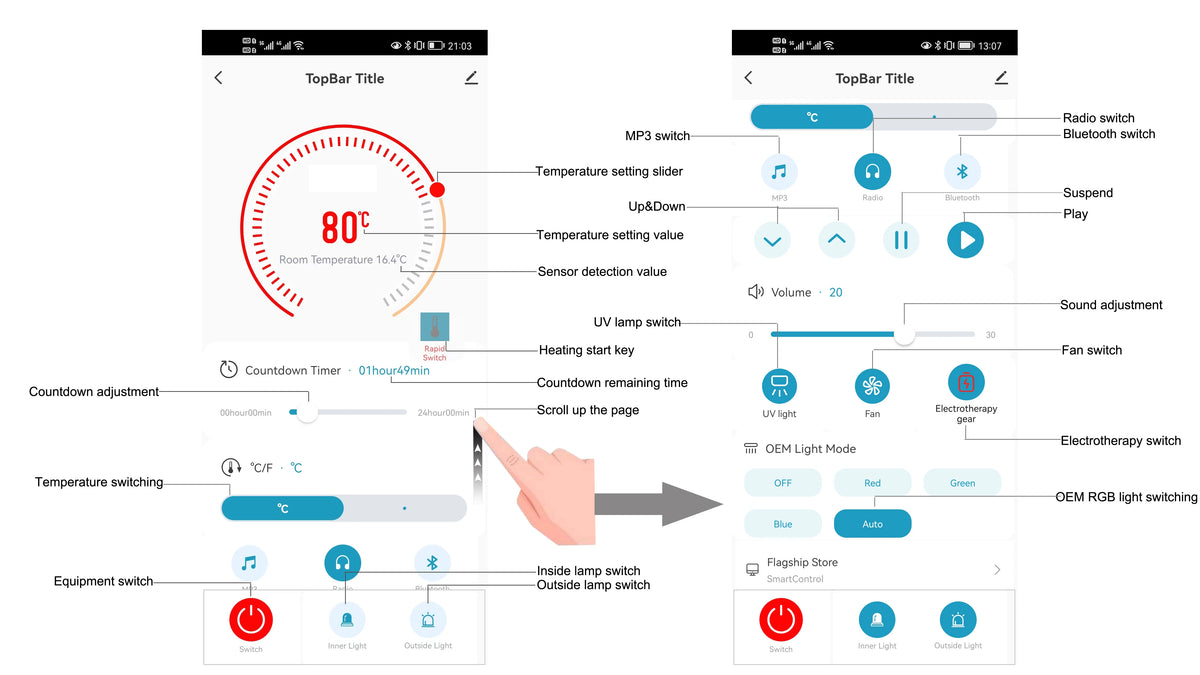

Embed TUYA WIFI smart chip, Mobile APP for remote adjustment and management of sauna room controller, 3 sets of heating 30A relays, Support heating equipment operating voltages of 440VAC, 380VAC, 240VAC, 230VAC, 220VAC, 110VA,supporting high-power infrared heating tubes/graphene/far-infrared light waves

Power down memory function

Countdown to work for 24 hours

Low-frequency pulse electrotherapy, stimulate acupuncture points, dredge meridians, improve circulation and good metabolism

Celsius temperature and Fahrenheit temperature free switching(°C/℉)

Multi functions: Heat, MP3, FM, inside and outside light, RGB LED light, fan, AUX(UV/Oxygen bar etc.)

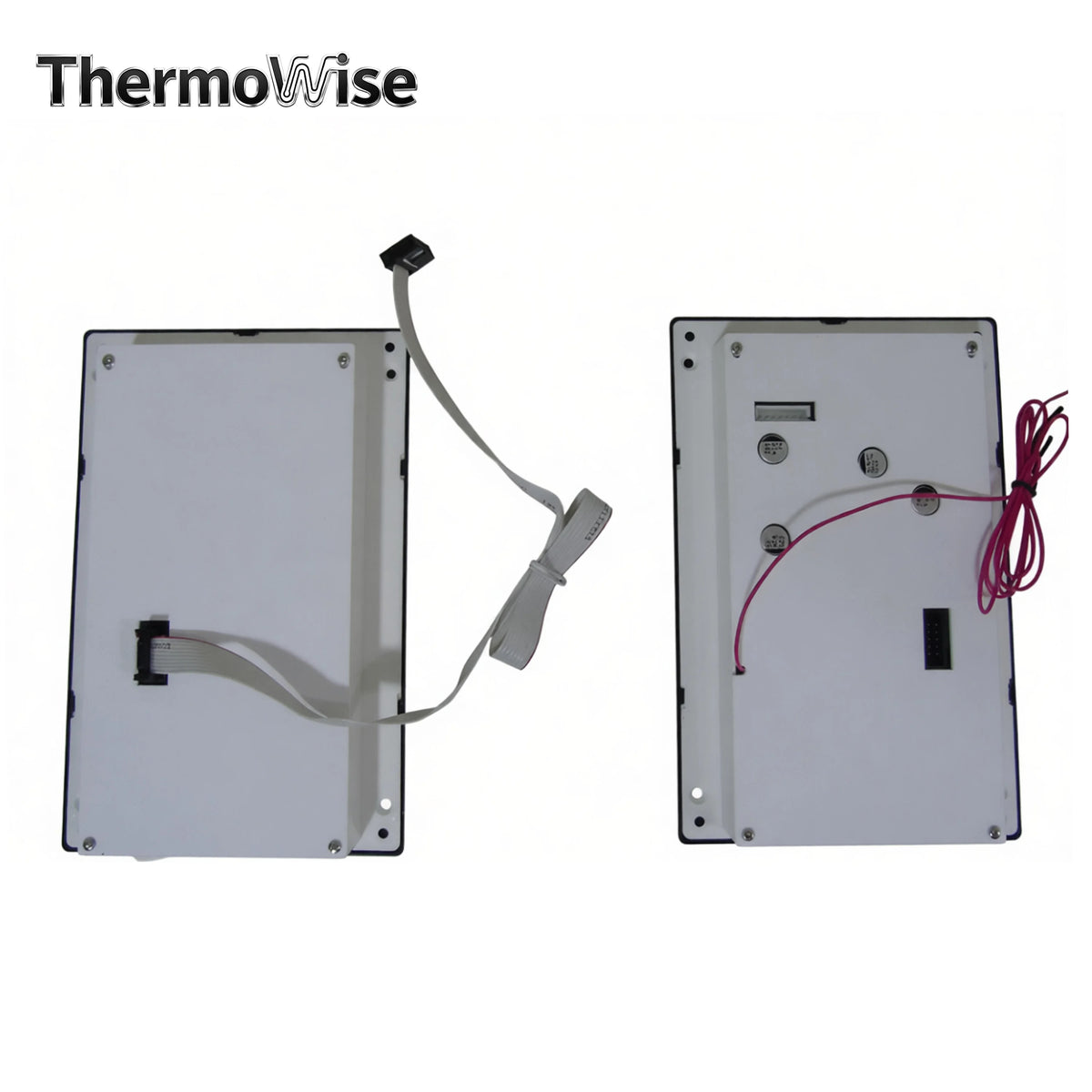

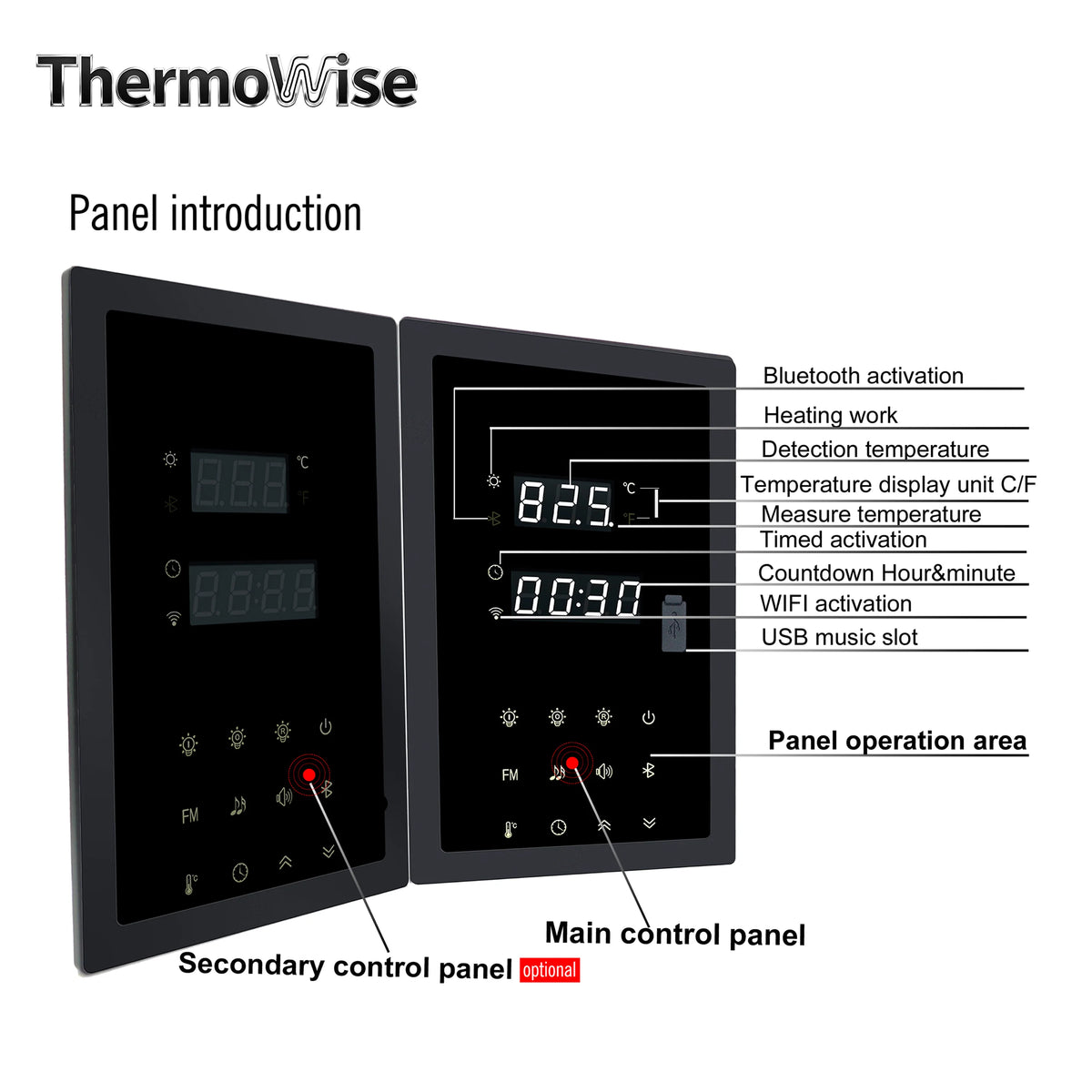

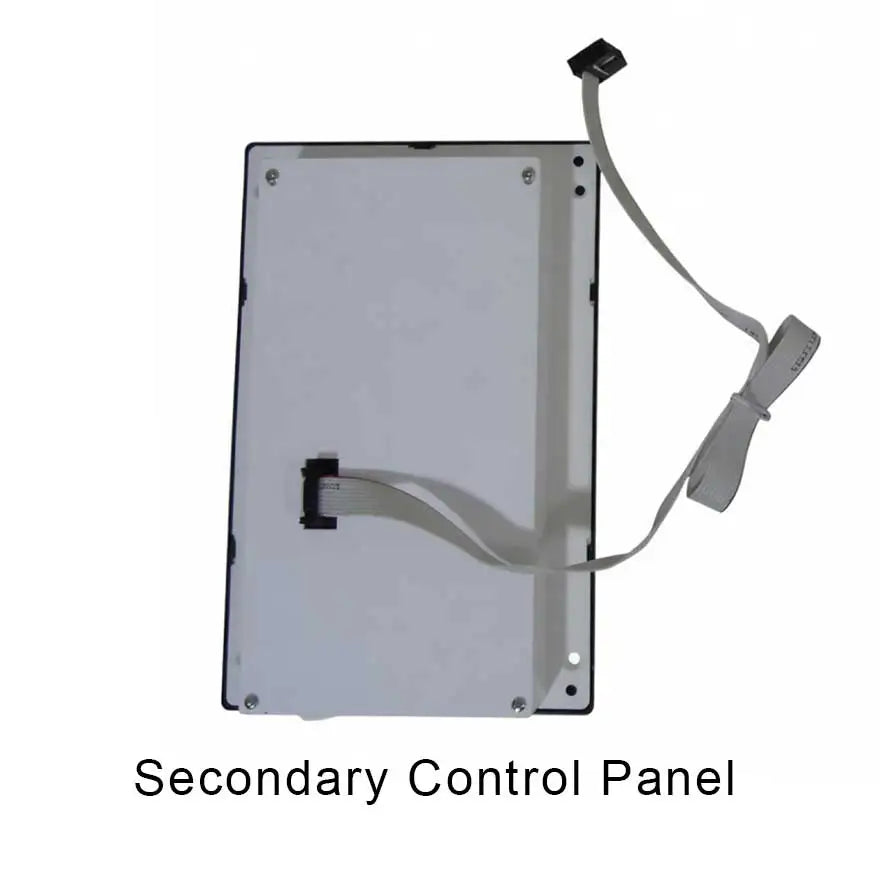

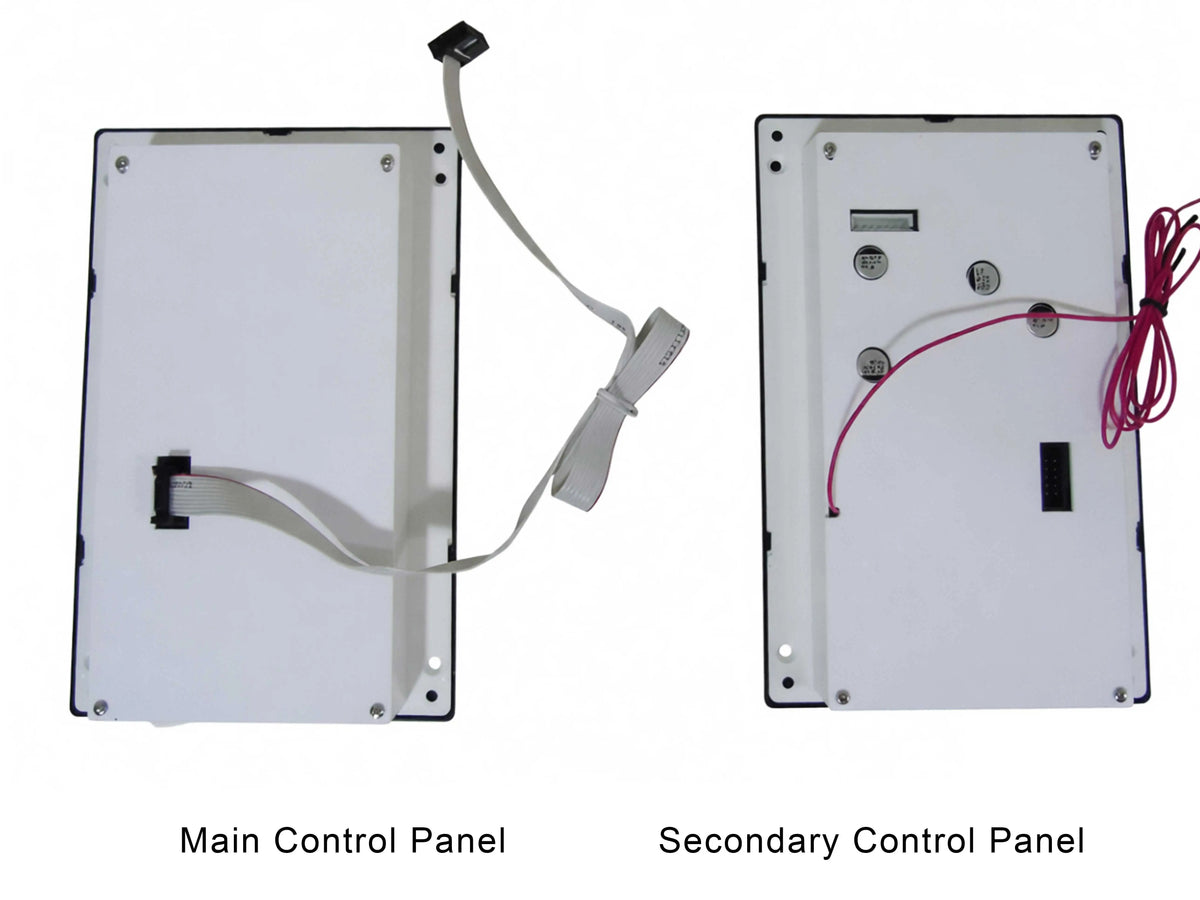

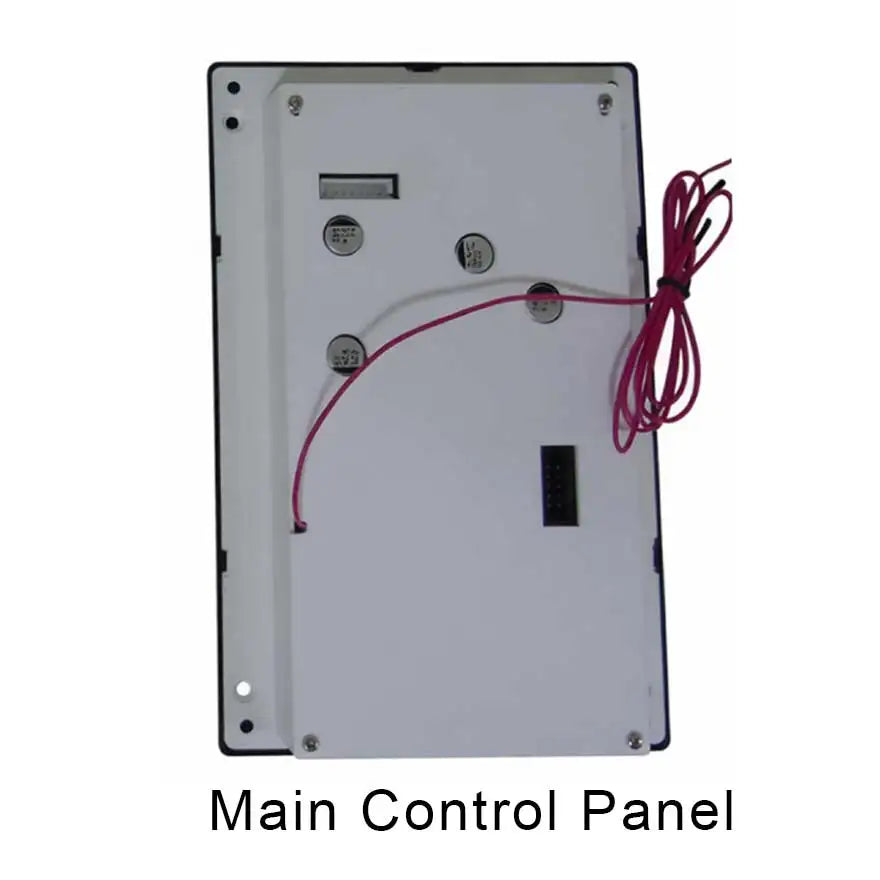

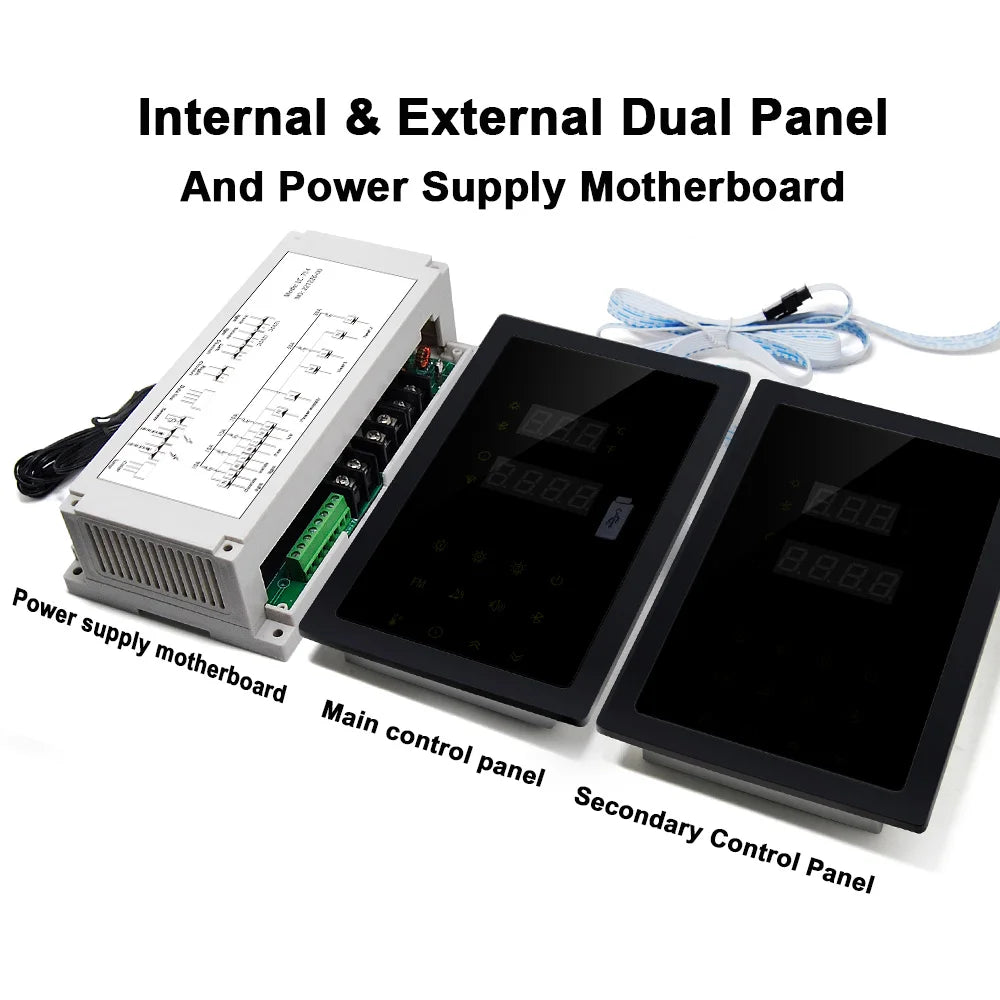

Dual panels: indoor display operation panel and outdoor display operation panel (optional);

Parameters

Temperature controlling range: 0~110°C(32℉ ~230℉)

Temperature measuring range: 0~110°C (32℉ ~230℉)

Time Setting：1~24 H

Equipment working input voltage: 110~240VAC 50HZ/60HZ

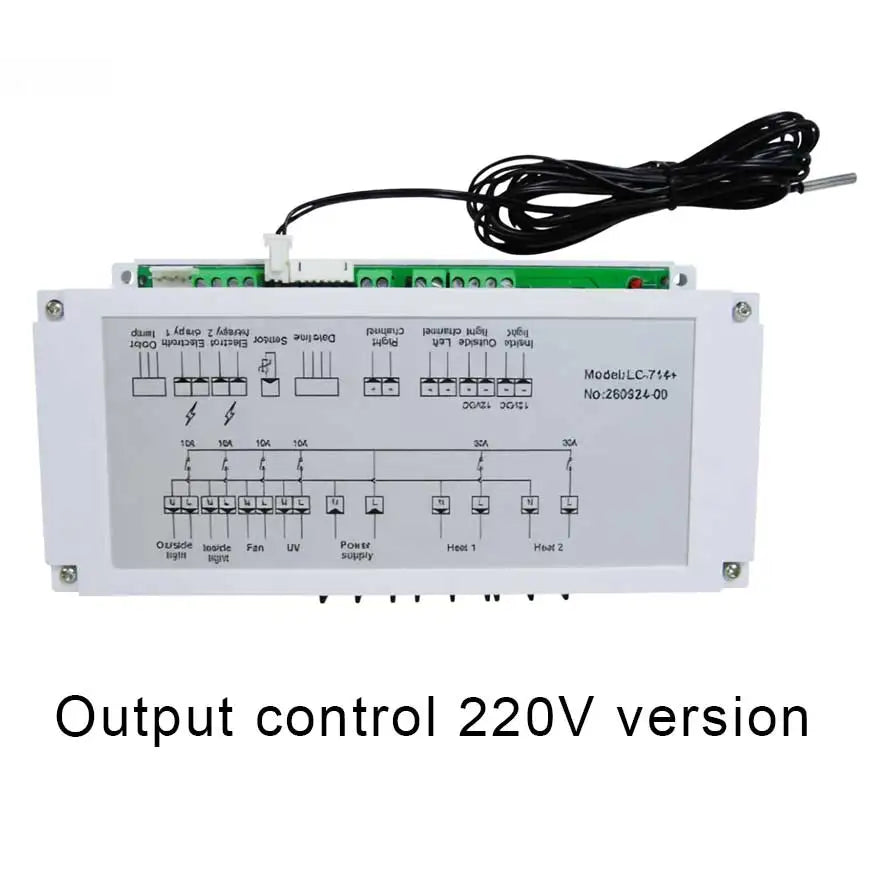

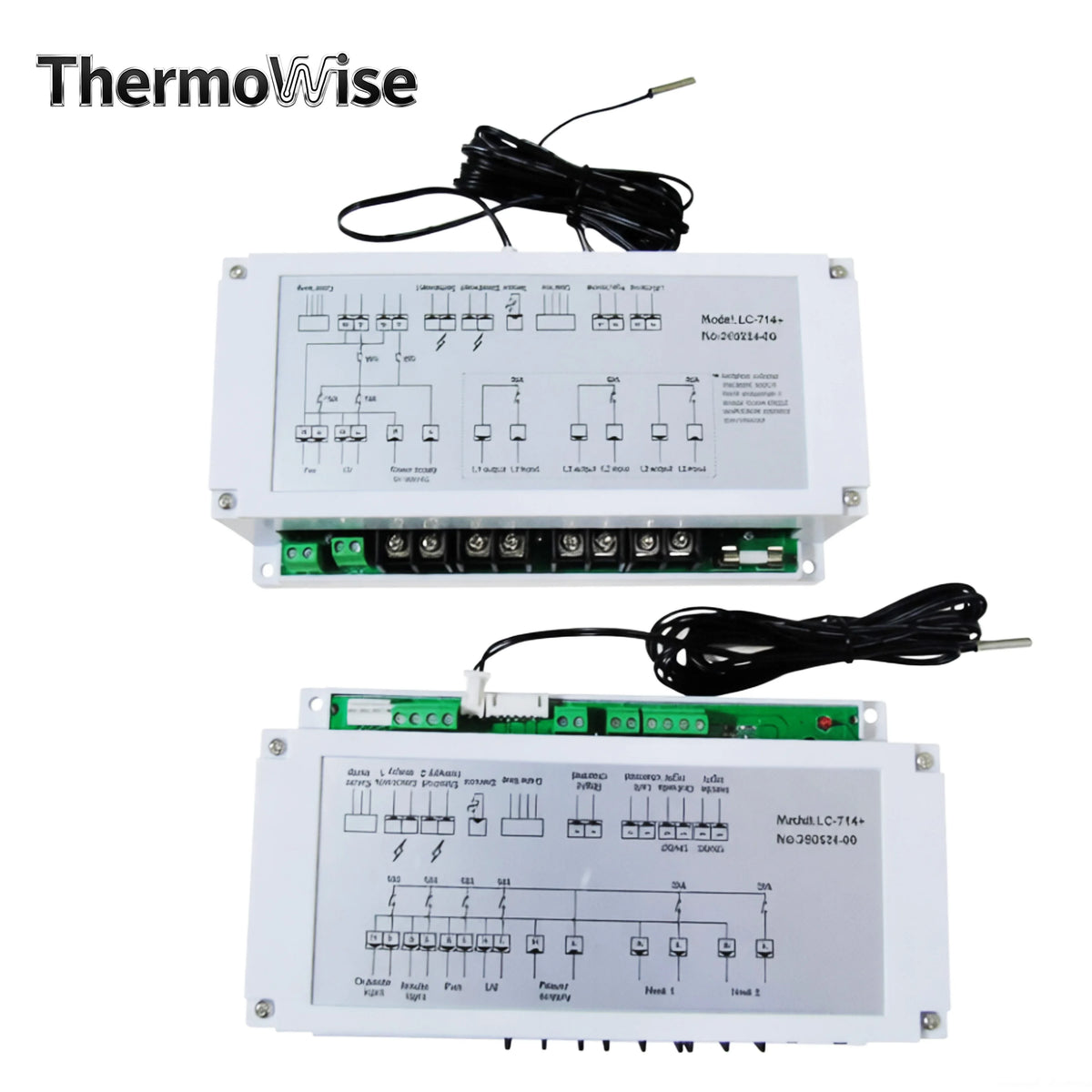

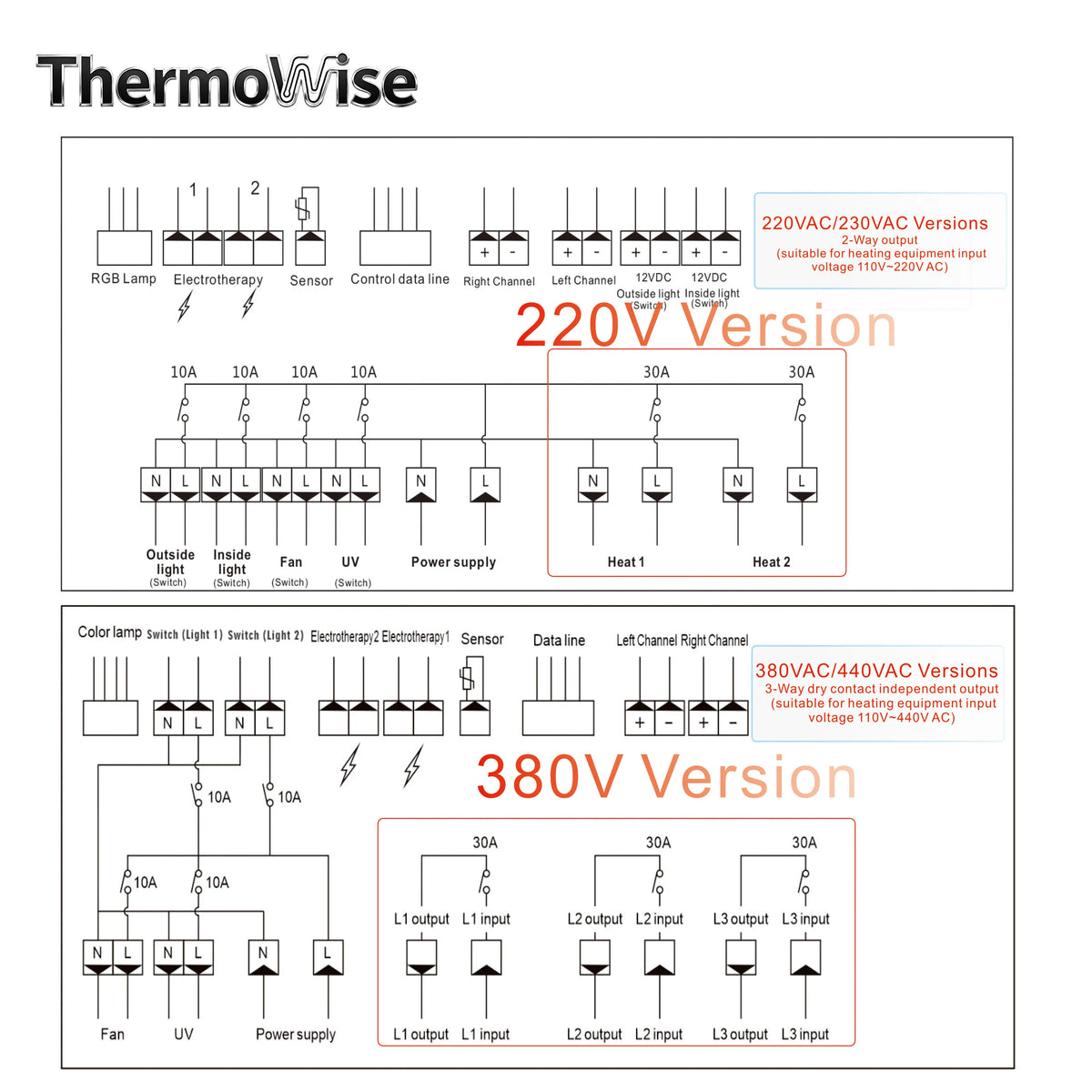

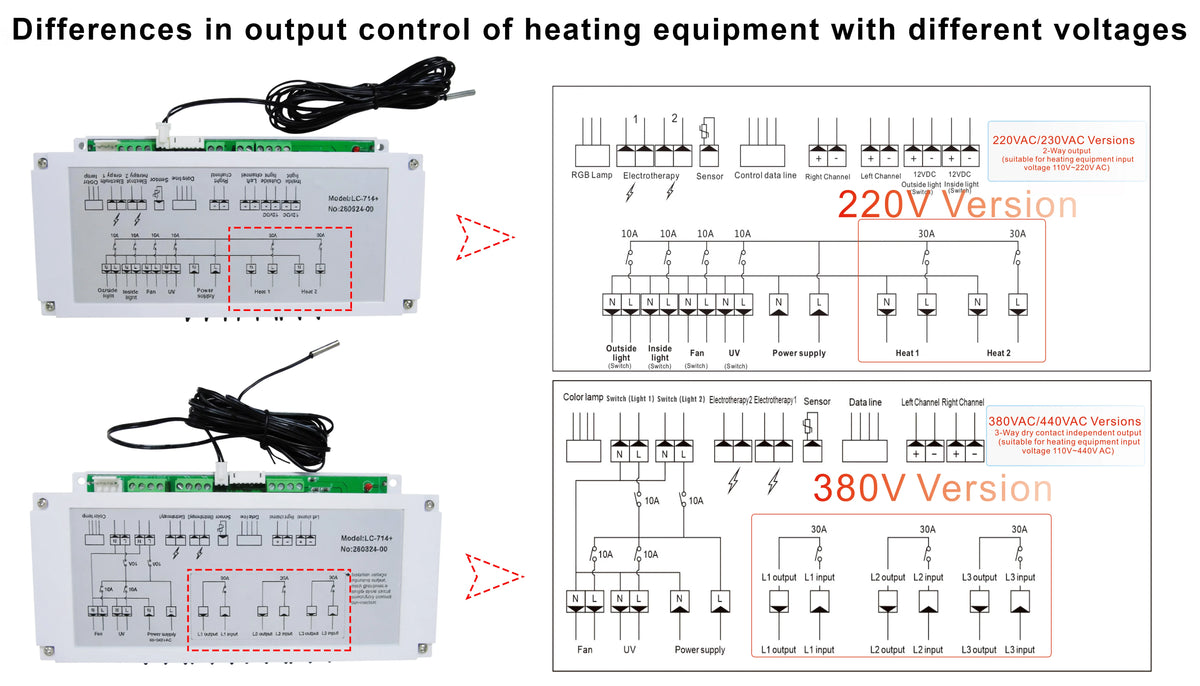

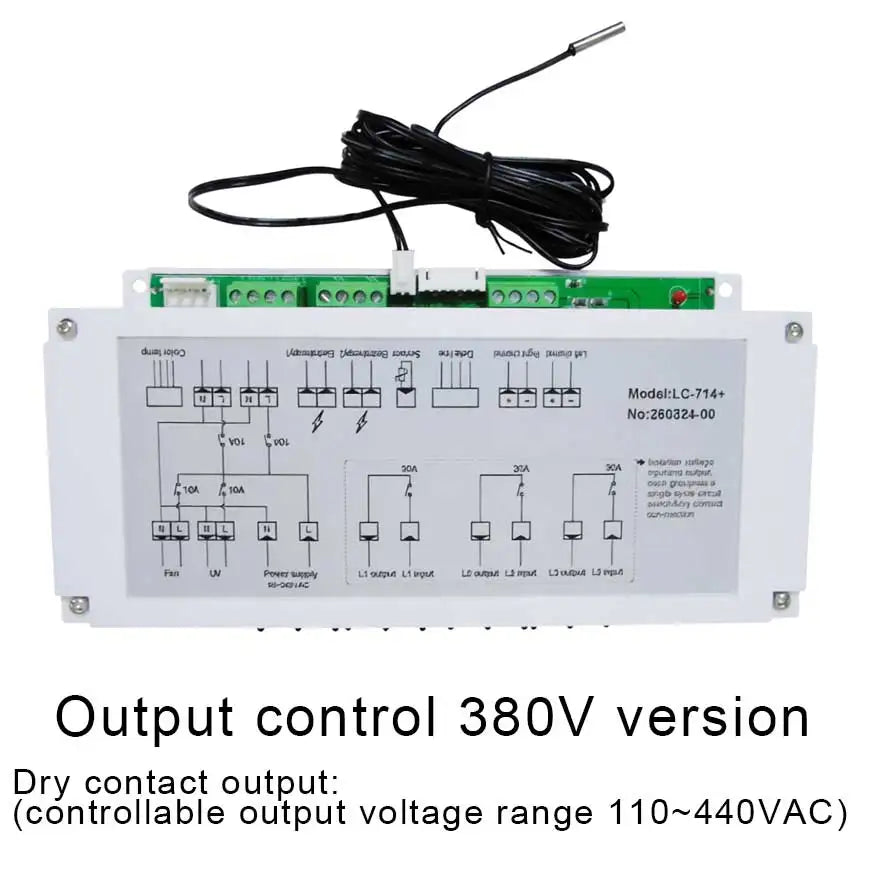

Equipment working output:

1. Electric heating (load) output control voltage range 110VAC,220VAC,230VAC,240VAC,380VAC,440VAC;

2.Electric heating 30A relays,Heating control output maximum power 220VAC 4.5KW/380VAC 9.0KW

(optional);

3. Fan (switch) 10A relay, maximum load 220V10A;

4. UV lamp (switch) 10A relay, maximum load 220V10A;

5. Inside lamp (switch) 10A relay, maximum load 220V10A;;

6. Outside lamp (switch)10A relay, maximum load of 220V10A;

7. Speaker 25W, output left and right channels;

8. Two groups of low-frequency pulse electrotherapy, 0~9 grades;

9. OEM 12V RGB LED lamp (optional);

(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)

Accuracy: ±1°C

Input: 1 NTC sensor(wire: 3m for standard, can be customized)

Consumption: ≤3 w

Ambient requirements: temperature/ -10~60°C; humidity/20~85% (No condensate)

Panel Outline Dimensions: 195mm x 126mm

Wall Opening size: 180mm x 95mm

Screw fixed size:180mm x 110mm

Panel Outline Dimensions: 195mm x 126mm

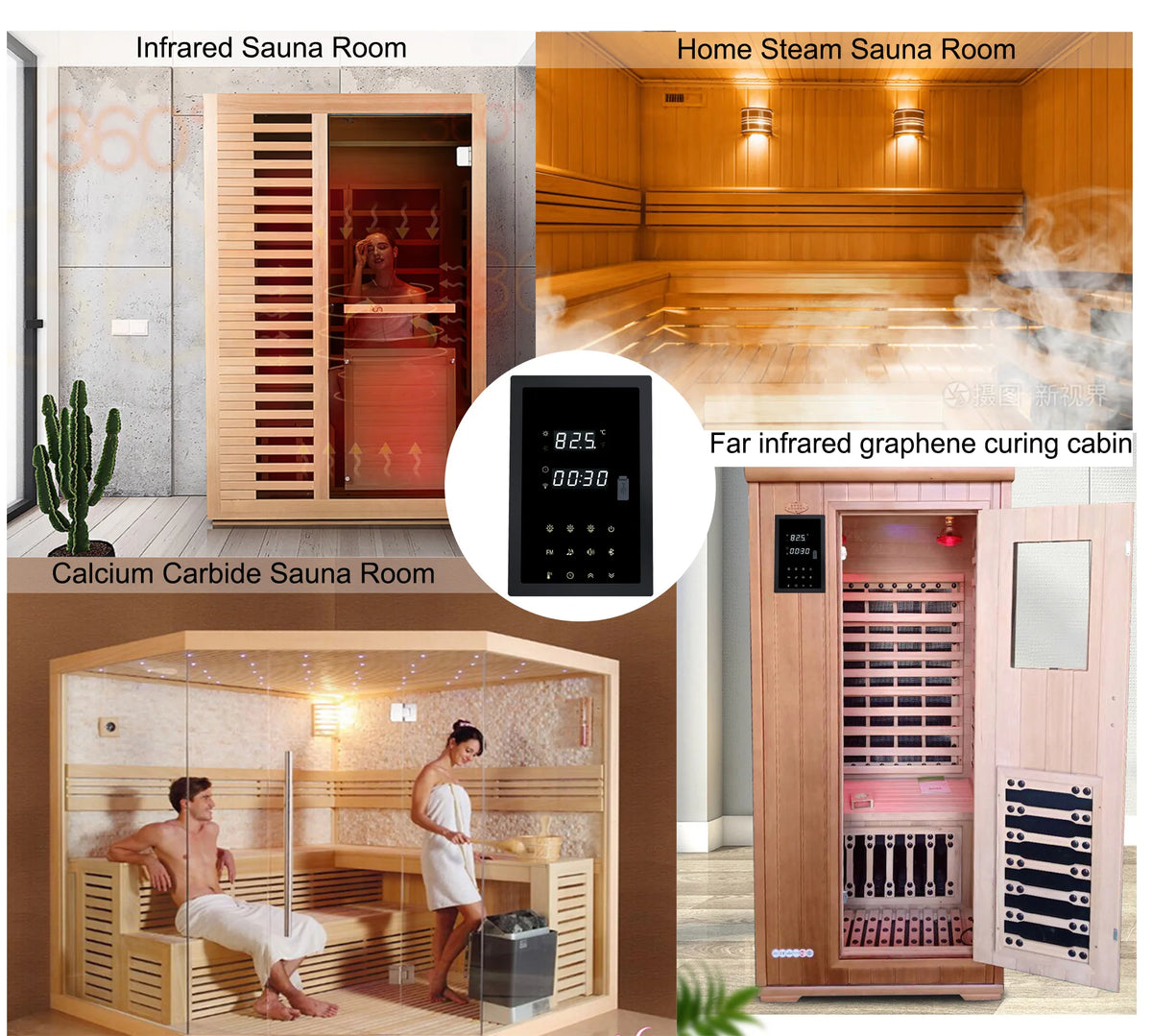

The controller is applicable to dry and wet sauna rooms, graphene/far-infrared light wave/far-infrared heating tube sauna rooms;
