CYL170 Sliding-Glass Cabinet Lock

Add a matching lock component to a sliding-glass cabinet or display case with the CYL170. The selected fitting must match the glass thickness and mounting arrangement of the actual cabinet.

• ✅ Use a dedicated cabinet closure - the lock is intended for a matching glass arrangement.
• ✅ Compare defined fitting references - 4-6 mm glass and a 16 mm cut-out are listed.
• ✅ Coordinate a metal finish - the chrome-plated appearance suits a compatible display cabinet.

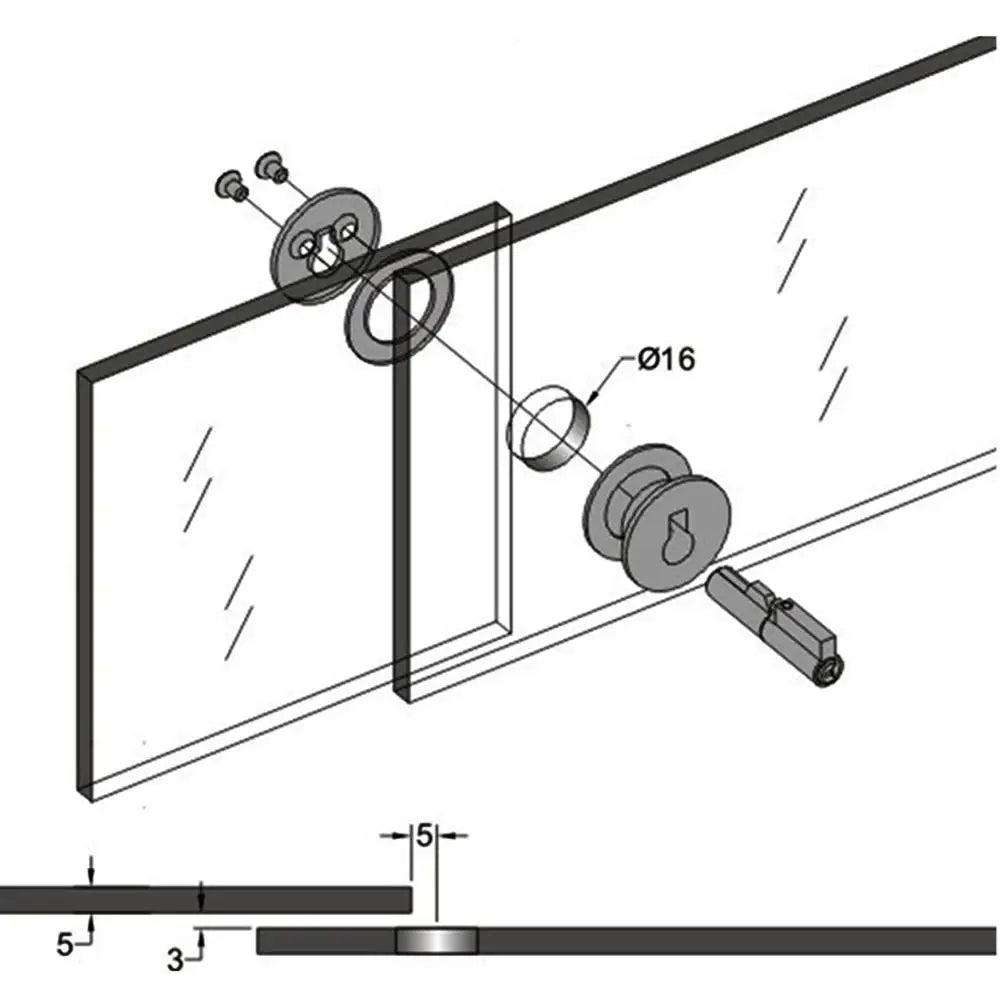

Confirm the Mounting Method Before Altering Glass

The original title mixes ratchet and cylinder-lock descriptions. Compare the actual product drawing and parts before ordering, and do not assume it is a no-drill fitting from the title alone.

Have glass work assessed and completed appropriately; do not attempt to modify unsuitable glass. Keyed-alike supply and key quantity must be confirmed for the package. No tested security rating is established.

Technical details

• Model: CYL170.
• Housing: die-cast zinc alloy; brass cylinder listed.
• Finish: chrome plated.

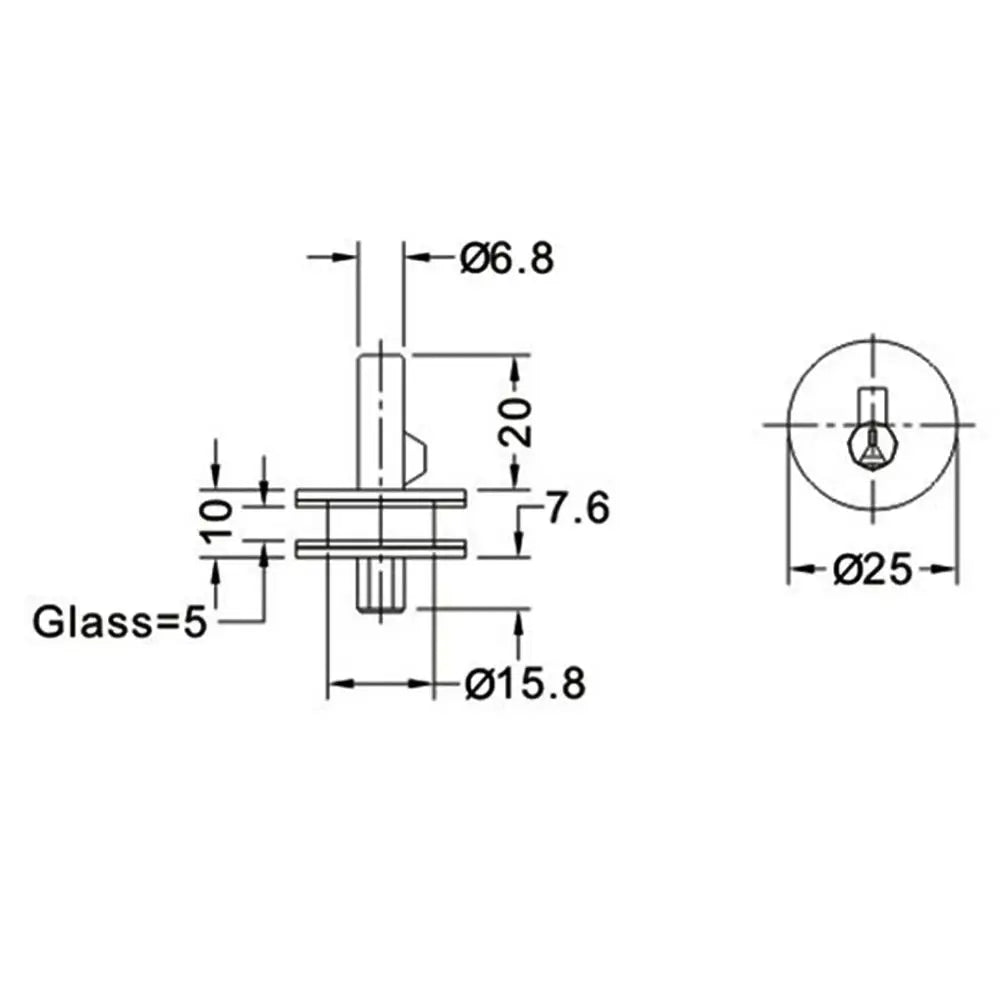

• Glass reference: 4-6 mm.
• Cut-out reference: 16 mm; verify actual model.
• Package: one lock.

Confirm the glass and fitting design before choosing the cabinet lock.
