CH-72VAH AC Panel Meter for Voltage, Current and Frequency

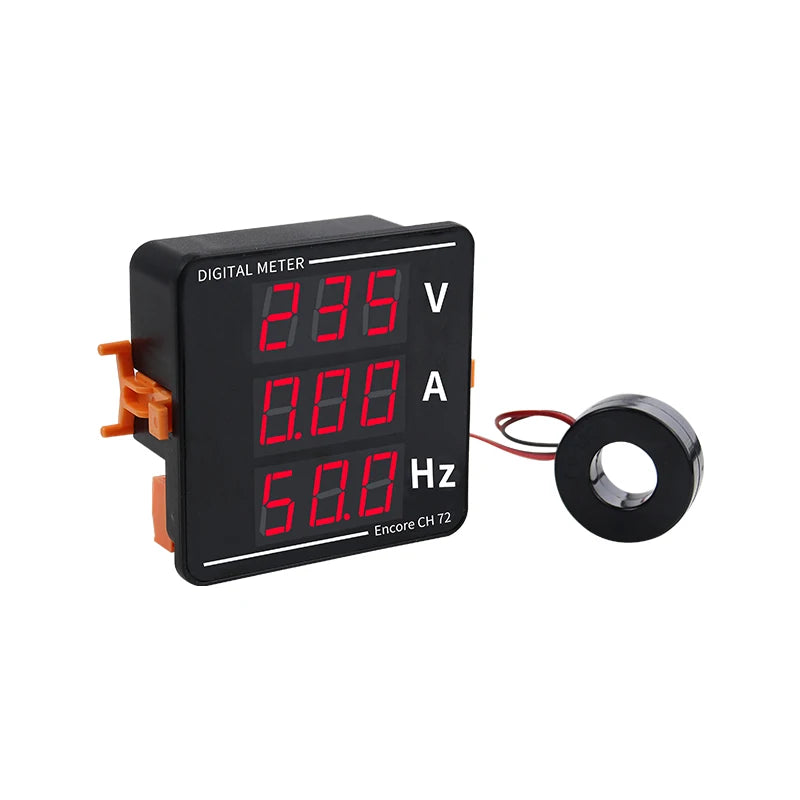

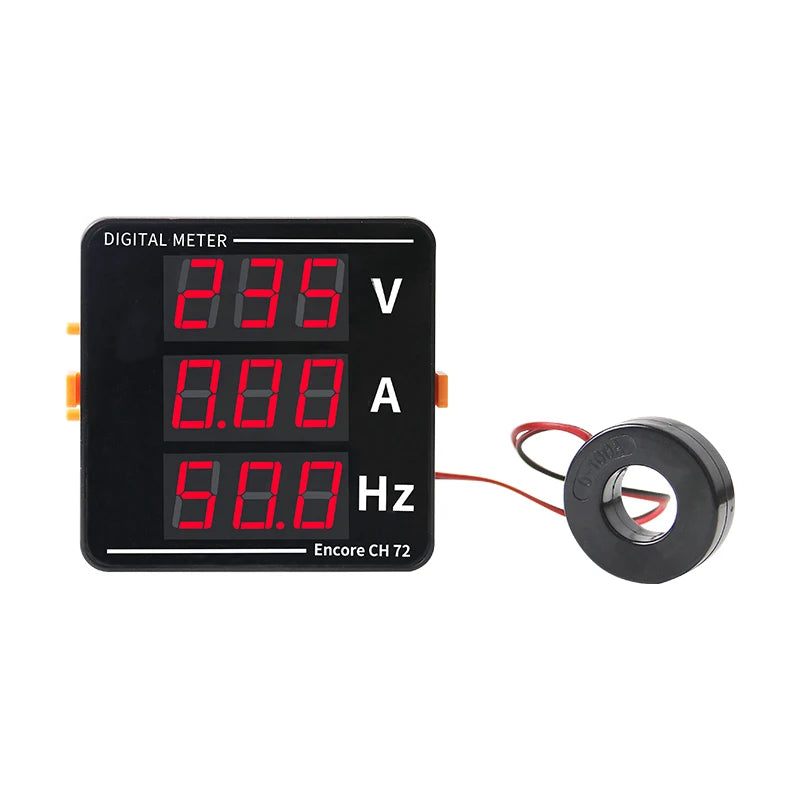

✅ Read three values at once. The digital display puts voltage, current and frequency together.

✅ Skip opening the enclosure. Routine readings come from the front of a compatible panel.

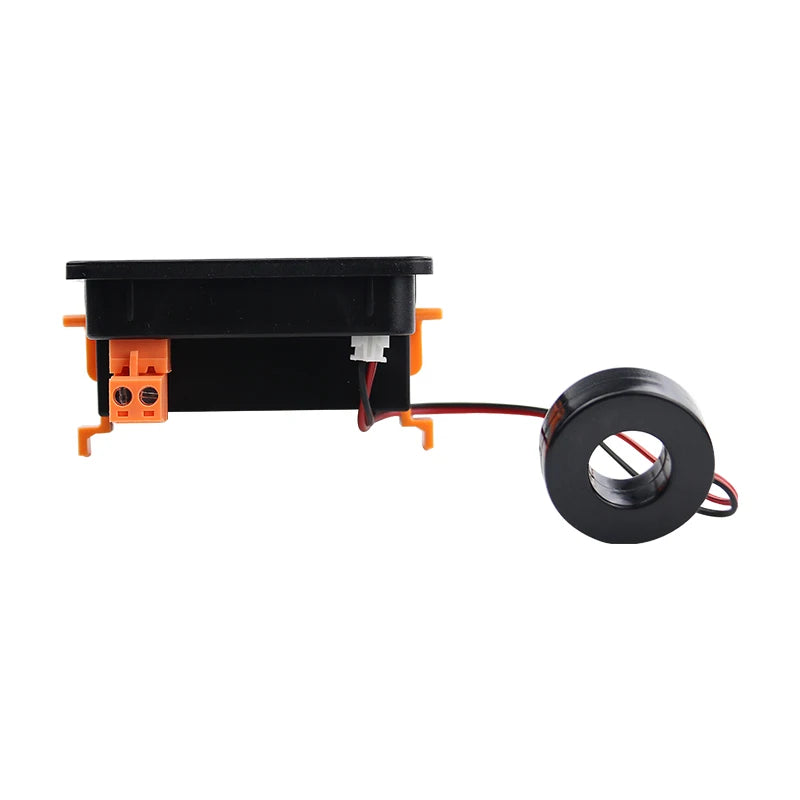

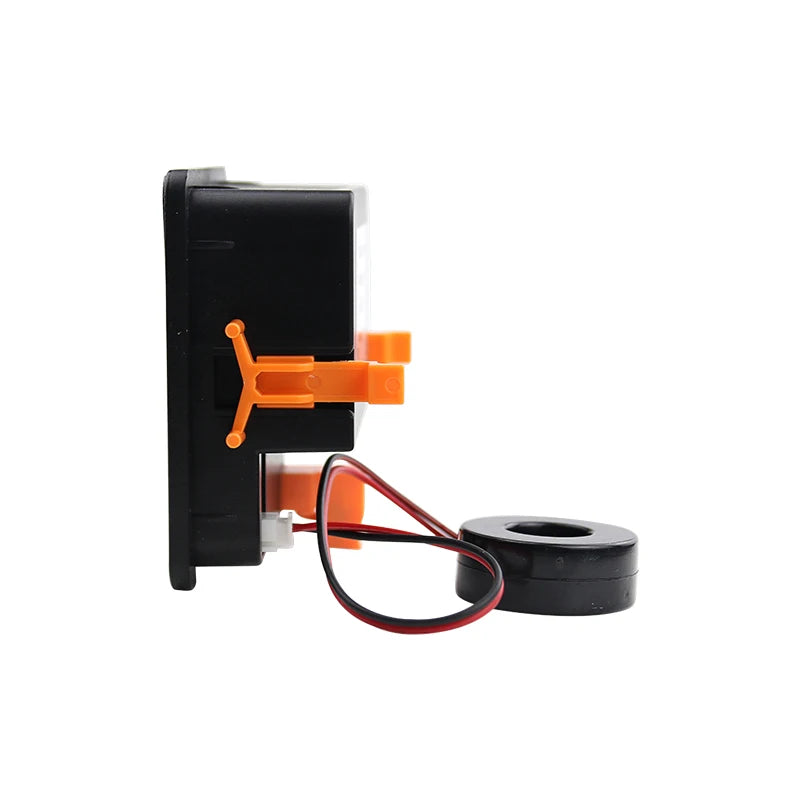

✅ Fit the transformer too. A 120 A current transformer is included for the current measurement.

Voltage, current and frequency on one display

A CH-72VAH panel meter that shows AC voltage, current and frequency on one digital display. It fits a 68 × 68 mm cutout, and a 120 A current transformer is included for the current measurement. The meter is for conventional 50-60 Hz mains and is not suitable for inverter outputs or modified waveforms.

Technical details

• CH-72VAH panel meter.

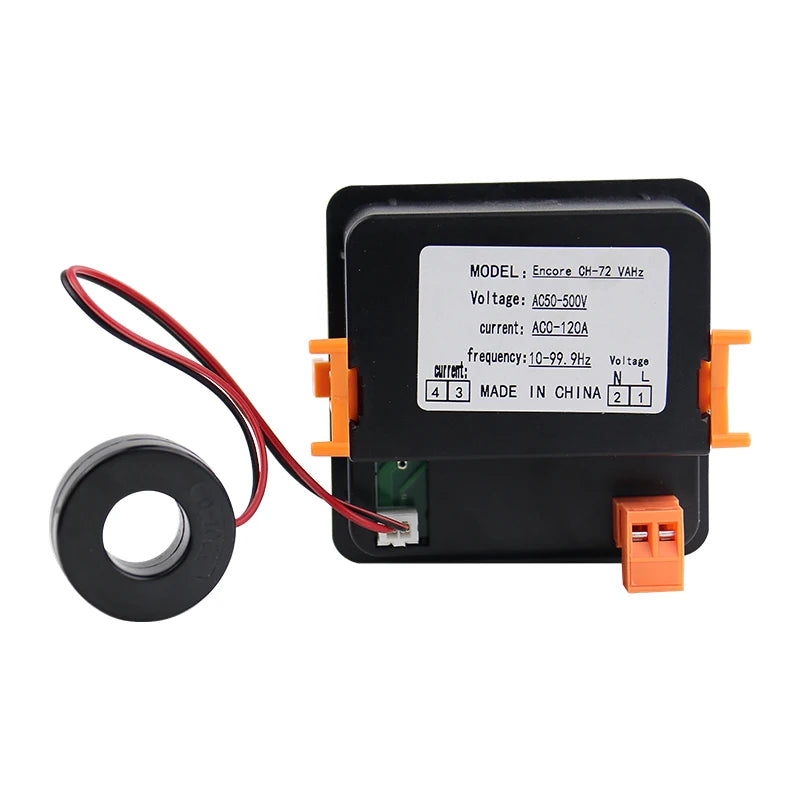

• Listed ranges 50-500 V AC, 0-120 A and 10-99.9 Hz.
• Body 72 × 72 × 32 mm, cutout 68 × 68 mm.
• For conventional 50-60 Hz AC mains.
• Unsuitable for inverter outputs and modified waveforms.

Check the cutout and circuit, then fit the meter.
