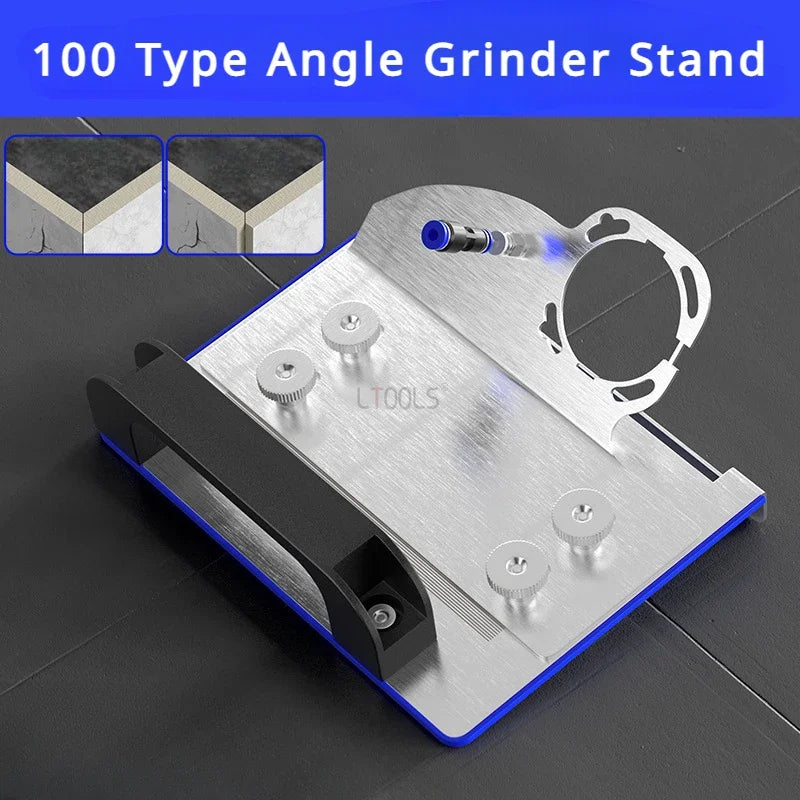

45° Tile Chamfering Guide for 100-Type Angle Grinders

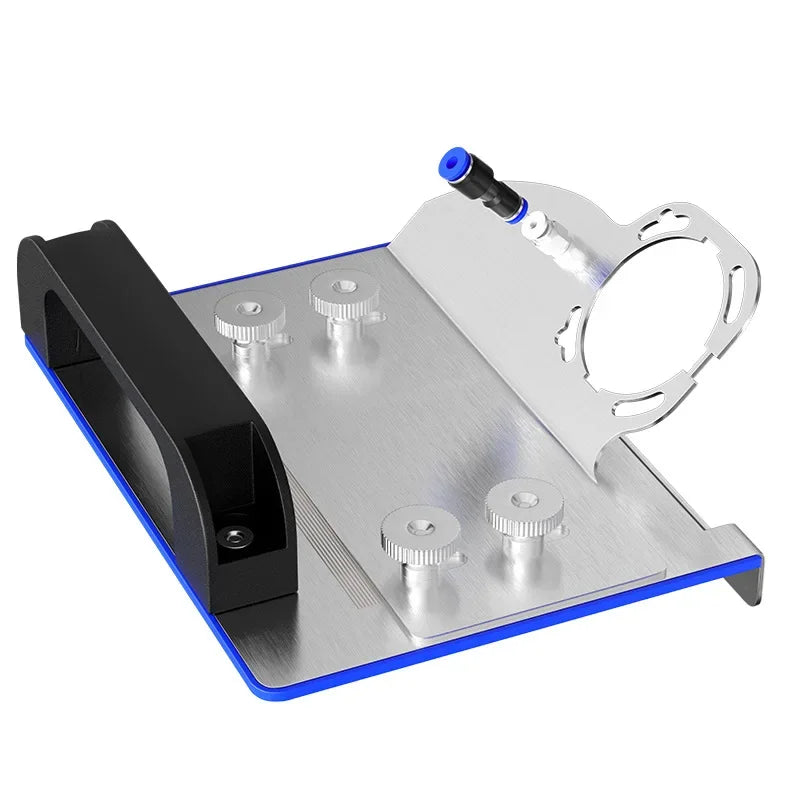

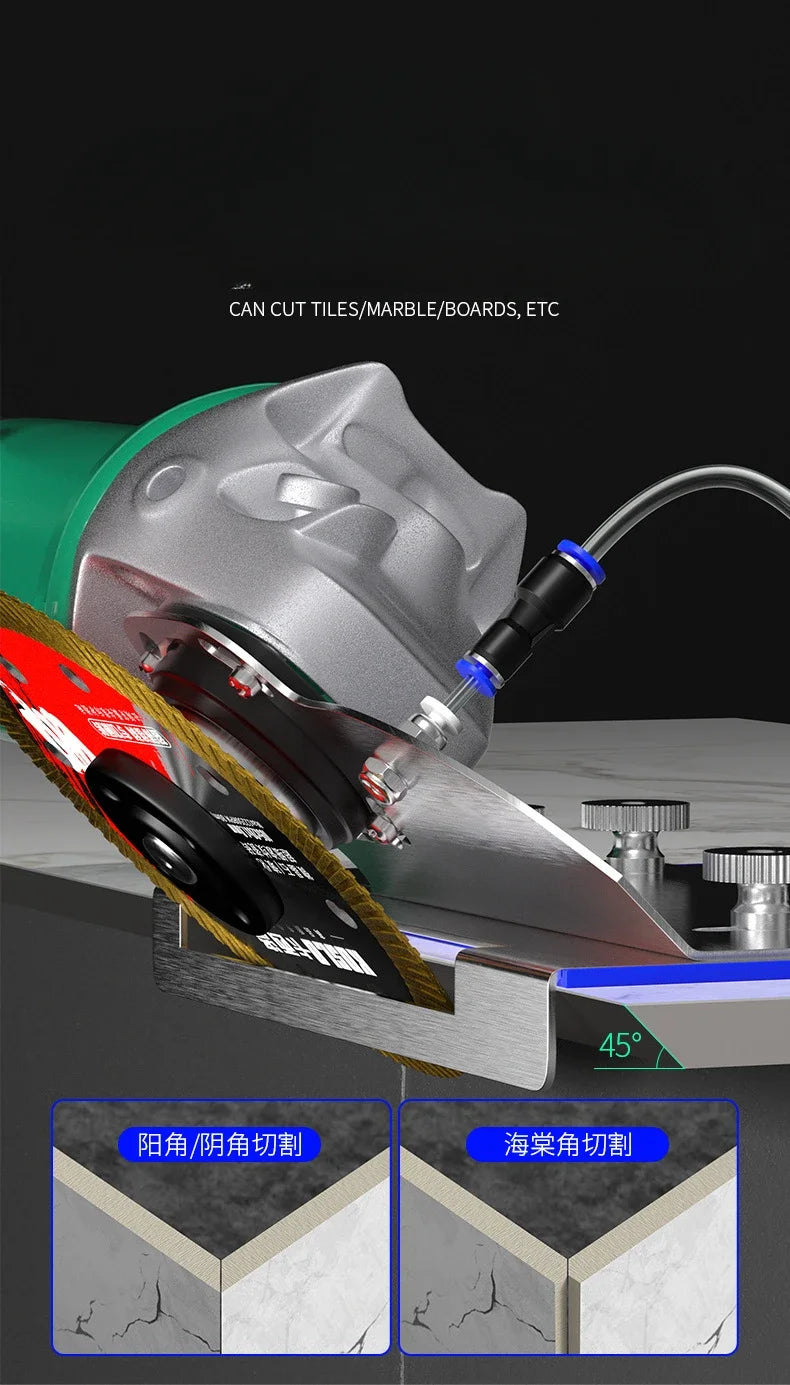

Prepare bevelled tile edges with a forty-five-degree guide for a compatible 100-type angle grinder. A supported base and clamping frame position the tool along the tile.

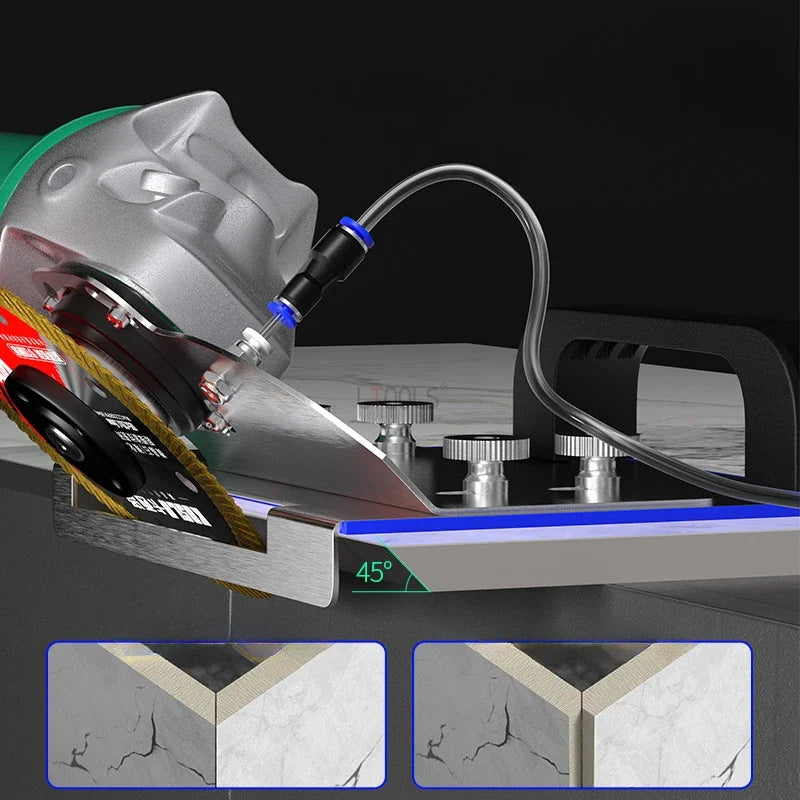

✅ Reference a bevel angle - The guide establishes the listed forty-five-degree chamfering arrangement.

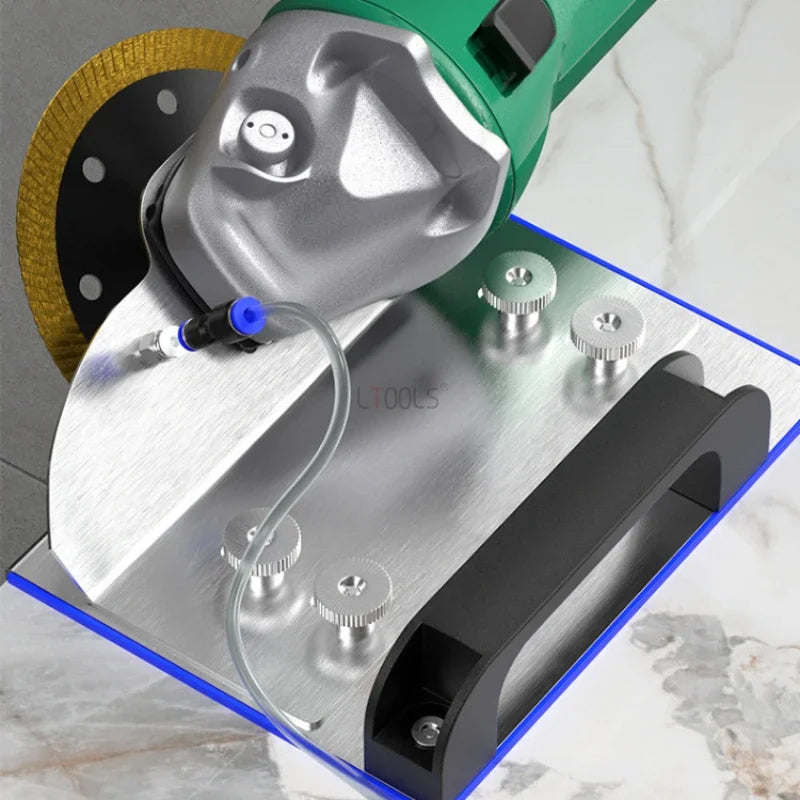

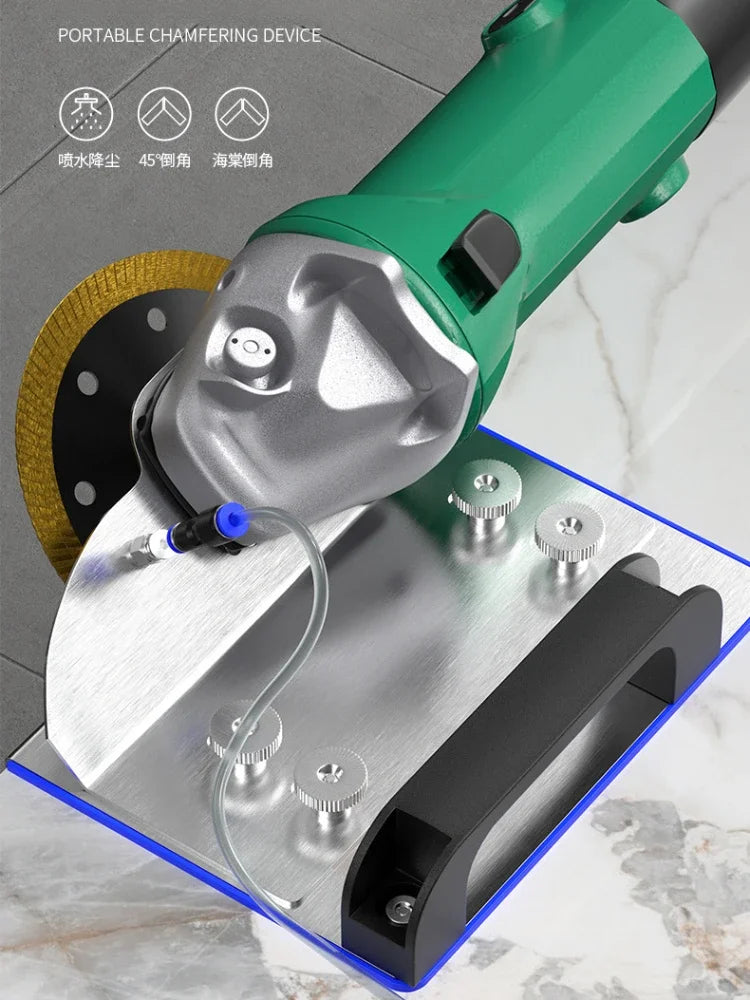

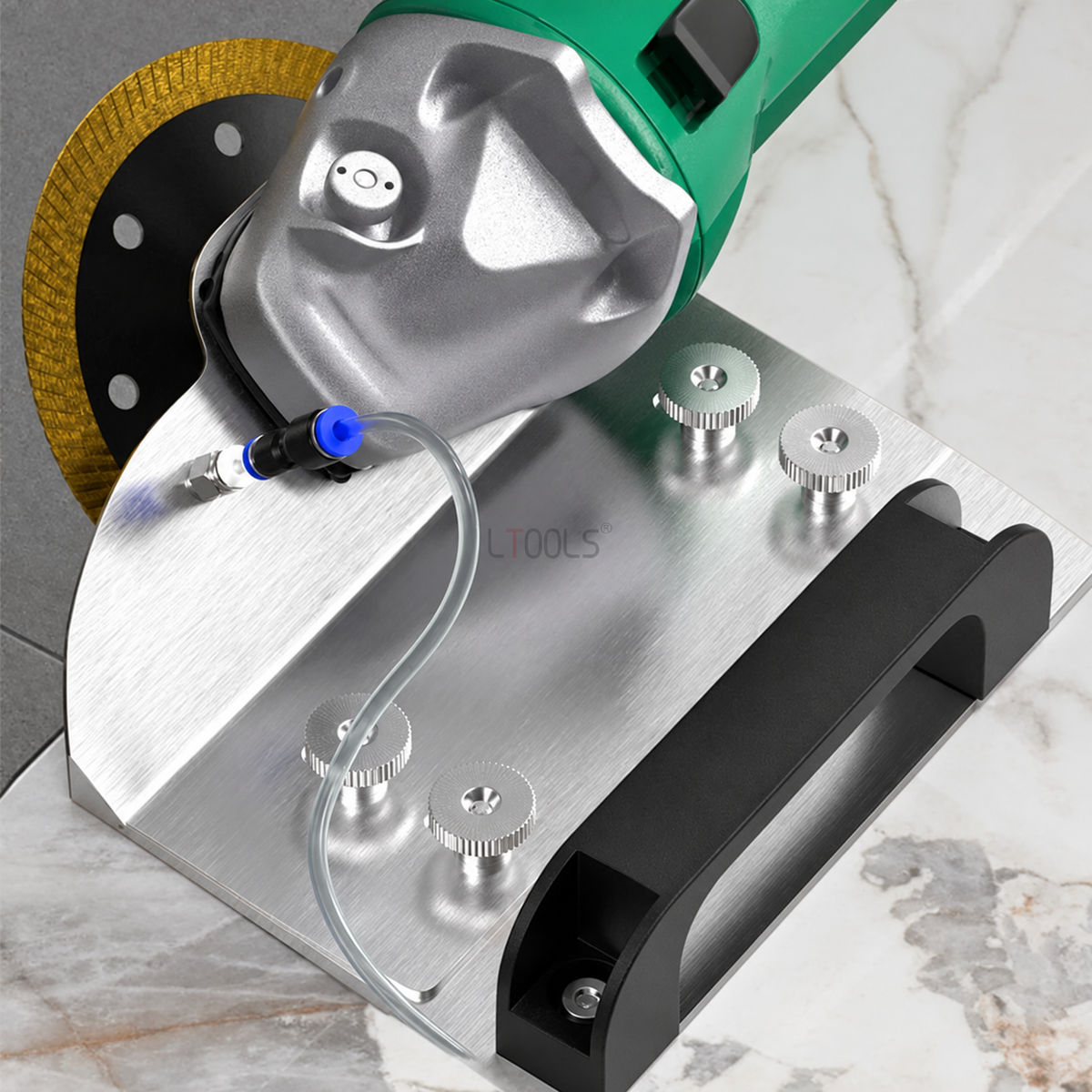

✅ Hold a matching grinder - A clamping frame positions a compatible tool within the guide.

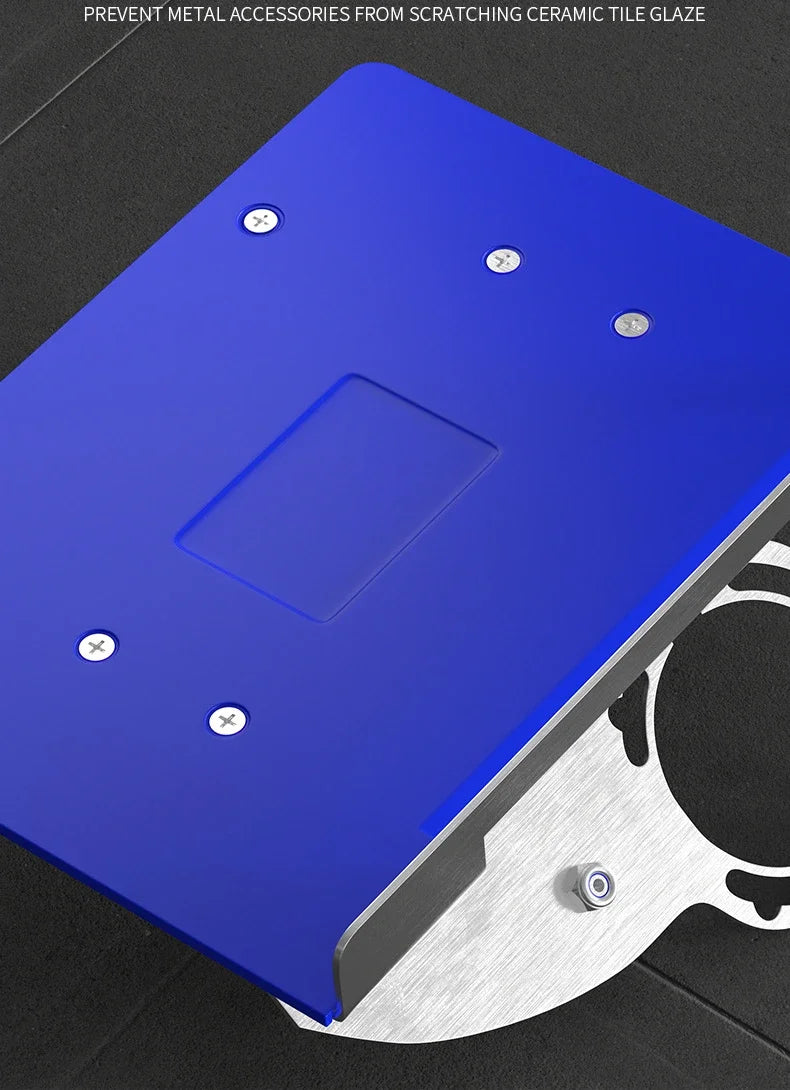

✅ Prepare the tile contact - A protective underside separates the metal base from the glazed surface.

Confirm the mounting dimensions before fitting

A chamfering guide adds a supported contact arrangement around the tile edge. Compare the grinder's mounting dimensions and the tile setup with the guide before preparing the work.

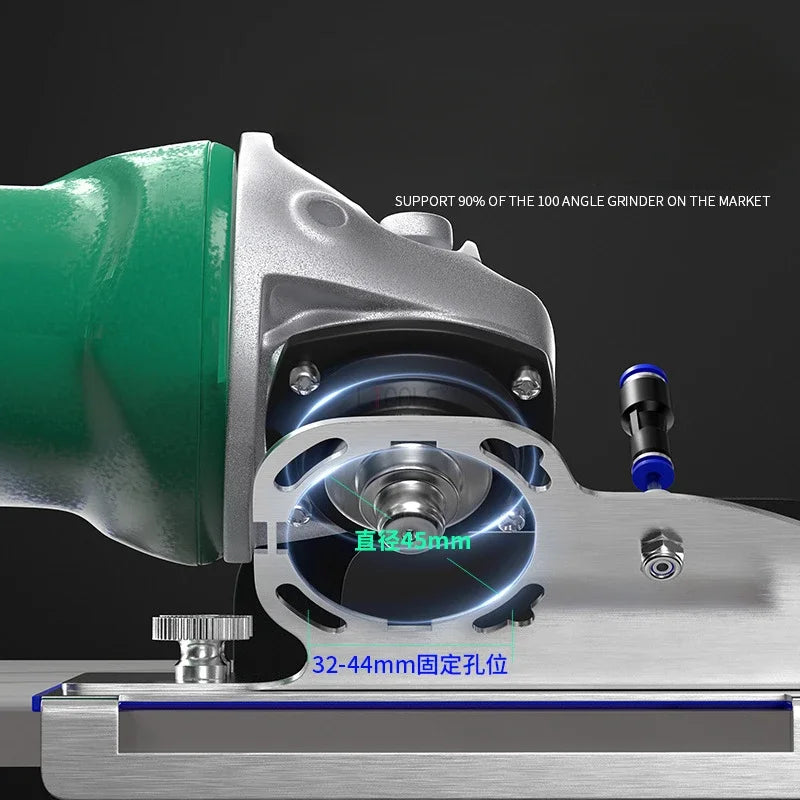

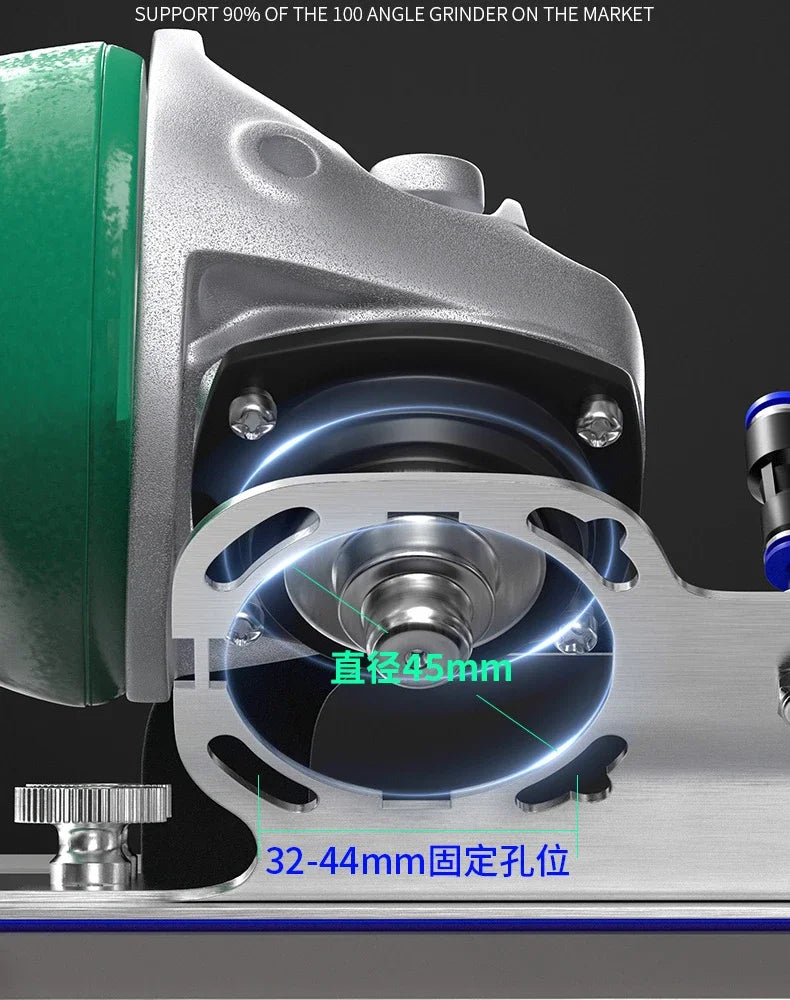

The listed compatibility identifies 100-type grinders with a mounting diameter up to forty-five millimetres. Follow the grinder and guide instructions, preparing the cutting disc and power tool separately for the task.

Technical details

• Material: stainless steel
• Angle: 45°
• Listed mounting diameter: up to 45 mm

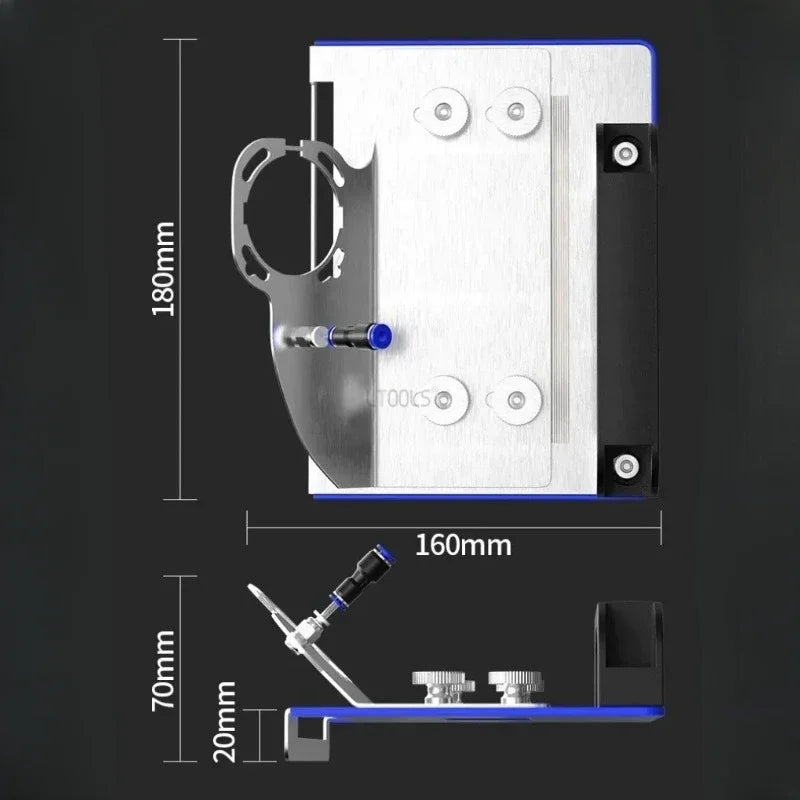

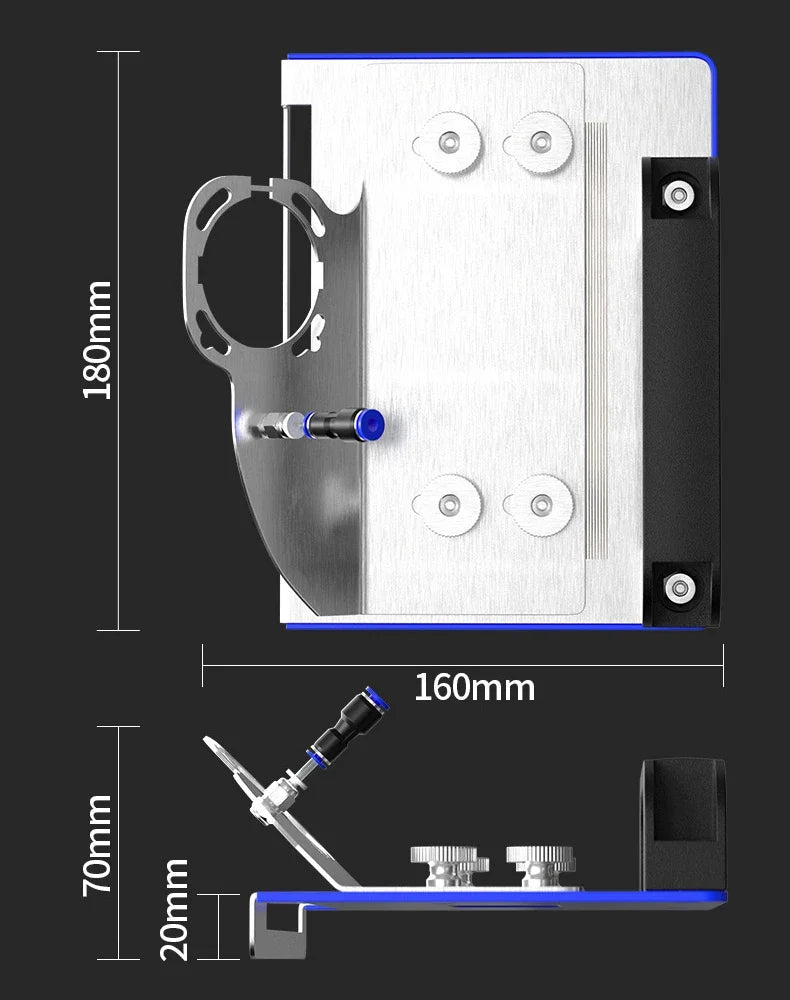

• Approximate guide size: 180 × 160 × 70 mm
• Angle grinder and cutting disc not included

Confirm grinder fit and prepare a guide for suitable tile-edge chamfering.
