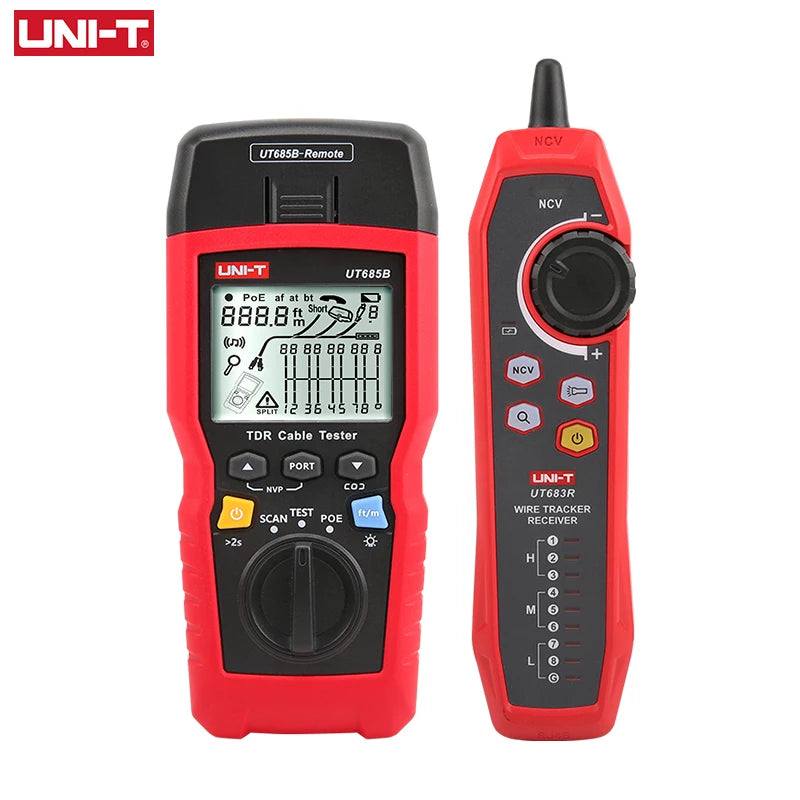

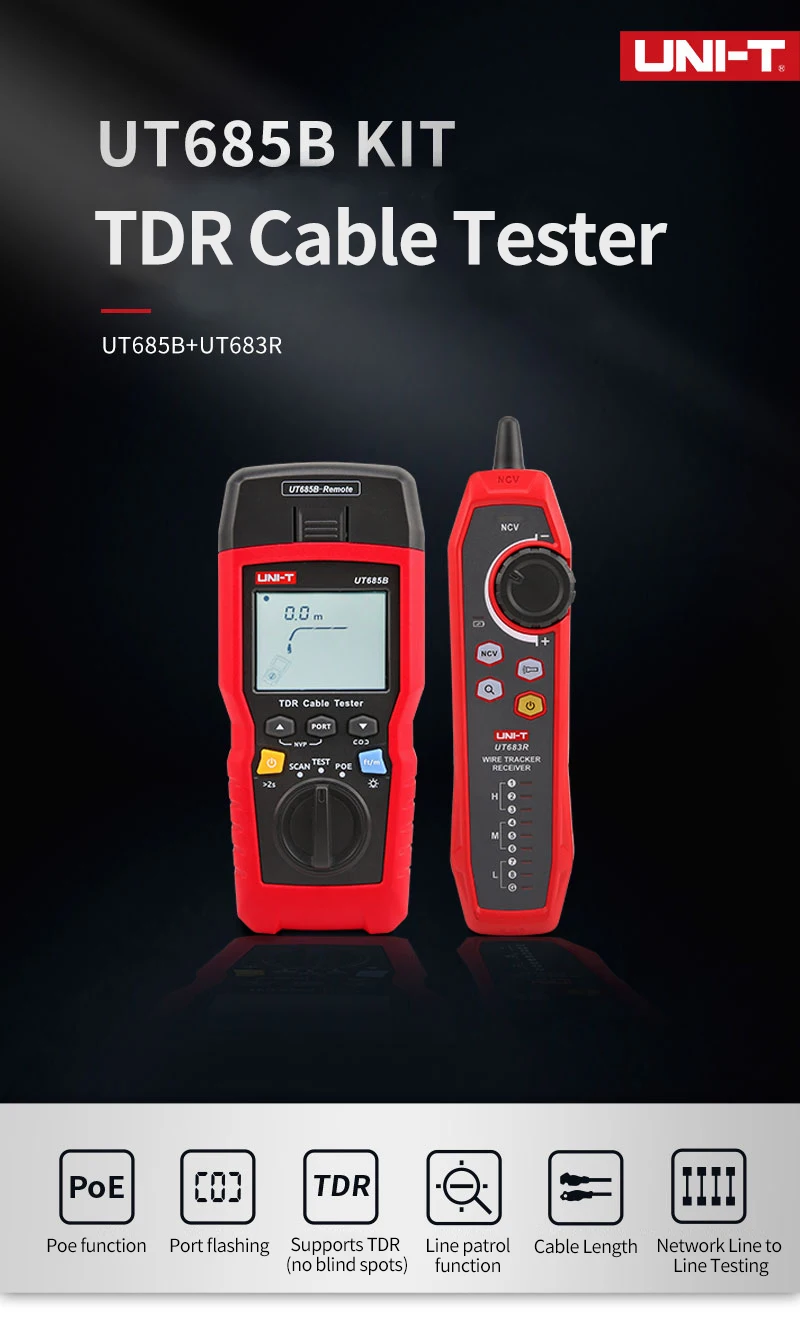

UT685B TDR Network Cable Tester Kit

Check wiring, estimate length and trace suitable low-voltage cables with the UT685B TDR network cable tester kit.

✅ See how the cable lines are connected - Line-sequence results on the display help you check the wiring arrangement.

✅ Get a cable-length estimate - TDR testing provides length readings within the listed measurement range.

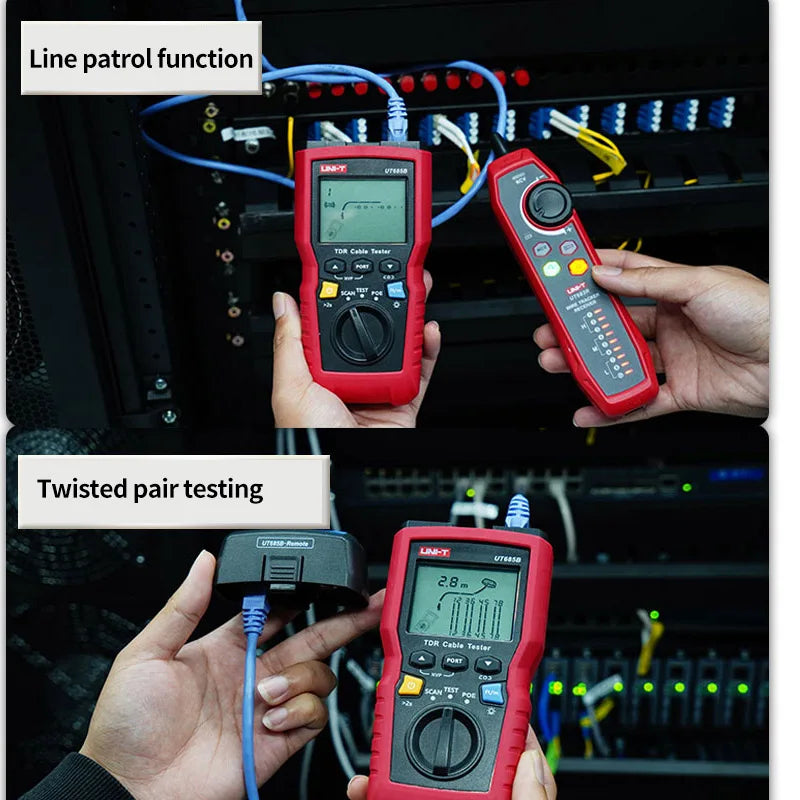

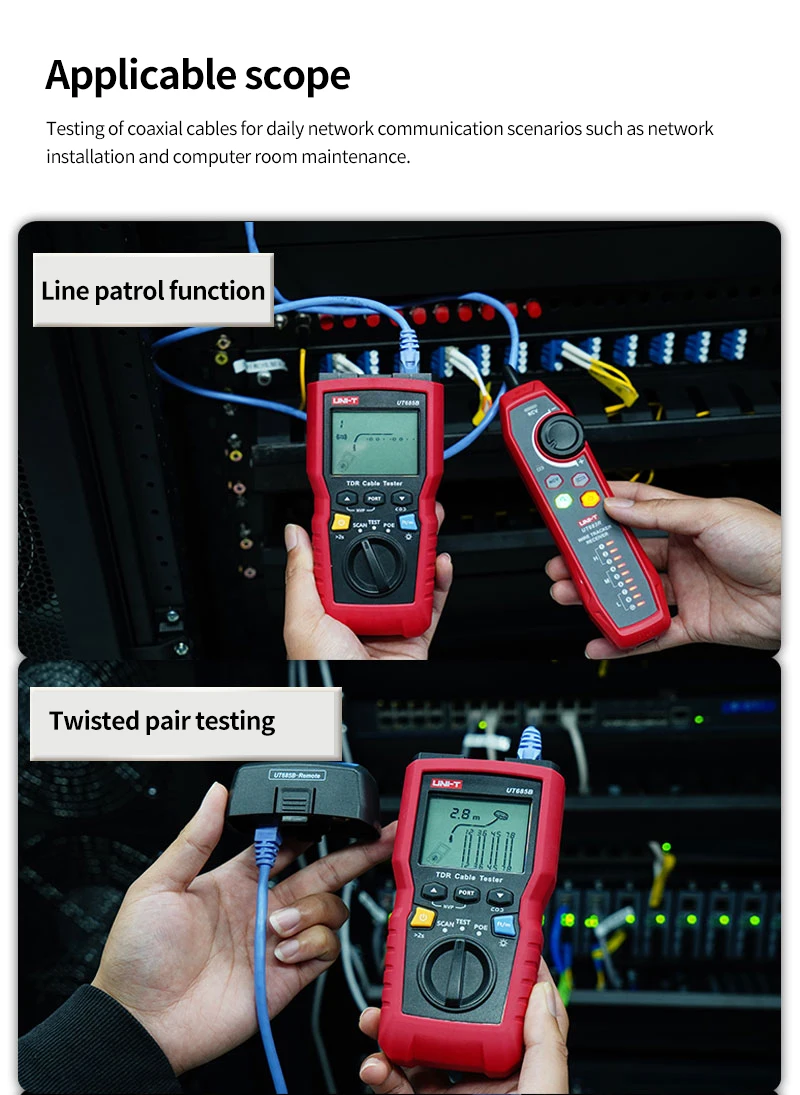

✅ Follow the cable you are identifying - The cable-tracing probe helps locate the selected cable.

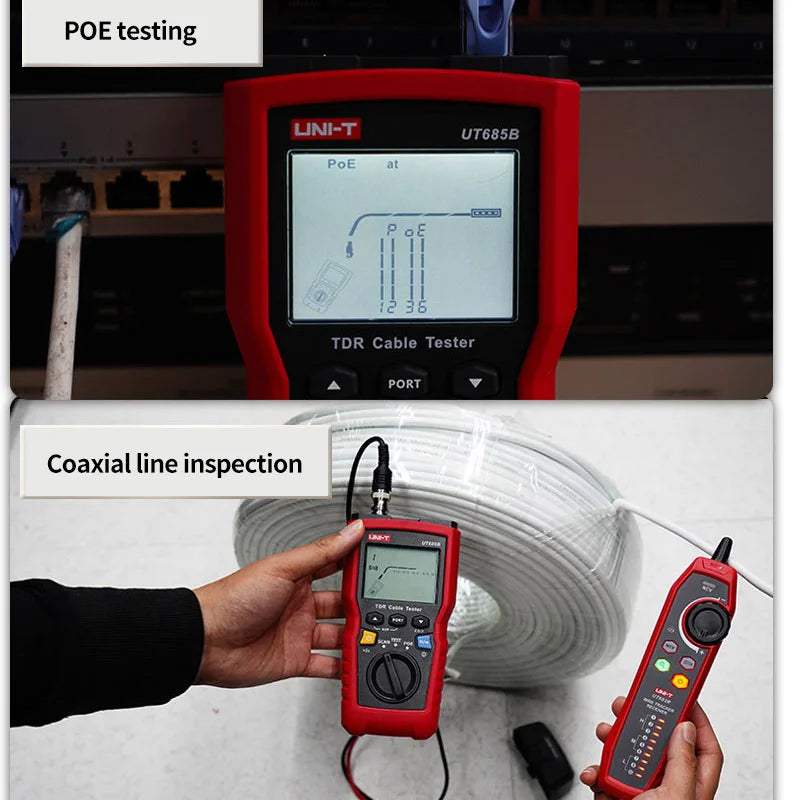

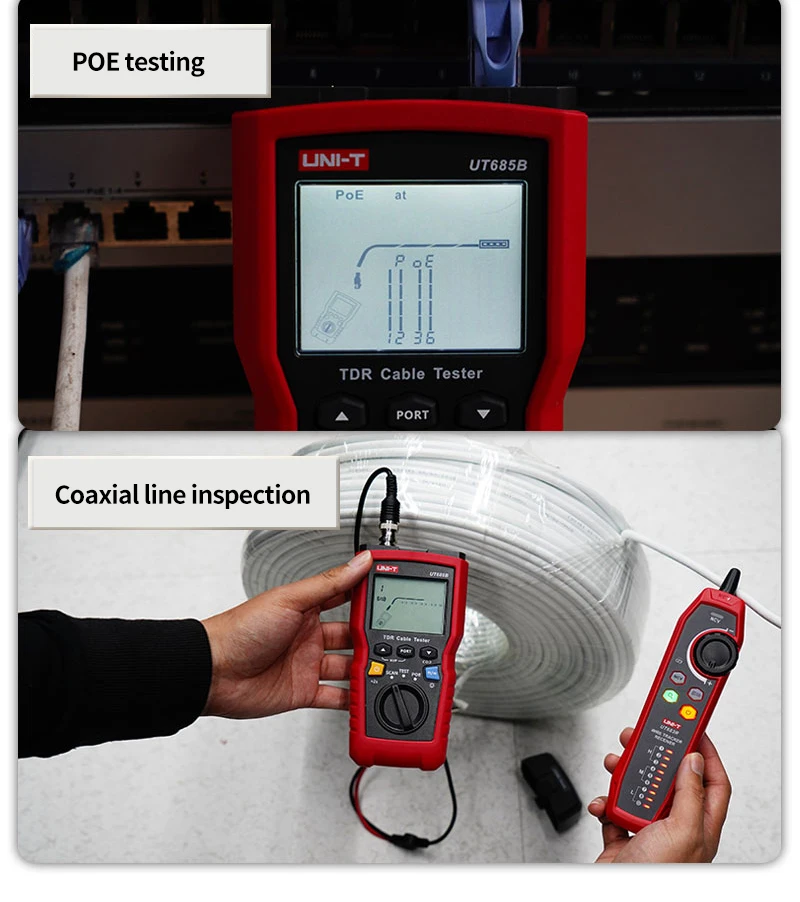

✅ Check supported PoE supply information - PoE detection supports the listed 802.3af and 802.3at standards.

Connect Wiring Checks With Cable Identification

Use the line-sequence view when checking a suitable cable's connections, then use length testing where a distance estimate is needed. The display keeps the selected test information on the instrument.

When identifying a run among other cables, the probe adds a tracing method to the kit. Follow the manual's connection limits for the cable and test being used; this instrument is not for mains wiring.

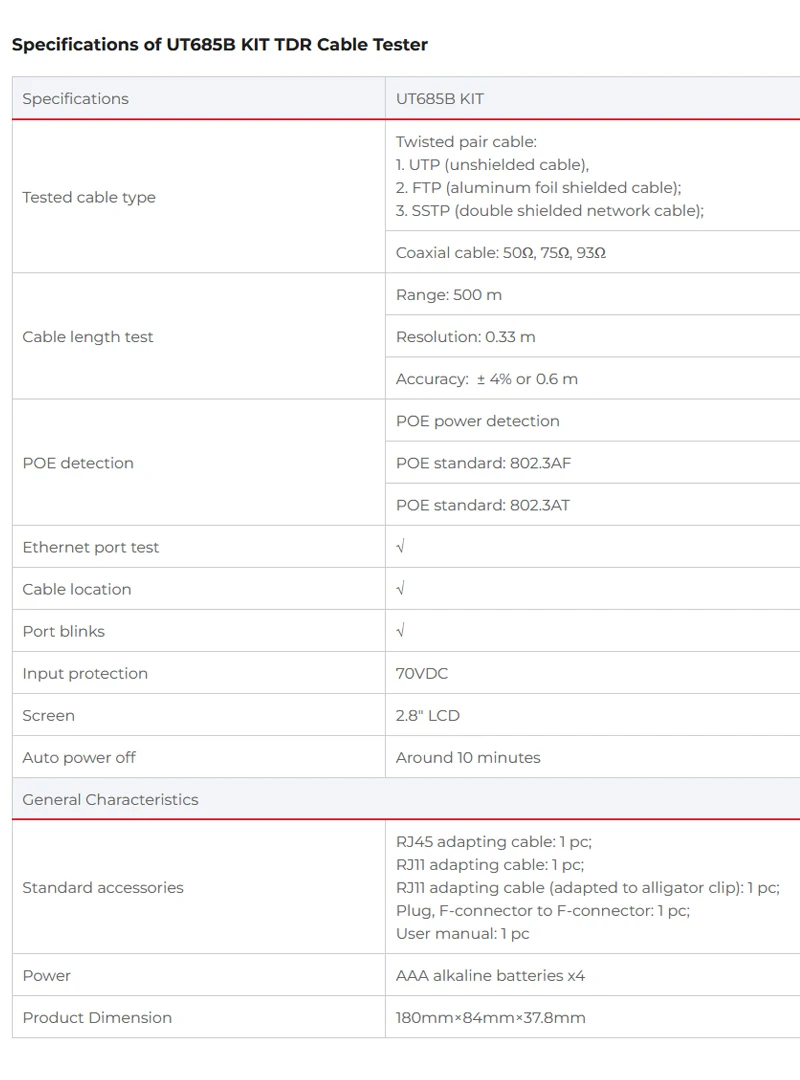

Technical details

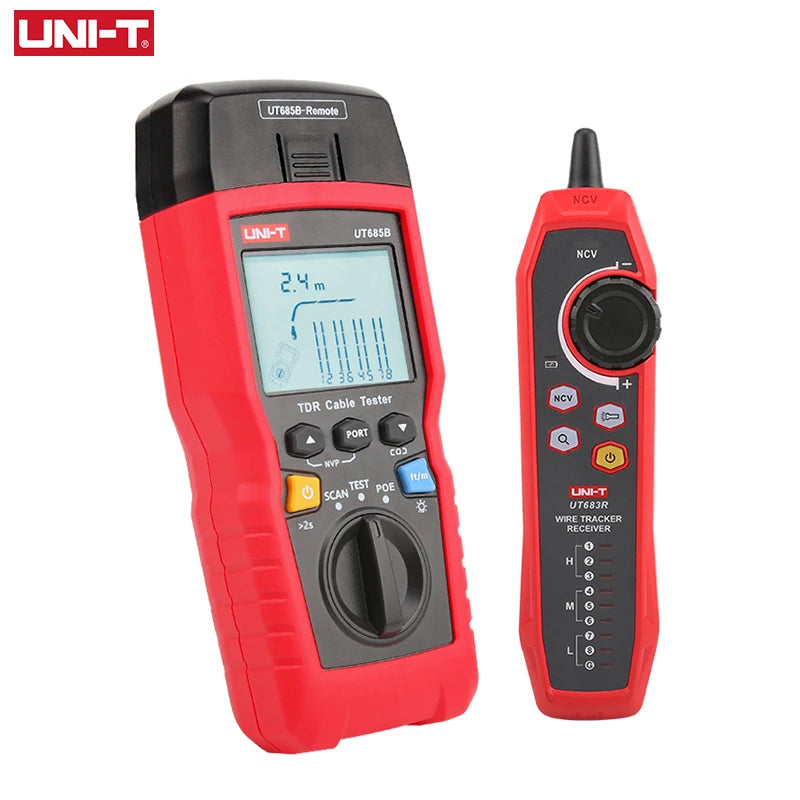

• UT685B; 2.8-inch backlit LCD.
• Listed TDR range up to 500 m; length resolution 0.33 m.
• RJ11, RJ45 twisted-pair and compatible coaxial cables.

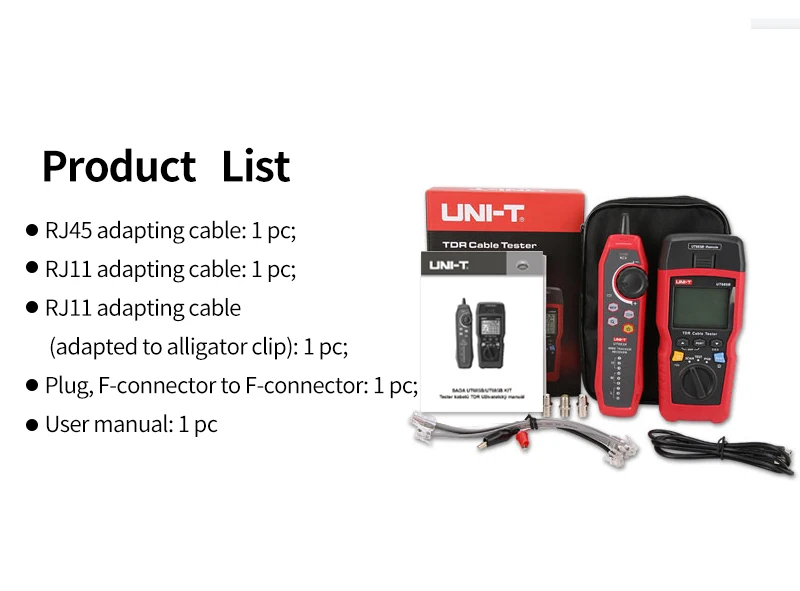

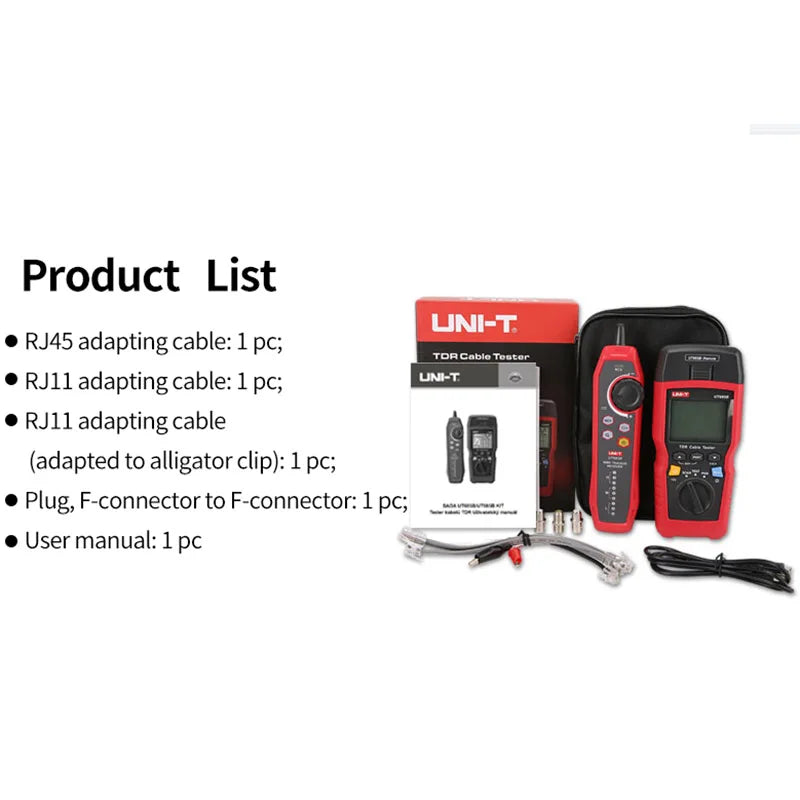

• Kit includes listed RJ45/RJ11 leads, alligator-clip adapting lead, F-connector adapter and manual. Confirm battery inclusion.

Add wiring checks and cable tracing to your network toolkit.
