UNI-T UDP3305S-E UDP3305S Programmable Adjustable DC Power Supply Laboratory 30V 5A Voltage Regulator 4 Channels High Precision
UNI-T UDP3305S-E UDP3305S Programmable Adjustable DC Power Supply Laboratory 30V 5A Voltage Regulator 4 Channels High Precision
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: UNI-T
DIY Supplies: ELECTRICAL
Origin: Mainland China
Operating Temperature: 0℃-40℃
Display Type: Digital Only
Power Supply: AC
Certification: CE
Certification: RoHS
Model Number: UDP3305S
Input Voltage: AC 100V/120V/ 220V/230V
Output power: 348W
Output Voltage: 30V
Output Current: 5A
UDP3305S Resolution: 1mV/1mA
UDP3305S-E Resolution: 10mV/1mA
Linear DC Power Supply: Voltage Regulator Switch

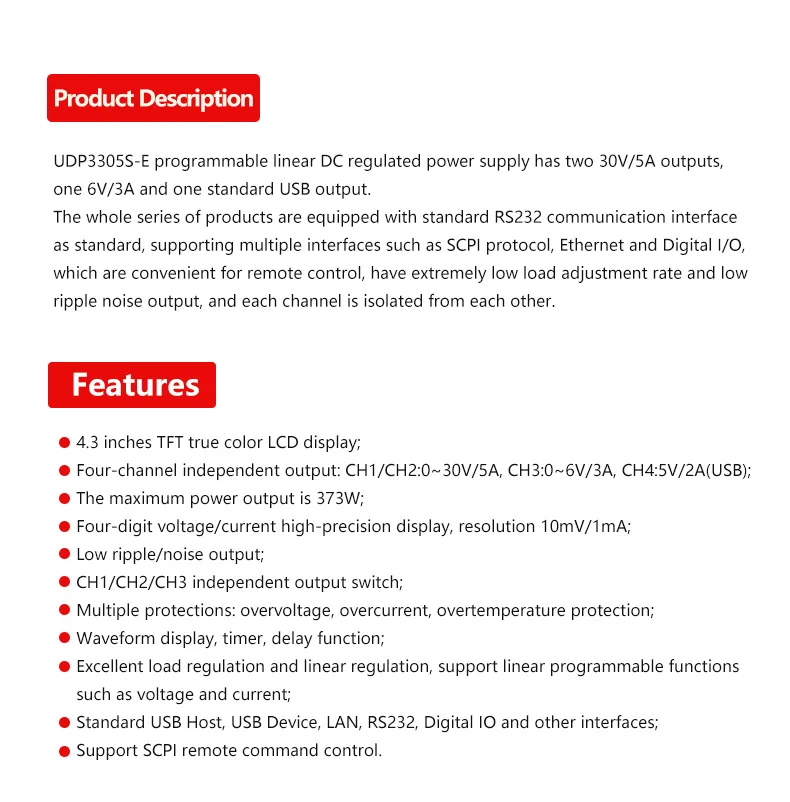

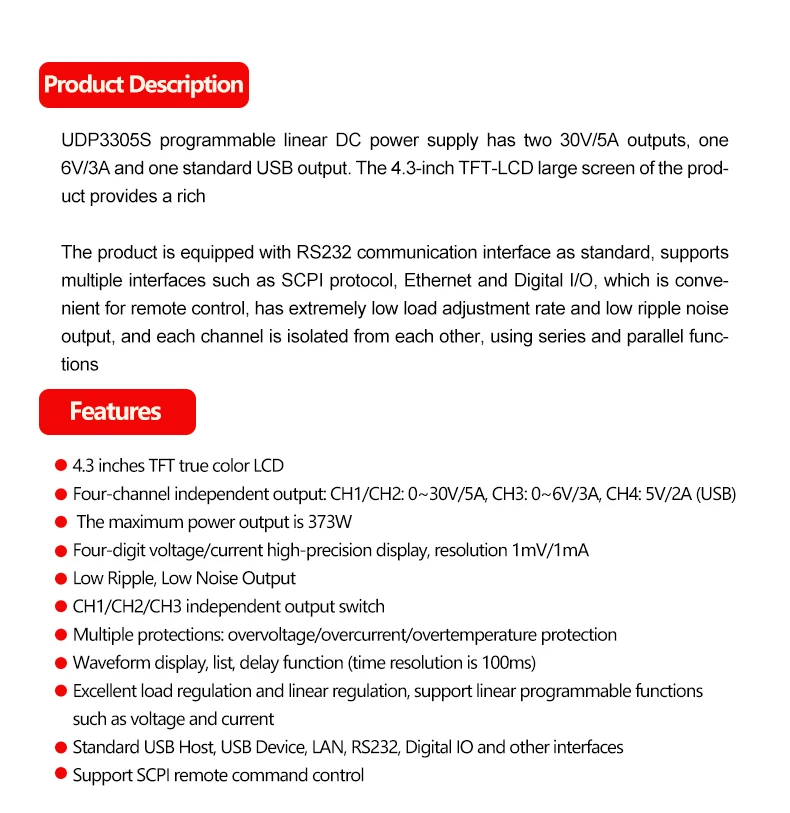

UDP3000S Series Programmable Linear DC Power Supply
The UDP3000S series is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users. It aims to provide cost-effective DC programmable power supply equipment for teaching, scientific research,
industry and other fields.
Features
● Maximum power up to 328W
● Four channel independent output：CH1/CH2: 0~30V/5A,CH3：0~6V/3A, CH4：5V/2A
● Multiple protection：OCP/OVP/OTP
● Excellent load regulation and line regulation
● Ultra low output ripple and noise
● Support one key serial and parallel output function
● The 4.3 inch TFT display can display three channels and multiple parameters at the same time
● List / delayer function to control voltage and current output as required
● External trigger function to realize industrial automation control
● Provide USB host, USB device, LAN, RS232, digital IO and other interfaces
● With waveform display function, real-time and dynamic display of output voltage / current / power waveform
● Intelligent speed control of fan can effectively reduce fan noise during operation
● Support 10 groups of file storage and transfer out, and support USB FLASH read and write.
LCD interactive interface
4.3 inch LCD provides a human-computer interaction interface with rich functions and simple operation
One-key setting for series and parallel
One key series parallel connection provides you with a wider working range of power supply.
Waveform Display
With waveform display function, it can intuitively display the change trend of voltage, current and power.
List/Delayer function
Unique list and delayer functions provide convenience for automatic test.
