UNI-T UT-513A Insulation Resistance Meter - Accurate Testing Tool for Electrical Safety ⚡🔧
UNI-T UT-513A Insulation Resistance Meter - Accurate Testing Tool for Electrical Safety ⚡🔧
Couldn't load pickup availability
Accurate Insulation Resistance Meter for Electrical Safety
Product Overview: The UT-513A Insulation Resistance Meter is an advanced tool meticulously crafted for measuring insulation resistance from 0MΩ to 1000GΩ. ⚡ Please note that high voltage is essential for accurate readings, and it's crucial to adhere to the safety guidelines provided in the user manual. 📖
Key Specifications:
| Resistance Measurement: | Test voltage 500 V: 0.0 MΩ ... 20 GΩ |
| Test voltage 1000 V: 0.0 MΩ ... 40 GΩ | |
| Test voltage 2500 V: 0.0 MΩ ... 100 GΩ | |
| Test voltage 5000 V: 0.0 MΩ ... 1000 GΩ | |
| Measuring Accuracy: | 0.0 MΩ ... 99.9 MΩ ± (3% + 5) |
| 100 MΩ ... 9.99 GΩ ± (5% + 5) | |
| 10 GΩ ... 99.9 GΩ ± (10% + 5) | |
| ≥ 100 GΩ ± (20% + 5) | |
| Open Circuit Voltage: | Test voltage + 20 % |
| Test Current: | 1 mA ... 1.2 mA @ 500 kΩ / 500 V |
| 1 mA ... 1.2 mA @ 1 MΩ / 1000 V | |
| 1 mA ... 1.2 mA @ 2.5 MΩ / 2500 V | |
| 1 mA ... 1.2 mA @ 5 MΩ / 5000 V | |
| Short-Circuit Current: | < 2 mA |
| AC Voltage Measurement: | 30 V ... 600 V ± (2% + 3) @ 1 V |
| DC Voltage Measurement: | 30 V ... 600 V ± (2% + 3) @ 1 V |
Main Features:
- Bar graph for easy visualization 📊
- Ability to conduct comparative measurements 🔍
- High voltage usage warning ⚠️
- Polarization Index measurement (PI) 📈
- Maximum measurement duration: 15 minutes ⏳
- Stores up to 18 measurement results in memory 💾
- Large, illuminated LCD display for easy reading 🌟
- Low battery level indicator 🔋
- Stylish and durable construction 🏗️
Operating Conditions:
- Temperature: -10 °C ... 40 °C 🌡️
- Relative Humidity: ≤ 85 % (non-condensing) 💧
Power Supply:
- 8 x 1.5V, type R14/LR14 battery - included 🔋
- 15 V DC / 1 A (power adapter included) ⚡
Weight & Dimensions:
- Weight: 1.28 kg ⚖️
- Dimensions: 202 x 155 x 91 mm 📏
Manufacturer: UNI-T
Warranty: 2 years 🛠️
Included in the Package:

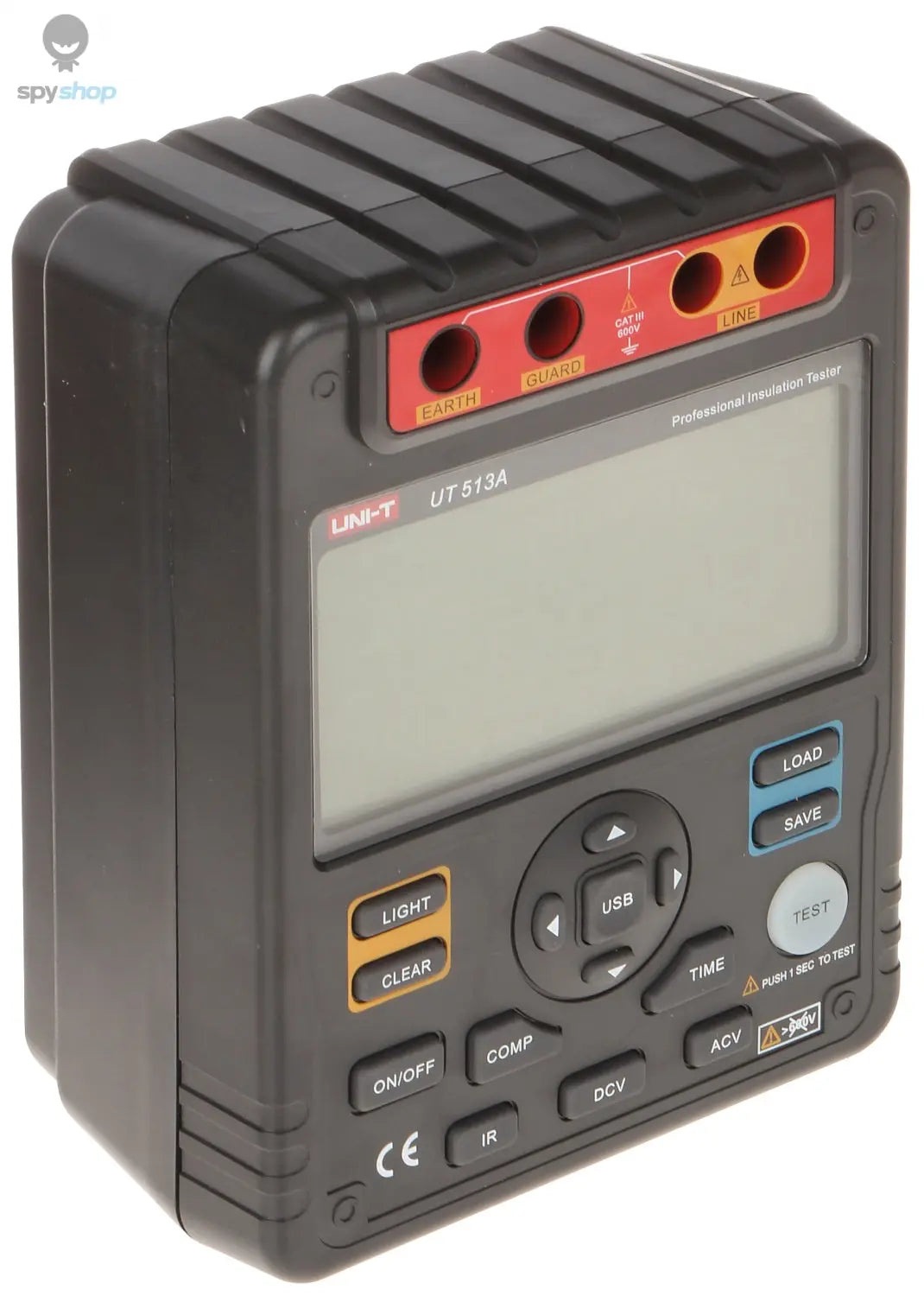

- Front panel view 🖥️
- Side view 🔄
- Connectors view 🔌
- Rear view 🔙
- Battery compartment for 8 x 1.5V R14/LR14 🔋
- All components neatly arranged in an aesthetic case 🎒
Data Files:
Packaging Dimensions:
- Dimensions (L x W x H): 330 x 315 x 120 mm 📦
- Package Type: Carton 📦
- Gross Weight: 4.524 kg ⚖️
Pros:
- Wide measurement range from 0MΩ to 1000GΩ 🌍
- Multiple test voltage options for versatile applications 🔄
- User-friendly interface with a backlit display 💡
- Compact and portable design for easy handling 📦
Cons:
- Requires high voltage for accurate measurements ⚡
- Safety precautions must be strictly followed ⚠️
For more details, check out the following video:
Precision Testing for Electrical Insulation
The UNI-T UT-513A Insulation Resistance Meter is a vital tool for ensuring electrical safety. This device measures the insulation resistance of electrical components, helping to identify potential hazards. With a measurement range of 0.01 MΩ to 2000 MΩ, it allows users to conduct accurate tests in various environments. The information gathered is crucial, as it helps prevent electrical shocks and equipment failures, which could lead to costly repairs and safety risks.
User-Friendly Design and Features
This meter is designed to be easy to use, making it suitable for both professionals and DIY enthusiasts. It features a clear LCD display that shows measurement results in real-time, ensuring you can monitor readings easily. Additionally, the UNI-T UT-513A comes with built-in safety features to protect users during testing. Therefore, even if you're new to electrical testing, you can confidently use this tool to conduct your assessments.
Portability and Versatility
One of the standout features of the UNI-T UT-513A is its portability. It is compact, lightweight, and easy to carry around, making it ideal for fieldwork. The battery-operated design ensures that you can conduct testing wherever needed without being restricted by power sources. Because of its versatility, this meter is perfect for electricians, technicians, and engineers who need a reliable insulation resistance meter for various applications.
