UNI-T UT-P3305-II Laboratory Power Supply – Precision Voltage & Current Control ⚡🔌🔬

UNI-T UT-P3305-II Laboratory Power Supply – Precision Voltage & Current Control ⚡🔌🔬

€352,00 EUR
€352,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

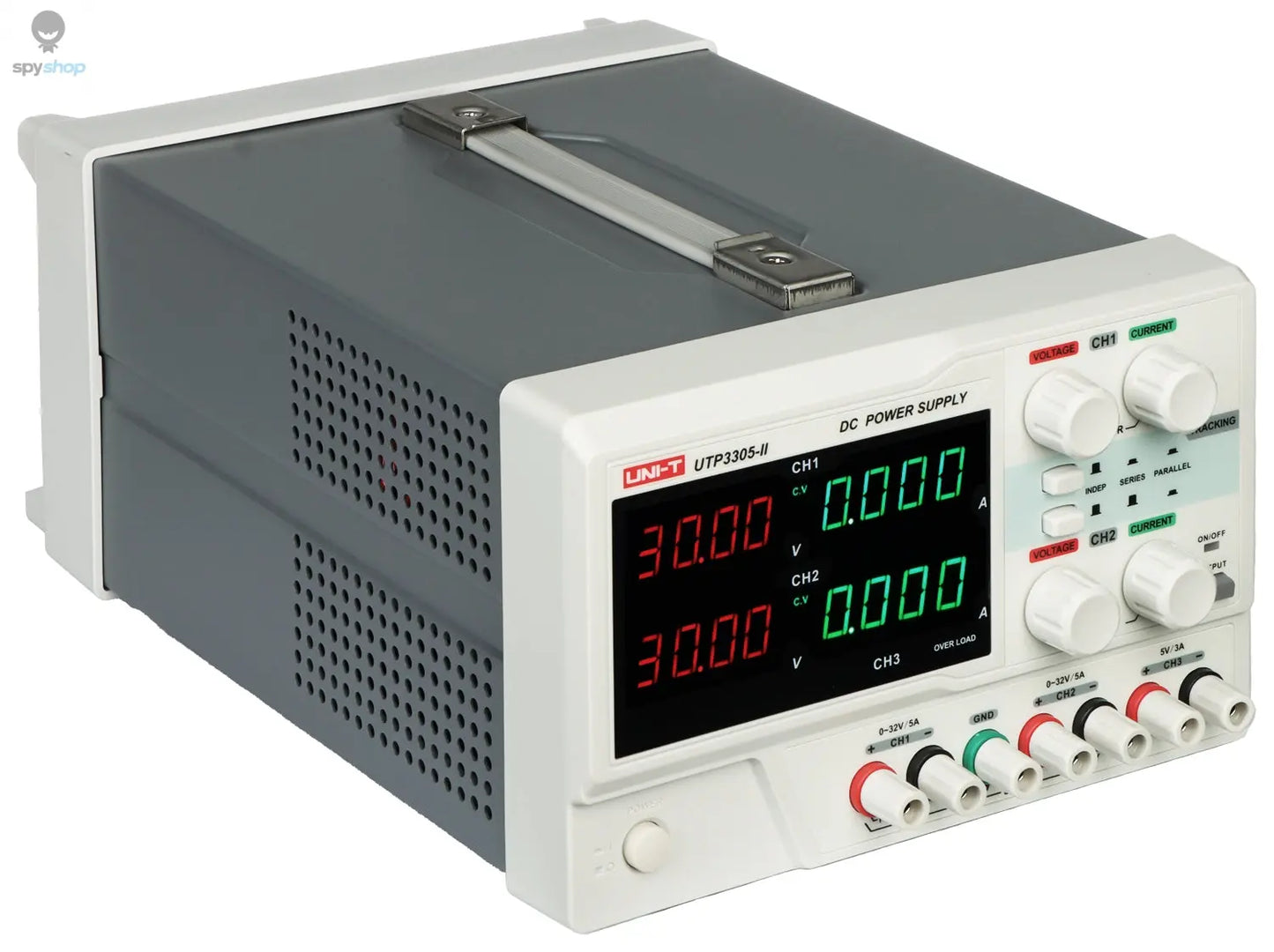

Introducing the UNI-T UT-P3305-II Laboratory Power Supply

Product Overview: The UT-P3305-II laboratory power supply is an enhanced iteration of the UT-P3305, engineered to provide reliable voltage or current with remarkable accuracy. This multifunctional device operates in two primary modes: as a constant voltage source or a constant current source. It also includes internal serial or parallel output connections to boost convenience. ⚡

Specifications:

Output Voltage Range: 0 ... 32 V
Output Current Range: 0 ... 5 A
Output Power: 335 W
Setting Resolution: Voltage: 10 mV, Current: 1 mA
Setting Accuracy: Voltage ± (0.1% + 60) mV, Current ± (0.3% + 20) mA
Ripple and Noise: Voltage: ≤ 1 mV RMS, Current: ≤ 3 mA RMS
Temperature Coefficient: Voltage: ≤ 300 ppm/°C, Current: ≤ 300 ppm/°C
Response Time: < 100 µs
Number of Outputs: 3: 2x 0 ... 32 V DC / 0 ... 5 A, 1x 5 V DC / 3 A
Display: Quadruple LED display

Main Features:

  • Outstanding stabilization of output voltage and current: < 0.01% + 3 mV / ≤ 0.2% + 3 mA
  • Options for serial or parallel output connections
  • In parallel mode, the maximum current can reach approximately 10A
  • In serial mode, the maximum voltage can reach about 64V
  • Symmetric mode enables a shared ground for two power sources, achieving a maximum voltage of -32V and +32V
  • Cooling system activates when the temperature exceeds the designated limit
  • Includes overvoltage protection and reverse polarity protection for DC voltage

Power Supply: 110 V AC / 120 V AC / 220 V AC / 230 V AC @ 50 / 60 Hz (selectable via switch)
Operating Temperature / Humidity: 0 °C ... 40 °C / ≤ 85 %
Weight: 9.6 kg
Dimensions: 230 x 155 x 357 mm
Manufacturer / Brand: UNI-T
Warranty: 2 years

Included in the Package:

  • Data Sheet (100 KB)
  • Manual (EN) (3 MB)
  • GPSR (200 KB)

Packaging Details:

Dimensions (L x W x H): 435 x 330 x 255 mm
Package: Carton
Gross Weight: 10.636 kg

For more insights, check out our YouTube video!

Pros:

  • High precision and stability in output 🎯
  • Flexible output connection options 🔌
  • Robust protective features 🛡️

Cons:

  • Weight may be a consideration for portability ⚖️
  • Requires careful setup for optimal performance ⚙️

Precision Voltage Control

The UNI-T UT-P3305-II laboratory power supply offers precise voltage control that is essential for any technician or hobbyist. Its user-friendly interface allows for easy adjustments, and it supports a wide voltage range. This precision means that you can test various electronic components confidently, ensuring that you get accurate readings. Because of its digital display, you can monitor your settings in real time, making it an ideal choice for educational labs and advanced projects.

Accurate Current Regulation

Not only does the UNI-T UT-P3305-II excel in voltage control, but it also provides reliable current regulation. This feature is vital for applications that require a steady current to avoid damaging sensitive components. The power supply has built-in protections that prevent overloading, ensuring both safety and longevity. As a result, you can perform experiments and tests without worrying about equipment failure or inaccuracies.

Versatile Application

Whether you are a student learning about electronics or a professional engineer, the UNI-T UT-P3305-II laboratory power supply caters to your needs. Its versatility allows it to be used in a myriad of applications, including circuit testing, component diagnosis, and research projects. With multiple output options, you can power up various devices or setups simultaneously. Therefore, this power supply is an excellent investment for anyone serious about electronics.
