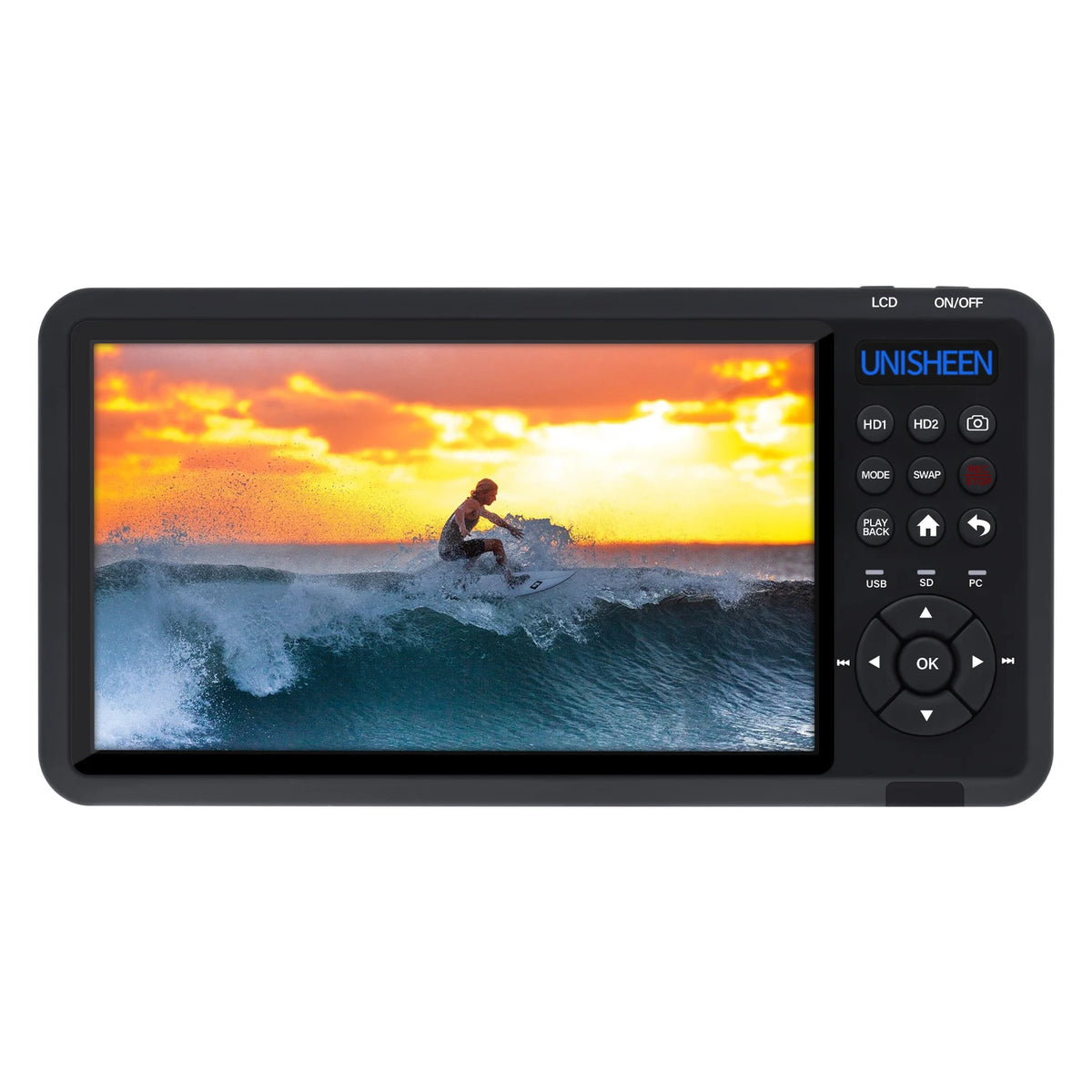

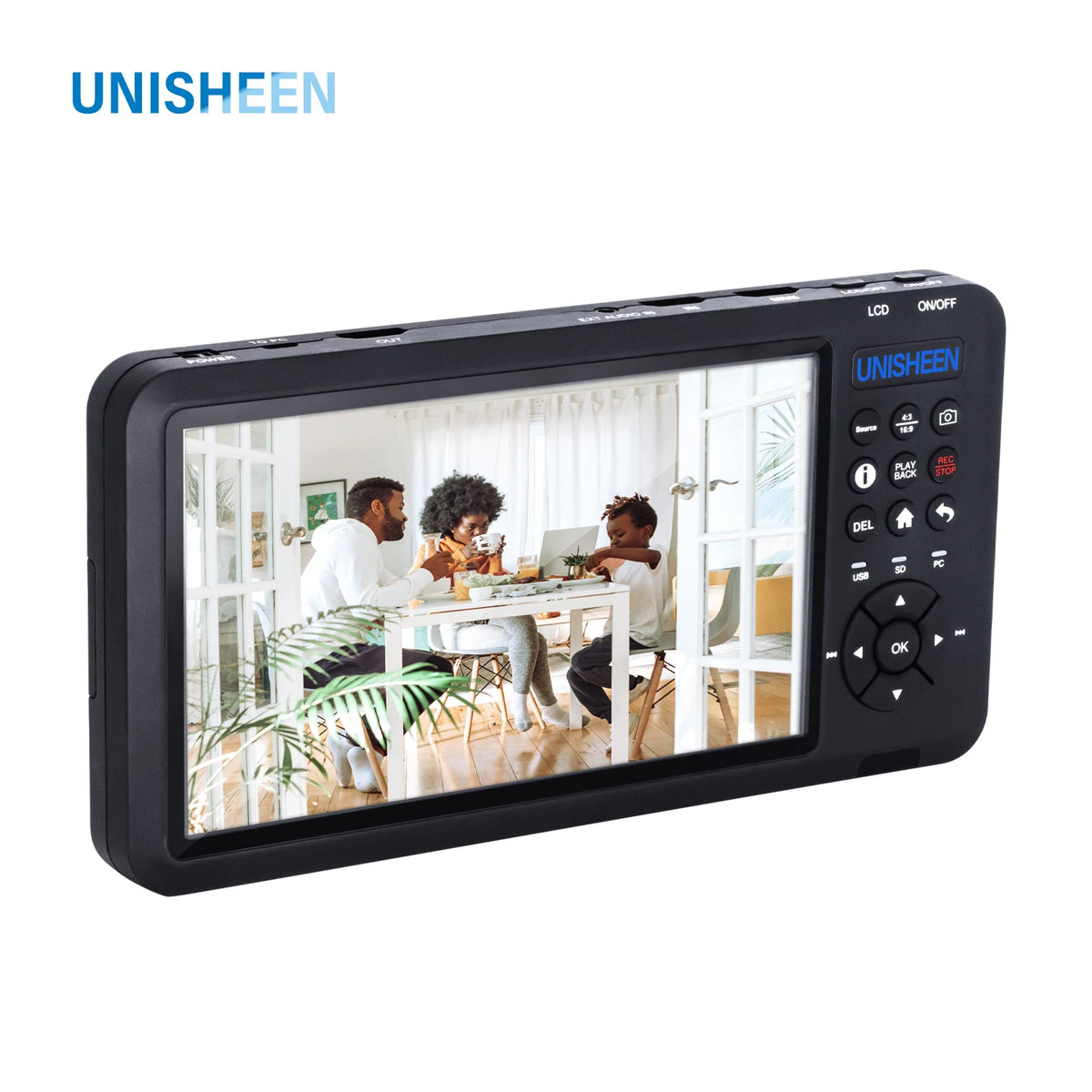

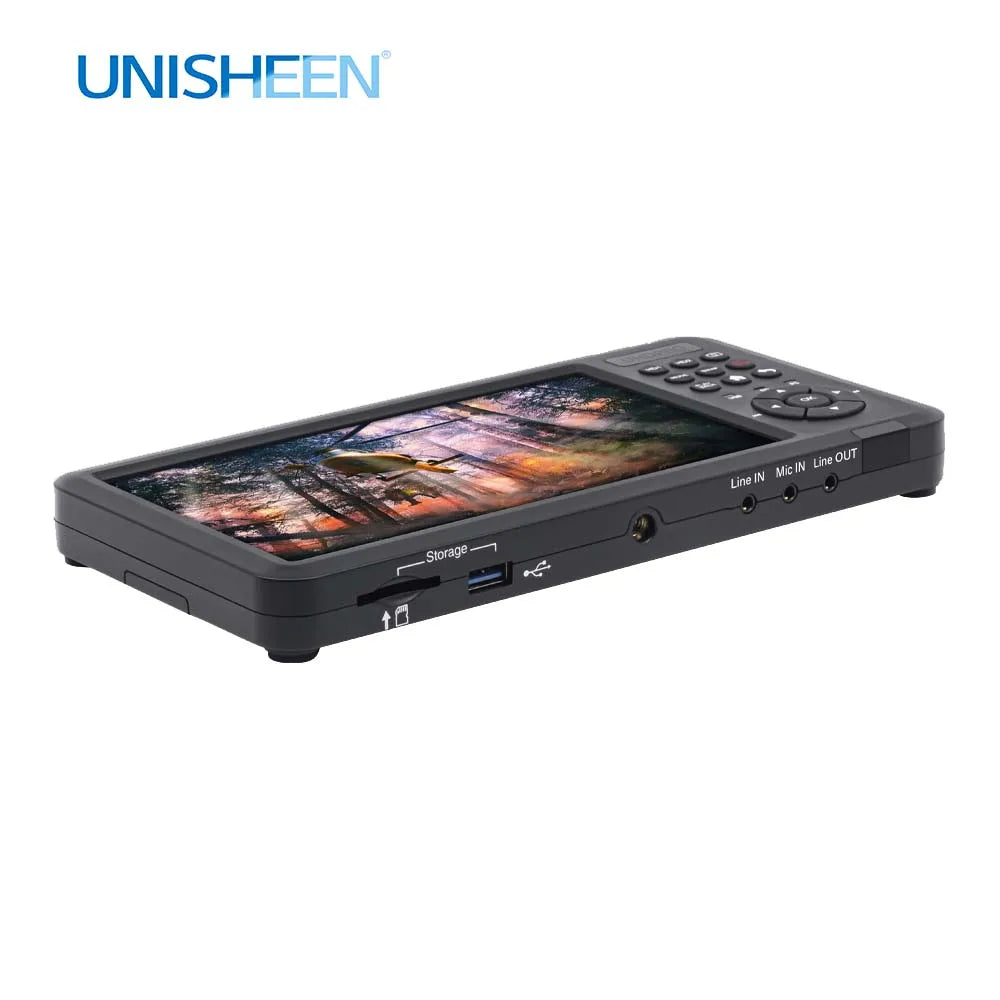

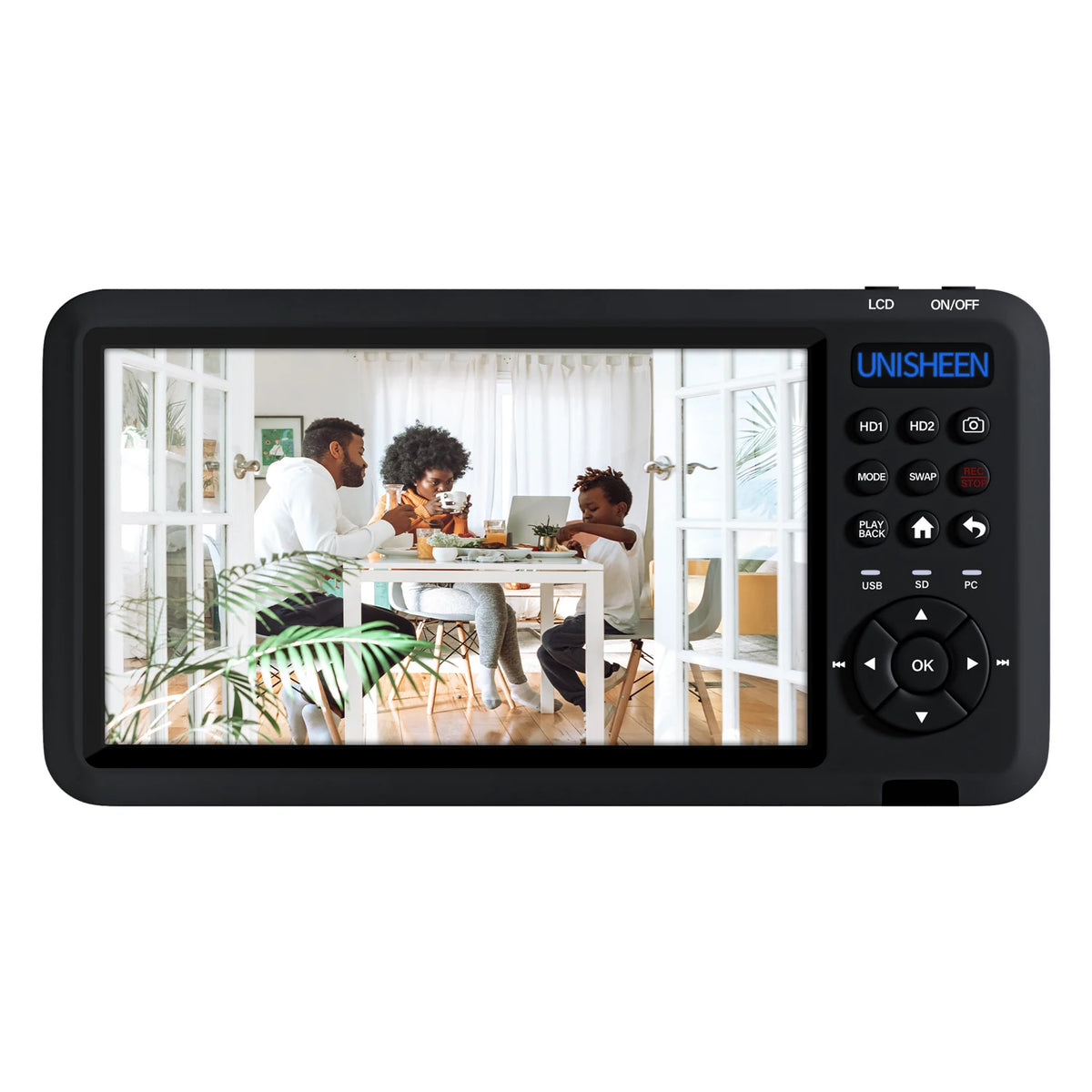

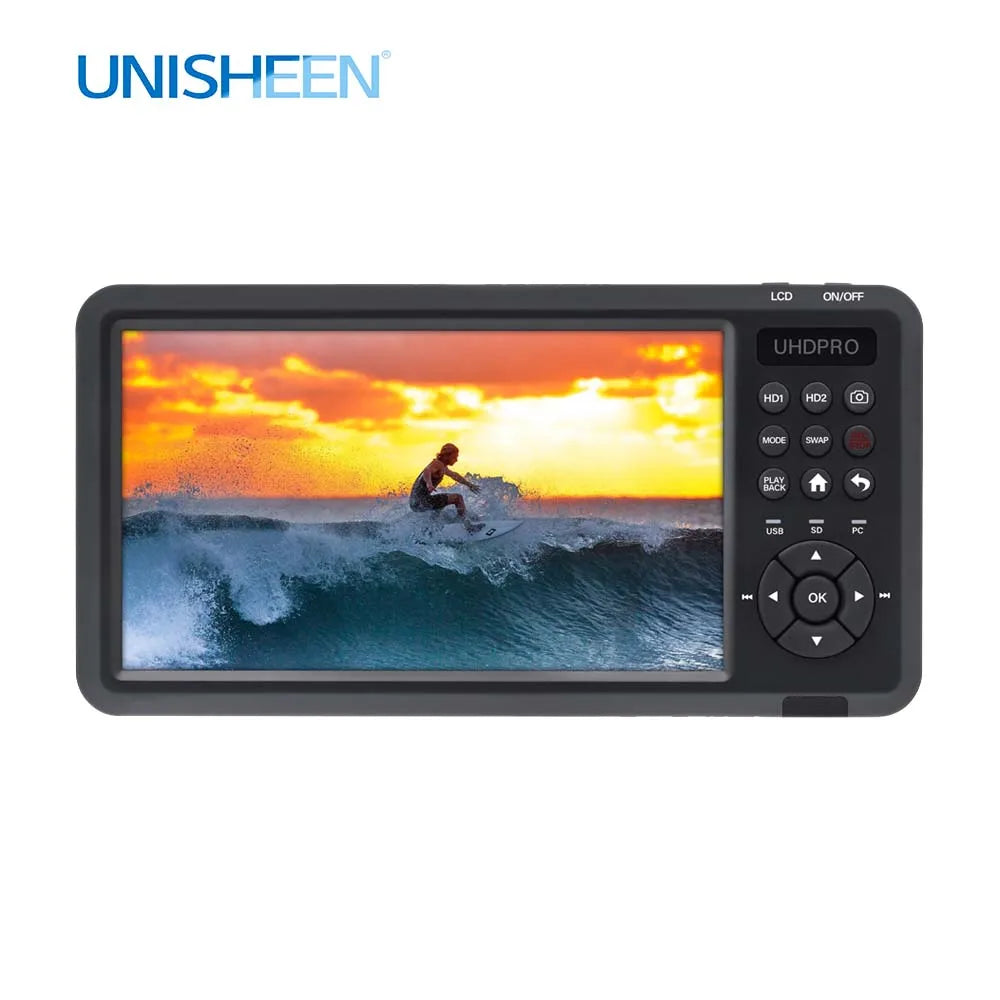

UNISHEEN HD Video Capture Box 2 Channel HDMI Picture-in-Picture Video Recorder with Screen MP4 Support SD Card U Disk Storage 10
SPECIFICATIONS
Audio Codec: AAC
Audio Input: HDMI/Line in/Mic
Battery(optional): F550/F750/F970
Brand Name: unisheen
Certification: CE,FCC,RoHS
Dimension: 220x112x22mm
High-concerned chemical: none
Included in Package: Holder/HDMI Cable/USB Cable
Model Number: UR500
Origin: Mainland China
PIP/POP/PMP: Yes
Power: DC12V 1.5A
Remote Control: Yes
Smart home platform: Other
Storage Device: SD Card/USB Flash Drive

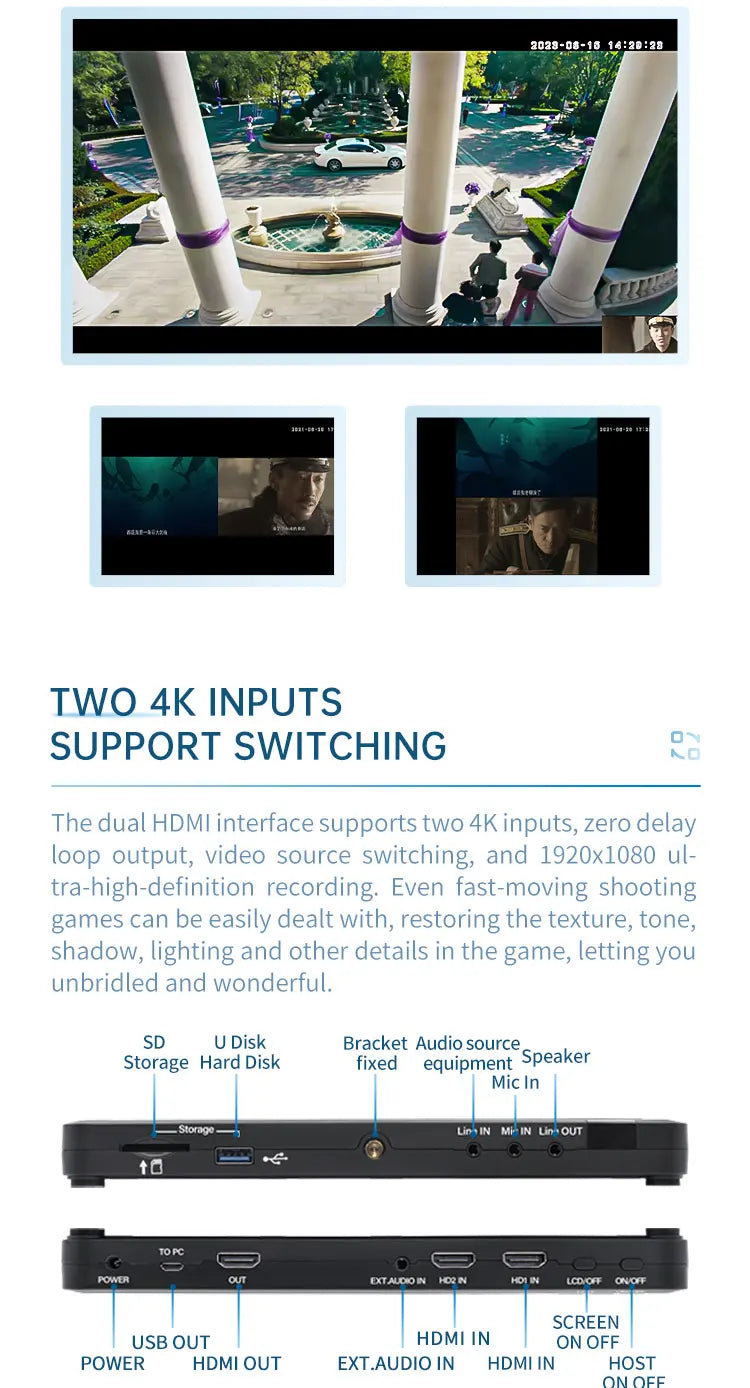

Video Input: HDMI-1/HDMI-2(Switchable)
Video Record Format: MP4(H.264)
Noted: Don't including Battery in Package, because ship company reason
Specification |
|

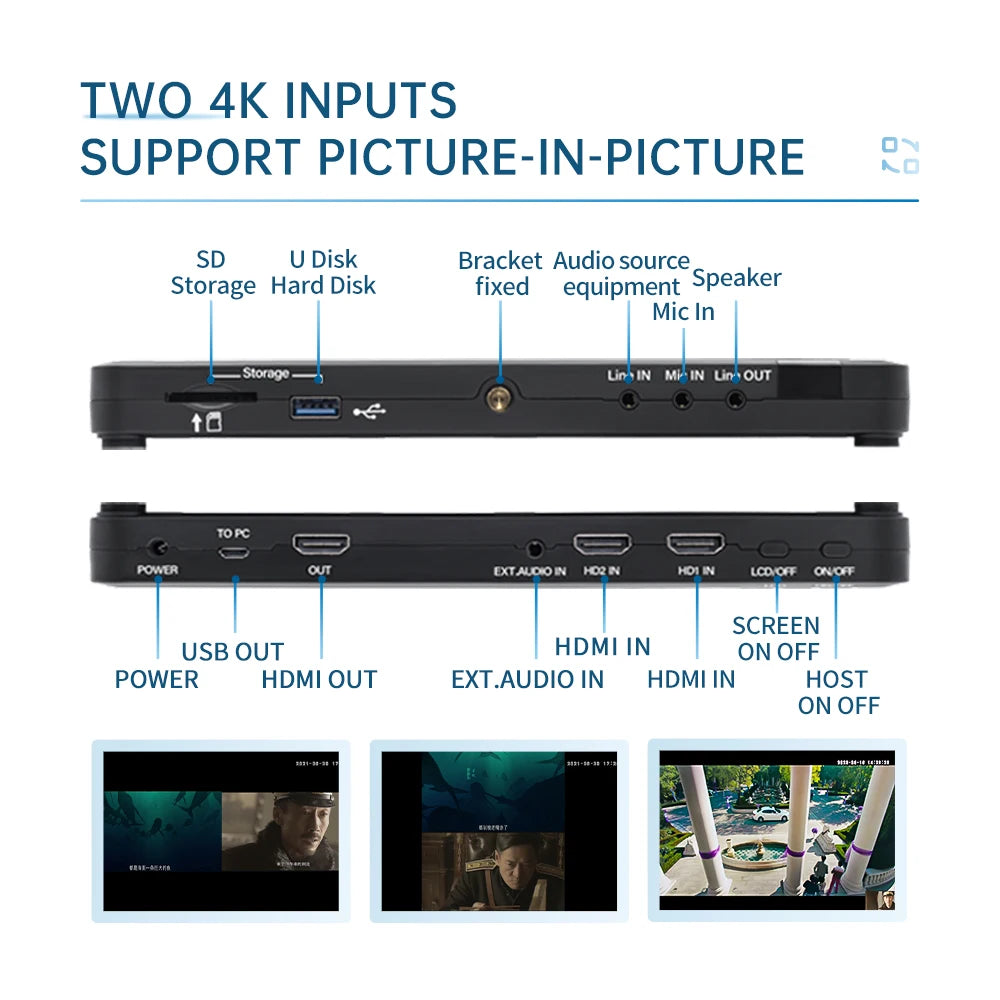

HD1/HD2 Video Input(Switchable) |
2x HDMI( 1.4)4096x2160p60,1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
Loop Out |
1xHDMI |
Audio |
HDMI Embeded/External Audio/Line In/Mic In |
Display Screen |
7 Inch |

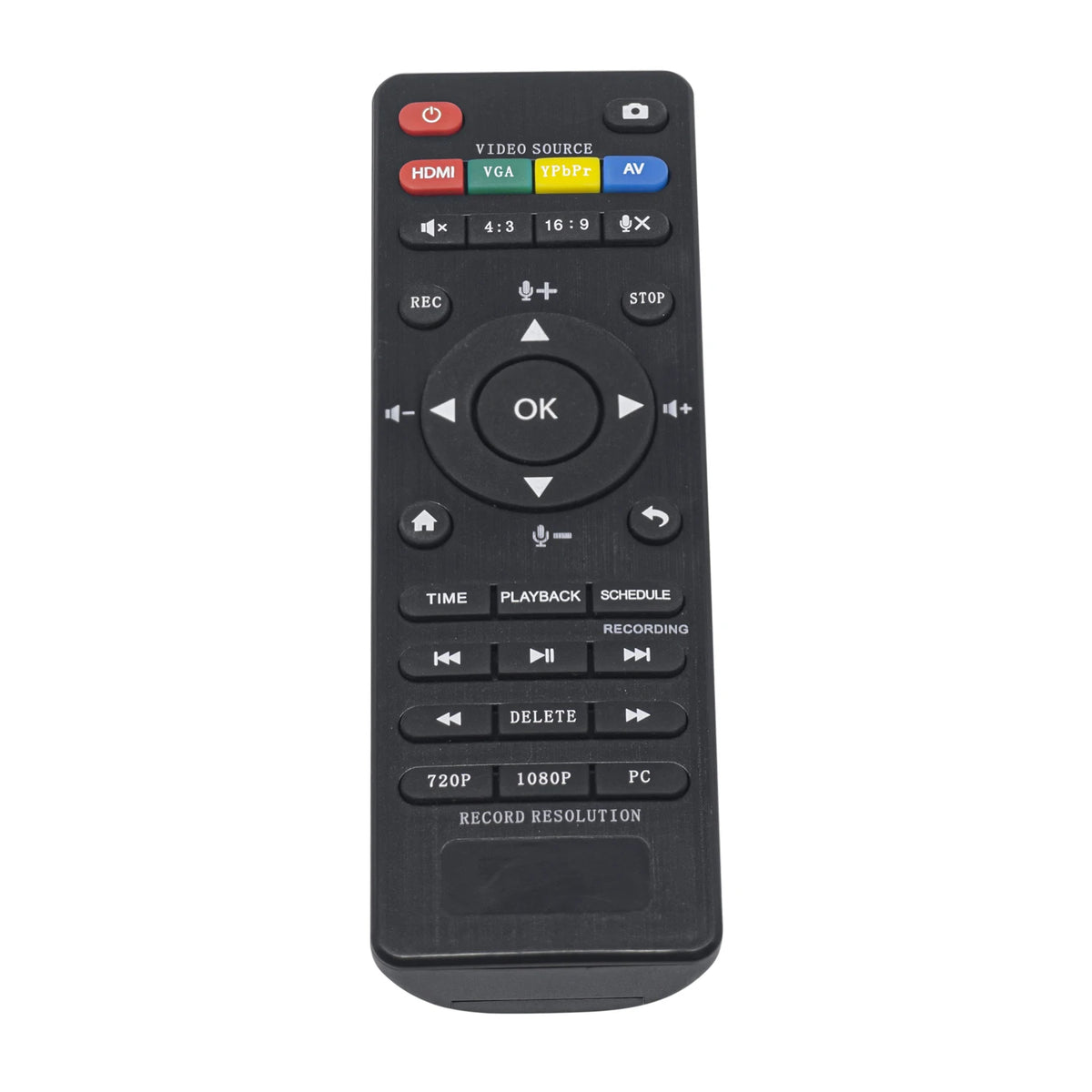

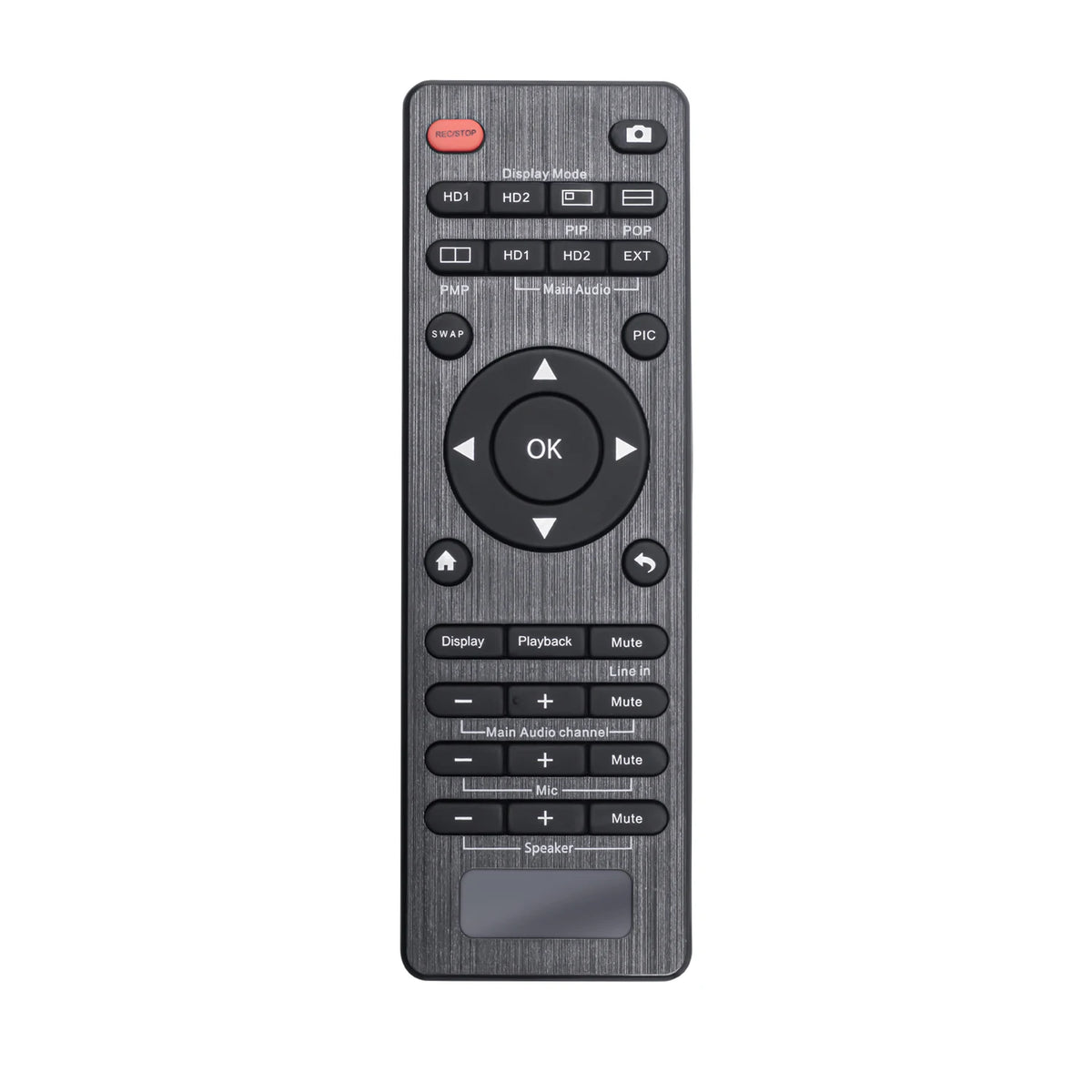

Remote Control |
Yes |
Screeshot in Recording |
Yes |
Picture Mode |
PIP/POP/PMP |
Playback |
Yes |
Alone Mode |
|
Record Resolution |
1920x1080/1280x720/1280x1024/1024x768 |

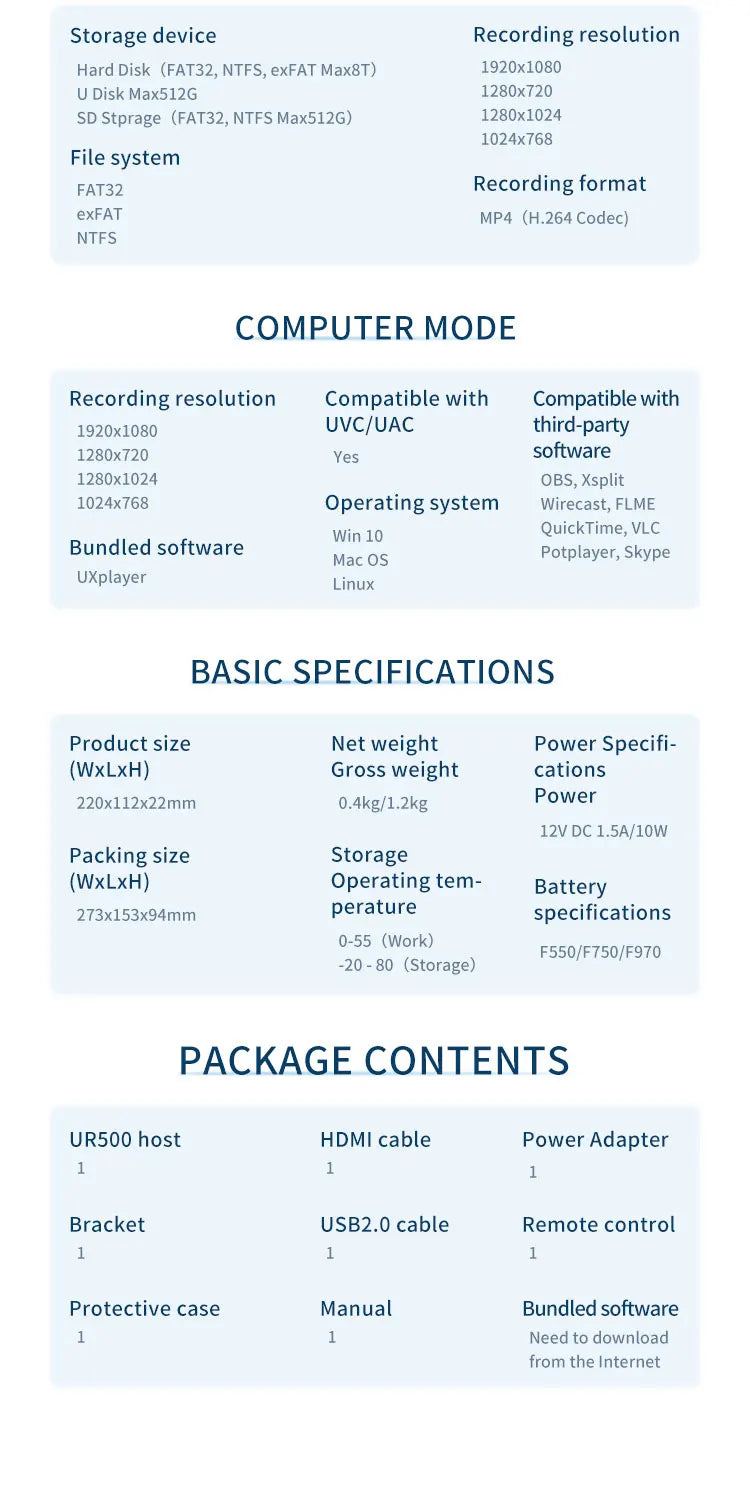

Storage Device |
Flash USB Drive(up to 512G),Harddisk(up to 8T),SD(up to 512G) |
Storage File System |
FAT32/exFAT/NTFS |
Record Format |
MP4(H.264 Codec) |
Computer Mode |
|
Record Resolution |
1920x1080/1280x720/1280x1024/1024x768 |
Compatible UVC/UAC |
Yes |
Comatible System |
Win10/Mac OS/Linux |

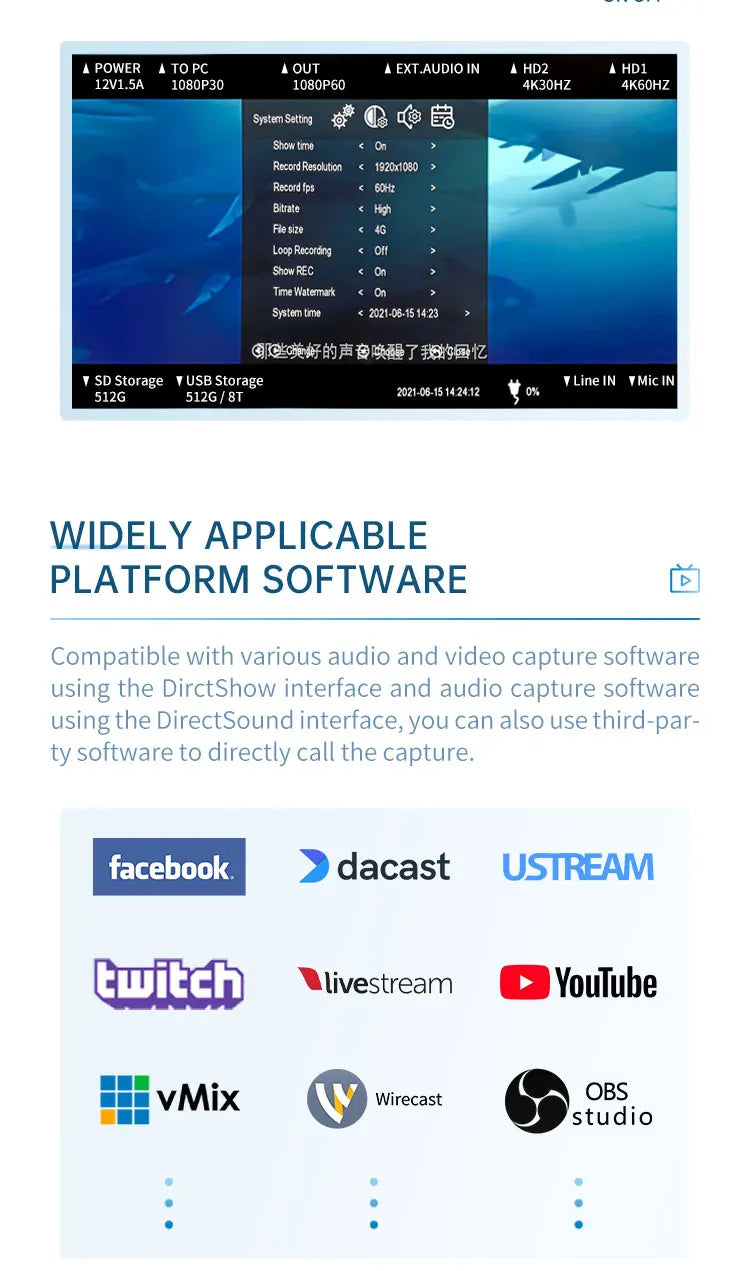

Compatibility with 3rd application software |
OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype |
Attached Software |
UXplayer |
General |
|

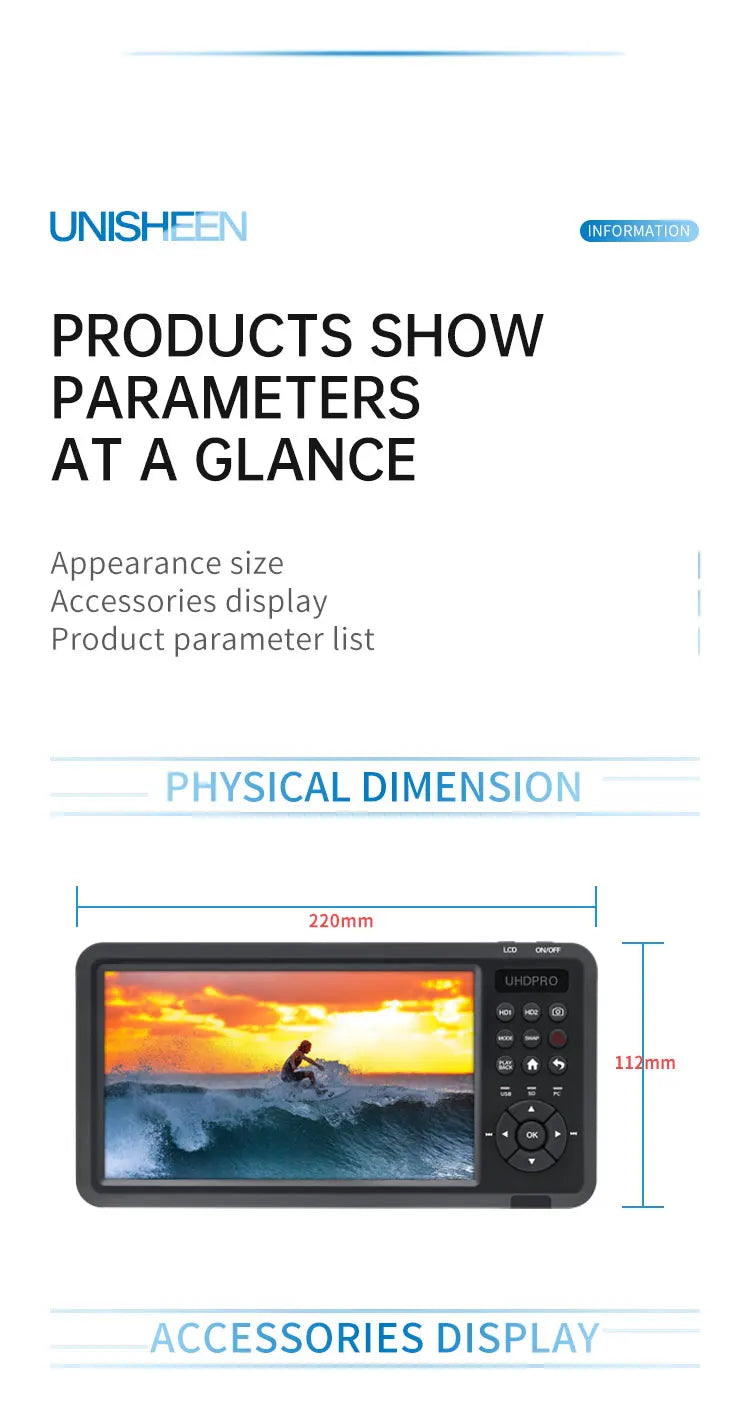

Dimension(W×L×H) |
220x112x22mm |
Package(W×L×H) |
273x153x94mm |
Net/Gross Weight |
0.4kg/1.2kg |
Temperature |
0-55(Work),-20-80(Storage) |
Power/Consumption |
12V DC 1.5A/10w |

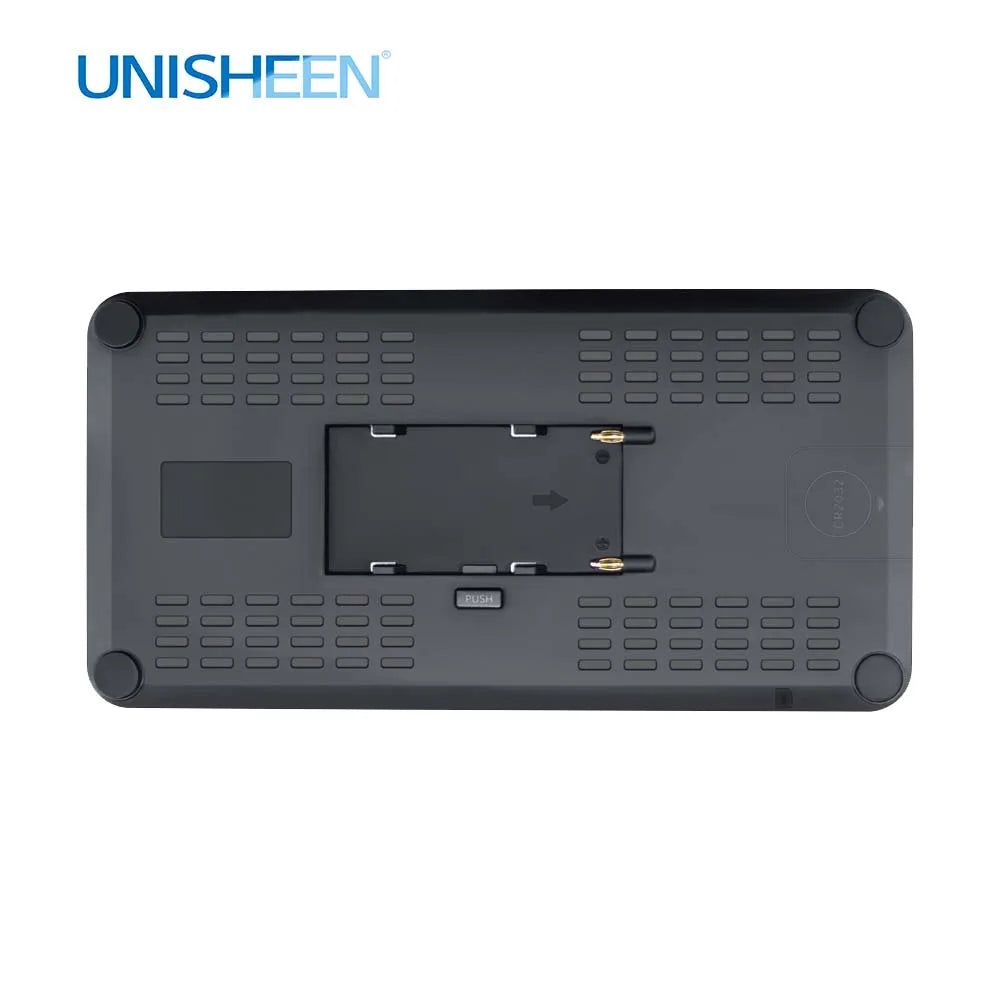

Battery Support |
F550/F750/F970 |

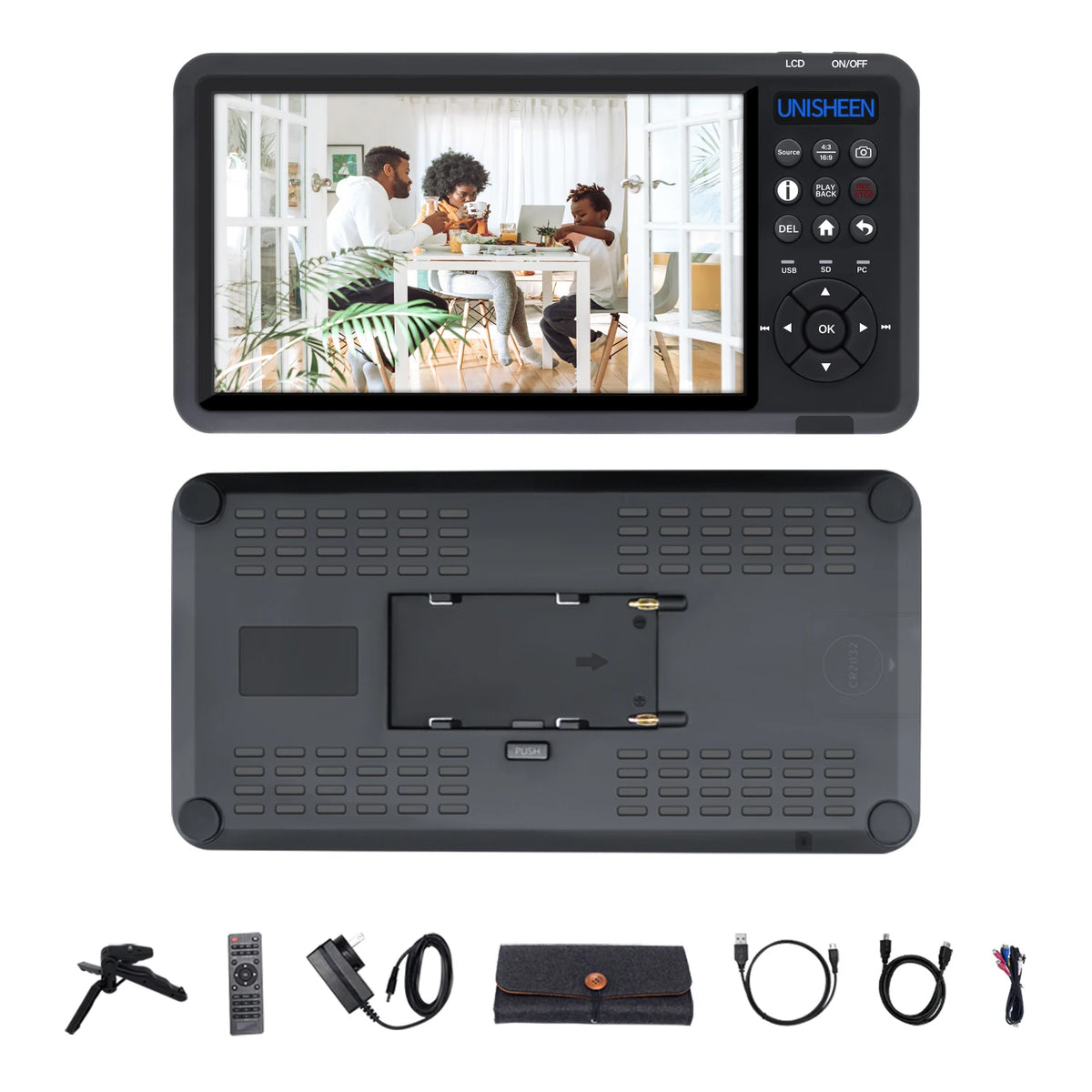

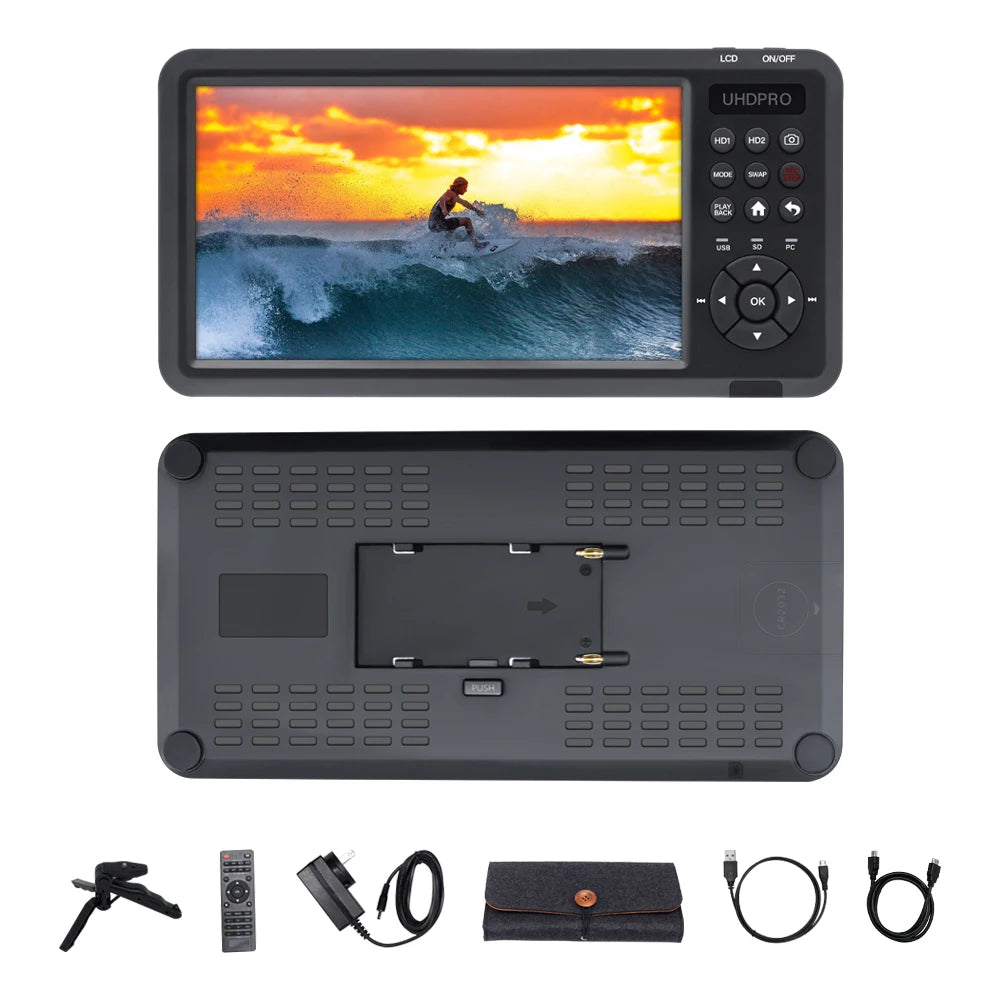

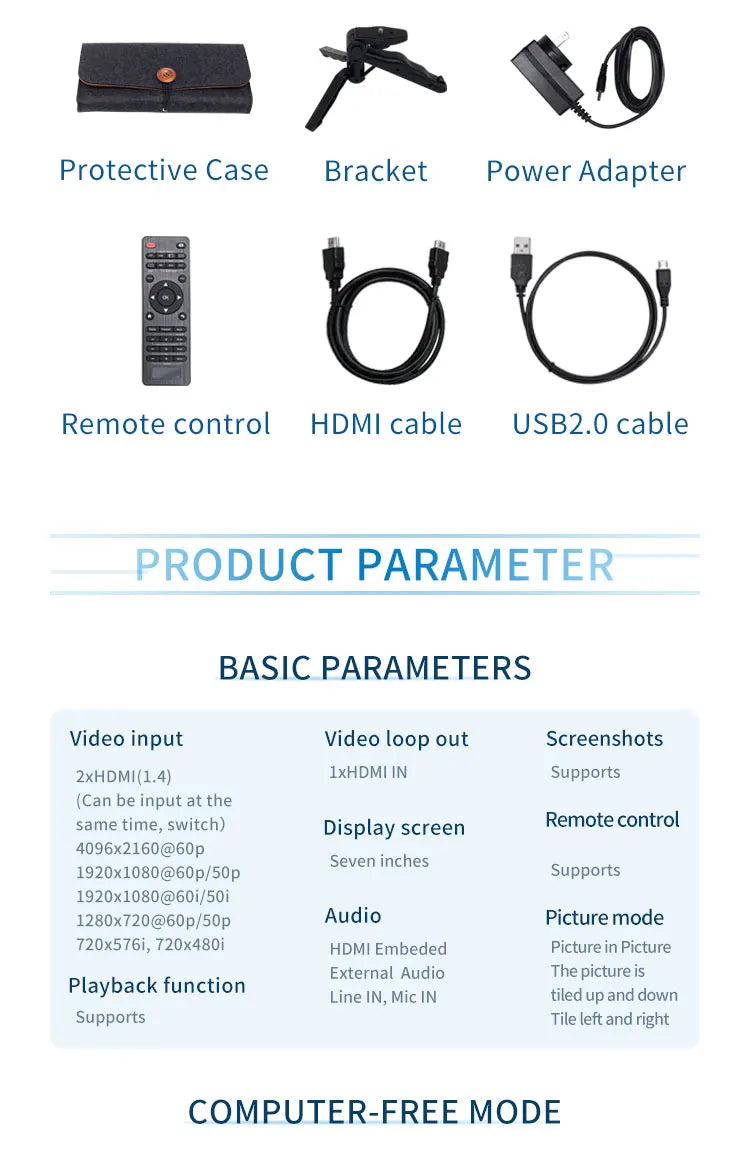

Included in Package |
|
UR500 |
1pcs |
Holder |
1pcs |
HDMI Cable 1.2M |
1pcs |
USB2.0 0.8M |
1pcs |
Power Adapter |
1pcs |
Remote Control |
1pcs |
Manual |
1pcs |
