Universal Digital Multimeter UT-195DS by UNI-T - Your Ultimate Testing Tool! 📏🔌🔧
Universal Digital Multimeter UT-195DS by UNI-T - Your Ultimate Testing Tool! 📏🔌🔧
Couldn't load pickup availability
Explore the Features of the Universal Digital Multimeter
Product Overview: The UT-195DS is a versatile digital multimeter designed for measuring voltage, current, resistance, capacitance, frequency, and verifying diode functionality. This advanced meter features automatic range switching and a relative measurement mode. With an IP65 rating, it ensures durability and protection against dust and water. 💧🔒
Key Specifications:
| Measurement Type | Range | Accuracy |
|---|---|---|
| DC Voltage | 600 mV to 1000 V | ± (0.7% + 3) |
| AC Voltage | 600 mV to 750 V | ± (1% + 3) |
| DC Current | 600 µA to 20 A | ± (0.8% + 3) |
| AC Current | 600 µA to 20 A | ± (1% + 3) |
| Resistance | 600 Ω to 60 MΩ | ± (1% + 2) |
| Capacitance | 6 nF to 60 mF | ± (3% + 5) |
| Frequency | 100 Hz to 40 MHz | ± (0.1% + 4) |
| Temperature | N/A | N/A |
Main Features:
- True RMS for precise measurement of RMS current and voltage across any waveform.
- Low impedance AC voltage measurement (LoZ mode) for enhanced accuracy.
- LPF function for measuring AC voltage with a low-pass filter (200 Hz limit).
- Sturdy construction with an IP65 rating for optimal protection.
- Last reading freeze function for convenience.
- Phase sequence testing capability for three-phase motors (up to 600 V).
- MAX/MIN value recording and peak value indication.
- Analog bar graph display for easy reading.
- Large backlit dual LCD display for visibility in low light.
- Low battery indicator and built-in flashlight for added functionality.
- Stylish and robust design, complete with a practical carrying case.
Power Supply: Operates on a 9V battery (type 6LR61, included)
Weight: 0.47 kg
Dimensions: 195 x 95 x 61 mm
Brand: UNI-T
Warranty: 2 years
Presentation:

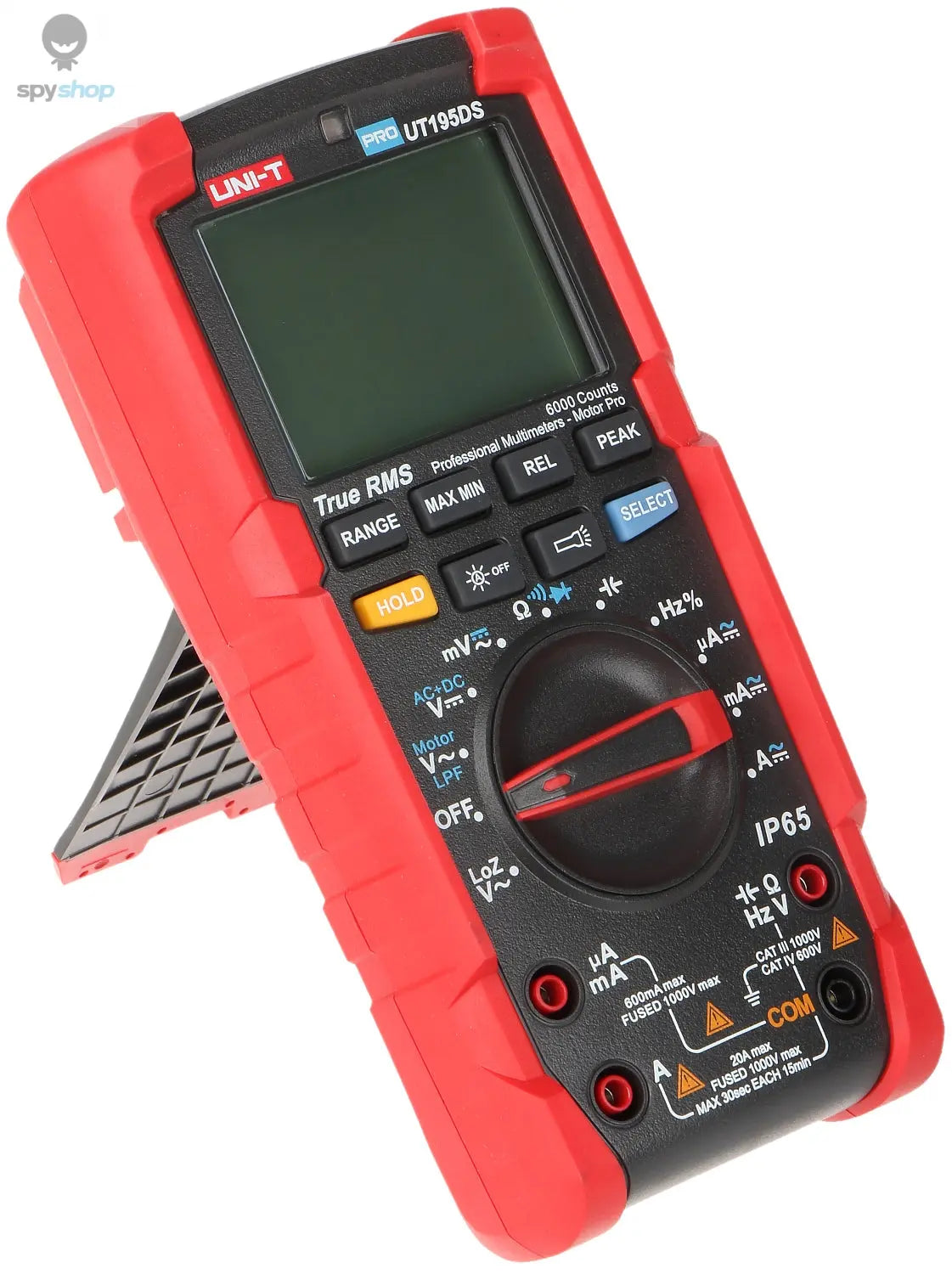

- Front panel view
- Rear view
- Battery compartment for 9V battery
- Included kit items
- Device secured in a handy case
Files:
Packaging: Dimensions (L x W x H): 280 x 190 x 115 mm
Package Type: Carton
Gross Weight: 0.992 kg
Pros:
- Highly accurate measurements
- Durable and water-resistant design
- Multiple measurement functions
- Easy-to-read display
Cons:
- May be complex for beginners
- Requires battery replacement
Accurate Measurements for All Your Needs
The Universal Digital Multimeter UT-195DS provides precise readings for voltage, current, and resistance. With its advanced technology, you can rely on this multimeter for various applications, whether at home or in a professional setting. Its accuracy ensures that you make informed decisions when troubleshooting electrical issues. It's crucial because measuring correctly helps you avoid costly mistakes in repairs.
User-Friendly Interface
This multimeter has a simple and intuitive interface that is easy to navigate. Users can quickly switch between different measurement modes without confusion, which is essential for efficient work. The large digital display clearly shows readings, so you won’t strain your eyes during prolonged use. Thus, the UT-195DS is perfect for beginners and professionals alike, making testing accessible for everyone.
Durability and Design
Built to last, the Universal Digital Multimeter UT-195DS is designed with high-quality materials that withstand daily use. Its ergonomic design offers a comfortable grip, reducing fatigue during extended testing sessions. Because it's compact, you can easily carry it in your toolbox or backpack, ensuring that you always have reliable testing equipment at hand. The robust build means you can trust it in demanding environments.
