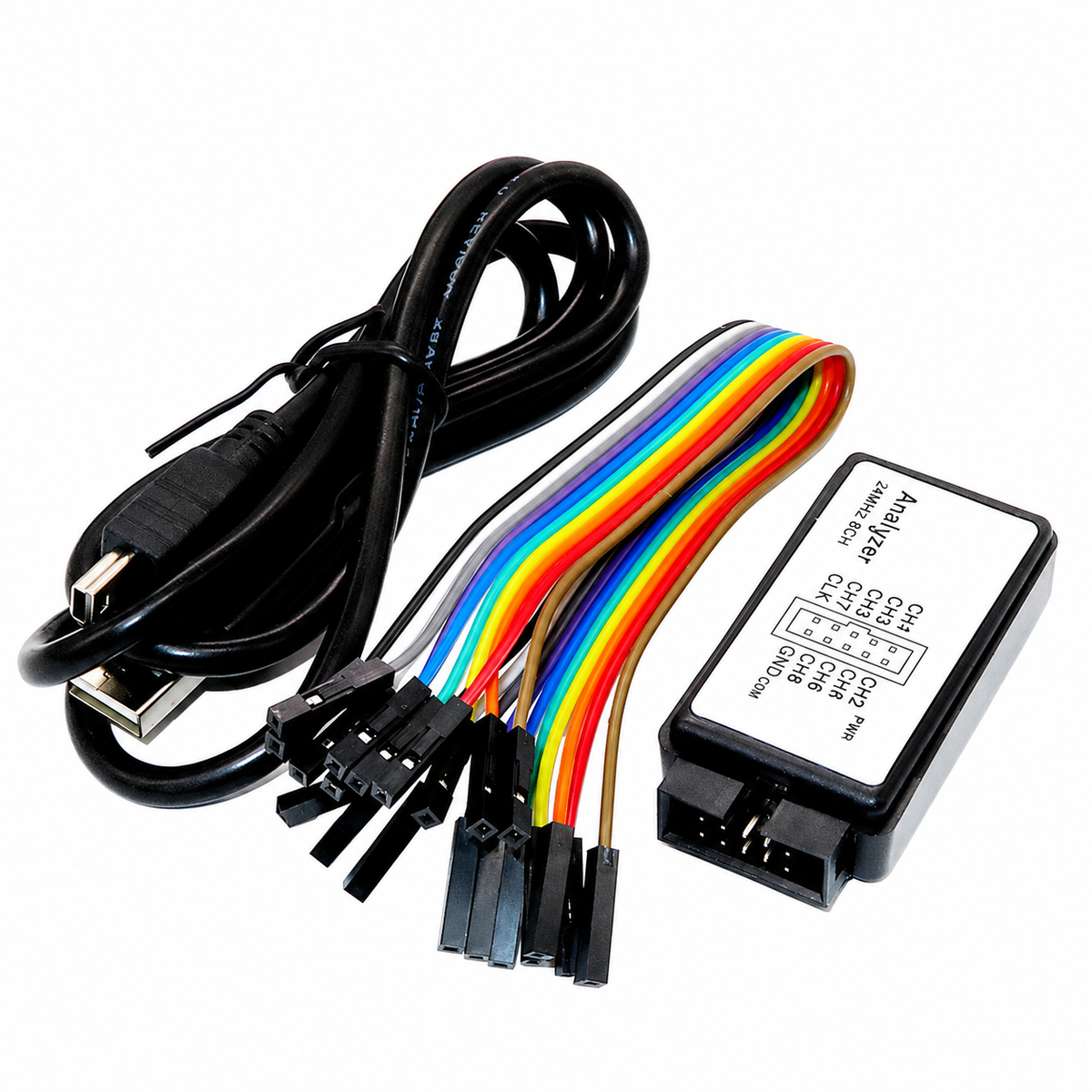

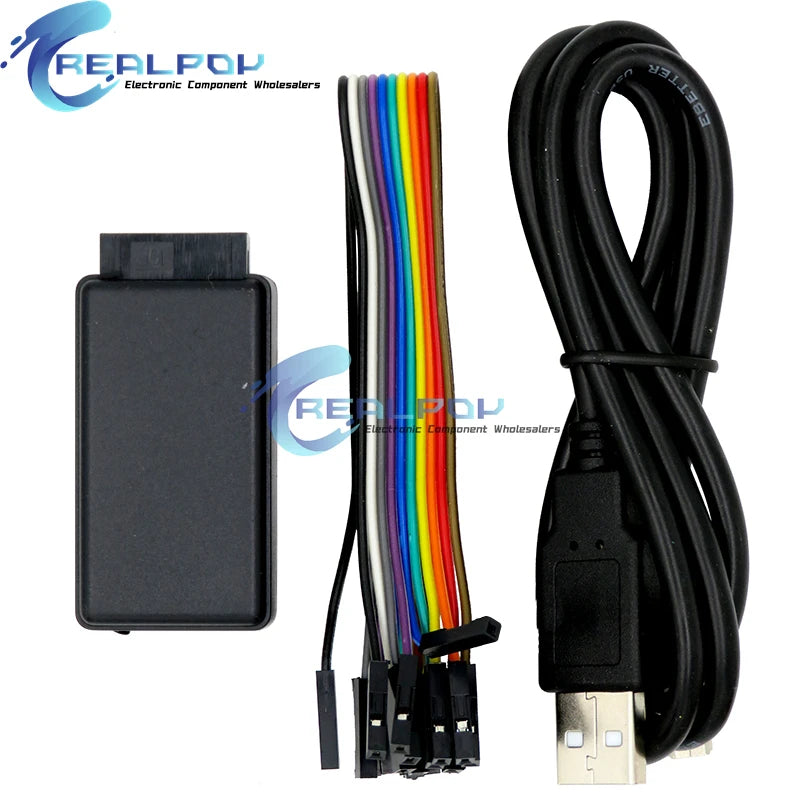

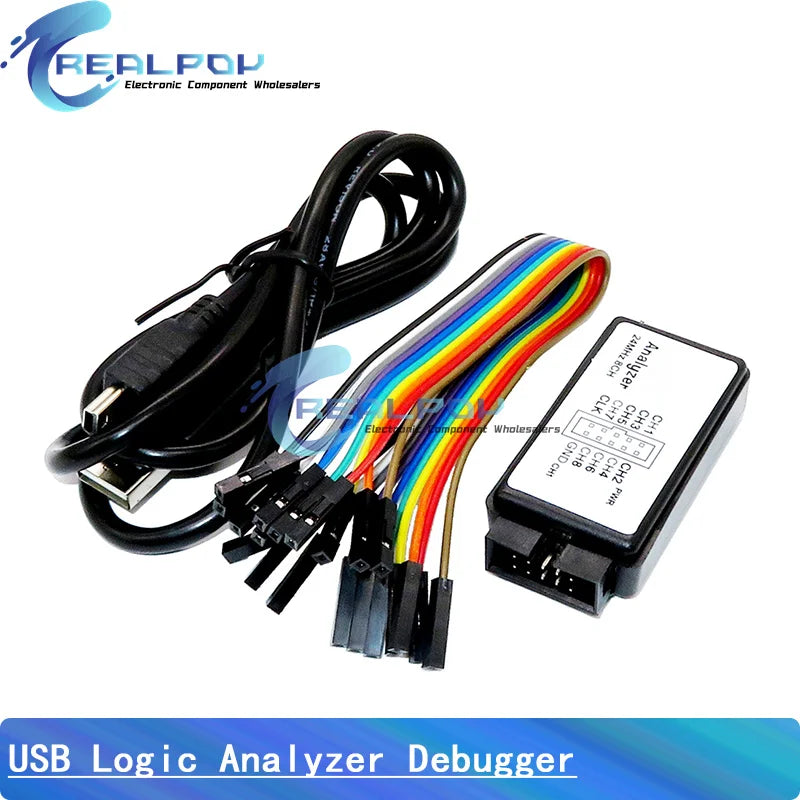

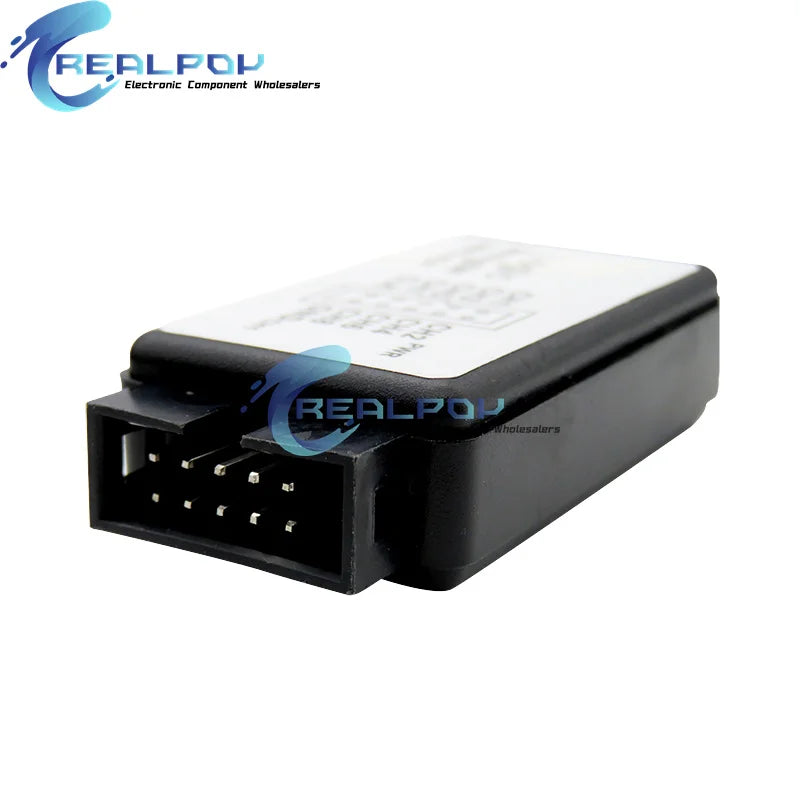

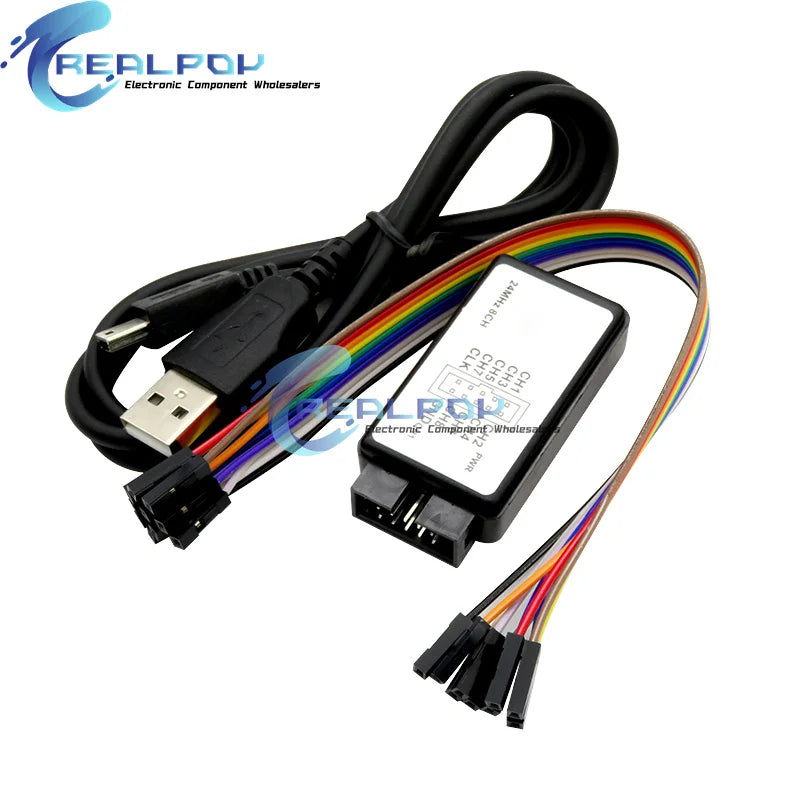

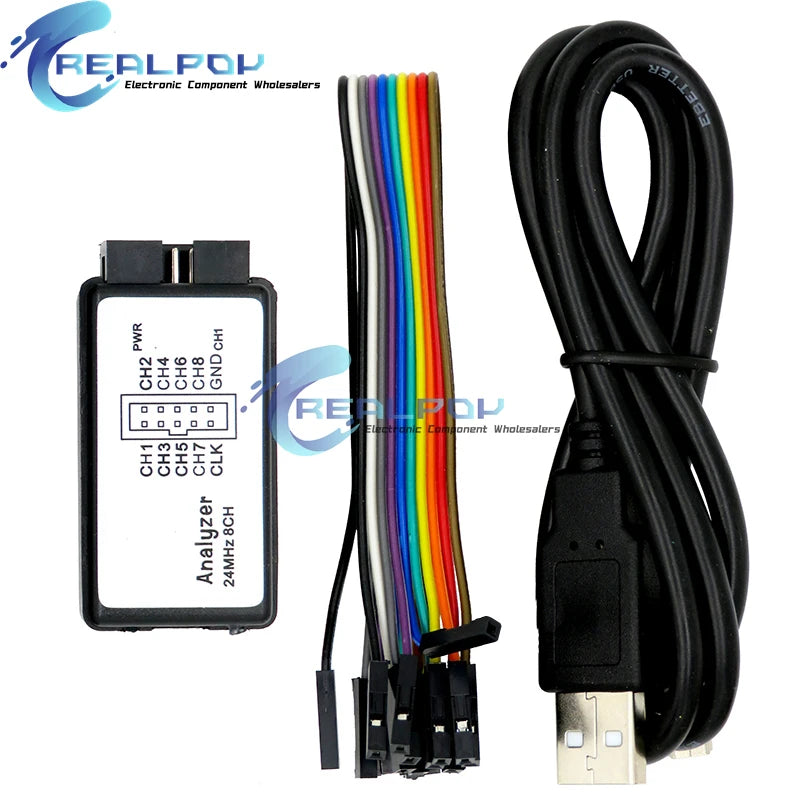

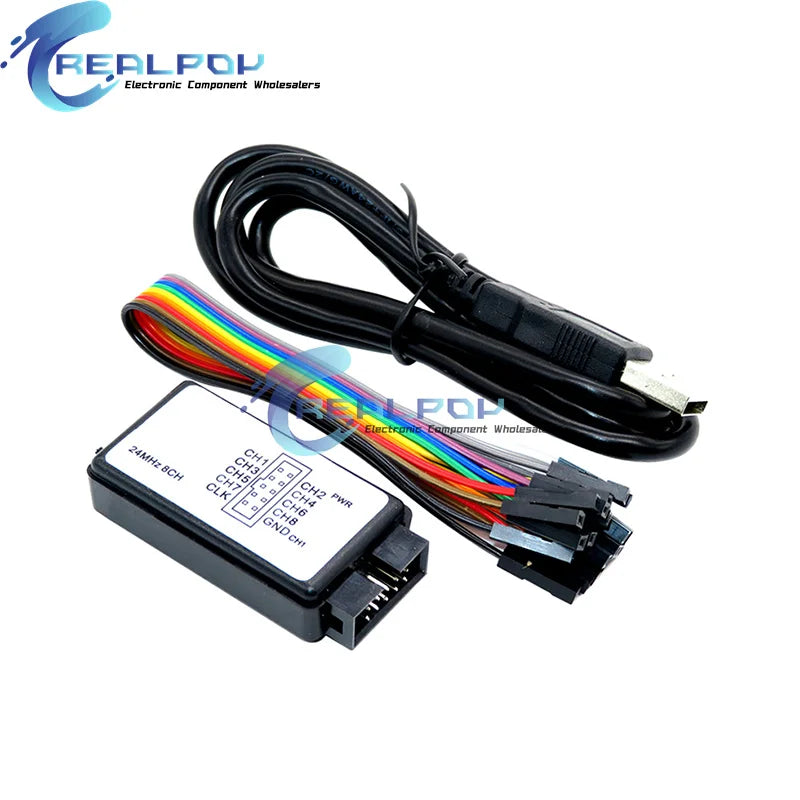

USB Logic Analyzer, Eight Channels, 24 MHz

Inspect compatible digital signal timing with an eight-channel USB logic analyzer listed for 24 MHz sampling.

✅ Observe several digital lines together - Eight channels capture multiple compatible signals within the same debugging session.

✅ Choose the computer connection version - Mini USB and USB-C options provide different listed connector arrangements.

✅ Review the captured timing on a computer - The analyzer supplies data for suitable compatible signal-viewing software.

Check the Inputs and Software Before Connecting

Confirm the input voltage limits and pinout before connecting the analyzer to a circuit. The channel count and sampling label do not establish that every signal or controller is suitable.

Check software support and sample-rate settings for the selected version before capturing data. The tool is part of a computer-based debugging arrangement rather than a universal protocol decoder or standalone display.

Technical details

• Eight channels; listed 24 MHz sampling rate.
• Selected Mini USB or USB-C version.
• Verify input limits, pinout and software compatibility.

Match the signal and software requirements before choosing the USB version.
