UT-502A UNI-T Insulation Resistance Meter for Accurate Testing 📏⚡️🔍
UT-502A UNI-T Insulation Resistance Meter for Accurate Testing 📏⚡️🔍
Couldn't load pickup availability
Explore the Features of the UT-502A UNI-T Insulation Resistance Meter
Product Overview: The UT-502A meter is a specialized instrument crafted for measuring insulation resistance, ranging from 0MΩ to 20GΩ. ⚡
Please note! A high voltage is essential for accurate insulation resistance measurements. Exercise caution and adhere strictly to the guidelines provided in the device manual during operation.
Specifications:
| Resistance Measurement: | Test Voltage 500 V: 0 ... 5 GΩ | Test Voltage 1000 V: 0 ... 5 GΩ | Test Voltage 2500 V: 0 ... 20 GΩ |
| Measuring Accuracy: | 0 MΩ ... 99.9 MΩ ± (3% + 5) | 100 MΩ ... 10 GΩ ± (5% + 5) | 10 GΩ ... 20 GΩ ± (10% + 5) |
| Open Circuit Voltage: | Test Voltage + 10% | ||
| Test Current: | 1 mA ... 1.1 mA | ||
| Short-Circuit Current: | < 1.8 mA | ||
| AC Voltage Measurement: | 30 V ... 750 V ± (2% + 3) @ 1 V | ||
| DC Voltage Measurement: | |||
| Measurement of Small Resistances: | 0 Ω ... 200 Ω ± (2% + 3) @ 0.01 Ω | ||
| Automatic Range Switching: | |||
| RS-232: | |||
| USB: |
Main Features:
- ⚠️ High voltage warning during measurements
- 📊 Polarization Index Measurement (PI)
- 📈 Dielectric Absorption Measurement: 60s / 15s, 60s / 30s
- 🔋 Automatic Power-Off
- 🔄 Reset Function for Low Resistance Measurements
- 📺 Large, easy-to-read LCD Display with Backlight
- 🔋 Low Battery Level Alert
- 🏗️ Durable and aesthetic design
Operating Conditions:
- Temperature: 0 °C ... 40 °C
- Relative Humidity: ≤ 85% (non-condensing)
Power Supply: 6 x 1.5V, AA/LR6/FR6 batteries - included
Weight: 0.42 kg
Dimensions: 150 x 100 x 71 mm
Manufacturer / Brand: UNI-T
Warranty: 2 years
Presentation:

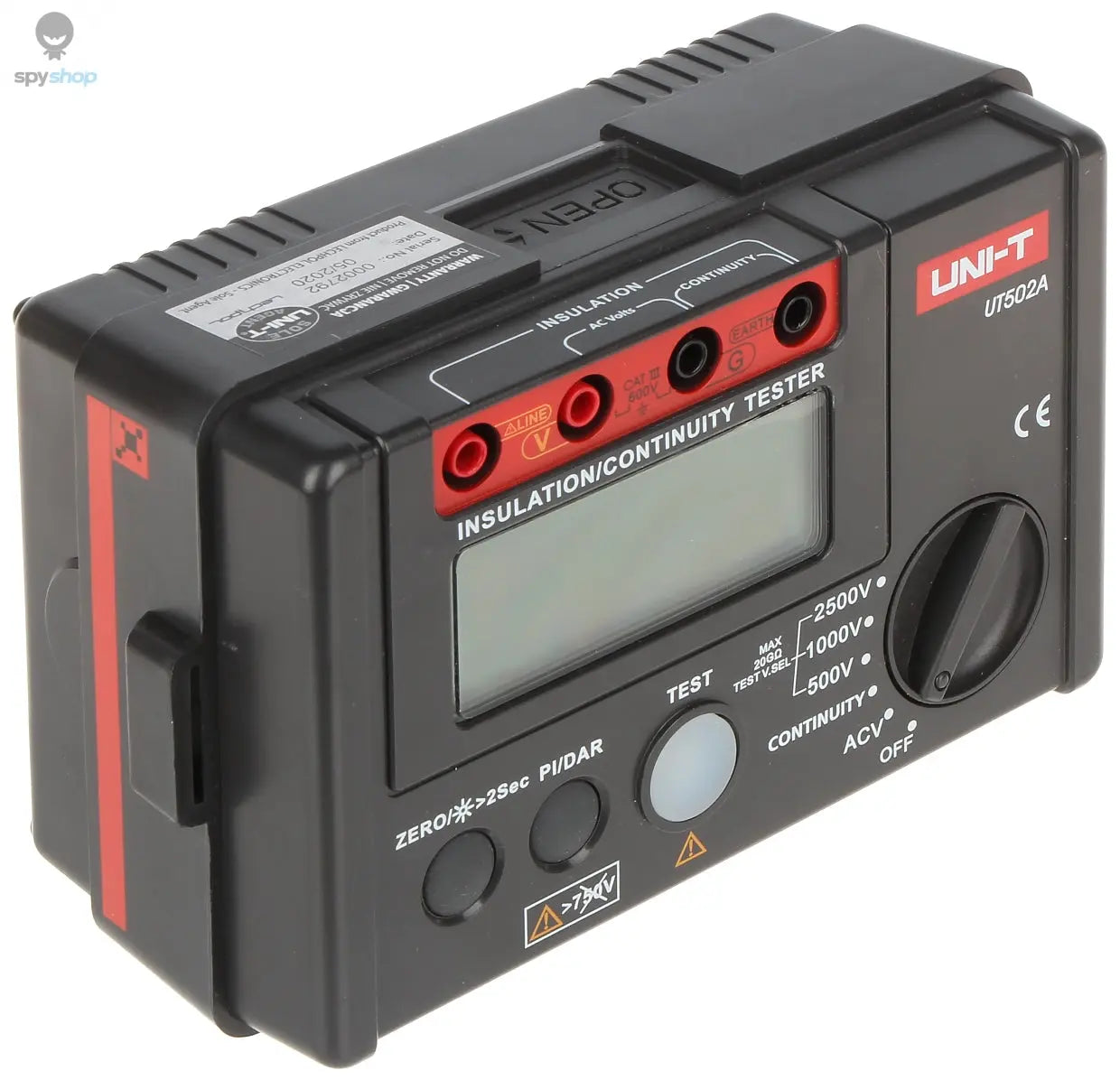

- Front Panel
- Front Panel Cover
- Rear View
- Battery Compartment for 6 x 1.5V AA
- Included Accessories
- Device Secured in a Handy Case
Files:
Package Dimensions: 180 x 150 x 95 mm
Package Type: Carton
Gross Weight: 0.906 kg
Pros:
- Accurate and reliable measurements
- User-friendly interface with large display
- Portable and durable design
Cons:
- Requires high voltage for operation
- May need careful handling during use
Precise Testing Capabilities
The UT-502A is designed for accurate insulation resistance measurements, making it essential for electricians and technicians. This meter can safely test up to 1000V and provides precise readings. Every professional knows the importance of reliable testing, and the UT-502A offers just that. With its user-friendly interface, you can quickly navigate through functions and settings, ensuring that you get the job done efficiently.
Durability and Safety Features
This insulation resistance meter is built to withstand harsh conditions, which is critical when working in various environments. It complies with safety standards that protect both the device and the user. Therefore, you can rely on the UT-502A not just for accurate readings but also for a safe operation. The sturdy design and robust build make it a long-lasting investment for your tools.
Enhanced User Experience
The UT-502A comes with a clear LCD display that makes reading measurements easy, even in low-light conditions. Moreover, it features data hold and backlight functions that enhance usability. Because of these enhancements, users can work efficiently without straining their eyes. For technicians who value time and accuracy, the UT-502A insulation resistance meter is an indispensable tool that meets professional standards.
