Versatile UT-593 UNI-T Multifunction Meter for Electrical Installations ⚡️🔧📏
Versatile UT-593 UNI-T Multifunction Meter for Electrical Installations ⚡️🔧📏
Couldn't load pickup availability
Key Features of the UNI-T Multifunction Meter
Product Overview: The UT-593 is a versatile multifunction meter designed specifically for electrical installations, making it an essential tool for electricians. This device serves as a comprehensive tester for the safety of electrical systems, enabling users to measure insulation resistance, short circuit loop impedance with or without RCD tripping, line impedance, continuity of protective and equalizing conductors, trip current, RCD tripping time, AC voltage, and phase sequence display. ⚡️
Important Note: High voltage is necessary for accurate insulation resistance measurements. Always exercise caution and adhere to the guidelines provided in the device manual during use.
Specifications:
| Measurement Type | Details |
|---|---|
| Resistance Measurement | Test Voltage 250V: 0.05 MΩ ... 250 MΩ Test Voltage 500V: 0.05 MΩ ... 500 MΩ Test Voltage 1000V: 0.05 MΩ ... 1000 MΩ |
| Measuring Accuracy | 0.05 MΩ ... 1000 MΩ ± (5% + 5) |
| Open Circuit Voltage | Test Voltage ± 10% |
| Test Current | 0.9 mA ... 1.1 mA |
| Short-Circuit Current | < 1.8 mA |
| AC Voltage Measurement | 0 V ... 440 V ± (2% + 3) @ 1 V |
| DC Voltage Measurement | 0 V ... ± 440 V ± (2% + 3) @ 1 V |
| Measurement of Small Resistances | 0.01 Ω ... 200 Ω ± (2% + 5) |
| Frequency Measurement | 20 Hz ... 100 Hz - for reference only |
| RCD Testing | Working Voltage: 220V ± 10% Test Current: 10mA / 30mA / 100mA / 300mA / 500mA Switch-off Time Ranges: 0 ... 2000 ms ± (5% + 5) |
| RCD Tripping Current Measurement | Increasing Current Test: 10 mA / 30 mA / 100 mA / 300 mA / 500 mA ± 10% |
| Phase Sequence Test | 100 V ... 440 V / 45 Hz ... 65 Hz |
| Continuity Measurement | 0 Ω ... 199 Ω ± (2% + 5) Measuring Current > 20 mA @ 0 ... 2 Ω |
| Line Impedance Measurement (L-N) | 0.05 Ω ... 1.99 Ω ± (5% + 5) 2 Ω ... 19.99 Ω ± (5% + 5) 20 Ω ... 2000 Ω ± (5% + 5) |
| Short Circuit Loop Impedance Measurement (L-PE) | 0.05 Ω ... 1.99 Ω ± (5% + 5) 2 Ω ... 19.99 Ω ± (5% + 5) 20 Ω ... 2000 Ω ± (5% + 5) |
| Automatic Range Switching | Yes |
| RS-232 | Yes |
| USB | Yes |
Main Features:
- Warning for high voltage during measurements ⚠️
- Phase switch 0° / 180° during RCD testing
- Automatic identification of AC/DC voltage
- Reset function for low resistance measurements
- Large, easy-to-read LCD display with backlight
- Buzzer for alerts
- Automatic power-off feature
- Low battery indicator
- Sturdy and aesthetically pleasing design
Operating Conditions:
- Temperature: 0 °C ... 40 °C
- Relative Humidity: ≤ 85% (non-condensing)
Power Supply: 8 x 1.5V, type AA/LR6/FR6 batteries - included
Weight: 1.1 kg
Dimensions: 210 x 175 x 90 mm
Manufacturer / Brand: UNI-T
Warranty: 2 years
Presentation:

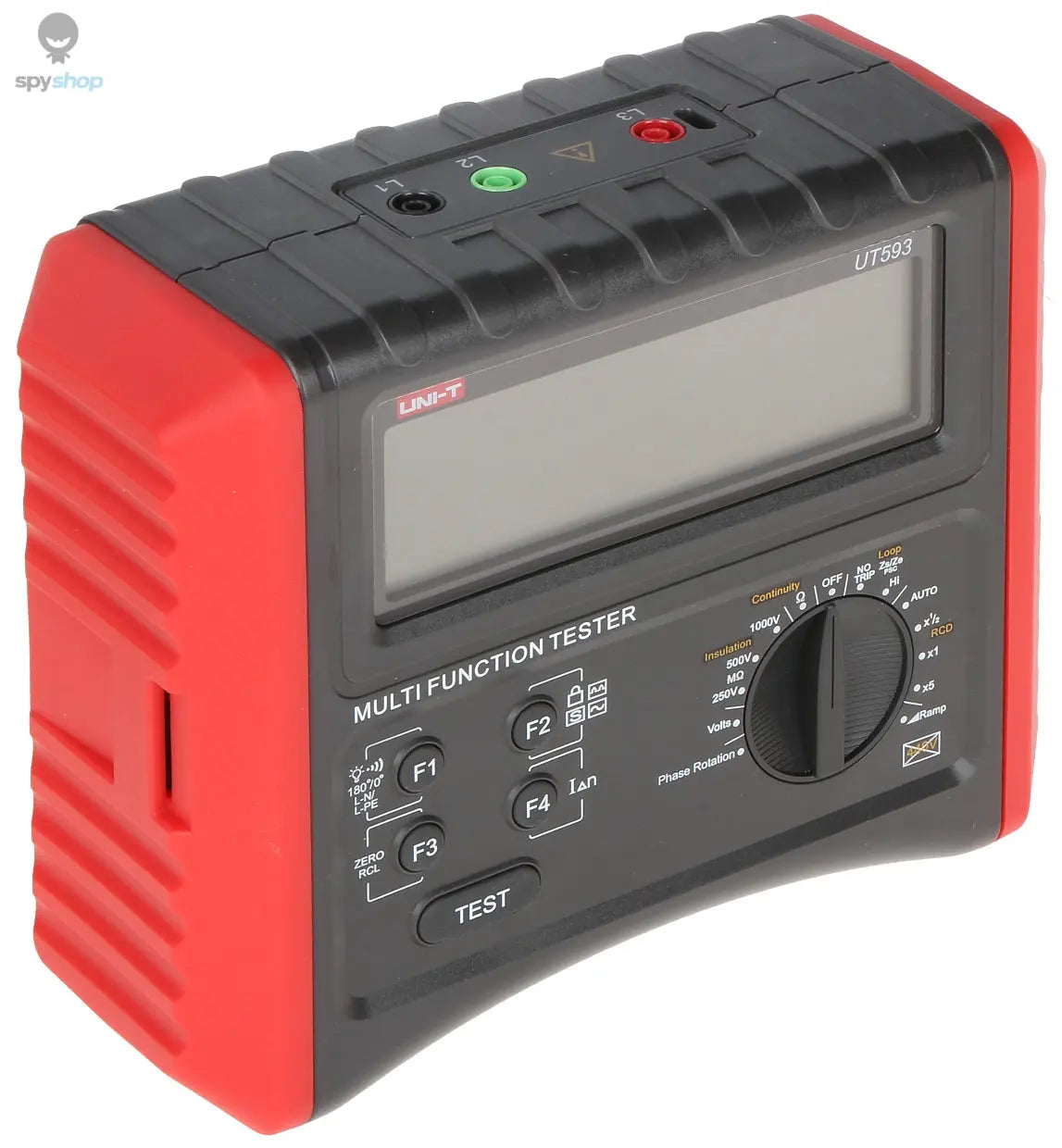

- Front Panel View
- Top View
- Rear View
- Battery Compartment for 8 x 1.5V AA
- Complete Kit Contents in an Aesthetic Case
Files:
Packaging Details:
- Dimensions (L x W x H): 325 x 310 x 120 mm
- Package Type: Carton
- Gross Weight: 3.522 kg
Pros:
- Comprehensive testing capabilities
- User-friendly interface with clear display
- Durable build quality
- Includes essential accessories
Cons:
- Requires high voltage for certain measurements
- May be overwhelming for novice users
Accurate and Reliable Measurements
The UNI-T Multifunction Meter is designed to provide accurate measurements for various electrical parameters. Whether you need to measure voltage, current, resistance, or capacitance, this device excels. It features clear digital displays, making it easy to read and understand the data. Because precision is essential in electrical work, this meter ensures that you get reliable results every time you use it.
Multiple Functions for Versatility
This multifunction meter stands out because it consolidates multiple tools into one device. It can perform various tests, including diode tests and continuity checks, which are essential for electricians. So, instead of carrying several devices, you can rely on the UNI-T Multifunction Meter to handle your diverse testing needs effortlessly. It's ideal for both professionals and DIY enthusiasts who require a practical solution.
Durable Design for Field Use
The build quality of the UNI-T Multifunction Meter is robust, designed for the rigors of fieldwork. It is equipped with a protective casing that guards against accidental drops and impacts. This durability means it can withstand tough working conditions, making it a reliable companion for electricians. Additionally, its lightweight design makes it portable and easy to carry around, which is essential when you are doing on-site installations or repairs.
