SINVT Dual-Axis Tilt Sensor, TTL/RS232 & Analogue Options
Bring two-axis tilt readings into a compatible control or data-acquisition project. These SINVT and SINVT01 sensors offer distinct serial and analogue-output options. They are for integrators who can match the selected interface, supply and mounting orientation to their own electronics.
- ✅ Read tilt in two directions — X- and Y-axis measurement captures inclination across the mounting plane.
- ✅ Match an existing data interface — TTL and RS232 selections provide different serial connections.
- ✅ Feed a suitable analogue input — SINVT01 options offer separate analogue-output ranges.

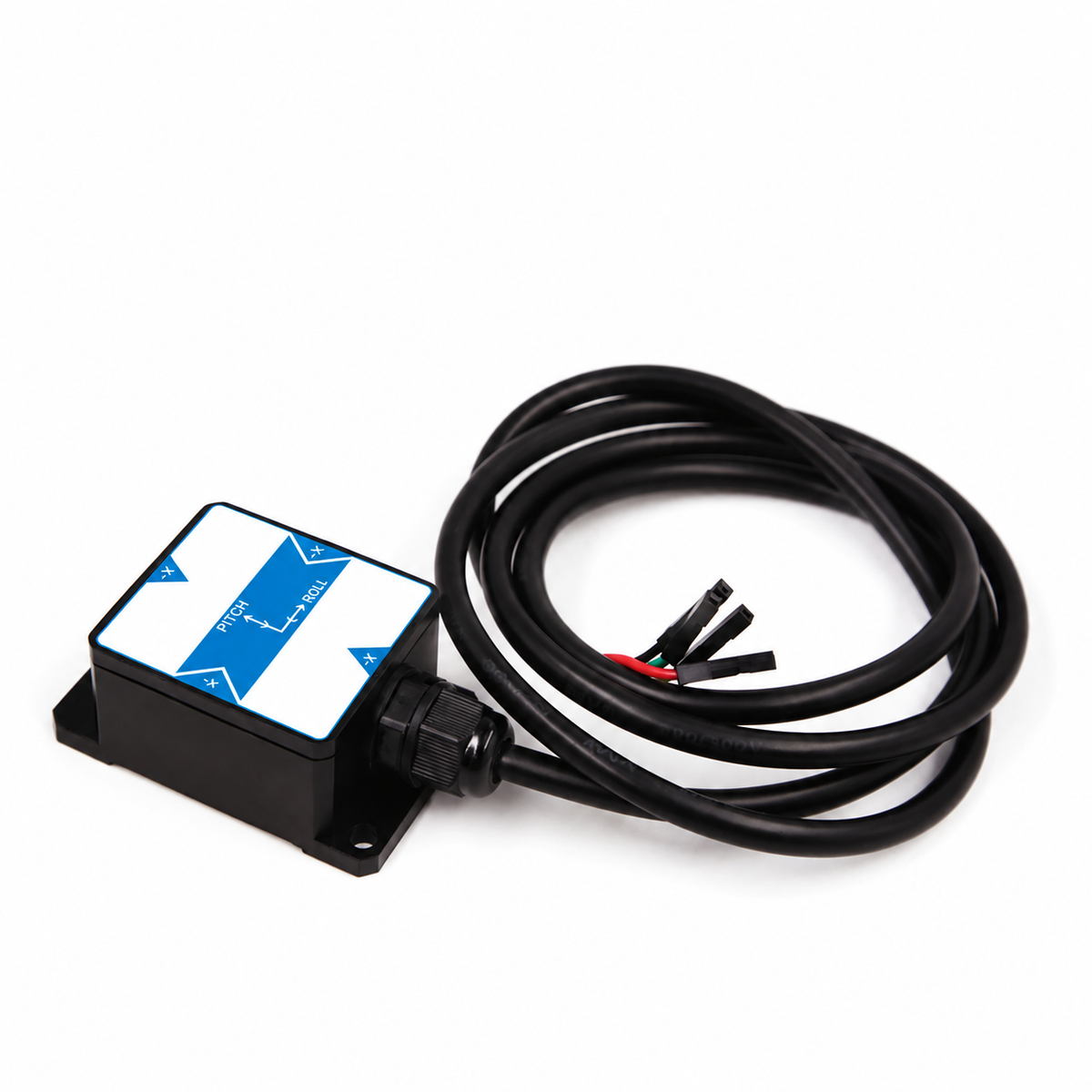

- ✅ Align the sensor during installation — Mounting tabs and axis markings guide physical positioning.
- ✅ Route signals to your project — An attached cable brings the connections outside the sensor body.
Select the electrical version before integrating
SINVT01-TTL 5V and SINVT01-TTL 10V refer to different analogue outputs: 0–5 V or 0–10 V, with TTL communication. The 5V/10V option names do not describe the supply requirement; these SINVT01 variants state a 12–36 V supply.
SINVT-TTL and SINVT-RS232 are the separate SINVT options, illustrated with 0–5 V analogue outputs and their named serial interfaces. Use the exact selected model's supplied pinout and electrical requirements before applying power. TTL and RS232 cannot be connected interchangeably without the appropriate interface.
Fit the sensor rigidly and establish its reference orientation and zero according to the model instructions. This is a sensor component, not a complete display, controller or certified machinery-safety system. One selected sensor with attached cable is offered; power supply, computer, interface adapters and controlled machinery are not confirmed included.
A wired inclination sensor is offered, not a complete control system.
Analogue and serial arrangements depend on the selected model.
Use only the features confirmed for your chosen version.
Different sensor versions have different electrical details.
Application scenes illustrate integration projects, not ready-to-use safety systems.
Use the specification sheet for the exact selected sensor.
Match the supply and signal ratings before connection.
Check dimensions and axis orientation before mounting.
Reference orientation determines how the axes are interpreted.
Follow the selected model's wiring instructions, not wire colours alone.
This graph illustrates the SINVT 0–5 V analogue relationship.
Conversion depends on the sensor's actual range and output configuration.
Software screenshots do not confirm every displayed channel for every variant.
The selected sensor is supplied with attached cable.
Check the model label and pinout before connection.
Technical details
- Product family: SINVT / SINVT01 dual-axis inclination sensors
- Available variants: SINVT01-TTL 5V, SINVT01-TTL 10V, SINVT-RS232 and SINVT-TTL
- SINVT01-TTL 5V output stated: 0–5 V analogue plus TTL
- SINVT01-TTL 10V output stated: 0–10 V analogue plus TTL
- SINVT01 supply stated: 12–36 V
- SINVT options shown: 0–5 V analogue with TTL or RS232 interface
- Measurement axes: X and Y
- Mounting: tabbed wired sensor housing; align to model axis diagram
- Package: 1 selected sensor with attached cable
- Exclusions: power supply, controller, display and interface adapter not confirmed included
Match the output and interface to your project, then select the sensor version for your installation.
Choose options
