1080p AHD/CVBS Reversing Camera with Dynamic Guide Lines, 6m Lead
Add a rear-facing view and guide-line reference when positioning your vehicle in a parking space. This wired reversing camera connects to a compatible aftermarket RCA camera input with the correct AHD or CVBS setting. It is for drivers adding a rear camera to an existing display.
- ✅ Check behind the vehicle while manoeuvring — The rear-facing camera sends a live view to a compatible display.
- ✅ Use a guide-line reference as the vehicle moves — Dynamic lines respond to body movement rather than steering-wheel input.
- ✅ Match the image format to your screen — The camera offers AHD and CVBS configuration.
- ✅ Route the camera lead to the front display — The included video cable provides length for an installed connection.
- ✅ Keep the camera visually compact at the rear — The small housing uses a rear threaded mounting point.
A rear-view upgrade with movement-based guide lines
The camera gives a separate viewpoint behind the vehicle as you position it beside a kerb or within a bay. Its dynamic lines change with vehicle movement; they are not connected to the steering wheel and do not predict a precise wheel-controlled path. Continue using mirrors and direct checks.
AHD operation is specified as 1080p at 25 frames per second. The control leads allow configuration for CVBS or AHD and for the guide-line overlay. Match the actual camera output to the screen setting and follow the received instructions before altering any configuration lead; an RCA connector alone does not guarantee every video format will work.
The kit includes one camera, a 6m video cable and a power lead. A monitor, head unit and vehicle-specific interface are not included. Installation requires an appropriate power connection and a suitable rear mounting location; check the received unit's voltage requirements before wiring.

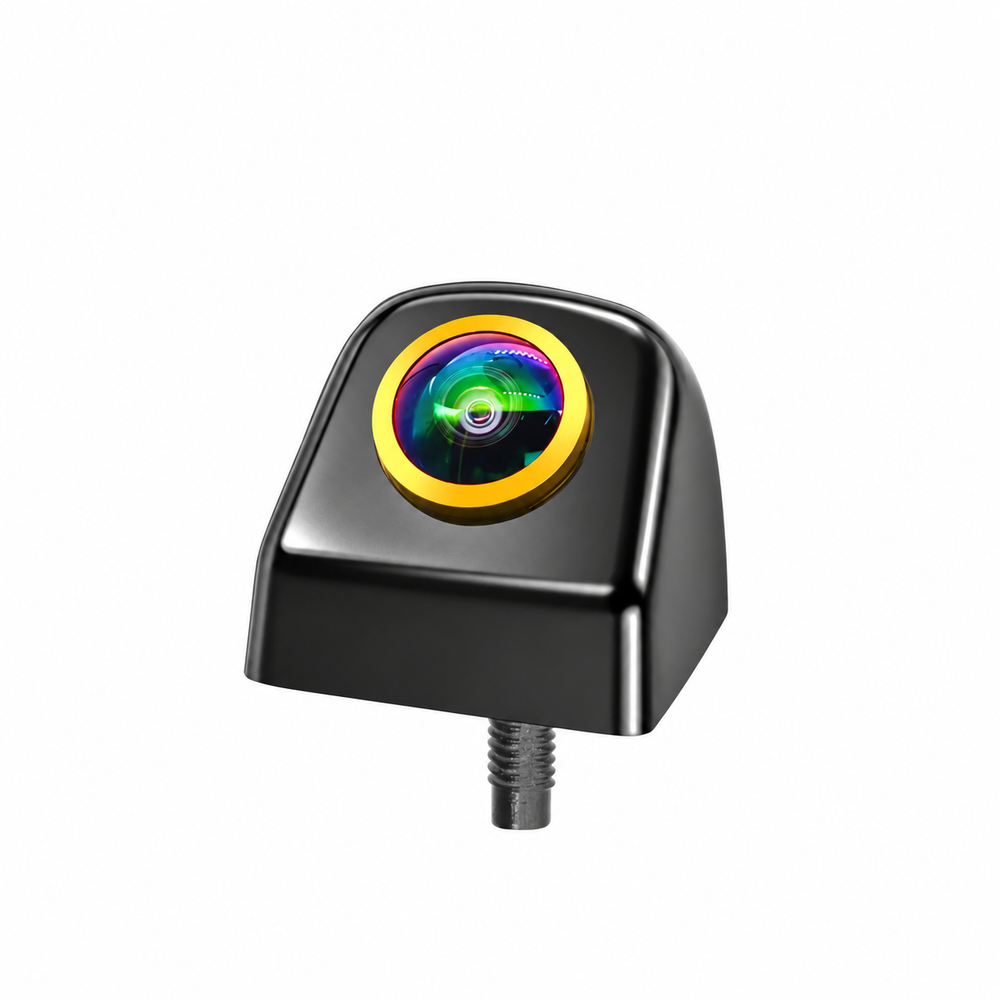

The camera offers a rear view with configurable guide lines.
Match the camera format to the head unit's accepted input.

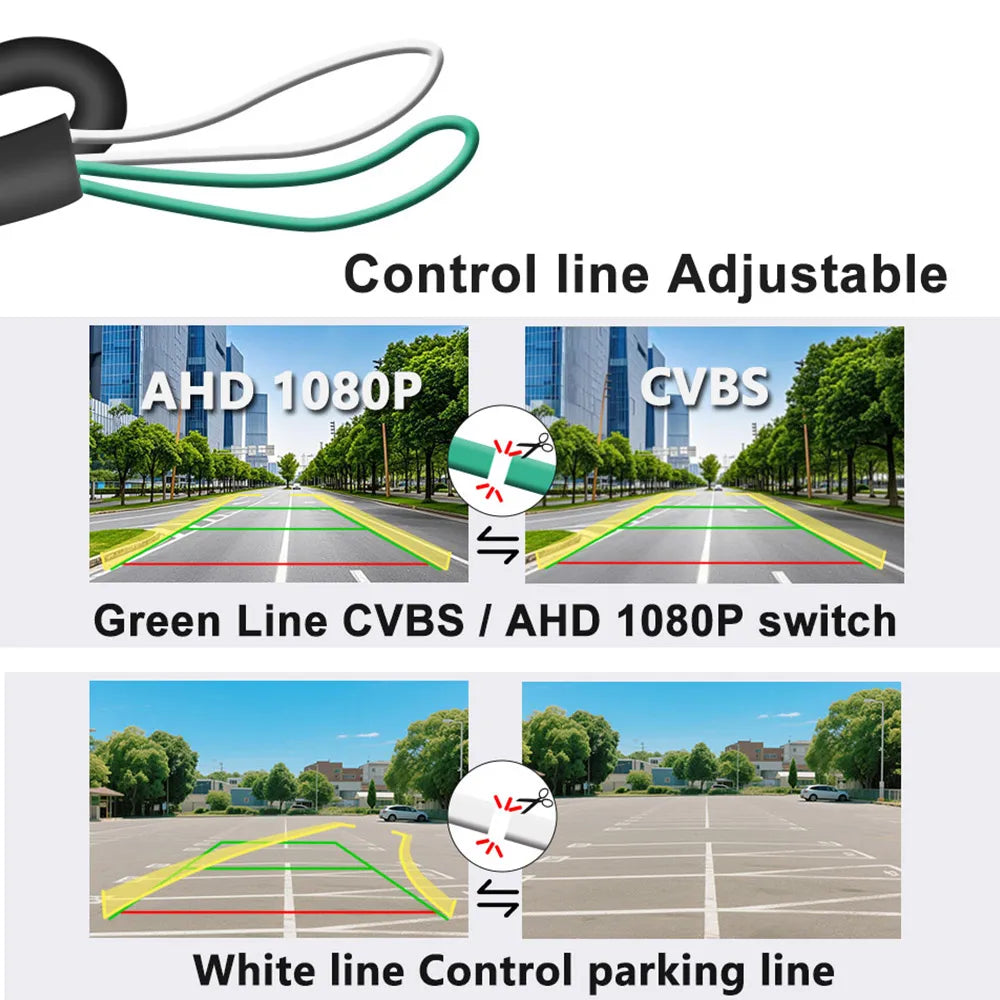

Control leads configure the video format and guide-line overlay.
Dynamic guide lines respond to vehicle movement, not steering-wheel input.

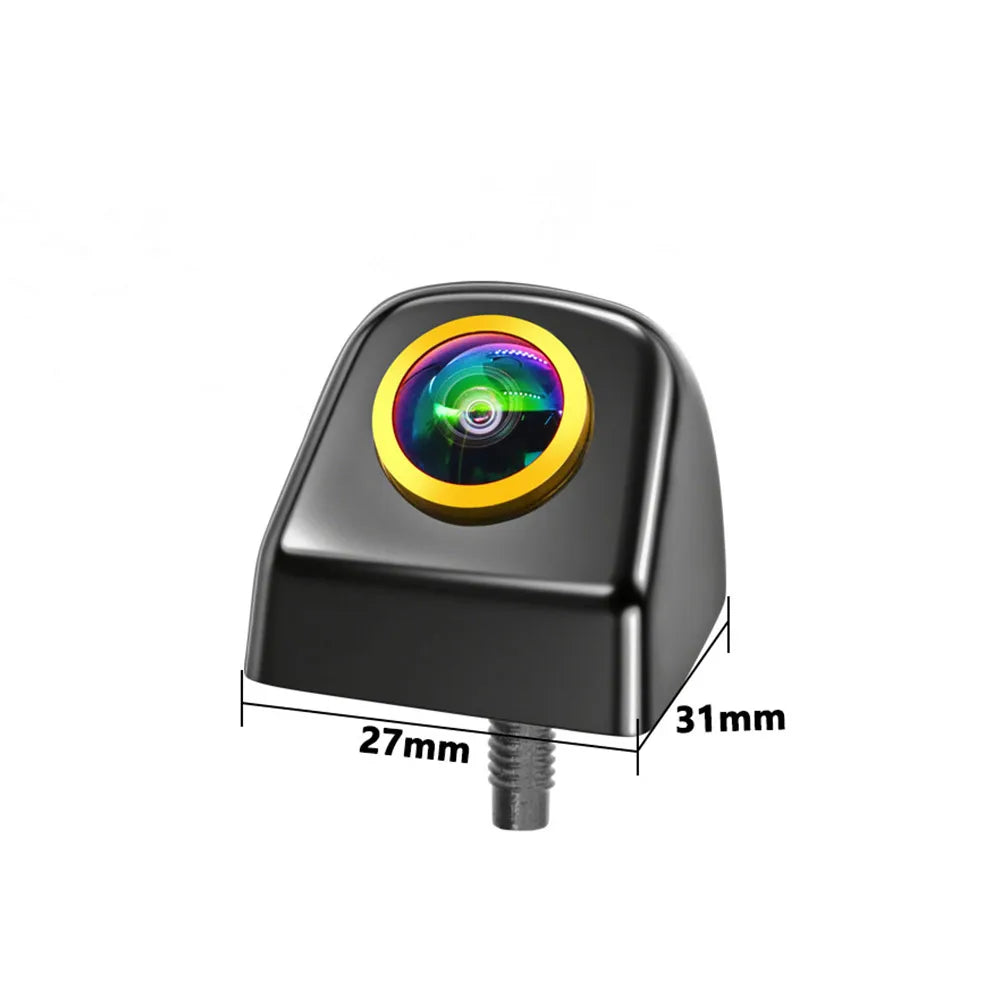

The illustrated body footprint is approximately 27 × 31mm.
The lead exits through the rear threaded mounting point.

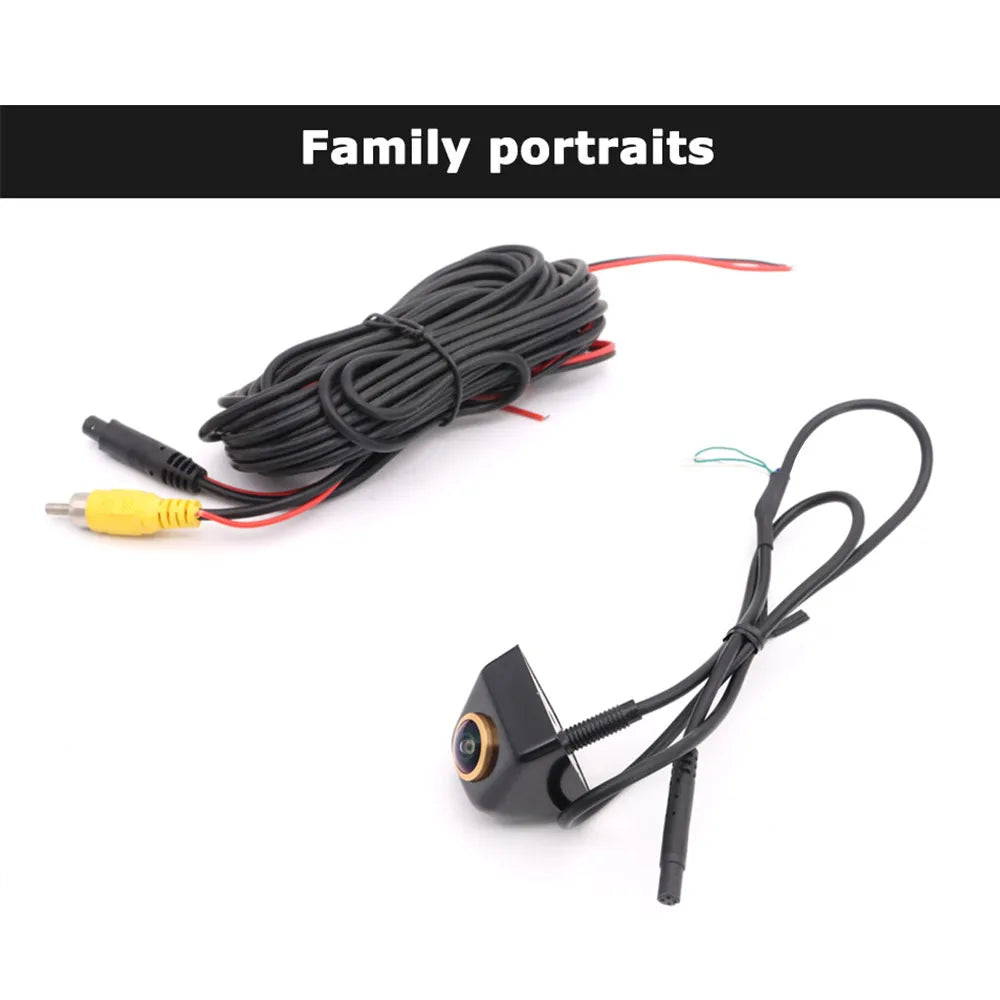

The package contains the camera, video cable and power lead.
Technical details
- Product: wired rear reversing camera
- AHD format stated: 1080p at 25fps
- Alternative configuration: CVBS
- Video connection: RCA
- Guide lines: movement-based dynamic overlay; can be disabled
- Steering-wheel integration: not included
- Video cable: 6m
- Mounting: rear threaded point
- Package: 1 camera, video cable and power lead
- Requirements: compatible display and appropriate power connection; display not included
Match this camera to your display to add a compact rear view with a configurable parking-line reference.
