V106 OBD2 Engine Code Reader with Live Data & Colour Screen
Get a useful starting point when an engine warning light appears. The V106 wired OBD2 reader retrieves engine diagnostic codes and available live data from compatible OBD-II vehicles. It is for owners and workshop users who want to investigate before planning further checks.
- ✅ Read the stored code before deciding what to inspect — The reader retrieves available engine trouble codes from the vehicle.
- ✅ Watch values during a controlled diagnostic check — Live-data and graph views show available parameters.
- ✅ Keep fault-time context alongside the code — Freeze-frame access retrieves the vehicle's available snapshot data.
- ✅ Share findings with a repairer — The QR-based report feature lets a phone open retrieved diagnostic information.
- ✅ Check readiness before further testing — The I/M screen displays the vehicle's available monitor status.
Turn an engine warning into information you can use
Plug the wired reader into a compatible vehicle's OBD-II diagnostic connector and use its colour screen and physical buttons to navigate the menus. The tool reads engine-related OBD data rather than providing a confirmed all-system scan of ABS, airbags or other manufacturer-specific modules. Vehicle protocol and function availability must match the reader.
A code points to a condition or circuit that needs investigation; it does not identify a failed part by itself. Use live values, freeze-frame information and the vehicle's service information to guide the next check. The voltage screen adds a supply-voltage reading, not a complete battery-capacity test.
Record relevant information before clearing codes. Clearing does not repair the cause and can reset readiness data. One V106 reader with its attached diagnostic lead and instructions is supplied. A phone or printer used with the QR report feature is separate.

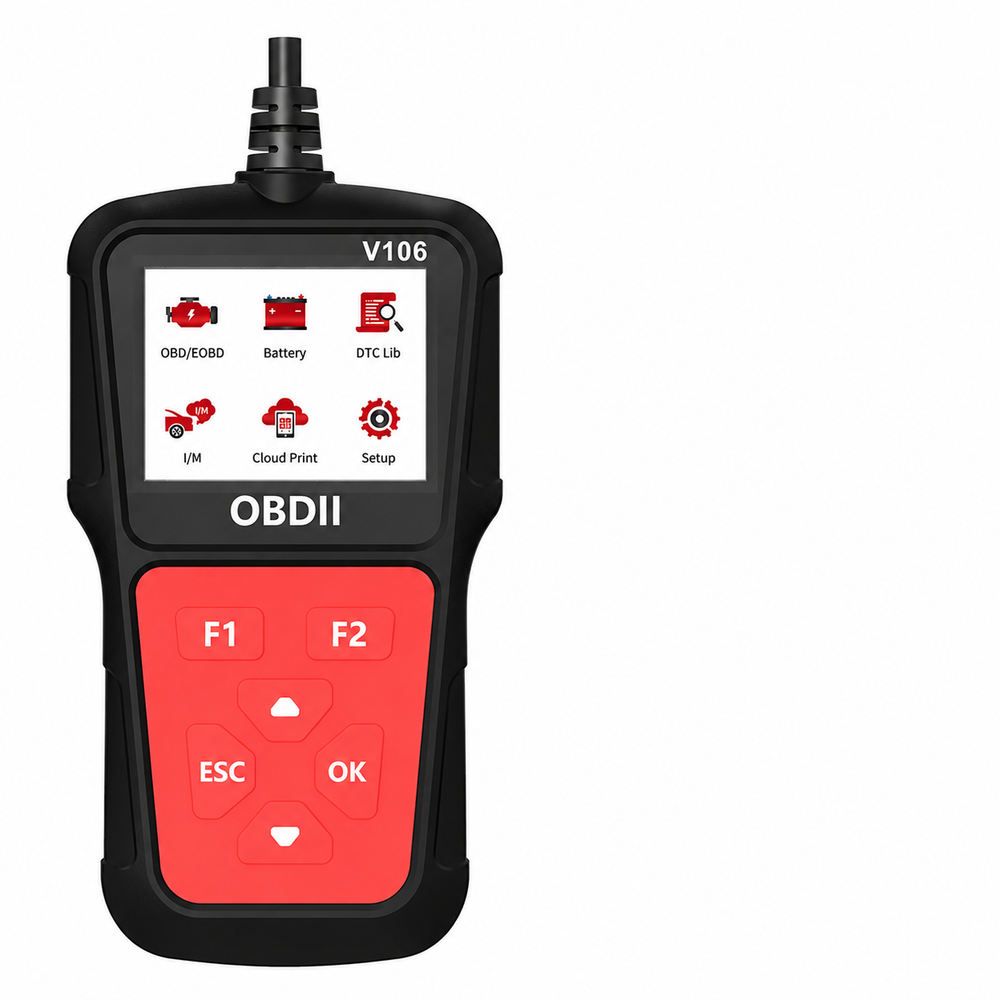

The V106 has an integrated colour screen and physical navigation buttons.
Available functions depend on the connected vehicle's OBD data.
The specification panel shows the reader and included instructions.

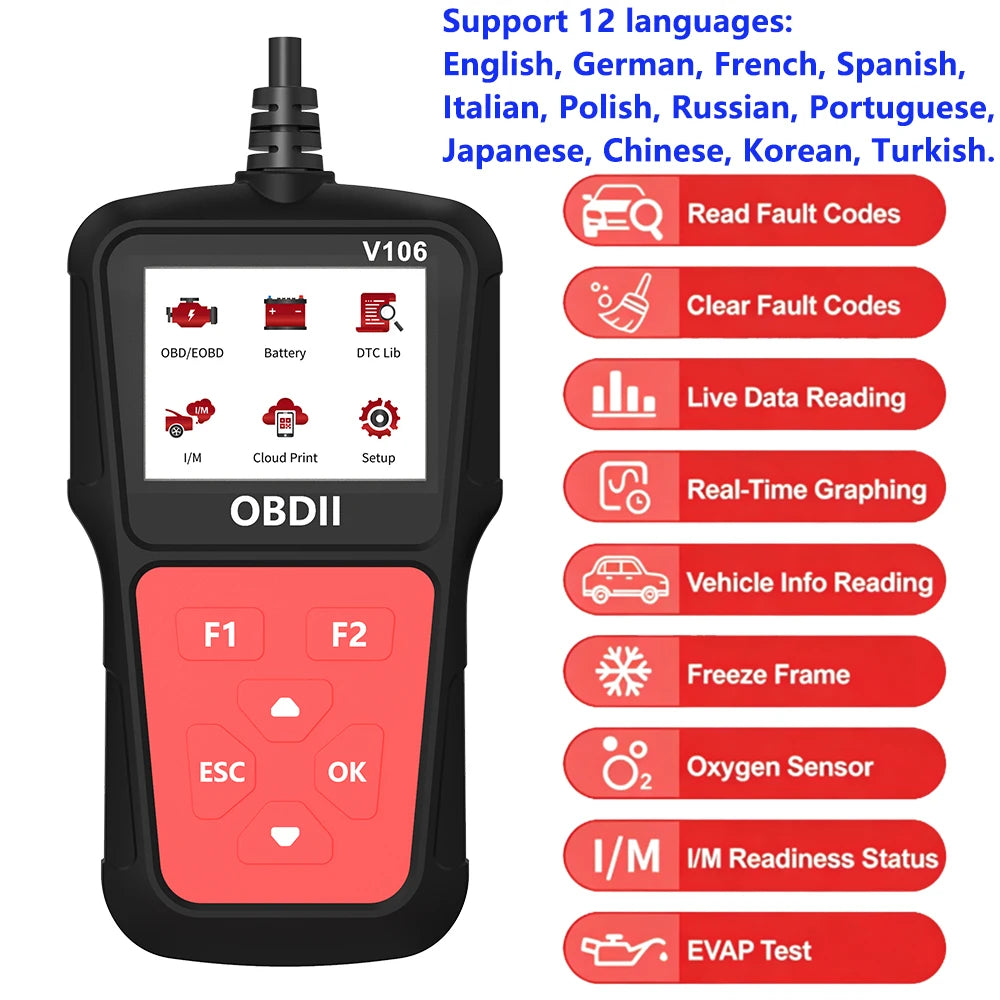

Menus include code reading, live data and readiness information.
Live-data pages display parameters supplied by a compatible vehicle.
Read and record codes before using the clearing function.

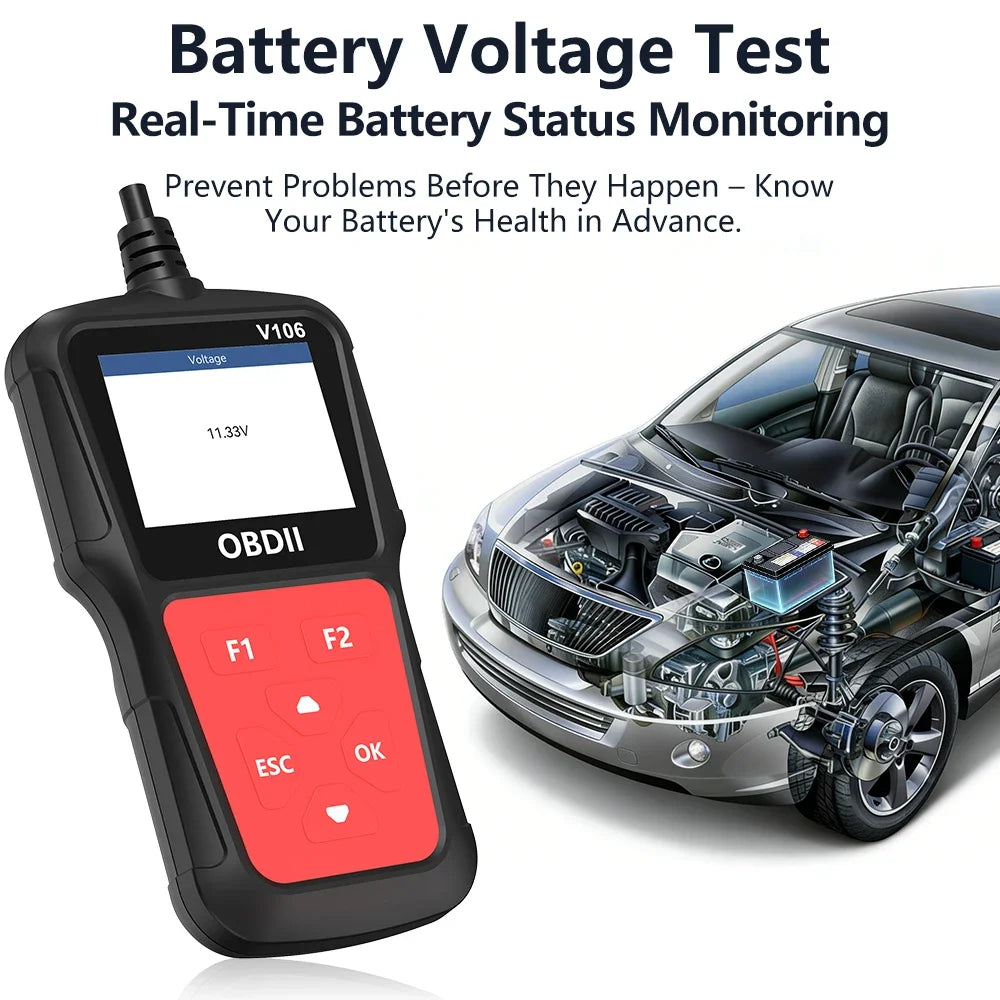

The voltage screen gives a supply-voltage reading, not a full battery-health result.
Scan the report QR code with a separate phone to open diagnostic information.
The compact reader stores easily between diagnostic checks.
Freeze-frame and emissions-related functions depend on vehicle availability.
Technical details
- Model: V106
- Interface: wired OBD-II
- Diagnostic scope: engine-related OBD functions on compatible vehicles
- Screen: 2.4-inch colour display
- Operating voltage stated: 9–16V
- Functions: code reading/clearing, live data, graphs and freeze frame
- Additional functions: I/M readiness, available oxygen-sensor/EVAP data, vehicle information and voltage
- Languages stated: English, German, French, Spanish, Italian, Polish, Russian, Portuguese, Japanese, Chinese, Korean and Turkish
- Dimensions stated: 144 × 79 × 21.5mm
- Package: 1 reader with attached diagnostic lead and instructions; phone/printer not included
Keep the V106 ready to read available engine codes and gather useful information before the next repair decision.
