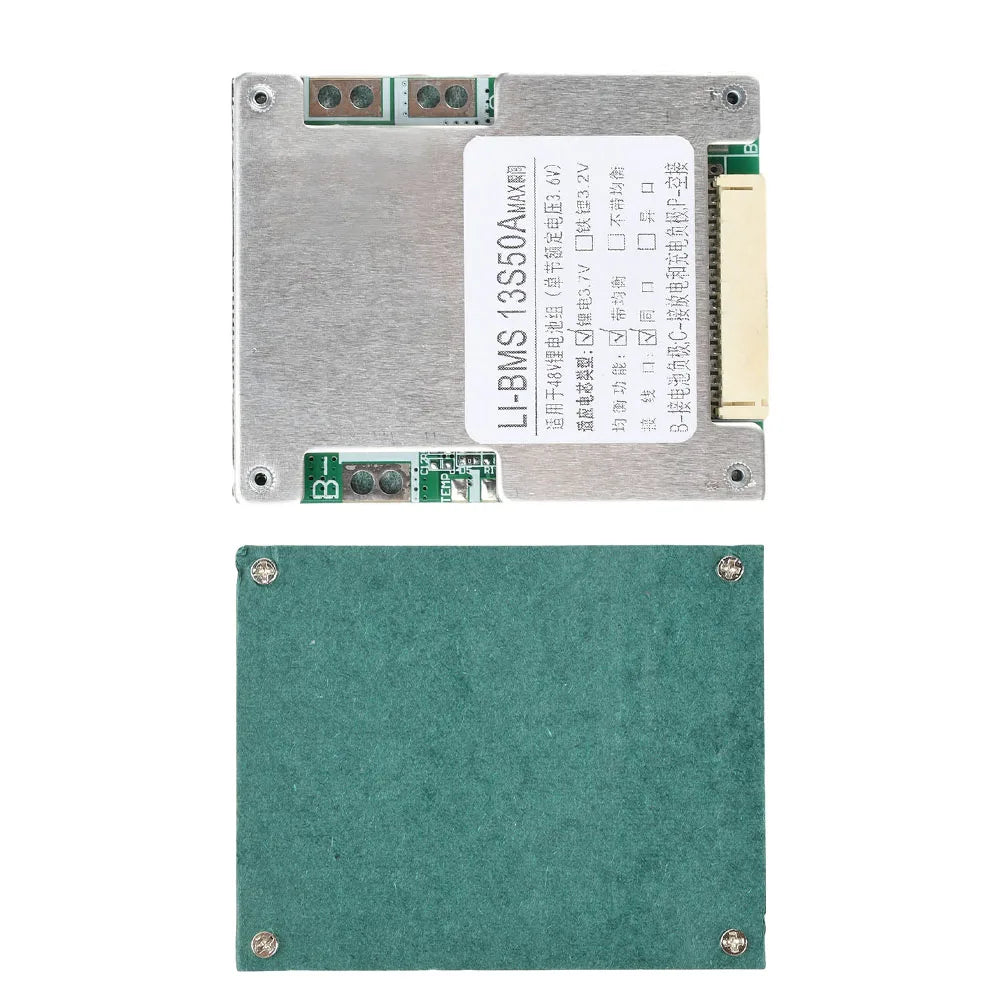

13S Lithium-Ion Battery Protection Board with Balance Lead
Add the specified protection and balancing functions to a correctly designed thirteen-series lithium-ion pack. This board is intended for supported 3.7 V nominal cell chemistries in a 48 V-labelled arrangement.
✅ Monitor the cell groups - A matched BMS manages the listed overcharge and overdischarge functions.
✅ Include balancing support - The circuit provides the specified group-balancing function.

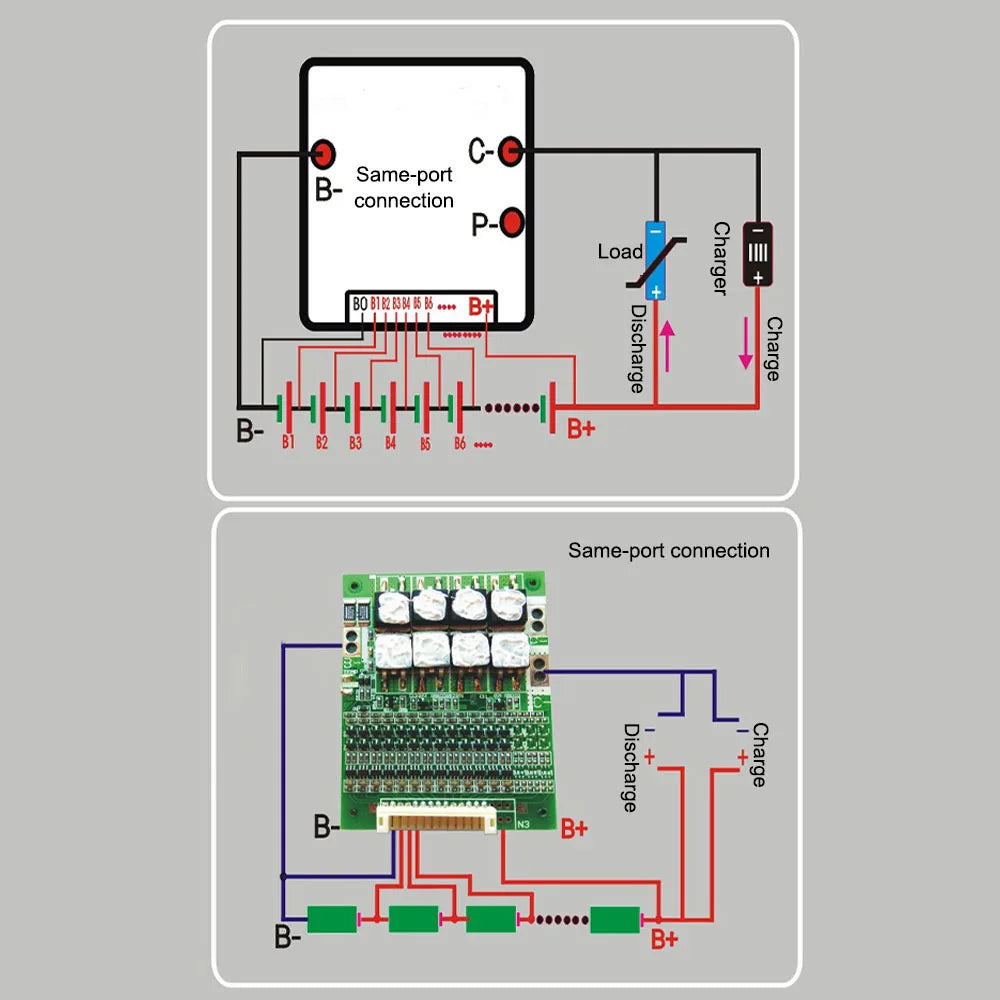

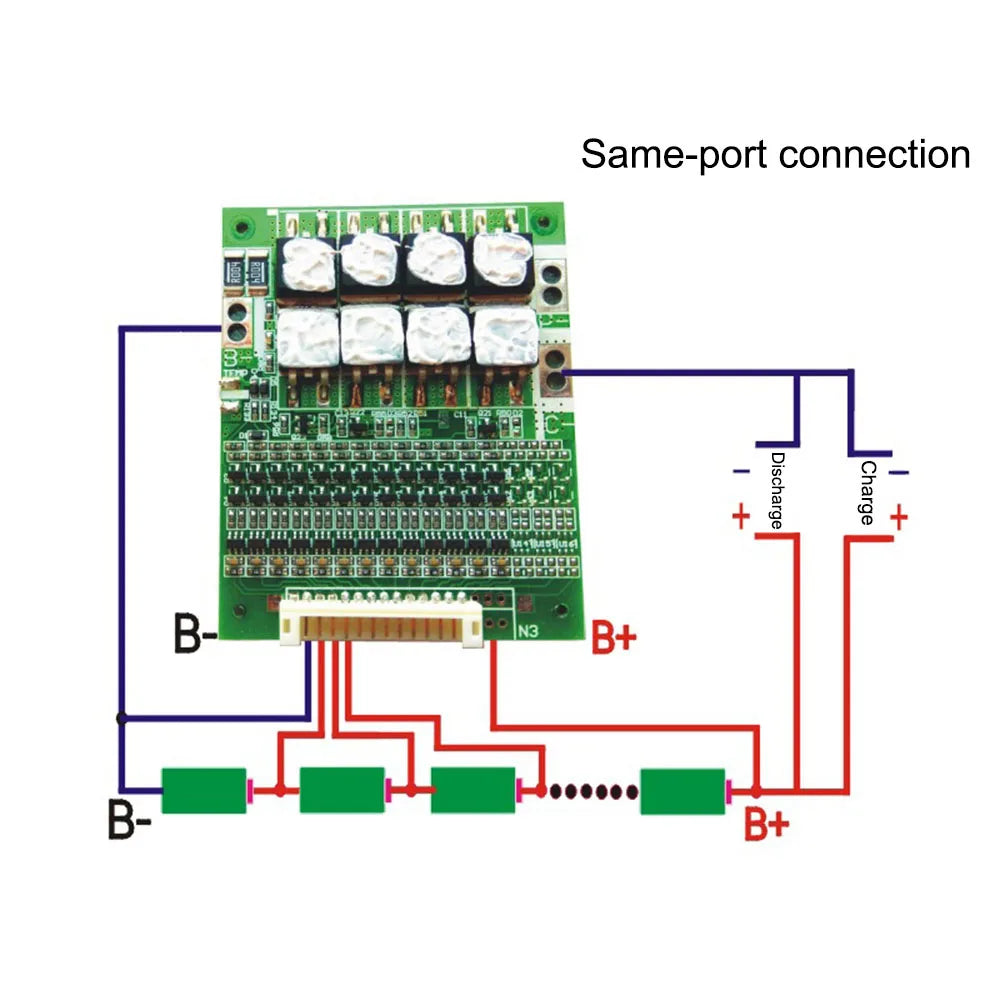

✅ Connect with the sampling harness - The package includes the lead required for the correct cell-group connections.
Match the Chemistry and Current Rating
The described continuous working limit is 40 A, with 50 A maximum and up to 40 A charging under the specified conditions. Verify actual derating and the complete datasheet before building the pack.
The board is intended for listed ternary, lithium-cobalt-oxide or lithium-manganate cells, not a LiFePO4 substitution. Pack wiring, fusing, insulation and the separate charger must all match the design.
Technical details
- 13S Li-ion BMS
- 48 V-labelled pack arrangement
- 40 A stated continuous limit
- 50 A stated maximum
- Balance function

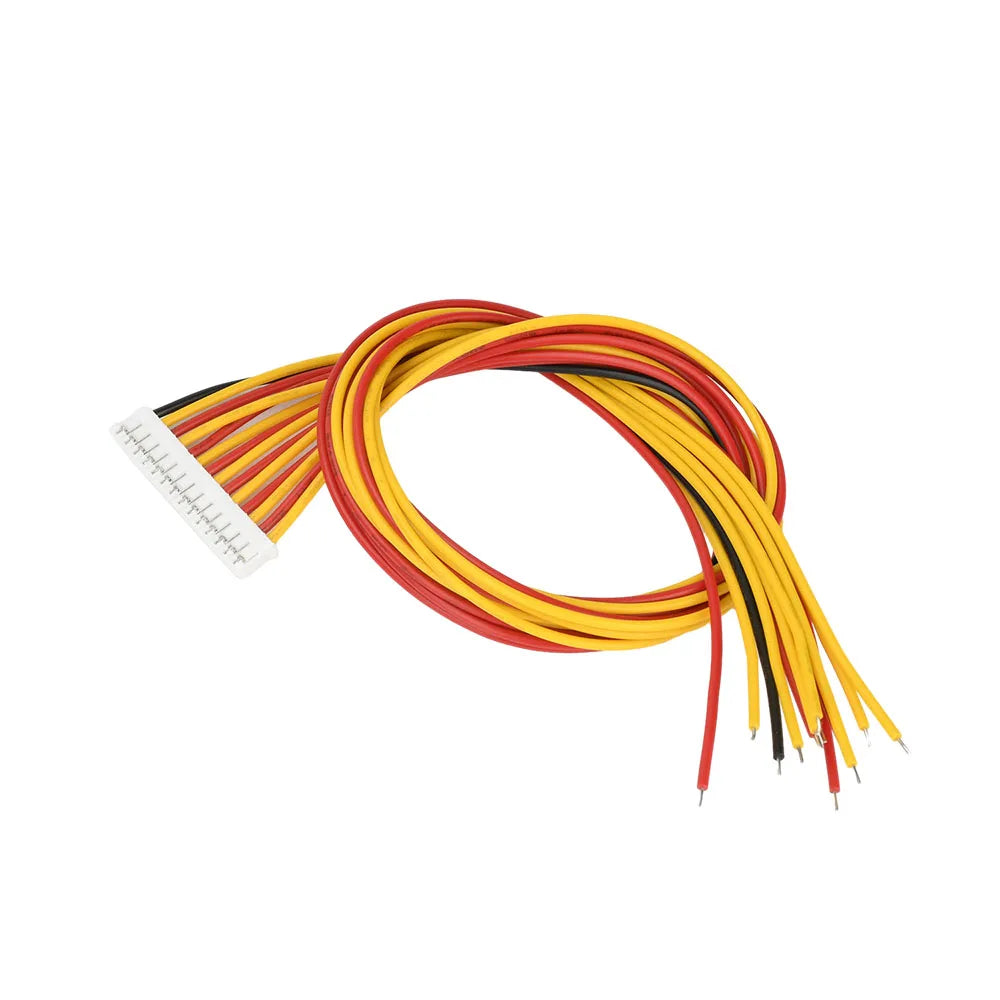

- Protection board and sampling cable
- Cells and charger separate
Choose a management board matched to your full battery design.
