SPECIFICATIONS

AC Current: 20mA/10A

AC Voltage: 0.5V~600V

Battery Included: no

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 20mA/10A

DC Voltage: 0.5V~600V

DIY Supplies: Electrical

Dimensions: Multimeter

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: M118A Digital Mini Multimeter

Measuring Inductance Range: Multimeter

Measuring Resistance Range: 0.1~50 Ohm

Model Number: M118A Digital Mini Multimeter

Operating Mode: Manual Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

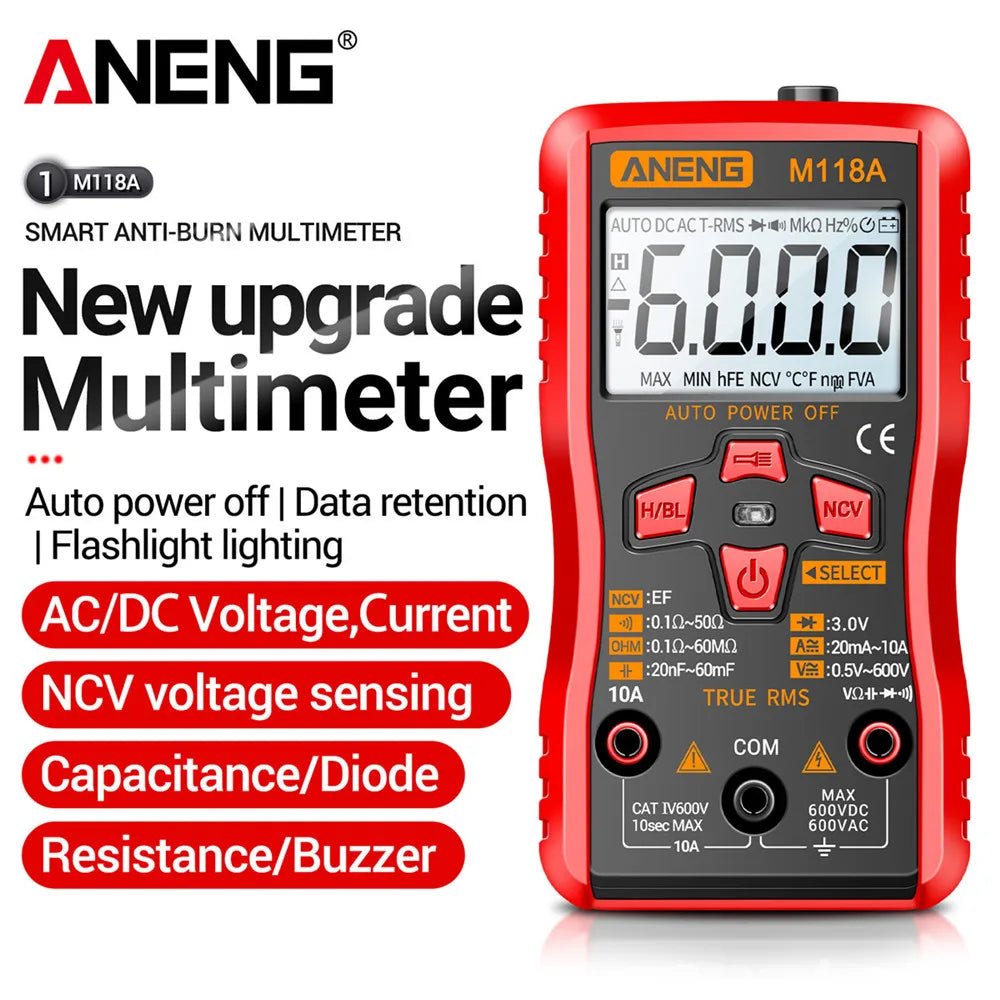

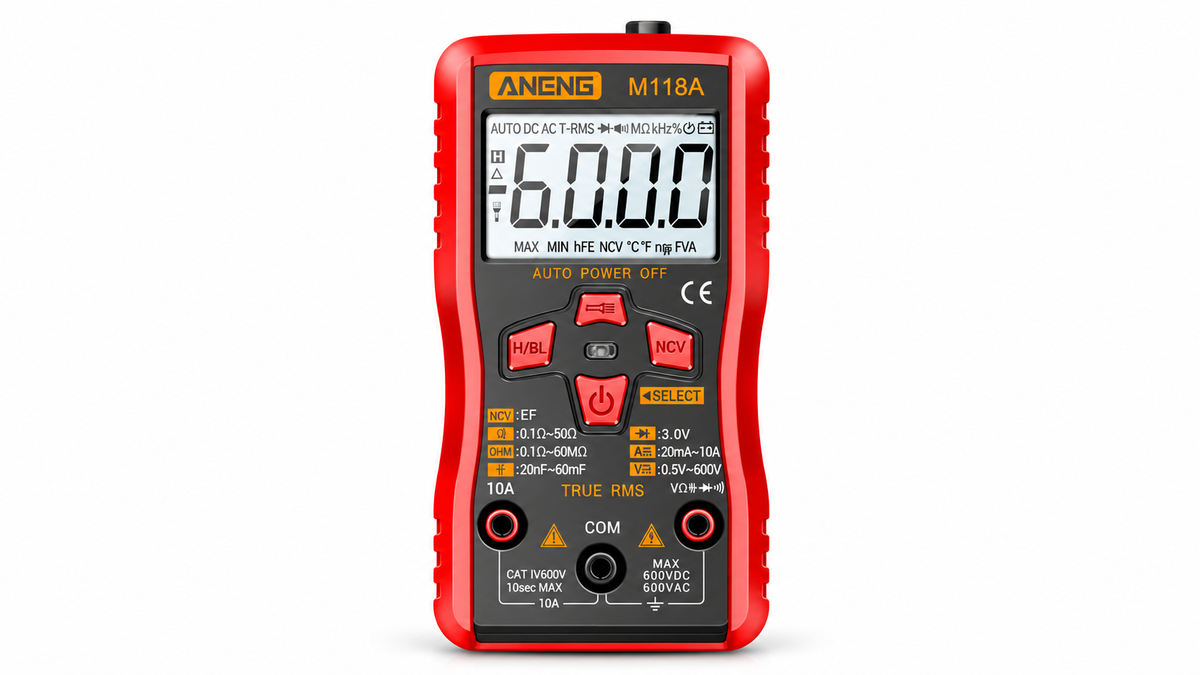

ANENG M118A Digital Multimeter True RMS Tester 6000 Counts Auto-Ranging AC/DC Transistor Voltage Meter

Description:
M118A is a 6000 count pocket type 3 5/6 digit true effective value automatic scanning digital meter.
M118A automatically recognizes and measures according to the different input voltage/current/resistance/etc. signals.
M118A has the characteristics of stable performance, high precision and clear reading.

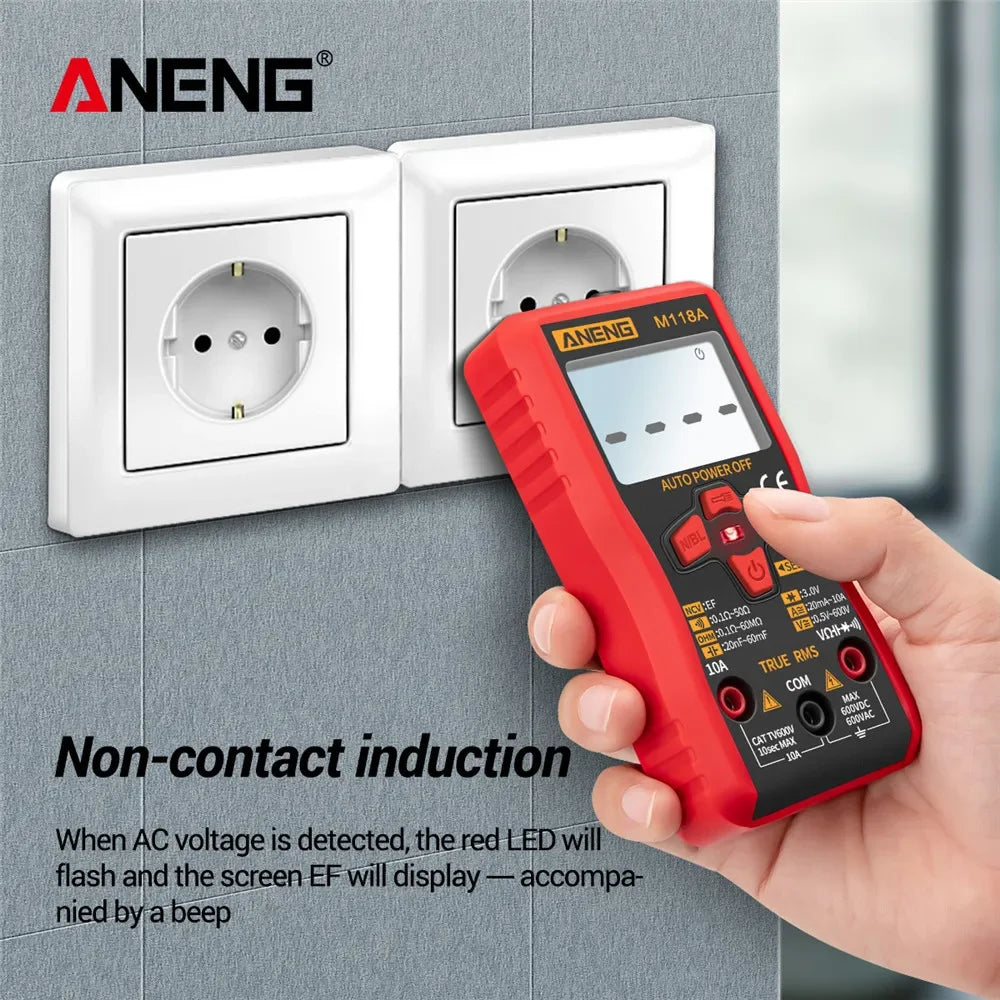

M118A also has additional convenient functions of flashlight and non-contact voltage test,
M118A is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.

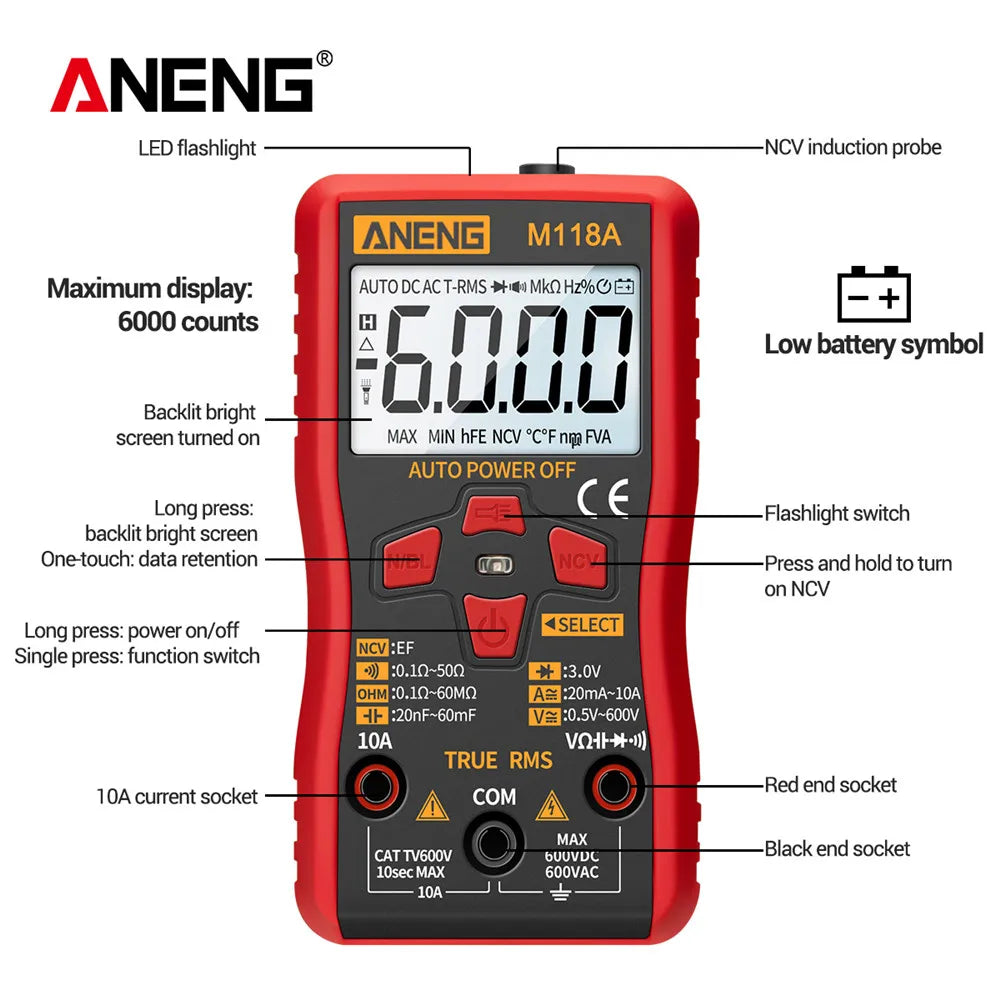

Features:

Brand	ANENG	Model	M118A
Resistance	Yes	Display	6000 counts
capacitance	Yes	continuity test	Yes

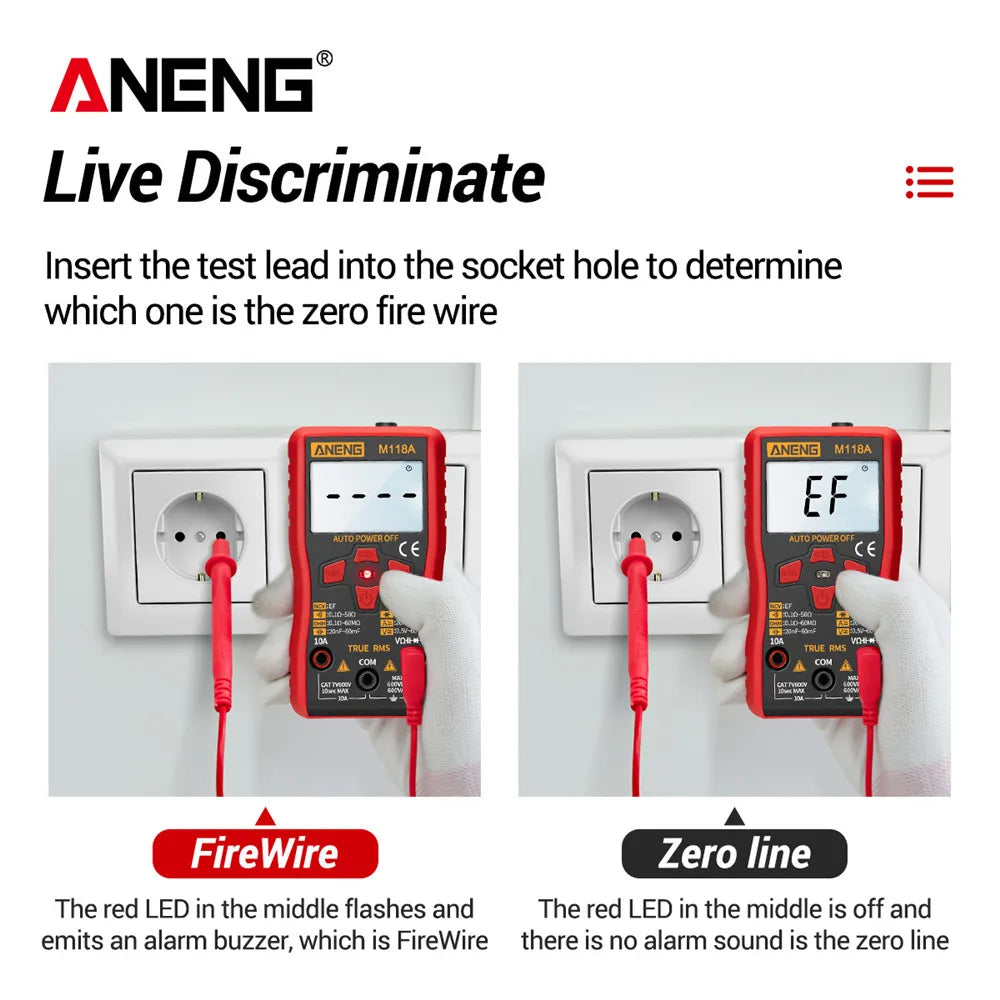

NCV	Yes	Zero line/Fire line test	Yes
All unit symbol	Yes	Backlight manual	Yes
true RMS	Yes	automatic shutdown	Yes
Flashlight lighting	Yes	diode	Yes
Sampling rate	Yes	power supply	2 * 1.5V AAA

	Range	Accuracy
DC/AC voltage	6V/ 60V/ 600V	±(0.5%+3)
Resistance	600Ω	±(0.8%+5)
	6kΩ/60kΩ/600kΩ/6MΩ	±(0.8%+3)
	60MΩ	± (2.5%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF	±(3.5%+20)
	60mF	±(5%+3)
AC / DC current	6A/10A	±(2%+30)

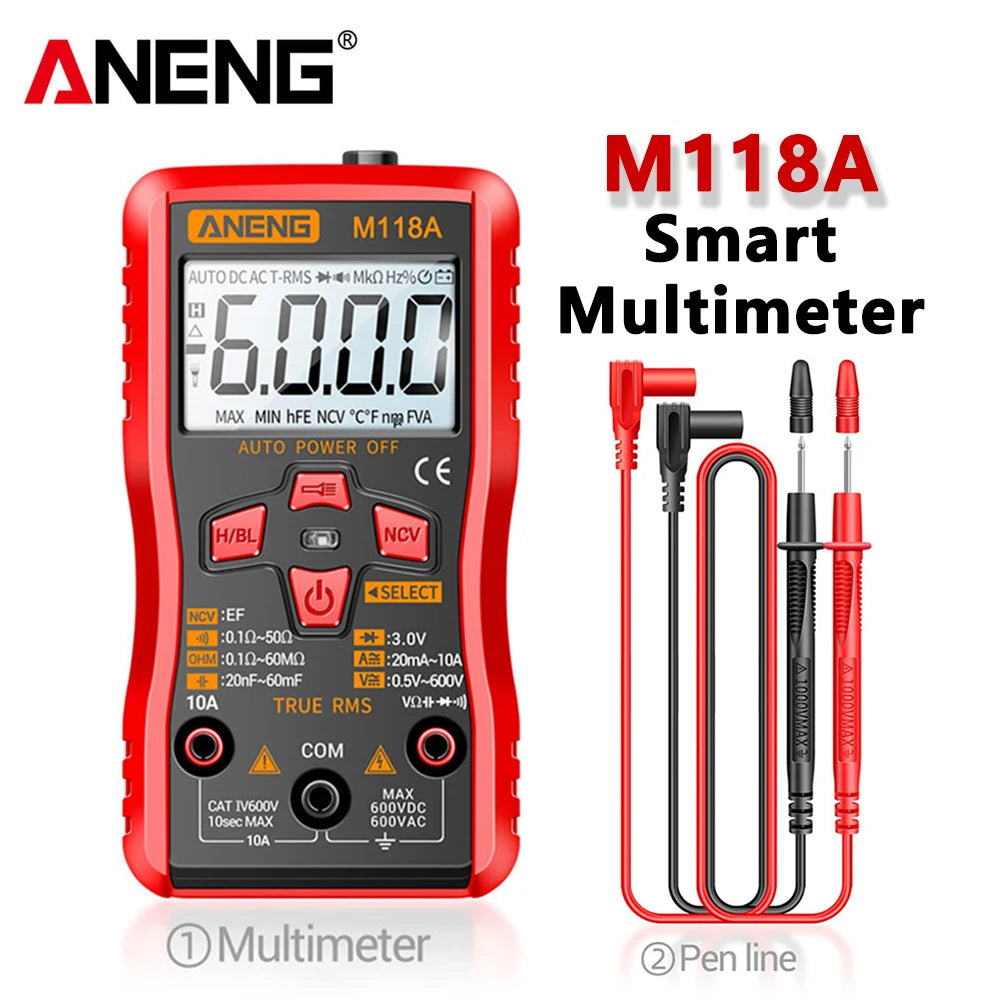

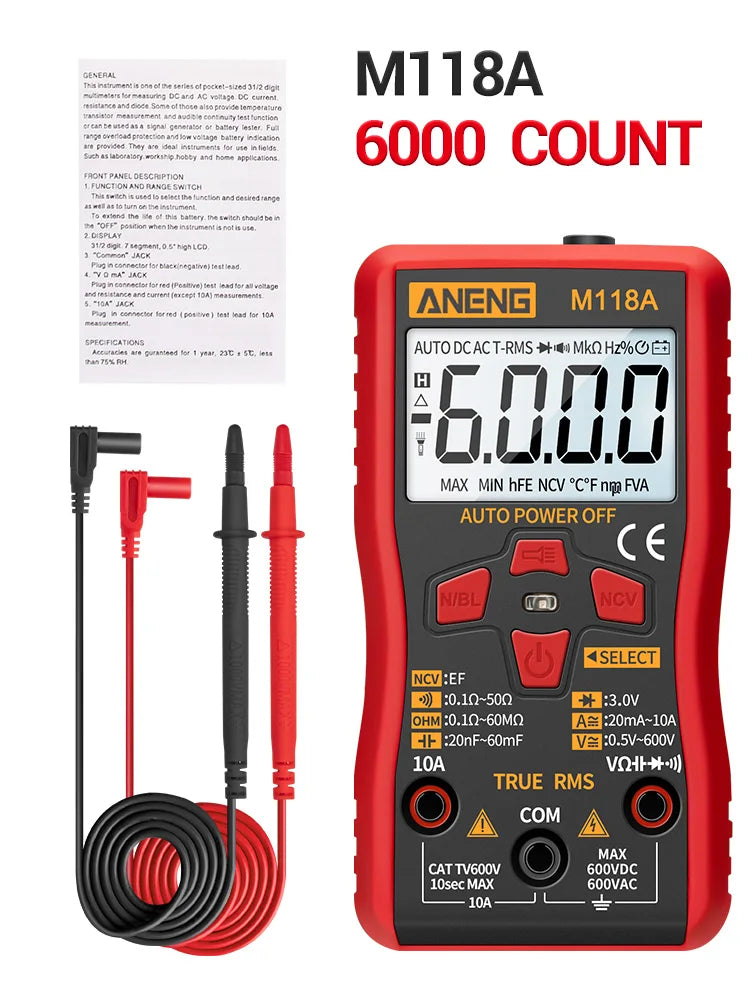

Packing List:（Without Battery）
1 * Digital Multimeter
1 * Test leads
1 * user Manual
