Car Reversing Camera 170° AHD 1080P or 720P, Steel Body

A tight multi-storey car park is easier with a wide view behind the bumper. This wired reversing camera uses a 170° fisheye lens and starlight night vision, and it runs on 12–24 V through a built-in step-down module. Choose the AHD 1080P or 720P version your monitor supports. Suits cars, vans and light commercials.

AHD or CVBS: pick the camera your monitor sees

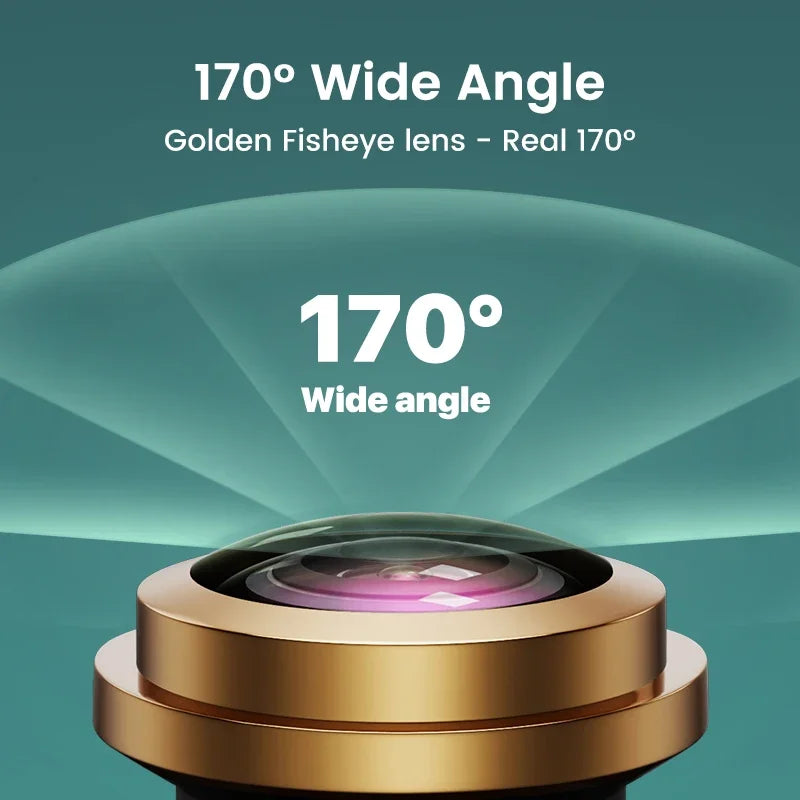

✅ Easier parking in tight bays The 170° fisheye lens covers more of the ground behind the bumper as you line up.

✅ A picture you can read at night Starlight night vision keeps the view usable on unlit driveways and dark loading yards.

✅ One camera across a mixed fleet An integrated step-down module accepts 12–24 V, so cars, vans and lorries can share it.

✅ Guide lines you can switch off A green control wire turns the parking overlay on or off for a clear view.

✅ Cable runs that reach the rear The 6 m pure copper video cable covers most estate cars and panel vans.

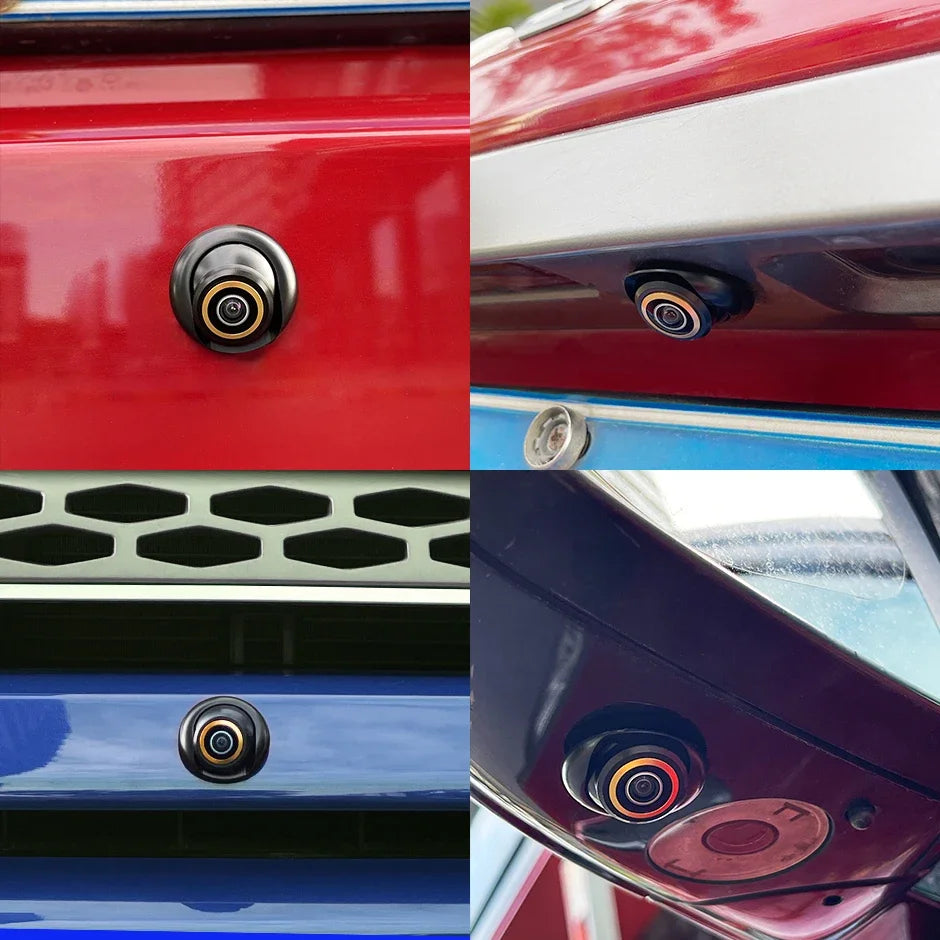

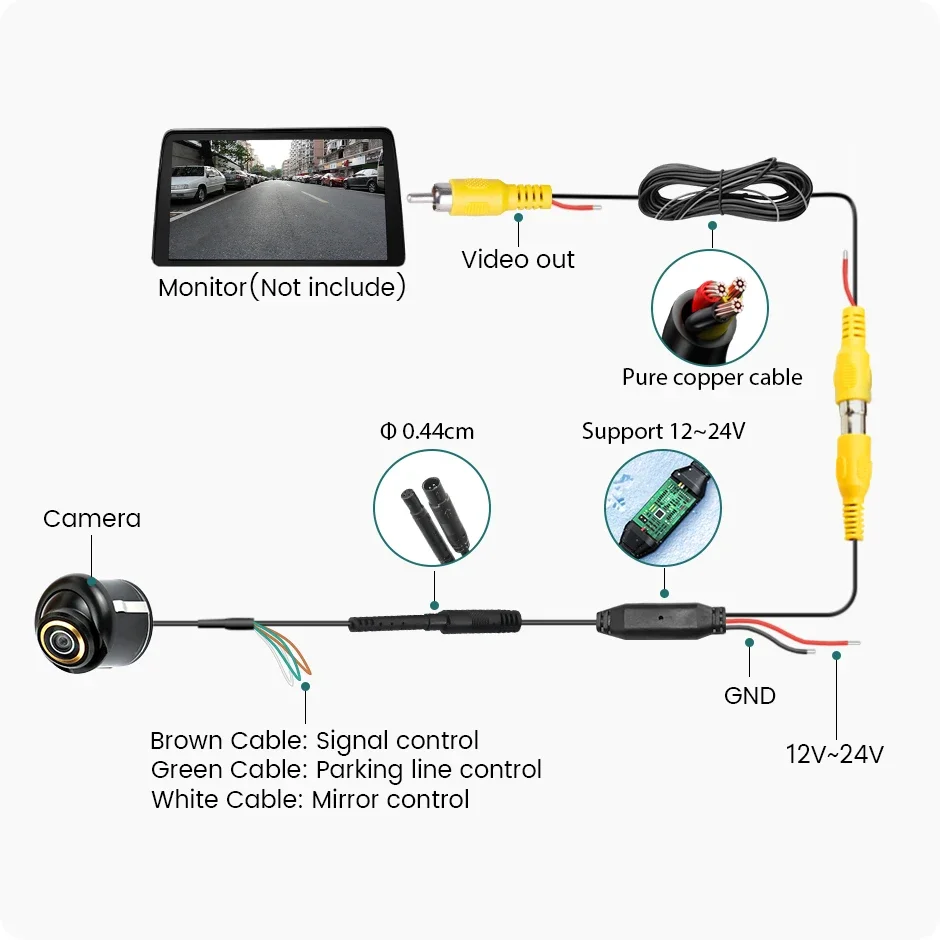

Fitting starts at the rear: the camera body mounts through a drilled opening, and the six-metre copper cable runs forward to the monitor or head unit. White, brown and green control wires cover the mirror image, the signal and the parking-line overlay.

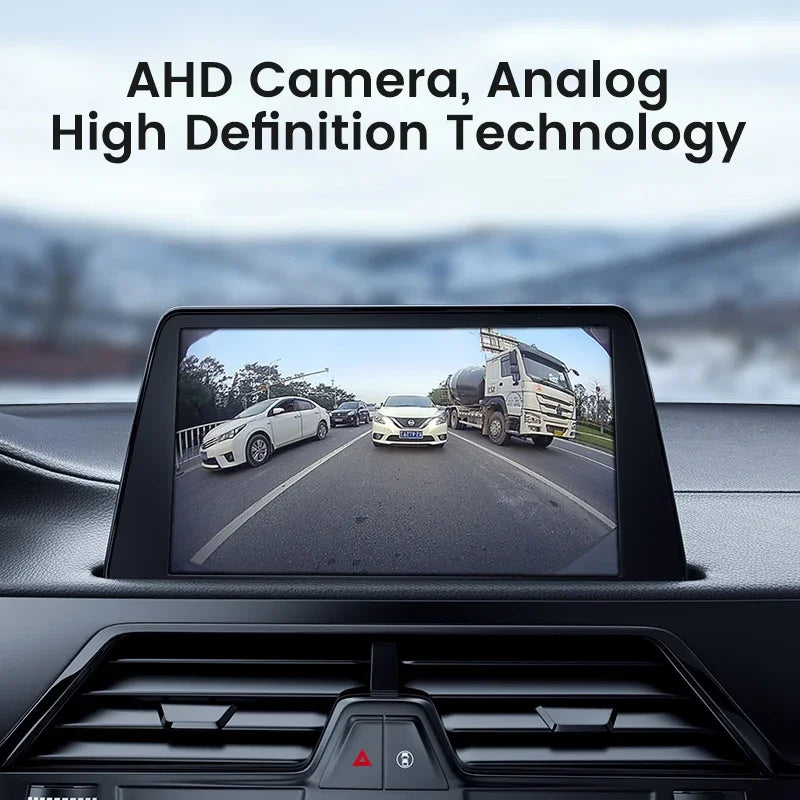

The choice that matters most is your screen. A CVBS camera works with standard monitors, while the AHD 1080P version needs a monitor or Android head unit that can display AHD. If the reverse-camera menu in the head unit's factory settings offers no AHD1080P option, that unit will not show an AHD picture.

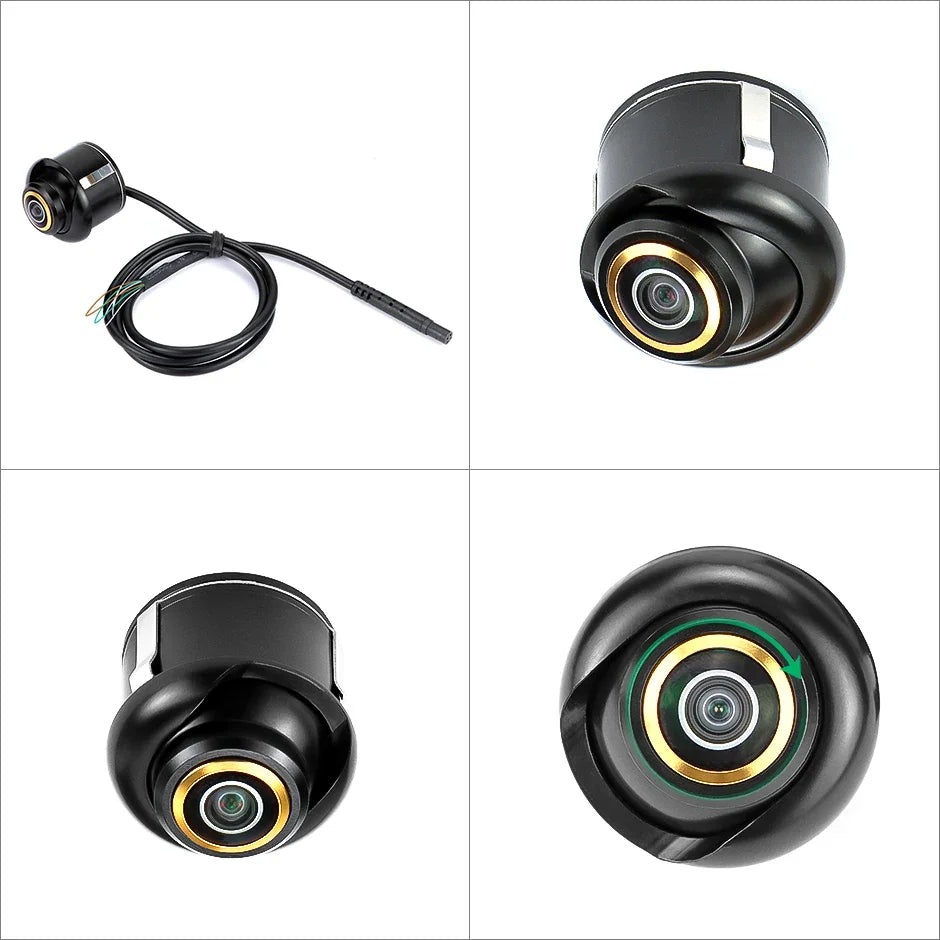

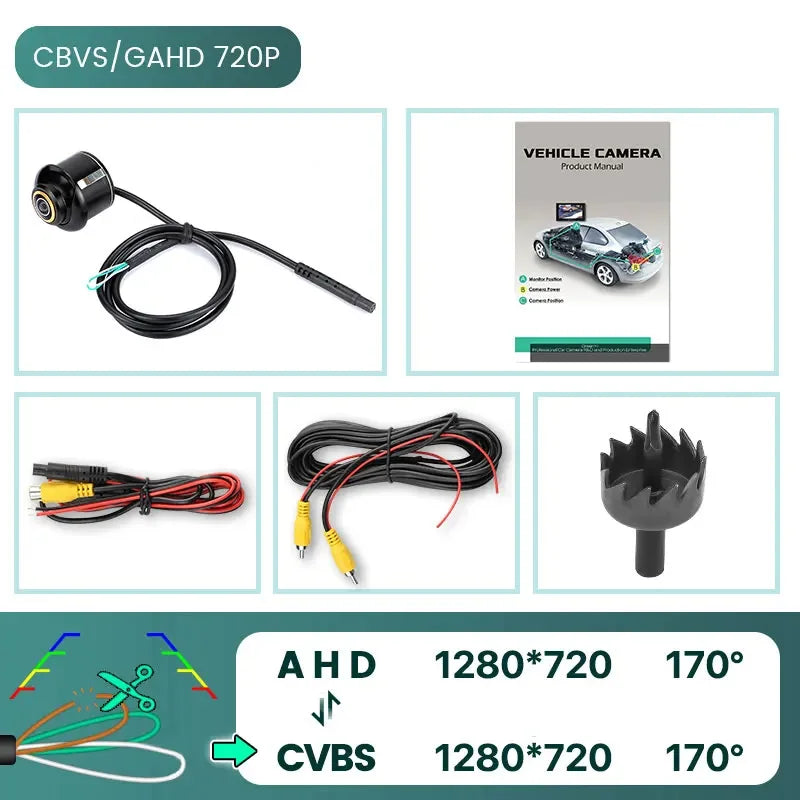

The two versions differ by more than resolution. The 720P variant is the safer match for an older head unit, while the 1080P version gives a sharper image on a display that supports it. The housing is stainless steel, with a plastic and glass lens assembly.

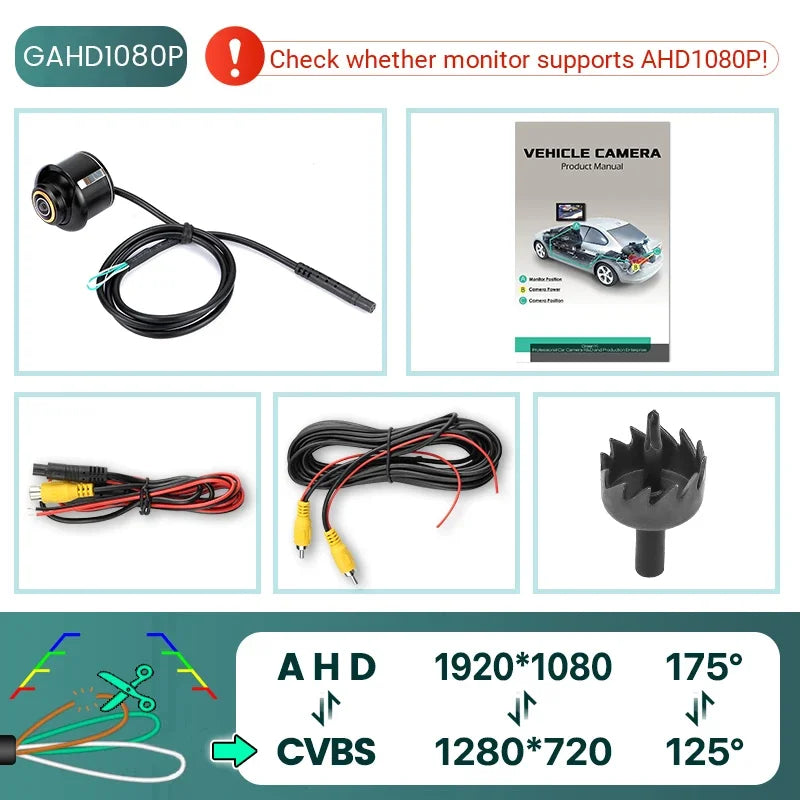

In the box you get the camera, a power cable, the six-metre video cable and a user manual. A monitor or head unit is not part of the kit, so plan for one if your vehicle has no screen at the rear.

Technical details

• Viewing angle: 170° fisheye lens
• Video signal: AHD 1080P or 720P, per variant
• TV system: NTSC or PAL, per variant
• Power: DC 12–24 V, integrated step-down module
• Video cable: 6 m pure copper
• Housing: Stainless steel shell; plastic and glass lens
• Night vision: Starlight
• Parking lines: Switchable on the green control wire

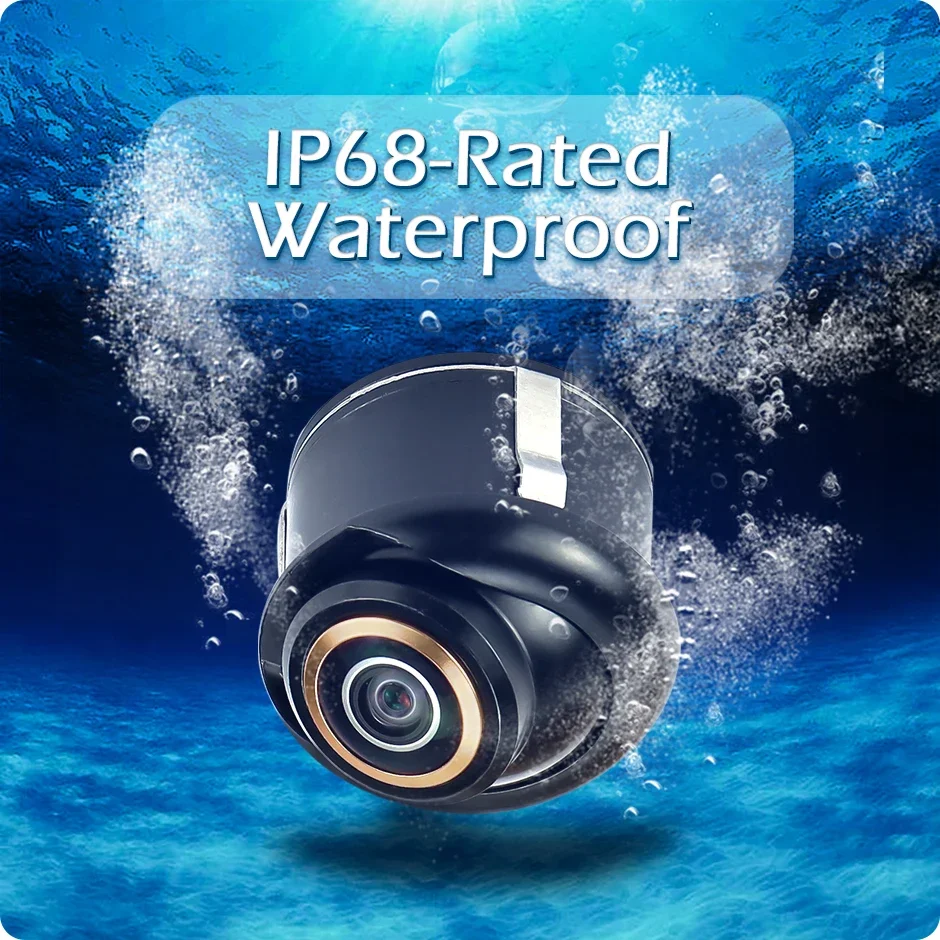

• IP rating: IP68 as stated for the camera
• In the box: Camera, power cable, 6 m video cable, user manual

Check which signal your monitor accepts, then choose 1080P or 720P before ordering.
