V500 Grey OBD2 Code Reader with Live Data & Readiness Check
Get useful engine information before making your next repair decision. This grey V500 code reader connects by cable to compatible OBD-II vehicles and shows available codes, live values and readiness status. It is for owners and workshop users who want a dedicated handheld reader.
- ✅ Read the warning's diagnostic information — Code-reading and lookup menus give a starting point for further checks.
- ✅ Watch values during a controlled test — Live-data graphs show parameters available from the connected vehicle.
- ✅ Check readiness before further emissions testing — The I/M menu displays available monitor status.
- ✅ Refer back to fault-time conditions — Freeze-frame access retrieves available recorded information.
- ✅ Navigate without using your phone — Physical controls and a colour screen keep the diagnostic interface in one handheld unit.
Review available engine data on a dedicated screen
Connect the attached lead to a compatible diagnostic socket and use the arrow, OK, exit and DTC controls to navigate. The grey V500 combines code reading, clearing, lookup and live-data menus. Check compatibility with your exact vehicle before purchase; available functions depend on its diagnostic protocol and data.
Live curves can show available values such as engine speed, coolant temperature and load. The voltage screen offers a supply-voltage reference, not a complete battery-health assessment. Readiness, vehicle information, oxygen-sensor and EVAP information are available only where the vehicle provides them.
Record codes and relevant data before clearing anything. Erasing a code does not repair a fault and can reset monitor readiness. One grey reader with its attached OBD lead is supplied. No separate battery is included; operation uses the compatible diagnostic connection.

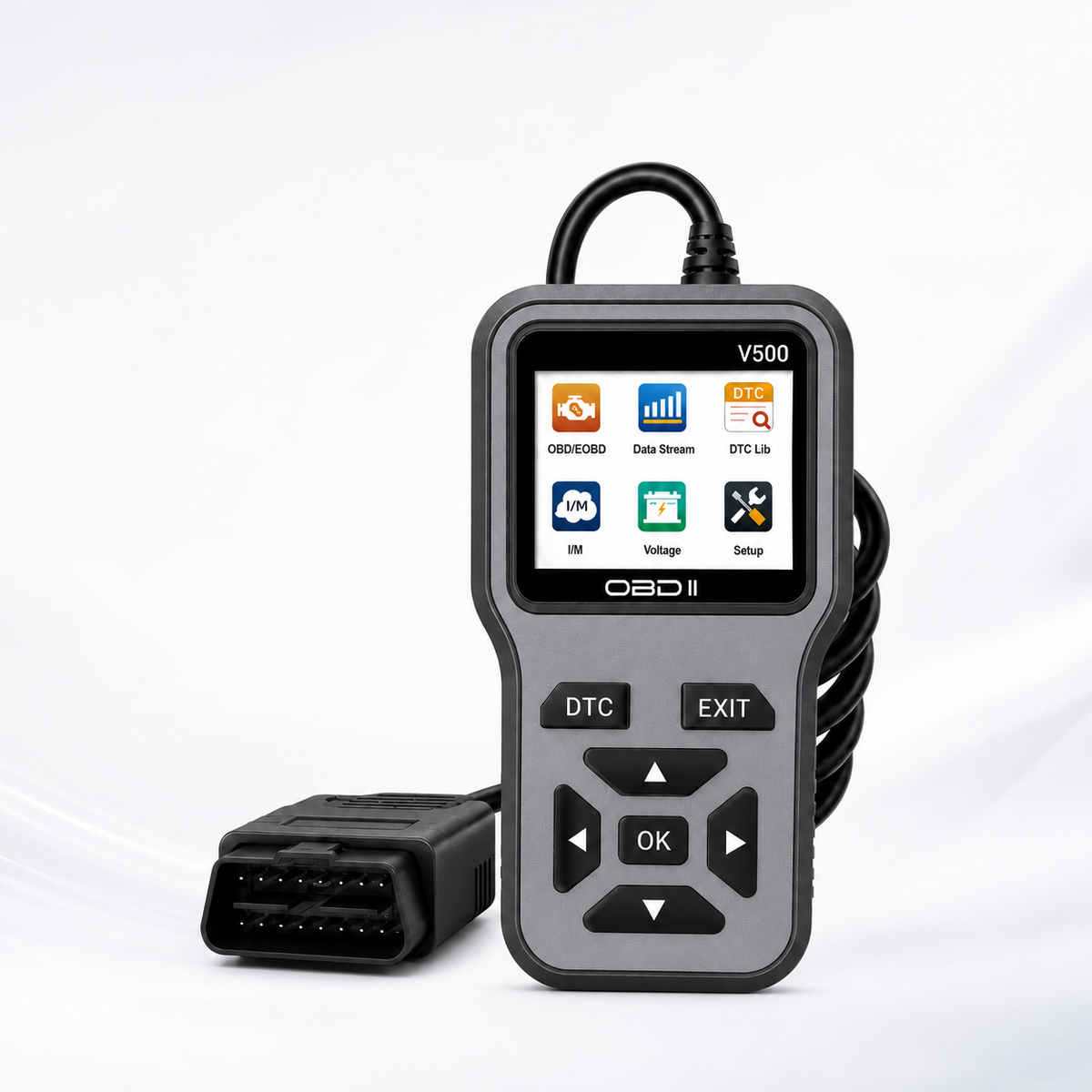

The grey V500 puts its main menus on a colour screen.
Read and record fault information before considering code clearing.
The voltage view provides a supply-voltage reference.
Review available values as live data and curves.
Engine information provides a starting point for further investigation.
Physical buttons navigate the wired reader.
Approximate body dimensions are 15.34 × 8.88 cm.
The vehicle determines which diagnostic functions and data are available.
An attached OBD lead connects the reader to the compatible socket.
Technical details
- Model: V500
- Colour: grey
- Interface: wired OBD-II
- Display and control: colour screen with physical navigation keys
- Functions: available engine-code reading/clearing, DTC lookup and live data
- Additional functions: readiness, freeze frame and vehicle information where available
- Voltage: supply-voltage display
- Approximate body size: 15.34 × 8.88 cm
- Power: compatible vehicle diagnostic connection
- Package: 1 grey reader with attached lead; separate battery not included
Keep a dedicated reader in your kit to review available engine information before planning the next check.
