Description

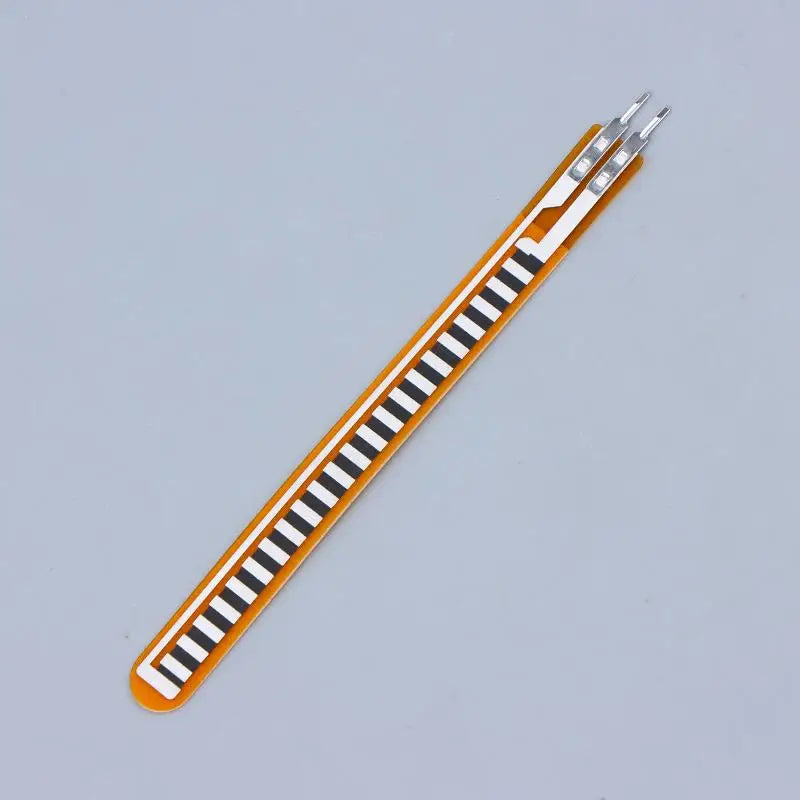

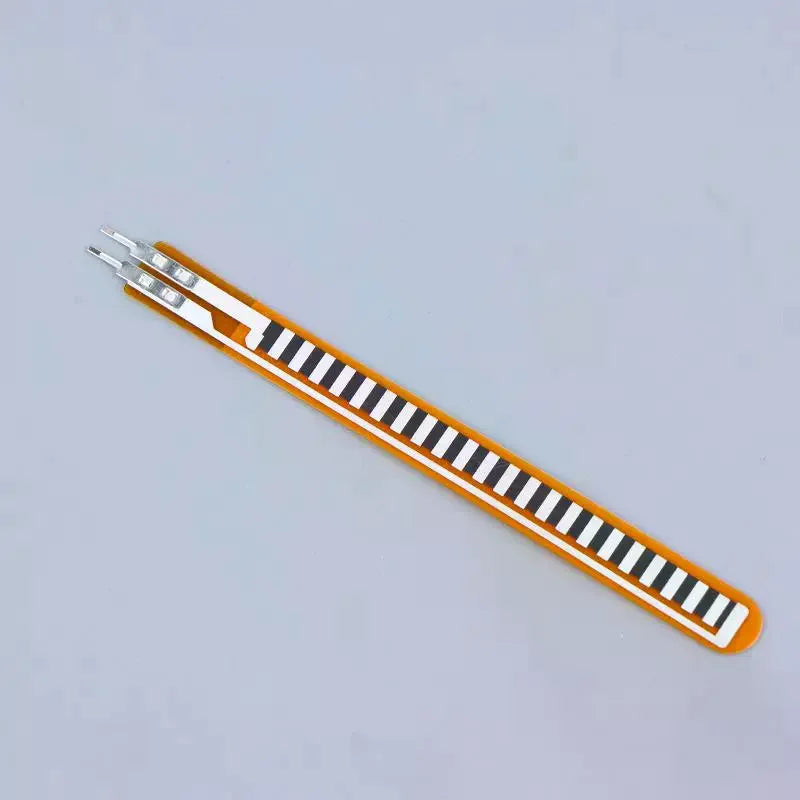

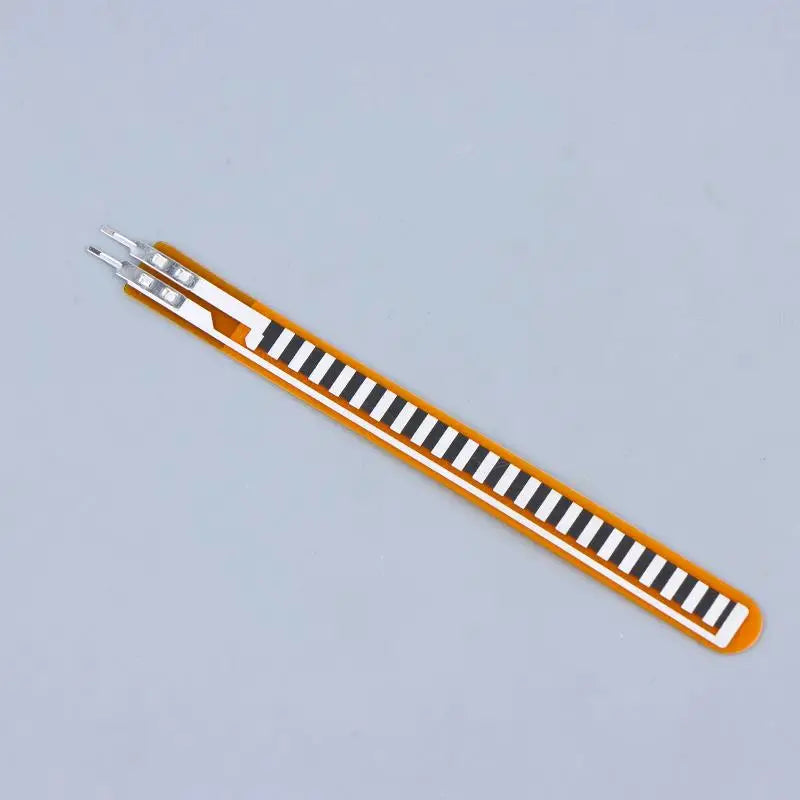

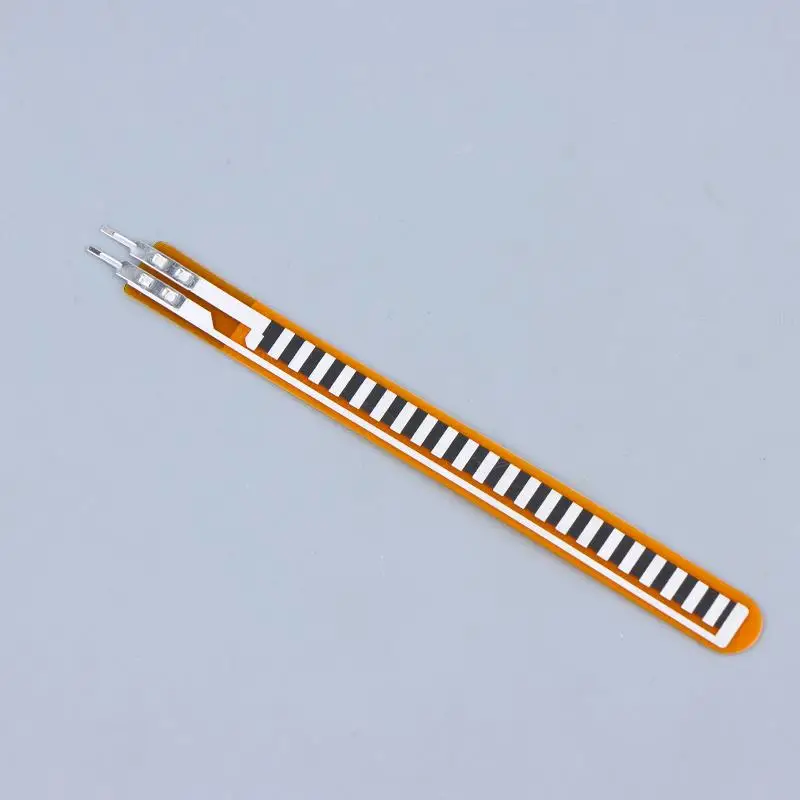

Bending sensor. The degree of bending of the sensor can be converted into a change in resistance value. The larger the bending, the higher the resistance

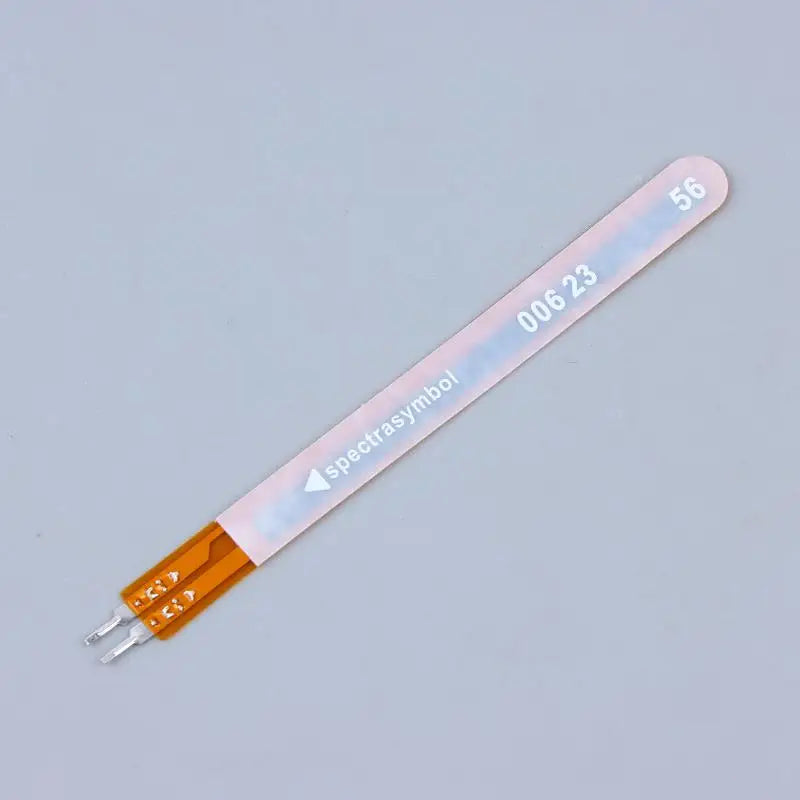

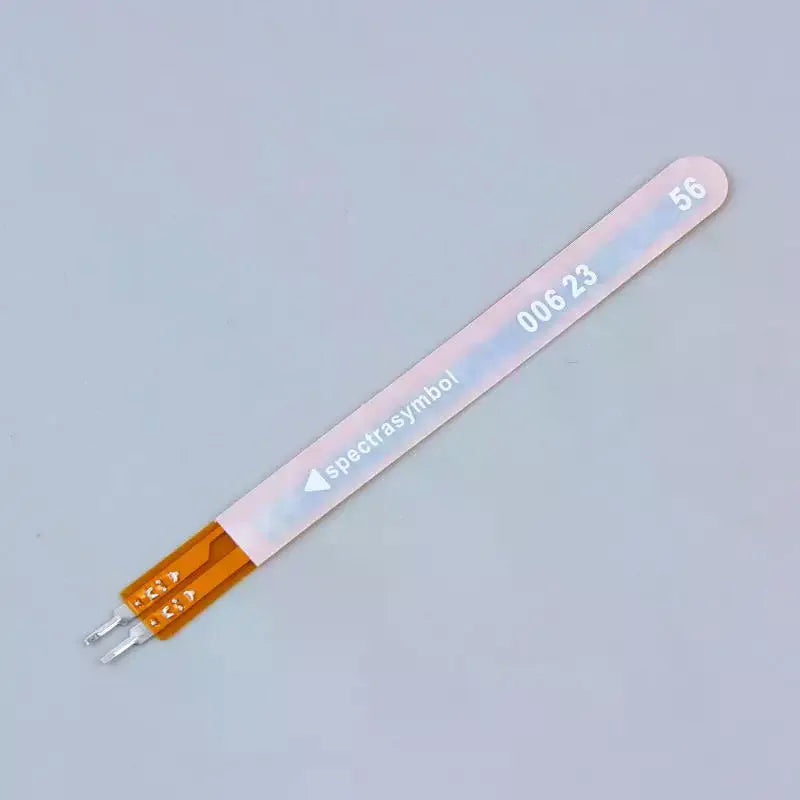

Note: Bending direction: The side with the word is the inner side when bent. Avoid bending the end pin portion (ie, the non-bending sensing portion) during use, otherwise it is likely to cause damage.

Straight resistance: 25K ohms

Resistance tolerance: +30%

Bending resistance change: 60K-110K

Rated power: 0.5 watt

power:1 watt

Bending life: Greater than 1 million times

Working temperature:-35°C-+80 ° C

Interface type:2-Pin metal pin (pitch 0.1inch)

Colour:As Shown

Material:plastic

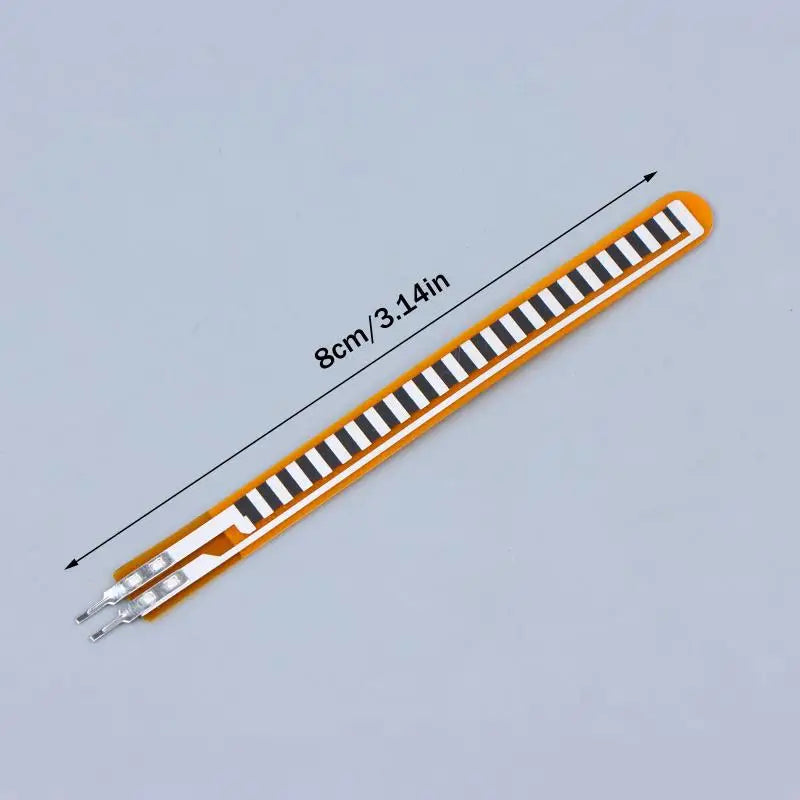

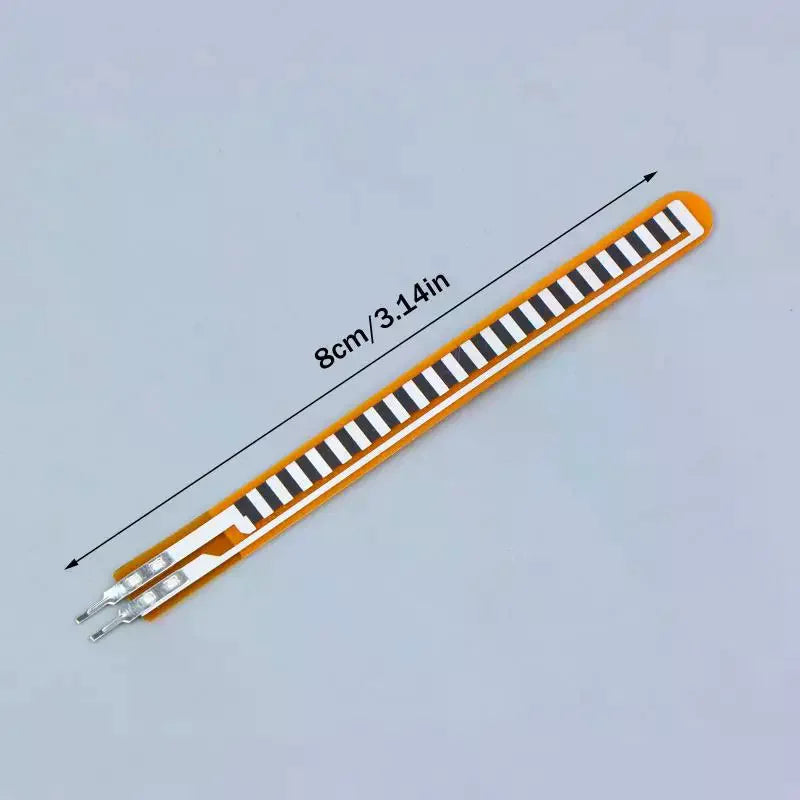

Size:8cm/3.14in

Package Contents:

1 x Flex Sensor

Note:

Due to manual measurement, there may be errors in the dimensions and weight,Please understand;

Colors may have color differences due to factors such as light, saturation, and pixels,We apologize for any inconvenience caused.
