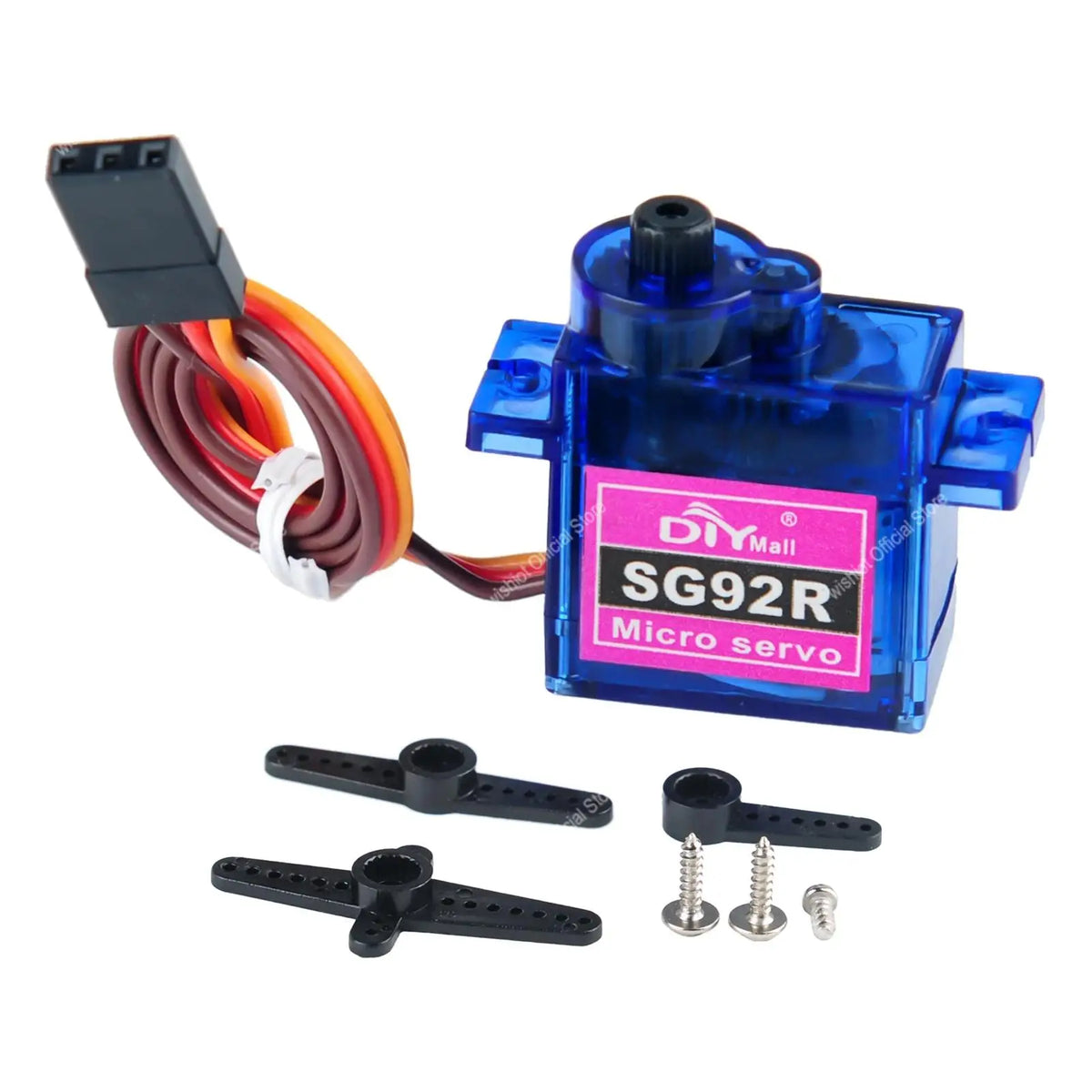

SG92R Micro Servo, Angle or Continuous-Rotation Options

Add a small actuator to a compatible RC or robotics project with an SG92R servo. Choose position control or continuous rotation according to the movement the project needs.

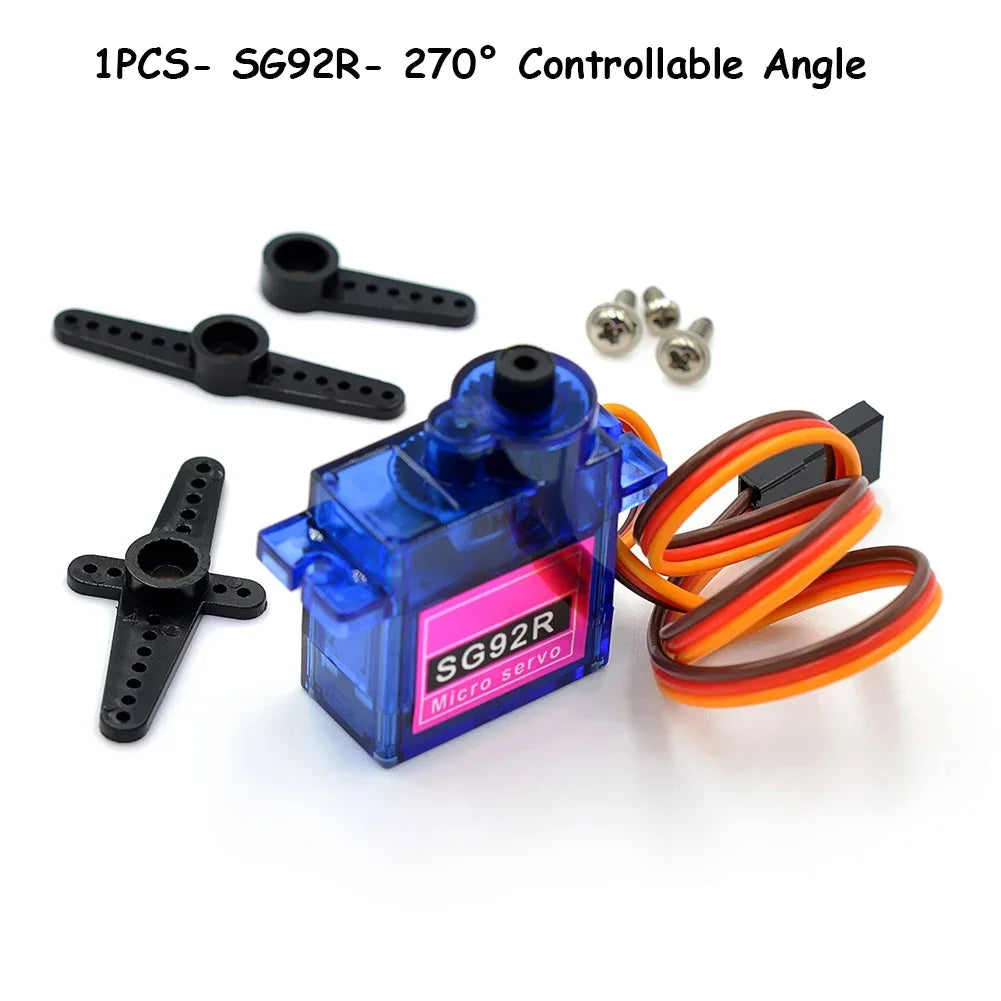

• ✅ Move to an angular position - 180-degree and 270-degree versions provide the listed positional operation.

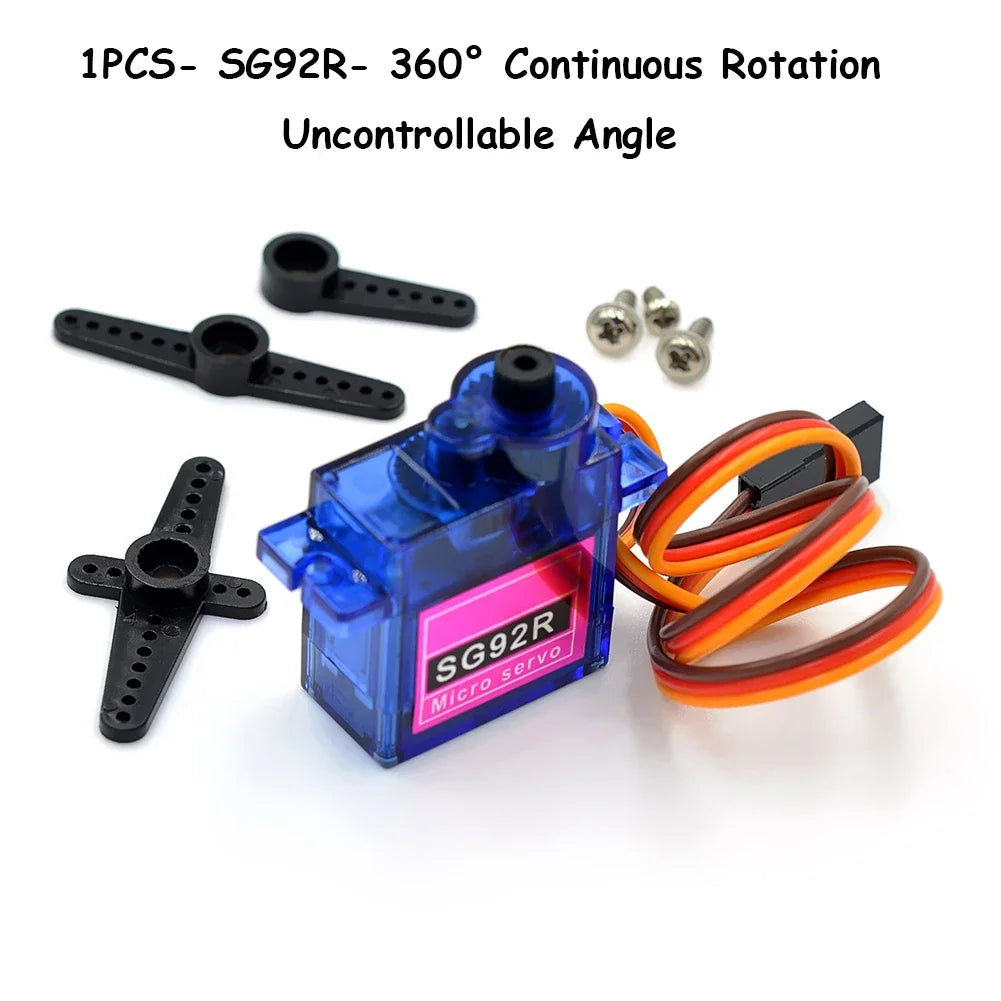

• ✅ Choose continuous movement separately - the 360-degree version is a different operating type.
• ✅ Fit a small project space - the micro body keeps the actuator compact.

Choose the Movement Type Before the Servo

A position-control servo is useful when the mechanism needs to move to a selected angle. Continuous rotation is a different function and should not be chosen when an exact angular position is required.

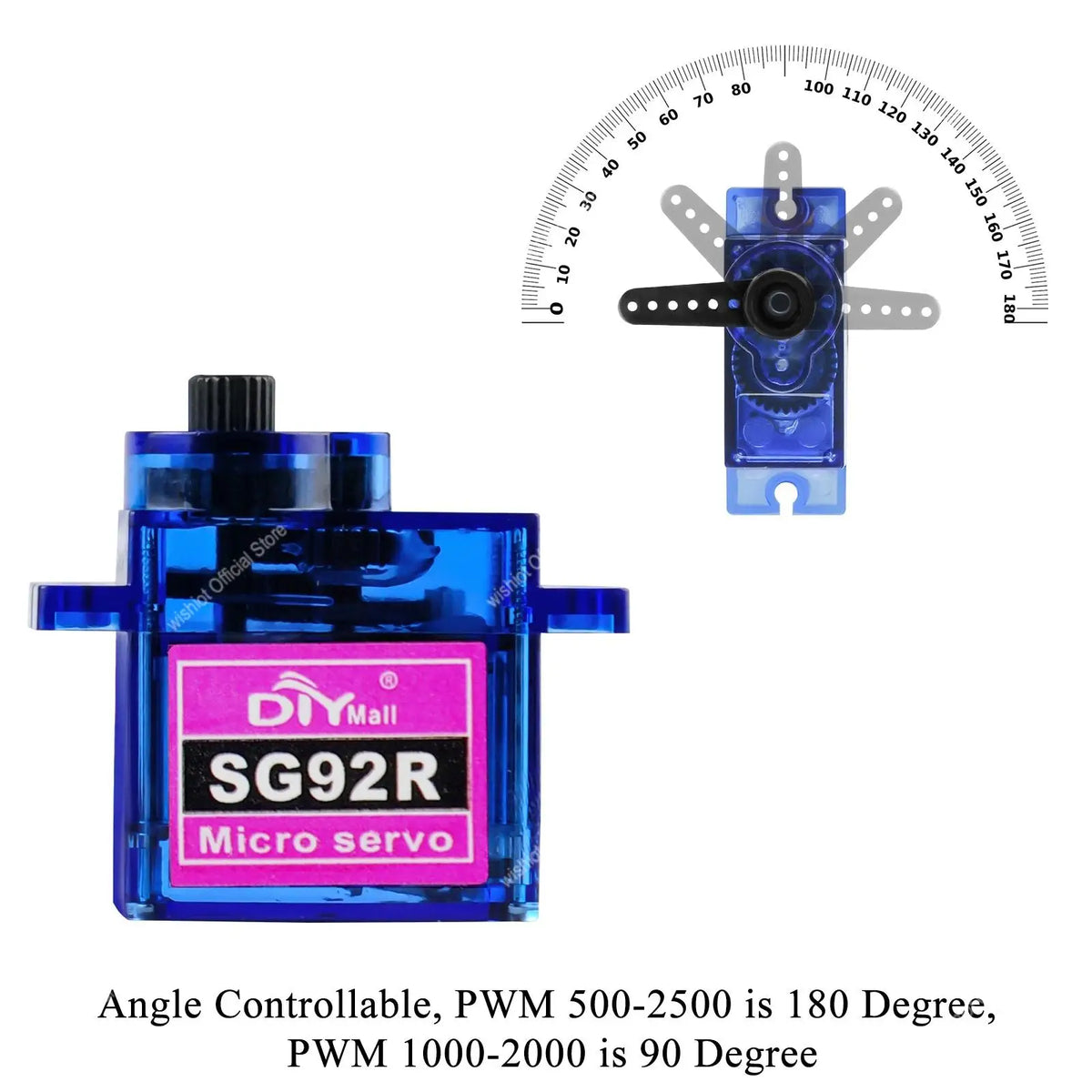

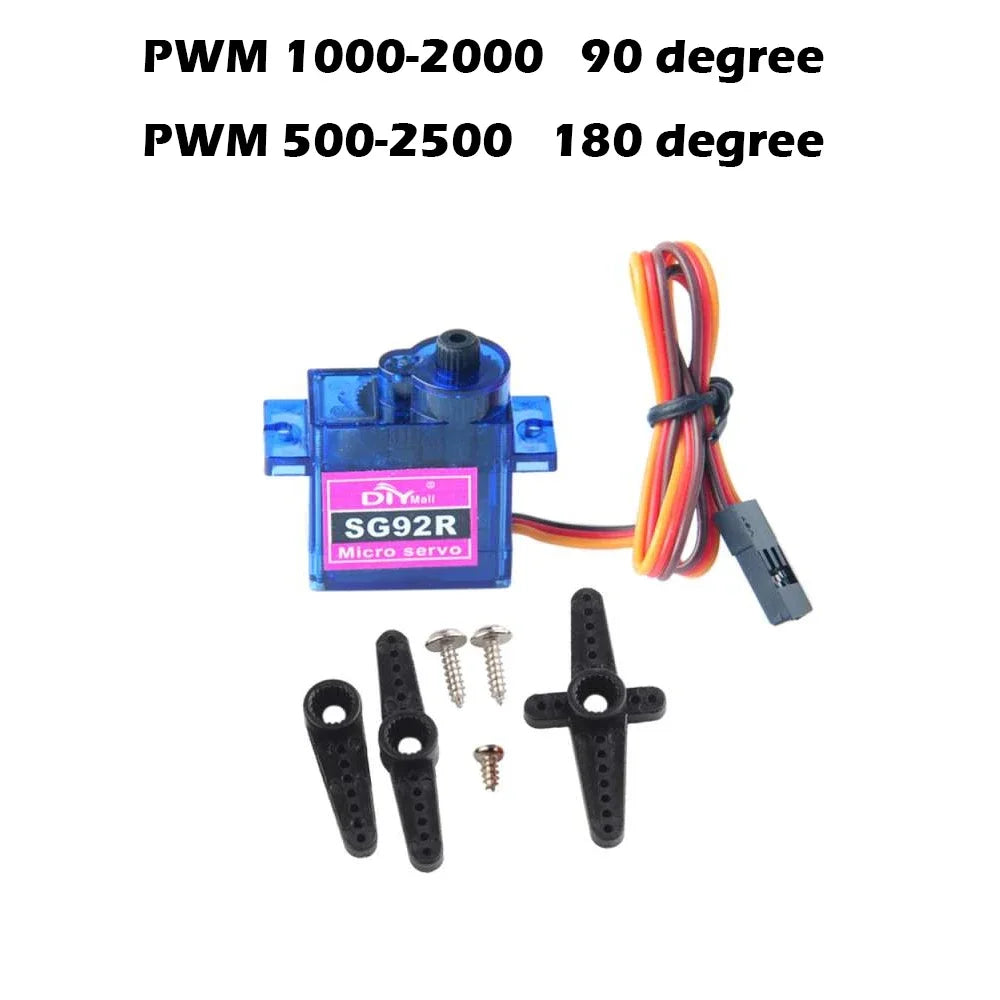

Check controller pulse timing, power capacity and mechanical load before connecting. The listed 180/270-degree versions use a 500–2500 microsecond control range. Supply the motor appropriately rather than assuming a controller pin can power it.

Technical details

• Model: SG92R.
• Supply: 4.8–6V.

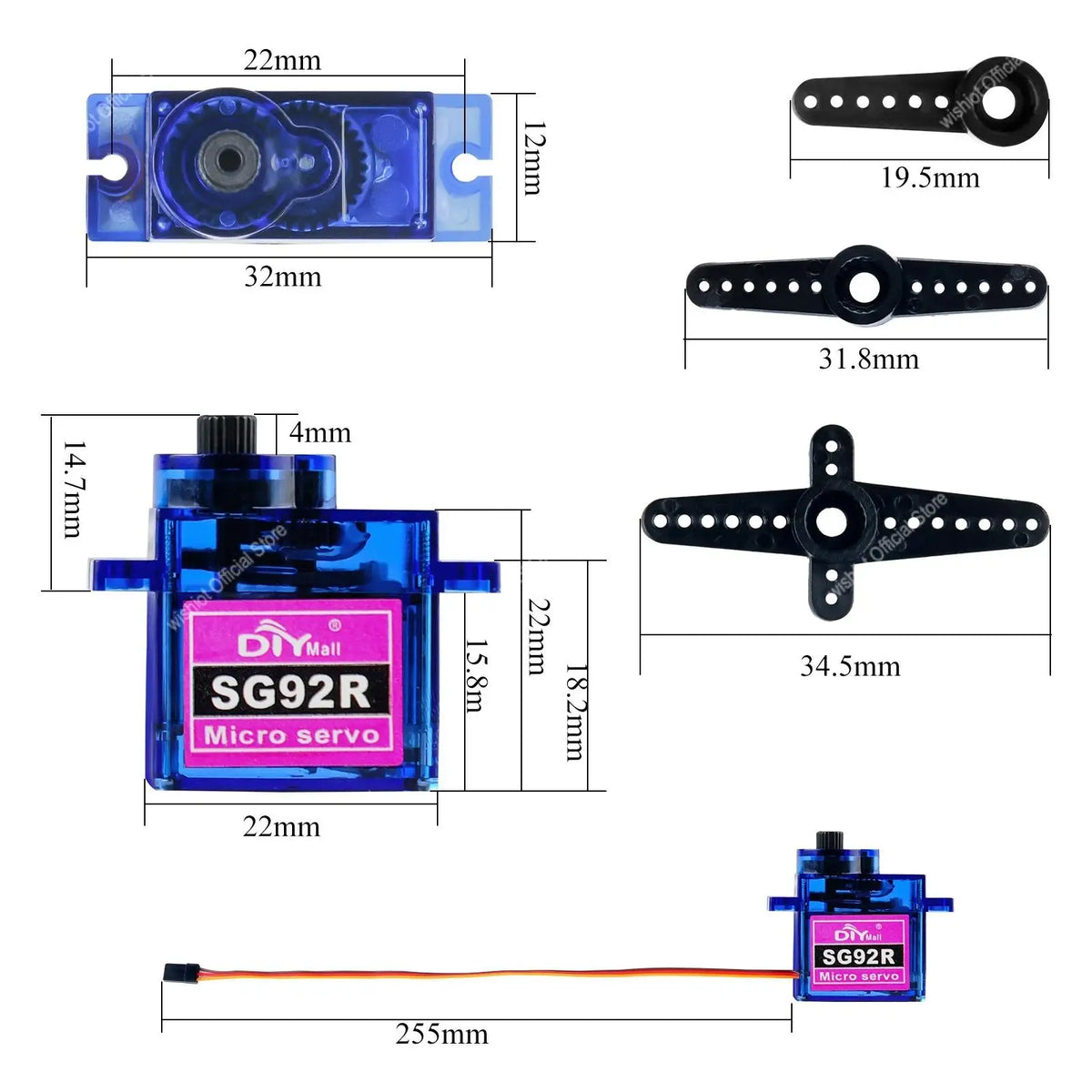

• Approximate body: 22.4 × 12.5 × 23.8 mm.
• Output shaft listed: 20T.
• Options: 180°, 270° or 360° continuous.
• Quantity: one servo.

Select the movement type for your mechanism.
