Adhesive 3D Scanner Markers, 3mm or 6mm Reference Dots
Add visible reference points to a suitable object before an optical 3D scan. These adhesive scanner dots come in two marker sizes for compatible marker-tracking workflows. They are for scanning users preparing parts for digitisation, inspection or reverse-engineering work.
- ✅ Give the scan a set of visible reference points — The contrasting ring-and-centre pattern provides tracking targets.
- ✅ Prepare a plain area before scanning it — Individual adhesive dots can be placed around the object as required.
- ✅ Match the marker size to your scanner workflow — Two centre diameters are available with different outer sizes.
- ✅ Keep a supply ready for the next part — The markers arrive on sheets for individual application.
Choose the reference-dot size your scanner requires
Place the adhesive targets in the arrangement required by your scanner and software, using suitable surfaces and spacing. The ring-and-centre pattern gives the optical system reference points as it follows the object. These are consumable markers, not a scanner or an automatic guarantee of measurement accuracy.
Check the required target diameter and optical marker format before ordering. The specified application family includes compatible Creaform, ZEISS, Shining 3D and HEXAGON workflows, but not every model or scanning mode uses the same marker. The dot size must match the equipment and software configuration.
The 3mm - 5 sheet option has a 3mm centre and 6mm outer diameter, with 98 dots per sheet: 490 dots in total. The 6mm - 10 sheet option has a 6mm centre and 10mm outer diameter, with 50 dots per sheet: 500 dots in total. The scanners and workpieces shown are not included.

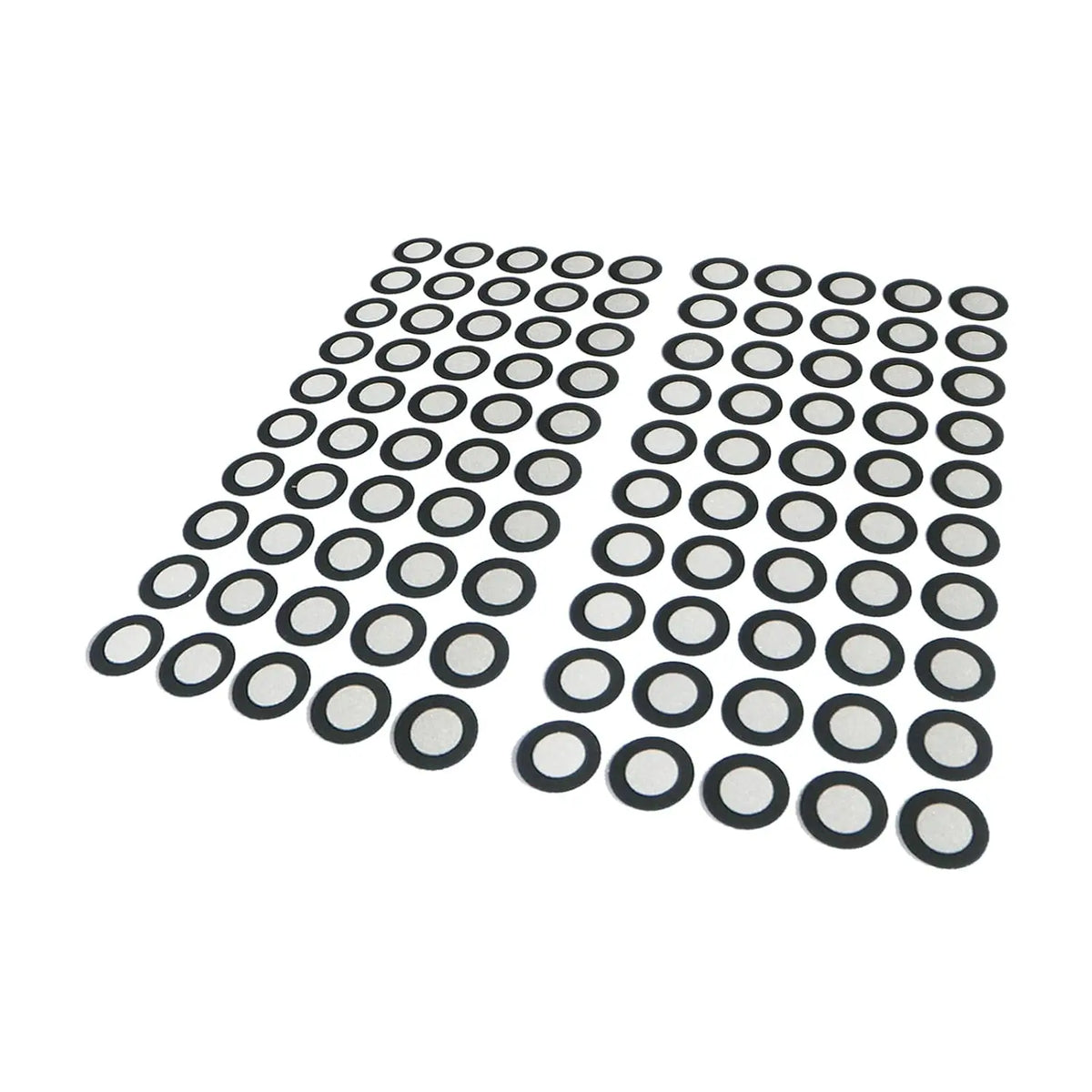

Adhesive sheets provide individual ring-and-centre tracking markers.

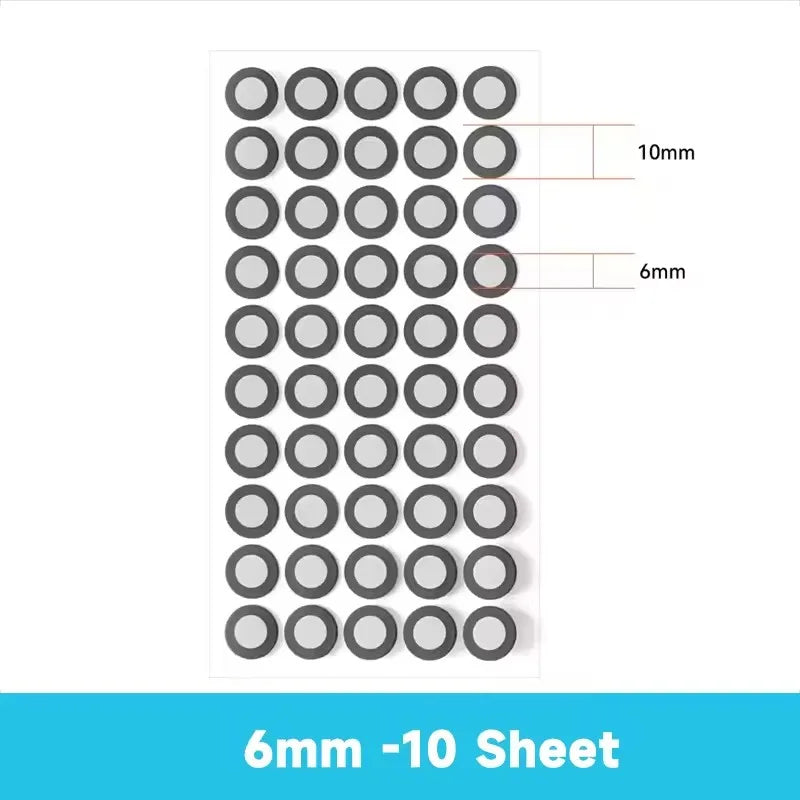

The larger option has a 6mm centre and 10mm outer diameter.
Peel individual targets from the sheet and position them for the scan workflow.

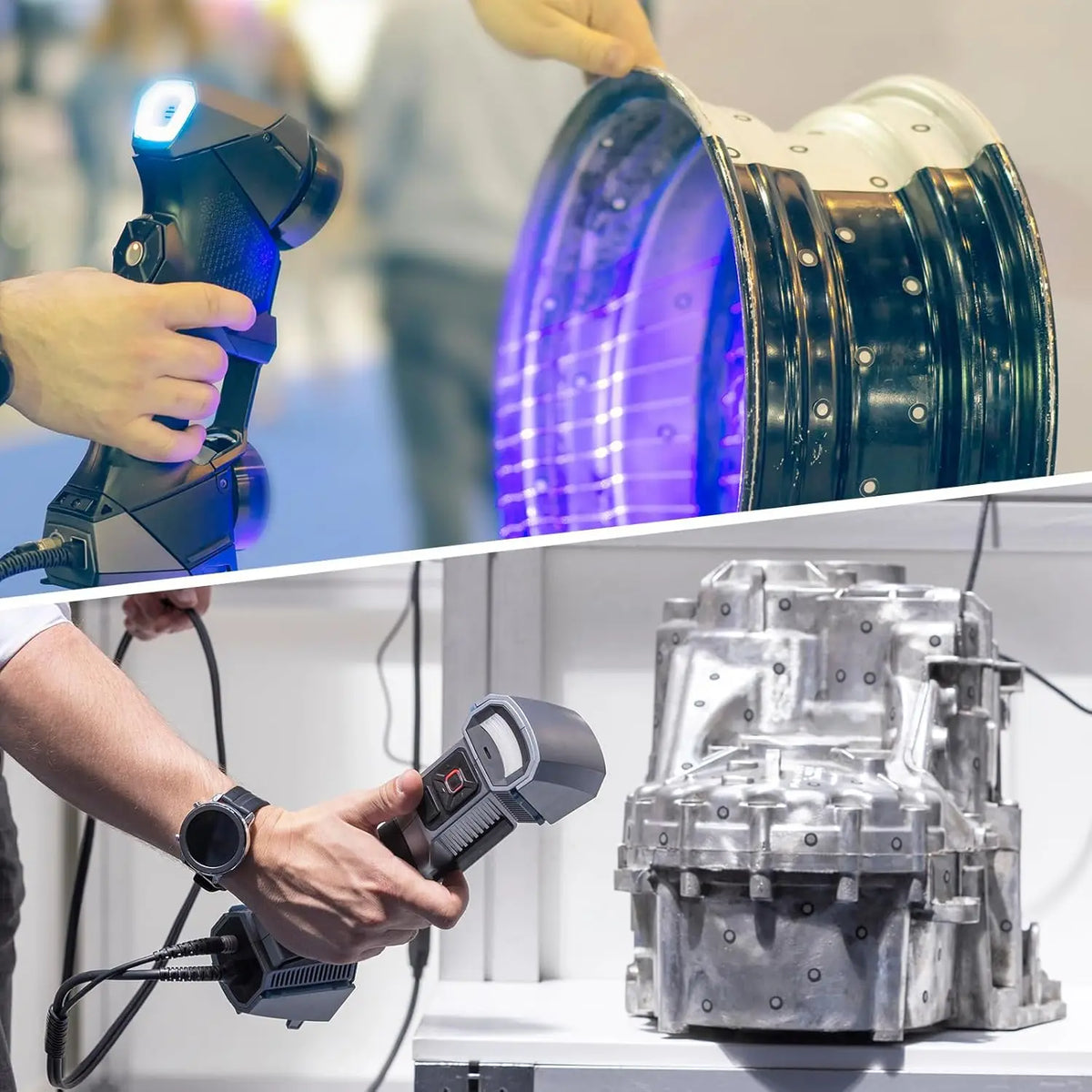

Reference dots can be arranged across a suitable object; the scanner is separate.
Follow your scanner's marker-placement requirements on complex parts.

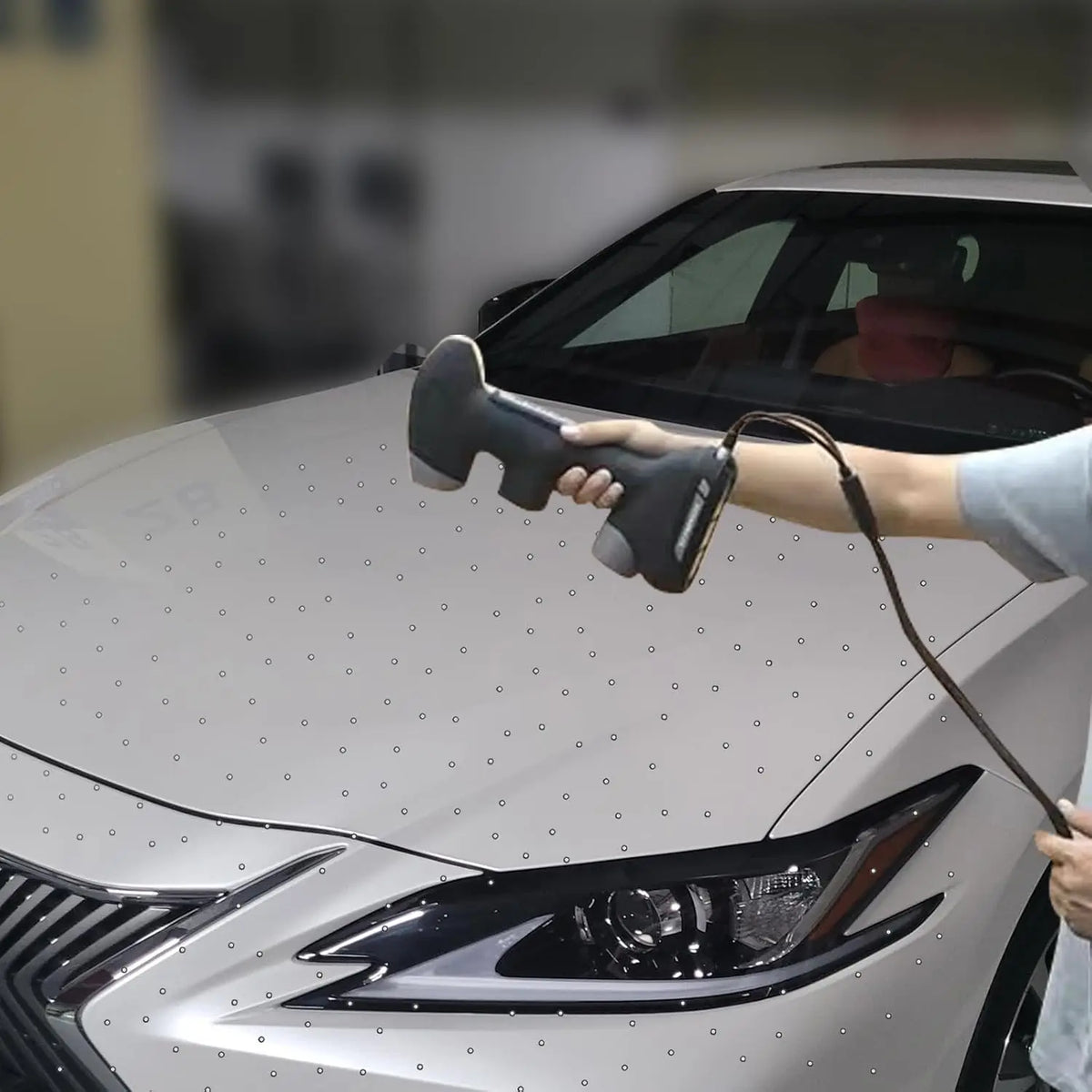

The example shows marker-based optical scanning; no scanner or workpiece is supplied.
Choose the sheet pack by the required centre and outer diameter.
Technical details
- Product: adhesive reference markers for optical 3D scanning
- Pattern: contrasting outer ring and light centre
- 3mm option: 3mm centre, 6mm outer diameter
- 3mm pack: 5 sheets × 98 dots = 490 dots
- 6mm option: 6mm centre, 10mm outer diameter
- 6mm pack: 10 sheets × 50 dots = 500 dots
- Compatibility: matching optical marker-tracking scanners; verify size and format
- Application: individual adhesive targets on suitable surfaces
- Package: selected marker-sheet pack only
- Exclusions: scanner, software and workpieces not included
Match the dot size to your scanner and prepare the next part with a fresh set of reference markers.
