Tube Clinometer, −40° to +40° with Fixing Holes
Keep a visible reference to tilt while adjusting a static surface or fixture. This tube clinometer uses a ball in damping liquid and a marked −40° to +40° scale. It is for workshop and DIY users who need a simple inclination indicator with fixing holes.
- ✅ Watch the tilt while making an adjustment — The ball moves along a visible curved scale.
- ✅ Compare either side of level — The scale extends in both directions from the central zero.
- ✅ Keep the indicator in a chosen position — Fixing holes allow attachment to a suitable separate fixture.
- ✅ Read a settled indication — The ball runs in damping liquid.
- ✅ Use it without a power connection — The mechanical instrument needs no battery.
An inclination reference that stays in view
Mount or position the clinometer with its zero reference correctly aligned, then let the liquid-damped ball settle before reading. It gives a direct indication of inclination over the marked range, useful when making repeated adjustments to the same static setup.
The fixing holes make it possible to fit the indicator to your own suitable bracket or surface. Match the installation to the tool and establish a known-level reference before relying on the reading. It is an inclination indicator, not a vehicle stability or safety system.
One ABS-bodied tube clinometer is supplied. Brackets, screws and other mounting hardware are not confirmed as included. There is no electronic display, logging or battery requirement.

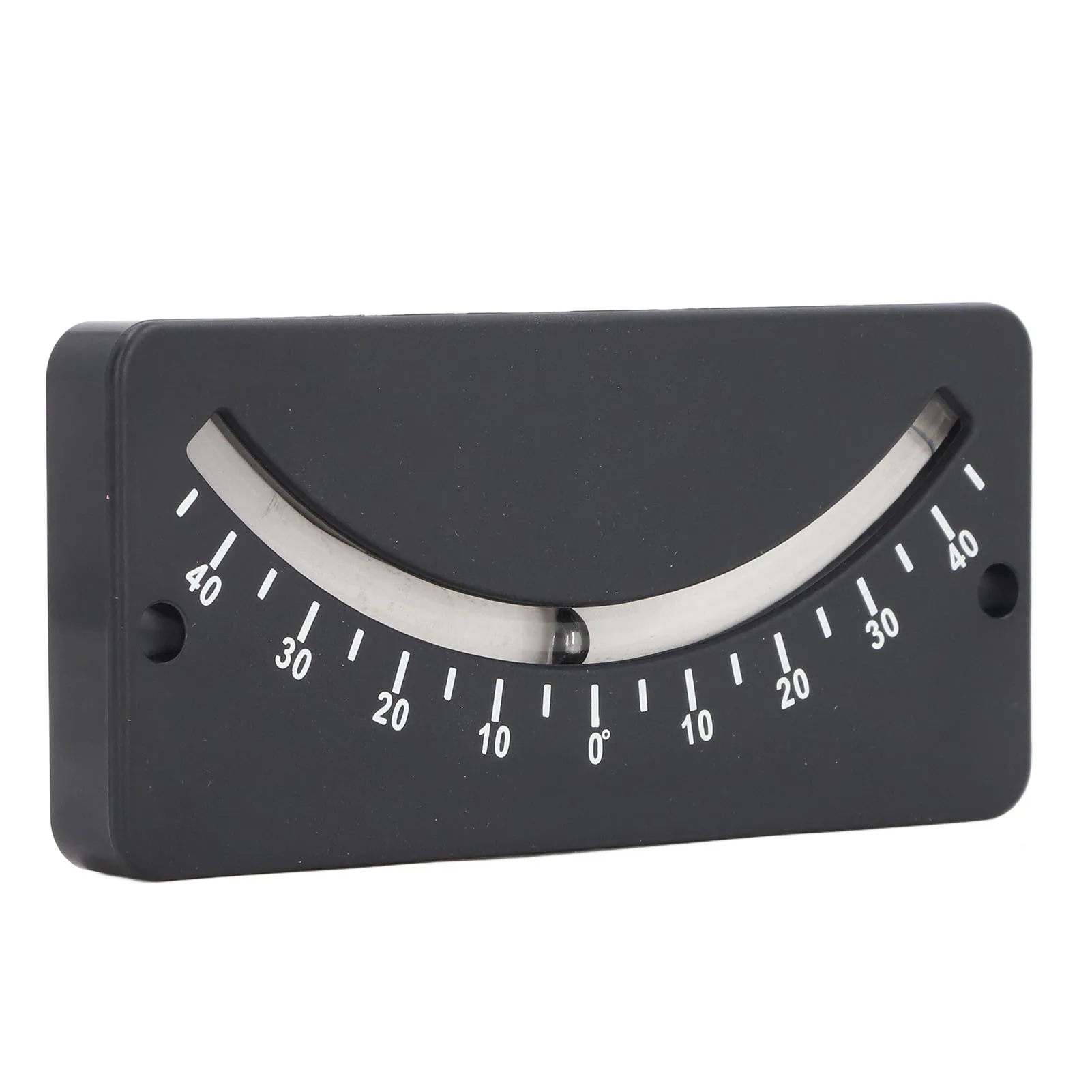

Follow the ball against the curved scale as the tool tilts.
The central zero provides the level reference.

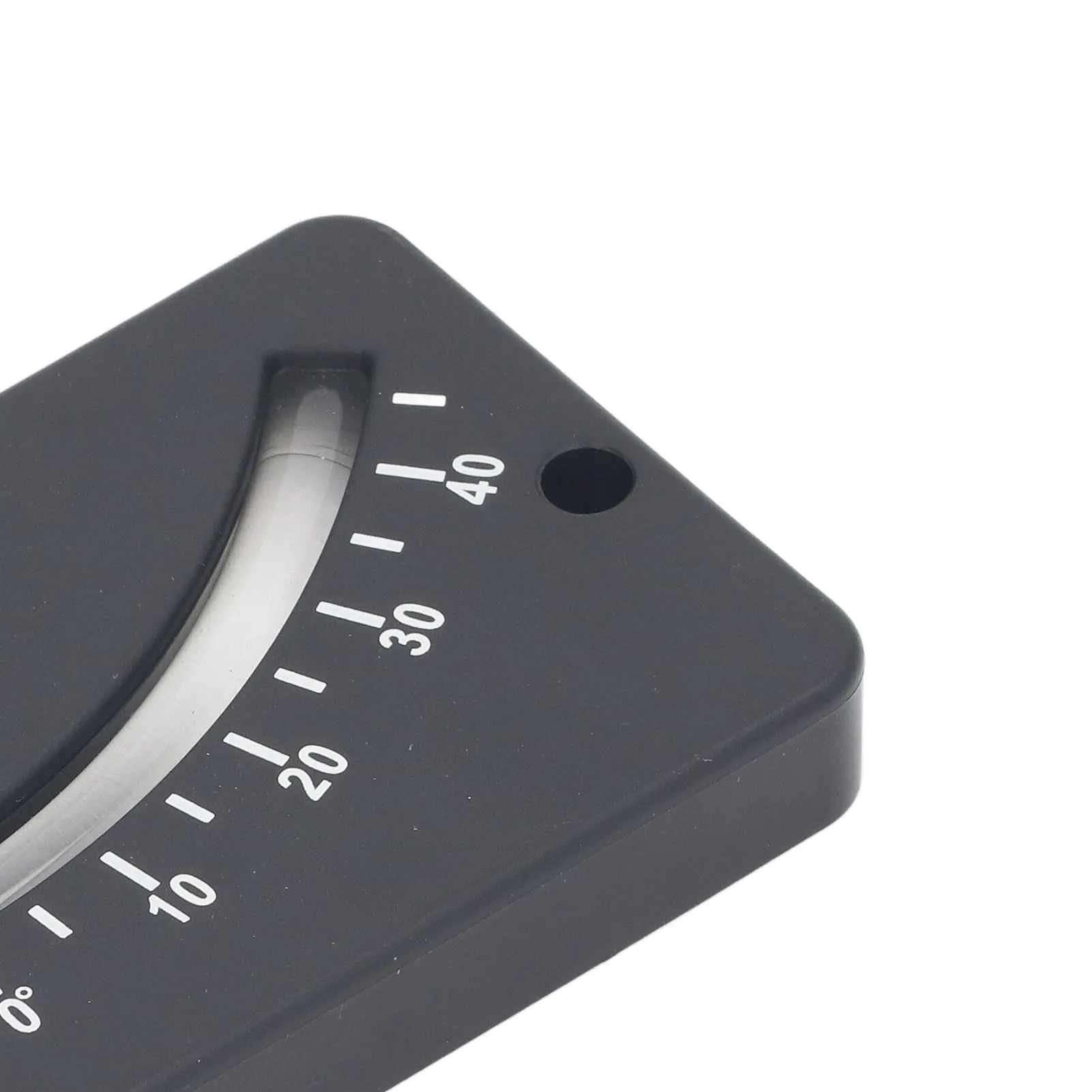

Fixing holes allow attachment to a suitable separate fixture.
Read only after the ball has settled.

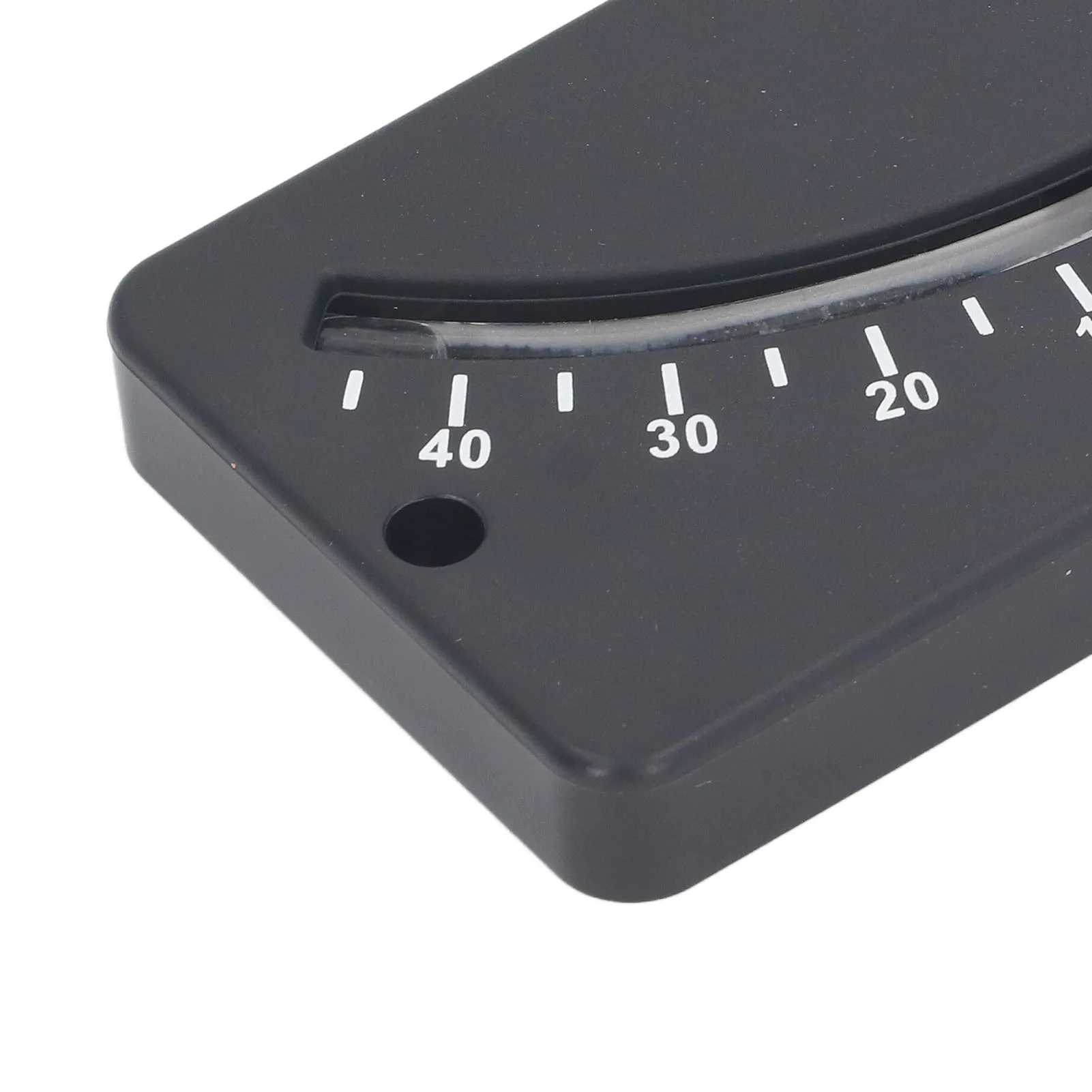

The compact ABS housing keeps the scale together.
Technical details
- Type: tube clinometer
- Measurement range: −40° to +40°
- Indication: ball in damping liquid
- Scale: central zero with angles to either side
- Housing material: ABS
- Mounting: fixing holes
- Power: none required
- Package: 1 tube clinometer
- Mounting hardware: not confirmed as included
Fit a simple tilt reference to your next static setup and keep the adjustment in view.
