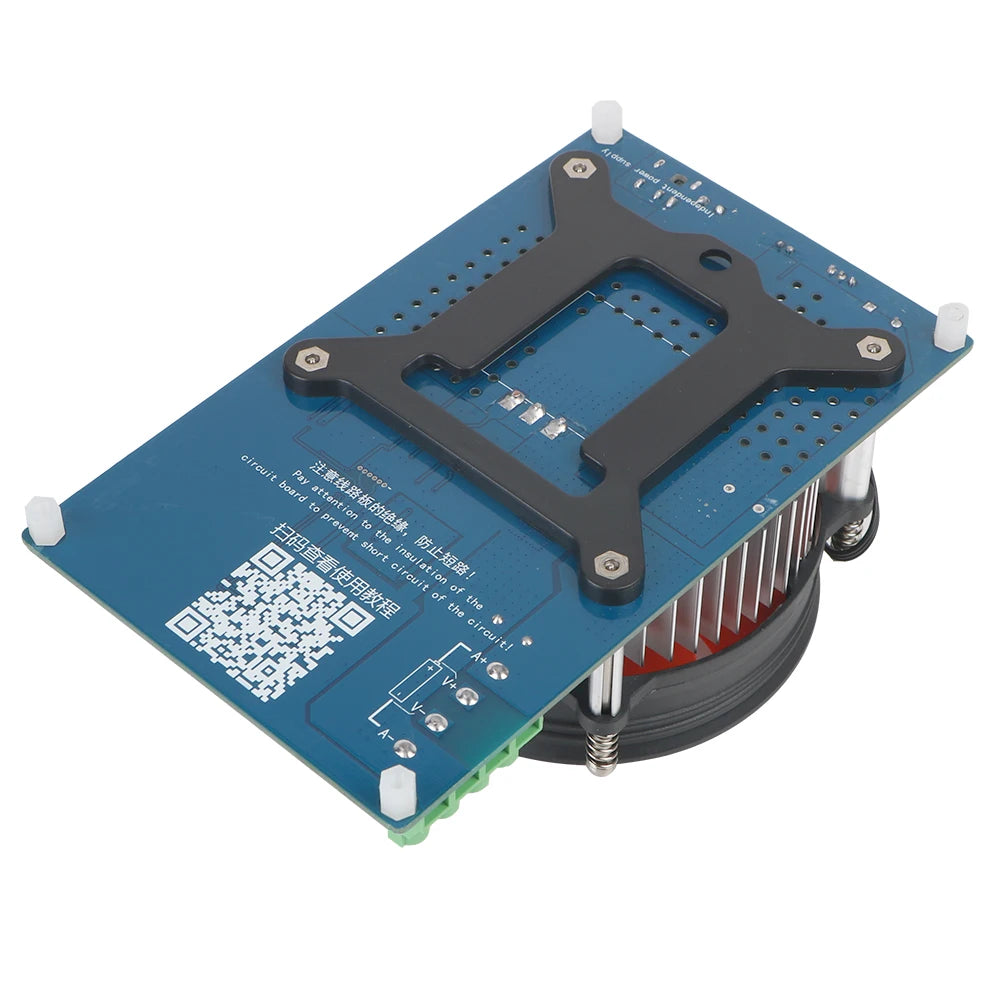

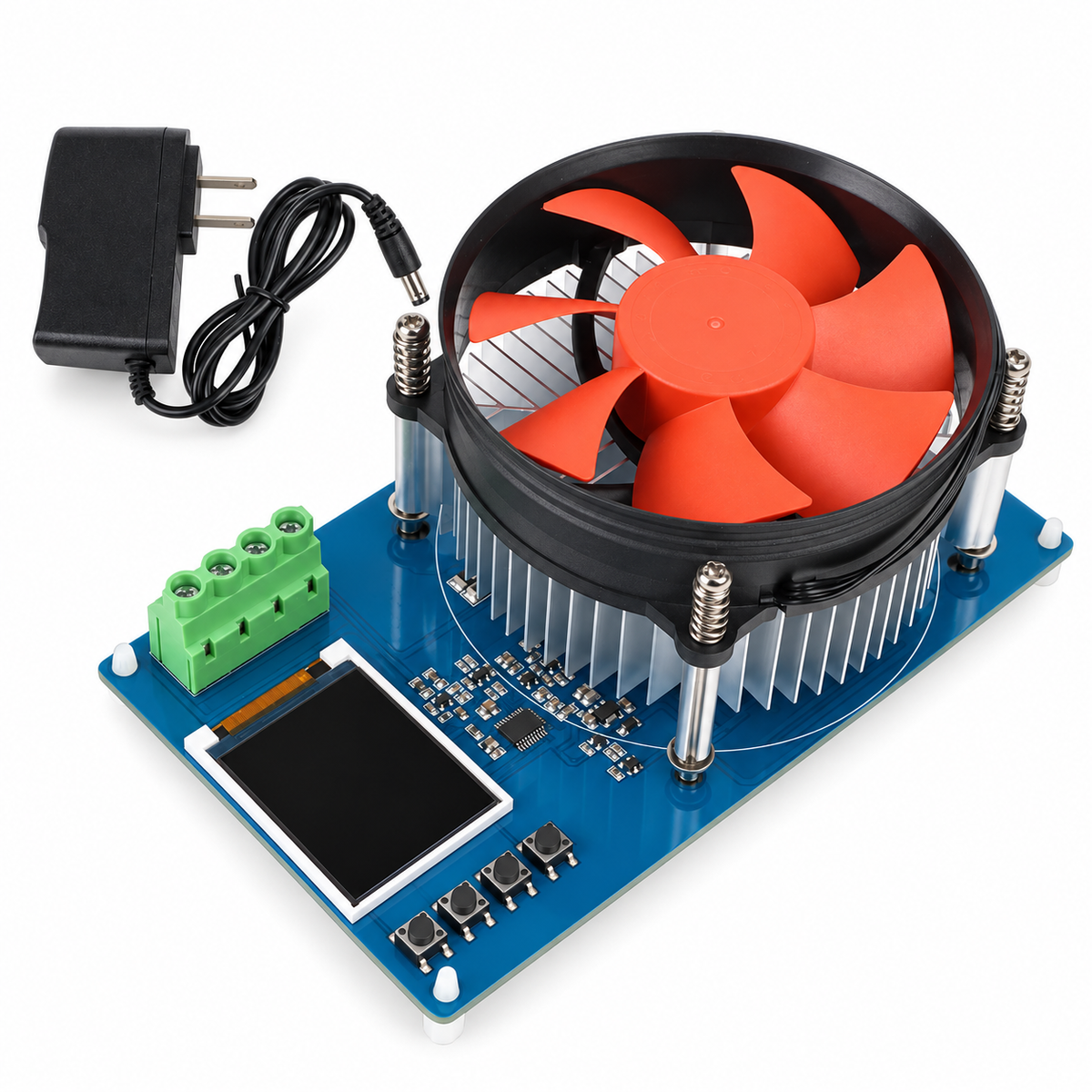

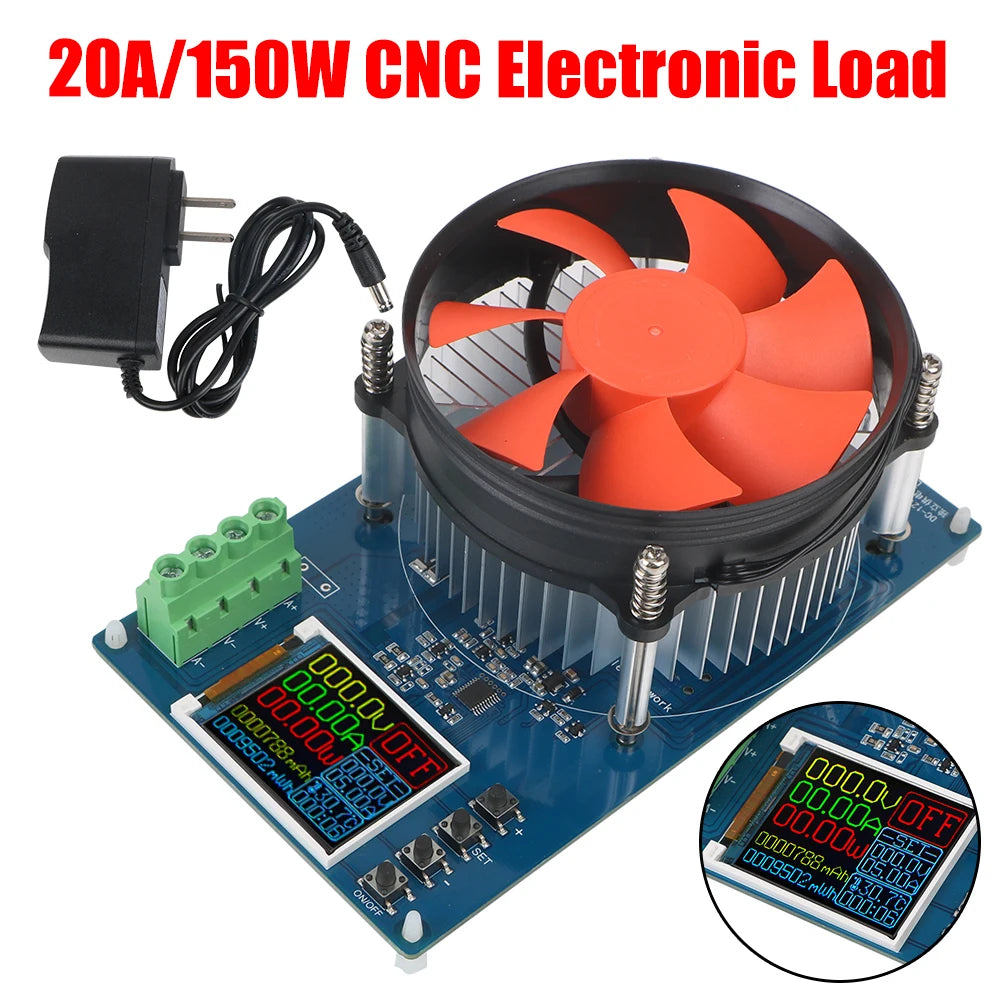

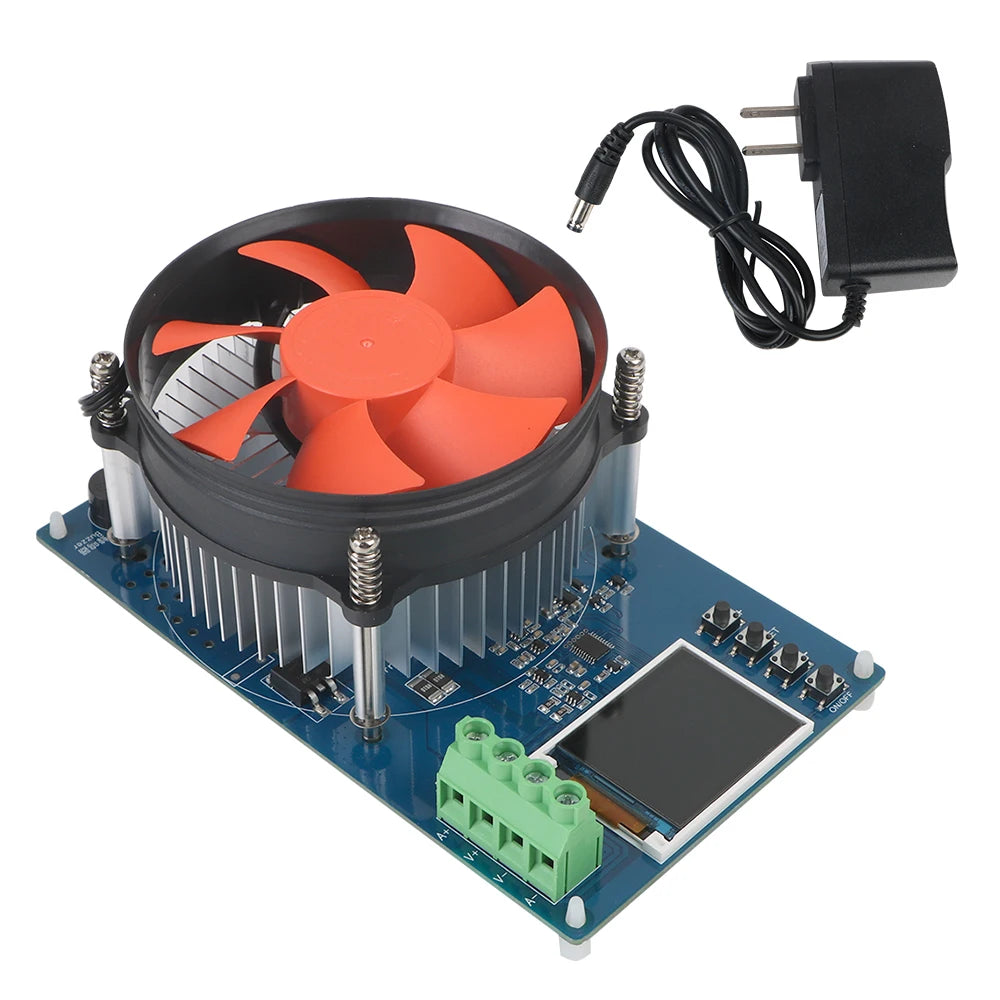

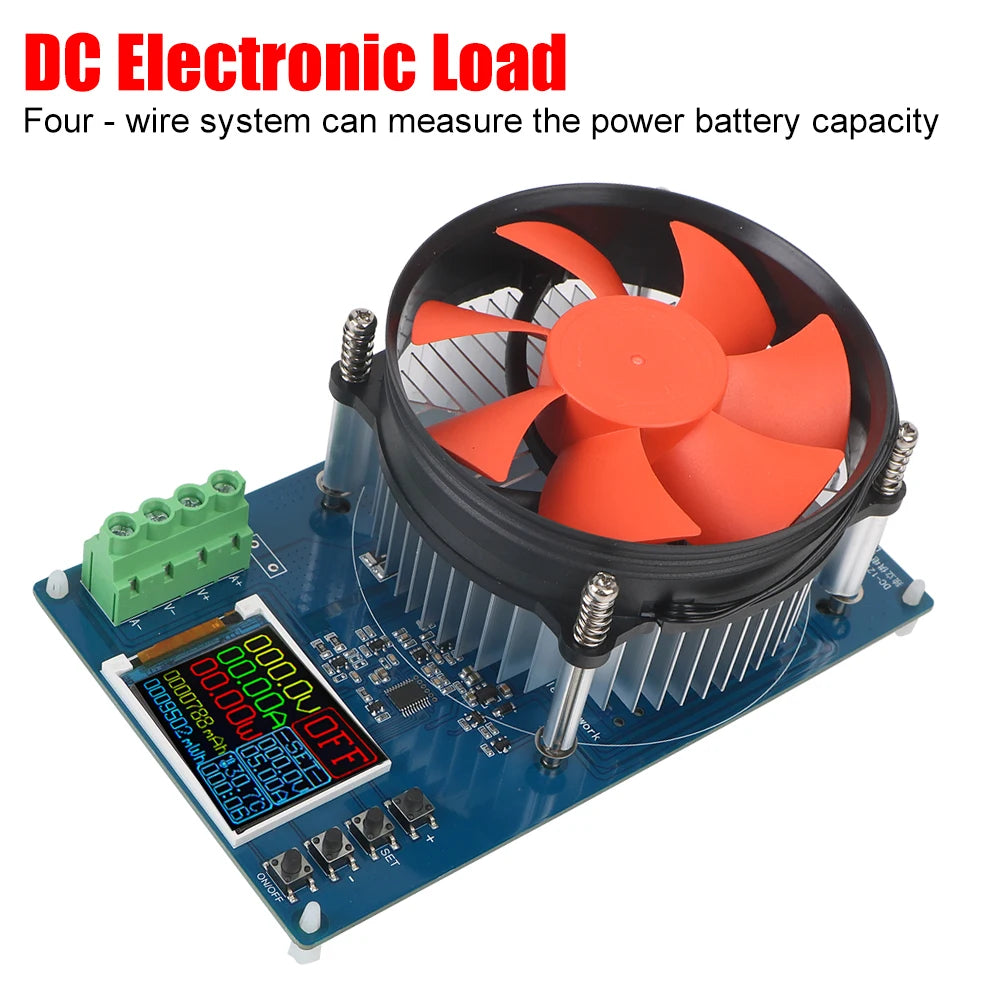

150W Four-Wire DC Electronic Load Battery Tester

Measure battery discharge capacity and energy with a configurable electronic load.

Follow a controlled discharge test

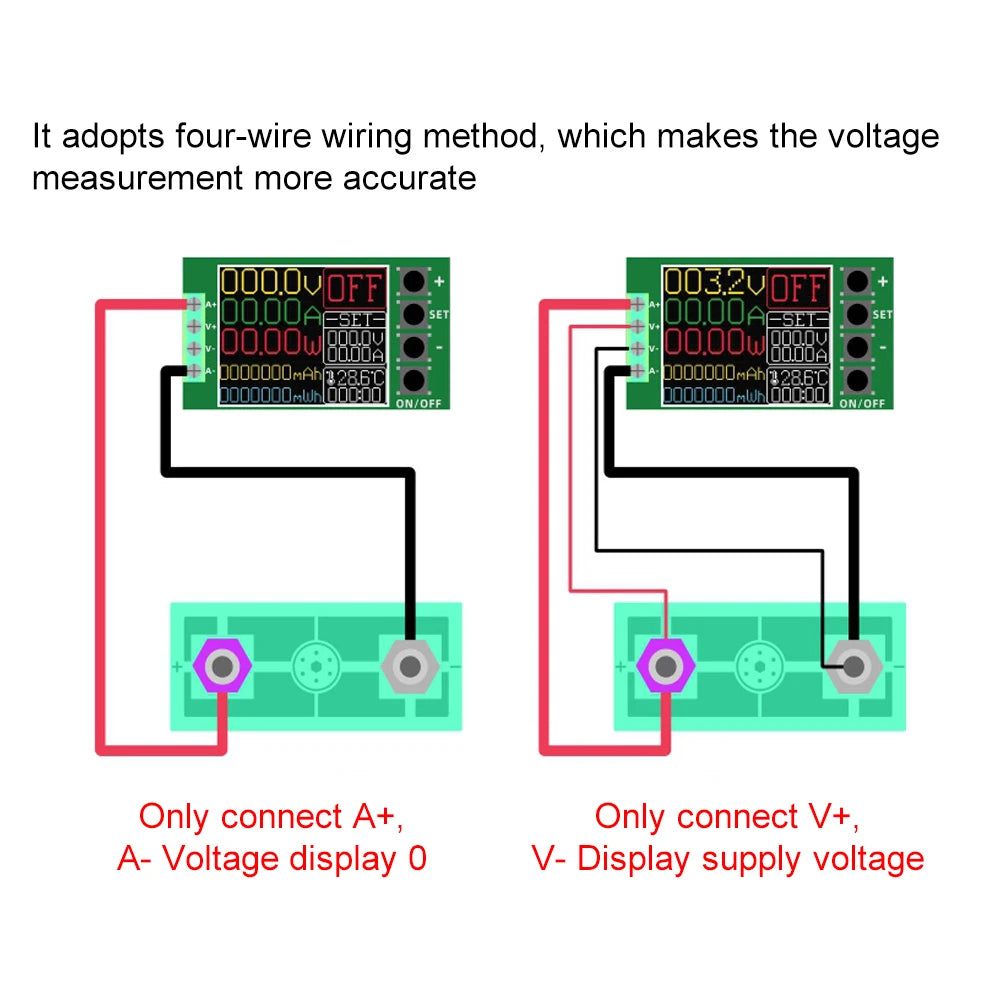

✅ Separate sensing leads - four-wire connections reduce the effect of lead resistance.

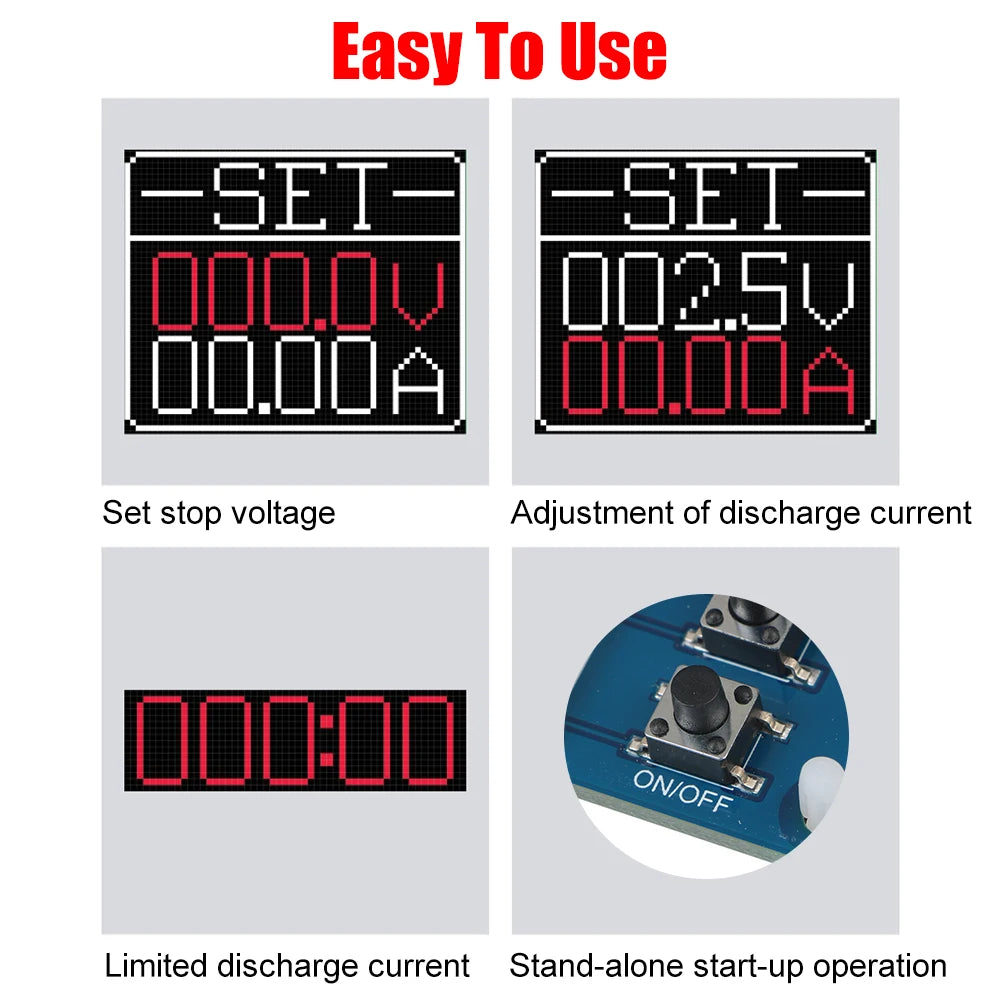

✅ Automatic test stopping - set a time or voltage endpoint for the discharge.

Technical details

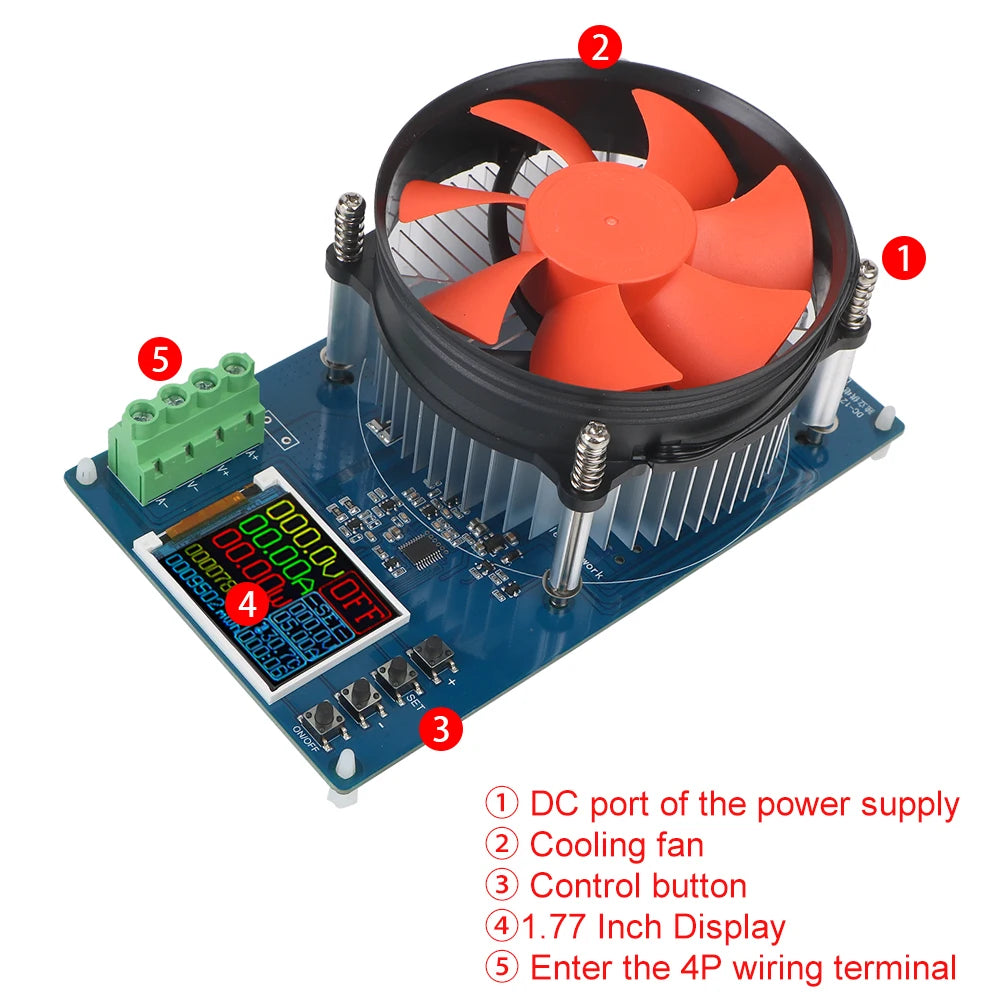

Load range: 0-150V DC, 0-20A, within a 150W total limit. At 120V and above, load power is limited to 60W. 1.77-inch TFT display. Supply: 12V DC, 1A. US adapter included. Battery not included.

Choose 150W Four-Wire DC Electronic Load Battery Tester for your next project.
