N3 Mini-ITX NAS Case with Eight Drive Bays

Build a compact storage server around an N3 Mini-ITX chassis. Eight 3.5-inch drive bays provide room for a multi-drive NAS while the case keeps the system footprint relatively small.

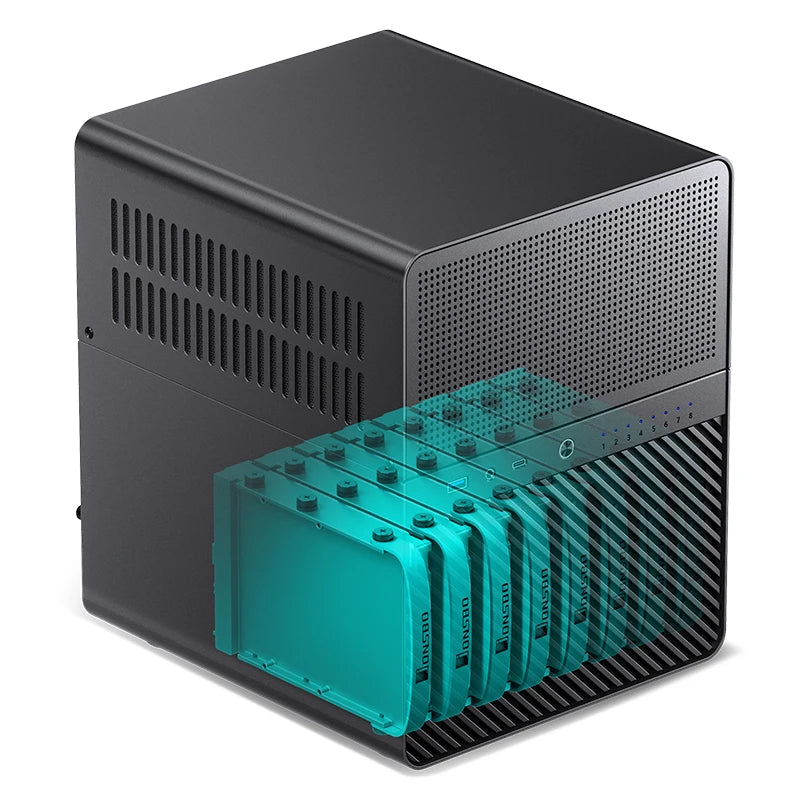

✅ Plan a larger drive array - Eight 3.5-inch hot-swap bays provide storage expansion space.

✅ Fit a compact motherboard - The chassis is arranged for a Mini-ITX build.

✅ Keep front connections accessible - USB-A, USB-C and a combined audio port sit at the front.

✅ Start with included case airflow - Two 100 x 25 mm fans are supplied.

Check Component Clearances Before Building

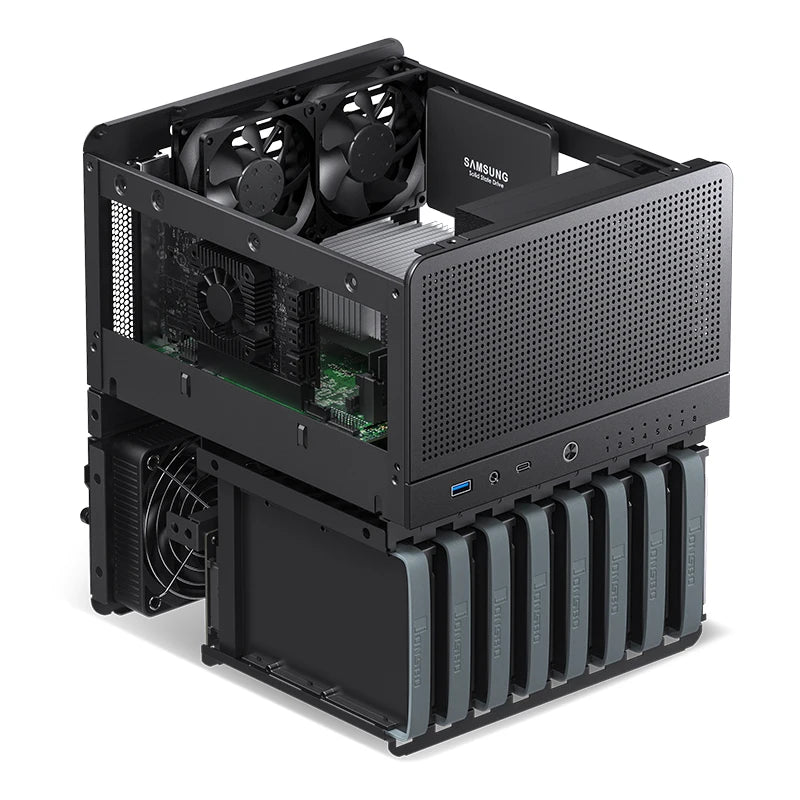

The case supports an SFX power supply up to 105 mm long, a CPU cooler up to 130 mm high and a GPU up to 250 mm long. Compare all clearances with the actual parts, including cables and drive connections.

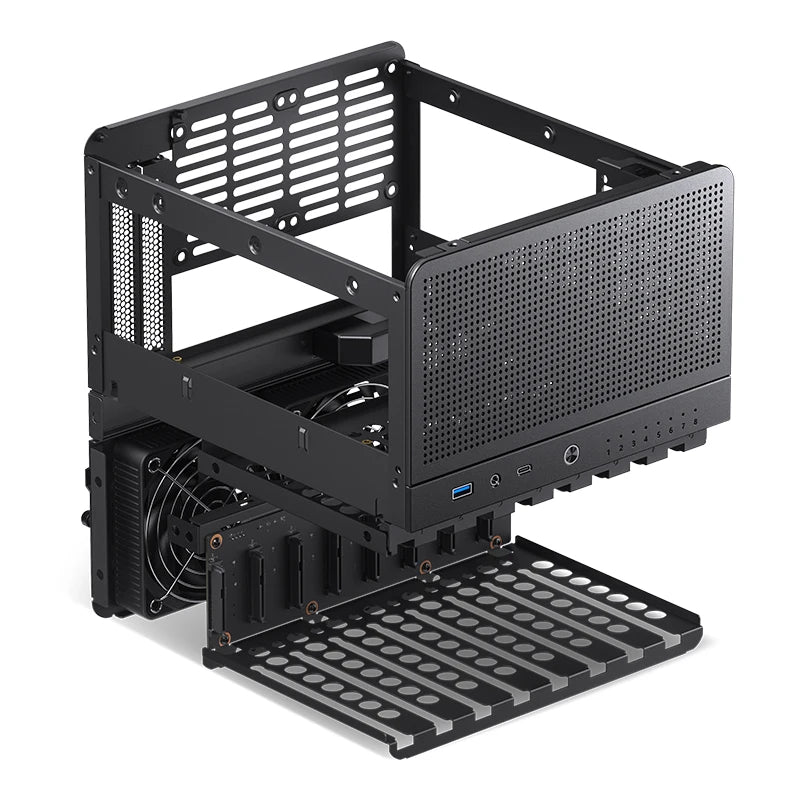

An additional 2.5-inch bay and two expansion slots provide further layout options. The case is supplied without the motherboard, drives, power supply or other system components.

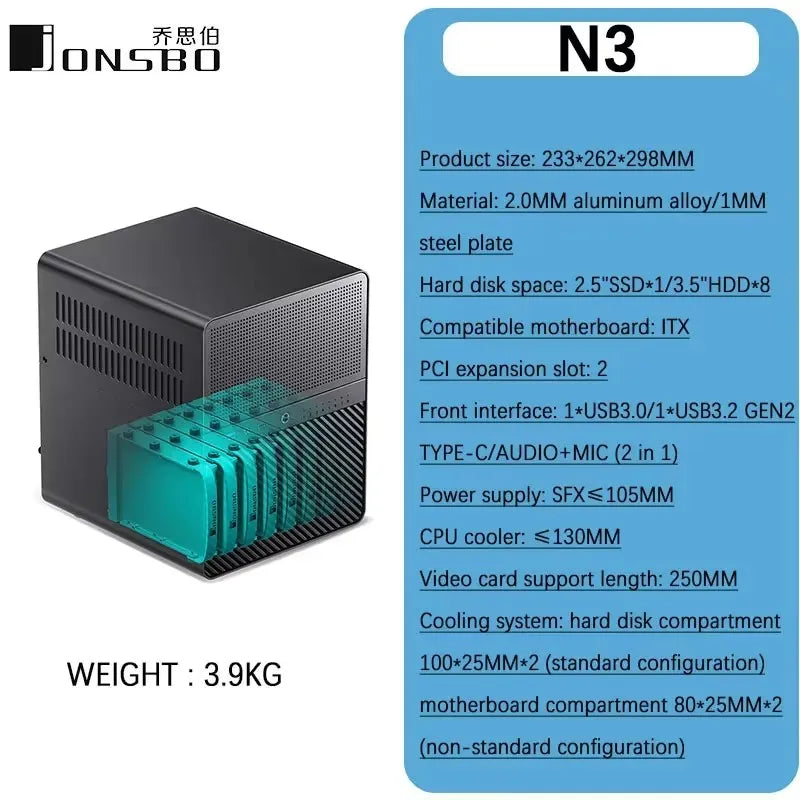

Technical details

• N3 black chassis
• Mini-ITX / SFX format
• Eight 3.5-inch bays and one 2.5-inch bay
• Two expansion slots
• 233 x 262 x 298 mm
• Aluminium and steel
• Approximately 3.9 kg

Plan your next compact NAS around the components you need.
