Tyre Inflator with Analogue Pressure Gauge & Dual-Head Chuck
Check and top up tyre pressure from your workshop air supply without swapping between separate tools. This analogue inflator combines a gauge, air-control valve and dual-head chuck for compatible standard tyre valves. It is for vehicle owners and workshops using an air compressor.
- ✅ Check pressure while topping up a tyre — The dial gauge sits on the same assembly as the inflator.
- ✅ Reach the valve from a useful angle — The long metal stem ends in a dual-head chuck.
- ✅ Control air during the job — A lever valve regulates flow from the connected supply.
- ✅ Hold the tool while positioning the chuck — The ribbed rubber grip covers the central stem.
- ✅ Read familiar pressure units — The analogue dial carries multiple marked scales.
A gauge and air-control valve in one workshop tool
Connect the inflator to a suitable compressor hose, seat the chuck on the compatible tyre valve and use the lever to control airflow. The gauge keeps the pressure reference close to your hand while you work. This is an air-supply accessory, not an electric compressor or standalone pump.
The dual-ended head offers two approaches to the valve, which can be useful around wheel shapes with restricted access. Check the actual connector fit against your hose and coupling before use; quick-connect profiles are not interchangeable simply because the fitting looks similar.
The dial is marked to 220psi and approximately 15bar. That scale is not the recommended tyre pressure: use the vehicle or tyre manufacturer's specified pressure and the limits of the complete air setup. One gauge/inflator assembly is supplied; compressor and air hose are separate.

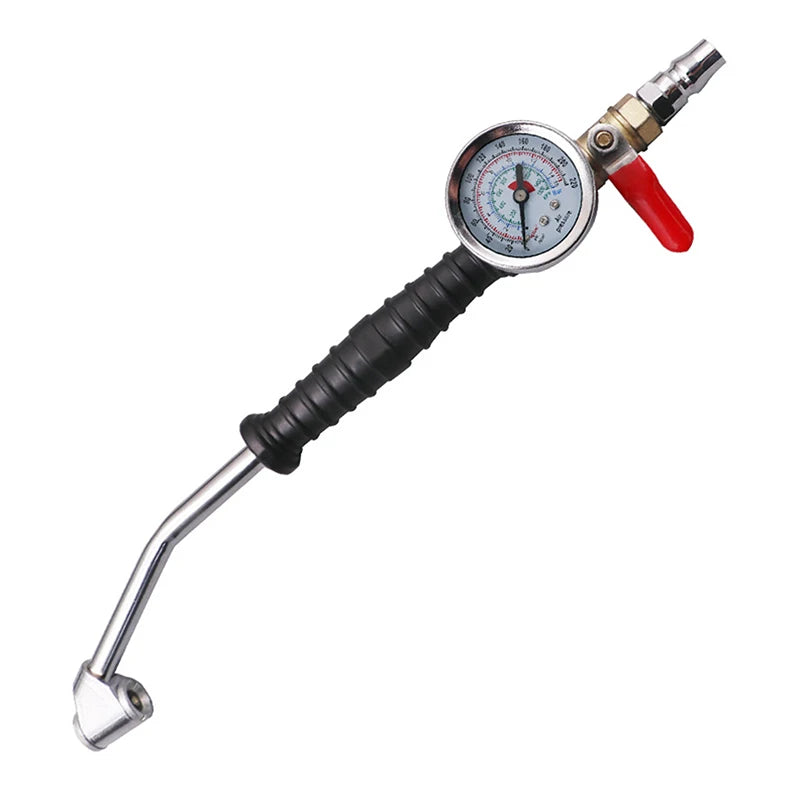

The inflator combines a pressure dial, valve lever and dual-ended chuck.

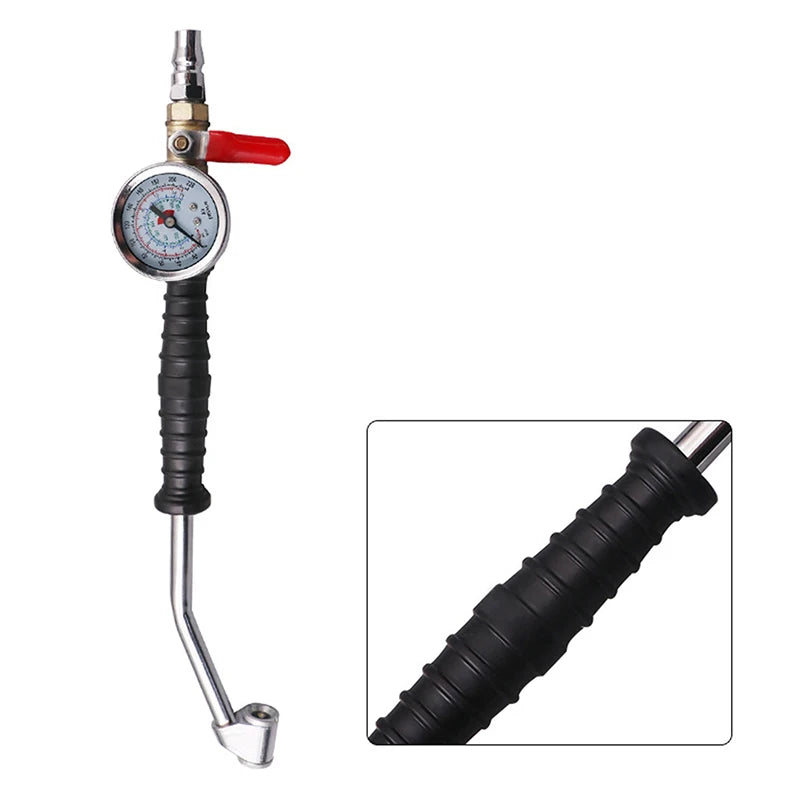

The ribbed grip gives a holding surface along the stem.

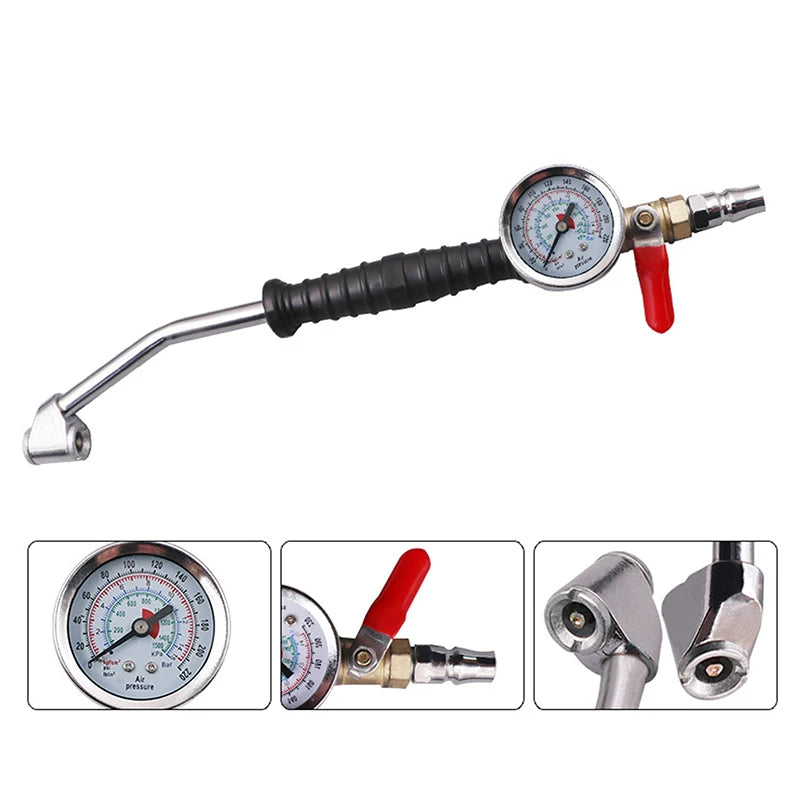

The valve lever controls airflow from a suitable external supply.

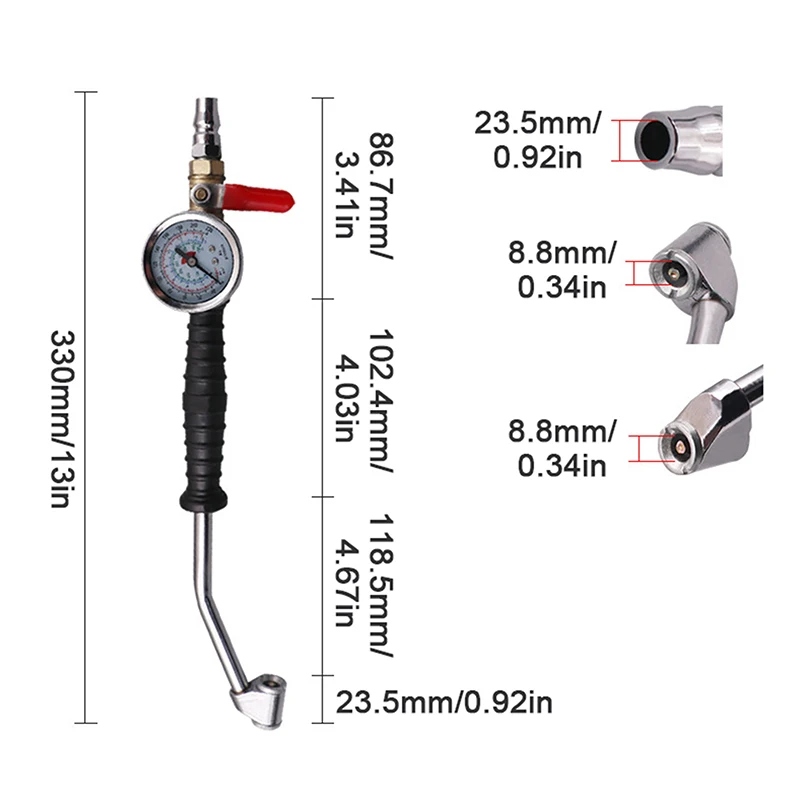

The long stem places the chuck away from the gauge body.
Check the inlet coupling profile against your existing air hose.
The dial includes pressure scales marked up to 220psi and approximately 15bar.
Technical details
- Product: tyre inflator with analogue pressure gauge
- Chuck: dual-head type for compatible standard tyre valves
- Air control: lever valve
- Dial markings: up to 220psi / approximately 15bar
- Inlet threading stated: 1/4 BSP
- Air hose size stated: 8mm; verify actual coupling fit
- Main construction: metal with ribbed rubber grip
- Power source: external compressed-air supply
- Package: 1 gauge/inflator assembly
- Exclusions: compressor and air hose
Keep pressure checking and air control together at the wheel with this compressor-fed tyre inflator.
