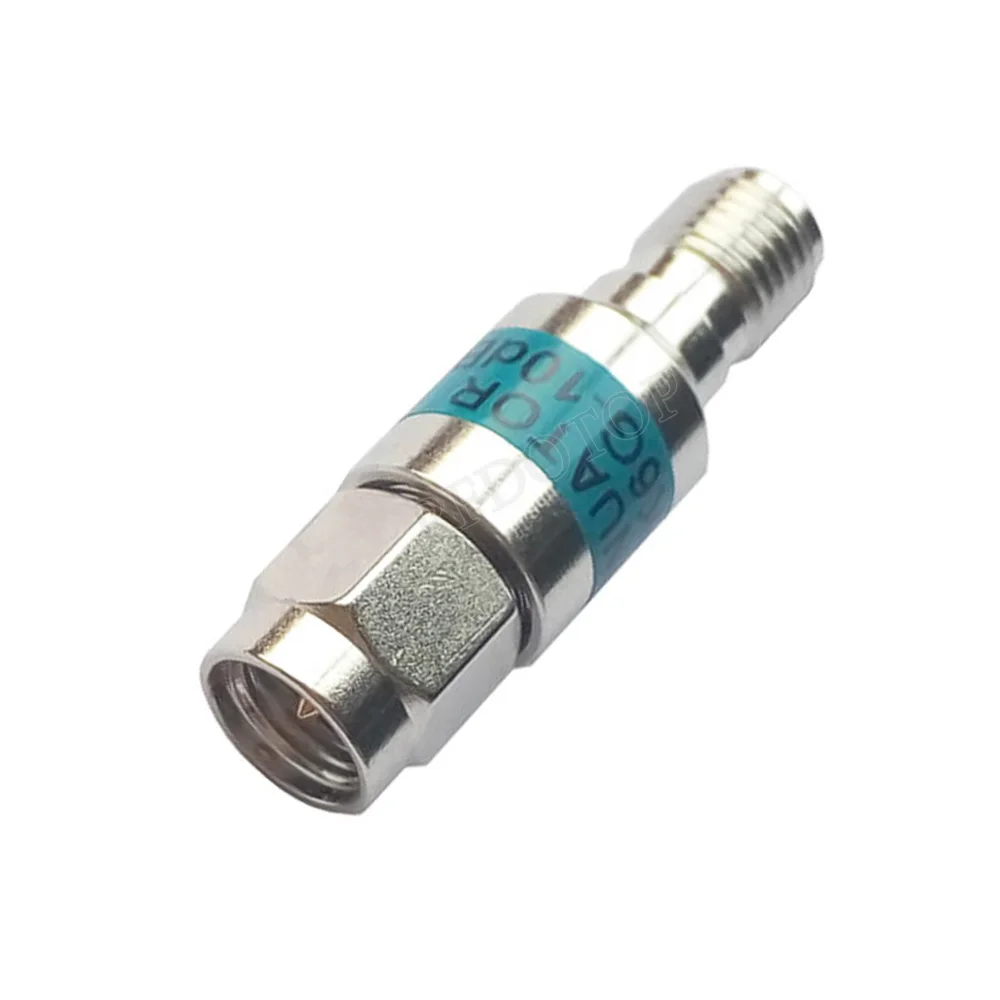

SMA RF DC Block - Male to Female, 50 Ohm

Block the DC component in a compatible coaxial RF path. This compact accessory uses SMA male and female connections in a 50-ohm arrangement.

✅ Add DC blocking to the signal path - The component provides the intended blocking function within its actual electrical limits.

✅ Fit a compact inline connection - The straight male-to-female format connects between matched SMA components.

Check the RF Band and DC Limit Together

An RF DC block must suit the required frequency band, power and DC potential. Confirm the lower cutoff as well as the up-to-6GHz description before placing it in the signal path.

This part does not pass DC as an RF signal and is not a safety-isolation device. The 2W description is a power limit under the specified conditions, not a DC voltage rating. Verify the selected finish and actual specifications.

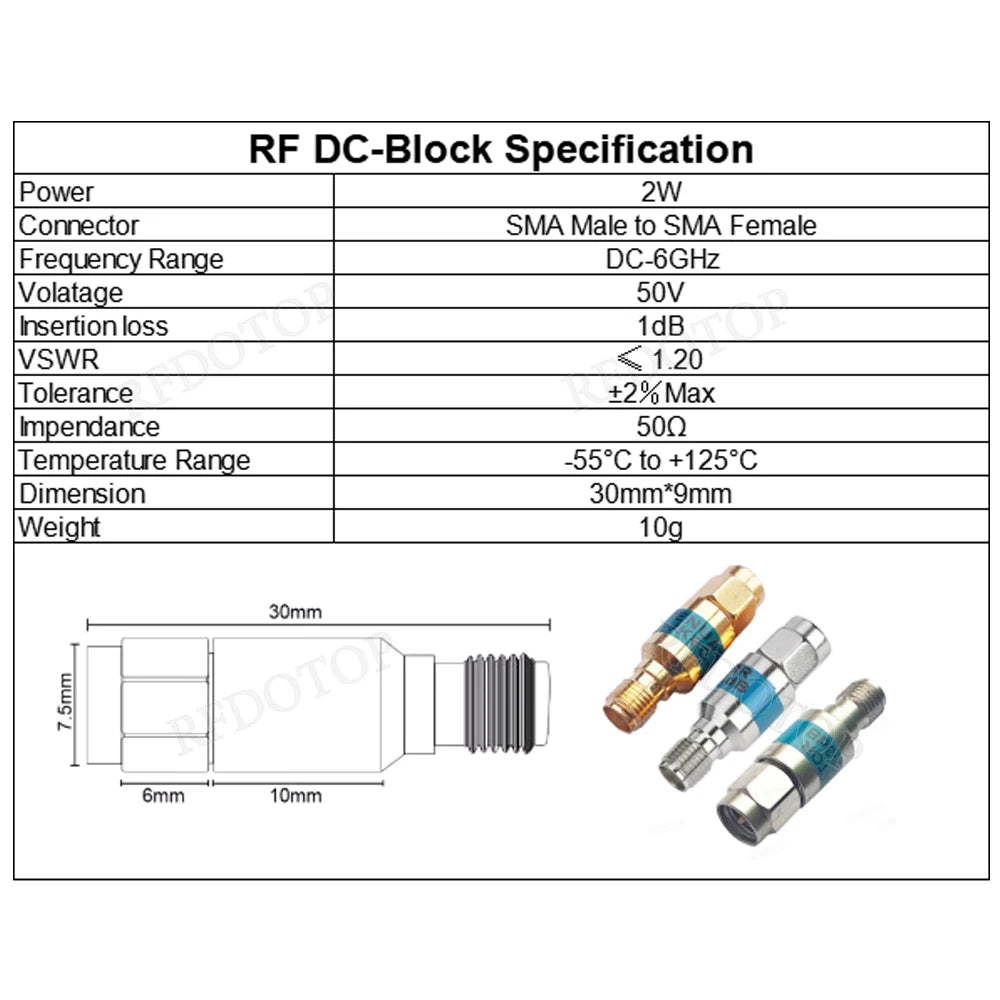

Technical details

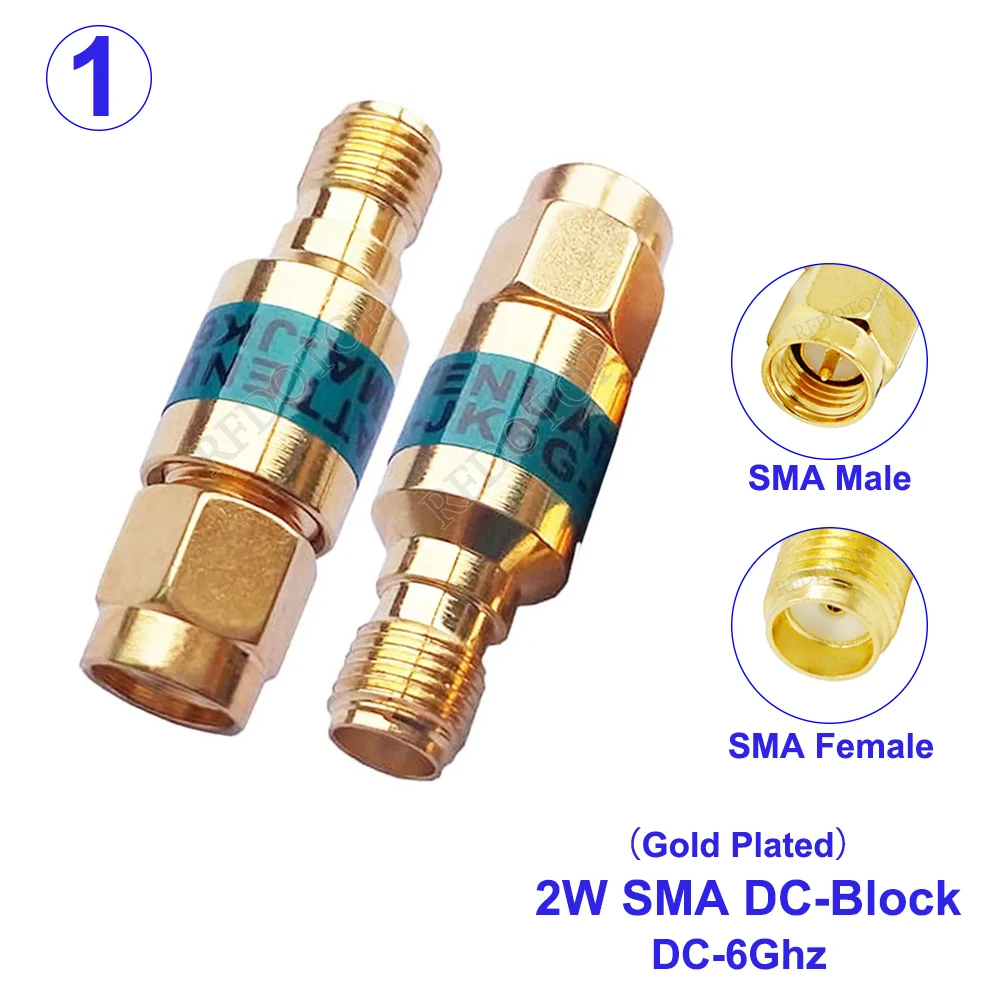

• SMA male-to-female RF DC block
• 50-ohm impedance
• Up-to-6GHz description; lower cutoff to confirm
• 2W power specification

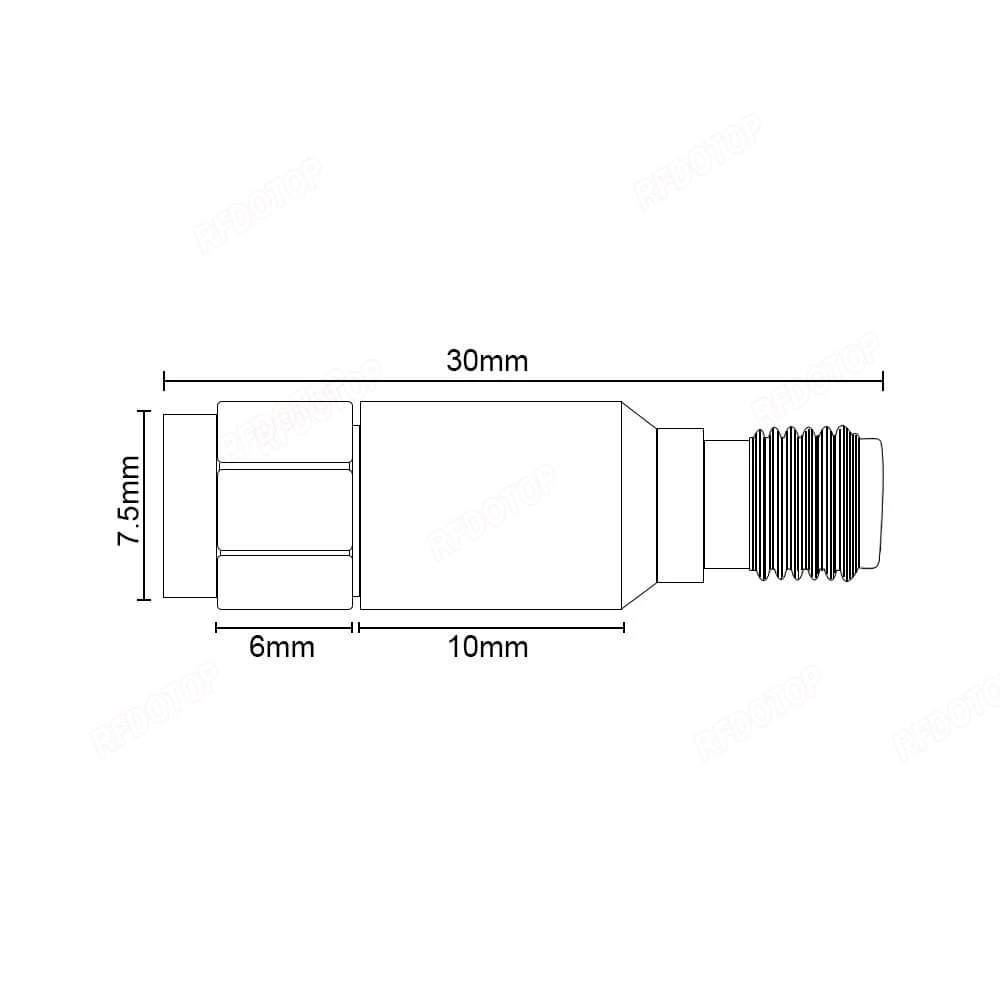

• Approximately 30 x 9mm

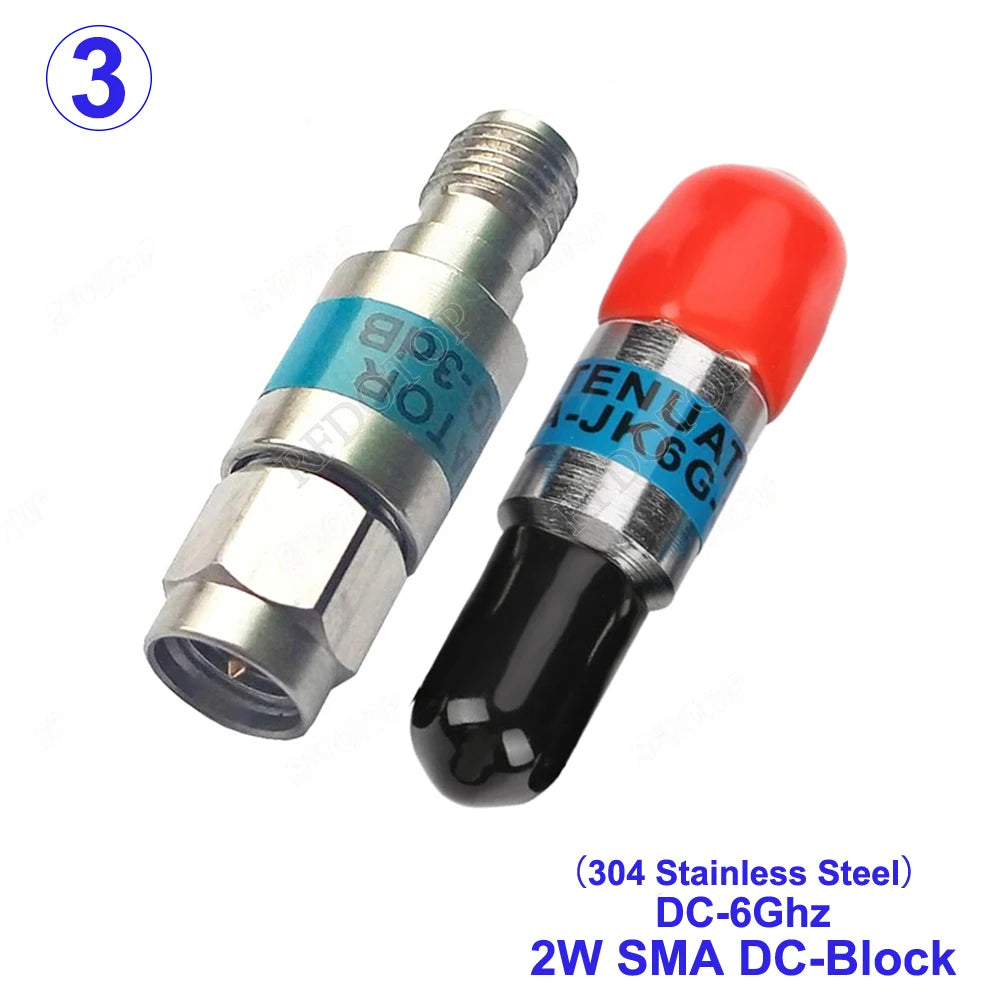

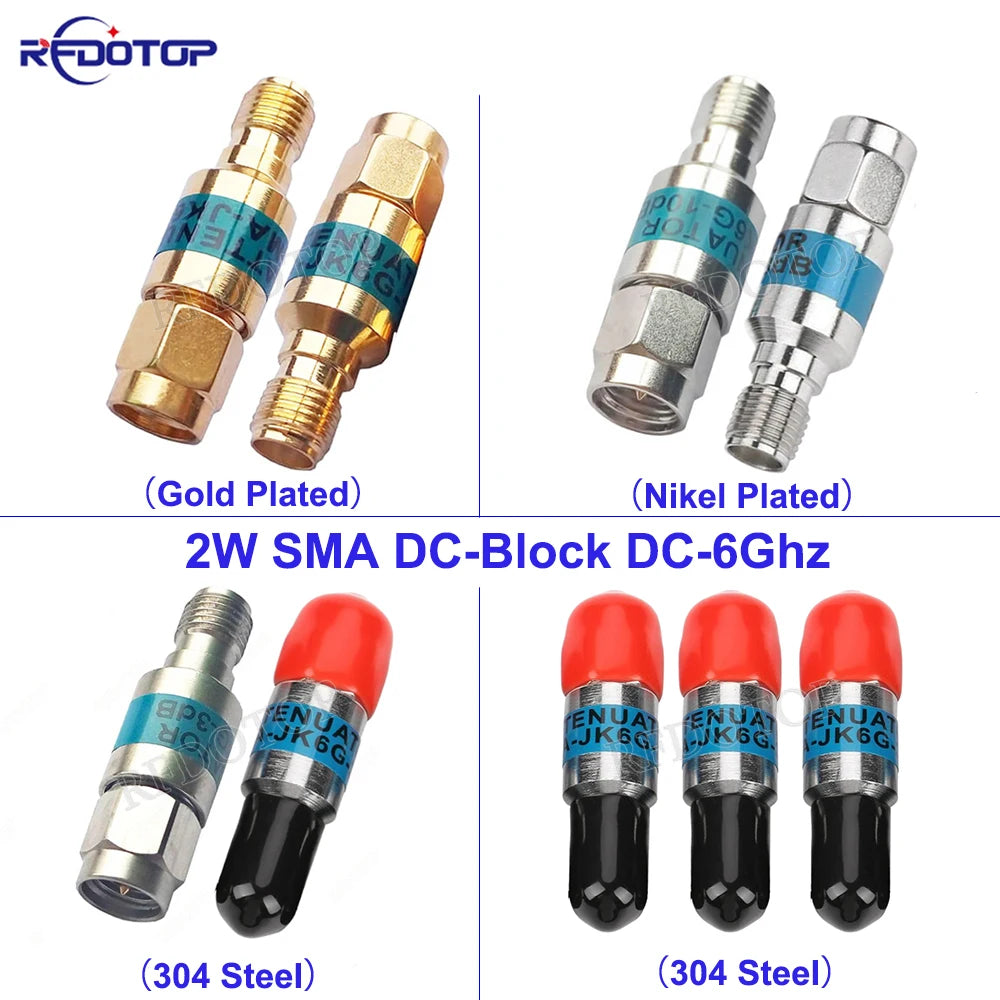

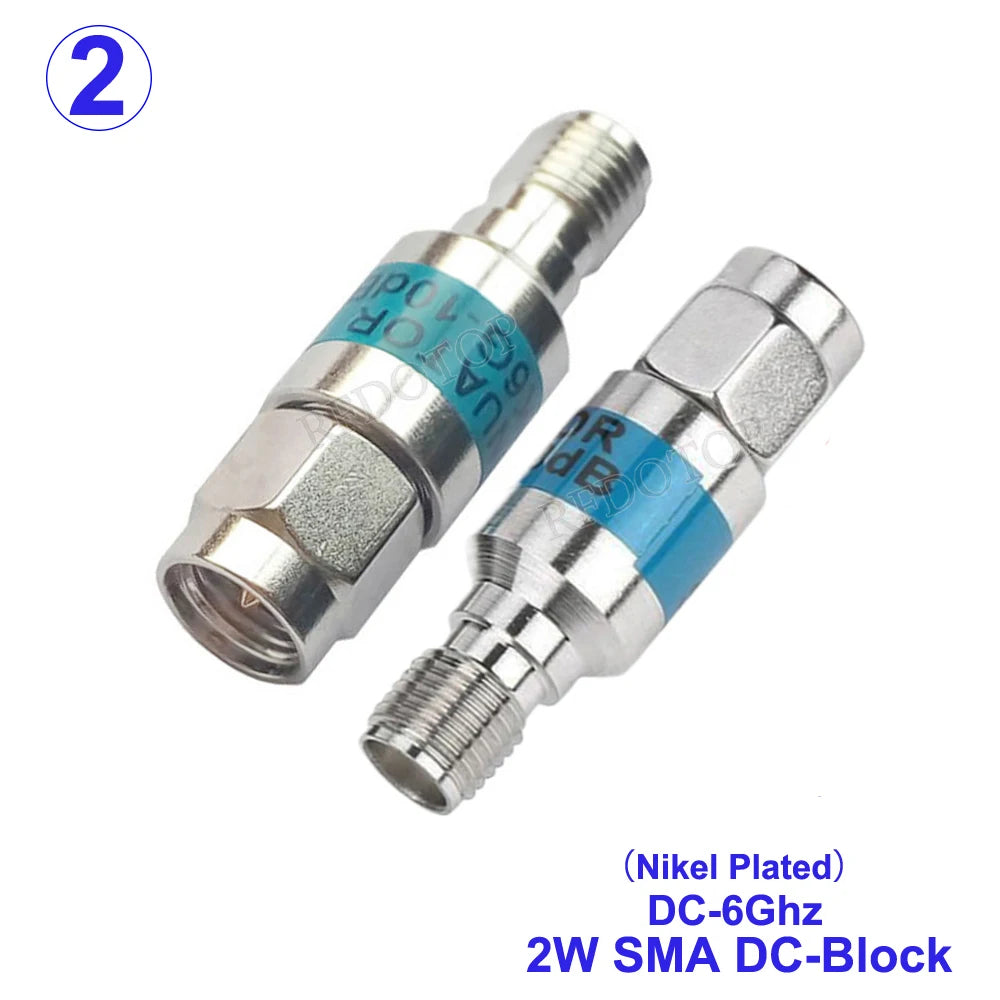

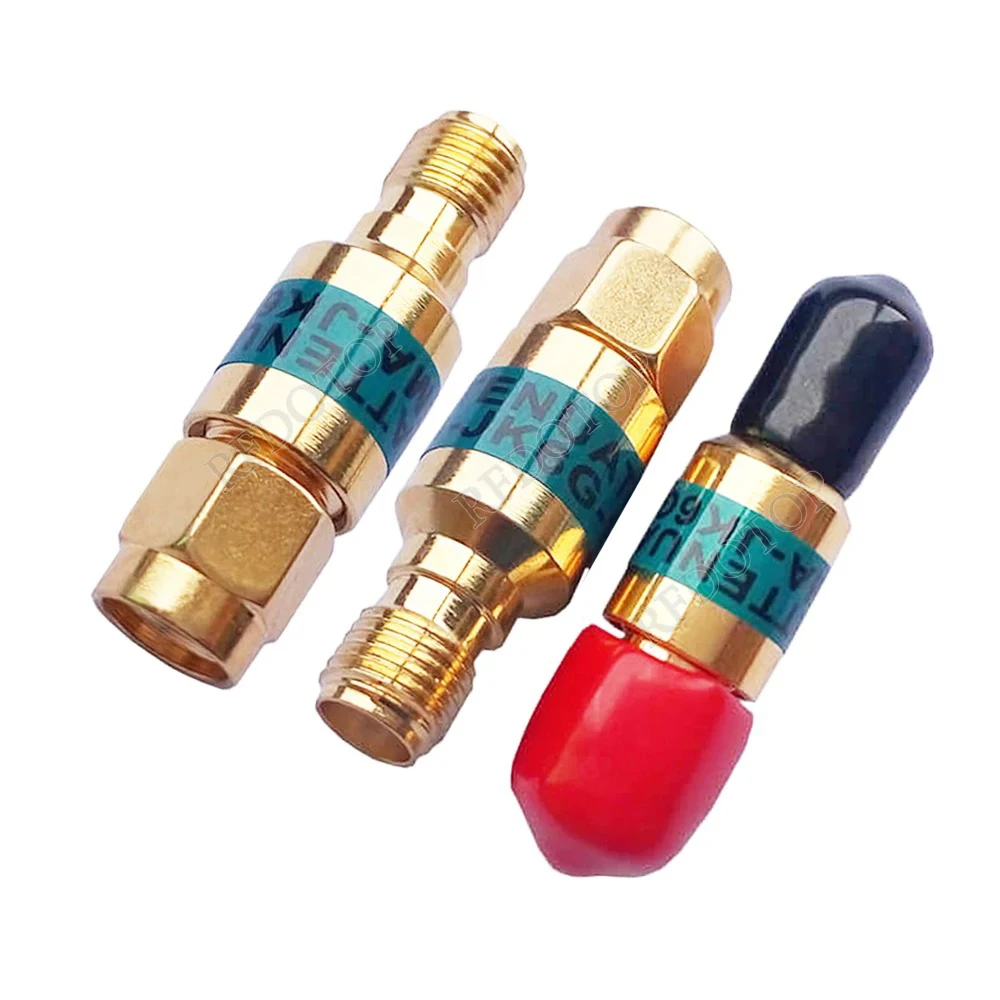

• Gold/silver/304-steel options
• One piece

Match the RF and DC requirements before adding the inline block.
