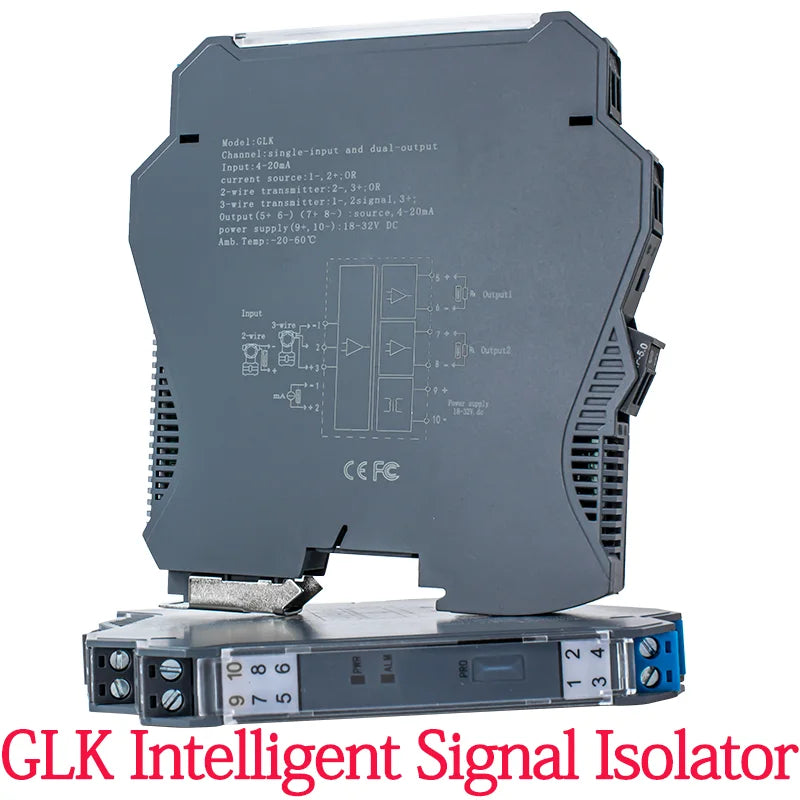

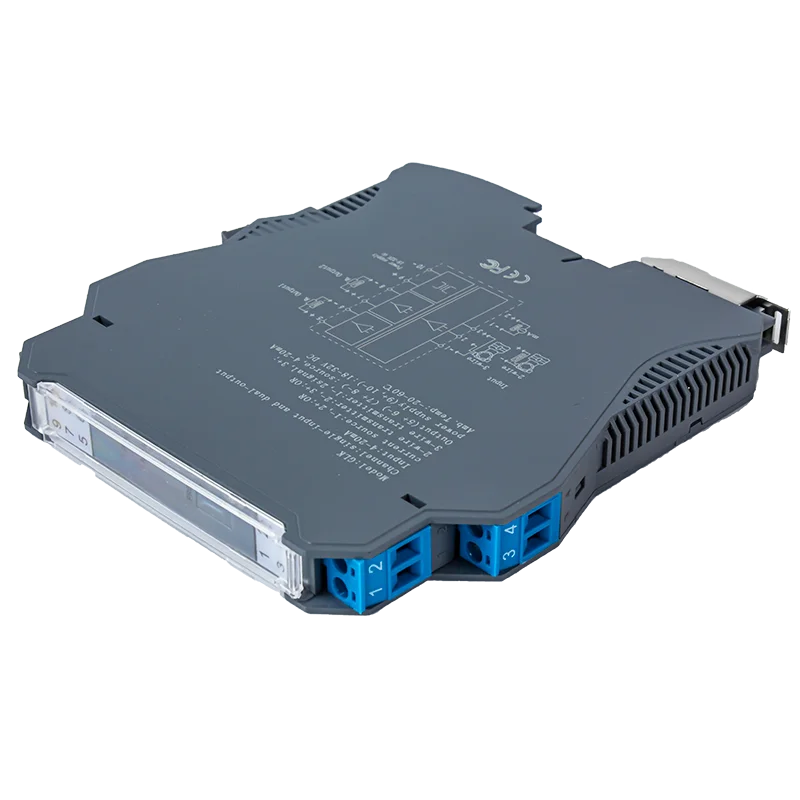

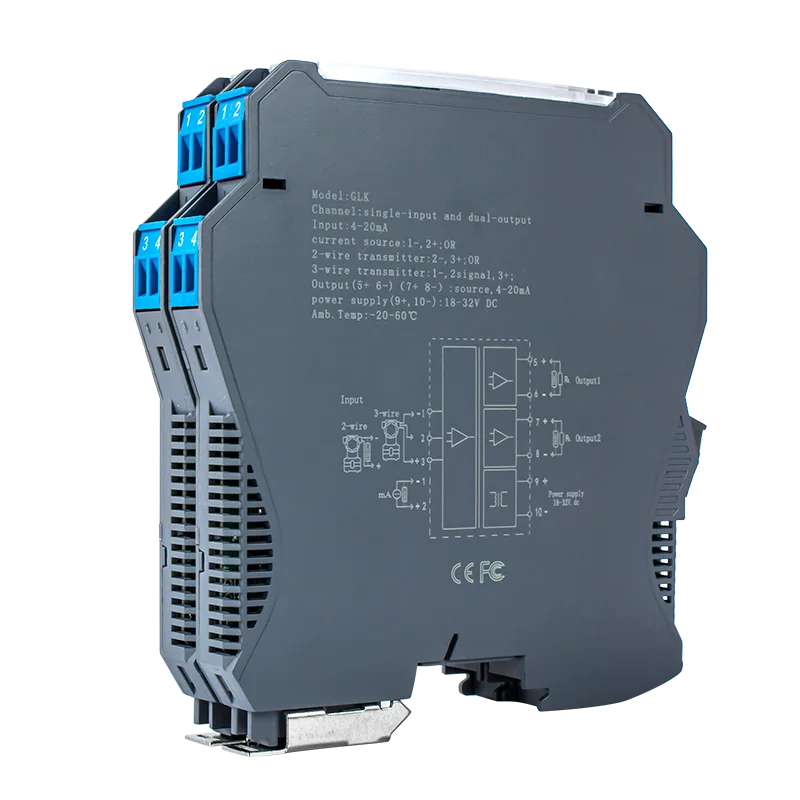

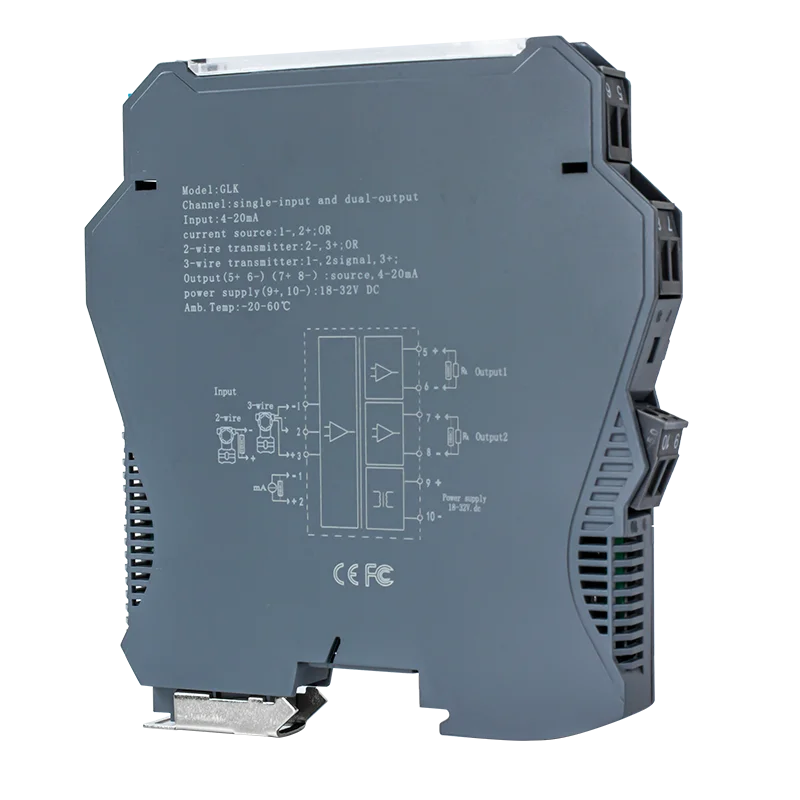

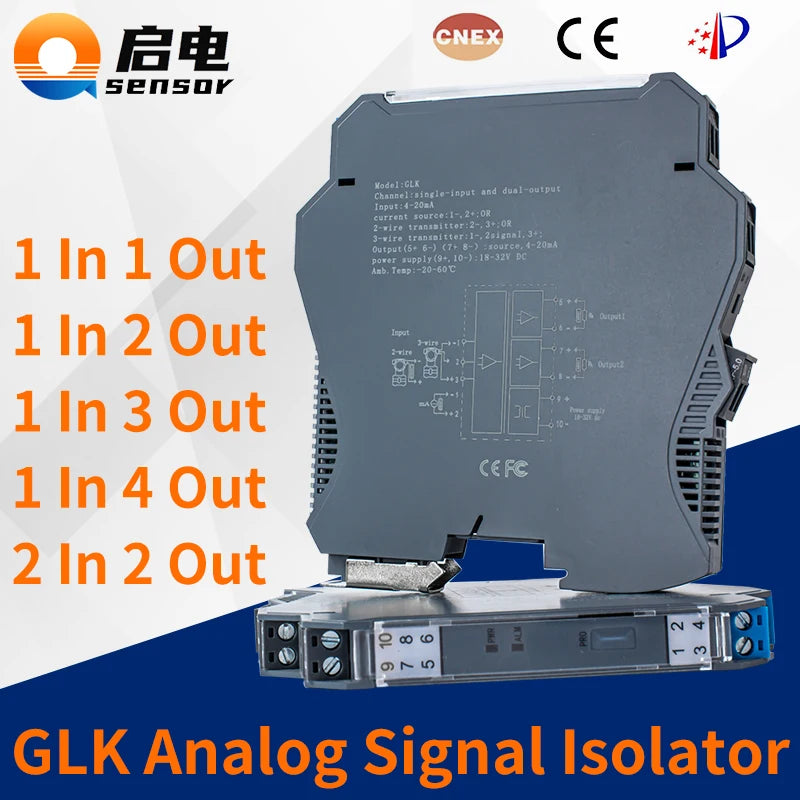

GLK Analogue Signal Isolator - Channel Options

Match an analogue instrument signal to the input your control system expects. The GLK signal isolator offers selectable current and voltage formats with several channel arrangements, providing a conversion stage between compatible field and control equipment.

✅ Bridge different analogue formats - Input and output selections include current-loop and voltage signal ranges.

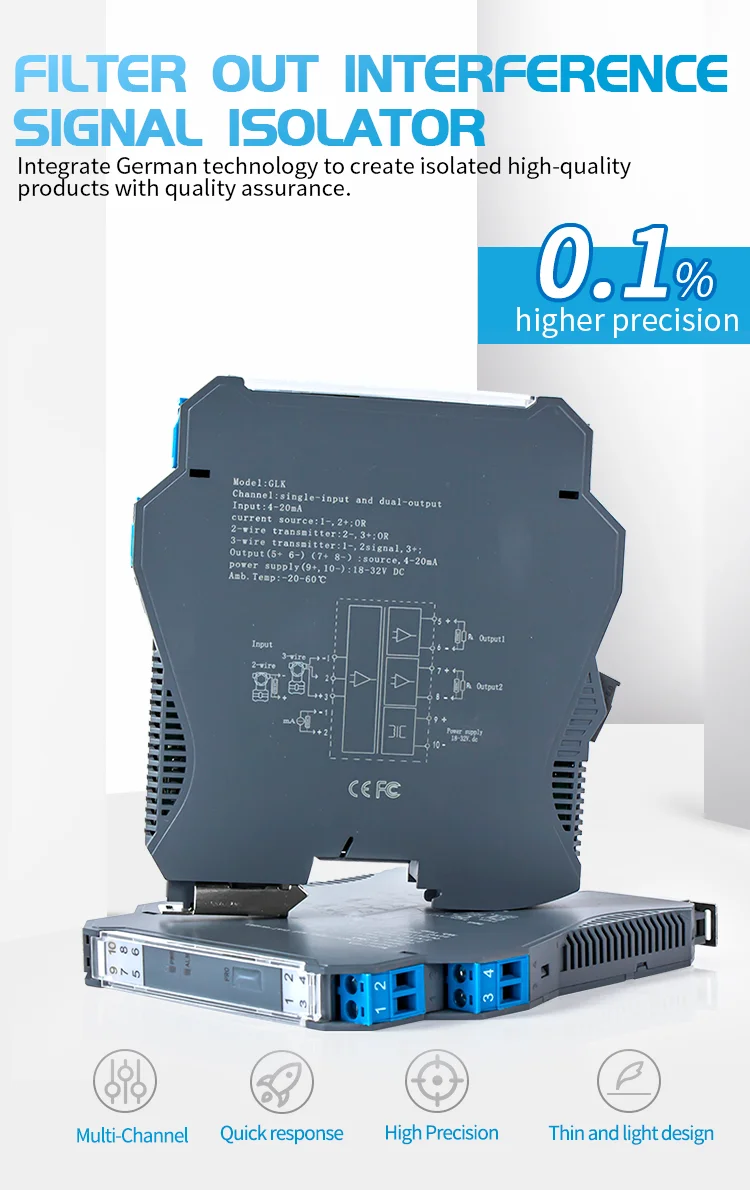

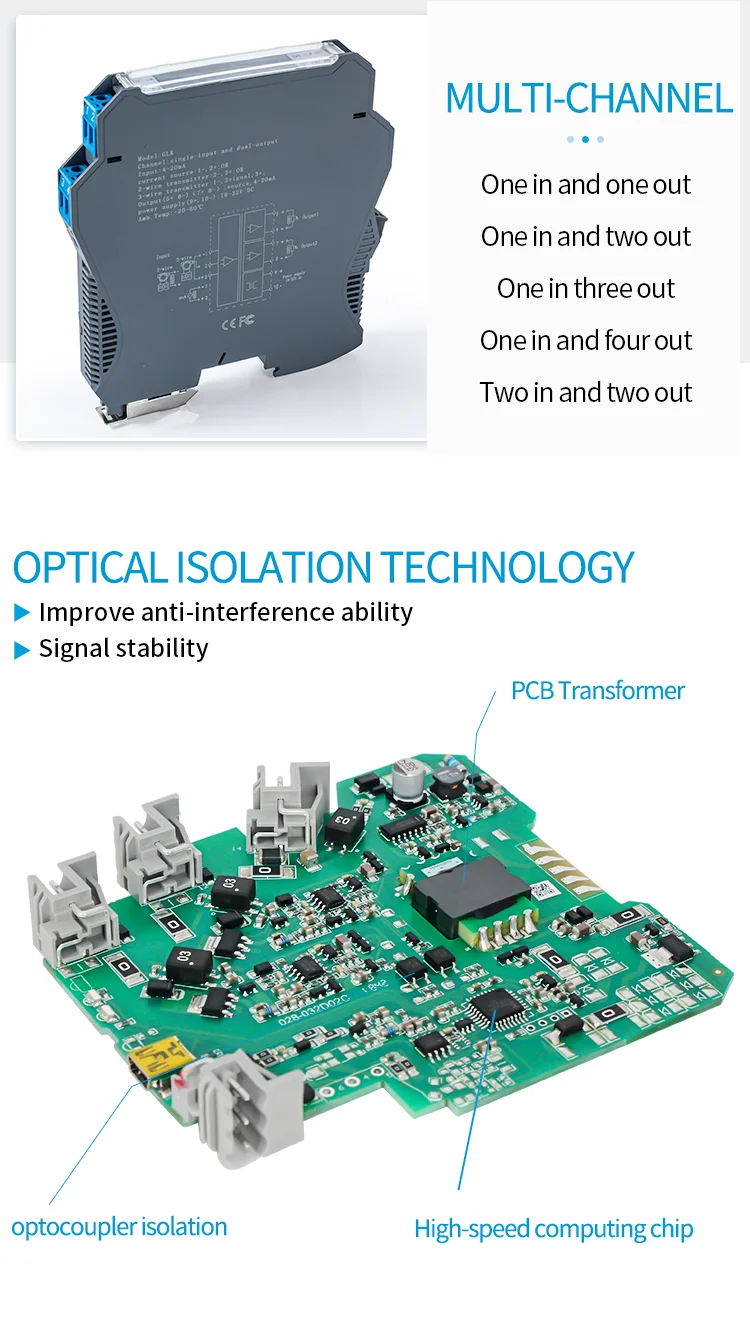

✅ Separate the signal paths - Optocoupler isolation provides a distinct interface stage between the connected circuits.

✅ Distribute a signal where required - One-input/multiple-output configurations support several compatible destinations from one input.

Make the Signal Fit the Receiving Equipment

A sensor and a controller can use different analogue formats even when both are useful parts of the installation. A converter sits between them, allowing the selected input range to be represented by the chosen output format.

Specify the channel arrangement, input range and output range together. A one-input/four-output unit has a different role from two-input/two-output hardware, and the selected signal ranges must match the complete installation before wiring.

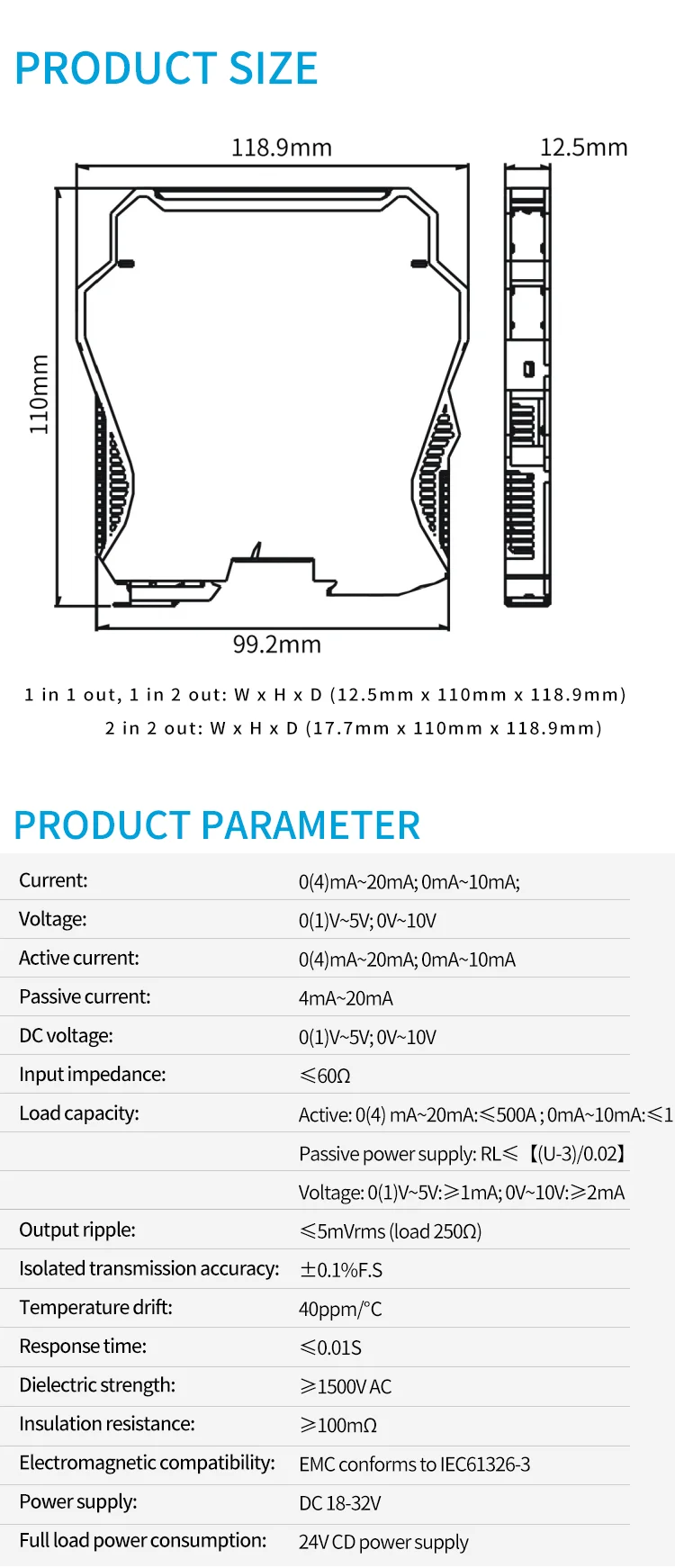

Technical details

• Series: GLK DC analogue signal isolator
• Selected supply variants: DC 24 V

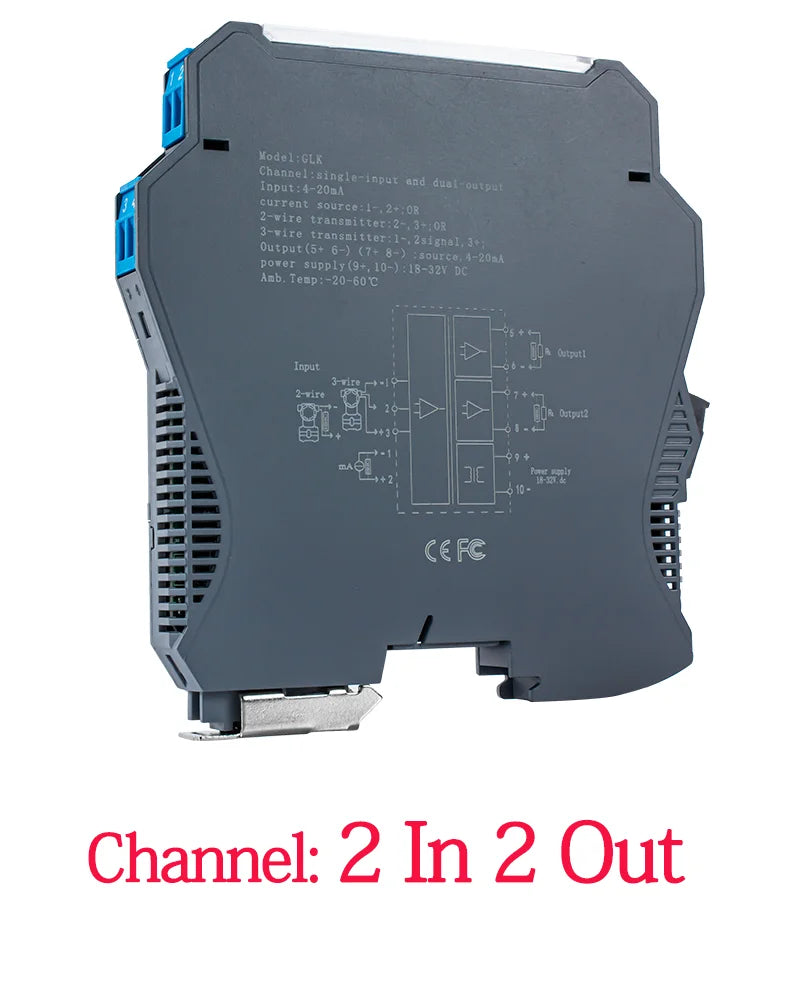

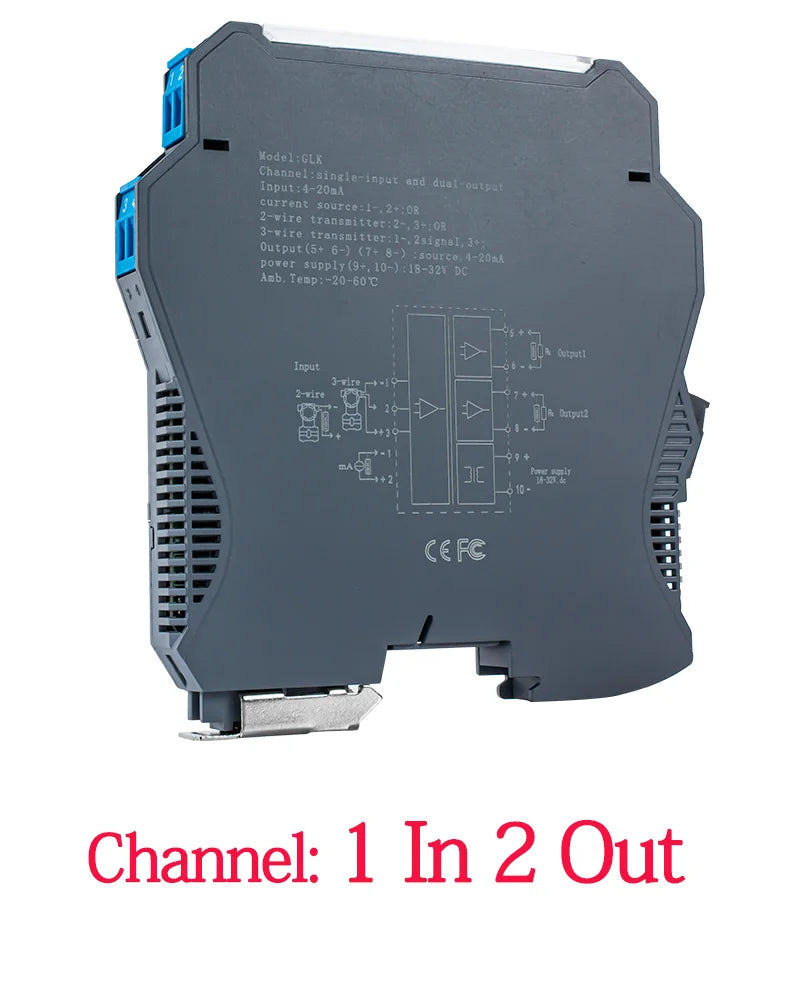

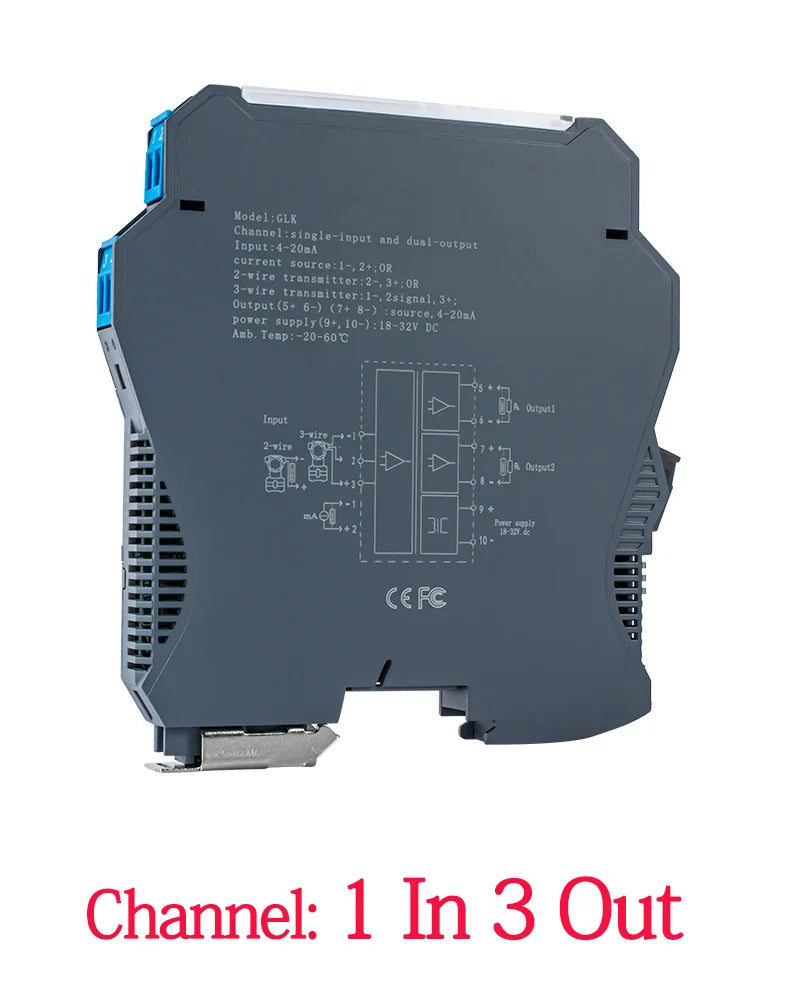

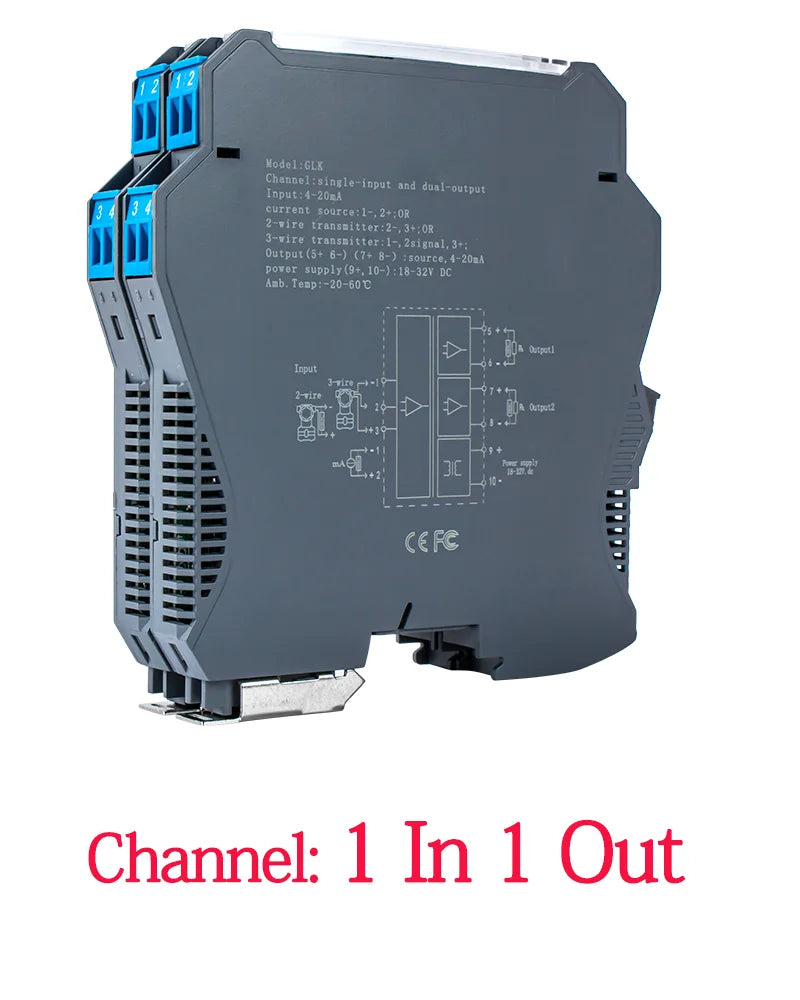

• Channel options: 1-in/1-out, 1-in/2-out, 1-in/3-out, 1-in/4-out or 2-in/2-out
• Signal options include: 4-20 mA, 0-20 mA, 0-10 mA, 0-5 V, 0-10 V and 1-5 V
• Input and output chosen separately

Select the exact channel and signal combination for your analogue installation.
