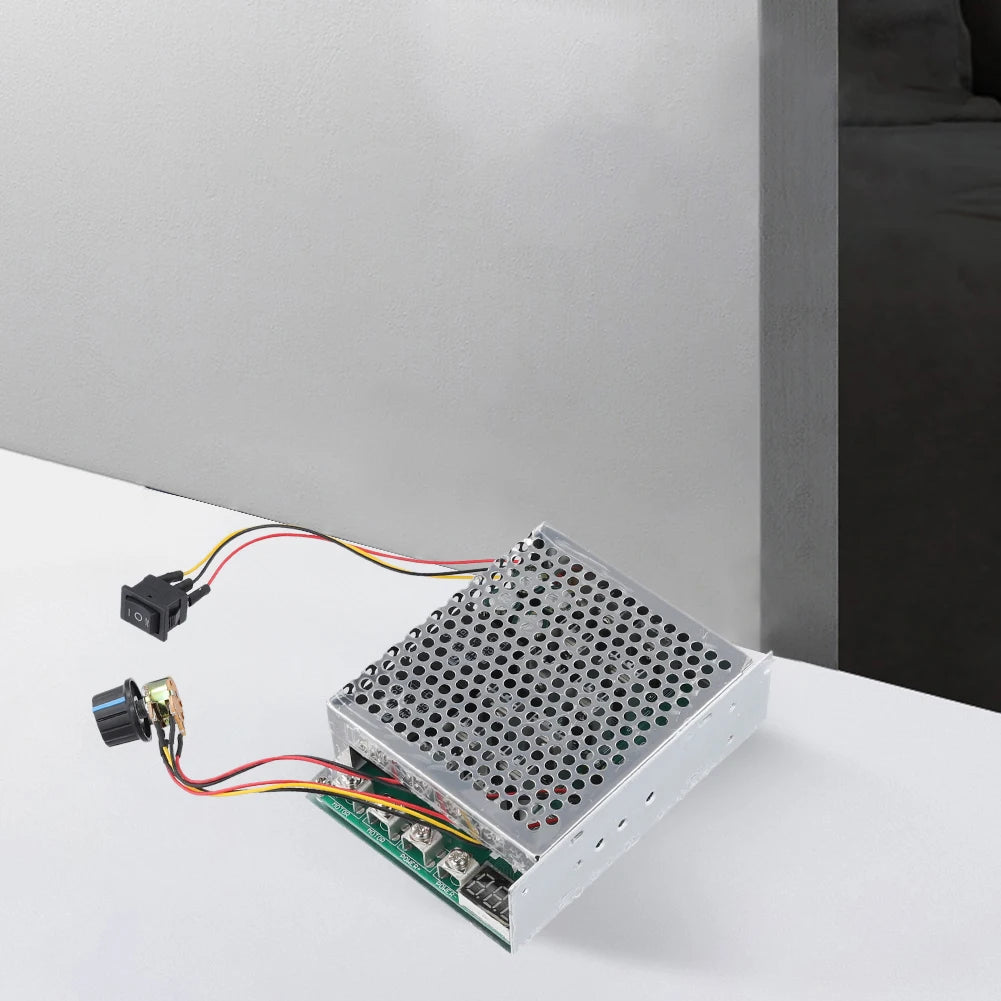

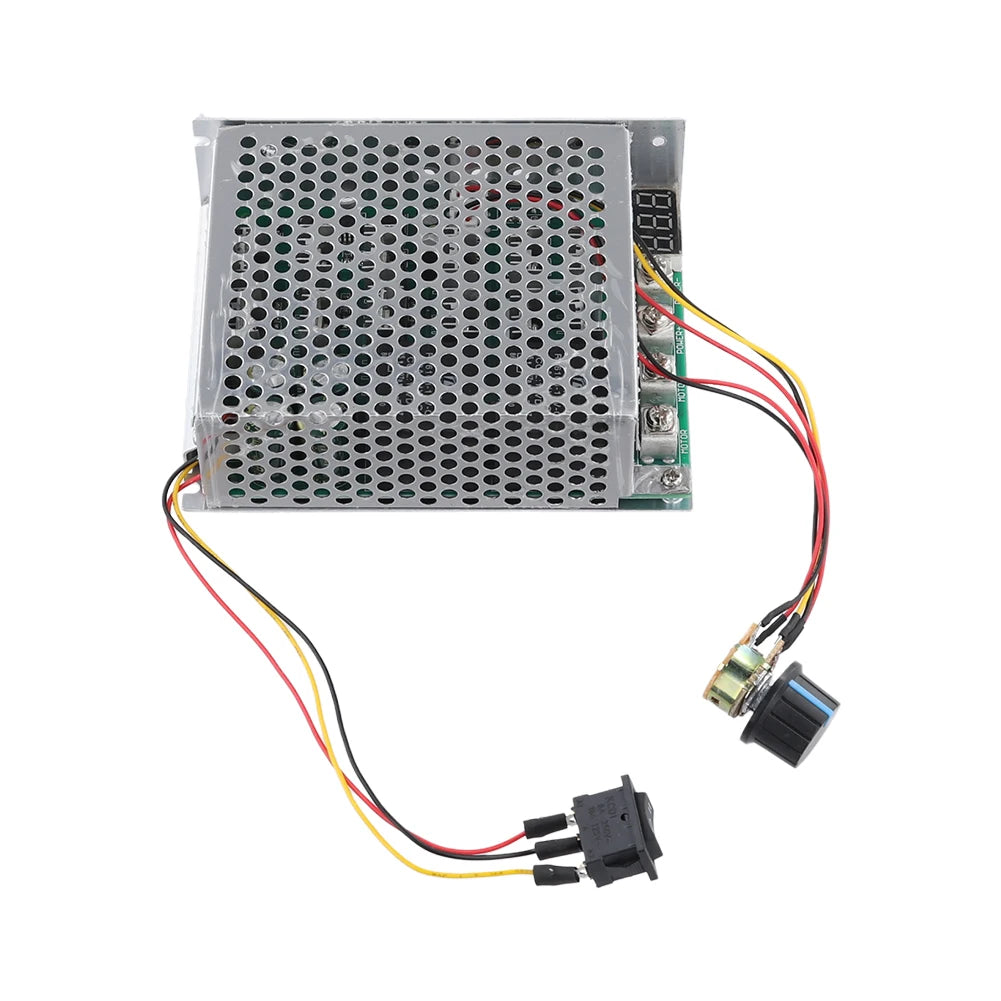

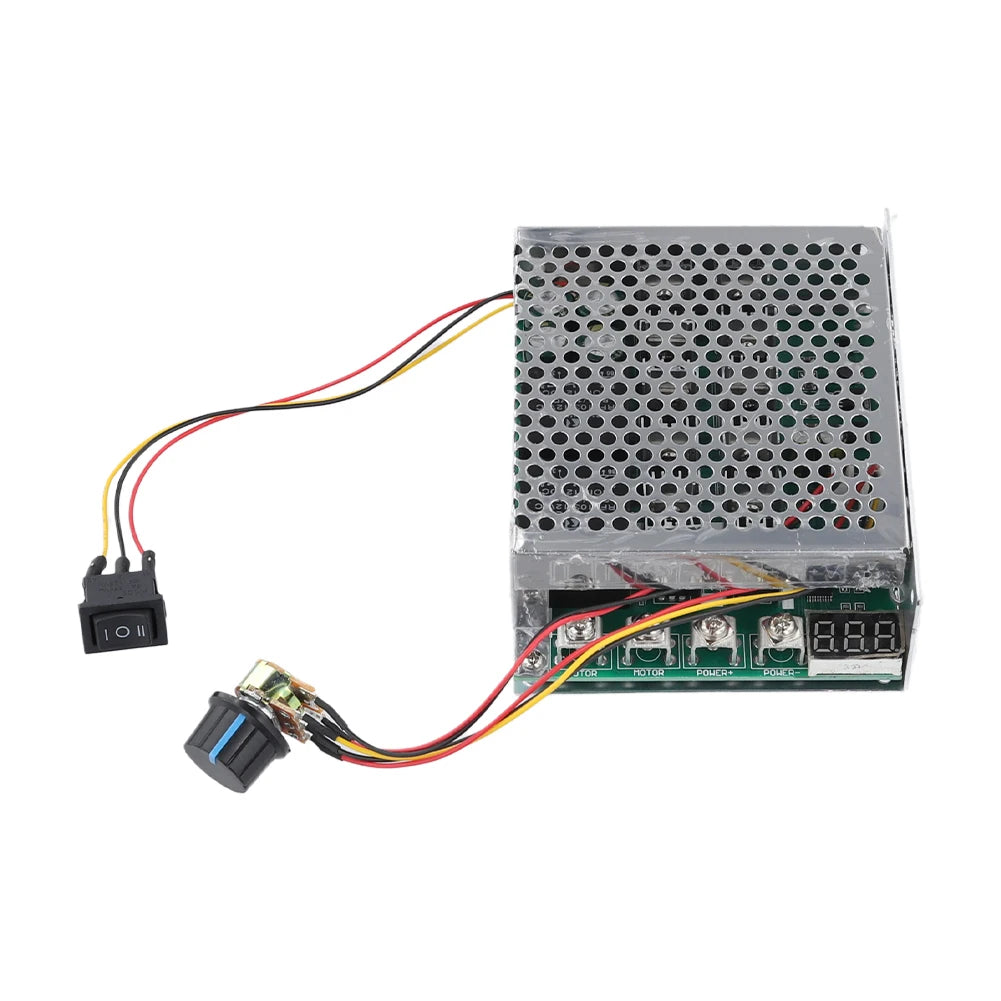

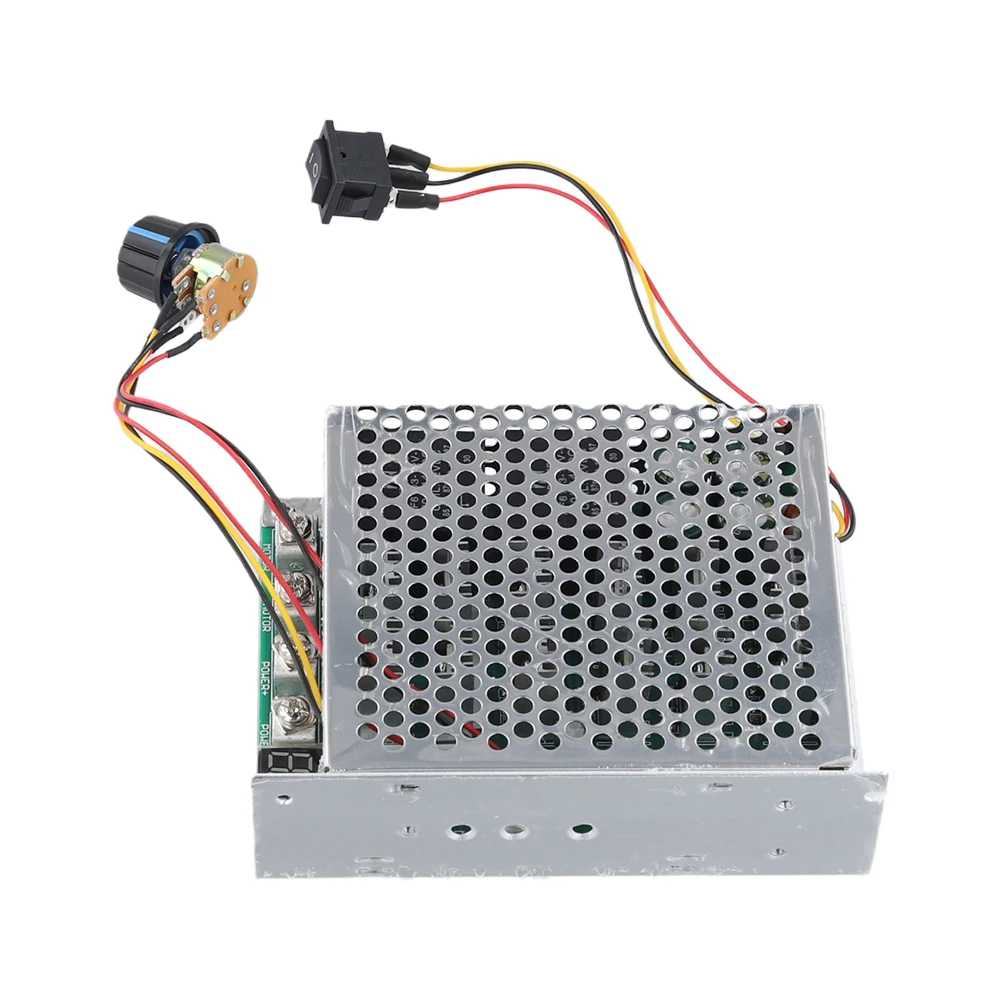

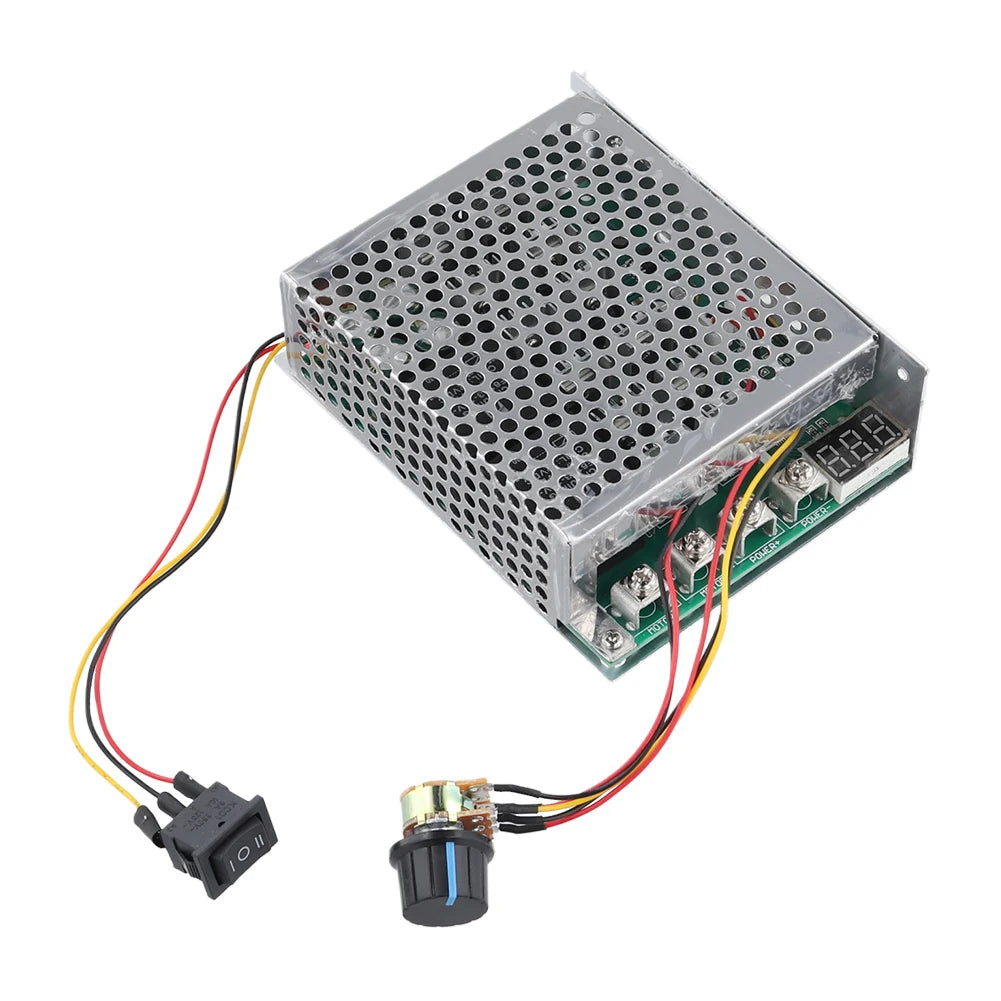

DC Motor Driver and Speed Controller Module

Set the speed of a compatible DC motor with a dedicated control module. This controller uses a potentiometer adjustment and is intended for a correctly designed DC motor installation within its actual ratings.

✅ Change motor speed from the control knob - The potentiometer provides a manual way to adjust the compatible motor's drive level.

✅ Place the adjustment where it is accessible - The panel-mount potentiometer arrangement lets the control be planned separately from the main board position.

Build the Adjustment Around the Motor

Choose the controller around the motor's supply, running current and starting demands, then plan the enclosure and wiring. The listed DC 10-55V input range is only one part of that match; cooling and the actual board limits also matter.

Arrange the knob where the operator can reach it without accessing the powered board, following the delivered unit's connection instructions. Test the response with the mechanism safely prepared before normal loading, and use the circuit protection required for the complete installation.

Technical details

• DC motor speed-controller module

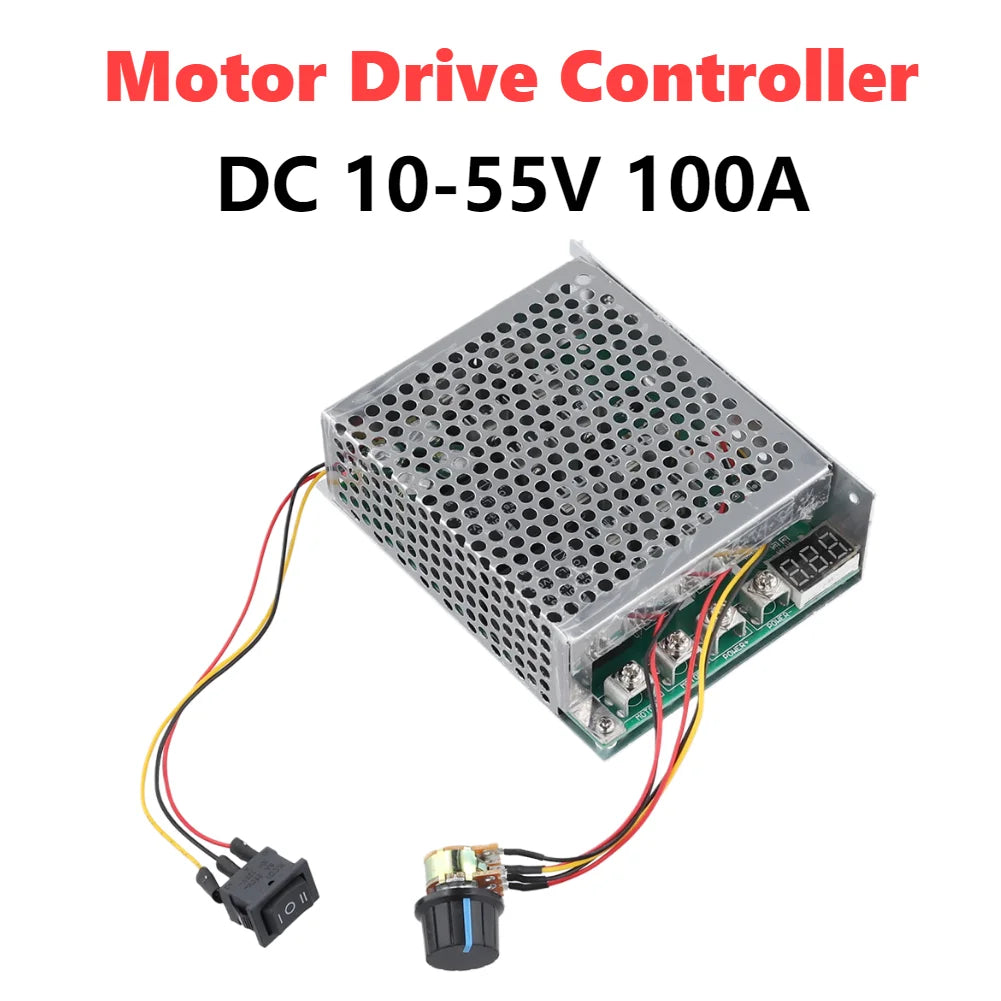

• Specified DC input: 10-55V
• Potentiometer speed adjustment; 100k control specification
• Potentiometer mounting opening: 7mm

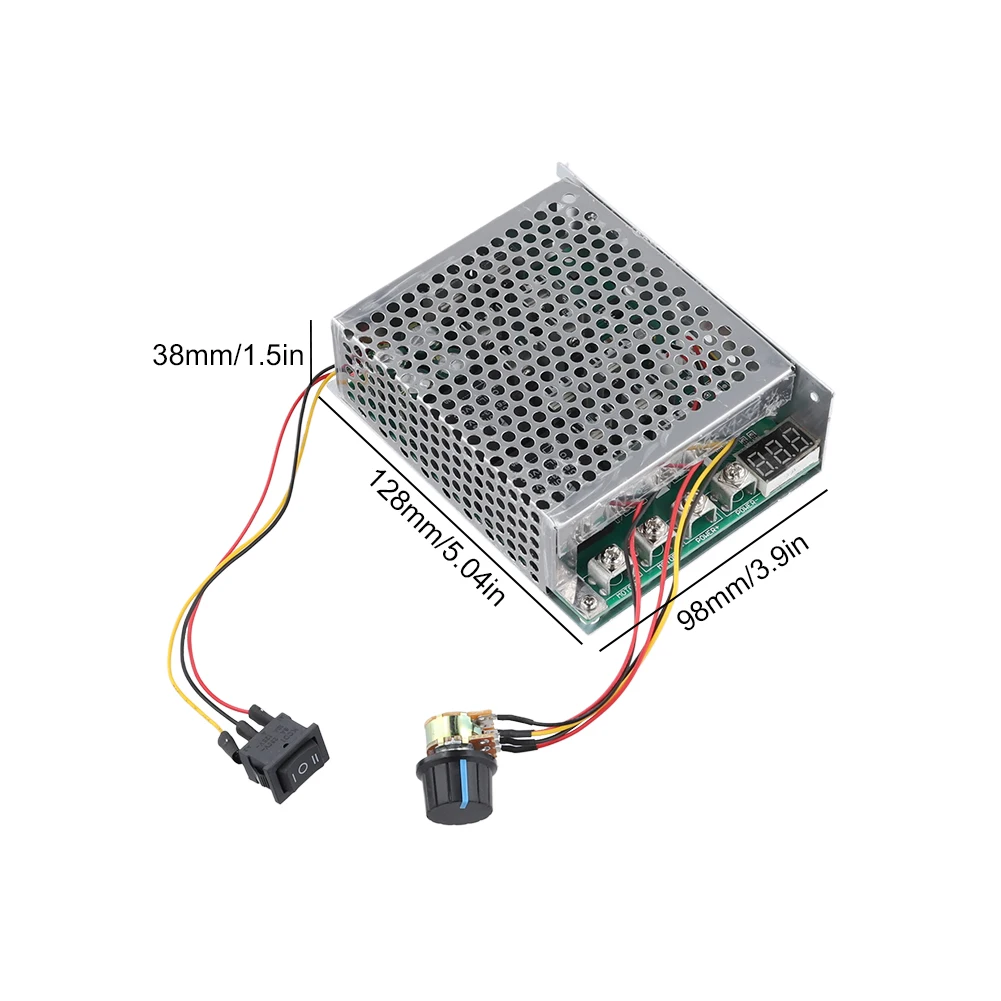

• Approx. 128 x 98 x 38mm module
• Verify actual current, cooling and motor compatibility

Match the controller to the motor and put the speed adjustment where you need it.
