66-Piece DIP IC Socket Assortment, 6–28 Pins
Leave a compatible DIP chip removable when you solder your next circuit board. This IC socket assortment covers eight pin counts and comes in a compartmented box. It is for electronics hobbyists building or repairing boards that accept matching through-hole sockets.
- ✅ Replace a chip more easily — Solder the socket to the board so a compatible IC can be inserted and removed.
- ✅ Keep a project moving — Eight pin counts give you several socket choices when planning a DIP circuit.
- ✅ Find parts on the bench — Separate box compartments help keep the socket sizes organised.
- ✅ Build with fewer direct chip joints — Soldering the socket avoids applying the iron directly to the inserted IC's pins.
A socket assortment for removable DIP chips
An IC socket sits between a matching integrated circuit and the circuit board. Once the socket is soldered in place, you can fit the compatible chip without soldering it directly to the PCB.
The assortment contains 66 sockets across 6, 8, 14, 16, 18, 20, 24 and 28-pin formats. Check pin count, row spacing and the board footprint before fitting: pin count alone does not establish compatibility.
The compartmented box keeps unused sockets together for later builds. This is a set of sockets, not a collection of integrated circuits or a complete electronic project.

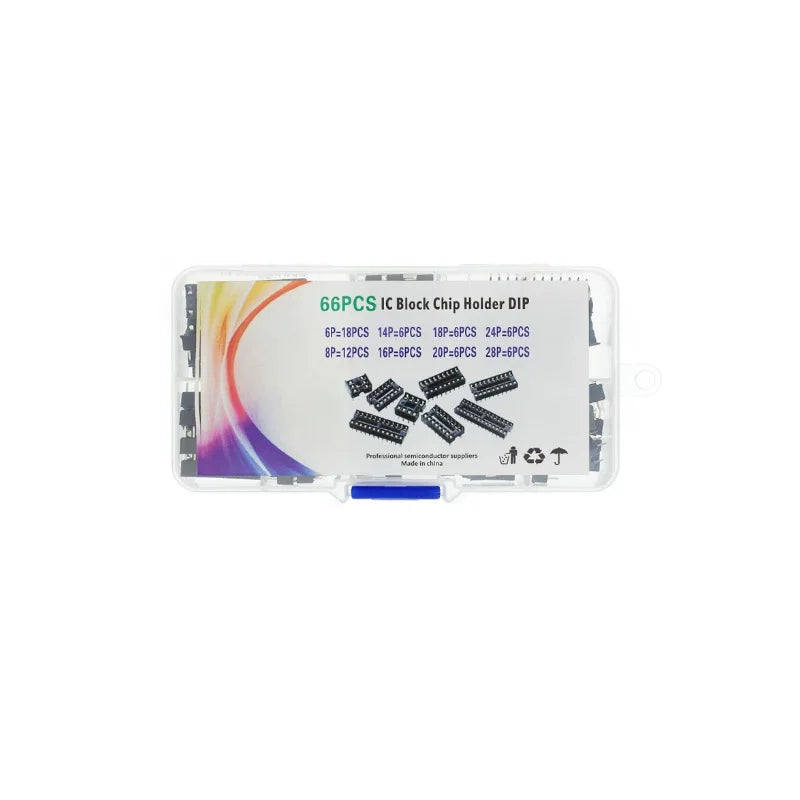

The labelled box keeps eight DIP socket formats together.
Choose a socket that matches the chip and the board footprint.
Solder the socket first, then insert the compatible IC.
Check the quantities and pin counts when planning your next project.

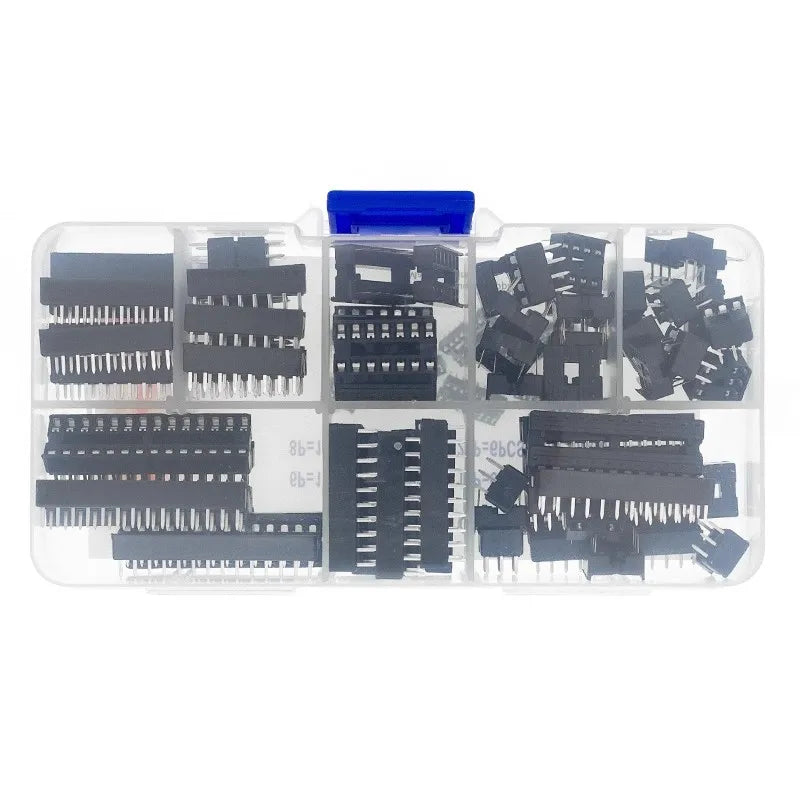

Separate compartments help keep unused sockets organised.
Technical details
- Type: through-hole DIP IC sockets
- Total quantity: 66 sockets
- 6-pin sockets: 18
- 8-pin sockets: 12
- 14 and 16-pin sockets: six of each
- 18 and 20-pin sockets: six of each
- 24 and 28-pin sockets: six of each
- Storage: compartmented box included
- Compatibility: matching DIP chip and PCB footprint required
- Integrated circuits and soldering equipment: not included
Keep a useful range of DIP sockets on your bench and make compatible chips easier to replace.
