DC 10–60 V 70 A PWM Motor Speed Controller, 4000 W

A worn controller can leave a scooter or e-bike motor stuck at one speed or dead altogether. This PWM module takes DC 10–60 V in, passes up to 70 A and drives a brushed DC motor from a 100 K potentiometer. It suits rebuilds, test rigs and small electric vehicles.

A Dial-Controlled Replacement for Brushed Motors

✅ Dial instead of menus Turn the 100 K potentiometer to go from stop to full output, with no programming step.

✅ Built for a rebuild Replaces a failed controller on a 10–60 V brushed scooter or bike setup.

✅ Handles heavy current Up to 70 A and 4000 W continuous, with an 80 A overcurrent cut-off for stalls.

✅ Works on the bench Wire it between battery and motor to test a rebuild before it goes back on the road.

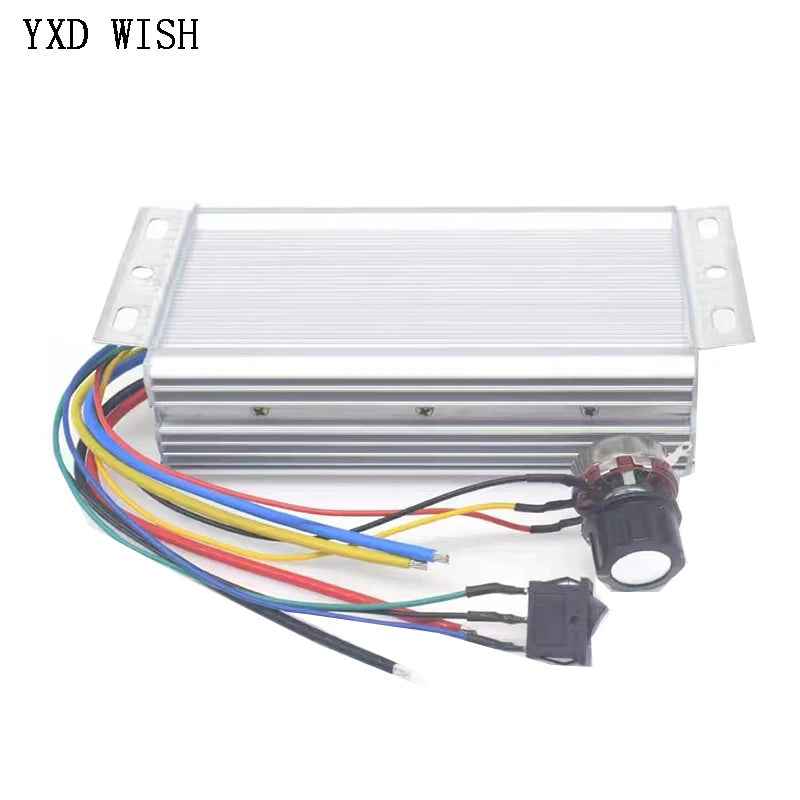

✅ Compact module At 150 × 85 × 45 mm it fits inside a scooter deck or a small enclosure.

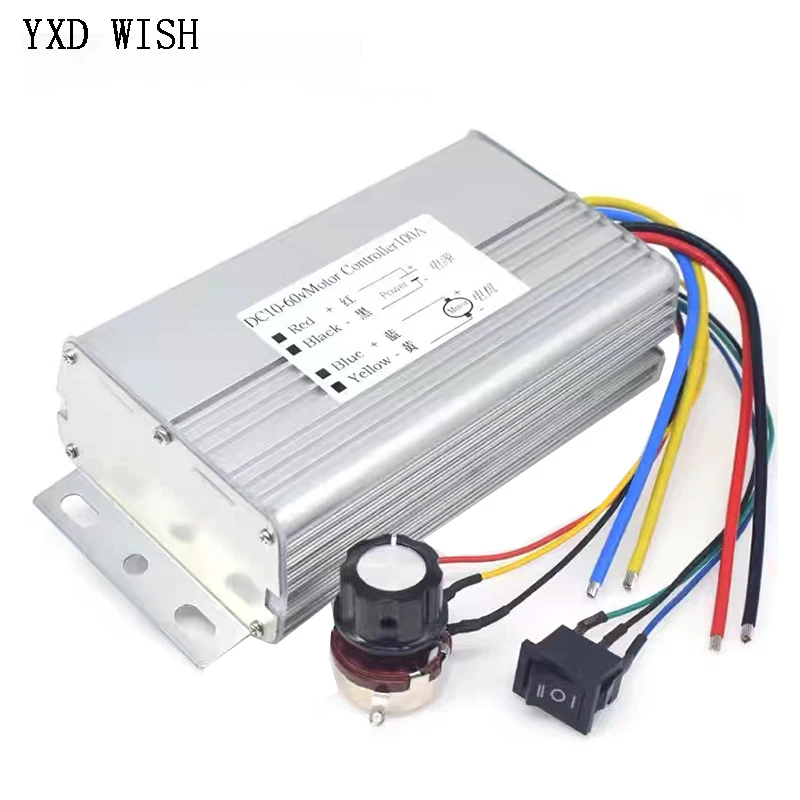

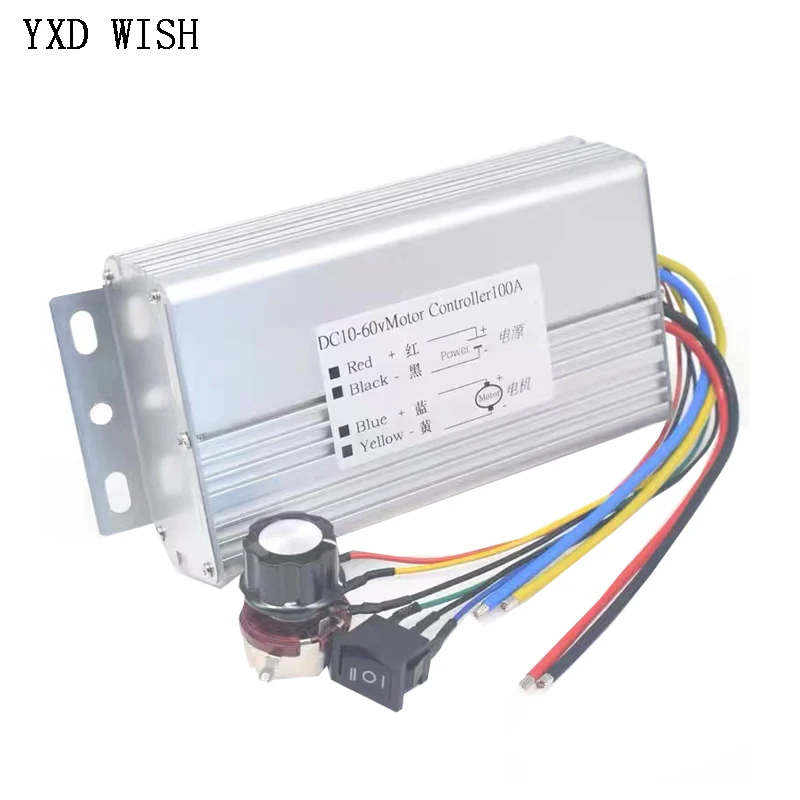

Wiring is straightforward: battery positive and negative in, motor out, and the potentiometer through a 10 mm shaft hole. The knob carries a switch, so the controller can stay wired and be switched off between runs.

Speed follows current through a linear potentiometer, adjustable from 0 to 100%. An 80 A cut-off protects the module if a motor stalls above the 70 A working limit.

This is a brushed-motor controller rather than a brushless one, and no battery is included. Plan the rest of the build around the parts you already have.

Before ordering, confirm three numbers: the pack stays between 10 and 60 V, the motor is brushed, and the current draw stays inside 70 A. The 4000 W figure is continuous power, not a peak rating.

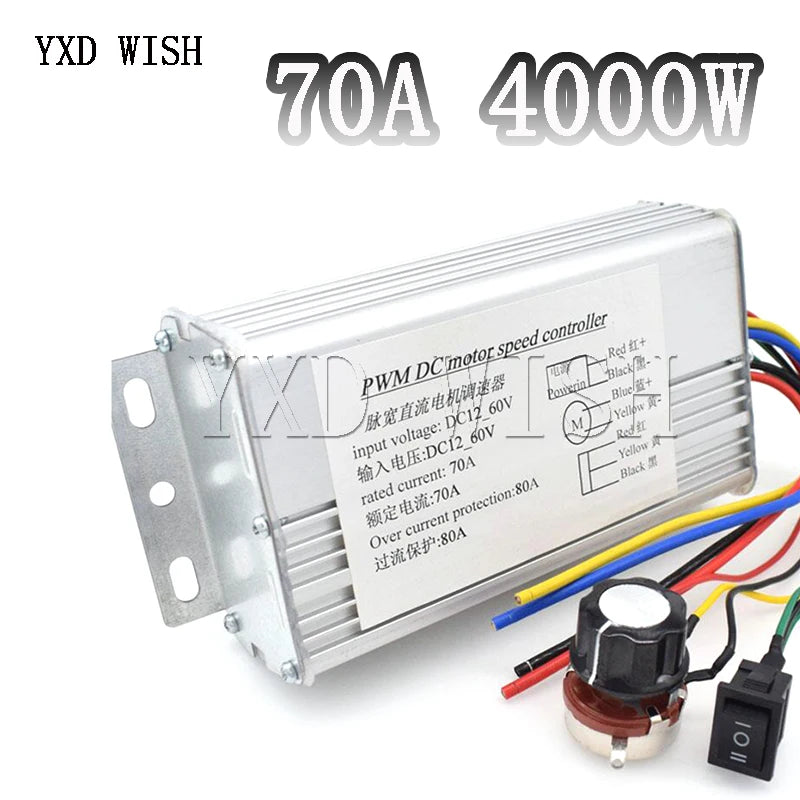

Technical details

• Input voltage: DC 10–60 V
• Output current: 0–70 A
• Continuous power: 4000 W
• Overcurrent protection: 80 A
• Speed control: Potentiometer, 0–100%, 100 K with switch
• Motor type: Brushed DC only
• Module size: 150 × 85 × 45 mm
• Knob mounting hole: 10 mm
• Battery: Not included

Check your motor is brushed and the pack stays inside 60 V, then fit the controller.
