Normally Closed Brass Water Solenoid Valve, G1/2, 90°
Switch water flow electrically in a correctly matched cleaning or irrigation circuit. This normally closed brass solenoid valve has a right-angle body and G1/2 connections. It is for installers choosing the coil voltage, pressure range and fittings for an existing water system.
- ✅ Control flow from a circuit — The solenoid changes the valve state when the correctly rated coil is energised.
- ✅ Keep the unpowered state closed — Normally closed operation suits systems requiring that default valve position.
- ✅ Turn the water path through a corner — The right-angle body places the connections at a stated ninety-degree angle.
- ✅ Match the existing pipework — Threaded ports connect to compatible G1/2 fittings.
Match the coil and fittings before installation
The selector offers 12V, 24V and 220V versions, each with a 1/2-inch connection option. These are separate coils, not a multi-voltage valve. The detailed 12V specification states DC; check the actual coil label for the selected version's voltage, AC/DC type and supply requirements.
The stated working pressure is 0.02–0.8 MPa, so the valve should not be assumed to operate in a zero-pressure gravity-feed arrangement. Match the flow direction and installation requirements to the actual unit.
A brass body and electrically operated coil form a water-control component, not a pump or complete irrigation controller. One selected valve is supplied. Power supply, switching controller, wiring, pipework and sealant are excluded.
Choose the correct coil version for your control supply.

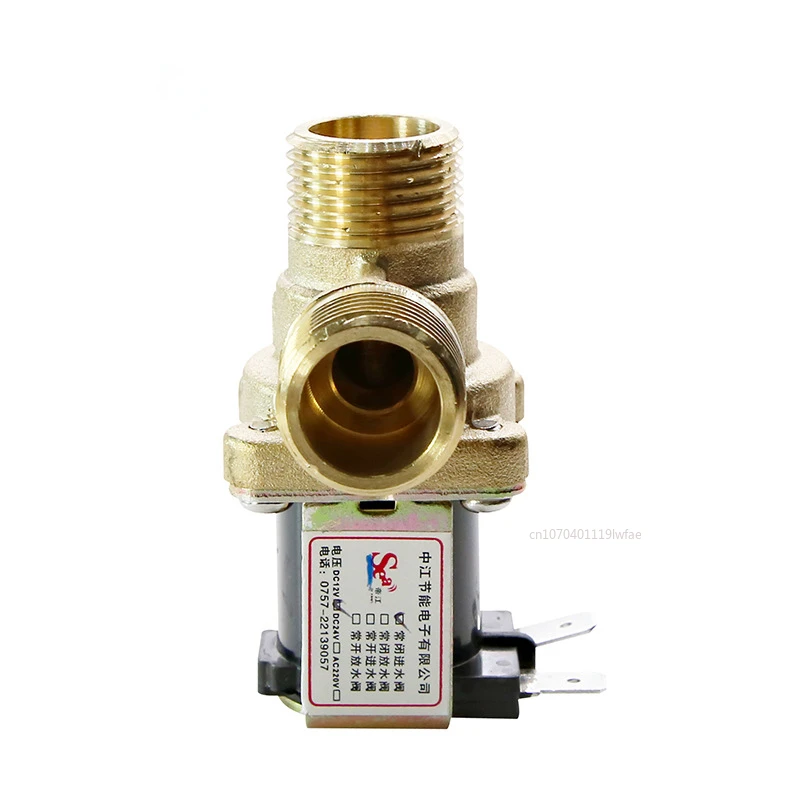

The label identifies the coil requirements; versions are not interchangeable.
Check flow direction and connection requirements.

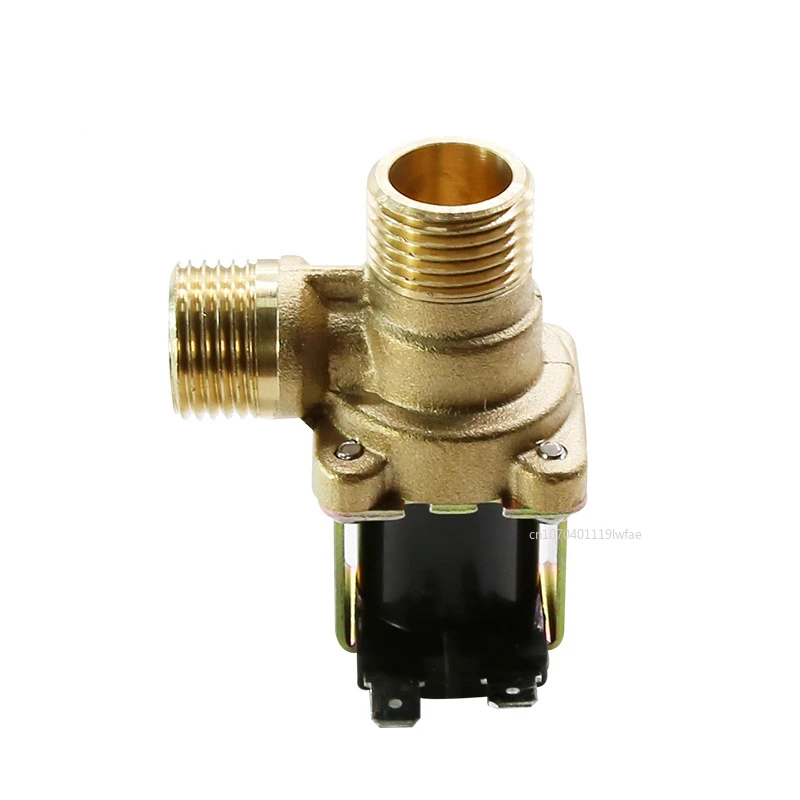

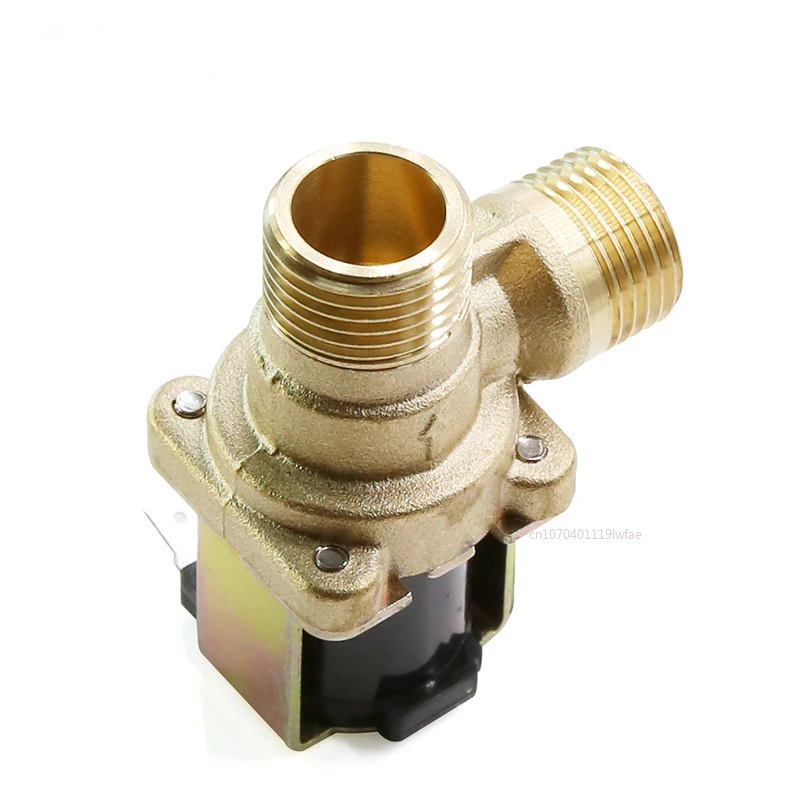

The body turns the water path through a right angle.

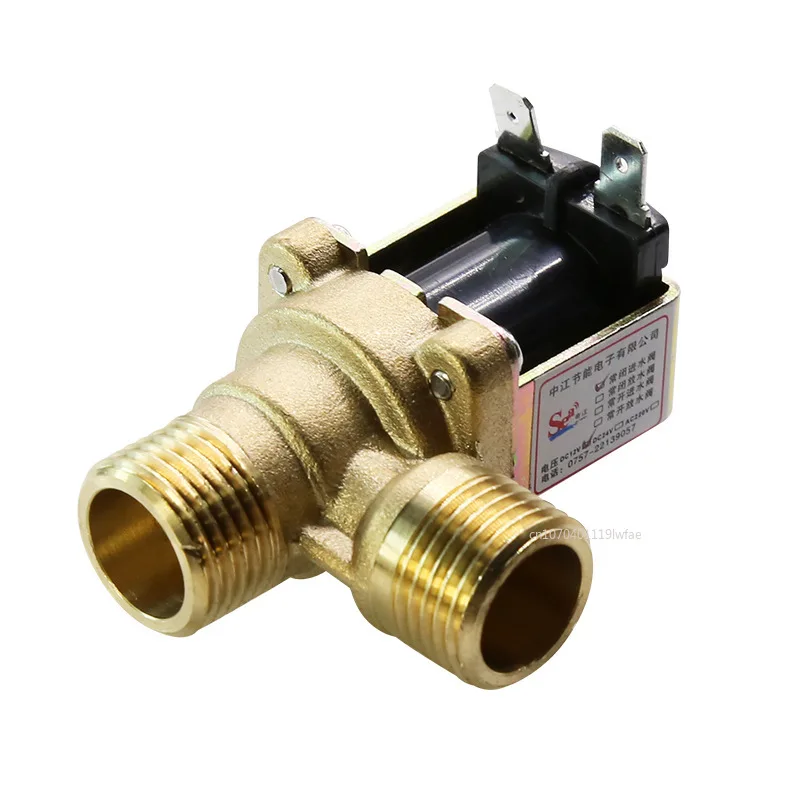

Match the G1/2 connection to suitable fittings.
Technical details
- Type: electrically operated water solenoid valve
- Default state: normally closed
- Body material: brass
- Connection: DN15 / G1/2, 1/2 inch
- Layout stated: right-angle, 90°
- Voltage selections: 12V, 24V or 220V; separate versions
- 12V version supply stated: DC; verify AC/DC on the actual selected coil
- Working pressure stated: 0.02–0.8 MPa
- Package: 1 selected valve
- Exclusions: power supply, controller, wiring, pipework and sealant
Match the coil and pipe connections to add electrically switched flow to your water system.
