Inline Shower Sediment Filter with PP Cartridge Options
Add a replaceable sediment-filter stage between a compatible shower outlet and hose. This inline filter uses a PP-fibre cartridge inside a clear housing so you can see the element. It is for households choosing either a filter assembly with spare cartridges or replacements for an existing matching housing.
- ✅ Add a cartridge to the shower line — The inline housing fits between compatible threaded water connections.
- ✅ See the element during routine checks — The transparent casing leaves the cartridge visible without opening it.
- ✅ Renew the cartridge rather than the housing — The casing unscrews to accept a matching replacement element.
- ✅ Keep spares ready for maintenance — Housing bundles offer several cartridge quantities, with a separate two-cartridge option.
Choose the housing bundle or replacement cartridges
The filter housing contains a cylindrical PP-fibre element for sediment filtration. Install the assembly between compatible water connections after checking thread fit and available space. The housing is approximately 9cm high and 6cm wide, so allow room to unscrew it when changing the cartridge.
The clear bowl makes the cartridge visible during routine inspection. Turn off the water before removing the housing for maintenance, replace the matching element and reassemble according to the supplied instructions. Service needs depend on your water conditions and use.
The 2 Cotton option supplies two replacement cartridges only, with no filter housing. The 1 Filter 5 Cotton, 1 Filter 20 Cotton and 1 Filter 30 Cotton selections each include one housing assembly and the named cartridge quantity. Choose a housing bundle if you do not already have the matching filter. This is a sediment-filter accessory, not a claim of drinking-water disinfection or a water-softening system.
The clear housing holds a replaceable cylindrical PP-fibre cartridge.
Check the threaded inlet and outlet against your existing shower connection.
The assembly adds a replaceable cartridge stage to a compatible water line.

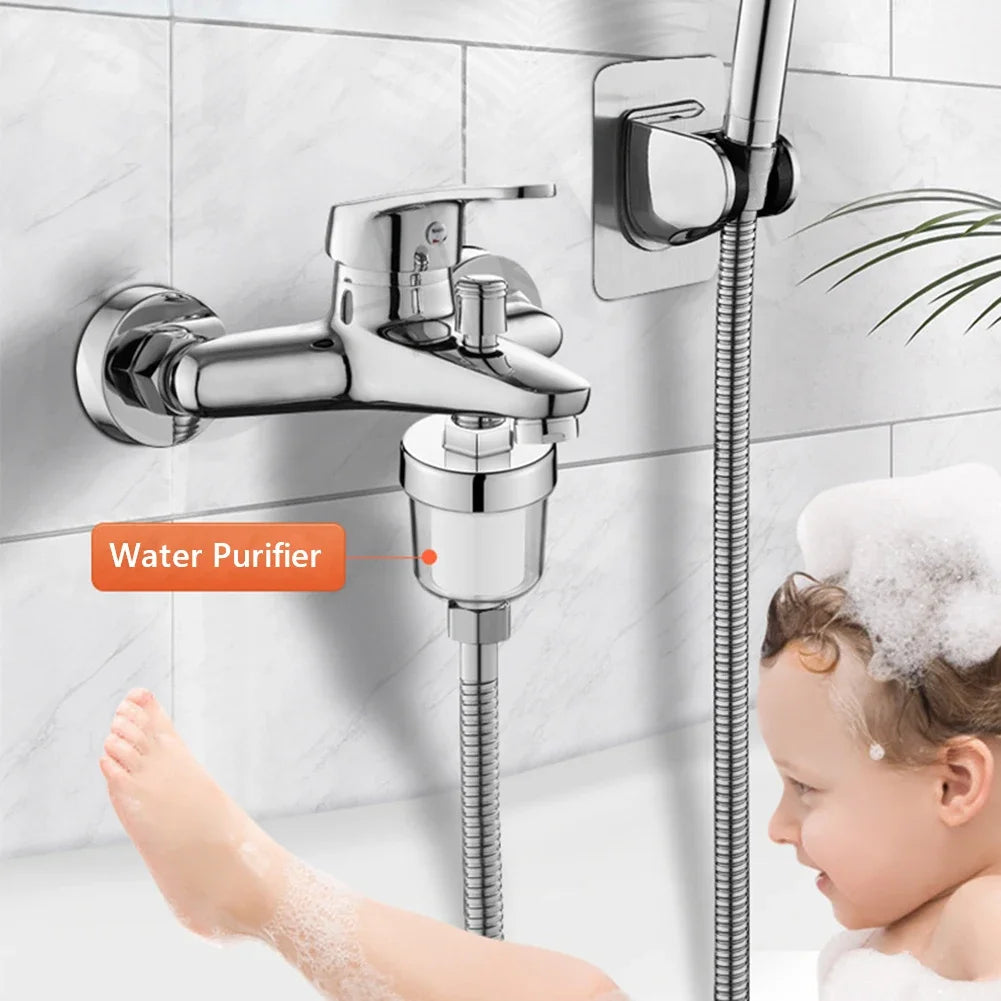

The installed example places the filter between the shower outlet and hose.
Installation examples show possible connection positions; check your own fitting compatibility.
The filter can sit in a compatible shower connection without replacing the shower head.
The shower, hose and mixer shown are separate items from the selected filter package.
The PP element provides sediment filtration; no disinfection or dissolved-contaminant-removal claim is made.
Unscrew the housing to replace the cartridge after turning off the water.
Disconnect the compatible hose, fit the filter assembly, then reconnect and check for leaks.
The clear bowl opens for access to the cartridge.

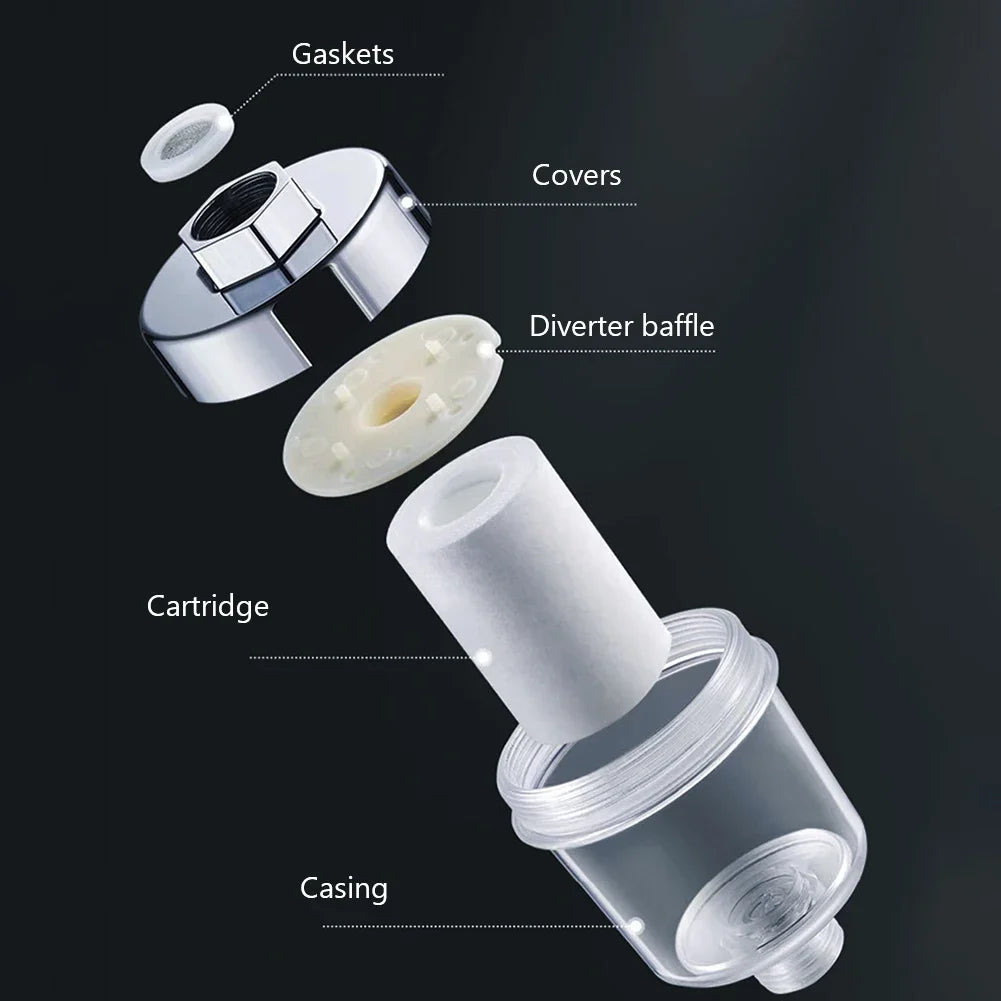

The exploded view shows the cartridge position inside the housing.

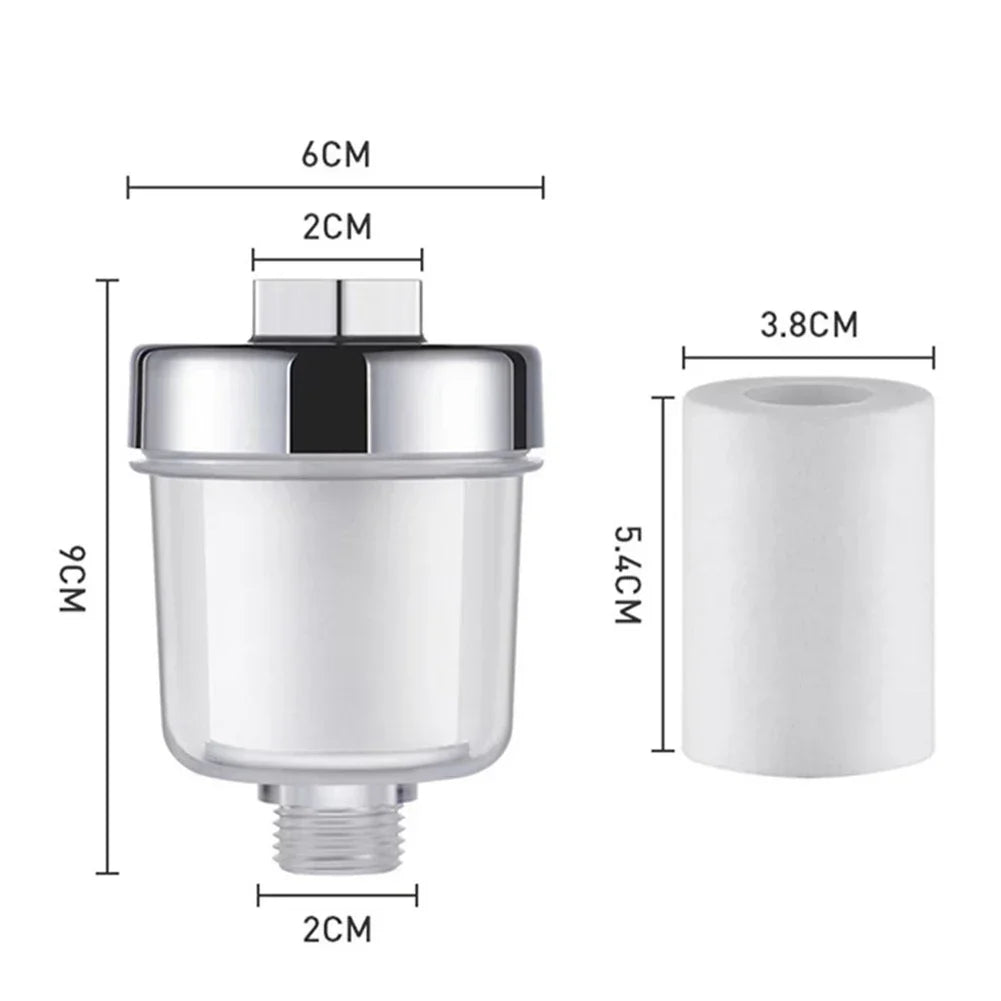

The housing is approximately 9 × 6cm; the cartridge is approximately 5.4 × 3.8cm.
The 2 Cotton option contains two replacement cartridges and no housing.
The transparent bowl lets you see the cartridge between maintenance checks.
Technical details
- Product: inline shower sediment filter or replacement cartridges
- Filter medium: PP fibre
- Filtration rating stated: 5 microns
- Housing: transparent plastic bowl with threaded connections
- Housing dimensions shown: approximately 9cm high × 6cm wide
- Cartridge dimensions shown: approximately 5.4cm high × 3.8cm wide
- 2 Cotton option: 2 cartridges only; no housing

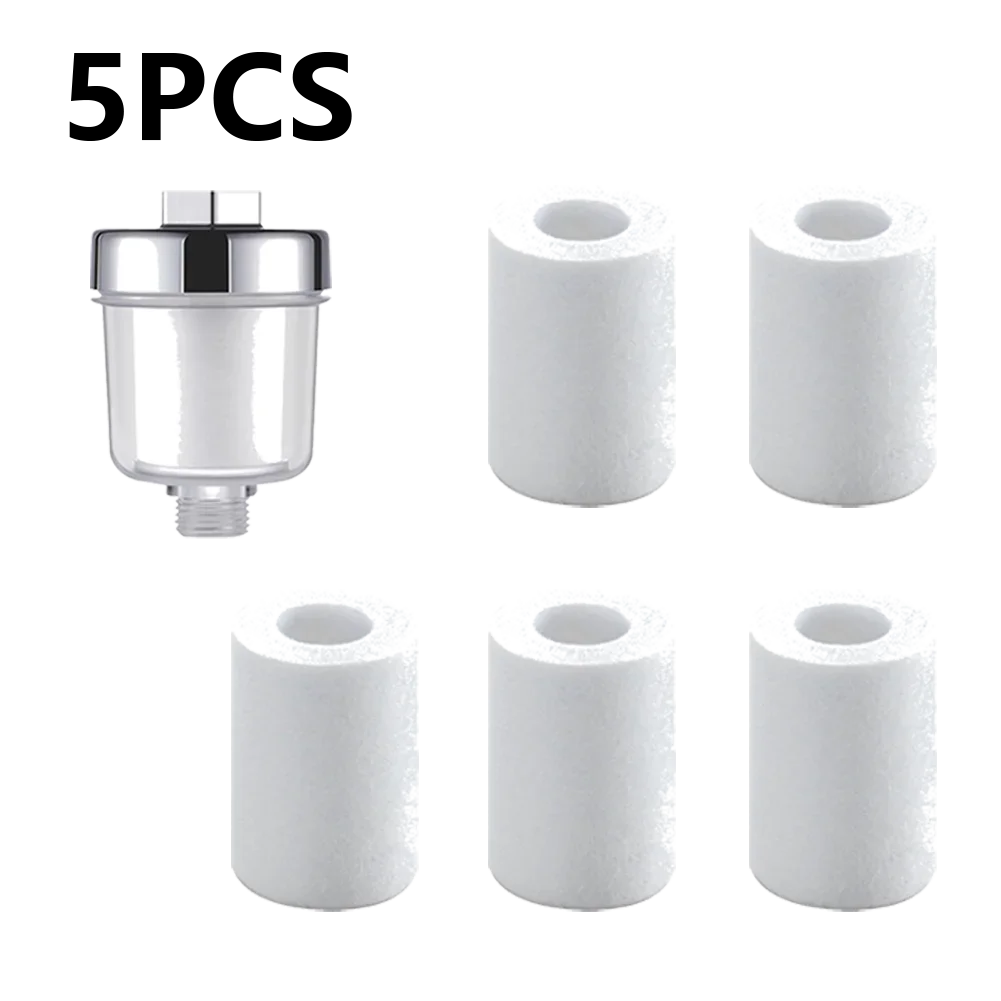

- Housing bundles: 1 filter assembly with 5, 20 or 30 cartridges, according to selection
- Compatibility: matching threaded water connections required; check fit
- Exclusions: shower head, hose and mixer not included
Choose the matching housing bundle or cartridge pack to keep a replaceable sediment-filter stage in your shower line.
