Test Probe Pen for YR1030, TR1030, YR1035 and TR1035 Testers

When a probe lead starts to fail, the tester itself is usually fine; it is the pen that needs replacing. This probe suits the YR1030, TR1030, YR1035 and TR1035 internal resistance testers and comes in two connector versions, so you can match the socket on your instrument.

Match the connector to the socket on your tester

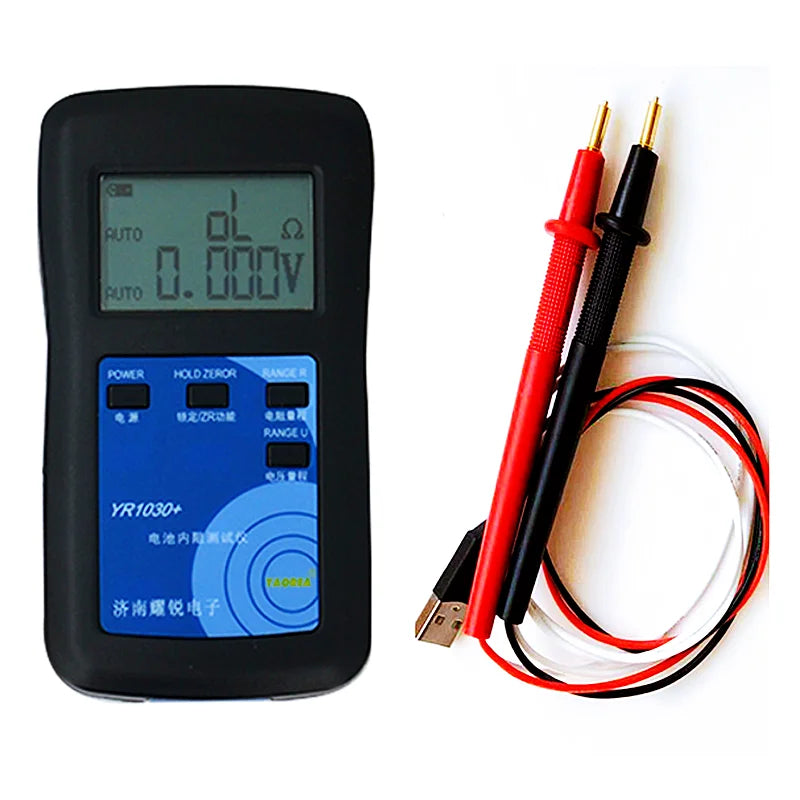

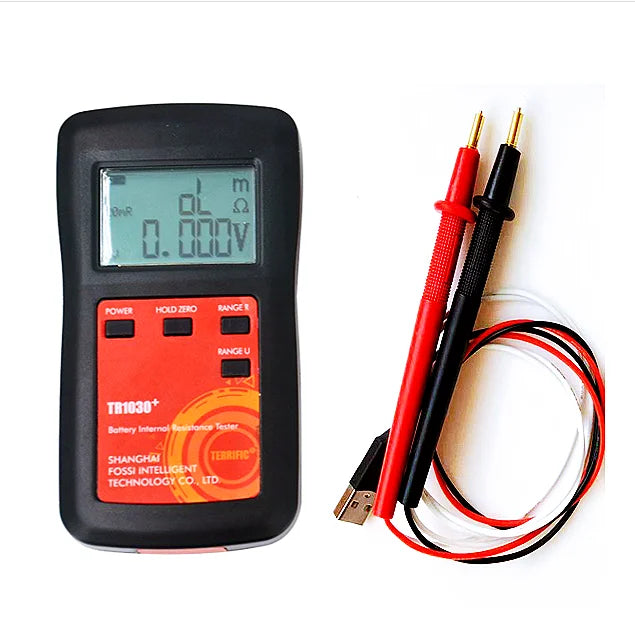

✅ USB interface for the 1030 models Choose this version for the YR1030 and TR1030, which use a USB interface.

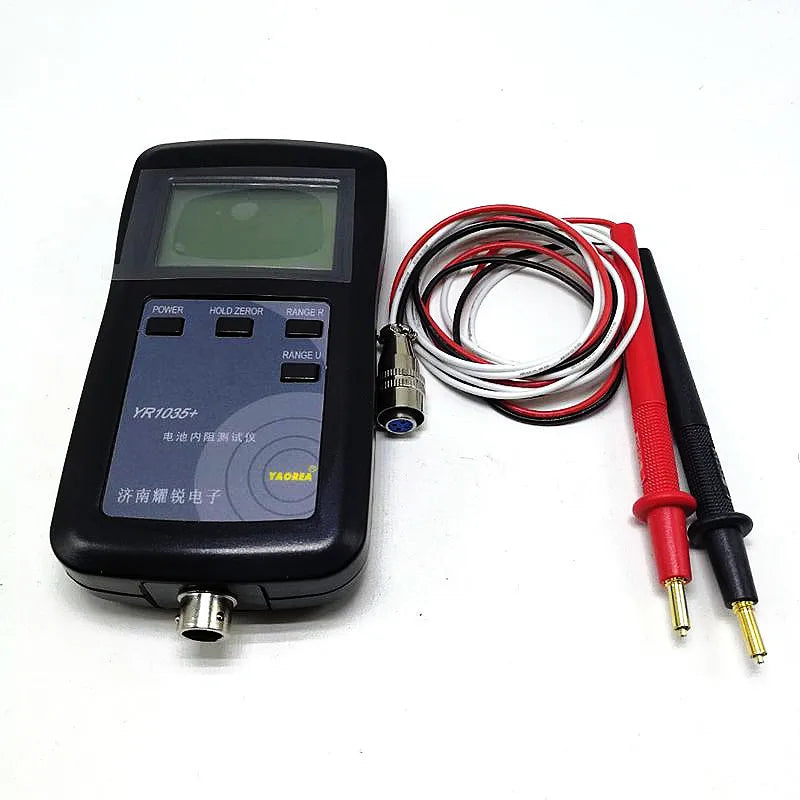

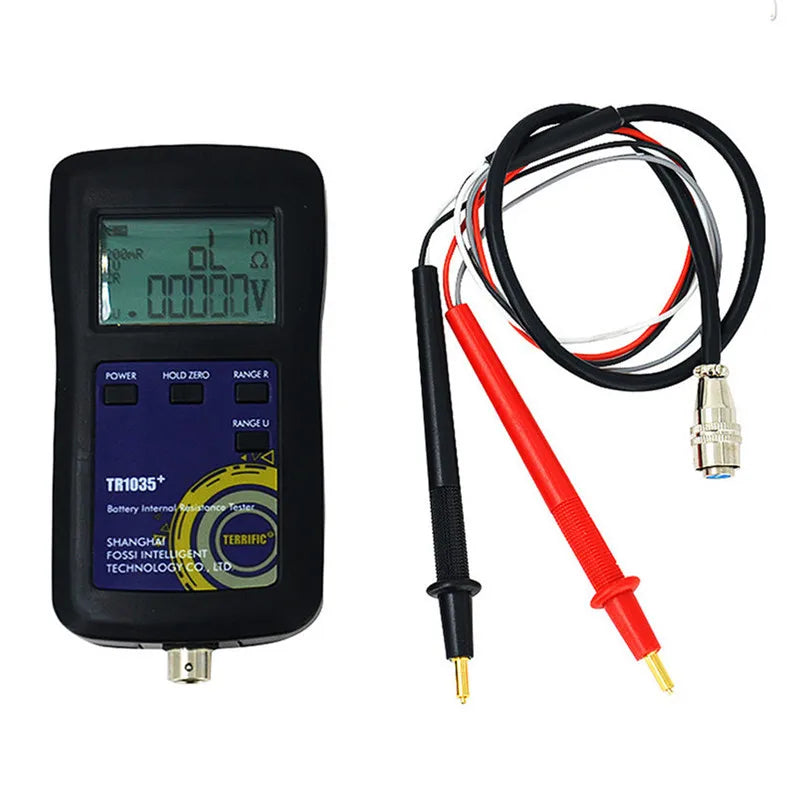

✅ Aviation connector for the 1035 The YR1035 and TR1035 take a metal aviation interface instead.

✅ No battery to charge The pen needs no battery of its own, so nothing has to be charged before a session.

✅ Replace the lead, keep the tester When the cable or contact point wears, swap the pen rather than the whole instrument.

This is the pen, not the meter. The tester is the part that holds the display and does the measuring; the probe is what you hold against a terminal, and it is the part that takes wear at the plug and at the contact point.

Choosing is simple once you look at the instrument. A USB port means the 1030 pen, a round metal aviation socket means the 1035 pen. The two connectors are different, so one will not fit the other's socket.

Nothing else is needed to use it: the pen takes no battery of its own. If your tester is a different model from the four covered here, this probe is not the right part, so check the model number before you order.

Technical details

• Type: Replacement test probe pen
• Compatible testers: YR1030, TR1030, YR1035, TR1035

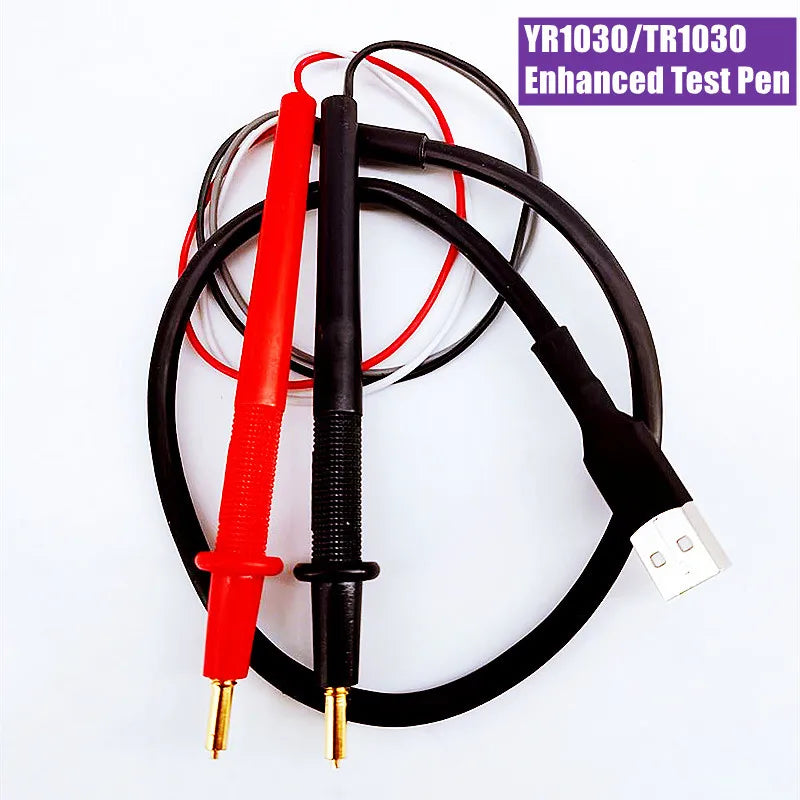

• Variant 1: USB interface, for YR1030 and TR1030

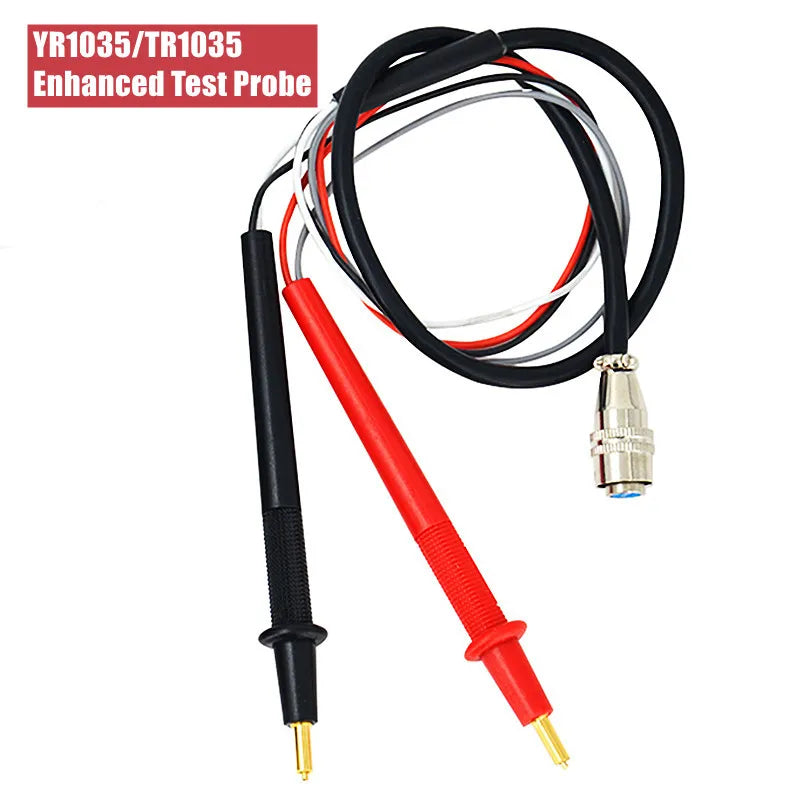

• Variant 2: Metal aviation interface, for YR1035 and TR1035
• Battery: Not included; none required in the pen
• Power source: None, pen only
• Variants: 2 options
• Package contents: 1 probe pen

Check the socket on your tester, then pick the pen that matches it.
