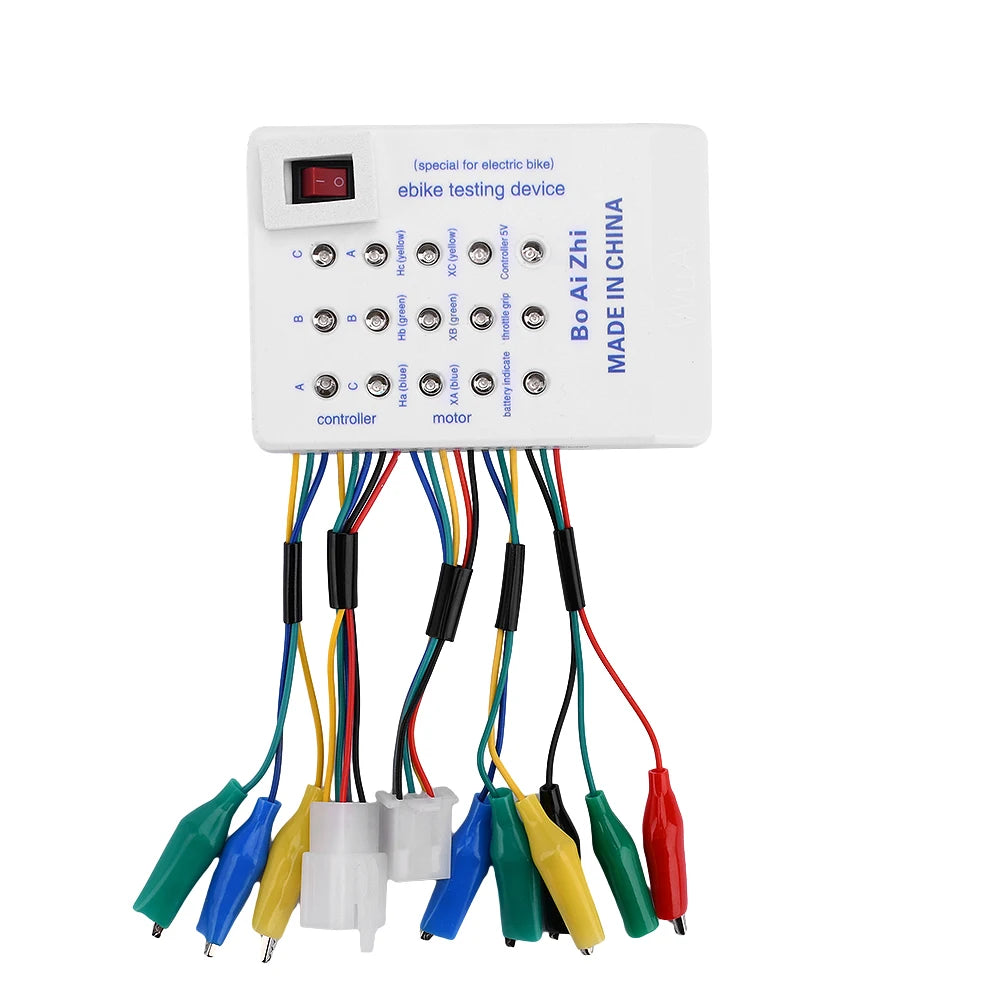

Brushless Motor and Controller Diagnostic Tester

Investigate a compatible brushless motor system with a dedicated diagnostic tester. Indicator lights help inspect motor windings, Hall signals and supported controller functions.

✅ Narrow down a motor fault - Separate winding and Hall checks help identify which part needs attention.

✅ Check phase arrangement - The tester supports 60-degree and 120-degree phase-angle checks.

✅ Inspect related controls - Supported throttle and controller tests extend the diagnostic process.

Read Signals Before Replacing Components

Match the tester's leads and functions to the exact motor and controller before connecting them. Follow the supplied procedure for each test, keeping rotating parts clear during checks.

The tester is an inspection tool rather than a motor controller or repair part. A battery is required for powered Hall and control tests and is not included.

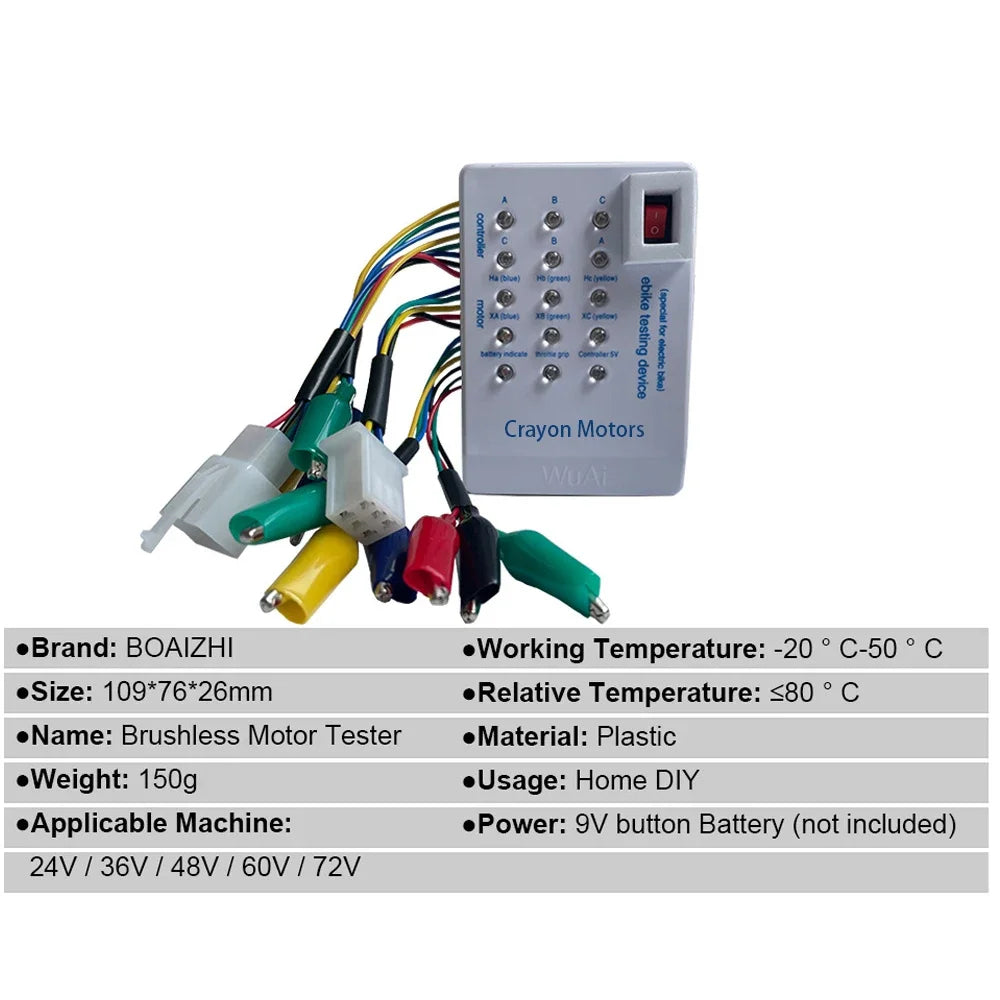

Technical details

• Brushless motor / controller tester
• Winding and Hall-signal checks
• 60 / 120-degree phase-angle checks
• Supported throttle checks

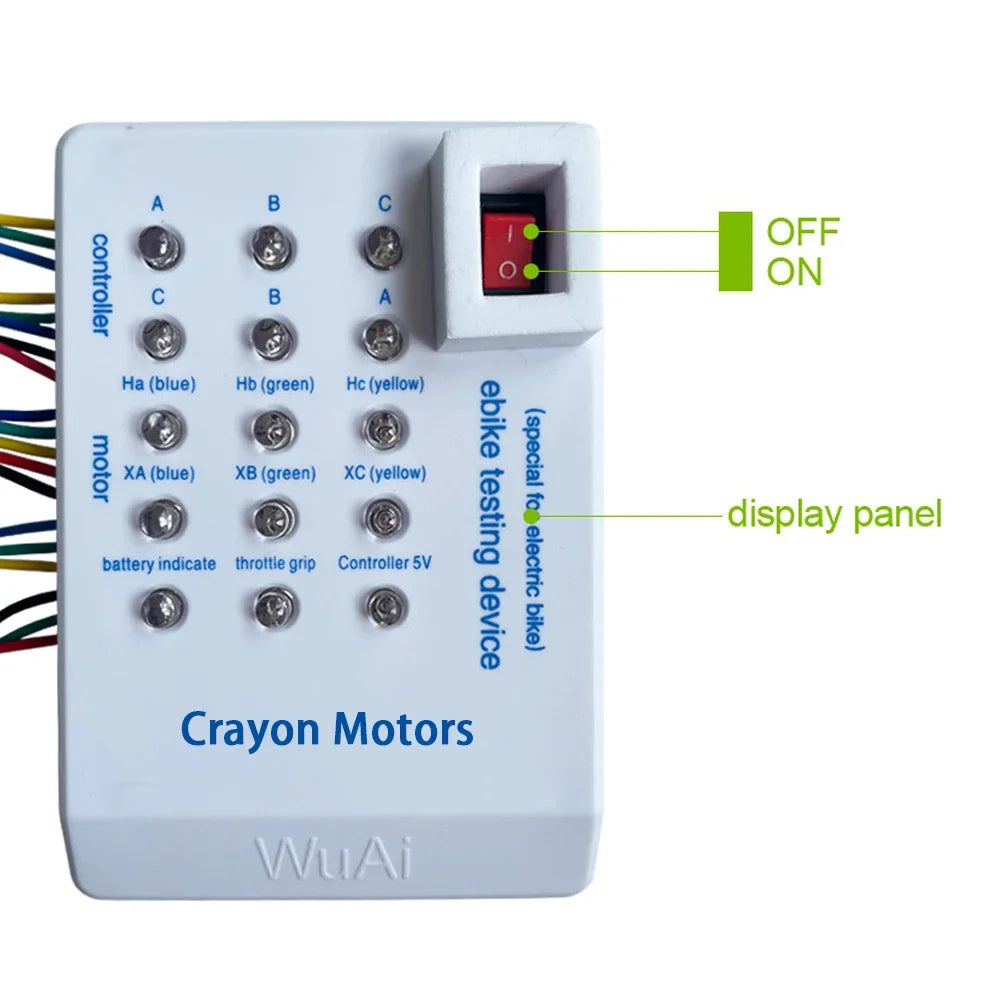

• Indicator-light readout
• Tester and manual
• Battery separate

Add a practical diagnostic step to your motor troubleshooting.
