Nine-Pin E-Bike Motor Extension Cable

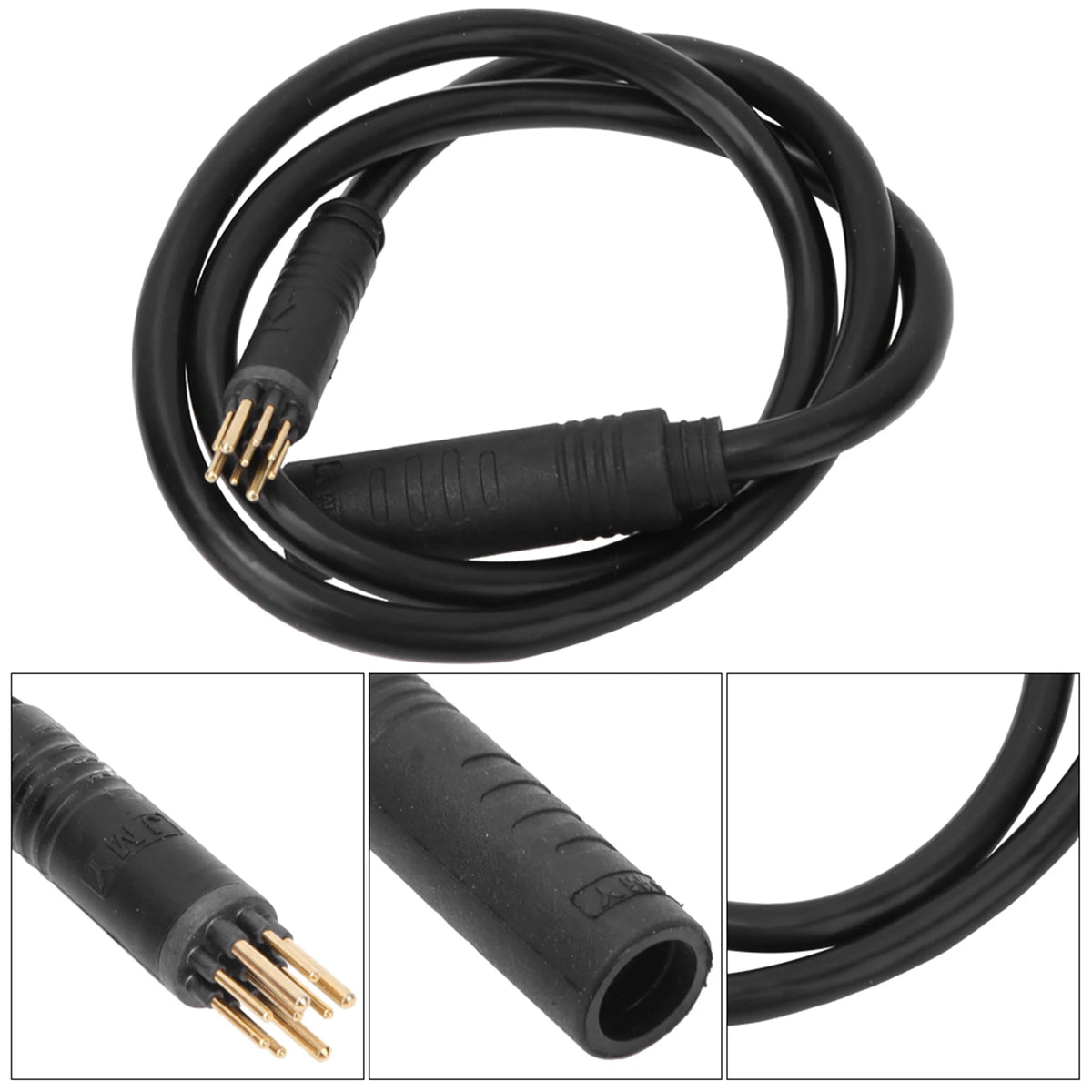

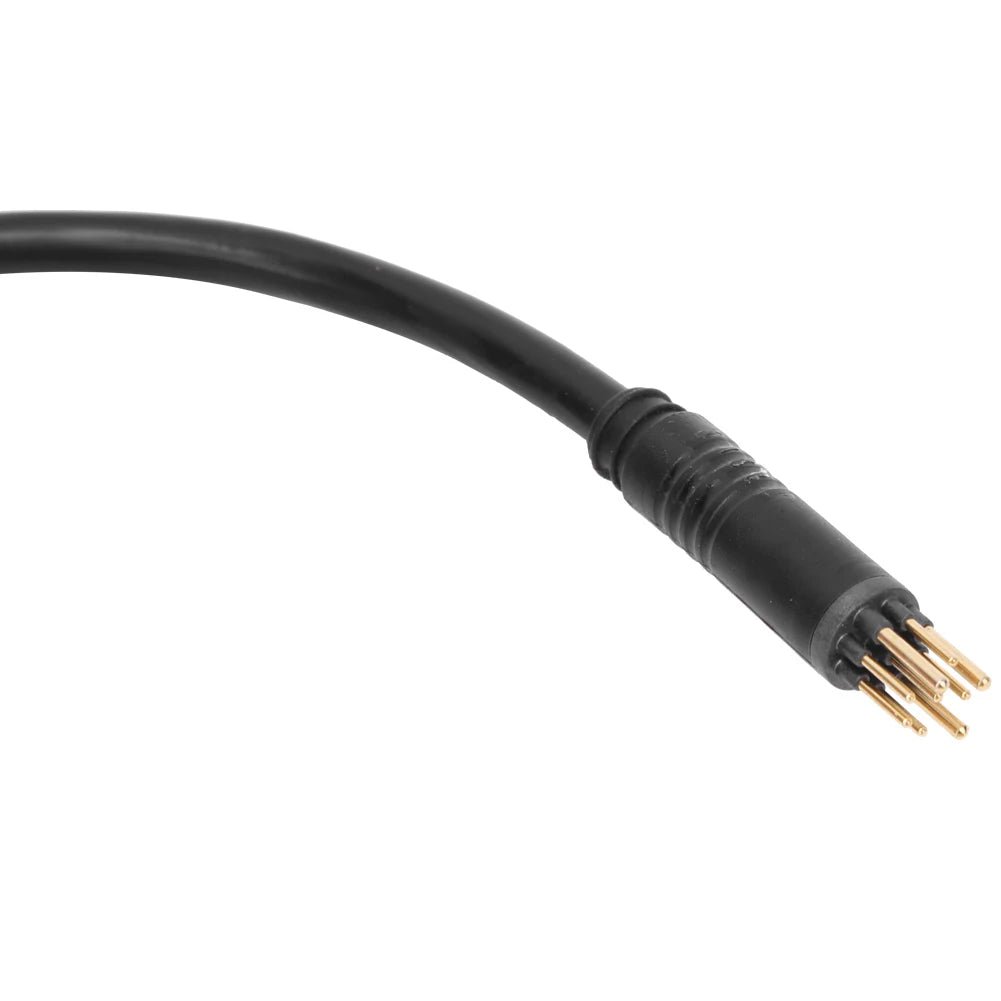

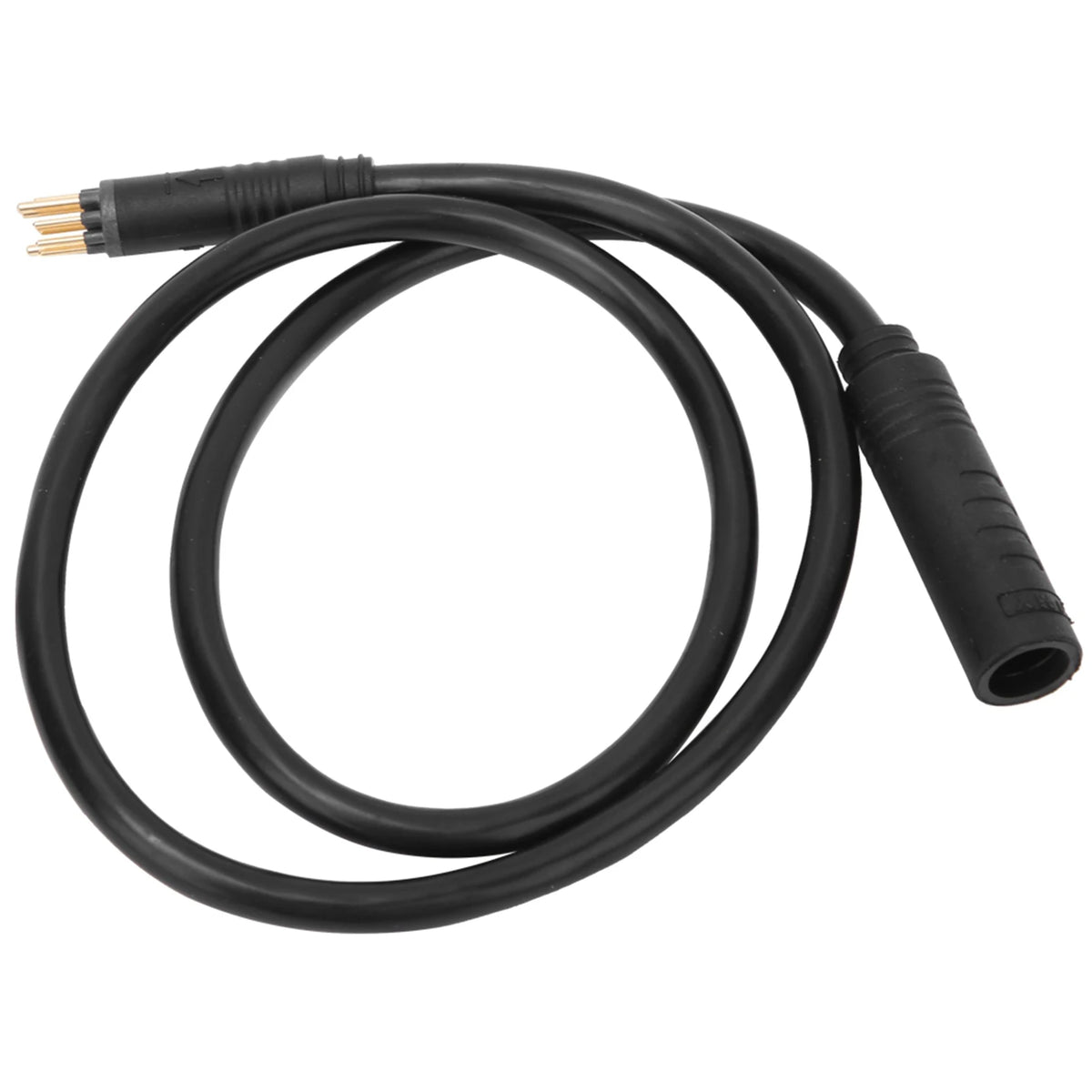

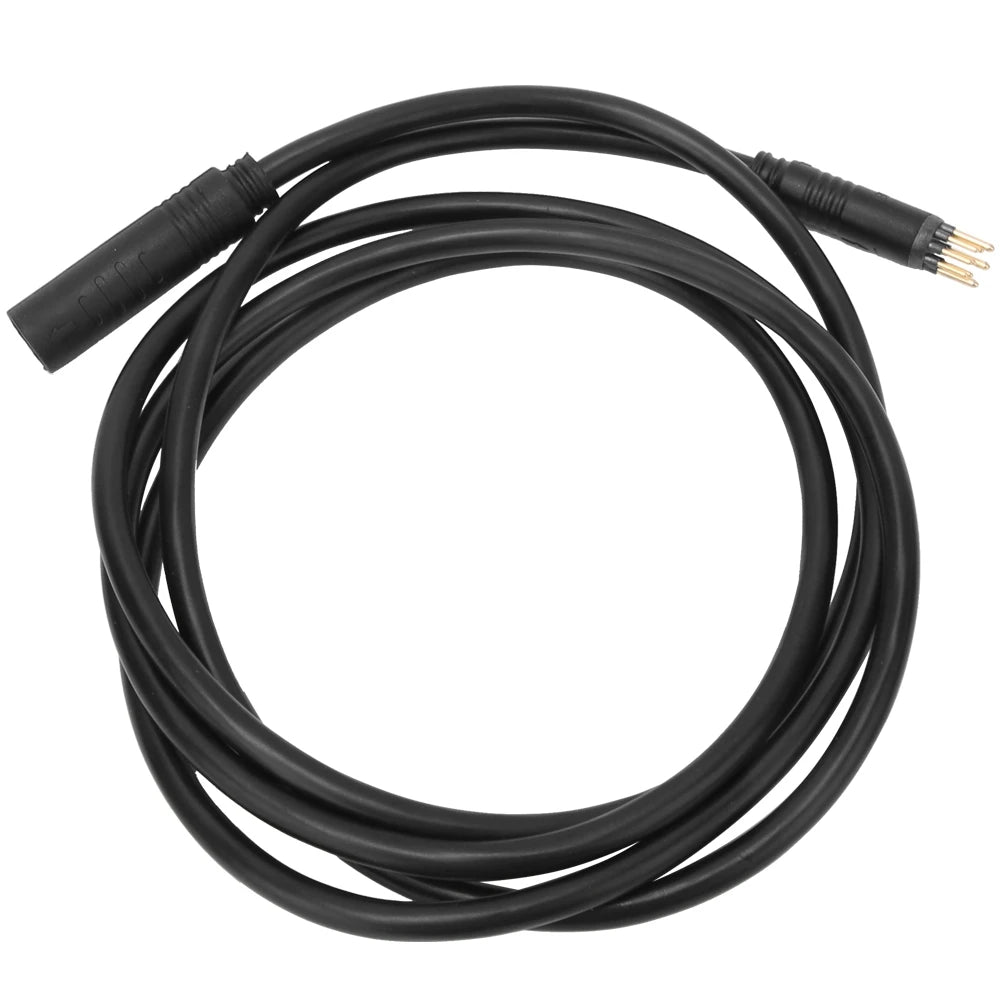

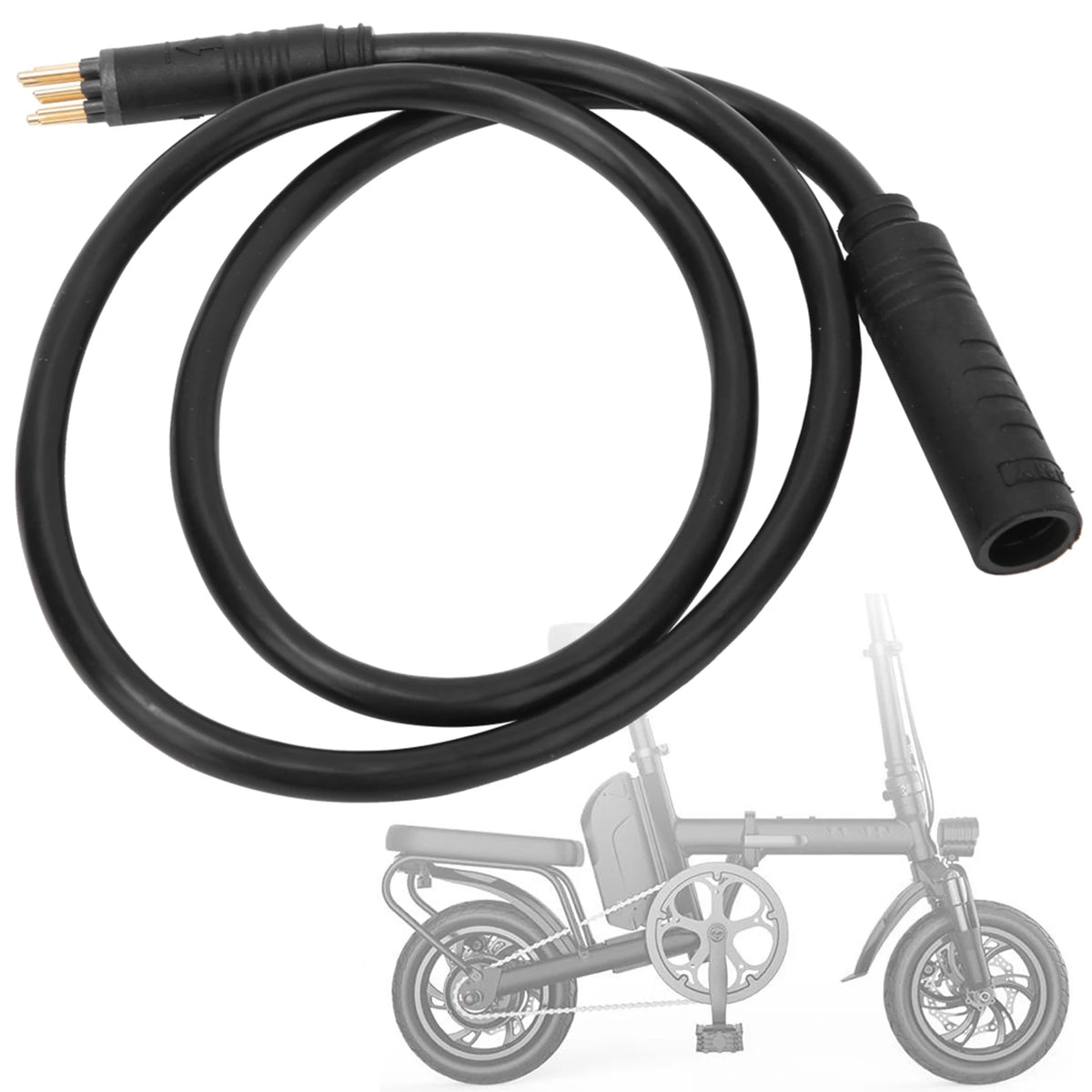

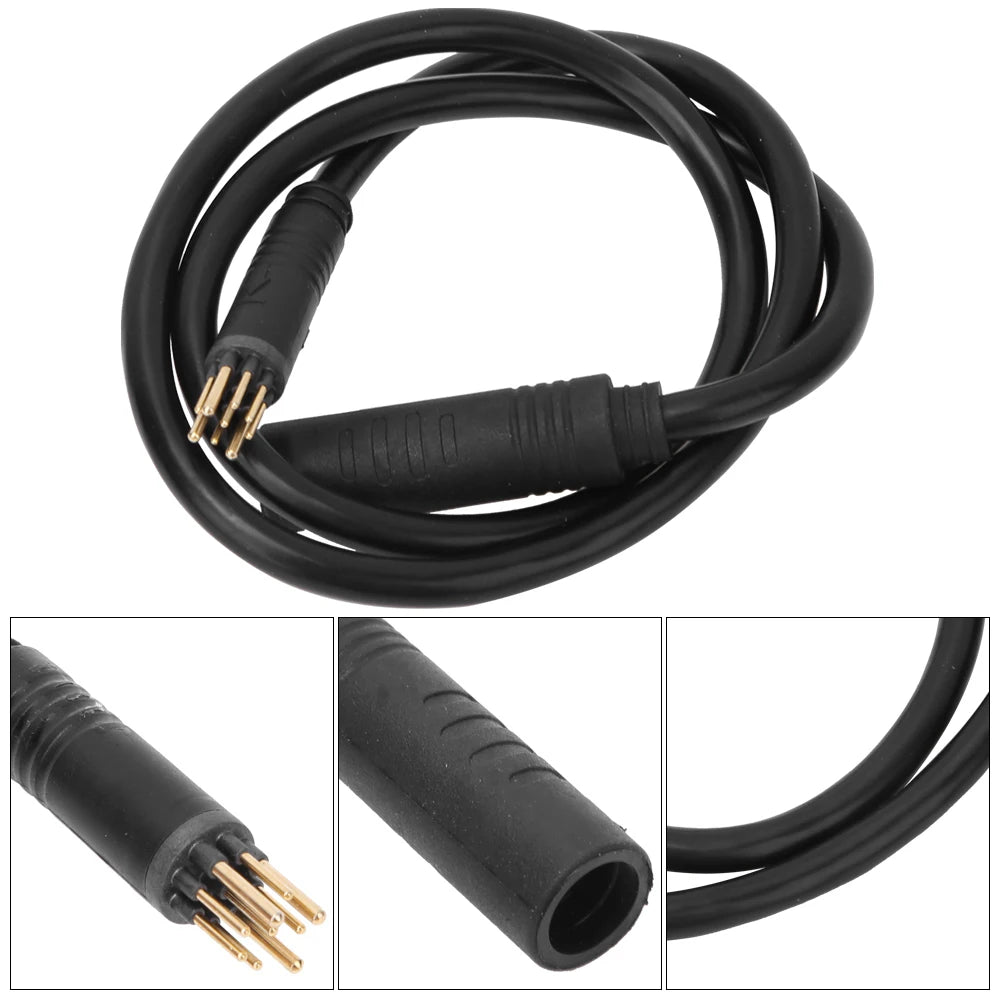

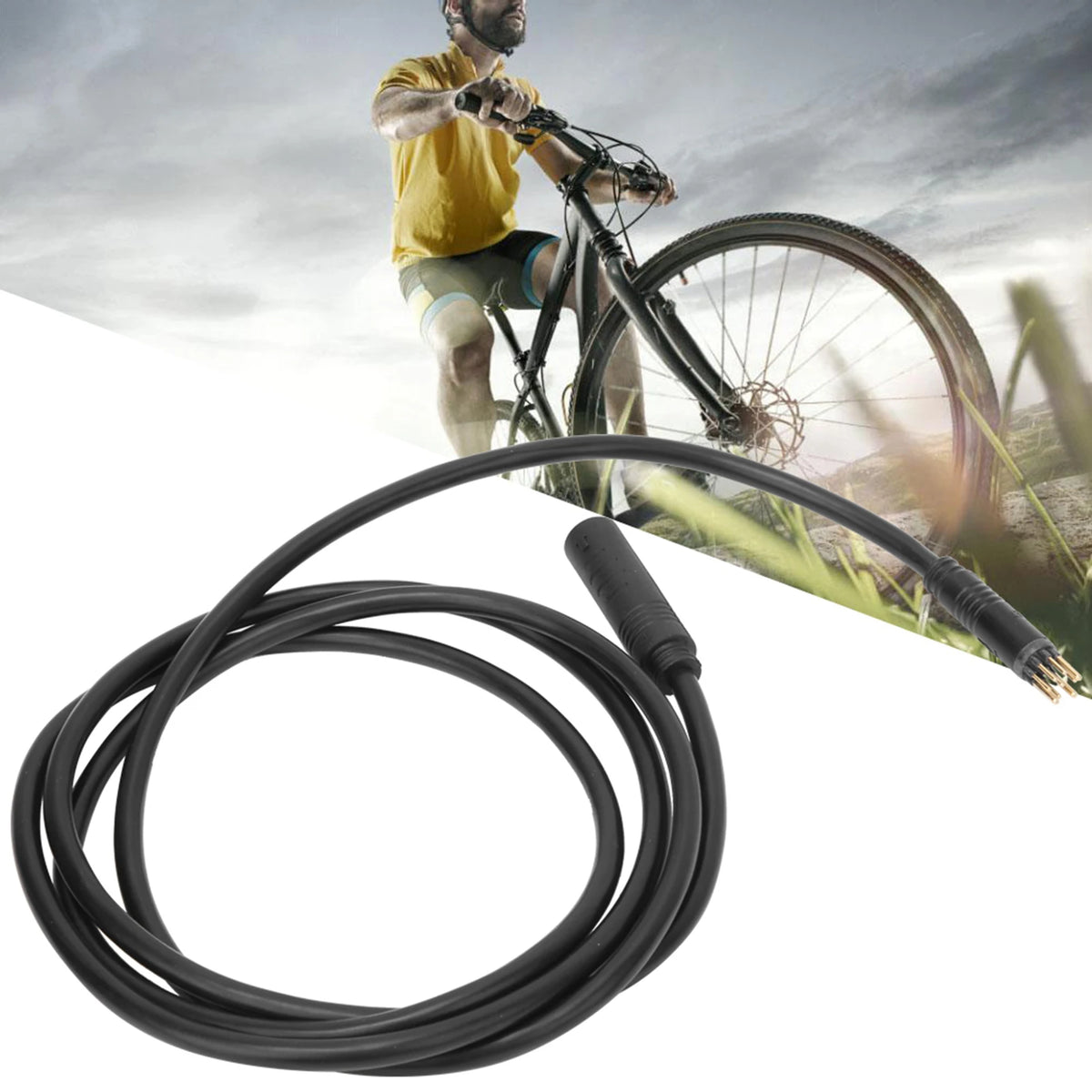

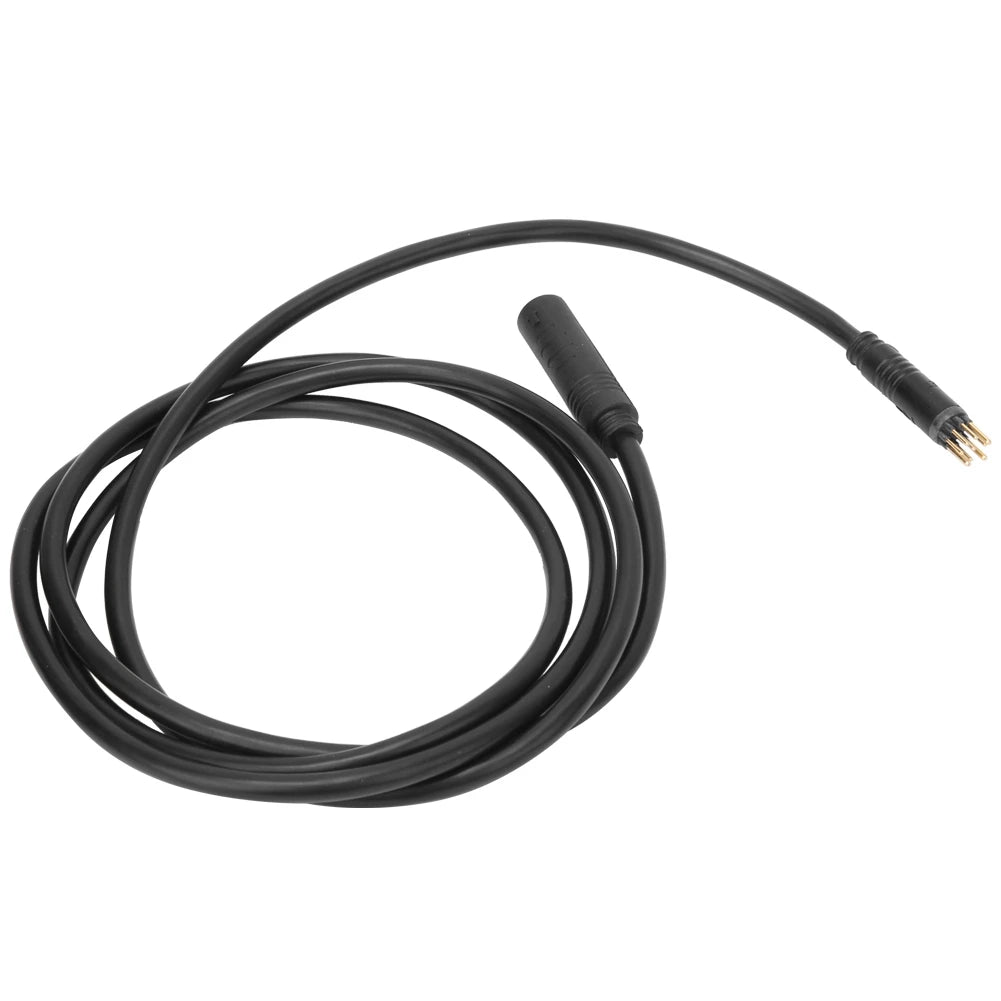

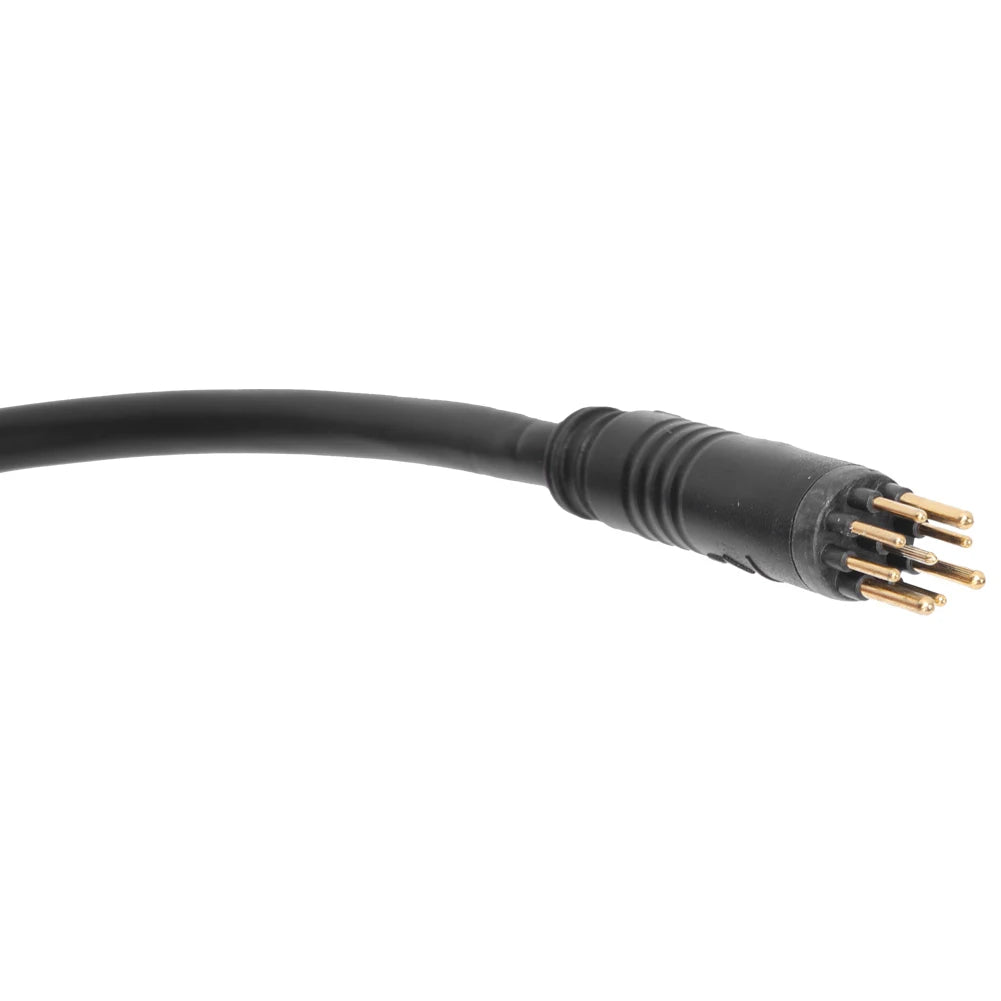

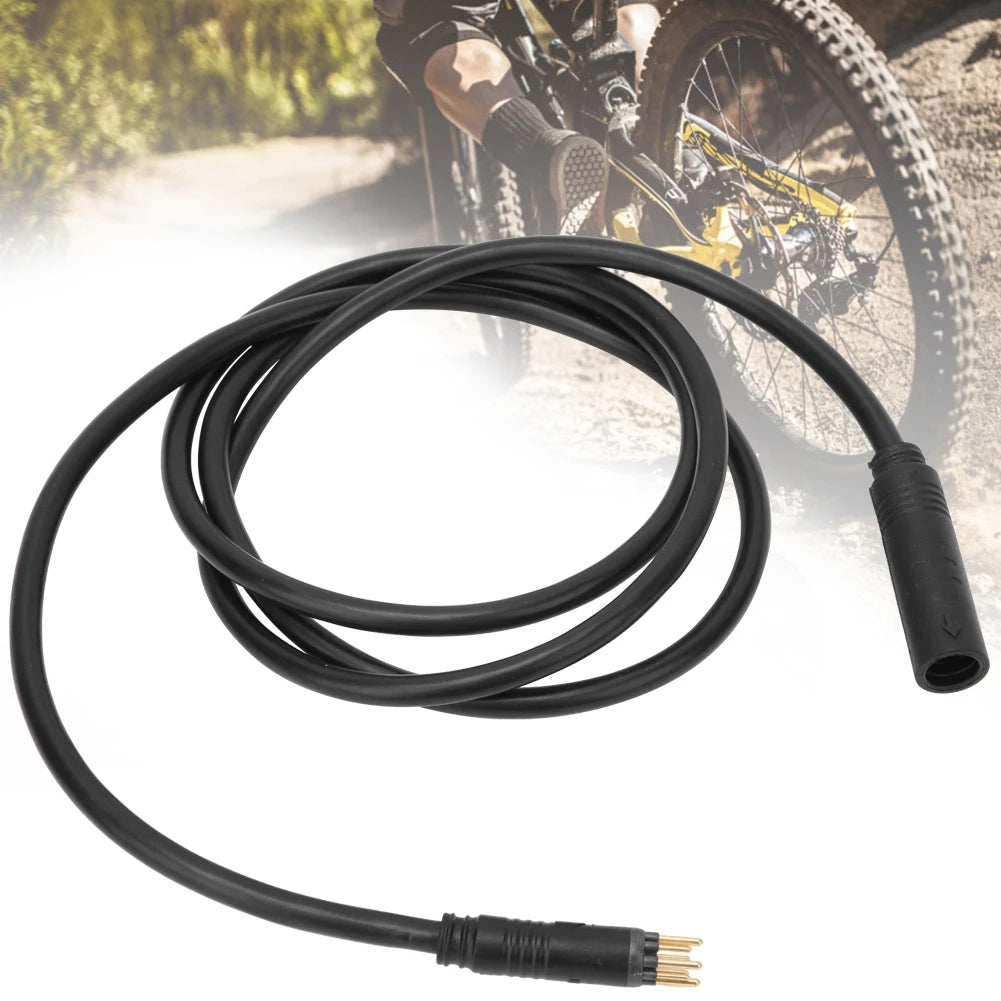

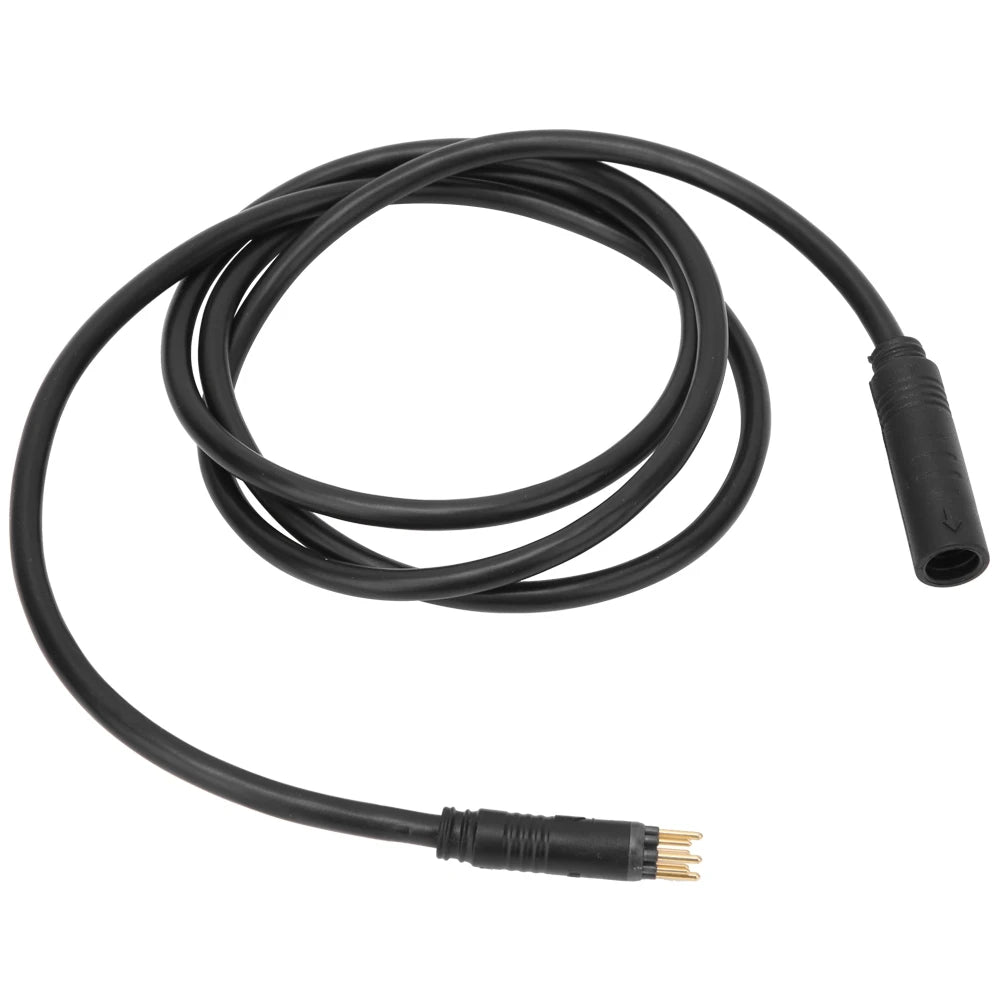

Extend a matching motor connection on an electric bike. This nine-pin lead has a male connector at one end and a female connector at the other.

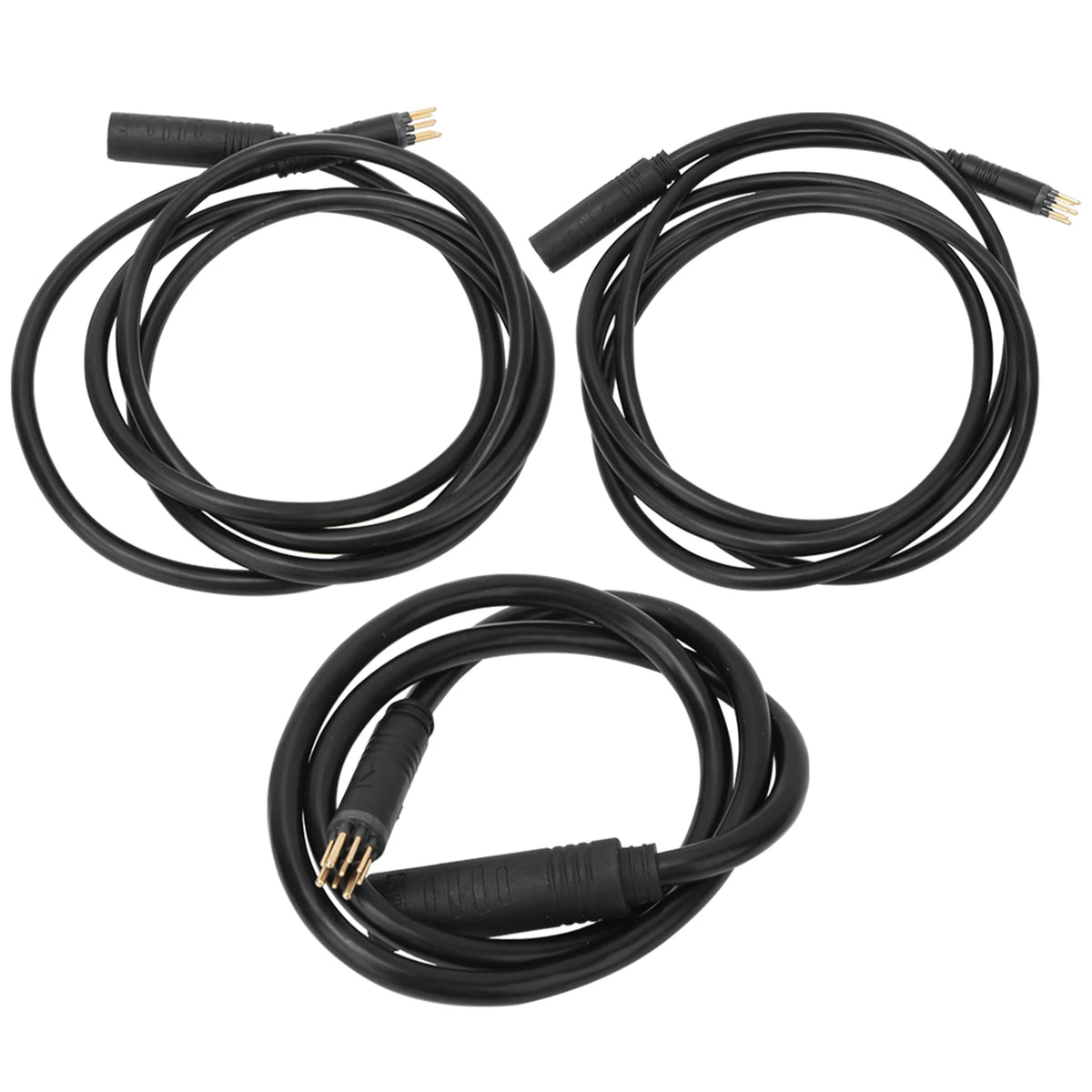

✅ Reach the planned connection point - 600, 1300 and 1600 mm options provide different lengths for the cable route.

✅ Keep the original connection format - A matching male-to-female lead extends the circuit without replacing both device connectors.

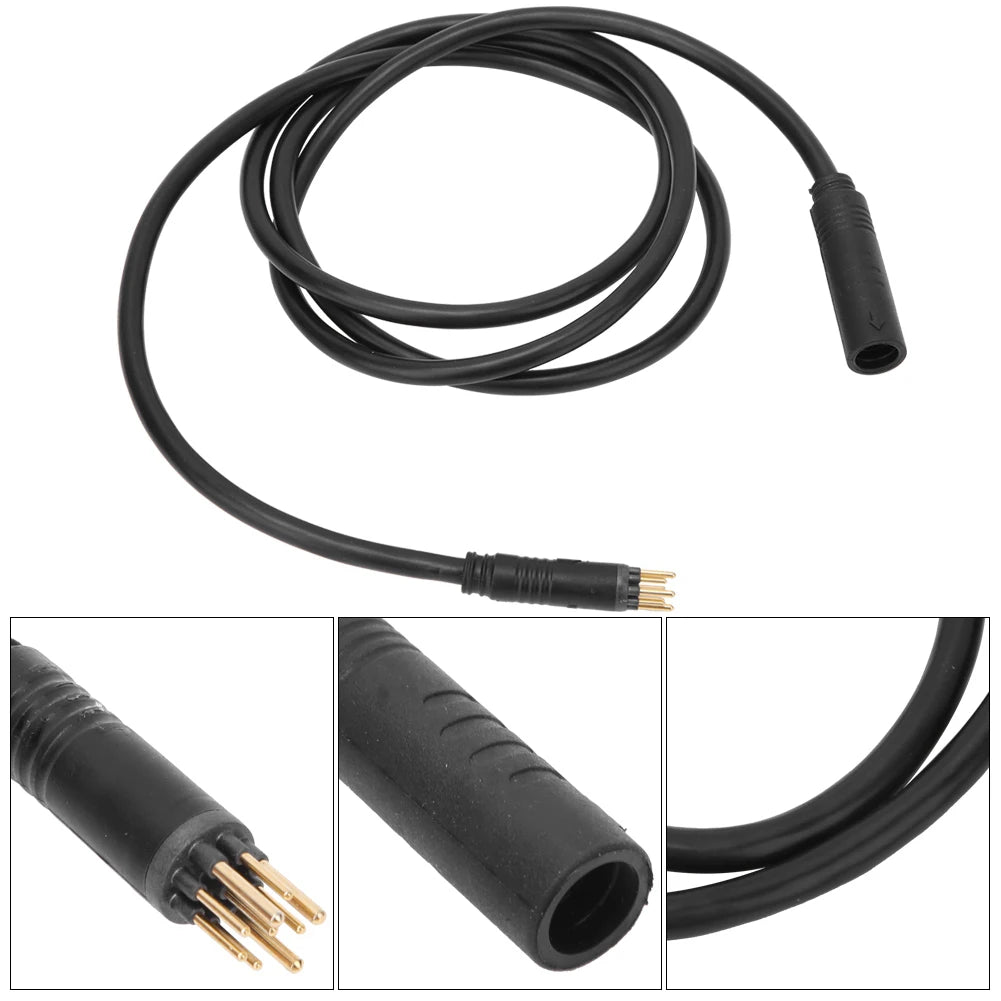

✅ Align the connection more easily - Arrow markings provide an orientation reference on the connector.

Pin Count Alone Does Not Establish Compatibility

Match the connector keying, pin assignment and current rating with the motor and controller. Do not assume that all nine-pin e-bike systems use the same wiring.

Route the cable clear of moving parts, heat and sharp bends, leaving the movement allowance required by the bike. The selection contains one cable, not a motor or controller.

Technical details

• Nine-pin motor extension
• Male to female
• 600 / 1300 / 1600 mm options
• Arrow-marked connection
• Requires matching motor/controller specification
• One cable

Choose the length for your correctly matched e-bike motor route.
