12-24 V Touch and Hand-Scan LED Dimmer

Keep an LED-light control discreetly behind a suitable panel. This low-voltage sensor dimmer is designed for compatible cabinet or mirror-lighting projects, with wiring options for different installations.

✅ Keep the control surface uncluttered - Behind-panel installation can avoid a visible switch opening in a suitable non-metallic panel.

✅ Adjust compatible LED brightness - The dimming function lets you change the output of an appropriate low-voltage LED setup.

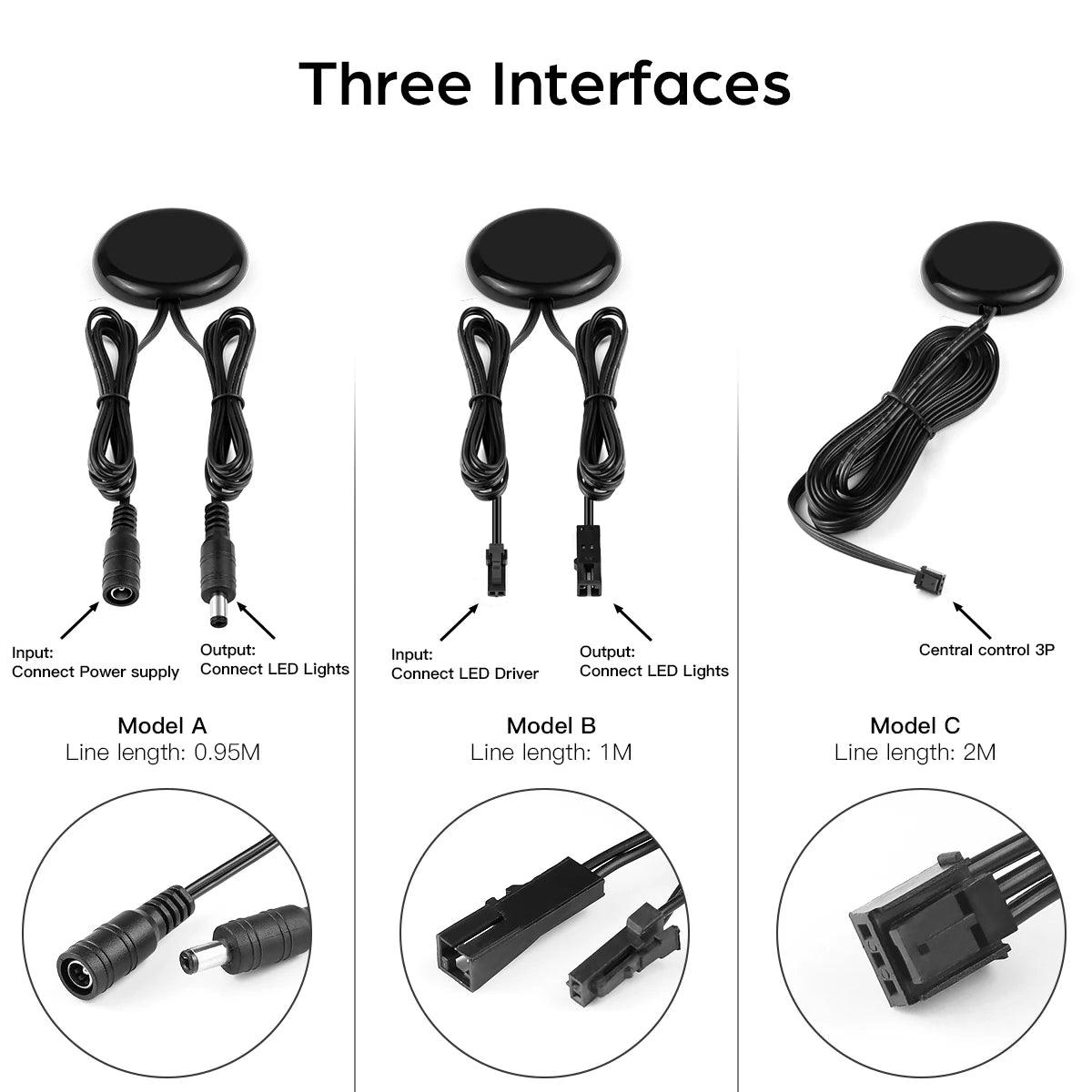

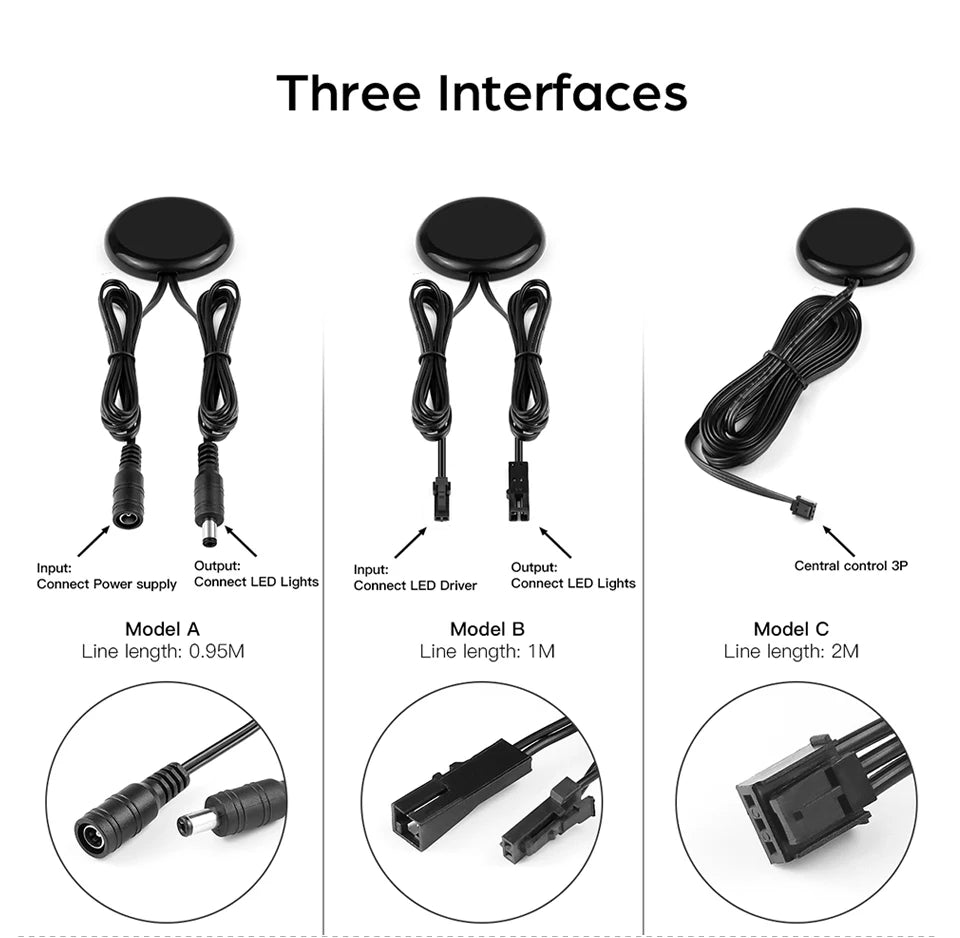

✅ Match the connection to the installation - DC-wire, Dupont-wire and central-control options give you different connection choices.

Plan the Lighting Around the Finished Surface

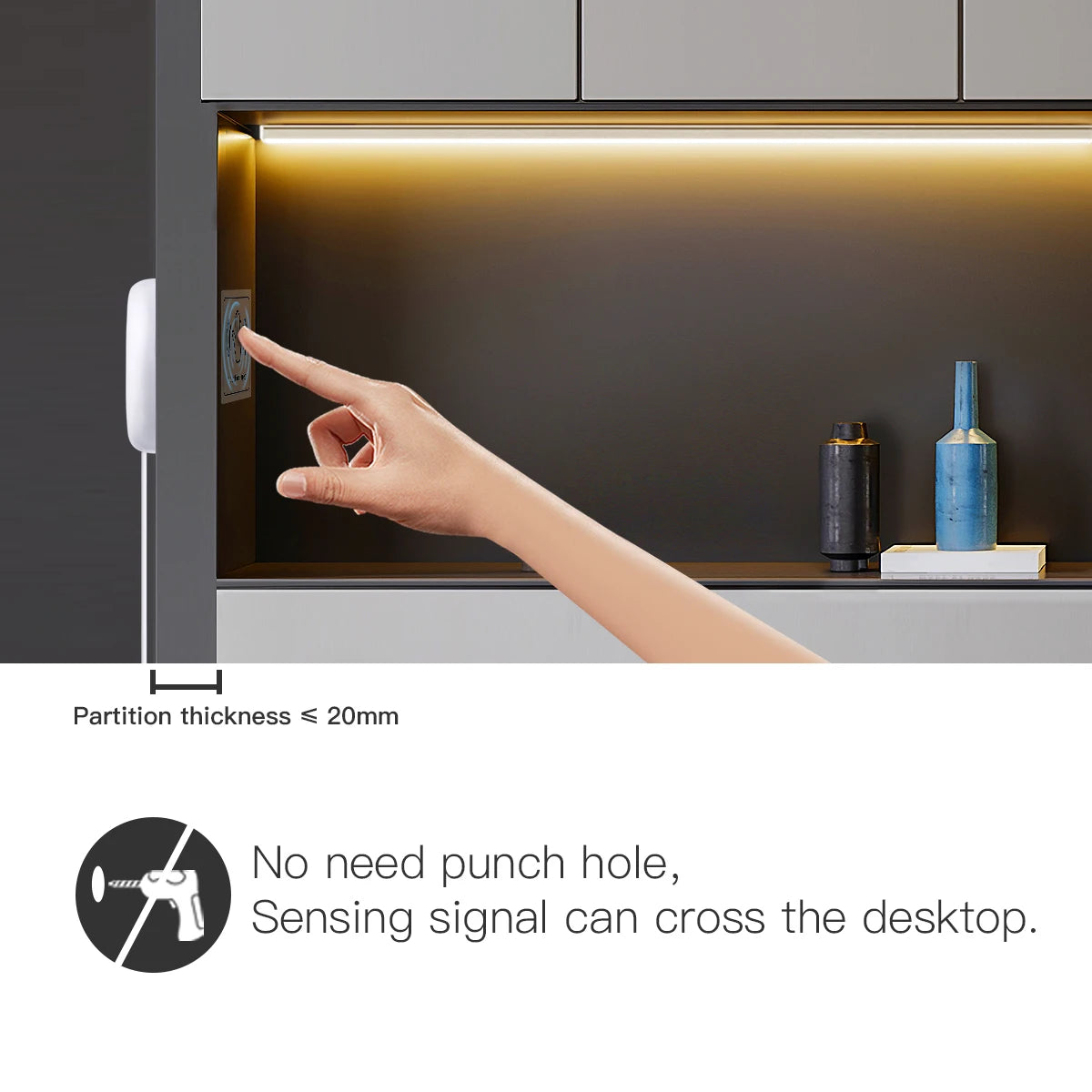

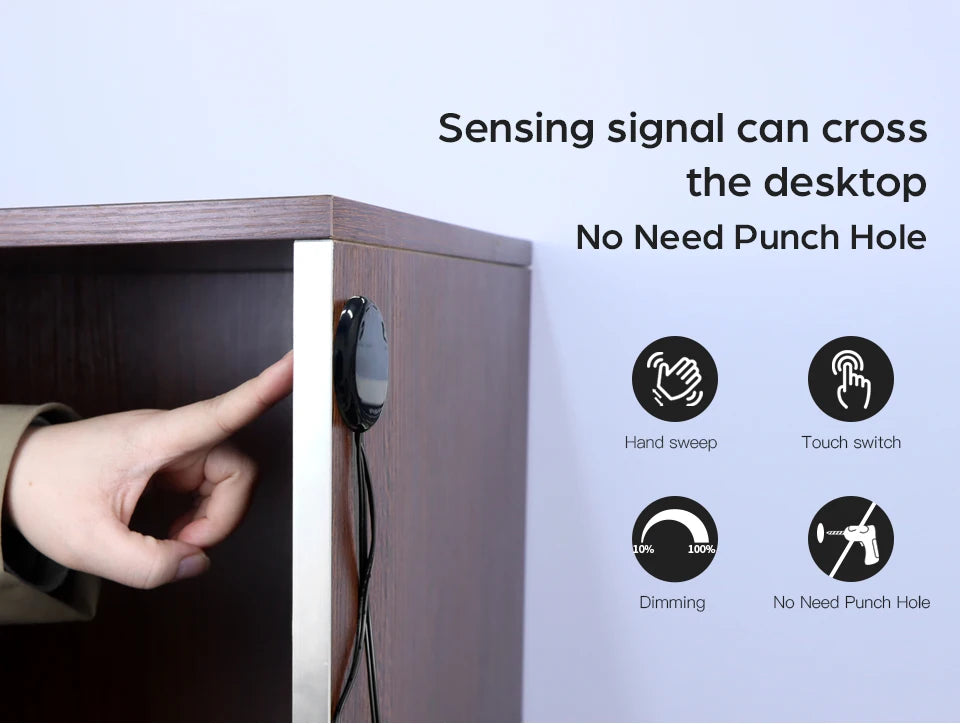

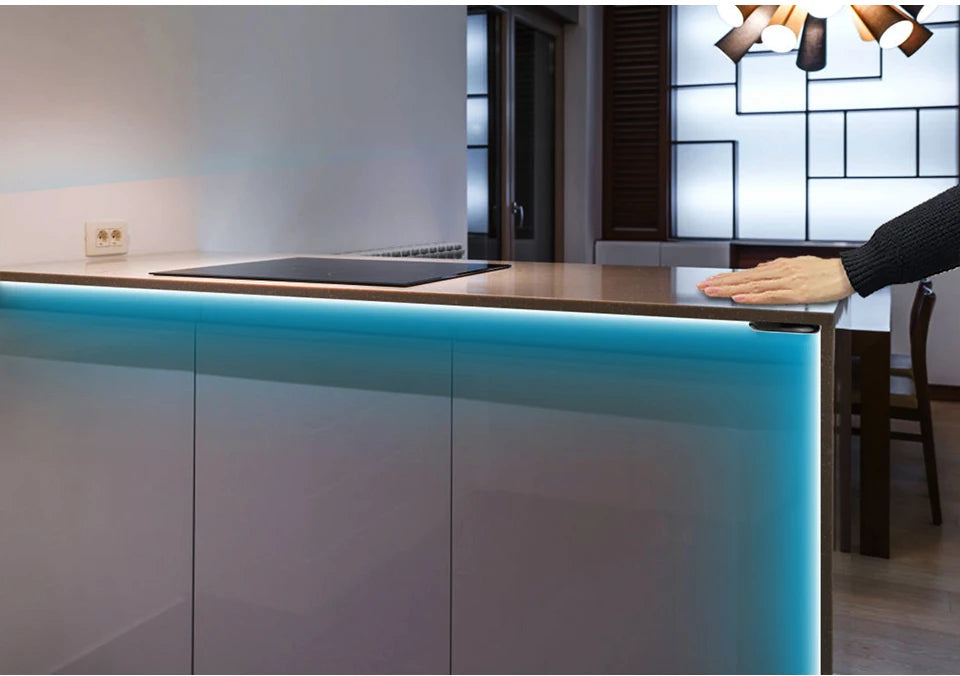

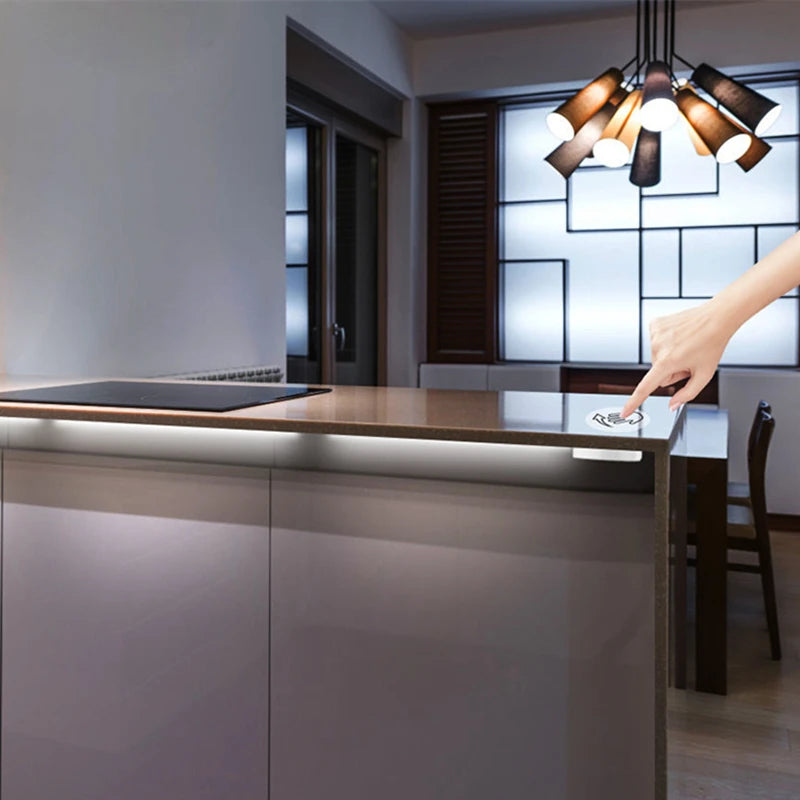

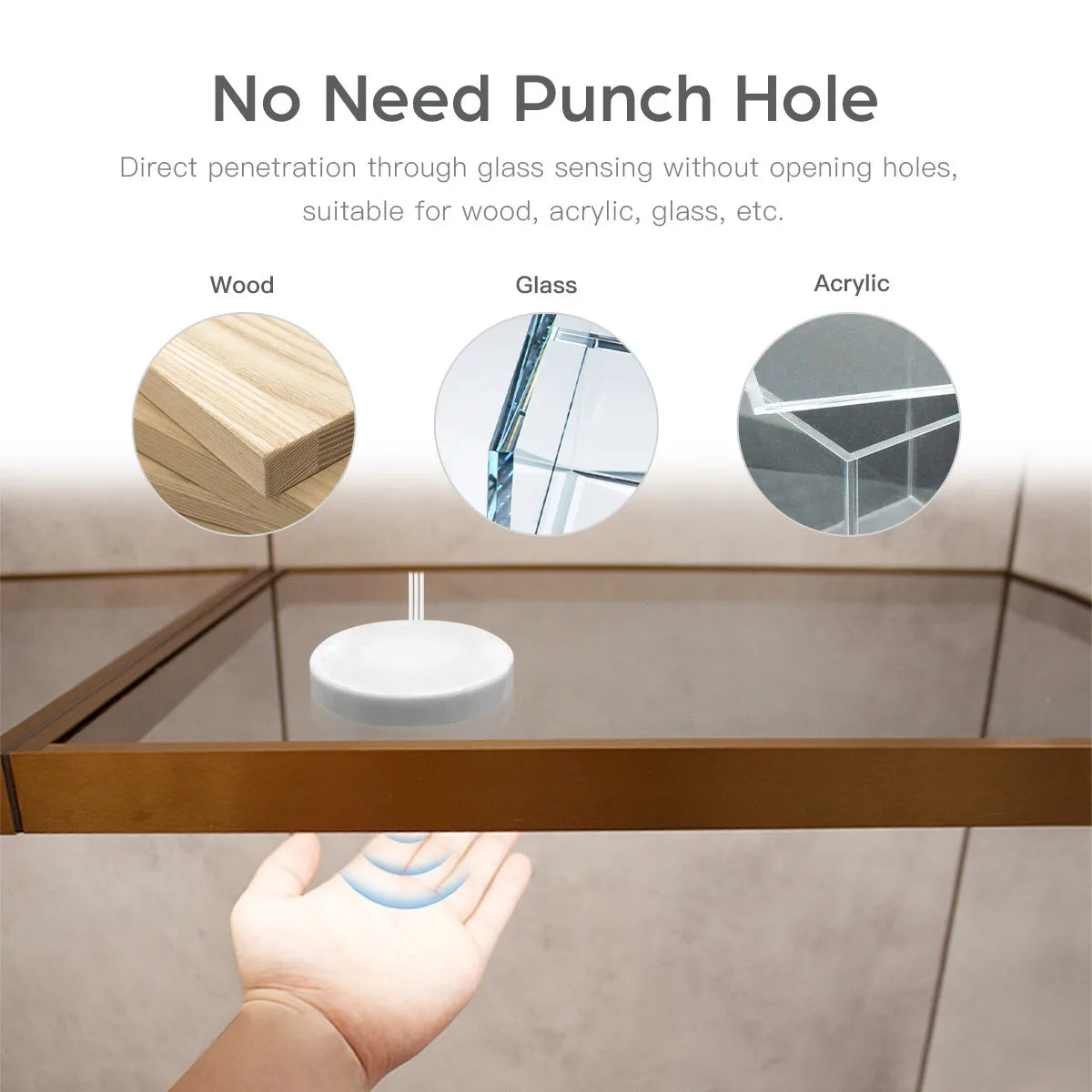

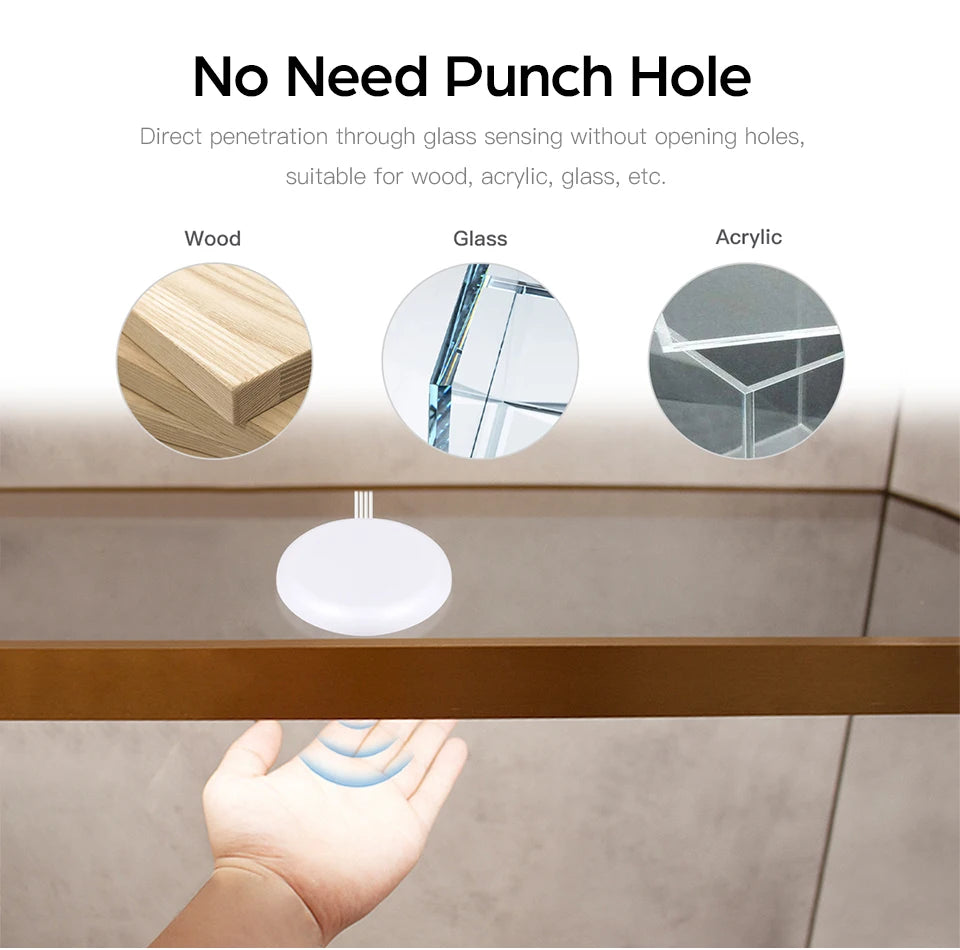

In a cabinet or mirror project, a discreet control can leave the visible surface simpler. The sensor is intended to work through a suitable non-metallic panel, so test its response with the actual material and thickness before completing the installation.

Match the sensor version, wiring and load to the LED system. Panel material and nearby metal affect response, and the stated wood-detection thickness is up to 20mm under suitable conditions. This selection is the control component; demonstration lighting, power supply and other installation parts are separate.

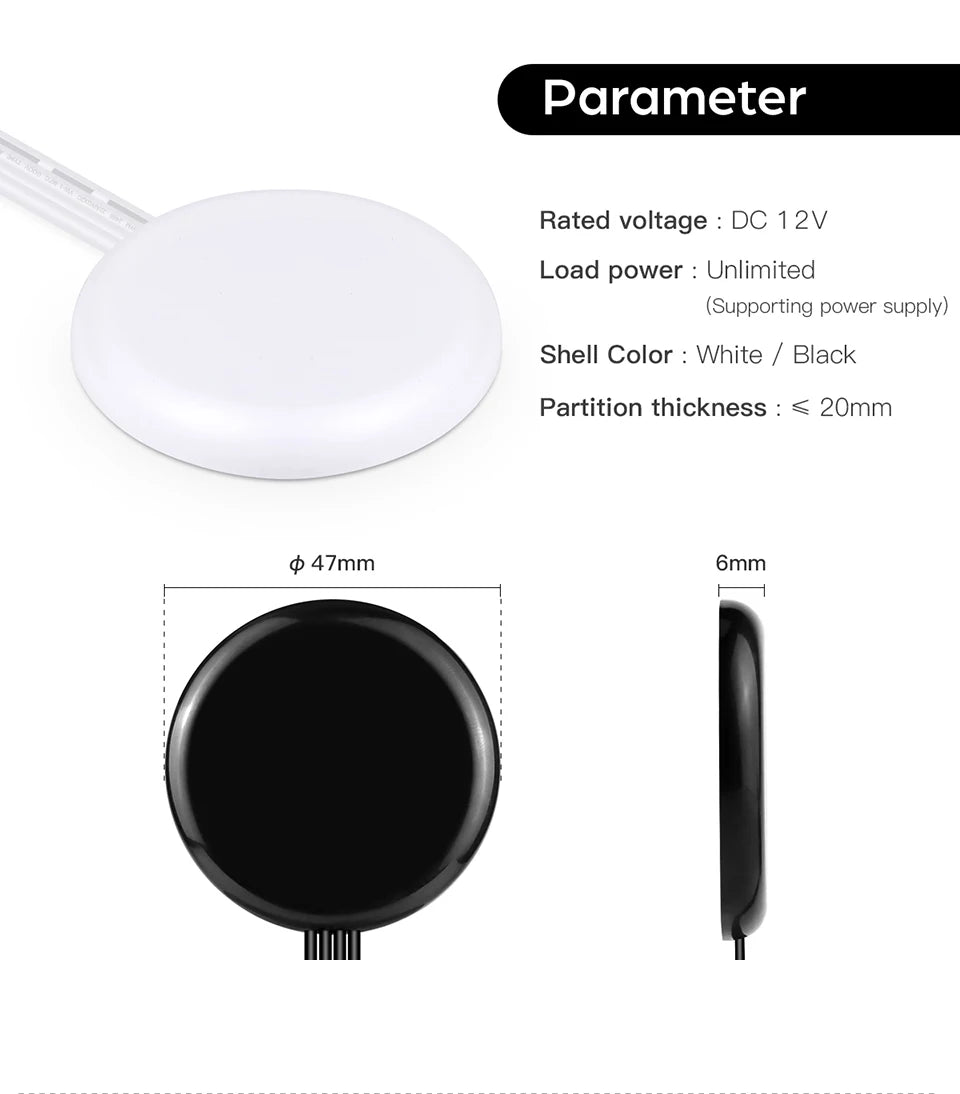

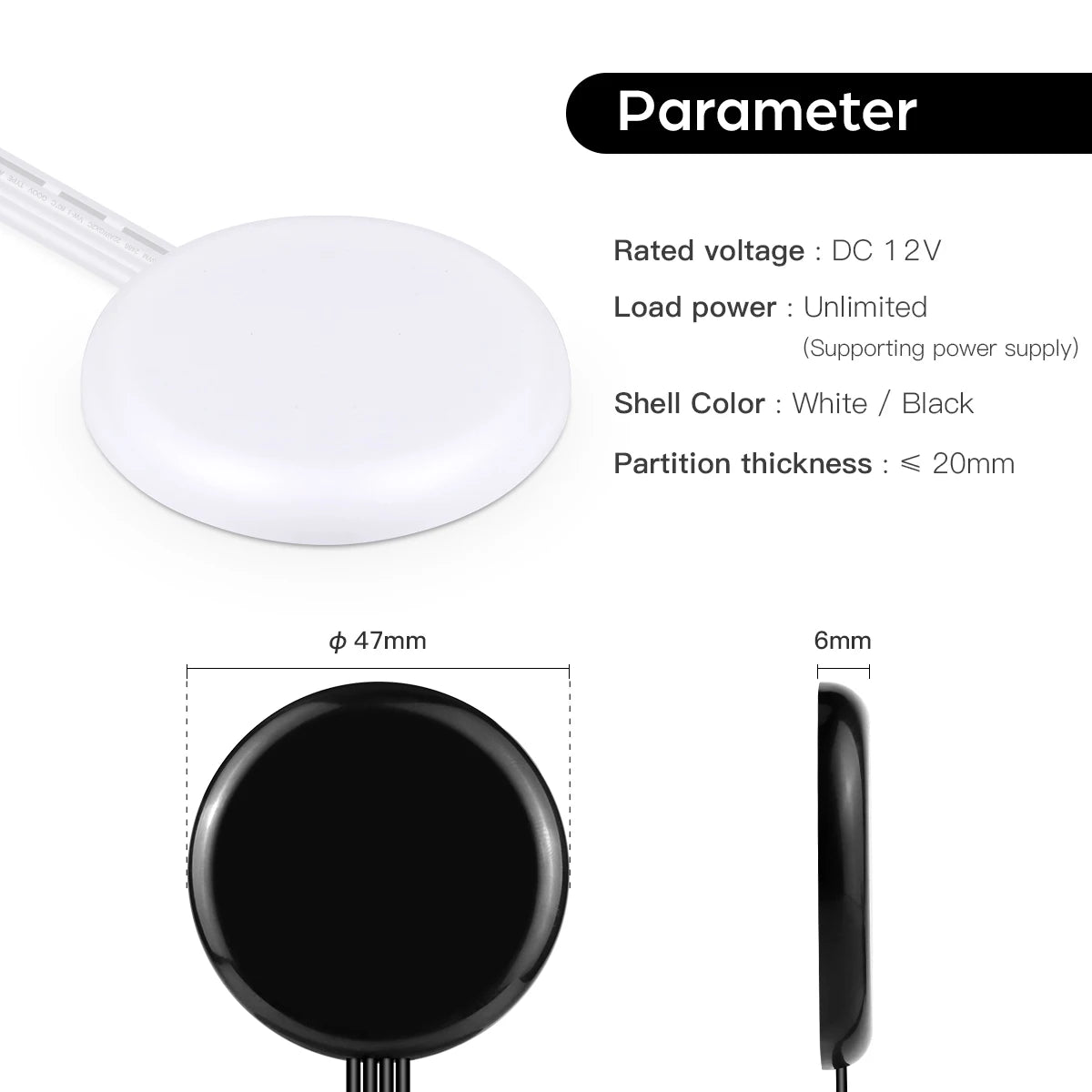

Technical details

• Low-voltage sensor dimmer component
• 12-24V DC system specification

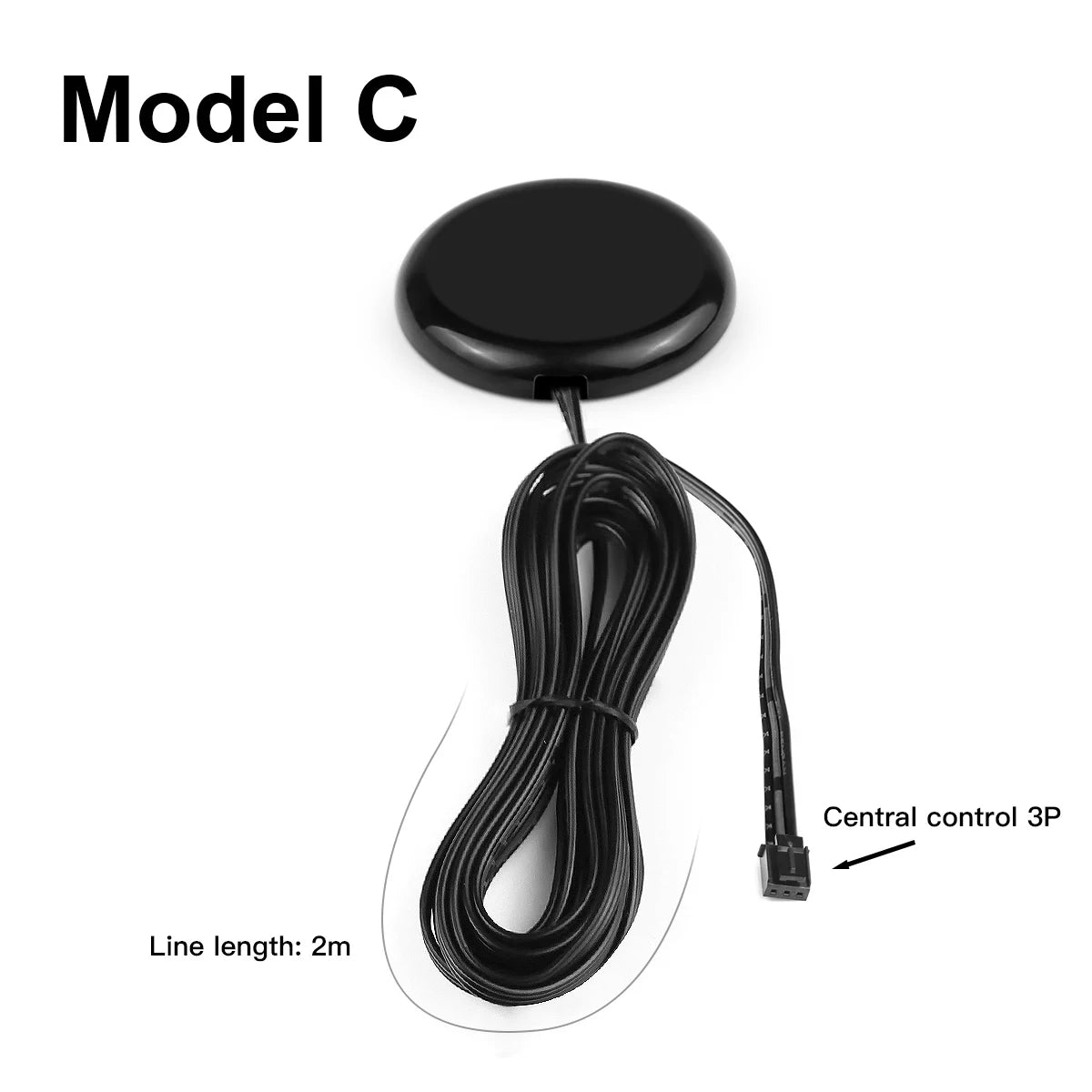

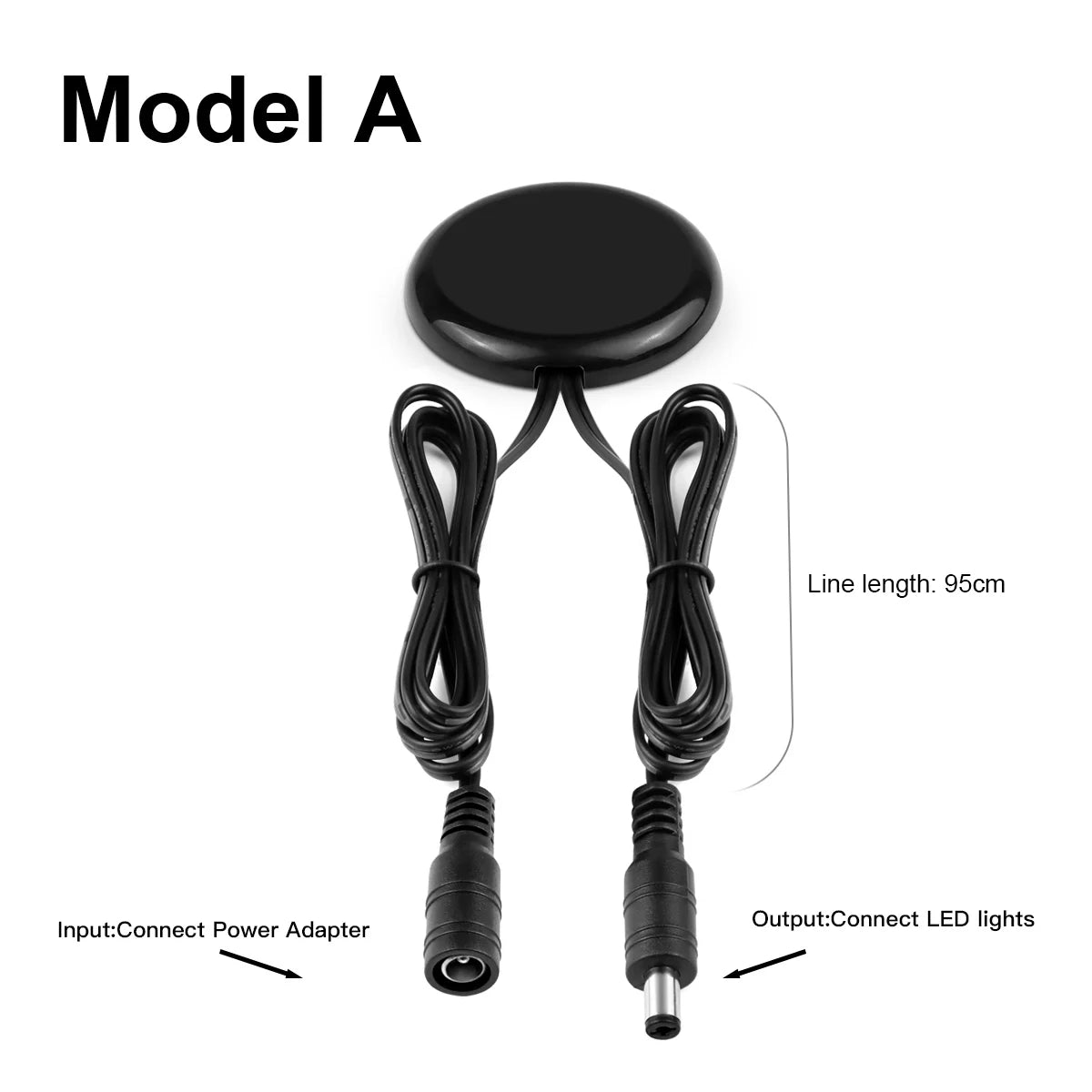

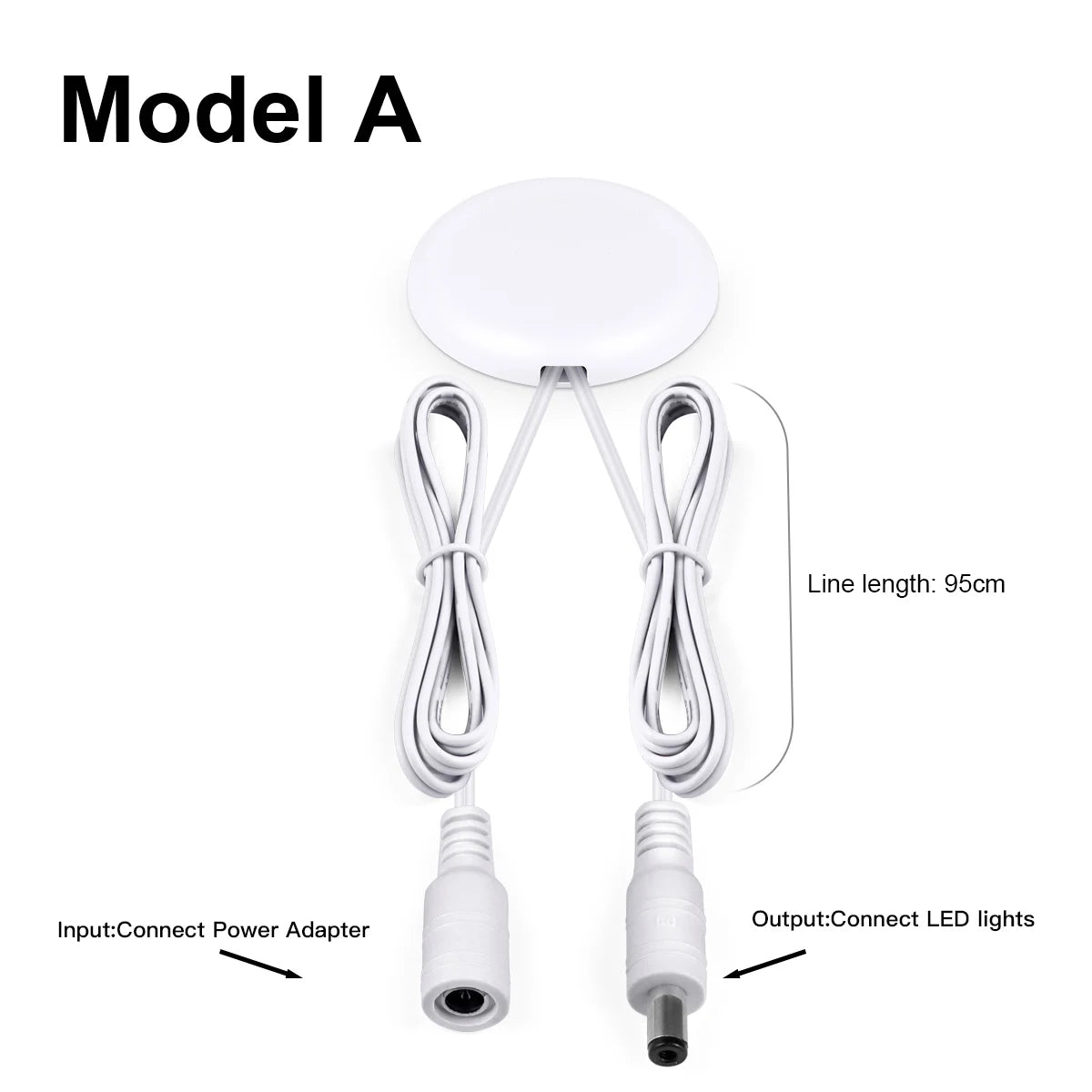

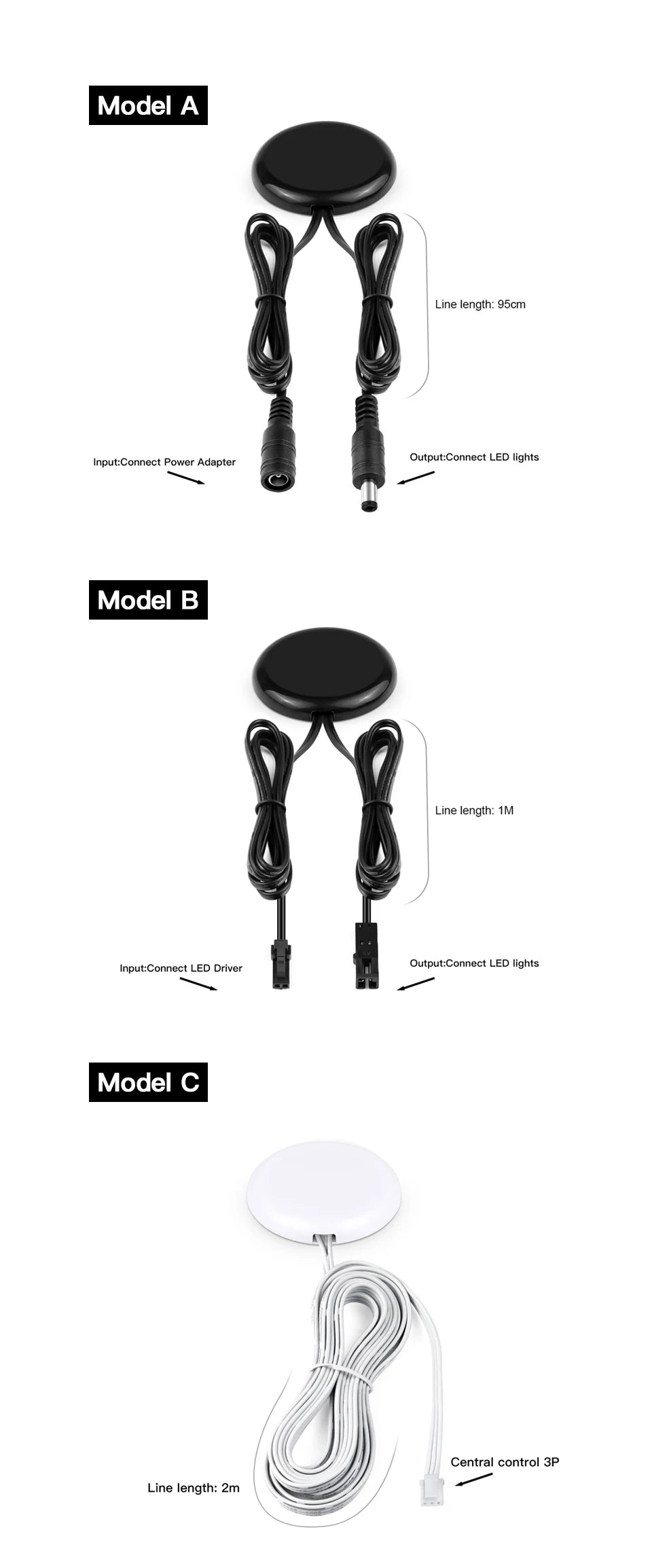

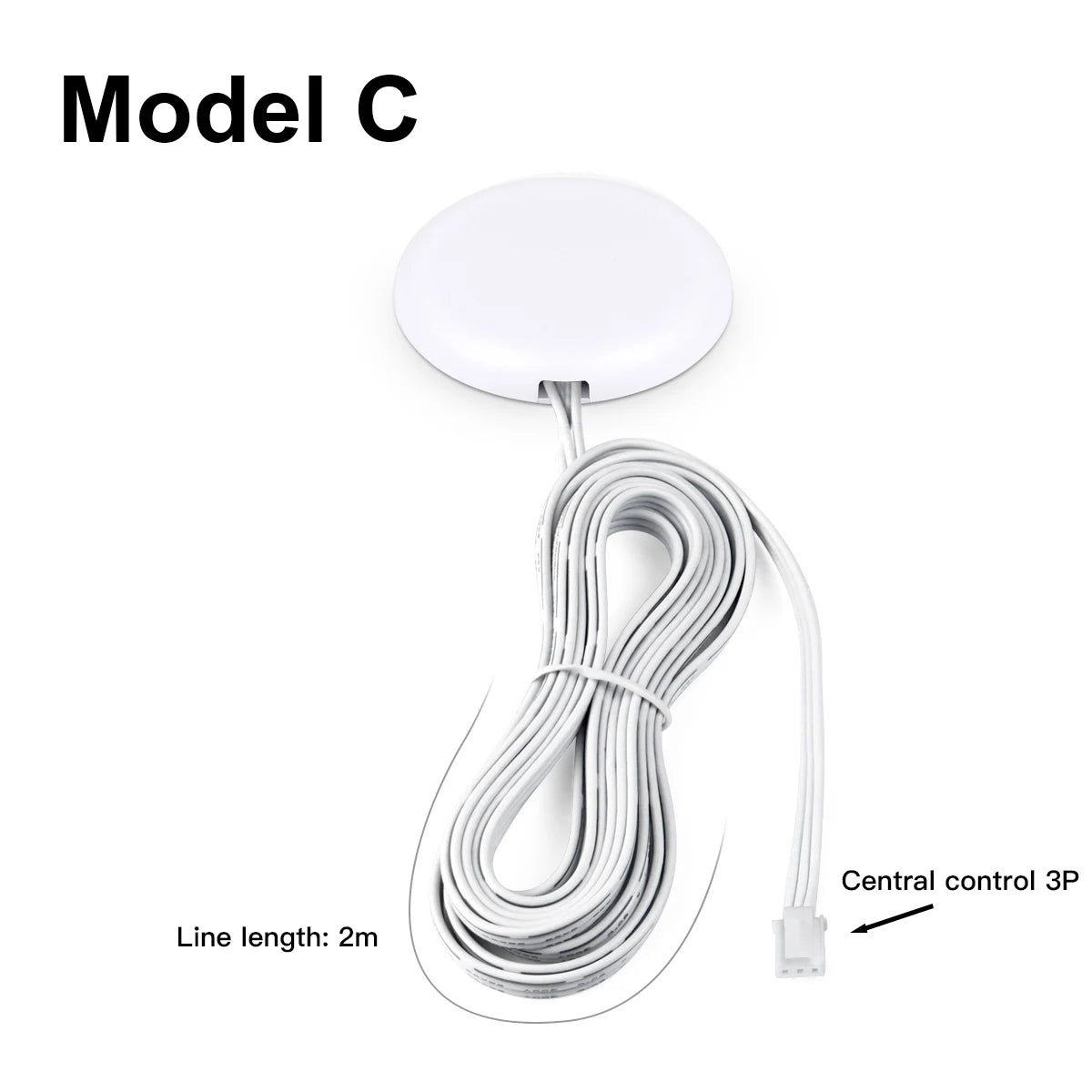

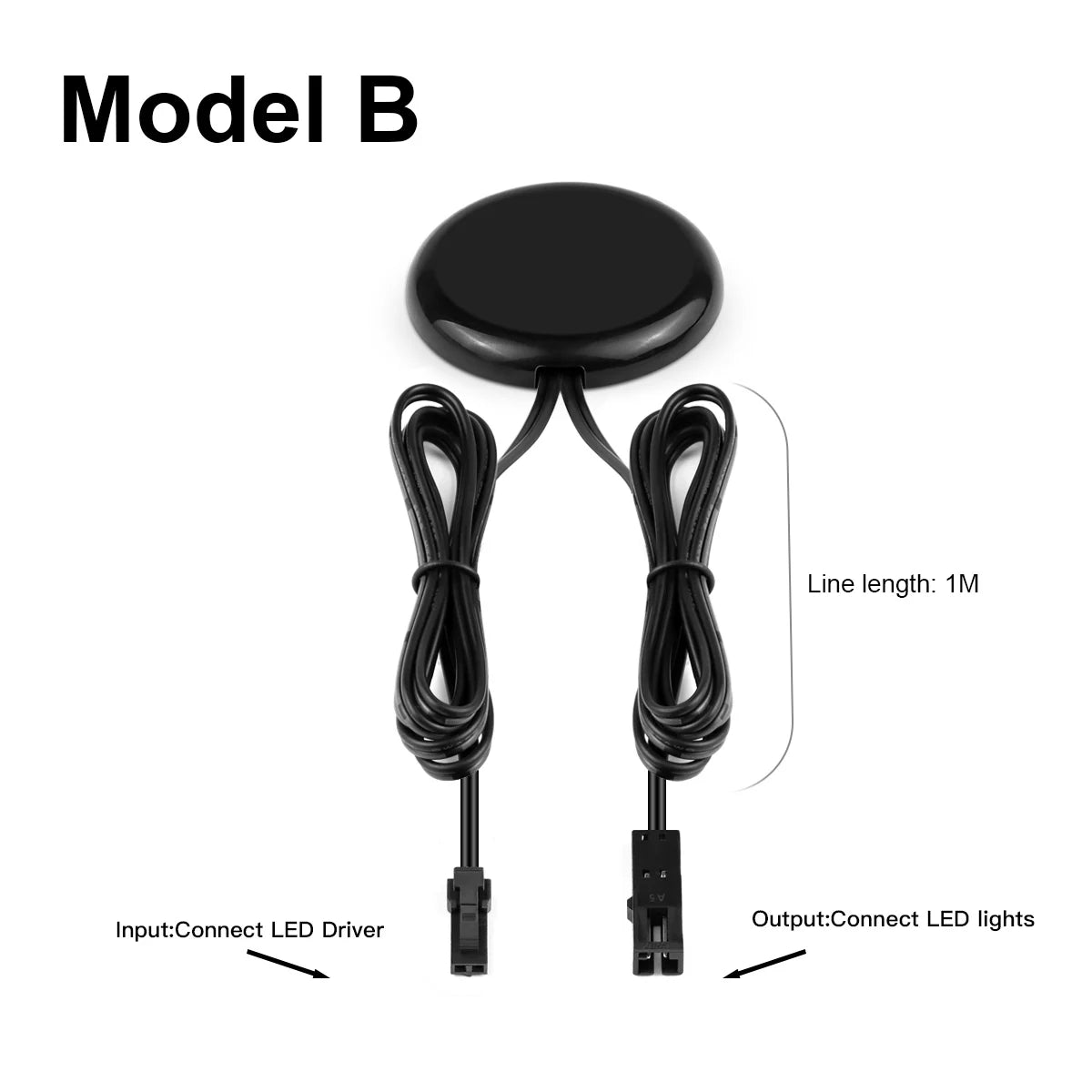

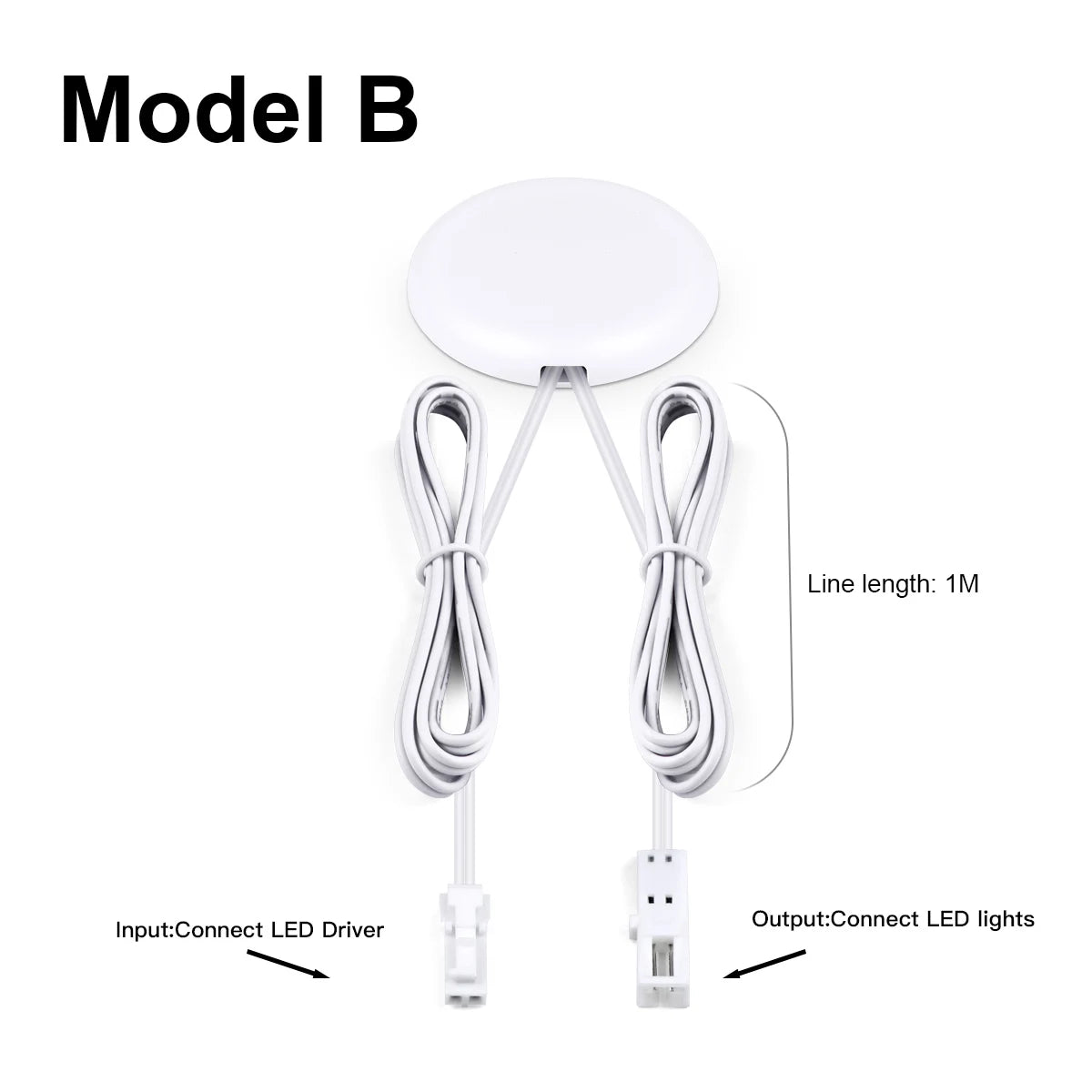

• DC-wire, Dupont-wire and central-control selections

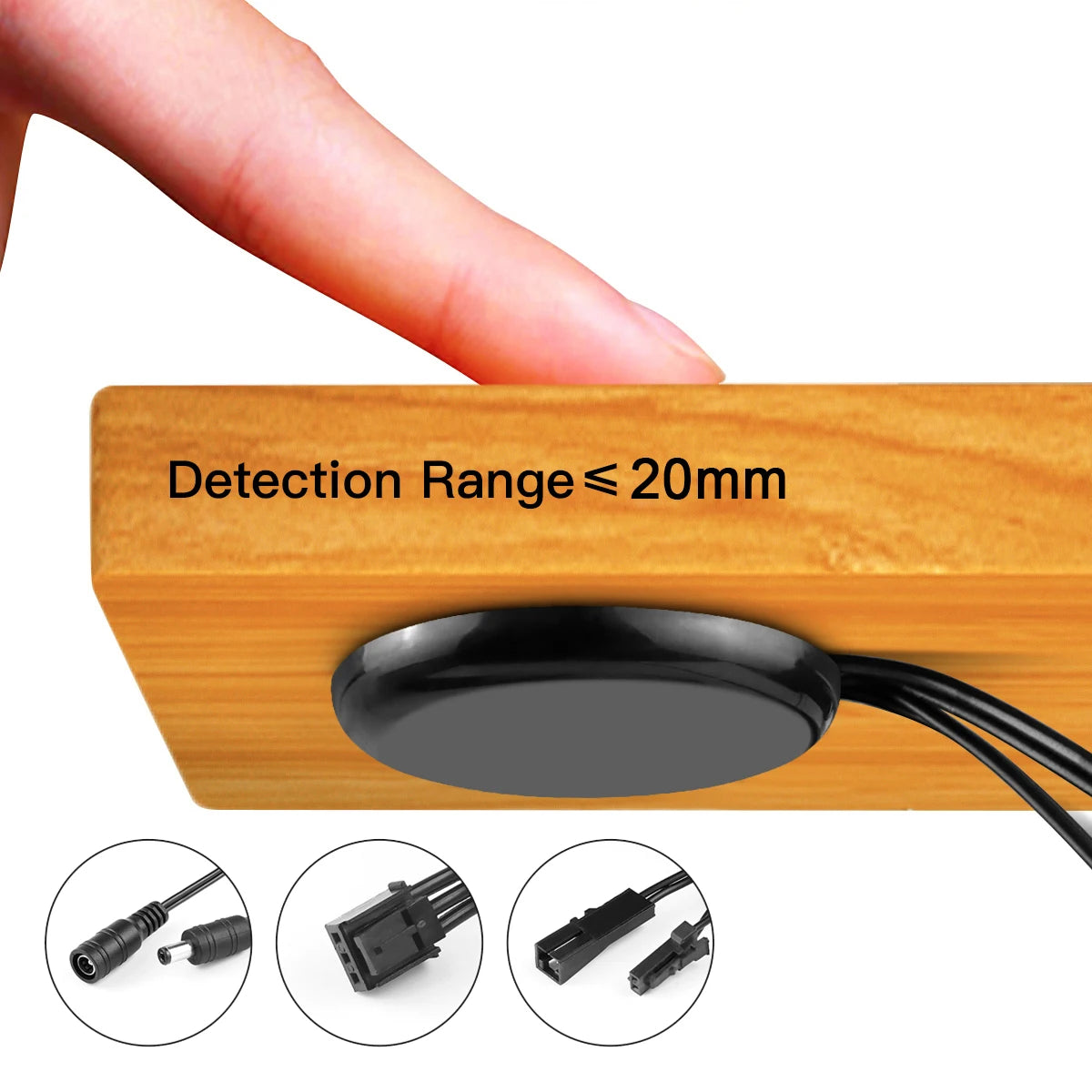

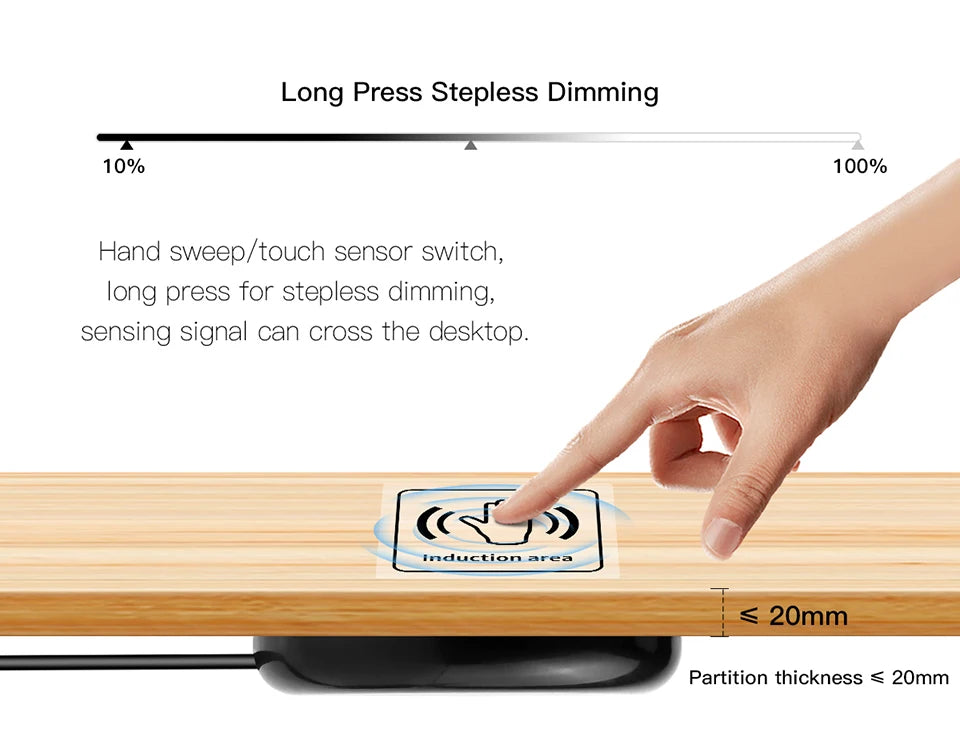

• Wood-detection thickness specified up to 20mm; material-dependent
• Confirm exact version's current/load limits and wiring
• Demonstration light not included

Match the panel and LED system, then give your lighting a discreet control.
