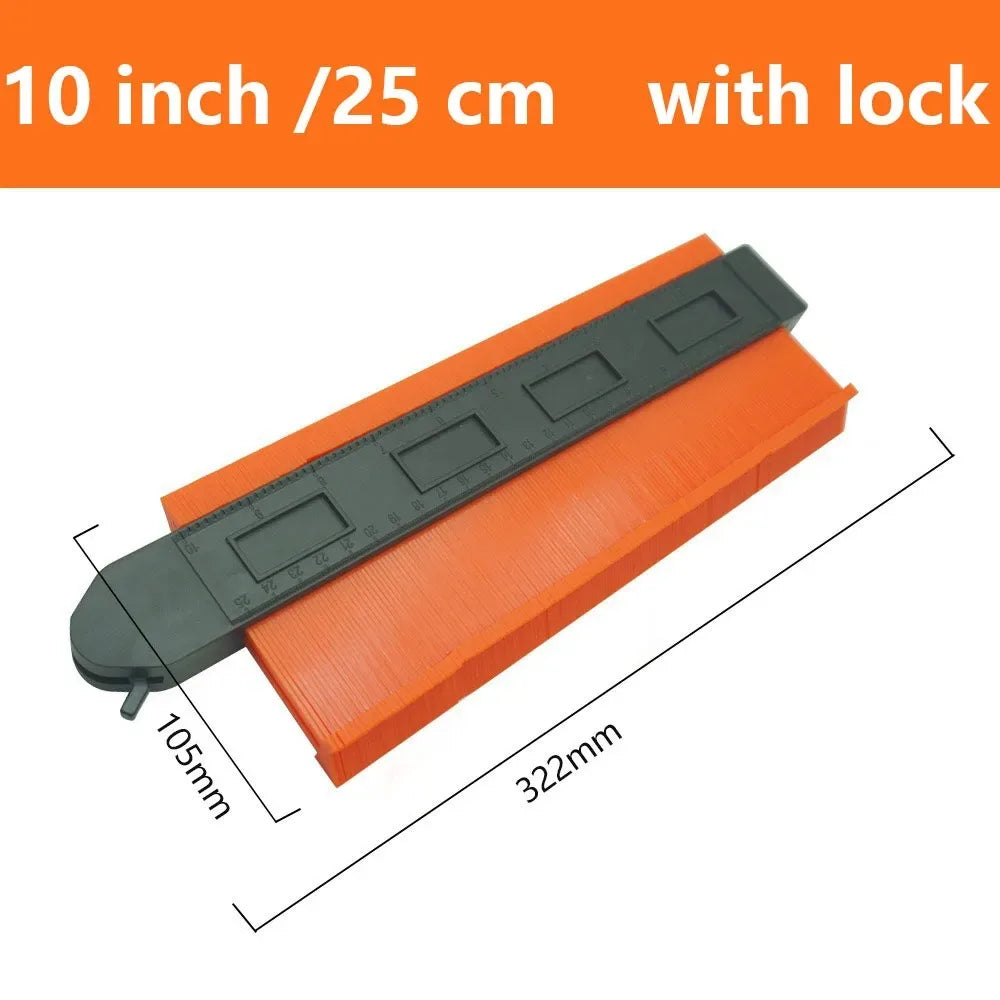

Locking Contour Profile Gauge, 5 or 10 Inch

Keep an irregular outline in place while transferring it to a workpiece. This contour gauge has a locking format and several width options. It is for DIY users marking flooring, tile or trim around a suitable profile.

• ✅ Copy an awkward edge — The gauge follows an irregular outline.

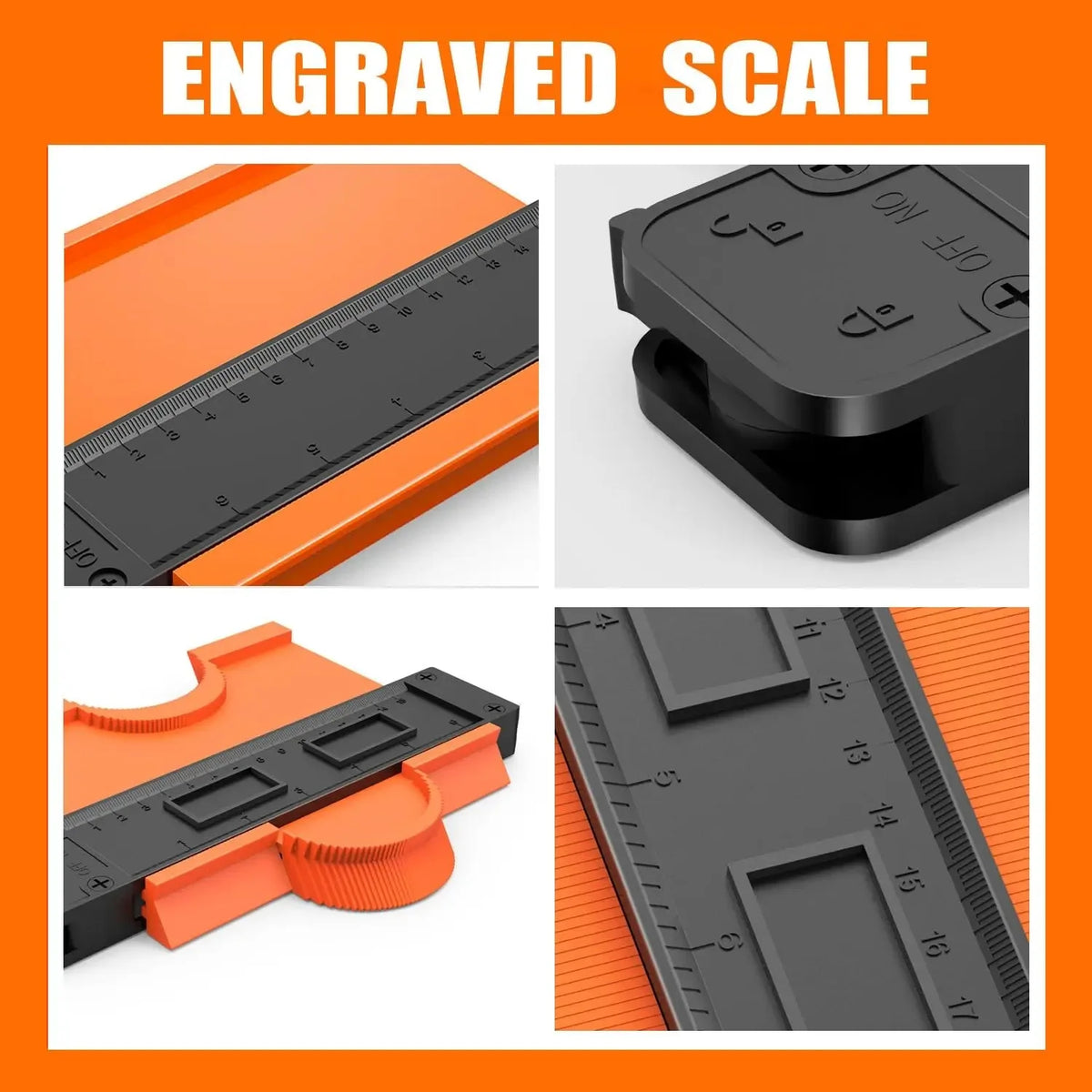

• ✅ Retain the captured shape — A locking feature holds the profile for transfer.
• ✅ Choose a working span — Five- and ten-inch options suit different lengths.
• ✅ Select a wider version — The ten-inch wide option differs from the normal labels.

Capture the profile before marking

A locking gauge is useful when you need to move a copied outline from the fitting to the material. Set the pins against the profile, retain the shape and use it as a marking guide.

Choose 10inch wide, 10inch normal or 5inch normal. Exact pin depth and measurement tolerance are not confirmed. Check the marked profile against the fitting before committing to a cut.

Technical details

• Product: Contour/profile gauge
• Feature: Locking format
• Size labels: 5 inch or 10 inch
• Versions: Normal or 10-inch wide
• Use: Profile transfer and marking
• Operation: Manual

Choose the span and transfer your next irregular outline before cutting.
